Matchmaster 12MM-DSTM2 User manual

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 1 of 16
Instruction Manual
12MM-DSTM2
SAFETY
WARNING
CONTENTS
Safety
Warning
Note
1 Overview
1.1 Features
1.2 Accessories
2 Introduction of panel function
2.1 Remote Control
2.2 Front panel introduction
2.3 Top panel introduction
2.4 Rear panel introduction
3 Detail operation guide
3.1 DVB-S/S2 Satellite
3.1.1 Satellite Finding
3.1.2 Dish Setup
3.1.3 Angle Calculation
3.1.4 Constellation Analyzer
3.2 DVB-T/T2 Terrestrial
3.3 DVB-C Cable
3.4 Compass
3.5 Spectrum Analyzer
3.6 Multimedia
3.7 Setting

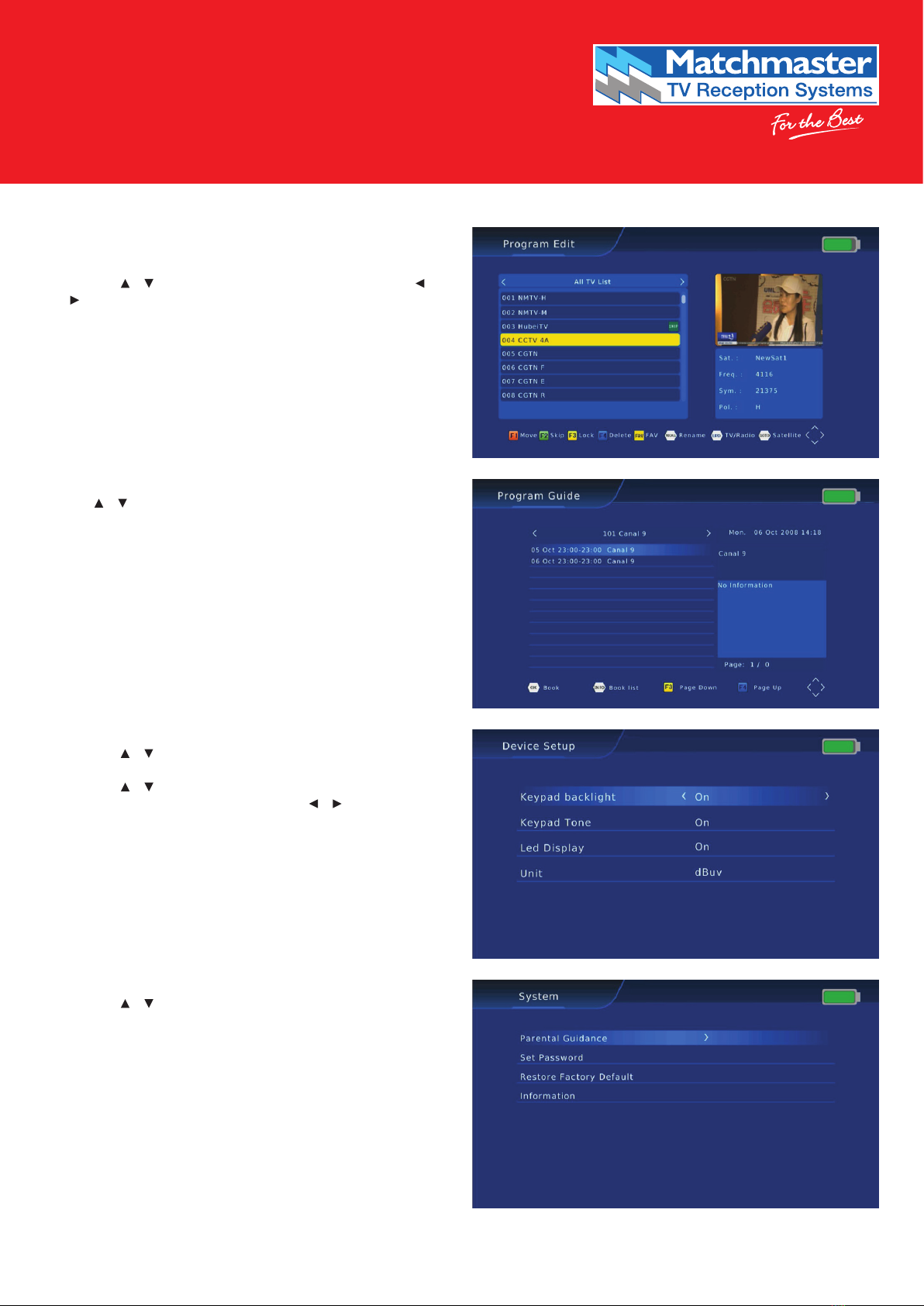

3.7.1 Program
3.7.2 EPG
3.7.3 Device Setup
3.7.4 System
3.7.5 Picture
3.7.6 Option
3.7.7 Time
3.7.8 USB Upgrade
4 Technical Specifications
1. Please read this manual carefully before rst use.
2. The LCD is not a touch screen.
3. Do not place heavy items on the device.
4. Do not leave the device near to heat sources, in direct sunlight, in places with strong mechanical vibration or dusty
environments.
5. Please place the device in ventilated surroundings.
6. The device should be fully charged before using for the rst time (recommend 6 hours for the rst charge).
7. Contact Matchmaster Communications Pty Ltd if malfunction of the device happens.
8. Damaging the device on operation without following the guideline will not be warranted.
1. Avoid using batteries near heat sources.
2. Do not get wet.
3. Avoid charging in heated locations or direct sunlight.
4. Charge using only charging accessories supplied.
5. When the battery is being charged by a vehicle charger, please ensure the polarity of the charging connection is
correct.

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 2 of 16
Instruction Manual
12MM-DSTM2
The 12MM-DSTM2 is an HD digital signal meter and portable device for installation and adjustment of satellite and
terrestrial receiving antennas.
1.1 Features
• Combination of DVB-T/T2/C and DVB-S/S2
• High resolution 5’’TFT LCD
• Multi-lingual OSD and use-friendly UI
• Supports Spectrum function
• Real time constellation display
• Supports TP search and blind search
• USB 2.0 for software update/media play back
• Supports time shift
• Supports TP PVR
• Supports program edit (move/skip/lock/delete/
rename)
• Supports electronic program guide (EPG)
• Supports HDTV video/audio output
• Supports HD TV input
• Supports AV input for monitor installing
• Supports DC+12V out for monitor installing
• Ease of use via shortcut keys
• Supports RCU
• Built in loudspeaker for audio play
• Video and Audio signal when signal locked
• Built in LED light
• Large lithium battery capacity (4000mAh)
• Support 8MP camera input, supported formats are AHD
TVI CVI CVBS
1.2 Accessories
1x Manual
1x Power Adapter
1x Power Cable
1x Car Adaptor
1x Connector F-Type
1x Connector F-Type to IEC typ
1x Connector BNC to AV
2x AV Cable
1x Remote Control Unit (RCU)
1x Carry Bag
1. Antistatic: The battery is equipped with a protective circuit to avoid the occurrence of various accidents. Do not
use the battery in the generation of static electricity as static electricity (100V or above) will easily damage the
protection circuit which may lead to battery failure or damage, heat causing smoke/re or deformation of the battery
pack.
2. Charge temperature range: Recommended charge temperature range is 0~45. Charging in an environment beyond
this range may cause a decrease in battery performance and reduce the life span.
3. Charging mode: Please use the supplied charger in the recommended environment for the battery charge. After
discharge of the battery, please charge the battery in time. Due to the special characteristics of the car charging, the
battery cannot reach the saturation state when the vehicle is used to charge the battery.
4. First use: With the rst use of the battery, if the battery is not clean or an abnormal smell or other abnormal behavior
is noted, please discontinue charging and return to Matchmaster Communications Pty Ltd.
5. When the meter is not in use for a long period of time it is best to remove the battery from the device and place in a
low temperature and humidity environment for optimal preservation.
6. Battery period of guarantee: The warranty period is 6 months from the date of shipment. However, if the problem is
not due to the failure of the manufacturing process, but instead due to improper use or storage warranty will not be
applied.
NOTE
1 OVERVIEW

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 3 of 16
Instruction Manual
12MM-DSTM2

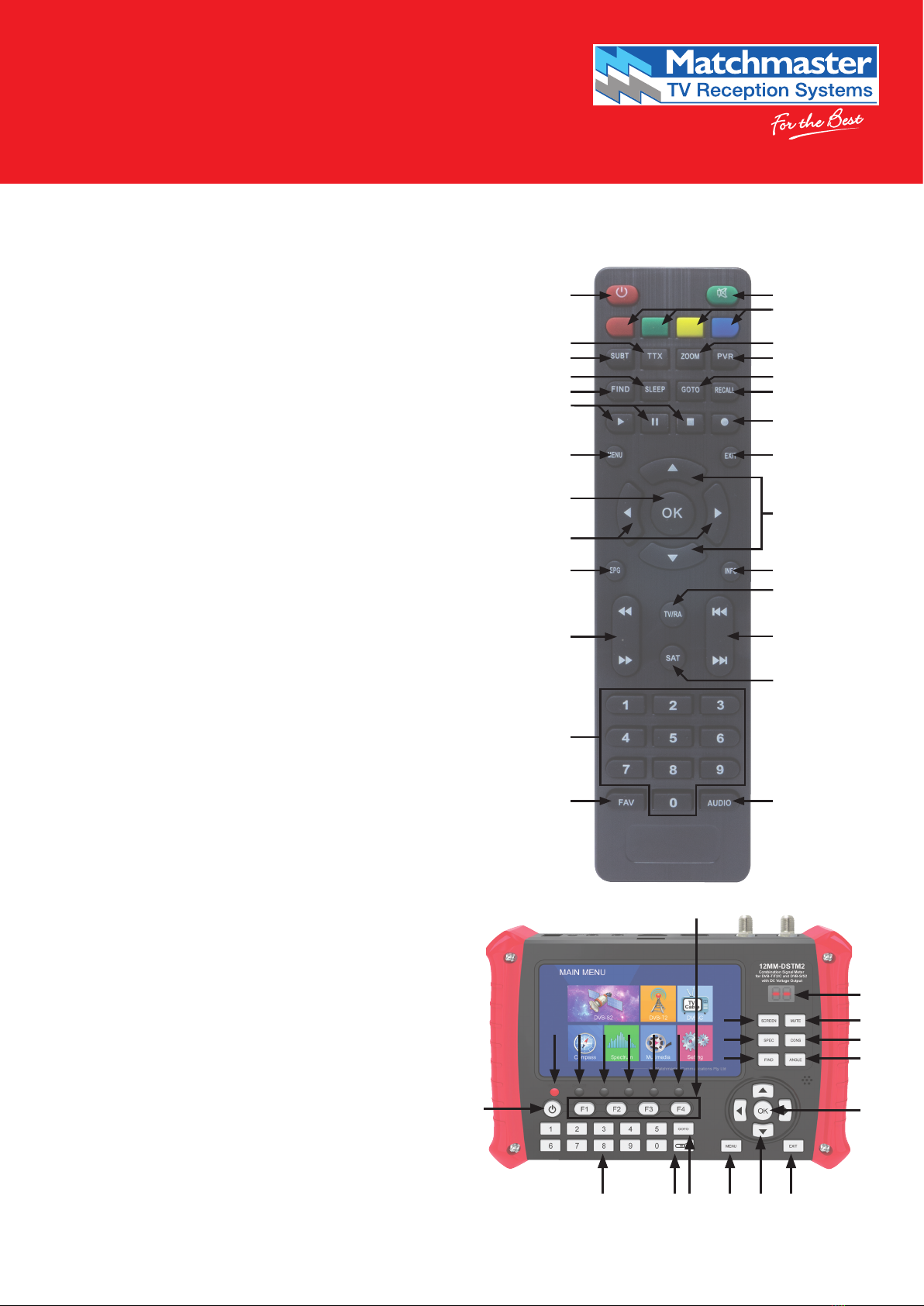

2.1 Remote Control
1. Power
2. Show the teletext content if teletext is transmitted
3. Subtitle language
4. Sleep
5. Find
6. Play, stop and pause
7. Main menu
8. Conrm the highlighted menu item. Open the channel list
9. Left and right
10. EPG
11. Fast backward and fast forward
12. Numeric key (0-9)
13. Favorite channel
14. Mute
15. Multi-coloured buttons
16. Zoom
17. PVR
18. GOTO TP or Satellite
19. Recall
20. Start recording
21. Exit
22. Up and down
23. Display information
24. TV/radio
25. Play previous item and play next item
26. Satellite list
27. Audio language
141
15
17
19
21
23
27
25
24
26
22
20
16
18
3
5
7
10
13
11
12
8
9
6
2
4
2 INTRODUCTION OF PANEL FUNCTIONS
2.2 Front Panel Introduction
1. Power switch: press it for 3~4 seconds to switch the
device power on/off
2. Power indicator
3. Battery indicator (Red light for charging, green light for
fully charged)
4. 13V indicator
5. 18V indicator
6. 22KHz indicator
7. Signal Locked indicator
8. F1~F4: shortcut keys
9. Numeric keys
10. GOTO: Select satellite or transponder
11. LIGHT: Long press 3~4seconds to turn on LED oodlight
12. SCREEN: Signal source switching
13. MUTE: turn on or turn off the voice
14. SPEC: shortcut key for spectrum analyzer
15. CONS: shortcut key for constellation analyzer
16. FIND: shortcut key for satellite nding
17. ANGLE: Shortcut key for Angle calculation
18. Arrow keys: The keys offer the movement of cursor to a
specied direction.
19. OK: conrm key
20. MENU: Show main menu
21. EXIT: exit menu (main menu or sub menu)
22. Digitron: Show the current signal quality
23. LCD screen
1
8
2 73 4 5 6
911 20 2118
19
17
15
13
22
16
14
12
10

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 4 of 16
Instruction Manual
12MM-DSTM2

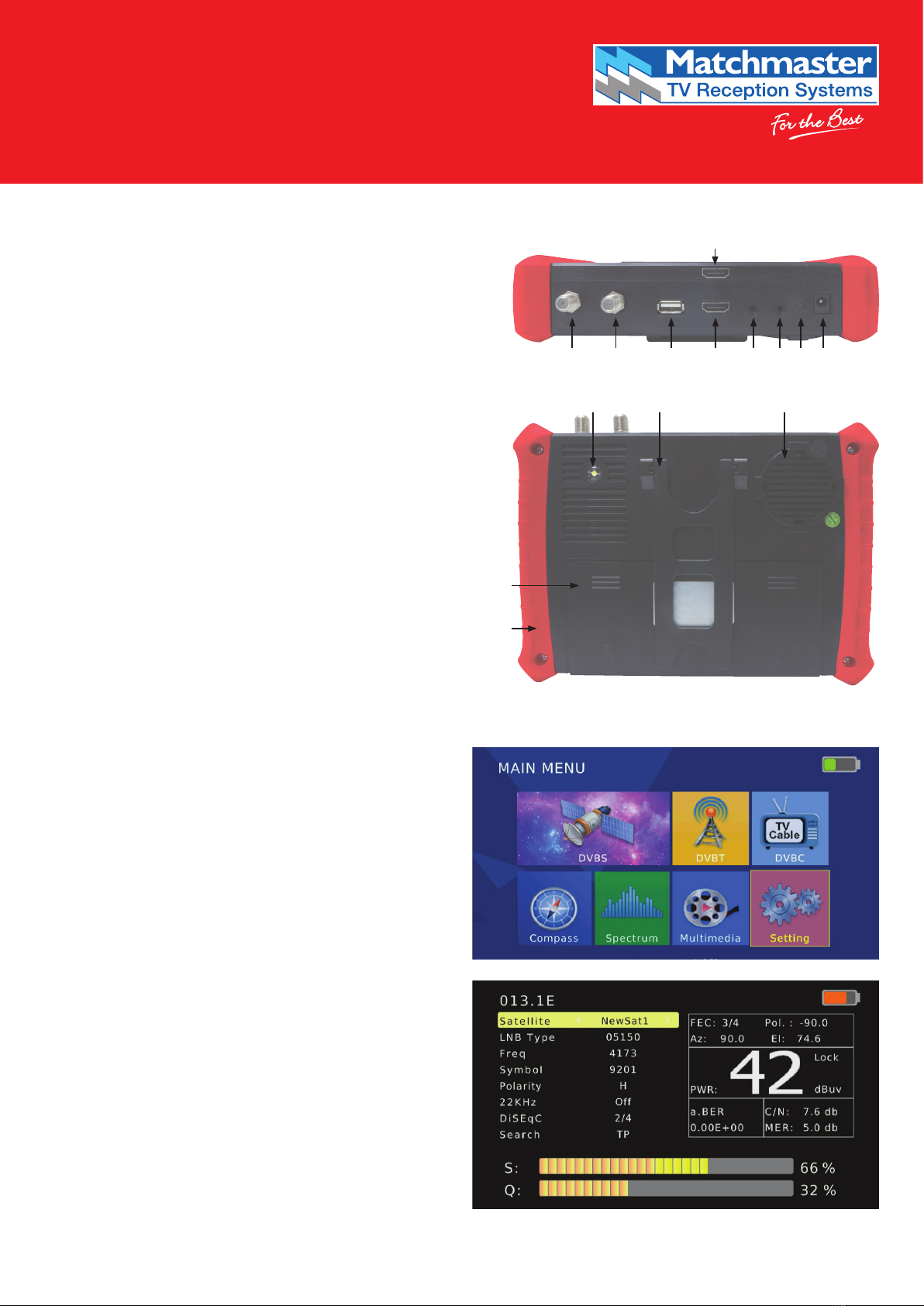

2.4 Rear Panel Introduction
1. LED oodlight
2. Holder
3. Loudspeaker
4. Battery
5. Hand grips
2.3 Top Panel Introduction
1. F connector male for Satellite Input
2. F connector male for Terrestrial and Cable Input
3. USB connector
4. HDTV OUT connector
5. AV OUT connector (3.5 Phone Jack)
6. AV IN connector (3.5 Phone Jack)
7. Reset key
8. DC jack (for charger)
9. HD IN connector
1 2 3 4 5 6 7 8
9
1
4
5
2 3
When you turn on the device, you can see the main menu
which consists of DVB-S2, DVB-T2, DVB-C, Compass,
Spectrum, Multimedia and Setting.
3 DETAILED OPERATION GUIDE
3.1 DVB-S/S2
3.1.1 Satellite Finding
Move cursor to “Satellite Finding” and press “OK’’, then you
will enter the “Satellite Finding’’ interface.

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 5 of 16
Instruction Manual
12MM-DSTM2
2. Press“OK’’ on the LNB Type option, then you will see
the following window. Press [ / ] to select the LNB
Type and press “OK’’ to confirm.
1. Press“OK’’ on the Satellite option, then you will see the
following window. Press [ / ] to select an existing
satellite and press “OK” to confirm.
3. Press“OK’’ on the Freq, Symbol Rate, Polarity option,
and follow steps as above to adjust as needed.
4. Use the number buttons to input the Frequency,
Symbol Rate and Polarity manually, then press “OK’’ to
confirm.
5. When the signal is locked, the buzzer will sound. The
signal quality bar will also be displayed on the LCD.
Meanwhile, the LOCK LED will light up.
6. Press“OK ’’on the Search option, and the satellite finder
will begin to search the channel according to the TP
you selected or input manually. It will switch to the
Program page after the search (if there is a program on
the Transponder).

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 6 of 16
Instruction Manual
12MM-DSTM2

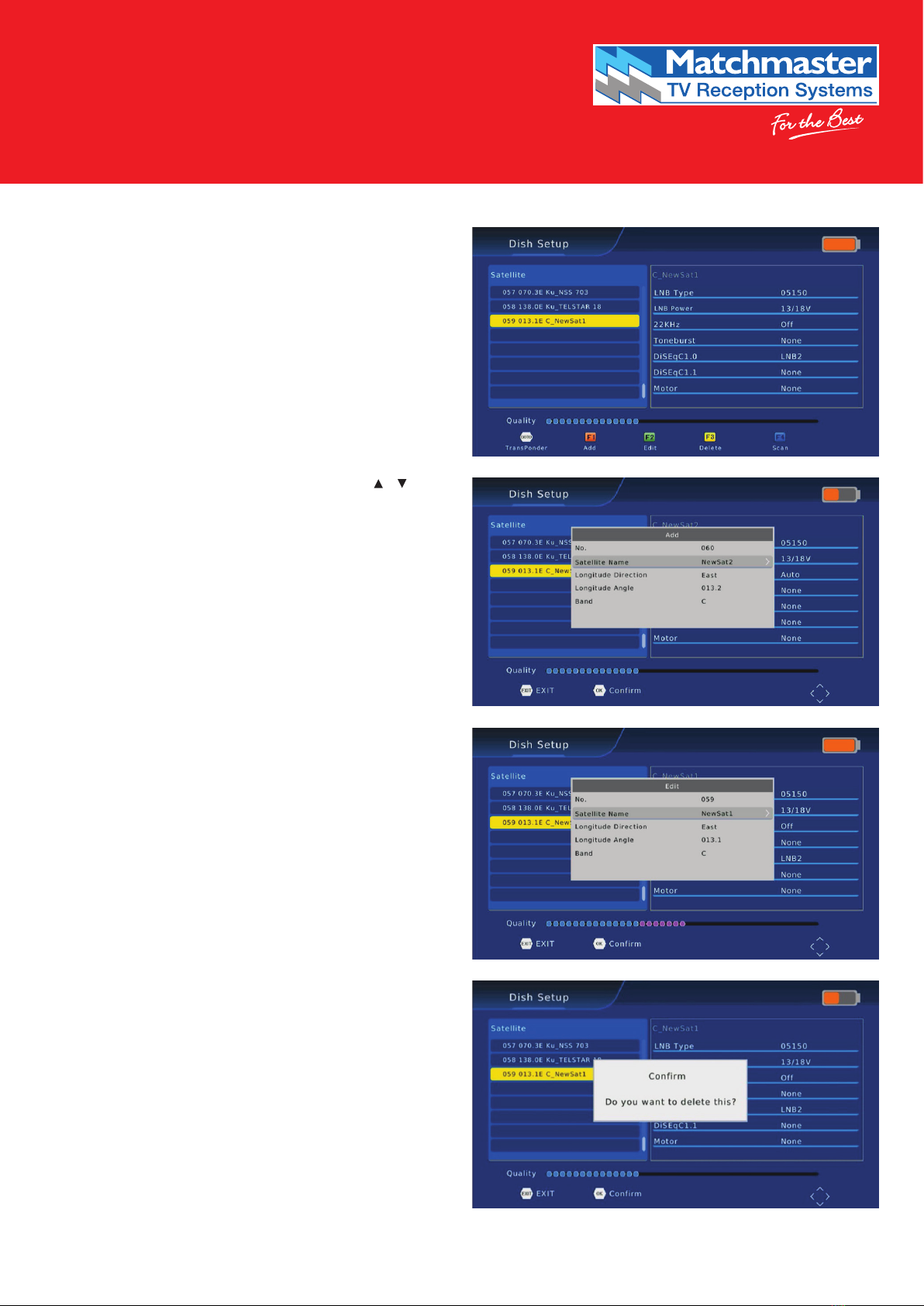

3.1.2 Dish Setting
Move cursor to “Dish Setup’’ and press “OK’’, then you can
enter the “Dish Setup’’ interface.
1. Under the Satellite list page, you can press [ / ] to
select the satellite.
2. Press [F1] to add a new satellite through setting
Satellite Name, Longitude Direction, Longitude Angle
or Band.
3. Press [F2] to edit existing satellite, which includes
Satellite Name, Longitude Direction, Longitude Angle
and Band.
4. Press [F3] to delete existed satellite. If you press OK,
the satellite will be deleted or you can press “EXIT’’ to
exit.

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 7 of 16
Instruction Manual
12MM-DSTM2
6. Press [GOTO] to get into the TP list, you can also use
[F1] [F2] [F3] [F4] to add, edit, delete or begin to scan
the selected TP. Press [GOTO] to return to the satellite
list.
5. Press [F4] to begin scan, with Default, Blind Scan and
Network optional scan modes.
7. Select one of the satellites and press [ / ] to get
into the LNB Type setting.
8. LNB Type: Press [ / ] to choose LNB Type between
9750/10600, 9750/10750, 05150, 05750, 09750,
10600, 10700, 10750, 11300 and 11475.
9. LNB Power: Press [ / ] to choose between Off/13V/
(13V/18V)/18V.
10. 22K: Choose AUTO/ON/OFF.
11. Toneburst: Press [ / ] to choose between None/
BurstA/BurstB.
12. DiSEqC1.0: Press [ / ] to choose between None/
LNB1/ LNB2/ LNB3/ LNB4.
13. DiSEqC1.1: Press [ / ] to choose between None/
LNB1~LNB16.
14. Motor: Press [ / ] to choose between None/
DiSEqC1.2/DiSEqC1.3.

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 8 of 16
Instruction Manual
12MM-DSTM2

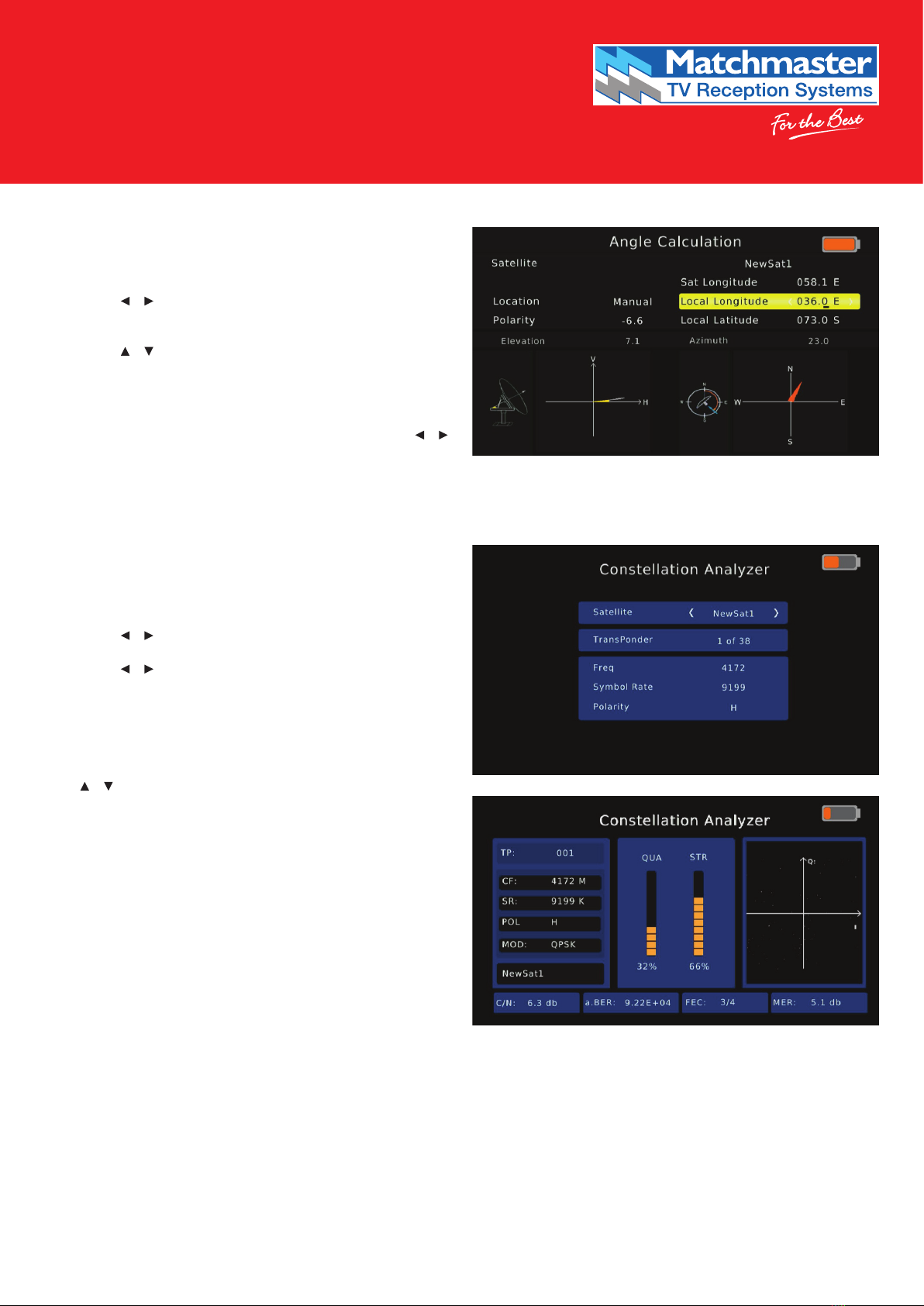

3.1.3 Angle Calculation
Move cursor to “Angle Calculation” and press “OK’’, then
you can enter the “Angle Calculation’’ interface.
1. Press [ / ] on Satellite option to select an existing
satellite, the longitude of the satellite will be changed
correspondingly.
2. Press [ / ] on Sat Longitude option, then you can
use the number keys to input the satellite longitude you
want.
3. If you select Manual, then you can move cursor to the
Local Longitude and the Local Latitude and use the
Number keys to input the value you want. (Press [ /
]to select east or west local longitude, south or north
Hemisphere).
4. When a parameter has changed, the system will
calculate the result and will show the picture on the
screen automatically.
3.1.4 Constellation Analyzer
Move the cursor to “Constellation Analyzer” and press
“OK’’, then you will enter the “Constellation Analyzer”
interface.
1. Press [ / ] to select a satellite and you can see the
Transponder changes accordingly.
2. Press [ / ] to select a Transponder and you can
see TP frequency, Symbol Rate and Polarity change
accordingly.
3. Press“OK ’’, then you will see the quality bar and the
strength bar.
4. Under Constellation Analyzer interface (by Frequency),
press
[ / ] to switch between other Frequency of the
selected satellite

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 9 of 16
Instruction Manual
12MM-DSTM2
3.2 DVB-T/T2
Move cursor to “DVB-T” and press “OK’’, then you will enter
the “DVB-T/T2” interface.
1. Press [ / ] on Manual Search and press“OK’’ , then
you will see the following menu.
3.3 DVB-C
Move cursor to “DVB-C” and press “OK”, then you will
enter the “DVB-C” interface.
1. Press [ / ] on Manual Search and press“OK’’ , then
you will see the following menu.

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 10 of 16
Instruction Manual
12MM-DSTM2

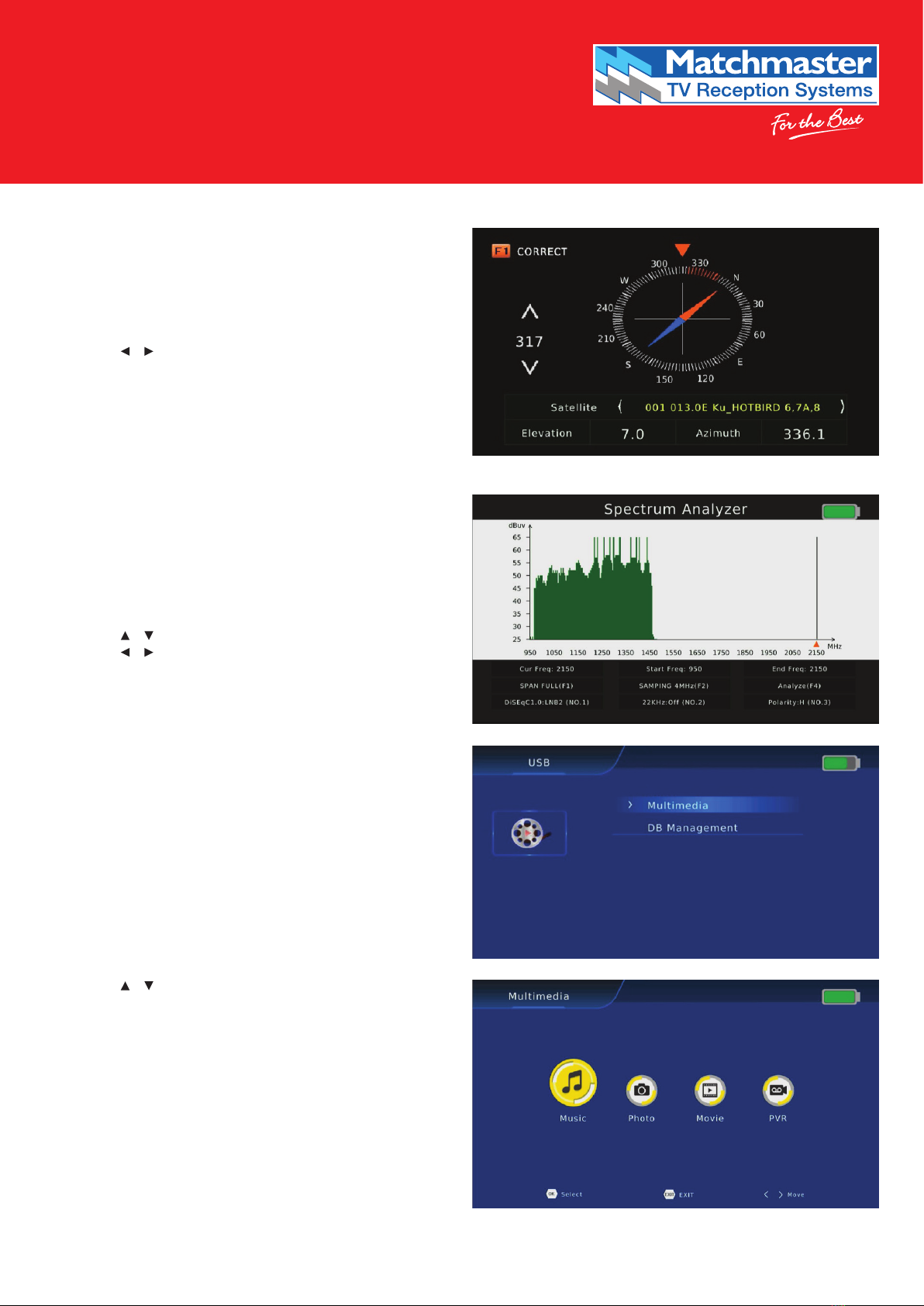

3.4 Compass
Move cursor to “Compass” and press “OK” then you will
enter the “Compass” interface.
1. Before using this function, please calibrate the
equipment. By pressing [F1 key] and horizontally
rotating to calibrate the equipment.
2. Press [ / ] to can choose the satellite and it
will calculate the Elevation and Azimuth value
automatically.
3. The red arrow represents the north needle, and the
blue arrow represents the south needle
4. Note: to use this function, you need to set the local
latitude and longitude parameters first. The calculated
value is for reference only.
3.5 Spectrum
Move cursor to “Spectrum” and press “OK”, then you will
enter the “Parameter Setting” interface.
1. Press [F1] to switch SPAN of spectrum frequency, FULL
is default. The smaller span will show clearer signal
status of frequencies.
2. Press [F4] to pause current status.
3. Press [ / ] to move power reference position.
4. Press [ / ] to move cursor to select the frequency,
the signal strength of the selected frequency will be
displayed on the left-top corner.
5. DVB-S/DVB-T/DVB-C all support spectrum sub-board
function
3.6 Multimedia
Connect your USB and move the cursor to “Multimedia”
and press “OK”, then you will enter the “USB” interface.
1. Press [ / ] on Multimedia and press “OK”, then you
will see the following menu.

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 11 of 16
Instruction Manual
12MM-DSTM2
3.7 Setting
Move cursor to “Setting “and press “OK”, then you will
enter the “System Setting” interface.
3. Press [ / ] to select PVR and press “OK”, press [ /
] to select the [HBPVR] file and press “OK”, then you
will see the program you have recorded.
4. The next time if you want to restore the factory default
and keep the recorded information, you can press
Backup to USB.
2. Press [ / ] to select the media you want. Press “OK”
to select the file you want to play Music, Photo, Movie
and PVR.
3.7.1 Program
Move cursor to “Program” and press “OK”, then you will
enter the “program” interface.
1. Press [ / ] on Program Edit option and press “OK”,
enter password: 000000 then you will see the TV list.

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 12 of 16
Instruction Manual
12MM-DSTM2
Moving a service position
1. Press [ / ] on channel list, select the channels which
you want to edit in channel list by pressing [Red/F1]
Key.
2. Press [ / ] to move the cursor to the position you
want and press the [OK] key.
3. Press [EXIT] Key to save the settings.
Lock (Password: 000000)
1. Press [ / ] on channel list, select the channel which
you want to edit in the channel list by pressing [Yellow/
F3] Key.
2. Press [Yellow/F3] Key to lock or unlock the channel.
3. Press [EXIT] Key to save the settings.
Delete
1. Press [ / ] in channel list, select the channels which
you want to edit in channel list by pressing [Blue/F4]
Key.
2. Press the [OK] key to conrm to delete the channel.
3. Press [EXIT] Key to save the settings.
FAV (Favourite)
1. Press [ / ] in channel list, select the channels which
you want to edit in the channel list by pressing [FAV]
Key.
2. Press [ / ] to choose what “Favourite Type” and
press the [OK] key.
3. Press [EXIT] Key to save the settings.

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 13 of 16
Instruction Manual
12MM-DSTM2
Skip and rename
Follow the same way to set for Skip or to give a new name.
1. Press [ / ] on Sort option, here you can Press [ /
] to select “By Freq”, “By Service Name”, “Default” or
“By Encrypt”.
3.7.2 EPG
Press [ / ] on EPG option and press “OK”, to see the
program guide.
3.7.3 Device Setup
1. Press [ / ] on “Device Setup” option and press “OK”,
then you will see the following menu.
2. Press [ / ] on Keypad backlight, Keypad Tone,
or Led Display option, then press [ / ] to choose
backlight, Keypad Tone or Led Display between “On” &
“Off”.
3.7.4 System
1. Press [ / ] on “System” and press “OK”, then you
will see the following menu.

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 14 of 16
Instruction Manual
12MM-DSTM2
2. Press“OK’’ to get into the Parental Guidance (the
default password is 000000).
3. Press “OK” on Set Password option to reset the user
password.
4. Press “OK” on Restore Factory Default to Factory
Reset.
5. Press “OK” on information option to get the hardware
or software version.

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 15 of 16
Instruction Manual
12MM-DSTM2
3.7.5 Picture
Press [ / ] on “Picture” and press “OK”, then you will
see the following menu. Here you can set the Aspect Ratio,
Resolution, TV Format and PQ level.
3.7.6 Option
1. Press [ / ] on Option and press “OK”, then you will
see the following menu.
2. Press [ / ] to choose OSD Language, Subtitle
Language or Audio Language you want.
3.7.7 Time
1. Press [ / ] on Time option and press “OK”, then you
will see the following menu.
2. Press [ / ] to select Auto or Manual for Time Offset
adjustments and to Choose Time Zone, Date or Time
when [Time Offset] is set to Manual.
3.7.8 USB Upgrade
Save the SW onto a FAT32 formatted USB, and move
cursor to “USB Upgrade” and press “OK”, then you can
enter the “Software Update” interface to choose the
correct SW to upgrade to.

For technical support call 1800 237 425 or visit www.matchmaster.com.au | Page 16 of 16
Instruction Manual
12MM-DSTM2
System Resources
Main Processor 600MHz based CPU
Flash Memory 64M Bits
DDR SDRAM 1024M Bits
Tuner/Front-end
DVB-S/DVB-S2
Input Connector F-type, Connector, Male
Frequency Range 950MHz~2150MHz
Signal Level 25~107dBµV
Impedance 75Ω
LNB Power & Polarization Vertical: +13V
Horizontal: +18V
Current: Max.500mA
Overload Protection
DiSEqC Control Version 1.0/1.1/1.2/1.3,USALS Available
22KHz Tone Frequency: 22±1KHz
Demodulation QPSK, 8PSK
Symbol Rate 2~45Msps
DVB-T/DVB-T2 DVB-C
Input Connector IEC-type, Connector, Male
Input Frequency UHF: 470-866MHz VHF: 170-230MHz
Signal Level 30~109dBµV
Impedance 75Ω
DVB-T Power Output (VDC) 5V (Maximum 150mA), 12V and 24V (Maximum 350mA)
Demodulation QPSK,16-QAM, 64-QAM, 256-QAM
Bandwidth 6,7,8 MHz
Power Supply
Input Voltage Adapter 100-240V AC 50/60Hz
Power Consumption 11W MAX
Power charger output 14V DC 3.0A
Battery 12.6V/4000mAh
Battery charging time 3~6H
Battery standard discharging time >5H
A/V Data input/output
A/V IN/OUT CVBS (Remark: AHD/TVI/CVI/CVBS is optional) input/
CVBS output
Audio L input/ L/R output
Audio output Built-in Loudspeaker
HD TV OUT Up to 1080p
HD TV IN Up to 1080p
USB 1*USB 2.0 slot Compatible for Host
Transport Stream MPEG-2/4 H.264 H.265
Physical Specication
LCD Display 5 inch
Size (WxHxD) 210x150x52mm
Net Weight 0.93Kg
Operating Temperature 0°C ~ + 45°C
Storage Temperature -10°C ~ + 70°C
Storage Humidity 5%~95% RH (Non-Condensing)
4 TECHNICAL SPECIFICATIONS
