Original Operating Manual
SPR-H/M 125/250/400 IX/ST
Electronic Spread Rate and Spread Width Control Device

Table of contents
1About this operating manual....................................................................................3
2Safety.........................................................................................................................4
2.1 Intended use...............................................................................................................4
2.2 General safety instructions..........................................................................................4
3Installation.................................................................................................................5
3.1 Installation of the spread rate regulator.......................................................................5
3.2 Installation of the spread width regulator.....................................................................8
3.3 Mounting and dismounting the combination device.....................................................8
4Operation...................................................................................................................9
5Disposal.....................................................................................................................9
6Guarantee..................................................................................................................9
7List of illustrations..................................................................................................10

About this operating manual
1 About this operating manual
Dear customer!
Thank you for purchasing this implement, we appreciate your trust.
Prior to using this implement for the first time, read this operating manual carefully and
conscientiously all the way through.
Keep this operating manual where it is easily accessible. This will enable you to refer to
important information and handling instructions as needed.
Listings with bullet points are marked as follows:
Text
Text
Text . . .
Handling instructions are marked in the sequence in which they should be executed, as
follows:
1. Text
2. Text
3. Text . . .

This implement is subject to change in the interest of technical progress. All
information, illustrations, and technical specifications represent the latest
status at the time this manual was published. The manufacturer reserves the
right to make changes at any time in the interest of technical progress.

Installation
2 Safety
Guidelines and instructions with which you must comply, are summarized in this section.
Personnel who mount, operate and maintain this implement, must have read and under-
stood this operating manual.
2.1 Intended use
This device is an electronic spread rate and spread width regulator for the type of matev
spreaders specified on the cover page and it is available for spread rate regulation,
spread width regulation, or as a combination device for regulation of spread rate as well
as spread width. The desired spread rate or spread width are set via separate potentiom-
eters on the control unit, The pushers, i.e. the spread apron are/is activated via electric
motors.
All other uses are excluded.
2.2 General safety instructions
General safety instructions are explained in this section. These safety instructions are
used in the subsequent chapters. In addition to the safety aspect, you will save money
and work time if you follow these safety instructions.

Danger!
Severe injury to the operator or third parties occurs.
Comply with the safety instruction.

Attention!
Minor injury to the operator or third parties can occur. The tractor, the im-
plement or the environment can be damaged.
Comply with the safety instruction.

Installation
3 Installation

Attention!
Before starting up the implement, read the instructions on safety and han-
dling for operation of the entire implement and connection to the tractor.
3.1 Installation of the spread rate regulator

Switch off the tractor and remove the ignition key.

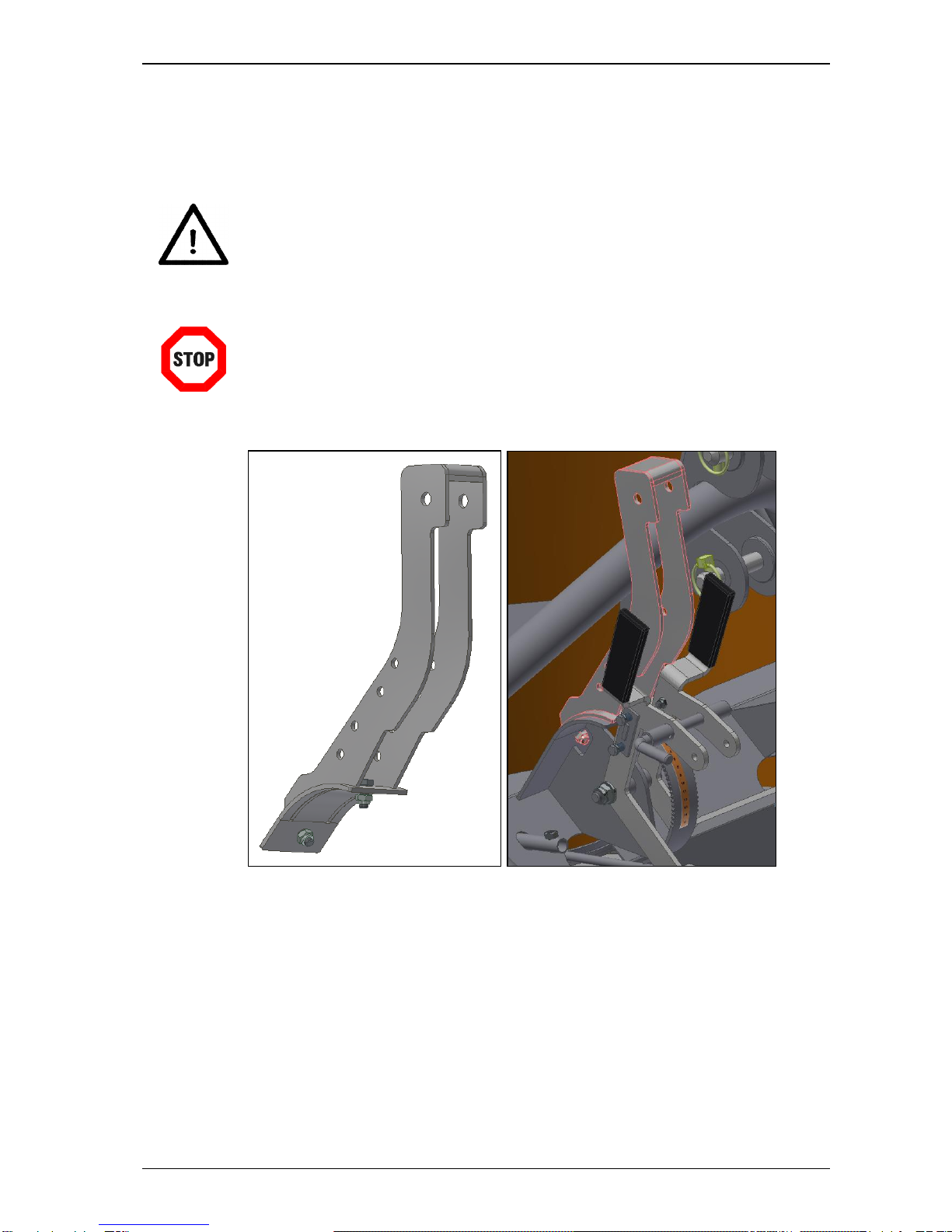

1. Mounting the holder of the electric cylinder
Fig 1 Holder - electric cylinder Fig 2 Holder on the spreader

Installation

Attention!
risk of collision!
Remove bolt!
2. Remove the red colored bolt in the picture
Fig 3: Remove bolt!
3. Mount the electric cylinder.
Fig. 4 Electric cylinder
Electric cylinder
Holder

Installation

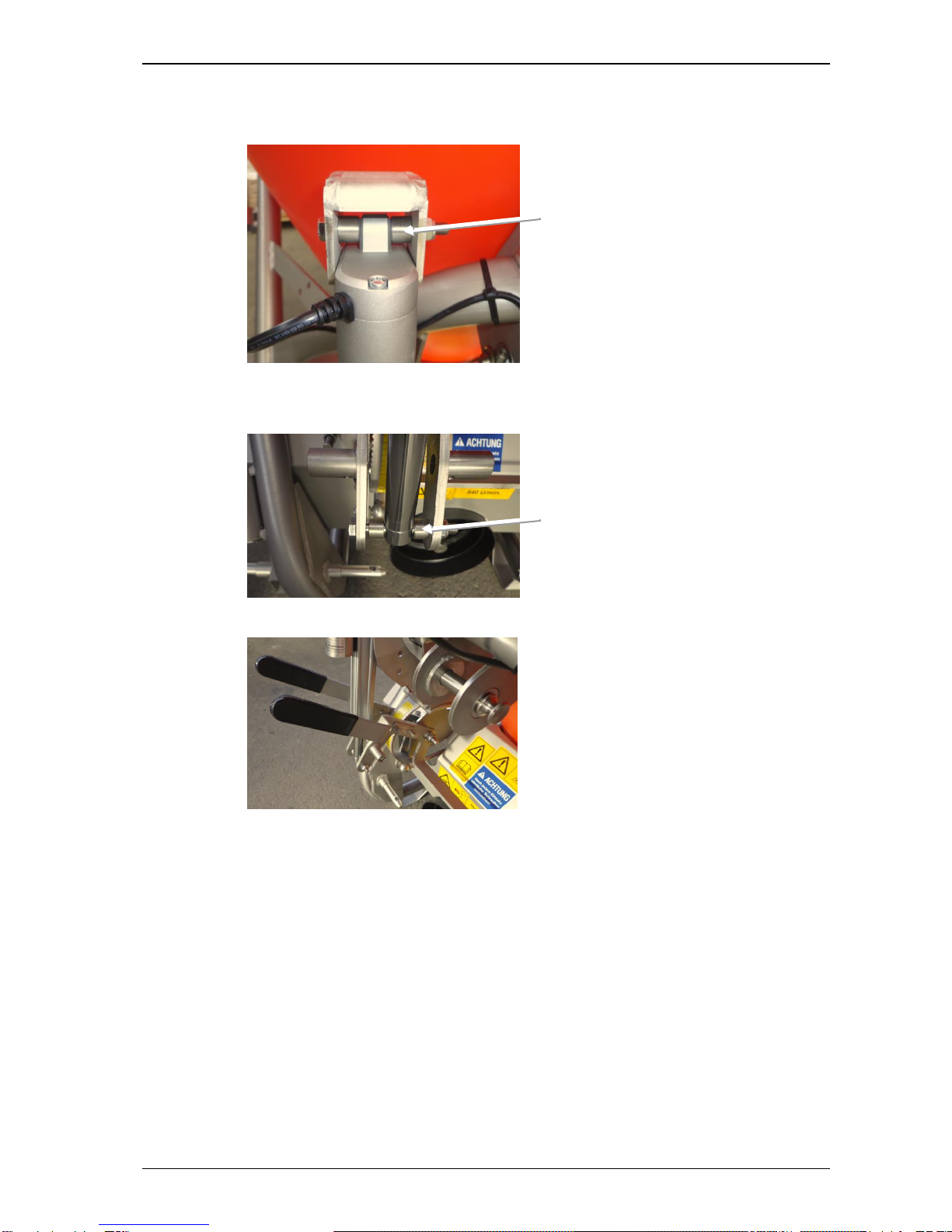

Fig. 5 Spacer bush
4. Connect pushers to the piston rod of the electric motor.
Fig. 6 Spacer ring
Fig. 7 Pushers coupled
5. Lay out the cable from the electric cylinder to the control device. You can fasten the
control device on any iron part in the cab, using the magnetic base.
Use spacer bushes
Use spacer rings

Installation

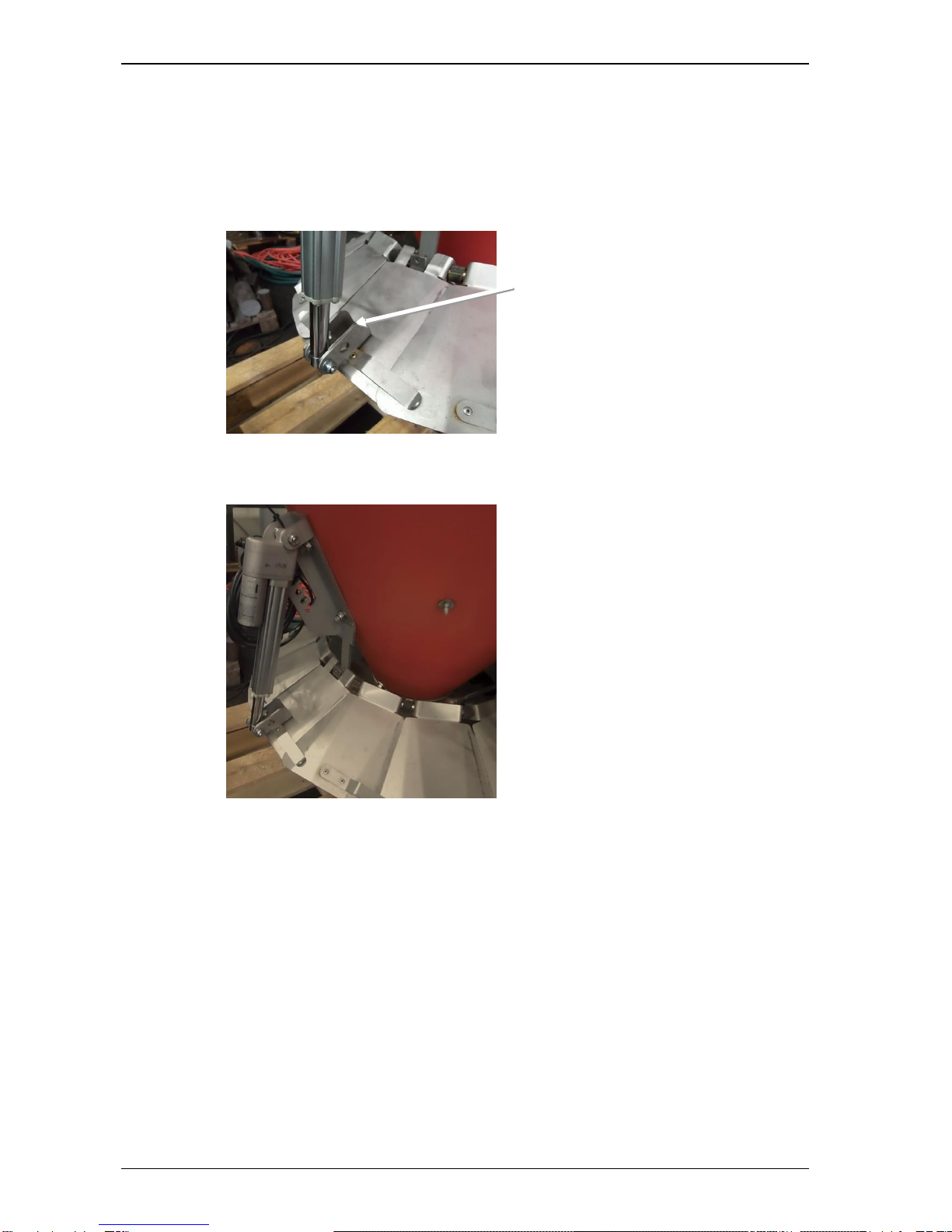

3.2 Installation of the spread width regulator
6. Dismount the shackle on the spread apron, turn it 180° and refasten it.
Fig. 8 Spread apron
7. Mount the electric cylinder.
Fig. 9 Hydraulic connections - spread width regulator
8. Lay out the cable from the electric cylinder to the control device. You can fasten the
control device on any iron part in the cab, using the magnetic base.
3.3 Mounting and dismounting the combination device
Mount the two electric cylinders and the combination control device as described in chap.
3.1 and 3.2.
Shackle

4 Operation
By setting the rotary knob on a specific position the pushers, i.e. the spread apron
open/opens accordingly.
By moving the switch to “OFF” the pushers, i.e. the spread apron close/closes complete-
ly. When moving the switch to “ON” the pushers, i.e. the spread apron open/opens to the
pre-set value.
If there are faults, problems, or other indications of malfunction, contact your sales con-
sultant or local dealer.
Fig. 10 Spread control units
5 Disposal
The implement must be disposed of in accordance with the applicable regulations of the
municipality or the country. Take the parts to the collection points for residual waste, spe-
cial waste, or recycle them depending on material.
matev GmbH does not provide any disposal services.
6 Guarantee
The general delivery conditions of matev GmbH apply.
