Matrix MDI4011 Reference manual

Integrated Slimline
Dishwasher
Manual for installation,
use and maintenance
MDI4011
parts +1 year labour
year
guarantee
www.matrixappliances.co.uk

2
Contents:
3 Important information
5 Important notes
6 Recommendations and steps before first use
7 Using your appliance
10 Buzzer sound control
11 Save power mode
12 Detergent
13 Salt
14 Softener adjustment
15 Rinse aid
17 Dishwasher baskets
18 Standard loading and test data
19 Programme listing
20 Care and maintenance
22 Failure codes and troubleshooting
23 Troubleshooting
24 Electrical information
26 Installation
29 Fitting the decor door
30 Warranty and service

3
Important
•Read the instructions prior to installation and use of the
appliance.
•Do not lean or climb on the open dishwasher door, to
prevent damage.
•Close the dishwasher door after use, to prevent accidents.
•Use only detergents, salt and rinse aid specifically
designed for dishwashers.
•Do not put solvents in the dishwasher detergent
compartment, to prevent risk of explosion.
•Only put dishwasher safe items into the dishwasher. If in
doubt, check with the manufacturer of the items.
•Take care when loading the dishwasher to observe the
recommendations for best loading practice, and also
to ensure that sharp objects such as knives are placed
blade down, to prevent accidents.
•Do not open the dishwasher door when a programme is
running. If it is necessary to do so, then open it only slightly
to allow the dishwasher to pause the programme and
prevent any water spilling out. Remember that the water
in the dishwasher can be very hot when the programme is
running.
•When the dishwasher is not in use, we recommend that
you turn off the water supply at the supply tap and
disconnect the mains supply.
•If you are leaving the dishwasher for an extended period
you should leave the door slightly open to prevent the
formation of unpleasant smells.
•The plastic housing on the water inlet pipe contains an

4
electrically operated valve. The wires that connect to this
valve are inside the inlet hose. Do not cut through the inlet
hose, and do not put the plastic housing in water.
•Children could get locked inside the appliance. Therefore
when disposing of an old appliance ensure it is empty, cut
off the plug and damage the door lock so that the door
can no longer be closed.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that CDA reserve the right to invalidate the guarantee supplied with this
product following incorrect installation or misuse of the appliance.
This appliance is not designed to be used by people (including children)
with reduced physical, sensorial or mental capacity, or who lack
experience or knowledge about it, unless they have had supervision
or instructions on how to use the appliance by someone who is
responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.

5
Appliance information
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with your
appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
EU Declarations of Conformity
This product meets the requirements of all applicable EU directives with
the corresponding harmonised standards, which provide for CE marking.
Availability of this manual in an alternative format:
A soft copy of this manual is available for download from
www.matrixappliances.co.uk
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT
IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
At the end of its working life, the product must be taken to a special local
authority waste collection centre or to a dealer providing appliance
recycling services.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.

6
Recommendations
• To reduce energy and water consumption, remove all dirt residues
from the dishes prior to loading the dishwasher.
• Loading the dishwasher to the capacity indicated by the
manufacturer will save energy and water.
• Place hollow items (bowls, glasses and pans) face down in the basket.
• Do not put dishes, cutlery or other items with tobacco ash, wax,
lubricating grease or paint residues in the dishwasher.
• It is not recommended to pre-rinse the tableware, as this leads to an
increase in water and energy consumption.
• Washing tableware in a household dishwasher usually uses less
energy and water than washing up by hand.
Before first use
•Set the water softener level as required for the water hardness in the
area.
•Add 1kg of salt into the salt compartment and then fill with water to the
top of the salt compartment.
•Remove all the packaging materials from the interior of the dishwasher.
•Fill the rinse aid compartment.
•Run a hot programme without any dishes in the dishwasher.

7
Using your appliance
“On/Off” button (1)
To switch the dishwasher on or off, press the “On/Off” button (1).
When you switch on the dishwasher, two dashes will appear on the
programme display .
“Programme Selection” button (2)
To select a programme, press the “Programme Selection” button (3).
The dishwasher will store in its memory the last programme used.
Half load button (3) and indicator light (7)
The dishwasher is equipped with a half-load function that allows for small
numbers of dishes to be washed, spread between both baskets. This
reduces the amount of water and electricity used. To use this function,
press the half-load button (3). The indicator light (7) will illuminate and
shows that this function is selected.
“Delay timer” button (4)
The dishwasher is equipped with a delay timer which will delay the start
of a programme for 3, 6 or 9 hours. Pressing this button (4) once will delay
the start time for 3 hours, and continuing to press will increase the delay
time.
End
End
50 C 65 C 50’ 65 C prewash
Fig. 1 5
6
7
8

8
Press the Delay button to change or cancel the delayed start. If you switch
off the machine while delay timer is active, the delayed time is cancelled.
The delay time indicator (5) will illuminate for the corresponding time set.
“Salt” and “Rinse Aid” warning lights and “End of Programme” light (6)
When either the dishwasher salt or rinse aid begins to run out, a warning
light will illuminate to advise that it needs refilling.
When the programme is complete, the dishwasher will emit five beeps
and the “End of Programme” light will illuminate.
“Programme Indicator” lights (8)
These lights will illuminate to confirm which programme has been
selected. If there is a fault on the dishwasher, the fault code will show on
these lights (page 20).
Starting a programme
• Press the “On/Off” button (the “End of Programme” light will be switched
on).
• Press the “Programme Selection” button until the required programme is
shown on the indicator lights.
• Once a programme is selected, the “End of Programme” light will
switch off.
• When you close the dishwasher door, the programme will start
automatically.
• If possible, avoid opening the door once a programme has started.
Please note: The dishwasher stores the most recently used
programme in its memory. To change the programme, simply press
the “Programme Selection” button.

9
At the end of a programme
At the end of a programme, the dishwasher will beep five times, and the
“End of Programme” indicator light will switch on.
Changing a programme
It is possible to change the programme, if necessary, once the
programme has started.
• First open the door slightly to reduce the risk of water spillage.
• Press the “Programme Selection” button until the required programme is
shown on the display.
• Close the door. The dishwasher will begin the new programme from
the point at which the old programme stopped.
Cancelling a programme
It is possible to cancel a programme once is has started.
• First open the door slightly to reduce the risk of water spillage.
• Press and hold in the “Programme Selection” button until the “End of
Programme” indicator flashes.
• Close the door. The dishwasher will run a drain cycle which will take
approximately 30 seconds. Once this is complete, the dishwasher will
beep five times and the “End of Programme” light will switch on.
Switching the dishwasher off
• Once the dishwasher beeps five times and the “End of Programme”
light switches on, the dishwasher can be switched off by pressing the
“On/Off” button.
• If leaving the appliance off for a long time, turn off the water tap and
remove the plug from the power socket.
Please note: The dishwasher should automatically continue on the
programme it has started if the door is opened or in the event of a
power cut.

10
Buzzer sound control
To change the buzzer sound level, follow the below steps:
1. Open the door and press Programme (2) and Half Load (3) buttons
simultaneously for 3 seconds.
2. When sound setting is recognized, buzzer gives a long sound and
machine will display last set level, from “S0” to “S3”.
3. To decrease sound level press Programme button (2). To increase
sound level, press Half load button (3).
4. When the sound level is changed, corresponding LEDs illuminate as
shown in the table below.
Sound level LEDs
Half Load 3h 6h 9h
S0 X
S1 X X
S2 X X X
S3 X X X X
5. To save the selected sound level, turn off the machine.’’S0’’ level
means all sounds are off. The factory setting is “S3”

11
Save Power Mode
To activate or deactivate Save Power Mode, follow the below steps:
1. Open the door and press the Half Load (3) and Delay Timer (4) buttons
simultaneously for 3 seconds.
2. After 3 seconds, the machine will display last Setting.
3. When Save Power Mode is activated, P1, P2 and the Half Load indicator
will illuminate. On this mode, interior lights will turn off 4 minutes after the
door is opened, and the machine will turn off after 15 minutes of no
activity in order tosave energy.
4. When Save Power Mode is deactivated P1 and P2 LED’s will illuminate.
If Save Power Mode is deactive, interior lights will be on as long as the
door is open, and the machine will always be on unless it is turned off
by the user.
5. To save the selected setting, turn off the machine.
In factory setting, Save Power Mode is active.

12
Detergent
To fill the detergent compartment
• Push the latch to open the
compartment.
• Add the required amount of detergent.
The main detergent compartment “b”
(Fig. 2) has lines to allow for specific
amounts of detergent. These are marked at either 15cm3or 25cm3, to
be used depending on how dirty the dishes are.
If your dishes are in need of an intensive wash, then add 5cm3of
detergent into the prewash section of the compartment “a” (Fig. 2).
• Close the detergent compartment lid until the latch locks.
Please note: You should only use detergents designed specifically
for use in dishwashers.
If using dishwasher tablets, always use the detergent compartment,
do not put them in the main body of the dishwasher or in the cutlery
basket. The solubility of dishwasher tablets can vary depending
on the temperature and duration of the programme. As a result, it is
recommended that powder detergents should be used in the shorter
programmes to allow better performance.
The use of separate detergent, rinse aid and dishwasher salt is
recommended rather than combination tablets as separates achieve
better wash performance.
If you do use combination detergents, add salt and rinse aid to the
dishwasher and then adjust the water hardness setting and rinse aid
Fig. 2

13
Detergent
To fill the detergent compartment
1. Push the latch as shown in figure 1.
2. Add the required amount of detergent. The main detergent
compartment “b” (figure 2) has lines to allow for specific amounts of
detergent. These are marked at either 15 cm3or 25 cm3, to be
used depending on how dirty the dishes are.
If your dishes are in need of an intensive wash, then add 5 cm3of
detergent into the prewash section of the compartment “a” (figure 2).
3. Then close the detergent compartment lid until the latch locks.
Please note: You should only use detergents designed specifically for
use in dishwashers.
If using dishwasher tablets, always use the detergent compartment, do not put
them in the main body of the dishwasher or in the cutlery basket. The solubility
of dishwasher tablets can vary depending on the temperature and duration of
the programme. As a result, it is recommended that powder detergents should
be used in the shorter programmes to allow better performance.
CDA recommends the use of separate detergent, rinse aid and dishwasher salt
rather than combination tablets as separates achieve better wash performance.
If you do use combination detergents, add salt and rinse aid to the dishwasher
and then adjust the water hardness setting and rinse aid setting to the
minimum. When you then use separate detergents again, you should fill the
salt and rinse aid compartments, adjust the water hardness setting to the
maximum and run an empty wash, then adjust the water hardness setting and
the rinse aid setting to the appropriate level.
Salt
To ensure the best efficiency, the dishwasher needs soft water. Hard water
means that lime residues remain on the dishes and the interior of the
dishwasher, affecting performance. The softener system is designed to
remove the ions that make the water hard to provide the best quality wash
performance. This is achieved by using dishwasher salt.
To add dishwasher salt, follow the steps below:
1. Remove the lower dishwasher basket and then unscrew the salt
compartment cap, as shown in figure 1.
2. Fill the compartment with dishwasher salt (do not use table salt), carefully
to prevent unnecessary spillage (figure 3). Before first use, you should
fill the compartment with 2kg of dishwasher salt and then fill up the salt
compartment with water (up to the brim of the compartment) as shown
in figure 3.
3. Replace the cap and the lower basket.
When the salt warning light on the control panel illuminates, you should
refill the salt compartment with salt only – do not add water to the salt
compartment after the first use.
You should run a prewash programme immediately after adding
dishwasher salt, to prevent any damage to the dishwasher systems.
fig 2
S A L T
fig 3
S A L T
fig 1
Fig. 3
Detergent
To fill the detergent compartment
1. Push the latch as shown in figure 1.
2. Add the required amount of detergent. The main detergent
compartment “b” (figure 2) has lines to allow for specific amounts of
detergent. These are marked at either 15 cm
3
or 25 cm
3
, to be
used depending on how dirty the dishes are.
If your dishes are in need of an intensive wash, then add 5 cm
3
of
detergent into the prewash section of the compartment “a” (figure 2).
3. Then close the detergent compartment lid until the latch locks.
Please note: You should only use detergents designed specifically for
use in dishwashers.
If using dishwasher tablets, always use the detergent compartment, do not put
them in the main body of the dishwasher or in the cutlery basket. The solubility
of dishwasher tablets can vary depending on the temperature and duration of
the programme. As a result, it is recommended that powder detergents should
be used in the shorter programmes to allow better performance.
CDA recommends the use of separate detergent, rinse aid and dishwasher salt
rather than combination tablets as separates achieve better wash performance.
If you do use combination detergents, add salt and rinse aid to the dishwasher
and then adjust the water hardness setting and rinse aid setting to the
minimum. When you then use separate detergents again, you should fill the
salt and rinse aid compartments, adjust the water hardness setting to the
maximum and run an empty wash, then adjust the water hardness setting and
the rinse aid setting to the appropriate level.
Salt
To ensure the best efficiency, the dishwasher needs soft water. Hard water
means that lime residues remain on the dishes and the interior of the
dishwasher, affecting performance. The softener system is designed to
remove the ions that make the water hard to provide the best quality wash
performance. This is achieved by using dishwasher salt.
To add dishwasher salt, follow the steps below:
1. Remove the lower dishwasher basket and then unscrew the salt
compartment cap, as shown in figure 1.
2. Fill the compartment with dishwasher salt (do not use table salt), carefully
to prevent unnecessary spillage (figure 3). Before first use, you should
fill the compartment with 2kg of dishwasher salt and then fill up the salt
compartment with water (up to the brim of the compartment) as shown
in figure 3.
3. Replace the cap and the lower basket.
When the salt warning light on the control panel illuminates, you should
refill the salt compartment with salt only – do not add water to the salt
compartment after the first use.
You should run a prewash programme immediately after adding
dishwasher salt, to prevent any damage to the dishwasher systems.
fig 2
S A L T
fig 3
S A L T
fig 1
Fig. 4
setting to the minimum. When you then use separate detergents again,
you should fill the salt and rinse aid compartments, adjust the water
hardness setting to the maximum and run an empty wash, then adjust
the water hardness setting and the rinse aid setting to the appropriate
level.
Salt
To ensure the best efficiency, the dishwasher needs soft water. Hard
water means that lime residues remain on the dishes and the interior of
the dishwasher, affecting performance. The softener system is designed
to remove the ions that make the water hard and provide the best
quality wash performance. This is achieved by using dishwasher salt.
To add dishwasher salt
• Remove the lower dishwasher
basket and then unscrew the salt
compartment cap (Fig. 3).
• Fill the compartment with dishwasher
salt (do not use table salt) carefully,
to reduce the risk of spillage (Fig. 4).
Before first use, you should fill the salt
compartment with 1kg of dishwasher
salt and then top up the compartment
with water (up to the brim of the
compartment) (Fig. 4).
• Replace the cap and the lower basket.

14
When the salt warning light on the control panel illuminates, you should
refill the salt compartment with salt only – do not add water to the salt
compartment after the first use.
Important:
You should run a prewash programme immediately after adding
dishwasher salt, to prevent any damage to the dishwasher system.
Softener adjustment
The efficiency of your dishwasher depends on the softness of the
tap water. To ensure best efficiency, the dishwasher is equipped with
a system that reduces the hardness in the mains water supply. The
efficiency will increase when the system is correctly set. To find out the
water hardness level of your water supply you can use the test strip
supplied, or alternatively contact your local water board.

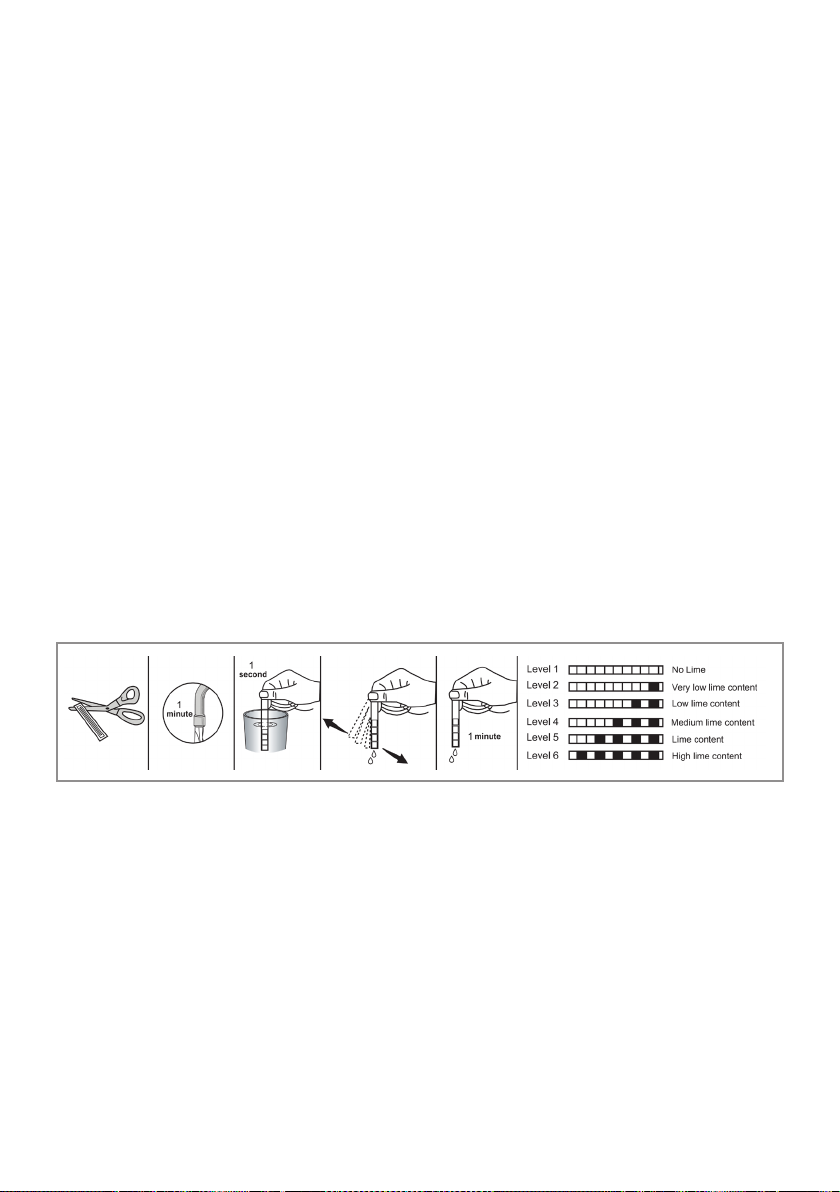

• Open the testing strip (Fig. 5).
• Run water through the tap for one minute.
• Hold the testing strip in water for one second.
• Remove from the water and shake the test strip to remove excess
water.
• Wait for one minute.
• Check the number of marks on the strip to see the level of water
hardness.
Fig. 5

15
If the hardness of the water you use is above 63dE, or if you are using
well water, you are recommended to contact your local water board to
confirm the water hardness level and to use filter and water refinement
devices.
Please note: The water hardness is preset to level “3”.
To change the hardness setting
• Press the “On/Off” button to switch on the dishwasher.
• Press and hold down the “Programme Selection” button.
• Keep the “Programme Selection” button pressed until all “Programme
Indicator” lights flash.
• To adjust the level, press the “Programme Selection” button until the
required level is achieved. The “Programme” lights will illuminate as per
the table below.
• To store the selected water hardness level, press the “On/Off” button.
Water hardness level British hardness dE Indicator lights illuminated
1 0-6 P1 & 9h
2 7-14 P2 & 9h
3 15-21 Half load & 9h
4 22-28 3h & 9h
5 29-39 6h & 9h
6 40-63 P1, 6h & 9h
Rinse aid
Rinse aid helps to ensure better quality wash results and increased
drying performance.
To fill the rinse aid compartment, open the rinse aid compartment lid.
Fill the compartment with rinse aid to the MAX level and then close the
lid. Be careful not to overfill the rinse aid compartment and ensure that
you wipe up any spillages.

16
In order to change the rinse aid level,
follow the steps below before turning
on the machine:
1. Press and hold down the ‘Programme
selection’ button
2. Press the ‘On/Off’ button to switch on
the dishwasher
3. Keep the ‘Programme selection’ button
pressed until all leds blink twice
4. To adjust the level, press the
‘Programme selection’ button until the
required level is shown on the display,
as listed in the table on below.
5. To store the selected rinse aid level,
press the ‘On/Off’ button.
If the dishes are not drying properly or are spotted with food debris,
dirt etc., increase the rinse aid level. If blue stains appear on your
dishes, decrease the rinse aid level.
Always refill the rinse aid when the rinse aid indicator light on
the control panel is illuminated. Many brands of rinse aid (as
well as detergents) contain phosphates which escape sewage
treatment and can cause excessive algae growth in waterways.
This in turn can pollute drinking water and causemarine life ‘dead
zones’ which are underwater environments deprived of oxygen
that are subsequently unable to support life. Please consider the
environment and, if you wish to use rinse aid, try to source an
environmentally friendly brand.
Level Brightener dose Indicator lights illuminated
1 Rinse aid not dispensed P1 & 9h
2 1 dose is dispensed P2 & 9h
3 2 doses are dispensed Half load & 9h
4 3 doses are dispensed 3h & 9h
5 4 doses are dispensed 6h & 9h

17
x
x
x
Dishwasher Baskets
To adjust the height of the upper basket
(we recommend wearing gloves for this):
1. Open the basket retaining clips, as
shown in Fig. 9, by turning them to the
side.
2. Remove the upper basket, and relo-
cate the alternate set of wheels on the
runner, as shown in Fig. 10, pushing the
basket back into place.
3. Close the basket retaining clips.
The images below are provided as guidance as to best practice for
loading the dishwasher. For loading the dishwasher to its 10 place
setting capacity, see Fig. 12 on page 16.
Fig. 11
Lower Basket Top Basket
Faulty loads
Fig. 9
Fig. 10

18
Standard loading and test data
Capacity
• Upper and lower baskets: 10 place settings (See Fig. 12).
• The upper basket should be adjusted to high position.
• Cups should be placed onto the dish rack pins.
•Cup racks should be placed above the wire.
Detergent / Rinse aid
• 5 + 25cm3, in accordance with EN50242-DIN 44990 IEC436 (international
norms) / Rinse aid dosage adjustment: 5.
Programme test
• Eco 50°C, in accordance with EN50242 (international norms.).
1 2 3 4 5 6 7 8
3 3
3
3
3
3
3
3
3
3
2
2 2 2
2 2 2 2
2 2
6
1 1
1 111
1 1
1
1
8
55
5 555
5
555
44 4
4
4
4 4 4
44
Fig. 12
P1 P2 P3 P4
Programme
Name Eco 50°C Intensive
65°C
Super50’
65°C Prewash
Level of soil Medium Heavy Medium Light
Amount of
detergent:
A = 25cm³
B = 15cm³
A A A -
Programme
Duration
(h:mm)
03:42 02:15 00:50 00:15
Electricity
consumption
(kWh/cycle)
0.755 1.550 0.950 0.020
Water
consumption
(l/cycle)
11.0 17.6 11.2 3.5

19
Programme listing
The values and times provided in the below table have been obtained
under laboratory conditions according to relevant standards. Actual
results obtained can vary depending on the conditions of the
dishwasher’s use and environment. (mains supply voltage, water
pressure, water input temperature and environmental temperature).
Laboratory measured value in accordance with European standard
EN50242.
P1 P2 P3 P4
Programme
Name Eco 50°C Intensive
65°C
Super50’
65°C Prewash
Level of soil Medium Heavy Medium Light
Amount of
detergent:
A = 25cm³
B = 15cm³
A A A -
Programme
Duration
(h:mm)
03:42 02:15 00:50 00:15
Electricity
consumption
(kWh/cycle)
0.755 1.550 0.950 0.020
Water
consumption
(l/cycle)
11.0 17.6 11.2 3.5

20
Fig. 14
Fig. 13
Care and maintenance
Before beginning any care or
maintenance, you should always
disconnect the appliance from the
electricity supply, and also turn off the
water supply.
Door seals
Wipe the dishwasher door seals regularly
with a damp cloth to remove any
residues.
Filters
You should clean the filters at least once
a month.
• Remove the lower basket.
• Turn the micro-filter anti-clockwise and
then lift it out (Fig. 13).
• Remove the coarse filter from the micro-
filter (Fig. 14).
• Remove the base filter from the
dishwasher compartment (Fig. 15).
You should clean and rinse the filters
thoroughly before replacing all the
sections in reverse order to that above.
The micro-filter should lock into place
once it is secure (Fig. 16).
Fig. 15
Fig. 16
