Matrix MW001 Reference manual

MW001 Integrated
Dishwasher
Manual for Installation, Use and Maintenance

.
1
Important
The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this
product. Please note that CDA reserve the right to invalidate the guarantee supplied with this product following incorrect
installation or misuse of the appliance.
This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental
capacity, or who lack experience of knowledge about it, unless they had supervision or instructions on how to use the
appliance by someone who is responsible for their safety.
Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified
personnel.
Appliance information:
Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a
fault with your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
CE Declarations of Conformity:
This appliance has been designed, constructed and marketed in compliance with safety requirements of EEC Directive
89/336/EC, 2006/95/EC,IEC436/DIN44990, EN50242.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC
DIRECTIVE 2002/96/EC.
At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer
providing appliance recycling services,
Disposing of a household appliance separately avoids possible negative consequences for the environment and health. It
also enables the constituent materials to be recovered, saving both energy and resources. As a reminder of the need to
dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
Important
•Read the instructions prior to installation and use of the appliance.
•Do not lean or climb on the open dishwasher door to prevent damage.
•Close the dishwasher door after use to prevent accidents.
•Use only detergents, salt and rinse aid specifically designed for dishwashers.
•Do not put solvents in the dishwasher detergent compartment to prevent risk of explosion
•Only put dishwasher safe items into the dishwasher. If in doubt, check with the manufacturer of the items.
•Take care when loading the dishwasher to observe the recommendations for best loading practice, and also to
ensure that sharp objects such as knives are placed blade down to prevent accidents.
•Do not open the dishwasher door when a programme is running. If it is necessary to do so, then open it only slightly
to allow the dishwasher to pause the programme and prevent water spilling out. Remember that the water in the
dishwasher can be very hot when the programme is running.
•When the dishwasher is not in use, we recommend that you turn off the water supply at the supply at the supply tap
and disconnect the mains supply.

•If you are leaving the dishwasher for an extended period you should leave the door slightly open to prevent the
formation of unpleasant smells.
•The plastic housing on the water inlet pipe contains an electrically operated valve. The wires that connect to this valve
are inside the inlet hose. Do not cut through the inlet hose, and do not put the plastic housing in water.
•Children could get locked inside the appliance. Therefore when disposing of an old appliance, cut off the plug and set
aside, and damage the door lock so that the door can no longer be closed.
Recommendations
•To reduce energy and water consumption, remove all dirt residues from the dishes prior to loading the dishwasher.
•Only run the dishwasher when fully loaded.
•Place hollow items (bowls, glasses and pans) face down in the basket.
•Do not put dishes or cutlery with tobacco ash, wax, lubricating grease or paint residues in the dishwasher.
Before First Use
•Set the water softener level as required by the water hardness in the area.
•Add 2kg of salt into the salt compartment and then fill with water to the top of the salt compartment.
•Remove all the packaging materials from the interior of the dishwasher.
•Fill the rinse aid compartment.
•Run a hot programme without any dishes in the dishwasher.
2

Getting to know your dishwasher
Starting a Programme
•Turn on the water tap
•Press the Power button.
•Press the Programme Selection button until the required programme light is illuminated.
When you close the door, the dishwasher will beep once and the programme will start automatically.
Interrupting the programme
If possible do not open the door once the programme has started.
• Firstopenthedoorslightlytoreducetheriskofwaterspillage.
• Waituntilthesprayarmhasstoppedturningbeforeopeningdoorfully.
• Whilstthedoorisopen,thedishwasherwillbeep10timesevery3seconds.
• Ifthedishwasherhasalreadyheatedup,thenleavethedooropentoallowthesteamtoescapetopreventthedoor
opening due to cabinet pressure.
At the End of a Programme
When the dishwasher programme is complete, the dishwasher will beep six times and the Programme Indicators will go
out. Open the dishwasher door.
•Press the Power button to switch off the dishwasher.
•Turn off the water tap and remove the plug from the power socket.
Please note: The dishwasher will automatically continue on the programme it has started if the door is
opened or in the event of a power cut.
MW001IN

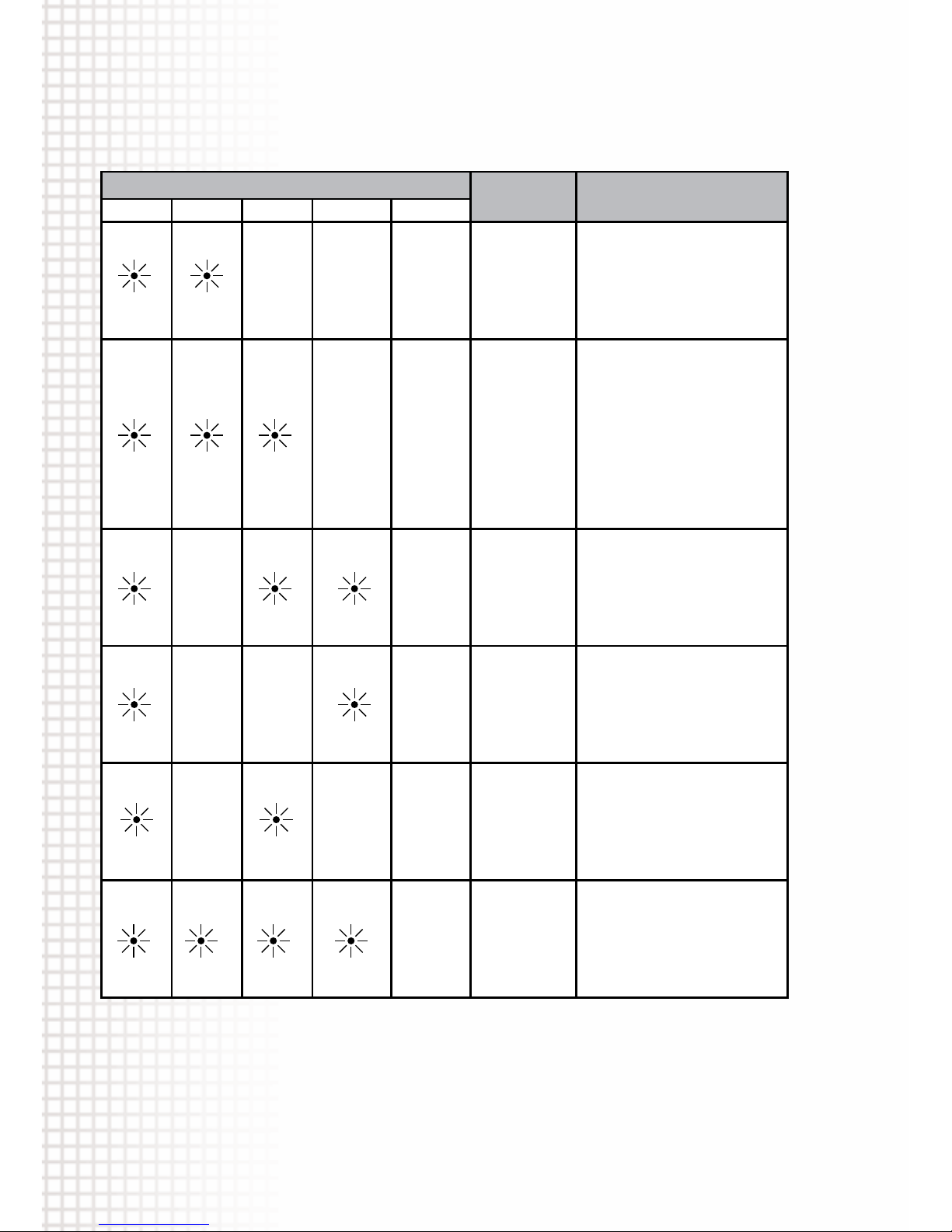

Programme Indicator Lights
Programme
Selection Button
Salt
Indicator
Light
Quick Wash
Indicator Light
Quick Wash
Button
Delay Timer Indicator
Lights
Delay Timer
Button
Power
Button
Programme indicator lights
Programme selection button
Power button
a
d
e
f
g
h
b
c

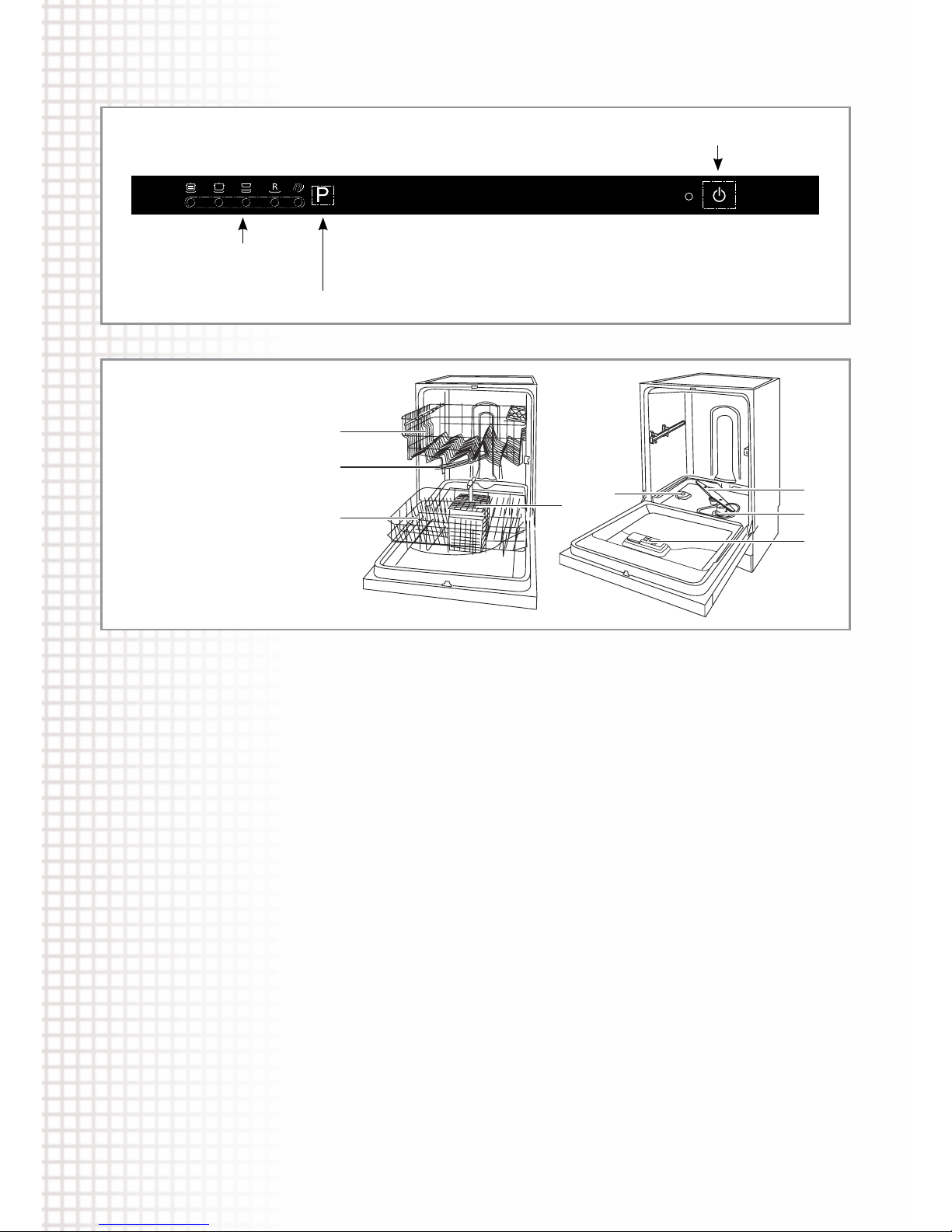

Close-up view (control panel)
Dishwasher Interior
a Upper Rack
b Lower Rack
c Top Spray Arm
d Cutlery Basket
e Bottom Spray Arm
f Salt Container Cup
g Washing Filter
h Detergent and Rinse Aid
Dispenser
3

Detergent
To fill the detergent dispenser
1. Push the latch to open the dispenser.
2. Add the required amount of detergent to the main detergent dispenser.
If your dishes are in need of an intensive wash, then add 5 cm3of
detergent into the prewash section of the dispenser.
3. Thenclosethedetergentdispenserliduntilthelatchlocks.
Please note: You should only use detergents designed specifically for
use in dishwashers.
Combination detergents (e.g. 3-in-1 tablets) must not be used in any
quick wash programme.
If using dishwasher tablets, always use the detergent compartment, do not put
them in the main body of the dishwasher or in the cutlery basket. The solubility
of dishwasher tablets can vary depending on the temperature and duration of
the programme. As a result, it is recommended that powder detergents should
be used in the shorter programmes to allow better performance.
CDA recommends the use of separate detergent, rinse aid and dishwasher salt
rather than combination tablets as separates achieve better wash performance.
If you do use combination detergents, add salt and rinse aid to the dishwasher
and then adjust the water hardness setting and rinse aid setting to the
minimum. When you then use separate detergents again, you should fill the
salt and rinse aid compartments, adjust the water hardness setting to the
maximum and run an empty wash, then adjust the water hardness setting and
the rinse aid setting to the appropriate level.
Salt
To ensure the best efficiency, the dishwasher needs soft water. Hard water
means that lime residues remain on the dishes and the interior of the
dishwasher, affecting performance. The softener system is designed to
remove the ions that make the water hard to provide the best quality wash
performance. This is achieved by using dishwasher salt.
To add dishwasher salt, follow the steps below:

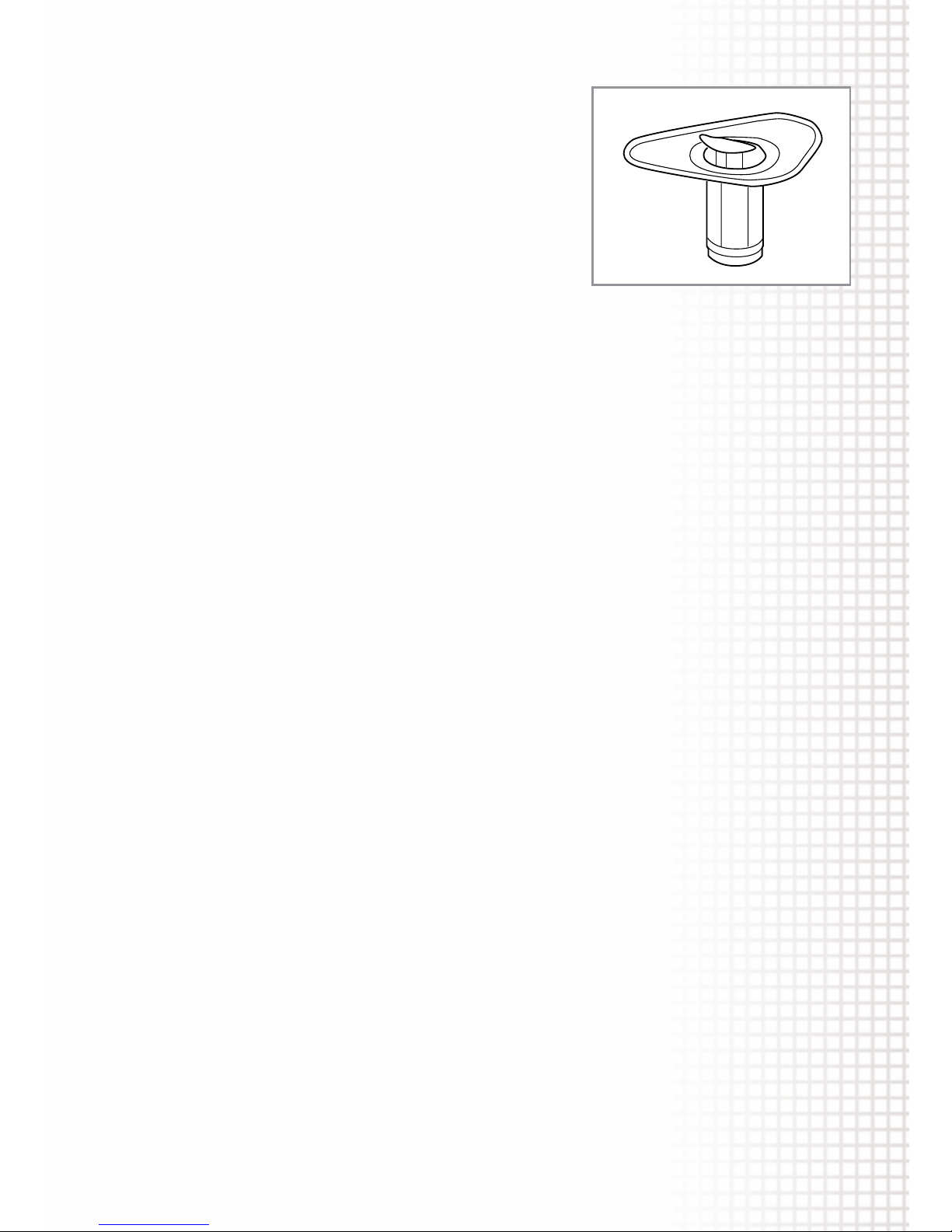

1. Remove the lower dishwasher basket and then unscrew the salt
compartment cap.
2. Fill the compartment with dishwasher salt (do not use table salt), carefully
to prevent unnecessary spillage. Before first use, you should fill the
compartment with 2kg of dishwasher salt and then fill up the salt
compartment with water (up to the brim of the compartment) as shown
 ingure3.
3. Replacethecapandthelowerbasket.
When the salt warning light on the control panel illuminates, you should
refill the salt compartment with salt only – do not add water to the salt
compartment after the first use.
You should run a programme immediately after adding dishwasher
salt, to prevent any damage to the dishwasher systems.
fig. 1
g.3
4
2
1
3
4
4
5
fig. 2

Softener Adjustment
The efficiency of your dishwasher depends on the softness of the tap water.
To ensure best efficiency, the dishwasher is equipped with a system that
reduces the hardness in the mains water supply. The efficiency will increase
when the system is correctly set. To find out the water harness level of your
water supply contact your local water board.

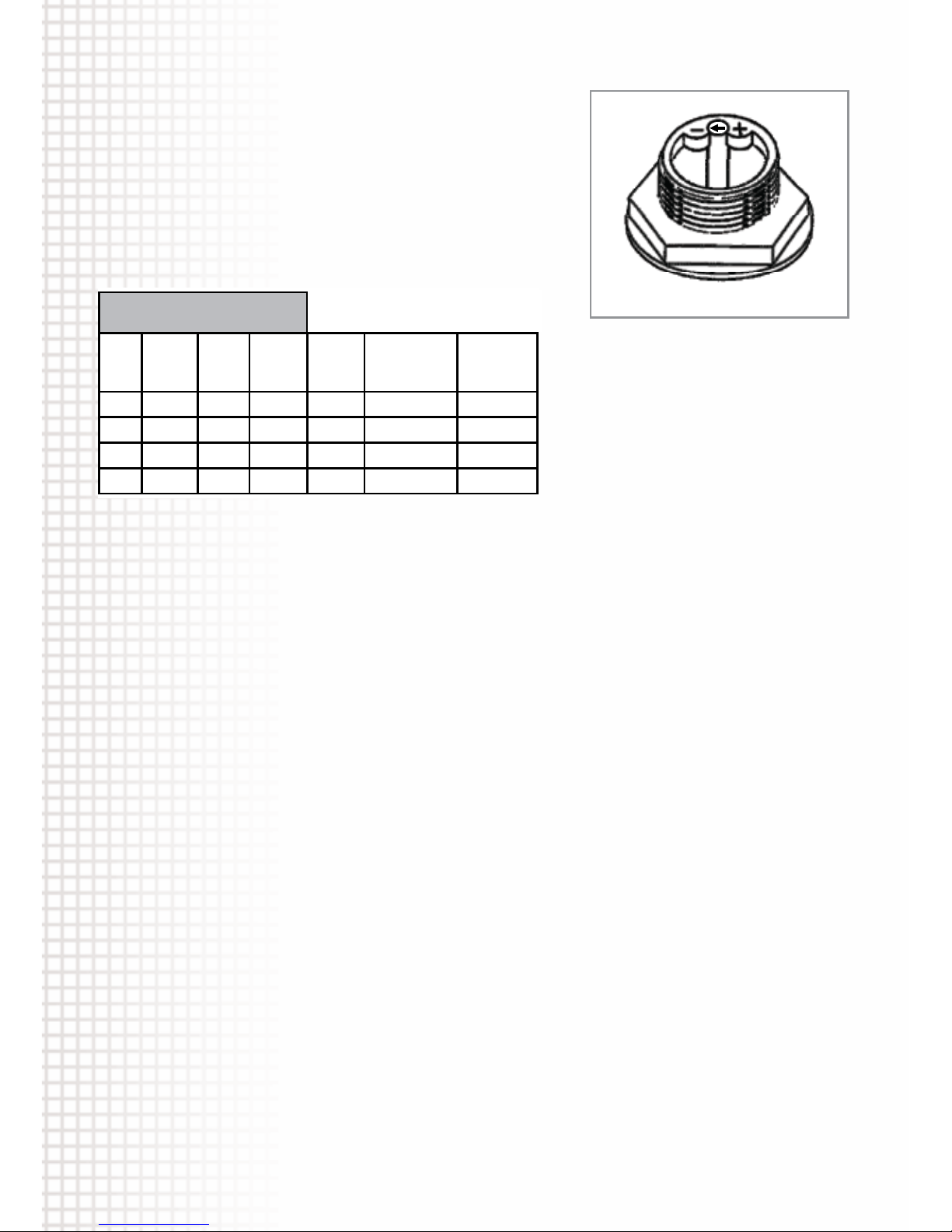

To set the softener adjustment system unscrew the cap from the salt container
and rotate the ring indicated in figure 4 according to the table below.
5
fig. 4
Water Hardness
Level Clarke
degrees
dH mmol/l Selector
position
Salt
consumption
(Grams/cycle)
Autonomy
(cycles/2kg)
10-14 0-17 0-1,7 /0/
214-36 18 - 44 1,8 - 4,4 “-” 20 60
3 36-71 45 - 89 4,5 - 8,9 MED 40 40
4>71 >89 >8,9 “+” 60 25

Rinse Aid

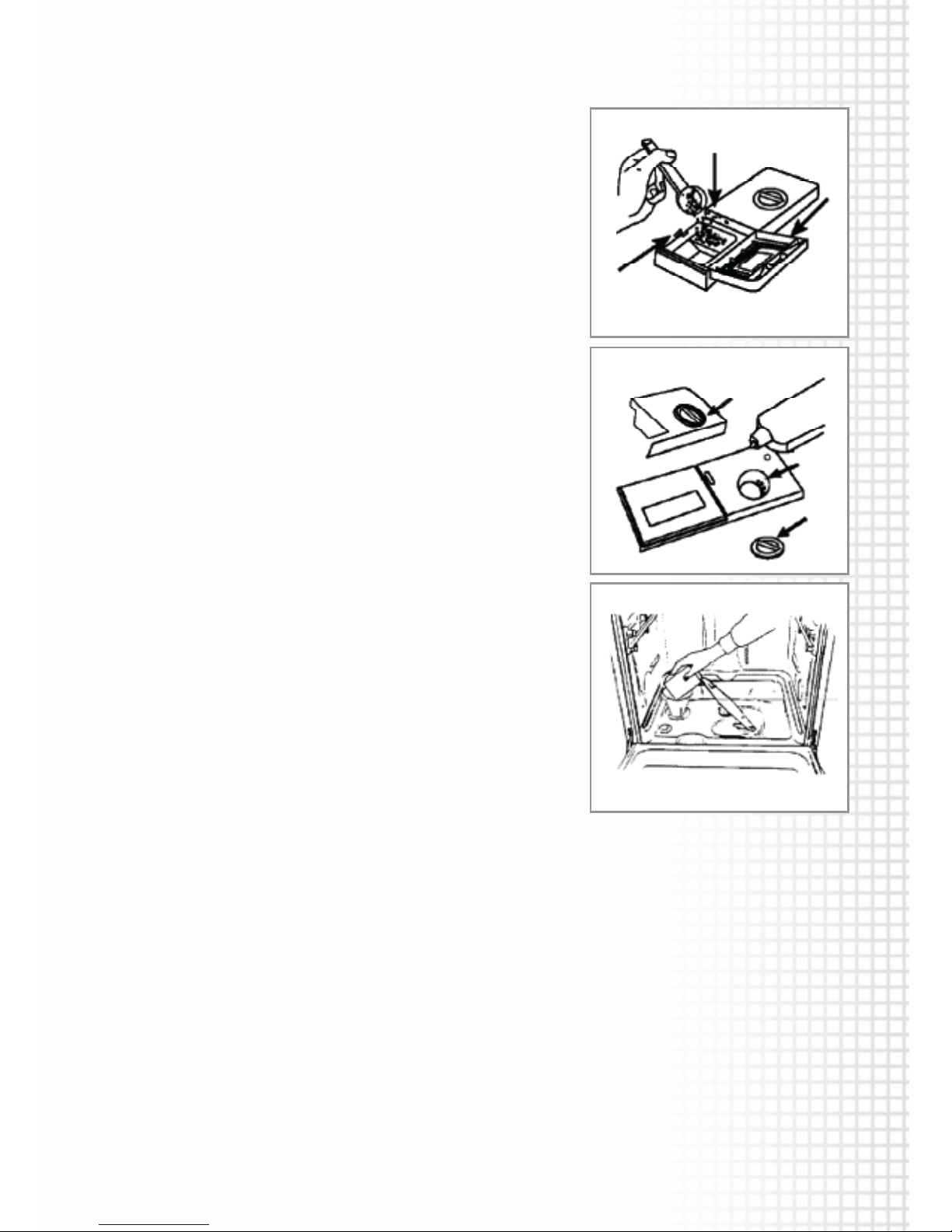

To fill the rinse aid compartment

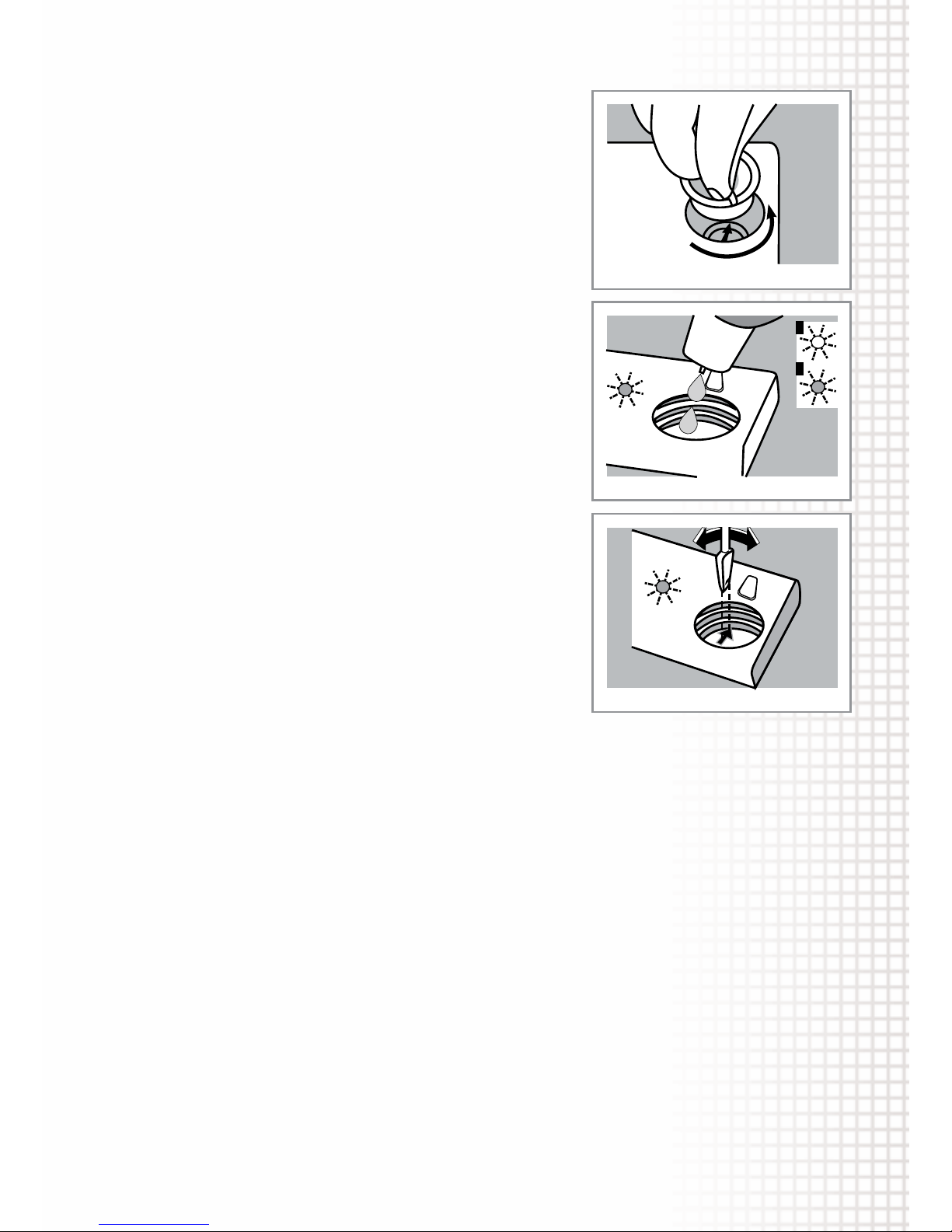

1. Open the rinse aid compartment by turning and removing the cap as
shown in figure5.
2. Fill the rinse aid compartment until the rinse aid indicator goes dark,
 asshowningure6(where“a”indicatesthecompartmentisempty,and
“b” indicates the compartment is full).
3. Replacethecap,ensuringthemarkersonthecaplineupwiththe 
compartment prior to screwing the cap back in place.
Rinse Aid Adjustment
Thelevelofrinseaiduseispresetto3.Youcanadjustthelevelofrinseaid
usebyadjustingasshowningure7.
If water stains form on the dishes after a wash, the level should be increased.
If blue stains which can be wiped away are left on the dishes after a wash, the
level should be decreased.
Please note: Rinse aid ensures better quality wash results and
increased drying performance.
fig. 5
g.6
g.7
6
6
5
4
3
2
1
a
b
6
5
4
3
2
1

General Information

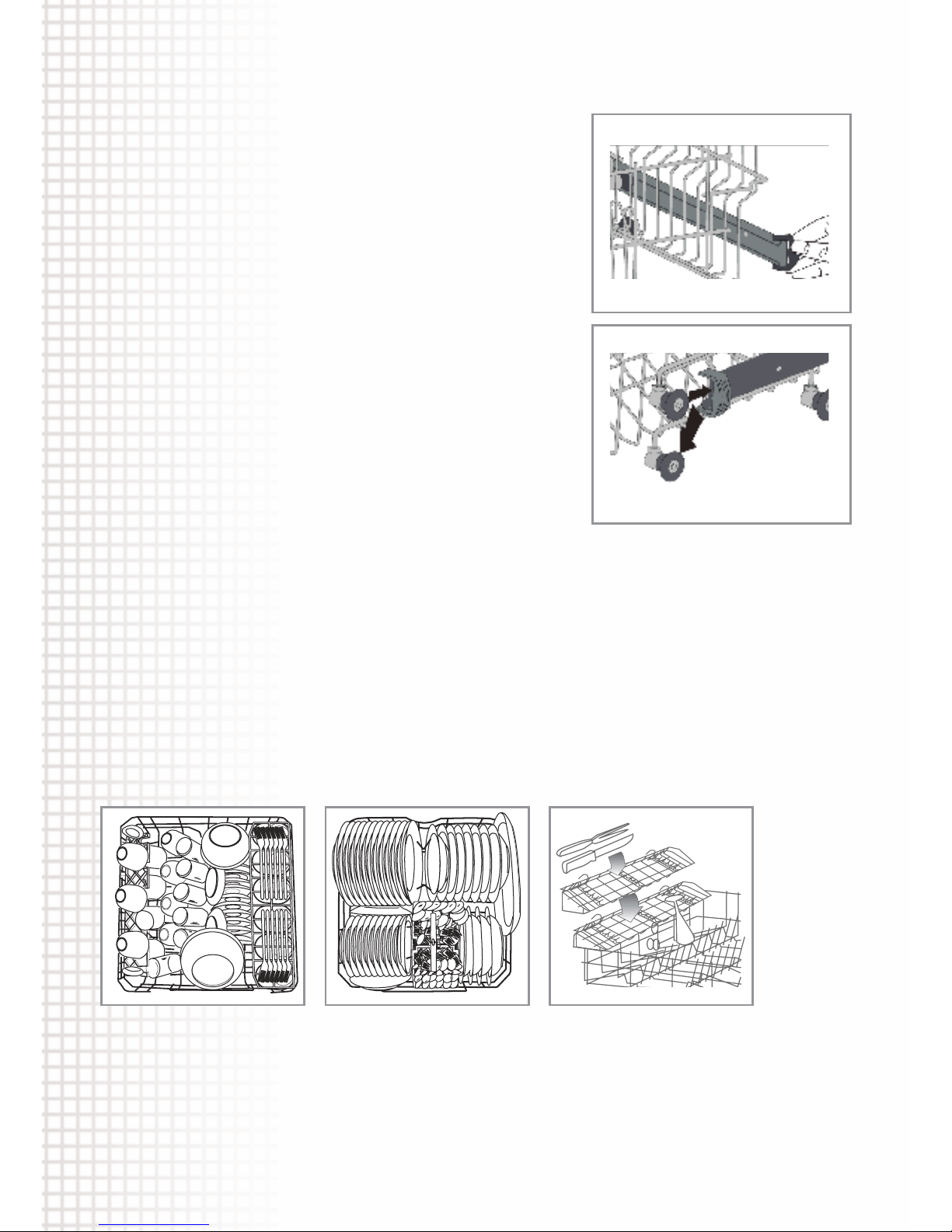

To adjust the height of the upper basket:
•Open the basket retaining clips, as shown in figure 8, by turning them to
the side.
•Remove the upper basket, and relocate the alternate set of wheels on the
runner, as shown in figure 9, pushing the basket back into place.
•Close the basket retaining clips.
•The images below are designed as guidance as to best practice for loading
the dishwasher.
Information on reference tests implemented in compliance
with EN 50242
Appliance loaded in accordance with standard specifications.
Example of loaded dishwasher: See below.
Capacity: 12 place settings
Reference programme: Light wash
Rinse-aid setting: 5
Detergent: 5g+25g
Height-adjustable top-basket must be fitted in the uppermost position.
IfthereferencetestsdonotcomplyfullywithEN50242,e.g.,degreeof
soiling, type of dishes and cutlery, etc., contact the appliance manufacturer
before starting the test.
Dishwasher Baskets
To adjust the height of the upper basket:
 /PENTHEBASKETRETAININGCLIPSASSHOWNINlGUREBUTTURNINGTHEMTO
the side.
2. Remove the upper basket, and relocate the alternate set of wheels on the
runner, as shown in figure 8, pushing the basket back into place.
3. Close the basket retaining clips.
The images below are designed as guidance as to best practice for loading
the dishwasher.
lG
fig 8
Upper basket
Lower basket
Bad loads
Dishwasher Baskets
To adjust the height of the upper basket:
 /PENTHEBASKETRETAININGCLIPSASSHOWNINlGUREBUTTURNINGTHEMTO
the side.
2. Remove the upper basket, and relocate the alternate set of wheels on the
runner, as shown in figure 8, pushing the basket back into place.
3. Close the basket retaining clips.
The images below are designed as guidance as to best practice for loading
the dishwasher.
lG
fig 8
Upper basket
Lower basket
Bad loads
fig. 8
fig. 9
Upper basket Lower basket
7
Knife Rack

Technical Information
Width 59.6cm
Depth 55 cm
Height 82 cm
Capacity 12 standard place settings
Mainswaterpressure 0.03-0.6MPa
Powervoltage 230-240V~50Hz
Ratedcurrentinput 13A
Totalabsorbedpower 1950W
8

Programme Listing
Programme
names and
temperatures
Intensive
70
O
wash
Normal
55
O
wash
Light
50
O
wash
Quick wash
40
O
wash
Prewash
No heat
Level of soil High Medium Small Small NA
Detergent
amount
Prewash + Main
Compartment (g)
5+25 5+25 5+25 0 +15 0
Programme
duration
(mins.)
standard/
quick
112 102 162 32 12
Electricity
consumption
(kW hours)
standard/
quick
1.62 1.24 1.05 0.40 0.02
Water
consumption
(litres)
standard/
quick
18 16 15 9 3
Hot prewash
70
O
wash
Cold rinse
Hot rinse
Dry
End
Cold prewash
55
O
wash
Cold rinse
Hot rinse
Dry
End
50
O
wash
Cold rinse
Hot rinse
Dry
End
40
O
wash
Cold rinse
End
Prewash
End
The values and times provided above have been obtained under laboratory conditions according to relevant standards. This
information can change depending on the conditions of the dishwasher’s use and environment. (mains supply voltage, water
pressure, water input temperature and environment temperature).
LaboratorymeasuredvalueinaccordancewithEuropeanstandardEN50242withrinseaidsetting.
9
Cold prewash

Programme
names and
temperatures
Intensive
70
O
wash
Normal
55
O
wash
Light
50
O
wash
Quick wash
40
O
wash
Prewash
No heat
Level of soil High Medium Small Small NA
Detergent
amount
Prewash + Main
Compartment (g)
5+25 5+25 5+25 0 +15 0
Programme
duration
(mins.)
standard/
quick
112 102 162 32 12
Electricity
consumption
(kW hours)
standard/
quick
1.62 1.24 1.05 0.40 0.02
Water
consumption
(litres)
standard/
quick
18 16 15 9 3
Care and Maintenance
Before beginning any care or maintenance, you should always disconnect the
appliance from the electricity supply, and also turn off the water supply.
Door seals
Wipe the dishwasher door seals regularly with a damp cloth to remove
any residue.
Filters
Youshouldcleantheltersatleastonceamonth.
•Remove the lower basket
•Remove the filter assembly by pulling upwards on the cup handle
•Remove the fine filter from the filter
Youshouldcleanandrinsetheltersthoroughlybeforereplacingtheltersin
reverse order to that above.
Please note: Never run a programme without the filters in place.
Incorrect fitting of the filters may reduce wash performance and
potentially damage your appliance.
Spray arms
Youshouldcleanthesprayarmsatleastonceamonth.
•Remove the lower basket.
•Pull the spray arm upwards to remove it.
•To remove the upper spray arm, first remove the nut on the upper spray
arm by turning it as shown.
Youshouldcleantheuppersprayarmsthoroughlybeforereplacingthem.
Ensure that the upper spray arm nut is securely tightened when refitting the
upper spray arm.
Dishwasher interior
To deal with accumulation of dirt, oil or limescale in the dishwasher, run
an intensive programme with detergent when the dishwasher is empty.
Alternatively, there are specialist dishwasher cleaners available that can be used.
g.10
10

Failure Codes and Troubleshooting
The programme indicators also serve as a diagnostic display to help in the event of a problem with the appliance.
Witheachoftheseerrorcodes,theappliancewillalsobeep10timesevery30seconds.
Error code Error
description Advice
Intensive Normal Light Quick wash prewash
Door problem Make sure the door is closed
properly.
Water problem
Make sure the water inlet tap is
fully open.
Make sure the water supply
hose is not kinked or bent.
Close the water tap, separate
the water inlet hose from the tap
and clean the filter.
Make sure the drain hose is
correctly installed.
Drain fault
Make sure the drain hose is not
kinked or bent.
Make sure the drain hose is
correctly installed.
Siphoning Make sure the drain hose is
correctly installed.
Contact customer care
Contact customer care
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
11
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service
Failure Codes and Troubleshooting
Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance.
Error Code Error description Advice
Intensive Normal Eco Quick Prewash
Inadequate water
supply
Make sure the water inlet tap is
fully open
Close the water tap, separate the
water inlet hose from the tap and
clean the filter
Restart your machine, contact
CDA service if the error resumes
Continual fill error Close the tap and contact
CDA service
The waste water in
the machine cannot
be discharged.
Drain hose is blocked
The filters of your machine
might be blocked
Restart the dishwasher and
cancel the programme
If the error continues, contact
CDA service
Heater error Contact CDA service
Alarm is active against
water overflow
Turn off the dishwasher and
disconnect the water supply
Contact CDA service
Faulty electronic card Contact CDA service
Overheating error
(temperature in the
machine is too high)
Contact CDA service
Faulty heater sensor Contact CDA service

12
Failure Codes and Troubleshooting
Problem possible cause
The programme will not start
Check the plug, fuse and circuit breakers of the mains supply
The water tap is turned off
The dishwasher door is not fully closed
The water inlet filter or the machine filters are blocked
Water remains inside the dishwasher at the end of the
programme
The water drain hose is blocked or kinked
The filters are blocked
The dishwasher stops in the middle of a programme
Power failure
Water inlet failure
Program is on standby
Wash performance is of a low standard
Poor loading of dishes hinders wash performance
Insufficient detergent added
Inappropriate wash programme selected
Spray arm blocked
Filters clogged or incorrectly fitted
Water drain pump blocked
White stains on the dishes
Insufficient detergent added
Rinse aid setting is too low
Insufficient dishwasher salt added
Water softener setting is too low
Salt compartment cap not completely closed
The dishes are not completely dry at the end of the
programme
A programme without a drying stage was selected
Rinse aid setting is too low
Dishes unloaded too soon (allow time for drying)
There are rust stains on the dishes
Different sets of cutlery should be kept separate
Too much salt (Water softener setting is too high)
Salt compartment cap not completely closed
Poor appliance earth (check mains electrical supply)
The door is not opening or closing propely Door tension not correctly adjusted for the décor door

13
Electrical information
Warning! This appliance must be earthed.

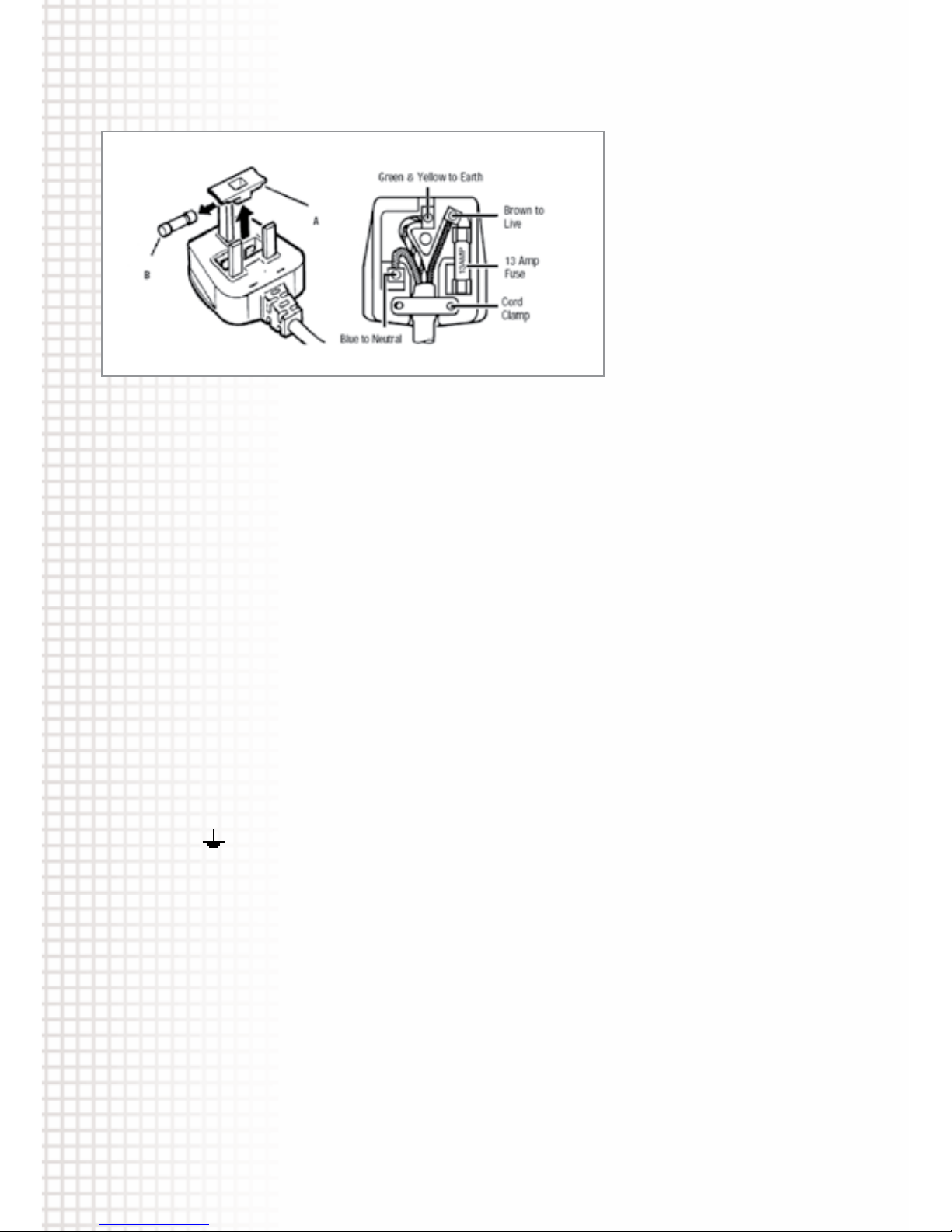

ThemainsleadofthisappliancehasbeenttedwithaBS1363A13ampfusedplug.Tochangeafuseinthistypeofplug,follow
the steps below:
1. Remove the fuse cover and fuse.
2. Fitreplacement13Afuse,ASTAapprovedtoBS1362type,intothefusecover.
3. Replacefusecover.
Important: Do not use the appliance without the fuse cover in position.
How to connect an alternative plug
If the fitted plug is not suitable for our socket outlet, then it should be cut off and disposed of safely to avoid the risk of electric
shock.Asuitablealternativeplugofatleast13AmpratingtoBS1363shouldbeused.
As the colours of the wires in the mains lea of this appliance may not correspond with the colour markings identifying the
terminals in your plug, proceed as follows:-
• ThewirewhichiscolouredGREENandYELLOWmustbeconnectedtotheterminalwhichismarkedwithletter(E)orbythe
 EarthsymbolorthecolourGREENandYELLOW.
• ThewirewhichiscolouredBLUEmustbeconnectedtotheterminalwhichismarkedwiththeletter(L)
• ThewireswhichiscolouredBROWNmustbeconnectedtotheterminalwhichismarkedwiththeletter(L)orcolouredRED
or BROWN.
If in doubt regarding the electrical connection of this appliance, consult a qualified electrician. Do not shorten the supply cable,
the appliance may require removing for servicing.
N.B. Ensure that the plug socket is situated in an easily accessible place.
Electrical information
Warning! This appliance must be earthed.
The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. To change a fuse in this type of plug,
follow the steps below:
1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA approved to BS 1362 type, into the fuse cover.
3. Replace fuse cover.
Important: Do not use the appliance without the fuse cover in position.
How to connect an alternative plug
)FTHElTTEDPLUGISNOTSUITABLEFORYOURSOCKETOUTLETTHENITSHOULDBECUTOFFANDDISPOSEDOFSAFELYTOAVOIDTHERISKOF
electric shock. A suitable alternative plug of at least 13 Amp rating to BS 1363 should be used.
As the colours of the wires in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows:-
s4HEWIREWHICHISCOLOURED'2%%.AND9%,,/7MUSTBECONNECTEDTOTHETERMINALWHICHISMARKEDWITHLETTER%OR
BYTHE%ARTHSYMBOLORCOLOURED'2%%.AND9%,,/7
s4HEWIREWHICHISCOLOURED",5%MUSTBECONNECTEDTOTHETERMINALWHICHISMARKEDWITHTHELETTER.OR
COLOURED",!#+OR",5%
s4HEWIREWHICHISCOLOURED"2/7.MUSTBECONNECTEDTOTHETERMINALWHICHISMARKEDWITHTHELETTER,OR
 COLOURED2%$OR"2/7.
)FINDOUBTREGARDINGTHEELECTRICALCONNECTIONOFTHISAPPLIANCECONSULTAQUALIlEDELECTRICIAN$ONOTSHORTENTHE
supply cable, the appliance may require removing for servicing.
N.B. Ensure that the plug socket is situated in an easily accessible place.

Installation
s$ONOTINSTALLTHISAPPLIANCEIFITISDAMAGEDINANYWAY)NSTALLINGA
damaged appliance may invalidate the warranty.
sThe water supply tap should be located in an adjacent cupboard so that it
can be accessed after installation.
s%NSURETHEAPPLIANCEISLEVELBYADJUSTINGTHEFEETASNECESSARY
s/NLYUSETHEWATERINLETSUPPLIEDWITHTHEAPPLIANCE
s)FTHEWATERPRESSUREISABOVEBARAPRESSURERELIEFVALVESHOULDBEUSED
sAfter connecting the water supply, check to ensure there are no leaks.
s The water outlet can either be connected to a water drain or to a sink outlet
SPIGOT4HISCONNECTIONSHOULDBEATAMINIMUMOFCMANDAMAXIMUM
 OFCMFROMTHEmOOR4HEDRAINHOSESHOULDBENOLONGERTHANMIN
length to ensure good performance from the dishwasher.

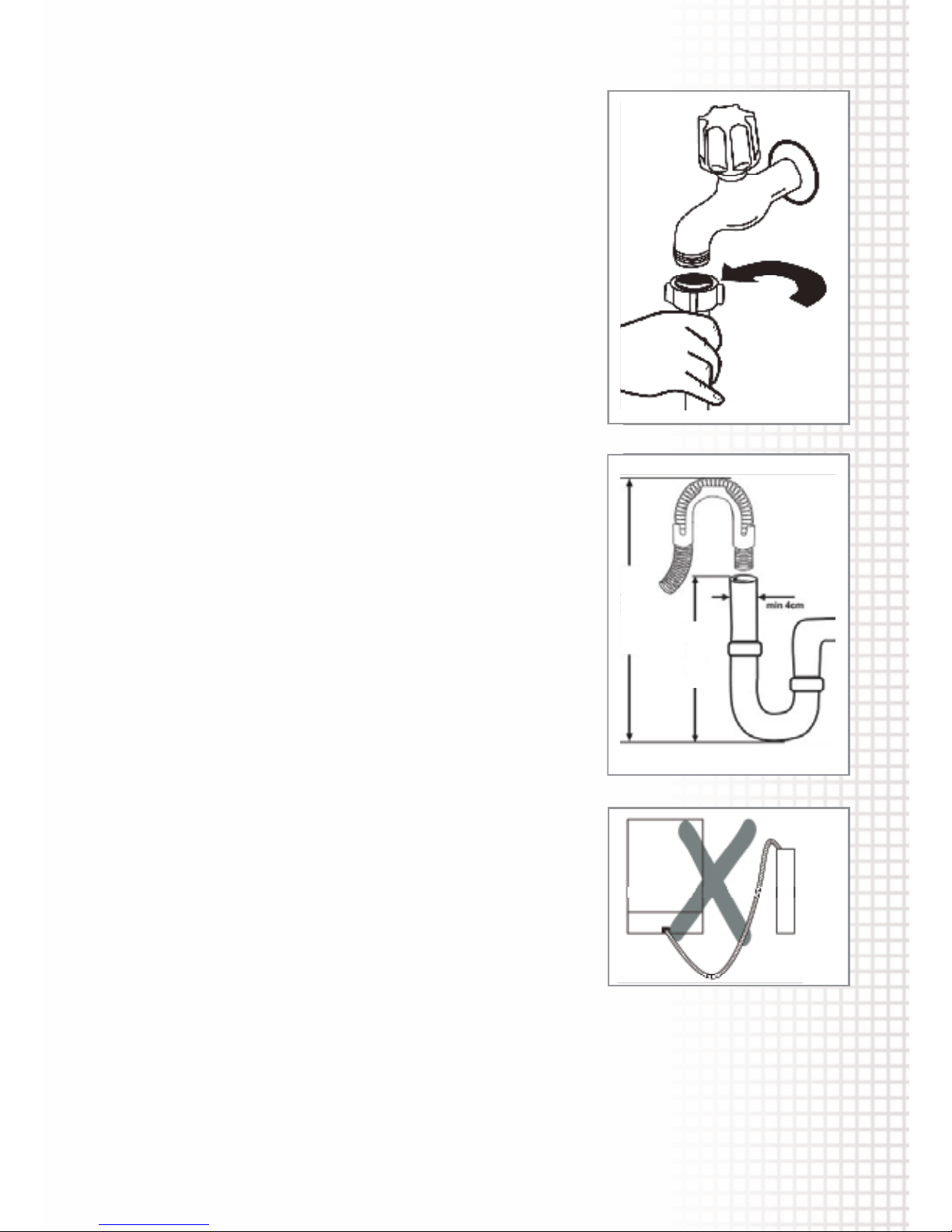

fig 14
fig 15
fig 16
fig. 11
14
Important installation information
• Donotinstallthisapplianceifitisdamagedinanyway.Installingdamage
appliance may invalidate the warranty.
• Thewatersupplytapshouldbelocatedinanadjacentcupboardsotheit
can be accessed after installation.
• Ensuretheapplianceislevelbyadjustingthefeetasnecessary.
• Onlyusethewaterinletsuppliedwiththeappliance.
• Ifthewaterpressureisabove10bars,apressurereliefvalveshouldbeused.
• Afterconnectingthewatersupply,checktoensuretherearenoleaks.
• Thewateroutletcaneitherbeconnectedtowaterdrainortoasinkoutlet
 spigot.Thisconnectionshouldbeataminimumof50cmandamaximum
of110cmfromtheoor.Thedrainhoseshouldbenolongerthan4min 
length to ensure good performance from the dishwasher.
• Topreventdamagetotheoorsurface,installtheapplianceontheplastic
skids provided. Failure to do so will invalidate the warranty.
• Ensurethatthedoormechanismistensionedcorrectlyasoutlinedinthe
installation instructions provided
Installation
s$ONOTINSTALLTHISAPPLIANCEIFITISDAMAGEDINANYWAY)NSTALLINGA
damaged appliance may invalidate the warranty.
sThe water supply tap should be located in an adjacent cupboard so that it
can be accessed after installation.
s%NSURETHEAPPLIANCEISLEVELBYADJUSTINGTHEFEETASNECESSARY
s/NLYUSETHEWATERINLETSUPPLIEDWITHTHEAPPLIANCE
s)FTHEWATERPRESSUREISABOVEBARAPRESSURERELIEFVALVESHOULDBEUSED
sAfter connecting the water supply, check to ensure there are no leaks.
s The water outlet can either be connected to a water drain or to a sink outlet
SPIGOT4HISCONNECTIONSHOULDBEATAMINIMUMOFCMANDAMAXIMUM
 OFCMFROMTHEmOOR4HEDRAINHOSESHOULDBENOLONGERTHANMIN
length to ensure good performance from the dishwasher.
fig 14
fig 15
fig 16
40cm
100cm
Installation
s$ONOTINSTALLTHISAPPLIANCEIFITISDAMAGEDINANYWAY)NSTALLINGA
damaged appliance may invalidate the warranty.
sThe water supply tap should be located in an adjacent cupboard so that it
can be accessed after installation.
s%NSURETHEAPPLIANCEISLEVELBYADJUSTINGTHEFEETASNECESSARY
s/NLYUSETHEWATERINLETSUPPLIEDWITHTHEAPPLIANCE
s)FTHEWATERPRESSUREISABOVEBARAPRESSURERELIEFVALVESHOULDBEUSED
sAfter connecting the water supply, check to ensure there are no leaks.
s The water outlet can either be connected to a water drain or to a sink outlet
SPIGOT4HISCONNECTIONSHOULDBEATAMINIMUMOFCMANDAMAXIMUM
 OFCMFROMTHEmOOR4HEDRAINHOSESHOULDBENOLONGERTHANMIN
length to ensure good performance from the dishwasher.
fig 14
fig 15
fig 16
g.13

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T: 01949 862 012 F: 01949 862 003 E: [email protected] W: www.cda.eu
Passionate about style
To contact our Customer Care Department, or for Service,
please contact us on the details below.
Serviced by
