Matrix MW200 Reference manual

Integrated Slimline
Dishwasher
Manual for installation,
use and maintenance
MW200
parts +1 year labour
year
guarantee
www.matrixappliances.co.uk

2
Contents:
3 Important information
5 Important notes
6 Recommendations and steps before first use
7 Using your appliance
10 Detergent
11 Salt
12 Softener adjustment
14 Rinse aid
15 Dishwasher baskets
16 Standard loading and test data
17 Programme listing
18 Care and maintenance
20 Failure codes and troubleshooting
21 Troubleshooting
22 Electrical information
24 Installation
27 Fitting the decor door
31 Energy efficiency information

3
Important
•Read the instructions prior to installation and use of the
appliance.
•Do not lean or climb on the open dishwasher door, to
prevent damage.
•Close the dishwasher door after use, to prevent accidents.
•Use only detergents, salt and rinse aid specifically
designed for dishwashers.
•Do not put solvents in the dishwasher detergent
compartment, to prevent risk of explosion.
•Only put dishwasher safe items into the dishwasher. If in
doubt, check with the manufacturer of the items.
•Take care when loading the dishwasher to observe the
recommendations for best loading practice, and also
to ensure that sharp objects such as knives are placed
blade down, to prevent accidents.
•Do not open the dishwasher door when a programme is
running. If it is necessary to do so, then open it only slightly
to allow the dishwasher to pause the programme and
prevent any water spilling out. Remember that the water
in the dishwasher can be very hot when the programme is
running.
•When the dishwasher is not in use, we recommend that
you turn off the water supply at the supply tap and
disconnect the mains supply.
•If you are leaving the dishwasher for an extended period
you should leave the door slightly open to prevent the
formation of unpleasant smells.
•The plastic housing on the water inlet pipe contains an

4
electrically operated valve. The wires that connect to this
valve are inside the inlet hose. Do not cut through the inlet
hose, and do not put the plastic housing in water.
•Children could get locked inside the appliance. Therefore
when disposing of an old appliance ensure it is empty, cut
off the plug and damage the door lock so that the door
can no longer be closed.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that CDA reserve the right to invalidate the guarantee supplied with this
product following incorrect installation or misuse of the appliance.
This appliance is not designed to be used by people (including children)
with reduced physical, sensorial or mental capacity, or who lack
experience or knowledge about it, unless they have had supervision
or instructions on how to use the appliance by someone who is
responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.

5
Appliance information
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with your
appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
EU Declarations of Conformity
This product meets the requirements of all applicable EU directives with
the corresponding harmonised standards, which provide for CE marking.
Availability of this manual in an alternative format:
A soft copy of this manual is available for download from
www.matrixappliances.co.uk
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT
IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
At the end of its working life, the product must be taken to a special local
authority waste collection centre or to a dealer providing appliance
recycling services.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.

6
Recommendations
•To reduce energy and water consumption, remove all dirt residues
from the dishes prior to loading the dishwasher.
•Only run the dishwasher when fully loaded.
•Place hollow items (bowls, glasses and pans) face down in the basket.
•Do not put dishes or cutlery with tobacco ash, wax, lubricating grease
or paint residues in the dishwasher.
Before first use
•Set the water softener level as required for the water hardness in the
area.

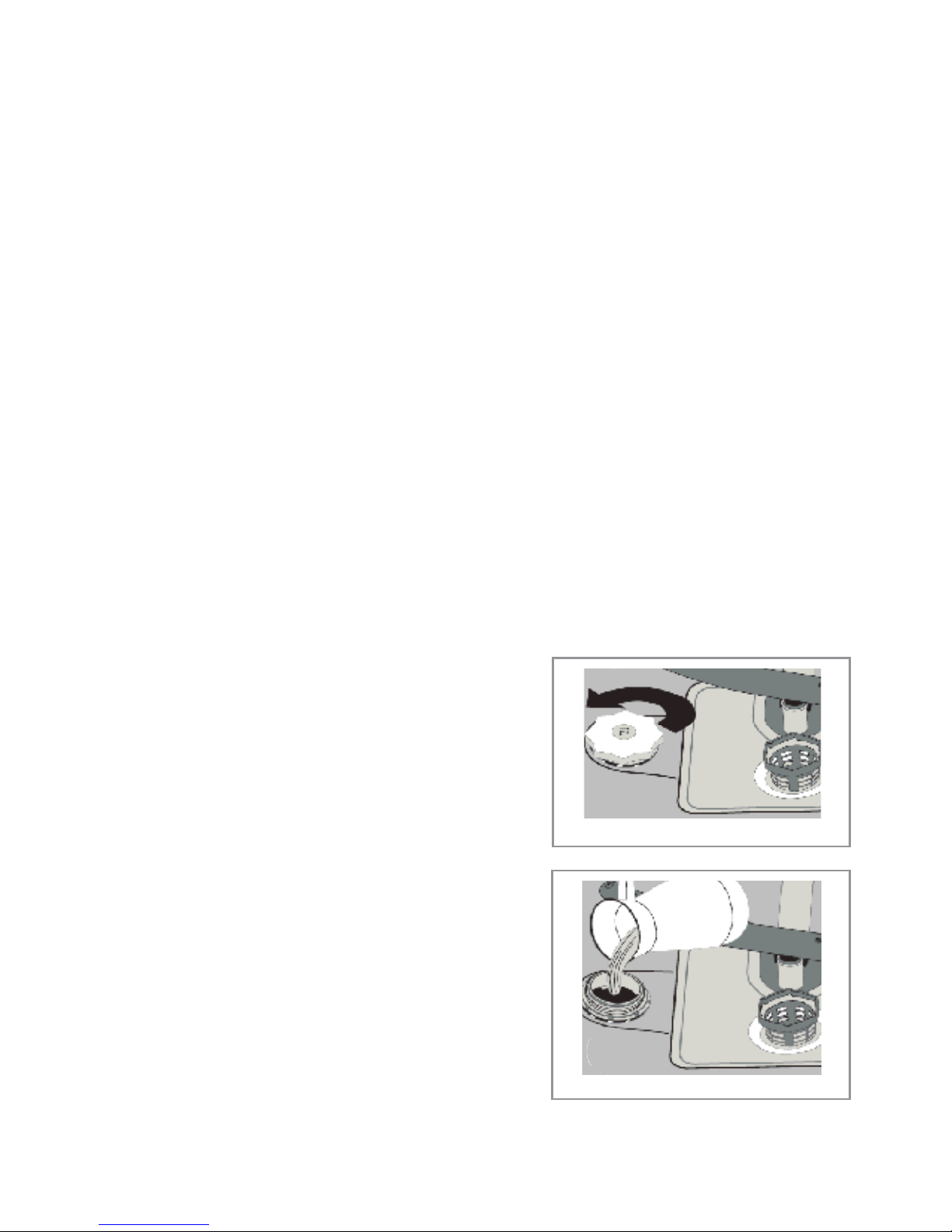

•Add 1kg of salt into the salt compartment and then fill with water to the
top of the salt compartment.
•Remove all the packaging materials from the interior of the dishwasher.
•Fill the rinse aid compartment.
•Run a hot programme without any dishes in the dishwasher.

7
Using your appliance
“Power” button (1)
To switch the dishwasher on or off, press the “Power” button (1). When
you switch on the dishwasher the “End of Programme” light will illuminate.
“Programme Selection” button (2)
To select a programme, press the “Programme Selection” button (3). The
dishwasher will store in its memory the last programme used.
“Programme Indicator” lights (3)
These lights will illuminate to confirm which programme has been

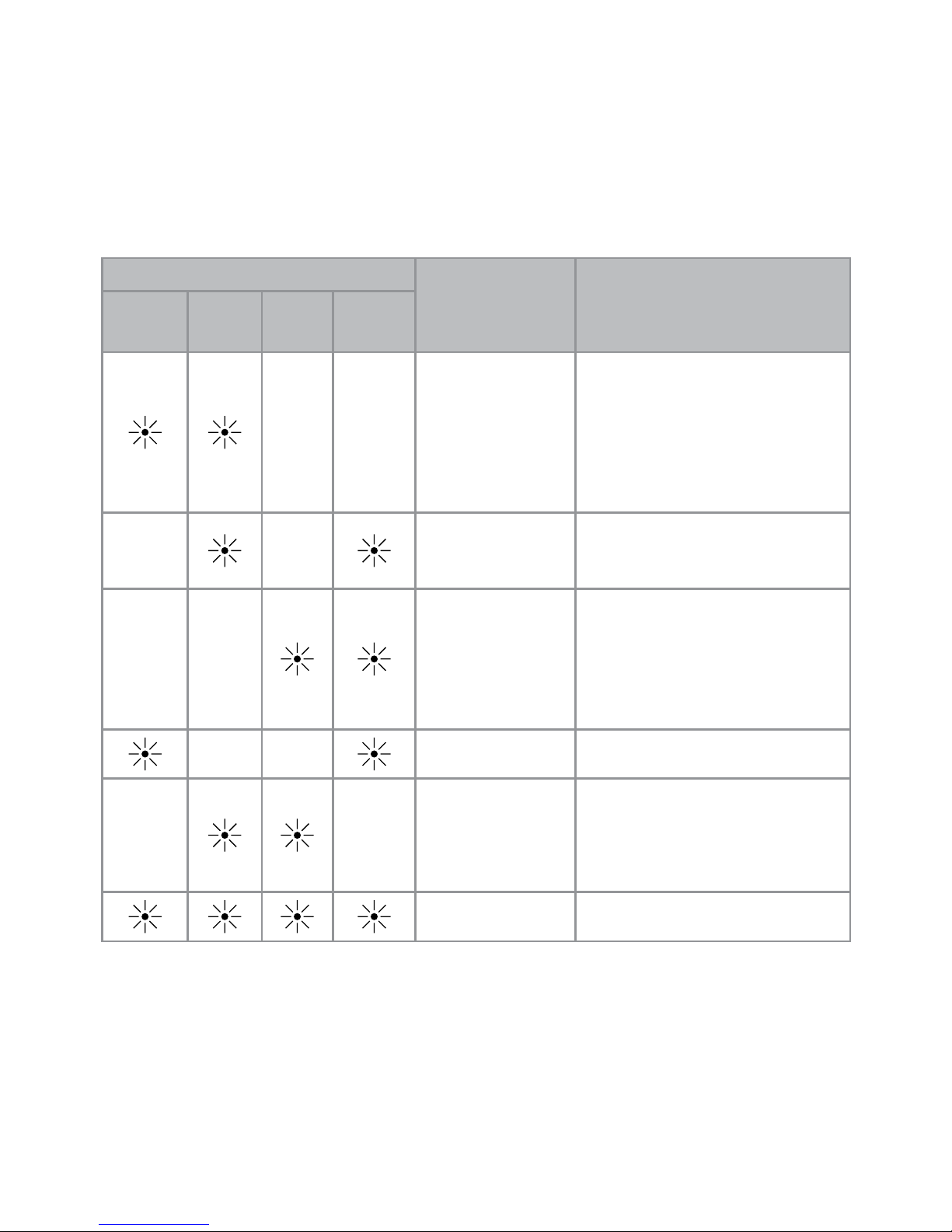

selected. If there is a fault on the dishwasher, the fault code will show on
these lights (page 20).
“Salt” and “Rinse Aid” warning lights and “End of Programme” light (4)
When either the dishwasher salt or rinse aid begins to run out, a warning
light will illuminate to advise that it needs refilling.
When the programme is complete, the dishwasher will emit five beeps
and the “End of Programme” light will illuminate.
Fig. 1

8
Starting a programme
• Press the “Power” button (the “End of Programme” light will be switched
on).
• Press the “Programme Selection” button until the required programme is
shown on the indicator lights.
• Once a programme is selected, the “End of Programme” light will switch
off.
• When you close the dishwasher door, the programme will start
automatically.
• If possible, avoid opening the door once a programme has started.
Please note: The dishwasher stores the most recently used
programme in its memory. To change the programme, simply press
the “Programme Selection” button.
At the end of a programme
At the end of a programme, the dishwasher will beep five times, and the
“End of Programme” indicator light will switch on.
Changing a programme
It is possible to change the programme, if necessary, once the
programme has started.
• First open the door slightly to reduce the risk of water spillage.
• Press the “Programme Selection” button until the required programme is
shown on the display.
• Close the door. The dishwasher will begin the new programme from
the point at which the old programme stopped.

9
Cancelling a programme
It is possible to cancel a programme once is has started.
• First open the door slightly to reduce the risk of water spillage.
• Press and hold in the “Programme Selection” button until the “End of
Programme” indicator flashes.
• Close the door. The dishwasher will run a drain cycle which will take
approximately 30 seconds. Once this is complete, the dishwasher will
beep five times and the “End of Programme” light will switch on.
Switching the dishwasher off
• Once the dishwasher beeps five times and the “End of Programme”
light switches on, the dishwasher can be switched off by pressing the
“Power” button.
• If leaving the appliance off for a long time, turn off the water tap and
remove the plug from the power socket.
Please note: The dishwasher should automatically continue on the
programme it has started if the door is opened or in the event of a
power cut.

10
Detergent
To fill the detergent compartment
• Push the latch to open the
compartment.
• Add the required amount of detergent.
The main detergent compartment “b”
(Fig. 2) has lines to allow for specific
amounts of detergent. These are marked at either 15cm3or 25cm3, to
be used depending on how dirty the dishes are.
If your dishes are in need of an intensive wash, then add 5cm3of
detergent into the prewash section of the compartment “a” (Fig. 2).
• Close the detergent compartment lid until the latch locks.
Please note: You should only use detergents designed specifically
for use in dishwashers.
If using dishwasher tablets, always use the detergent compartment,
do not put them in the main body of the dishwasher or in the cutlery
basket. The solubility of dishwasher tablets can vary depending
on the temperature and duration of the programme. As a result, it is
recommended that powder detergents should be used in the shorter
programmes to allow better performance.
The use of separate detergent, rinse aid and dishwasher salt is
recommended rather than combination tablets as separates achieve
better wash performance.
If you do use combination detergents, add salt and rinse aid to the
dishwasher and then adjust the water hardness setting and rinse aid
Fig. 2

11
Detergent
To fill the detergent compartment
1. Push the latch as shown in figure 1.
2. Add the required amount of detergent. The main detergent
compartment “b” (figure 2) has lines to allow for specific amounts of
detergent. These are marked at either 15 cm3or 25 cm3, to be
used depending on how dirty the dishes are.
If your dishes are in need of an intensive wash, then add 5 cm3of
detergent into the prewash section of the compartment “a” (figure 2).
3. Then close the detergent compartment lid until the latch locks.
Please note: You should only use detergents designed specifically for
use in dishwashers.
If using dishwasher tablets, always use the detergent compartment, do not put
them in the main body of the dishwasher or in the cutlery basket. The solubility
of dishwasher tablets can vary depending on the temperature and duration of
the programme. As a result, it is recommended that powder detergents should
be used in the shorter programmes to allow better performance.
CDA recommends the use of separate detergent, rinse aid and dishwasher salt
rather than combination tablets as separates achieve better wash performance.
If you do use combination detergents, add salt and rinse aid to the dishwasher
and then adjust the water hardness setting and rinse aid setting to the
minimum. When you then use separate detergents again, you should fill the
salt and rinse aid compartments, adjust the water hardness setting to the
maximum and run an empty wash, then adjust the water hardness setting and
the rinse aid setting to the appropriate level.
Salt
To ensure the best efficiency, the dishwasher needs soft water. Hard water
means that lime residues remain on the dishes and the interior of the
dishwasher, affecting performance. The softener system is designed to
remove the ions that make the water hard to provide the best quality wash
performance. This is achieved by using dishwasher salt.
To add dishwasher salt, follow the steps below:
1. Remove the lower dishwasher basket and then unscrew the salt
compartment cap, as shown in figure 1.
2. Fill the compartment with dishwasher salt (do not use table salt), carefully
to prevent unnecessary spillage (figure 3). Before first use, you should
fill the compartment with 2kg of dishwasher salt and then fill up the salt
compartment with water (up to the brim of the compartment) as shown
in figure 3.
3. Replace the cap and the lower basket.
When the salt warning light on the control panel illuminates, you should
refill the salt compartment with salt only – do not add water to the salt
compartment after the first use.
You should run a prewash programme immediately after adding
dishwasher salt, to prevent any damage to the dishwasher systems.
fig 2
S A L T
fig 3
S A L T
fig 1
Fig. 3
Detergent
To fill the detergent compartment
1. Push the latch as shown in figure 1.
2. Add the required amount of detergent. The main detergent
compartment “b” (figure 2) has lines to allow for specific amounts of
detergent. These are marked at either 15 cm
3
or 25 cm
3
, to be
used depending on how dirty the dishes are.
If your dishes are in need of an intensive wash, then add 5 cm
3
of
detergent into the prewash section of the compartment “a” (figure 2).
3. Then close the detergent compartment lid until the latch locks.
Please note: You should only use detergents designed specifically for
use in dishwashers.
If using dishwasher tablets, always use the detergent compartment, do not put
them in the main body of the dishwasher or in the cutlery basket. The solubility
of dishwasher tablets can vary depending on the temperature and duration of
the programme. As a result, it is recommended that powder detergents should
be used in the shorter programmes to allow better performance.
CDA recommends the use of separate detergent, rinse aid and dishwasher salt
rather than combination tablets as separates achieve better wash performance.
If you do use combination detergents, add salt and rinse aid to the dishwasher
and then adjust the water hardness setting and rinse aid setting to the
minimum. When you then use separate detergents again, you should fill the
salt and rinse aid compartments, adjust the water hardness setting to the
maximum and run an empty wash, then adjust the water hardness setting and
the rinse aid setting to the appropriate level.
Salt
To ensure the best efficiency, the dishwasher needs soft water. Hard water
means that lime residues remain on the dishes and the interior of the
dishwasher, affecting performance. The softener system is designed to
remove the ions that make the water hard to provide the best quality wash
performance. This is achieved by using dishwasher salt.
To add dishwasher salt, follow the steps below:
1. Remove the lower dishwasher basket and then unscrew the salt
compartment cap, as shown in figure 1.
2. Fill the compartment with dishwasher salt (do not use table salt), carefully
to prevent unnecessary spillage (figure 3). Before first use, you should
fill the compartment with 2kg of dishwasher salt and then fill up the salt
compartment with water (up to the brim of the compartment) as shown
in figure 3.
3. Replace the cap and the lower basket.
When the salt warning light on the control panel illuminates, you should
refill the salt compartment with salt only – do not add water to the salt
compartment after the first use.
You should run a prewash programme immediately after adding
dishwasher salt, to prevent any damage to the dishwasher systems.
fig 2
S A L T
fig 3
S A L T
fig 1
Fig. 4
setting to the minimum. When you then use separate detergents again,
you should fill the salt and rinse aid compartments, adjust the water
hardness setting to the maximum and run an empty wash, then adjust
the water hardness setting and the rinse aid setting to the appropriate
level.
Salt
To ensure the best efficiency, the dishwasher needs soft water. Hard
water means that lime residues remain on the dishes and the interior of
the dishwasher, affecting performance. The softener system is designed
to remove the ions that make the water hard and provide the best
quality wash performance. This is achieved by using dishwasher salt.
To add dishwasher salt
• Remove the lower dishwasher
basket and then unscrew the salt
compartment cap (Fig. 3).
• Fill the compartment with dishwasher
salt (do not use table salt) carefully,
to reduce the risk of spillage (Fig. 4).
Before first use, you should fill the salt
compartment with 1kg of dishwasher
salt and then top up the compartment
with water (up to the brim of the
compartment) (Fig. 4).
• Replace the cap and the lower basket.
When the salt warning light on the control

12
panel illuminates, you should refill the salt compartment with salt only –
do not add water to the salt compartment after the first use.
Important:
You should run a prewash programme immediately after adding
dishwasher salt, to prevent any damage to the dishwasher system.
Softener adjustment
The efficiency of your dishwasher depends on the softness of the
tap water. To ensure best efficiency, the dishwasher is equipped with
a system that reduces the hardness in the mains water supply. The
efficiency will increase when the system is correctly set. To find out the
water hardness level of your water supply you can use the test strip
supplied, or alternatively contact your local water board.
• Open the testing strip (Fig. 5).
• Run water through the tap for one minute.
• Hold the testing strip in water for one second.
• Remove from the water and shake the test strip to remove excess
water.
• Wait for one minute.
• Check the number of marks on the strip to see the level of water
hardness.
If the hardness of the water you use is above 63dE, or if you are using
Fig. 5

13
well water, you are recommended to contact your local water board to
confirm the water hardness level and to use filter and water refinement
devices.
Please note: The water hardness is preset to level “3”.
To change the hardness setting
• Press and hold down the “Programme Selection” button.
• Press the “Power” button to switch on the dishwasher.
• Keep the “Programme Selection” button pressed until all “Programme
Indicator” lights flash.
• To adjust the level, press the “Programme Selection” button until the
required level is achieved. The “Programme” lights will illuminate as per
the table below.
• To store the selected water hardness level, press the “Power” button.
Water hardness level British hardness dE Indicator lights illuminated
1 0-6 P1
2 7-14 P2
3 15-21 P3
4 22-28 P1 & P3
5 29-42 P2 & P3
6 43-63 P1, P2 & P3

14
Rinse Aid
To fill the rinse aid compartment
1. Open the rinse aid compartment by turning and removing the cap as
shown in figure 4.
2. Fill the rinse aid compartment until the rinse aid indicator goes dark,
as shown in figure 5 (where a indicates the compartment is empty, and
“b” indicates the compartment is full).
3. Replace the cap, ensuring the markers on the cap line up with the
compartment prior to screwing the cap back in place.
Rinse Aid Adjustment
The level of rinse aid use is preset to 4. You can adjust the level of rinse aid
use by adjusting as shown in figure 6.
If water stains form on the dishes after a wash, the level should be increased.
If blue stains which can be wiped away are left on the dishes after a wash, the
level should be decreased.
Please note: Rinse aid ensures better quality wash results and
increased drying performance.
Always refill the rinse aid when the rinse aid indicator light on the
control panel is illuminated.
fig 4
fig 5
fig 6

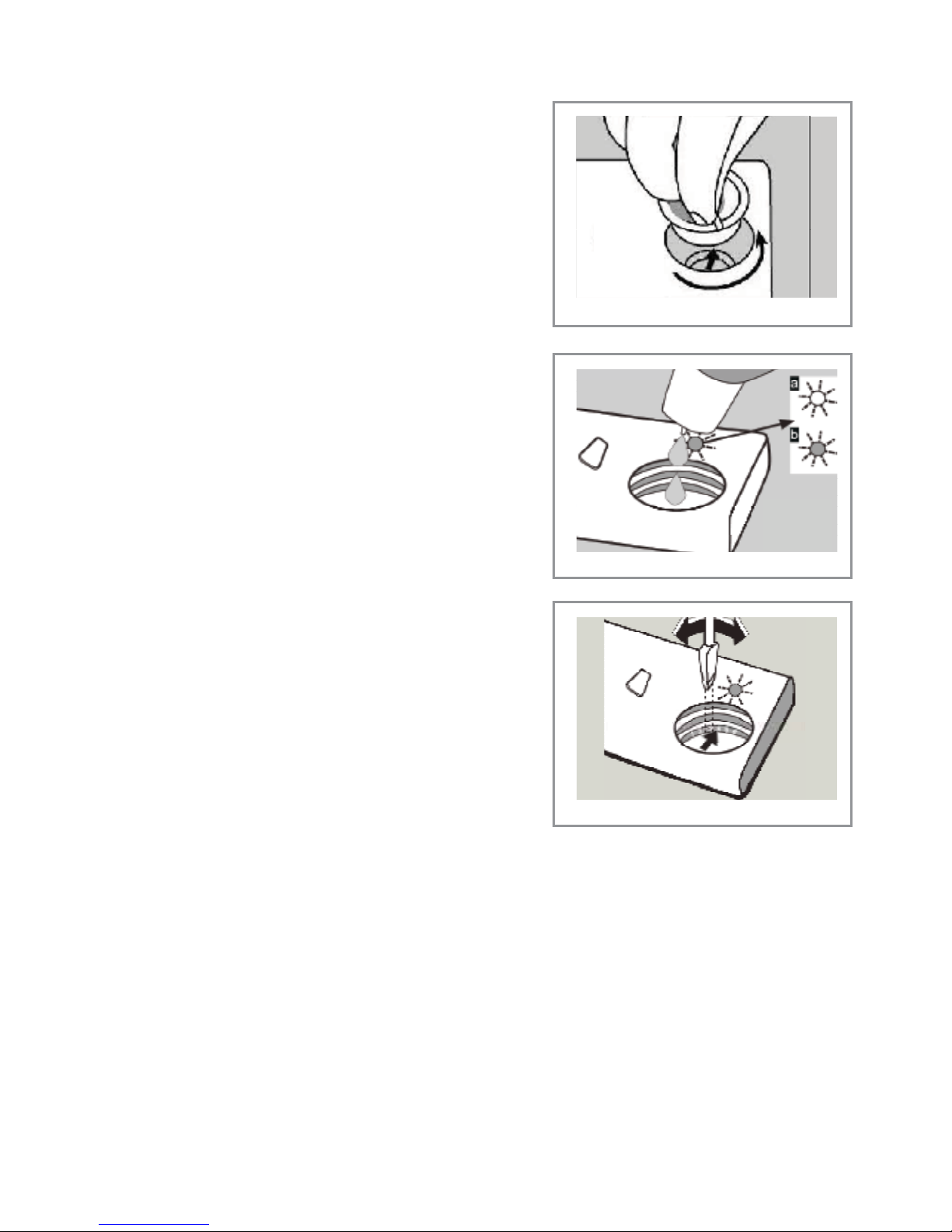

Rinse aid
To fill the rinse aid compartment
• Open the rinse aid compartment by
turning and removing the cap (Fig. 6).
• Fill the rinse aid compartment until the
rinse aid indicator goes dark (Fig. 7),
where “a” indicates the compartment
is empty, and “b” indicates the
compartment is full).
• Replace the cap, ensuring the
markers on the cap line up with the
compartment prior to screwing the cap
back in place.
Rinse Aid Adjustment
The level of rinse aid use is preset to “3”.
You can adjust the level of rinse aid use
by adjusting the dial (Fig. 8). If water
stains form on the dishes after a wash,
the level should be increased. If blue
stains which can be wiped away are left on the dishes after a wash, the
level should be decreased.
Please note: Rinse aid ensures better quality wash results and
increased drying performance.
Always refill the rinse aid when the rinse aid indicator light on the
control panel is illuminated.
Rinse Aid
To fill the rinse aid compartment
1. Open the rinse aid compartment by turning and removing the cap as
shown in figure 4.
2. Fill the rinse aid compartment until the rinse aid indicator goes dark,
as shown in figure 5 (where a indicates the compartment is empty, and
“b” indicates the compartment is full).
3. Replace the cap, ensuring the markers on the cap line up with the
compartment prior to screwing the cap back in place.
Rinse Aid Adjustment
The level of rinse aid use is preset to 4. You can adjust the level of rinse aid
use by adjusting as shown in figure 6.
If water stains form on the dishes after a wash, the level should be increased.
If blue stains which can be wiped away are left on the dishes after a wash, the
level should be decreased.
Please note: Rinse aid ensures better quality wash results and
increased drying performance.
Always refill the rinse aid when the rinse aid indicator light on the
control panel is illuminated.
fig 4
fig 5
fig 6
Rinse Aid
To fill the rinse aid compartment
1. Open the rinse aid compartment by turning and removing the cap as
shown in figure 4.
2. Fill the rinse aid compartment until the rinse aid indicator goes dark,
as shown in figure 5 (where a indicates the compartment is empty, and
“b” indicates the compartment is full).
3. Replace the cap, ensuring the markers on the cap line up with the
compartment prior to screwing the cap back in place.
Rinse Aid Adjustment
The level of rinse aid use is preset to 4. You can adjust the level of rinse aid
use by adjusting as shown in figure 6.
If water stains form on the dishes after a wash, the level should be increased.
If blue stains which can be wiped away are left on the dishes after a wash, the
level should be decreased.
Please note: Rinse aid ensures better quality wash results and
increased drying performance.
Always refill the rinse aid when the rinse aid indicator light on the
control panel is illuminated.
fig 4
fig 5
fig 6
Fig. 6
Fig. 7
Fig. 8

15
x
x
x
Dishwasher Baskets
To adjust the height of the upper basket
(we recommend wearing gloves for this):
1. Open the basket retaining clips, as
shown in Fig. 9, by turning them to the
side.
2. Remove the upper basket, and relo-
cate the alternate set of wheels on the
runner, as shown in Fig. 10, pushing the
basket back into place.
3. Close the basket retaining clips.
The images below are provided as guidance as to best practice for
loading the dishwasher. For loading the dishwasher to its 10 place
setting capacity, see Fig. 12 on page 16.
Fig. 11
Lower Basket Top Basket
Faulty loads
Fig. 9
Fig. 10

16
Standard loading and test data
Capacity
• Upper and lower baskets: 10 place settings (See Fig. 12).
• The upper basket should be adjusted to high position.
• Cups should be placed onto the dish rack pins.
•Cup racks should be placed above the wire.
Detergent / Rinse aid
• 5 + 25cm3, in accordance with EN50242-DIN 44990 IEC436 (international
norms) / Rinse aid dosage adjustment: 5.
Programme test
• Eco 50°C, in accordance with EN50242 (international norms.).
1 2 3 4 5 6 7 8
3 3
3
3
3
3
3
3
3
3
2
2 2 2
2 2 2 2
2 2
6
1 1
1 111
1 1
1
1
8
55
5 555
5
555
44 4
4
4
4 4 4
44
Fig. 12

17
Programme
listing
The values and
times provided in the
adjacent table have
been obtained under
laboratory conditions
according to relevant
standards. Actual
results obtained can
vary depending on
the conditions of the
dishwasher’s use
and environment.
(mains supply voltage,
water pressure, water
input temperature
and environmental
temperature).
Laboratory measured
value in accordance
with European
standard EN50242.
Reference programme
is ECO 50°.
Programme
name and
temperature
Intensive
65° (P1)
Eco
50° (P2)
Prewash
- (P3)
Level of soil High Medium -
Detergent
required A+B A+B -
Programme
duration
(mins.) 115 198 15
Electricity
consumption
(kWh) 1.33 0.83 0.02
Water
consumption
(litres)
17.6 11.0 3.5
Prewash
50° wash
Cold rinse
Dry
Hot rinse
End
65° wash
Prewash Prewash
Hot rinse
Dry
EndEnd
Cold rinse

18
Fig. 14
Fig. 13
Care and maintenance
Before beginning any care or
maintenance, you should always
disconnect the appliance from the
electricity supply, and also turn off the
water supply.
Door seals
Wipe the dishwasher door seals regularly
with a damp cloth to remove any
residues.
Filters
You should clean the filters at least once
a month.
• Remove the lower basket.
• Turn the micro-filter anti-clockwise and
then lift it out (Fig. 13).
• Remove the coarse filter from the micro-
filter (Fig. 14).
• Remove the base filter from the
dishwasher compartment (Fig. 15).
You should clean and rinse the filters
thoroughly before replacing all the
sections in reverse order to that above.
The micro-filter should lock into place
once it is secure (Fig. 16).
Fig. 15
Fig. 16

19
IMPORTANT: Never run a programme without the filters in place.
Incorrect fitting of the filters may reduce wash performance and
potentially damage your appliance.
Spray arms
You should clean the spray arms at least once a month.
• Remove the lower basket.
• Pull the lower spray arm upwards to remove it.
• To remove the upper spray arm, first remove the nut on the upper spray
arm by turning it.
You should clean and rinse the spray arms thoroughly before replacing
them. Ensure that the upper spray arm nut is securely tightened when
refitting the upper spray arm.
Dishwasher interior
To deal with an accumulation of dirt, oil or limescale in the dishwasher,
run an intensive programme with detergent when the dishwasher is
empty.
Alternatively, there are specialist dishwasher cleaners available that can
be used.

20
Failure codes and troubleshooting
The “Programme Indicators” also serve as a diagnostic display to help in
the event of a problem with the appliance.
Error Code
Error description Advice
P1 P2 P3 End
Inadequate water
supply.
Make sure the water inlet tap is fully
open.
Close the water tap, separate the
water inlet hose from the tap and
clean the filter.
Restart your machine, contact
Customer Care if the error resumes.
Continual fill error. Close the tap and contact Customer
Care.
The waste water in
the machine cannot
be discharged.
Drain hose is blocked.
The filters of your machine might be
blocked.
Restart the dishwasher and
cancel the programme. If the error
continues, contact Customer Care.
Heater error. Contact Customer Care.
Alarm is active
against water
overflow.
Turn o the dishwasher and
disconnect the water supply.
Contact Customer Care.
Faulty electronic
card. Contact Customer Care.
