Matrix L33-ER Release Note

TECHNICAL HANDBOOK
Matrix L33-ER
Ed 06.01.4001 Electronic board SPWR
I.SO Italia S.p.A.
INDUSTRIA SOLARIUM
Via G. Di Vittorio n° 30
30029-S. Stino di Livenza (VE)
Tel. [phone]
Fax [phone]
www. Isoitalia.com
E-mail [email protected]
Read all precautions and
instructions in this manual
before using this equipment.

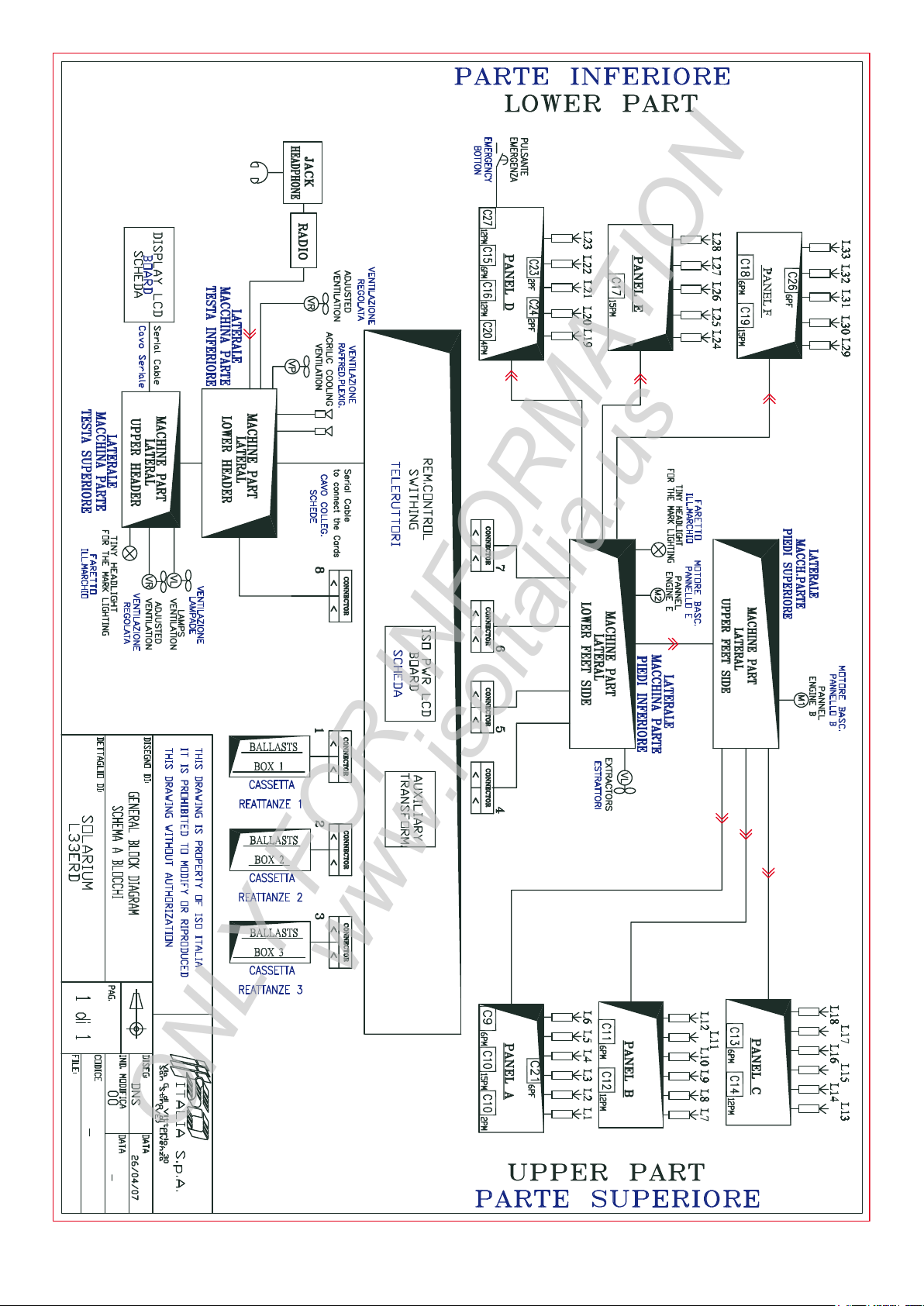

ONLY FOR INFORMATION
www.isoitalia.us

2
ONLY FOR INFORMATION
www.isoitalia.us

3

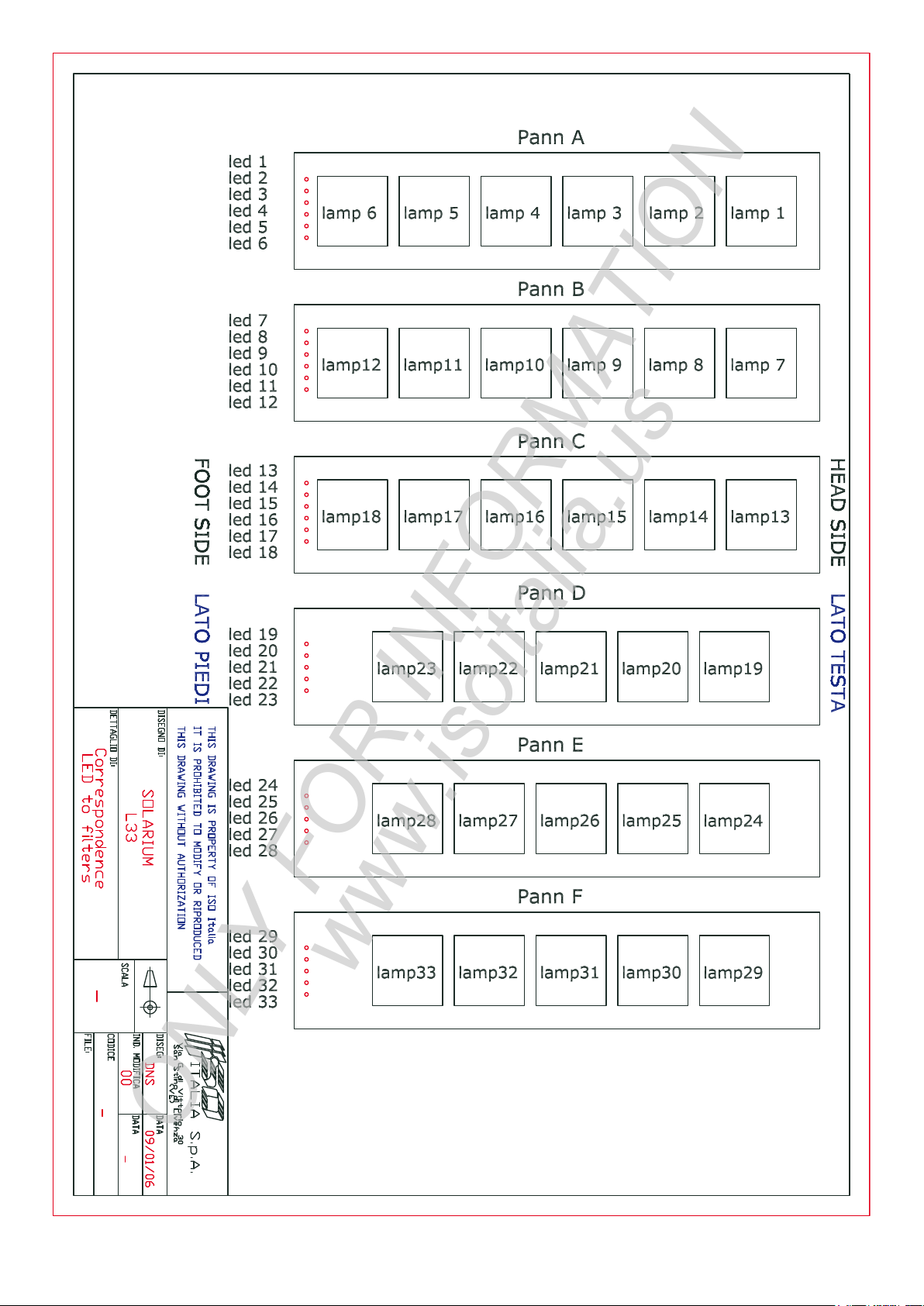

ONLY FOR INFORMATION
www.isoitalia.us

4
ONLY FOR INFORMATION
www.isoitalia.us

5
TERMINAL BOARD OF THE ELECTRIC BOARD
N° Description
PE Ground
1 General Neutral
2 Supply phase of the auxiliary circuit
3 Supply Neutral of the auxiliary circuit
Face Start
4 Phase L1 – supply of the face lamp 1/2/7
5 Neutral o second supply phase of the face lamp 1/2/7
6 Supply Neutral of the face lamp 1/2/7 (for 400 V 3F+ N)
7 Supply Phase L2 of the face lamp 1/2/7 (for 230V 3F)
8 Supply Phase L2 of the face lamp 8/13/14
9 Neutral o second supply phase of the face lamps 8/13/14
10 Supply Neutral of the face lamp 8/13/14 (for 400 V 3F+ N)
11 Supply Phase L3 of the face lamp 8/13/14 (for 230V 3F)
First Body Start
12 Supply Phase L1 of the lamps 3/19/20/21 - upfor body
13 Neutral or second supply phase of the lamp 3/19/20/21- upfor body
14 Supply Neutral of the lamps 3/19/20/21 - upfor body (for 400 V 3F+ N)
15 Supply Phase L2 of the lamps3/19/20/21 - upfor body (for 230V 3F)
16 Supply Phase of the L2 lamps 9/24/25/26 - upfor body
17 Neutral or second supply phase of the lamps 9/24/25/26 - upfor body
18 Supply Neutral of the lamps 9/24/25/26 - upfor body (for 400 V 3F+ N)
19 Supply Phase L3 of the lamps 9/24/25/26 - upfor body (for 230V 3F)
20 Supply Phase L3 of the lamps 15/29/30/31 - upfor body
21 Neutral or second supply phase of the lamps 15/29/30/31 - upfor body
22 Supply Neutral of the lamps 15/29/30/31 - upfor body (for 400 V 3F+ N)
23 Supply Phase L1 of the lamps 15/29/30/31 - upfor body (for 230V 3F)
Second Body Start
24 Supply Phase L1 of the lamps 4/5/6/22/23 - upfor body
25 Neutral or second supply phase of the lamps 4/5/6/22/23 - upfor body
26 Supply Neutral of the lamps 4/5/6/22/23 - upfor body (for 400 V 3F+ N)
27 Supply Phase L2 of the lamps 4/5/6/22/23 - upfor body (for 230V 3F)
28 Supply Phase L2 of the lamps 10/11/12/27/28 - upfor body
29 Neutral or second supply phase of the lamps 10/11/12/27/28 - upfor body
30 Supply Neutral of the lamps10/11/12/27/28 - upfor body (for 400 V 3F+ N)
31 Supply Phase L3 of the lamps 10/11/12/27/28 - upfor body (for 230V 3F)
32 Supply Phase L3 of the lamps 16/17/18/32/33 - upfor body
33 Neutral or second supply phase of the lamps 16/17/18/32/33 - upfor body
34 Supply Neutral of the lamps 16/17/18/32/33 - upfor body (for 400 V 3F+ N)
35 Supply Phase L1 of the lamps 16/17/18/32/33 - upfor body (for 230V 3F)
36 External Start (coin box)
37 External Start (coin box)
38 contact NO teleruptor
39 contact NO teleruptor
40 nc
41 nc
42 emergency botton
43 emergency botton
ONLY FOR INFORMATION
www.isoitalia.us

6
WIRING DIAGRAM
Protective covering - ballasts box 1
Connector n°1
1 Ballast outputput of the lamp n° 1
2 Ballast inputput of the lamp n° 1
3 Ballast outputput of the lamp n° 2
4 Ballast inputput of the lamp n° 2
5 Ballast outputput of the lamp n° 3
6 Ballast inputput of the lamp n° 3
7 Ballast outputput of the lamp n° 4
8 Ballast inputput of the lamp n° 4
9 Ballast outputput of the lamp n° 5
10 Ballast inputput of the lamp n° 5
11 Ballast outputput of the lamp n° 6
12 Ballast inputput of the lamp n° 6
13 Ballast outputput of the lamp n° 7
14 Ballast inputput of the lamp n° 7
15 Ballast outputput of the lamp n° 8
16 Ballast inputput of the lamp n° 8
17 Ballast outputput of the lamp n° 9
18 Ballast inputput of the lamp n° 9
19 Ballast outputput of the lamp n° 10
20 Ballast inputput of the lamp n° 10
21:24 N.c.
Ground
Protective covering - ballasts box 2
Connector n°2
1 Ballast outputput of the lamp n° 11
2 Ballast inputput of the lamp n° 11
3 Ballast outputput of the lamp n° 12
4 Ballast inputput of the lamp n° 12
5 Ballast outputput of the lamp n° 13
6 Ballast inputput of the lamp n° 13
7 Ballast outputput of the lamp n° 14
8 Ballast inputput of the lamp n° 14
9 Ballast outputput of the lamp n° 15
10 Ballast inputput of the lamp n° 15
11 Ballast outputput of the lamp n° 16
12 Ballast inputput of the lamp n° 16
13 Ballast outputput of the lamp n° 17
14 Ballast inputput of the lamp n° 17
15 Ballast outputput of the lamp n° 18
16 Ballast inputput of the lamp n° 18
17 Ballast outputput of the lamp n° 19
18 Ballast inputput of the lamp n° 19
19 Ballast outputput of the lamp n° 20
20 Ballast inputput of the lamp n° 20
21 Ballast outputput of the lamp n° 21
22 Ballast inputput of the lamp n° 21
23:24 N.c.
Ground
Protective covering - lamps
Connector n°5
1 Ballast outputput of the lamp n° 13
2 Neutral or second phase-lamp n°13
3 Ballast outputput of the lamp n° 14
4 Neutral or second phase-lamp n°14
5 Ballast outputput of the lamp n° 15
6 Neutral or second phase-lamp n°15
7 Ballast outputput of the lamp n° 16
8 Neutral or second phase-lamp n°16
9 Ballast outputput of the lamp n° 17
10 Neutral or second phase-lamp n°17
11 Ballast outputput of the lamp n° 18
12 Neutral or second phase-lamp n°18
13 Channel 1 for lter Pan A and B
14 Channel 1 for lter Pan A and B
15 Channel 2 for lter Pan C
16 Channel 2 for lter Pan C
Ground
Protective covering - lamps
Connector n°6
1 Ballast outputput of the lamp n° 19
2 Neutral or second phase-lamp n°19
3 Ballast outputput of the lamp n° 20
4 Neutral or second phase-lamp n°20
5 Ballast outputput of the lamp n° 21
6 Neutral or second phase-lamp n°21
7 Ballast outputput of the lamp n° 22
8 Neutral or second phase-lamp n°22
9 Ballast outputput of the lamp n° 23
10 Neutral or second phase-lamp n°23
11 Ballast outputput of the lamp n° 24
12 Neutral or second phase-lamp n°24
13 Ballast outputput of the lamp n° 25
14 Neutral or second phase-lamp n°25
15 Ballast outputput of the lamp n° 26
16 Neutral or second phase-lamp n°26
17 Ballast outputput of the lamp n° 27
18 Neutral or second phase-lamp n°27
19 Ballast outputput of the lamp n° 28
20 Neutral or second phase-lamp n°28
21 Ballast outputput of the lamp n° 29
22 Neutral or second phase-lamp n°29
23 Ballast outputput of the lamp n° 30
24 Neutral or second phase-lamp n°30
Ground
Protective covering - ballasts box 3
Connector n°3
1 Output of the lamp n° 22 ballast
2 Input of the lamp n° 22 ballast
3 Output of the lamp n° 23 ballast
4 Ballast inputput of the lamp n° 23
5 Ballast outputput of the lamp n° 24
6 Ballast inputput of the lamp n° 24
7 Ballast outputput of the lamp n° 25
8 Ballast inputput of the lamp n° 25
9 Ballast outputput of the lamp n° 26
10 Ballast inputput of the lamp n° 26
11 Ballast outputput of the lamp n° 27
12 Ballast inputput of the lamp n° 27
13 Ballast outputput of the lamp n° 28
14 Ballast inputput of the lamp n° 28
15 Ballast outputput of the lamp n° 29
16 Ballast inputput of the lamp n° 29
17 Ballast outputput of the lamp n° 30
18 Ballast inputput of the lamp n° 30
19 Ballast outputput of the lamp n° 31
20 Ballast inputput of the lamp n° 31
21 Ballast outputput of the lamp n° 32
22 Ballast inputput of the lamp n° 32
23 Ballast outputput of the lamp n° 33
24 Ballast inputput of the lamp n° 33
Ground
Protective covering - lamps
Connector n°4
1 Ballast outputput of the lamp n° 1
2 Neutral or second phase-lamp n°1
3 Ballast outputput of the lamp n° 2
4 Neutral or second phase-lamp n°2
5 Ballast outputput of the lamp n° 3
6 Neutral or second phase-lamp n°3
7 Ballast outputput of the lamp n° 4
8 Neutral or second phase-lamp n°4
9 Ballast outputput of the lamp n° 5
10 Neutral or second phase-lamp n° 5
11 Ballast outputput of the lamp n° 6
12 Neutral or second phase-lamp n° 6
13 Ballast outputput of the lamp n° 7
14 Neutral or second phase-lamp n° 7
15 Ballast outputput of the lamp n° 8
16 Neutral or second phase-lamp n° 8
17 Ballast outputput of the lamp n° 9
18 Neutral or second phase-lamp n° 9
19 Ballast outputput of the lamp n° 10
20 Neutral or second phase-lamp n°10
21 Ballast outputput of the lamp n° 11
22 Neutral or second phase-lamp n°11
23 Ballast outputput of the lamp n° 12
24 Neutral or second phase-lamp n°12
Ground
ONLY FOR INFORMATION
www.isoitalia.us

7
Protective covering–lamps and other
Connector n°7
1 Ballast outputput of the lamp n° 31
2 Neutral or second phase-lamp n°31
3 Ballast outputput of the lamp n° 32
4 Neutral or second phase-lamp n°32
5 Ballast outputput of the lamp n° 33
6 Neutral or second phase-lamp n°33
7 Supply neutral of the extractors
8 Supply phase of the extractors
9 Supply of the header engine
10 Supply of the header engine
11 Supply of the panel engine B and E
12 Supply of the panel engine B and E
13 Supply mark lamp
14 Supply mark lamp
15 Led test
16 Led test
Ground
Protective covering - auxiliary service
Connector n°8
1 Supply neutral of the lamp ventilation
2 Supply phase of the lamp ventilation
3 Supply neutr.of the adjust ventilation
4 Supply phase of the adjust ventilation
5 Emergency button contact
6 Emergency button contact
7 Electromecc. Key contact
8 Electromecc. Key contact
9 Positive of the radio supply
10 Negative of the radio supply
11 positive left radio
12 negative left radio
13 positive right radio
14 negative right radio
15 positive left sintesiss
16 negative left right sintesiss
17 positive rigt sintesiss
18 termal probe
19 termal probe
20 Channel 3 for lter Pan D
21 Channel 3 for lter Pan D
22 Channel 4 for lter Pan E and F
23 Channel 4 for lter Pan E and F
24 N.C.
Ground
Panel PA
Connector n°9
1 Ballast outputput of the lamp n° 1
2 Neutral or second phase-lamp n° 1
3 Ballast outputput of the lamp n° 2
4 Neutral or second phase-lamp n° 2
5 Ground
6 N.C.
Connector n°10
1 Ballast outputput of the lamp n° 3
2 Neutral or second phase-lamp n° 3
3 Ballast outputput of the lamp n° 4
4 Neutral or second phase-lamp n° 4
5 Ballast outputput of the lamp n° 5
6 Neutral or second phase-lamp n° 5
7 Ballast outputput of the lamp n° 6
8 Neutral or second phase-lamp n° 6
9 Supply of the panel engine PB
10 Supply of the panel engine PB
11 Supply neutral of the adjusted ventil.
12 Supply phase of the adjusted ventil.
13 board control lters contact
14 board control lters contact
15 N.C.
Connector n°21
1 Supply of the panel engine PB
2 Supply of the panel engine PB
3 Supply neutral of the adjusted ventil.
4 Supply phase of the adjusted ventil.
5 Contact of the thermal probe
6 Contact of the thermal probe
7:9 N.C.
Connector n°28
1 Contact of the thermal probe
2 Contact of the thermal probe
3 contact protective part in tension
4 contact protective part in tension
Panel PB
Connector n°11
1 Ballast outputput of the lamp n° 7
2 Neutral or second phase-lamp n° 7
3 Ballast outputput of the lamp n° 8
4 Neutral or second phase-lamp n° 8
5 Ground
6 N.C.
Connector n°12
1 Ballast outputput of the lamp n° 9
2 Neutral or second phase-lamp n° 9
3 Ballast outputput of the lamp n° 10
4 Neutral or second phase-lamp n°10
5 Ballast outputput of the lamp n° 11
6 Neutral or second phase-lamp n°11
7 Ballast outputput of the lamp n° 12
8 Neutral or second phase-lamp n°12
9 board control lters contact
10 board control lters contact
11 contact protective part in tension
12 contact protective part in tension
Panel PC
Connector n°13
1 Ballast outputput of the lamp n° 13
2 Neutral or second phase-lamp n°13
3 Ballast outputput of the lamp n° 14
4 Neutral or second phase-lamp n°14
5 Ground
6 N.C.
Connector n°14
1 Ballast outputput of the lamp n° 15
2 Neutral or second phase-lamp n°15
3 Ballast outputput of the lamp n° 16
4 Neutral or second phase-lamp n°16
5 Ballast outputput of the lamp n° 17
6 Neutral or second phase-lamp n°17
7 Ballast outputput of the lamp n° 18
8 Neutral or second phase-lamp n°18
9 board control lters contact
10 board control lters contact
11 contact protective part in tension
12 contact protective part in tension
ONLY FOR INFORMATION
www.isoitalia.us

8

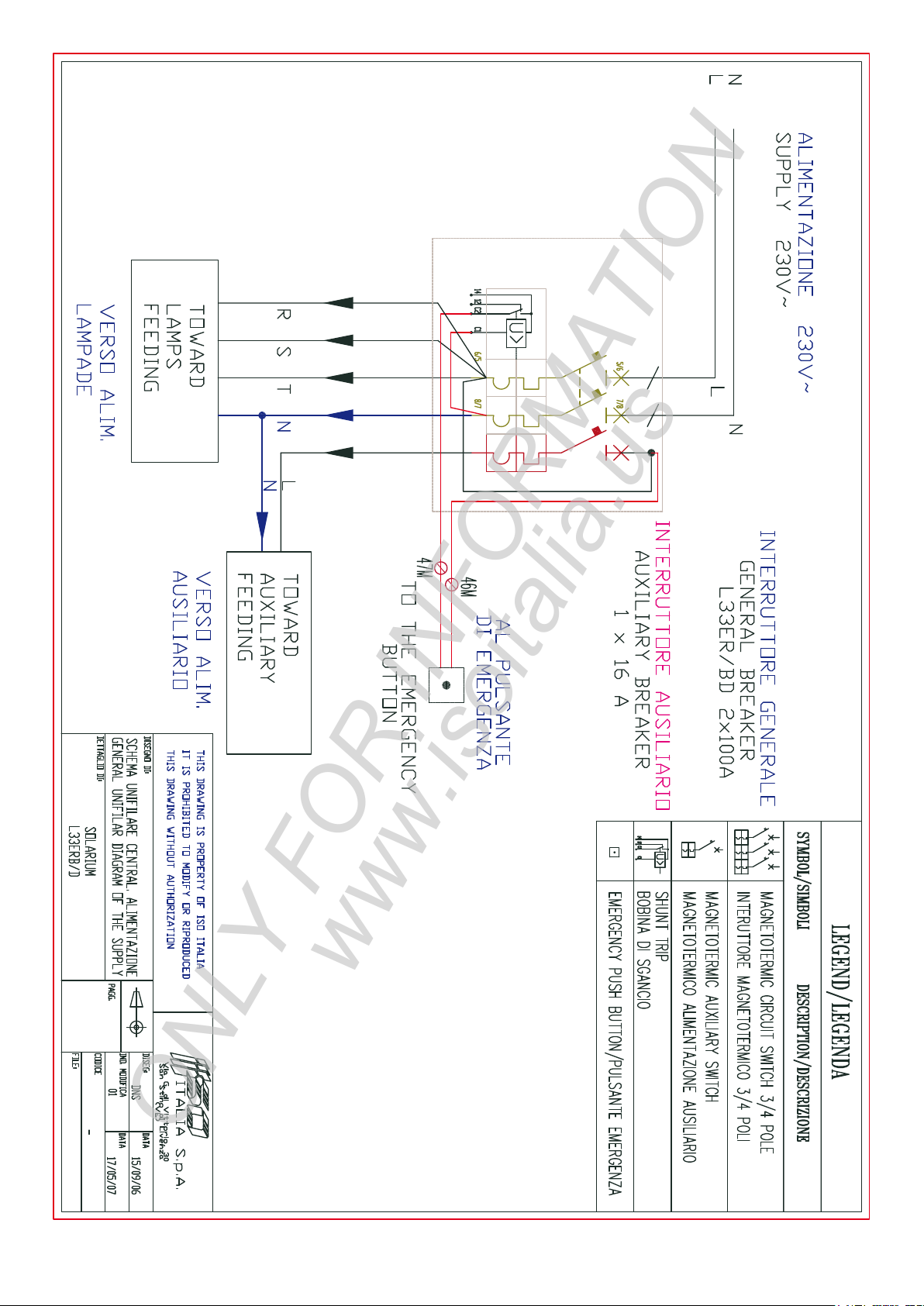

Panel PD
Connector n°15
1 Ballast outputput of the lamp n° 19
2 Neutral or second phase-lamp n°19
3 Ballast outputput of the lamp n° 20
4 Neutral or second phase-lamp n°20
5 Ground
6 N.C.
Connector n°16
1 Ballast outputput of the lamp n° 21
2 Neutral or second phase-lamp n°21
3 Ballast outputput of the lamp n° 22
4 Neutral or second phase-lamp n°22
5 Ballast outputput of the lamp n° 23
6 Neutral or second phase-lamp n°23
7 Supply neutral of the extractors
8 Supply phase of the extractors
9 Supply of the header engine
10 Supply of the header engine
11 Filters micro-switch contact
12 Filters micro-switch contact
13 contact protective part in tension
14 contact protective part in tension
15 N.C.
Connector n°20
1 Emergency button contact
2 Emergency button contact
3 Electromecc. Key contact
4 Electromecc. Key contact
5 Led test
6 Led test
Connector n°23
1 Supply neutral extractors
2 Supply phase extractors
Ground
Connector n°24
1 Supply of the header engine
2 Supply of the header engine
Connector N°27
1 Positive supply radio
2 Negative supply radio
3 left positive radio (sintesis)
4 Output left negative radio (sintesis)
5 Output right positive radio (sintesis)
6 Output right negativeradio (sintesis)
7 Output left positive sintesis
8 Output com. left-right negative sintesis
9 Output right positive sintesis
10 Output left positive headphone
11 Output com.left-right negative headpho-
ne
12 Output right positive headphone
Panel PE
Connector n°17
1 Ballast outputput of the lamp n° 24
2 Neutral or second phase-lamp n° 24
3 Ballast outputput of the lamp n° 25
4 Neutral or second phase-lamp n° 25
5 Ballast outputput of the lamp n° 26
6 Neutral or second phase-lamp n° 26
7 Ballast outputput of the lamp n° 27
8 Neutral or second phase-lamp n° 27
9 Ballast outputput of the lamp n° 28
10 Neutral or second phase-lamp n° 28
11 board control lters contact
12 board control lters contact
13 contact protective part in tension
14 contact protective part in tension
15 Ground
Panel PF
Connector n°18
1 Ballast outputput of the lamp n° 29
2 Neutral or second phase-lamp n° 29
3 Ballast outputput of the lamp n° 30
4 Neutral or second phase-lamp n° 30
5 Ground
6 N.C.
Connector n°19
1 Ballast outputput of the lamp n° 31
2 Neutral or second phase-lamp n° 31
3 Ballast outputput of the lamp n° 32
4 Neutral or second phase-lamp n° 32
5 Ballast outputput of the lamp n° 33
6 Neutral or second phase-lamp n° 33
7 Supply of the panel engine PE
8 Supply of the panel engine PE
9 Supply of the mark lamp
10 Supply of the mark lamp
11 board control lters contact
12 board control lters contact
13 thermal probe
14 thermal probe
15 N.C.
Connector n°33
1 contact protective part in tension
2 contact protective part in tension
Connector n°26
1 Supply of the panel engine PE
2 Supply of the panel engine PE
3 Supply of the mark lamp
4 Supply of the mark lamp
5 Contact of the thermal probe
6 Contact of the thermal probe
7:9 N.C.
ONLY FOR INFORMATION
www.isoitalia.us

9
ONLY FOR INFORMATION
www.isoitalia.us

10

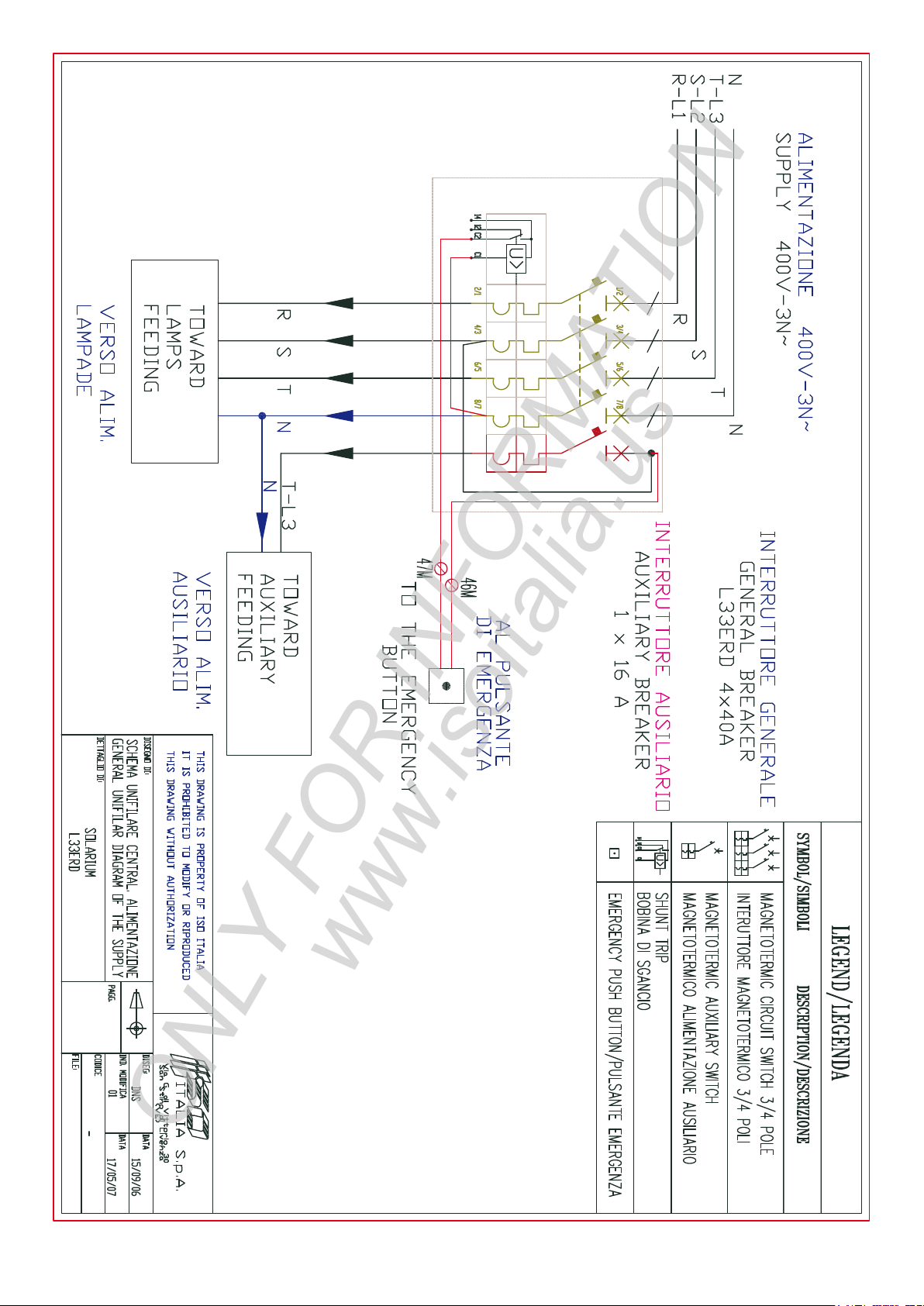

ONLY FOR INFORMATION
www.isoitalia.us

11
ONLY FOR INFORMATION
www.isoitalia.us

12

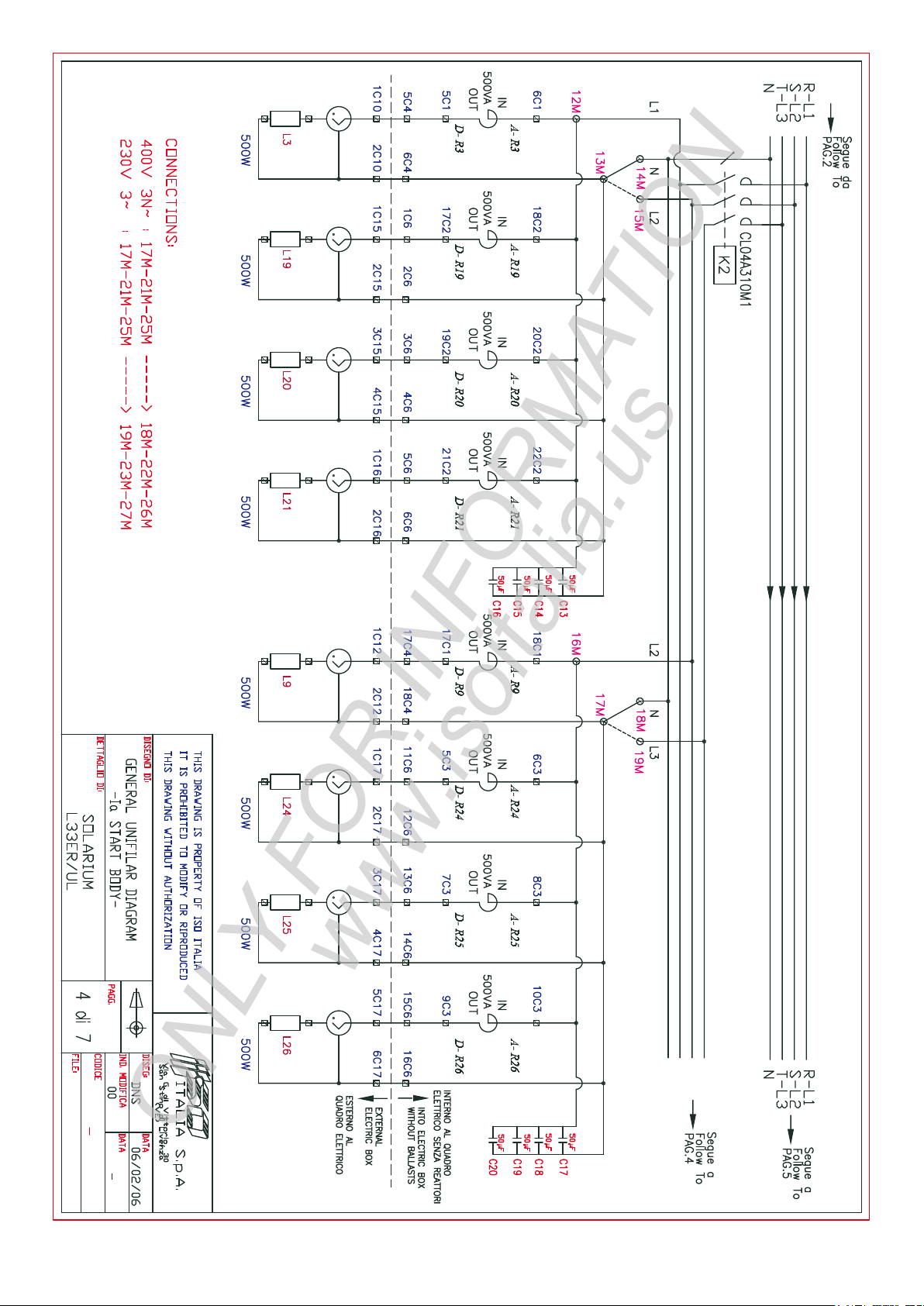

ONLY FOR INFORMATION
www.isoitalia.us

13
ONLY FOR INFORMATION
www.isoitalia.us

14
ONLY FOR INFORMATION
www.isoitalia.us

15
ONLY FOR INFORMATION
www.isoitalia.us

16
ONLY FOR INFORMATION
www.isoitalia.us

17
ONLY FOR INFORMATION
www.isoitalia.us

18

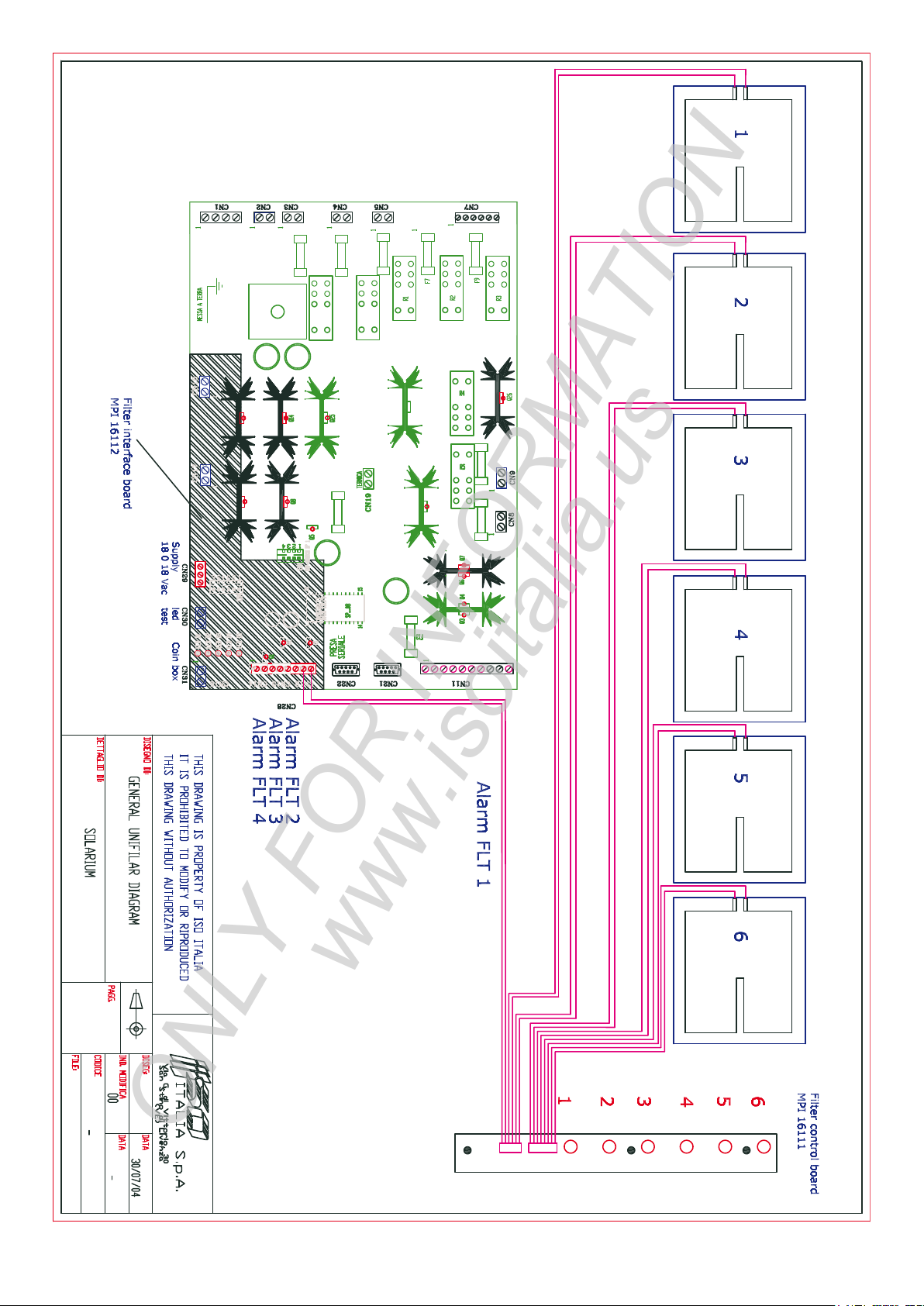

ONLY FOR INFORMATION
www.isoitalia.us

19
ONLY FOR INFORMATION
www.isoitalia.us

20

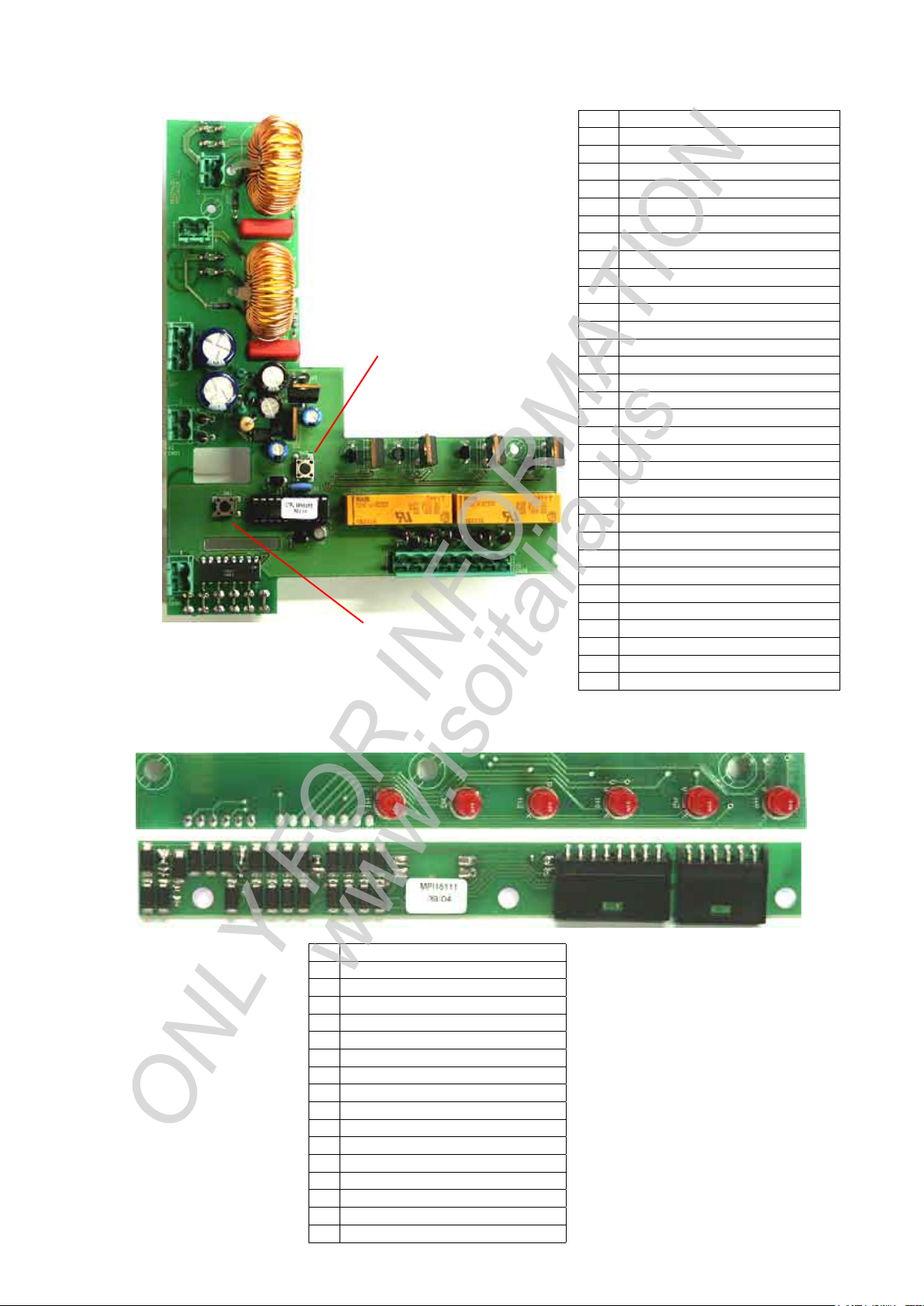

BOARD CONFIGURATION
FILTER BROKEN INTERFACE – MPI16112
CN18B
CN17B
CN29
CN31
CN30
CN28
1
1
1
1
1
1
Connector ( CN 17B )
1: face adjusted ventilation (phase)
2: face adjusted ventilation (neutral)
Connector ( CN 18B )
1: body adjusted ventilation (phase)
2: body adjusted ventilation (neutral)
Connector ( CN 28 )
1: alarm lter 4 (red)
2: alarm lter 4 (black)
3: alarm lter 3 (red)
4: alarm lter 3 (black)
5: alarm lter 2 (red)
6: alarm lter 2 (black)
7: alarm lter 1 (red)
8: alarm lter 1 (black)
Connector ( CN 29)
1: supply board 18V
2: supply board 0V
3: supply board 18V
Connector ( CN 31 )
1: led test contact
2: led test contact
Connector ( CN 30 )
1: remote start
2: remote start
SW1 memorization n° lter
SW2 reset board
FILTER BROKEN BOARD – MPI16111 - MPI16111A
CONN 2 CONN 1
1
1
Connector ( CONN 1 )
1: supply + (red)
2: supply - (black)
3: lter 1
4: lter 1
5: lter 2
6: lter 2
Connector ( CONN 2 )
1: lter 3
2: lter 3
3: lter 4
4: lter 4
5: lter 5
6: lter 5
7: lter 6
8: lter 6
SW2 reset interface
board
SW1 point for memorizzation of solarium
lter conguration
ONLY FOR INFORMATION
www.isoitalia.us
