Matrix L33-ER User manual

Ed 06.01.4001 Electronic board SPWR
Read all precautions and
instructions in this manual
before using this equipment.
I.SO Italia S.p.A.
INDUSTRIA SOLARIUM
Via G. Di Vittorio n° 30
30029-S. Stino di Livenza (VE)
Tel. [phone]
Fax [phone]
www. Isoitalia.com
E-mail [email protected]
USER!S MANUAL
Matrix L33-ER
ONLY FOR INFORMATION
www.isoitalia.us

2
READ THE USERS MANUAL BEFORE USING THIS UNIT
DANGER ULTRAVIOLET RADIATION
Follow instructions. Avoid over-exposure. As with
natural sunlight, over-exposure can cause eye and skin
injury and allergic reactions. Repeated exposures may
cause premature aging of the skin and skin cancer.
WEAR PROTECTIVE EYEWEAR: FAILURE
TO MAY CAUSE RESULT IN SEVERE BURNS
OR LONG –TERM INJURY TO THE EYES
Medications or cosmetics may increase your
sensitivity to the ultraviolet radiation. Consult
physician before using sunlamp if you are using
medication or having a history of skin problems or
believe yourself especially sensitive to sunlight. If
you do not tan in the sun, you are unlikely to tan
from the use of this product.
THIS UNIT UTILIZES UVA LAMPS REPLACEMENT LAMP TYPES:
I.SO ITALIA EVOLUTION LIGHT 650W / 500W
THIS PRODUCT IS IN CONFORMITY WITH THE PERFORMANCE
STANDARDS FOR SUN LAMP PRODUCTS UNDER 21 CFR 1040.20
CAUTION: CONNECT ONLY TO A CIRCUIT PROTECTED BY A CLASS A
GROUND FAULT CIRCUIT INTERRUPTER
ATTENTION : BRANCHER SEULEMENT A UNE DERIVATION PROTEGEE
PAR UN DISJONCTEUR DIFFRENTIEL DE CLASSE A
Disconnect power supply before servicing
ONLY FOR INFORMATION
www.isoitalia.us

3
I.SO Italia thanks you for choosing one of it’s tanning machines
WARNING :
Warning – Read the whole of the attached manual to ensure the prod-
uct will be used correctly through an understanding of the instruc-
tions. After you have read it keep this handbook in a safe place so that
you can refer to it as necessary in future.
THE IMPROPER USE OF THE MACHINE CAN JEOPARDIZE
EITHER THE SAFETY OF THE TREATED SUBJECT OR THE
OPERATOR. THEREFORE DECLINING ANY FURTHER USE OF
THE WARRANTY.
THE USER’S HANDBOOK IS ADDRESSED EITHER TO THE BEAUTY
OPERATOR OR TO THE PERSONNEL WHO IS INSTRUCTED TO
MAKE THE MACHINE RUN
ALL THE UNPACKING, ASSEMBLING, INSTALLATION, PUTTING IN
SERVICE OPERATIONS MUST BE CARRIED ON ONLY BY
TECHNICAL TRAINED AND AUTHORIZED PERSONNEL BY
I.SO ITALIA S.p.A. OR BY DISTRIBUTORS PERSONNEL
Note: The information contained in this handbook is subject to modi!ca-
tions without prior notice. The manufacturer accepts no liability for any
error that may be contained in this handbook – the reproduction, trans-
mission or use of these documents or their contents without express writ-
ten authorization is forbidden.
ONLY FOR INFORMATION
www.isoitalia.us

4
Pan FPan EPan D
Pan C
Pan BPan A
650W
lamp 8
650W
lamp13 500W
lamp29
500W
lamp33
500W
lamp32
500W
lamp31
500W
lamp30
500W
lamp24
500W
lamp25
500W
lamp26
500W
lamp27
500W
lamp28
500W
lamp23
500W
lamp22
500W
lamp21
500W
lamp20
500W
lamp19
500W
lamp 4
500W
lamp 3
650W
lamp 2
500W
lamp 5
500W
lamp 6
650W
lamp14
500W
lamp15
500W
lamp16
500W
lamp17
500W
lamp18
500W
lamp12
500W
lamp11
500W
lamp10
650W
lamp 7
500W
lamp 9
650W
lamp 1
PANN D
PANN C
PANN B
Pann A Pann B Pann C Pann D Pann E Pann F
PANN A
ETICHETTA PER MATRICOLA
UV TIPO
TENS ALIMENTAZIONE
ANNO DI FABBRICAZIONE
Congratulations for a fabulous purchase
APPARATUS IDENTIFICATION
TANNING MACHINE MOD.
Matrix L33-ER
CONFIGURATION OF FACE LAMPS AND TUBES
Model N° Lamp x Watt Type lamp and Position Filters Lamp Power
(kW)
Total power absorbed from
mains supply(kW/A)
L33ER 06 x 650 Evolution Light - Face lamps I.SO KL 3,9 20/52,8
27 x 500 Evolution Light - Body lamp 13,5

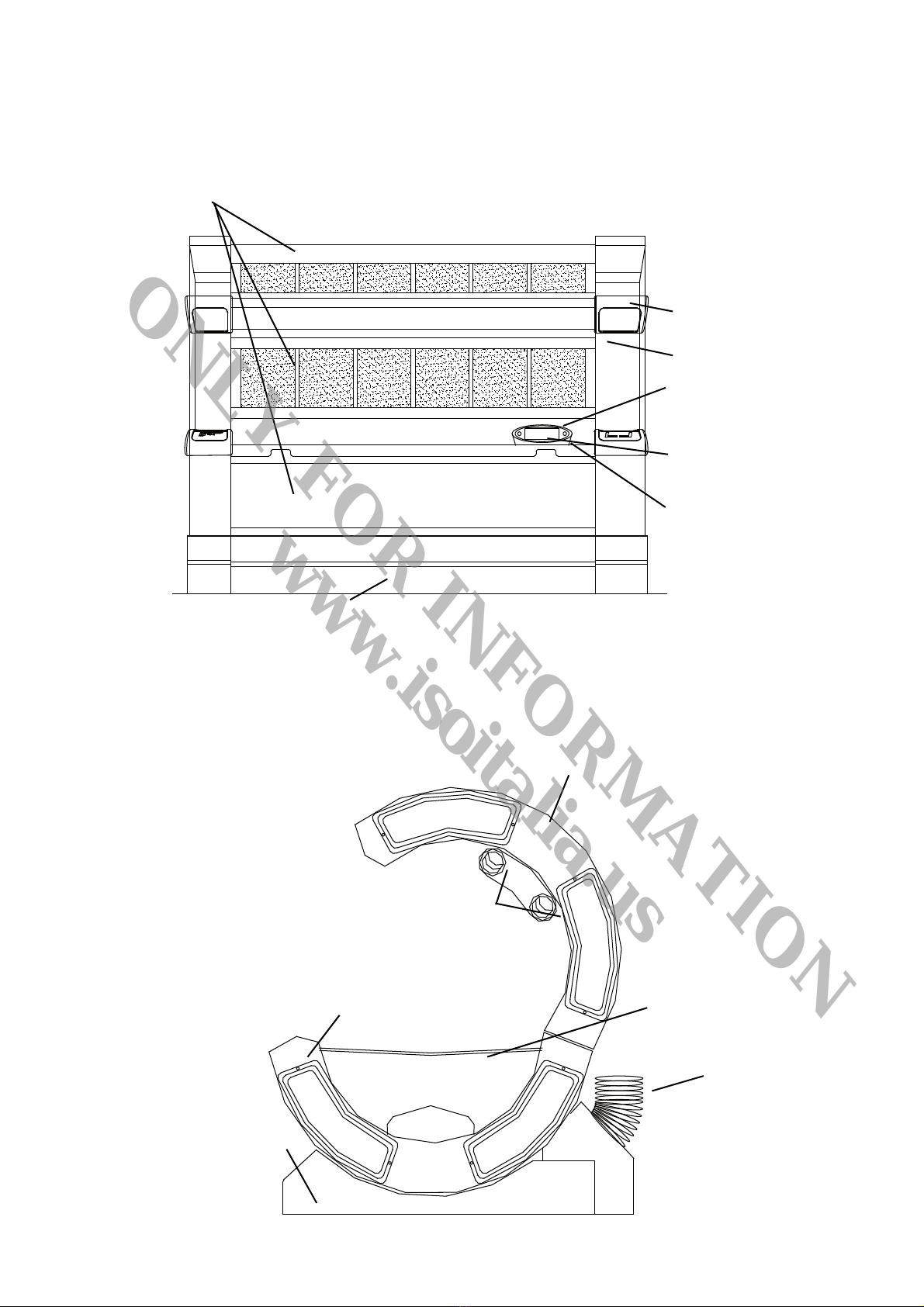

Overall view and Lamps Lay Out Inside the Tanning Machine:
PANN E
PANN F
ONLY FOR INFORMATION
www.isoitalia.us

5
Depth Widht Height Surface area Weight of tanning machine
60in 91in 71in 4 points 8x0,8in 1940lb
Power
supply Power supply frequency Active power absorption Maximum upwards varia- tion in power absorbed
Power factor
(cos !)
Operating
cycle
230V ± 10%, 60Hz
L33ER
+ 10% between
0,9 and 1
30 min ON
4 min OFF
20kW
230V 3~
230V ~
(at nominal voltage
and normal operating
temperature)
Main circuit braker breaking
capacity circuit breaker for auxiliary circuit Shunt trip
L33ER L33ER L33ER L33ER
80 A with 230V 6kA 16A On starting up of
current
Expelled hot air Delta temperature Flexible tubes n°/diameter/lenght Expulse air pressure
4840 ya³/h 63°F N° 1 "exible tube / 11,8in / 118in 96 Pa (N/m²)
TECHNICAL CHARACTERISTICS
Harmonized reference standards:
Apparatus compliant with safety standards:
CEI 61-150 (EN 60 335-1)
CEI 61-184 (EN 60 335-2-27)
And electromagnetic compatibility standards
CEI EN 55011, CEI EN 55014-2, CEI EN 61000-3-2, CEI EN 61000-3-3, CEI EN 61000-4-3.
Classi!cation for safety standards:
Fixed apparatus class I (for protection against electric shock), common type (for protection against humidity) (CEI 61-
150).
UV apparatus of type indicated in chart on page 13 (CEI 61-184).
Overall dimensions and weight of Solarium Matrix L33-ER:
Tanning Machine Power supply
Electrical protection devices
Generated air:
Quality of expelled air
The expelled air is just heated room air, this air is not to be de#ned as treated or containing fumes of any kind since it is
not subjected to chemical processes or any other process.
Main parts of Tanning Machine:
Lamps types (see apparatus identi#cation on page 4).
Filters SICURPLEX + #lters UV type I.SO KL with serigraph
Circuit boards KEYPAD I.SO STP MEM = control board for general control
I.SO SPWR = power supply board
Emergency button (see instructions on page 14).
Main structure steel coated with epoxy powder paint
Finishing components made of polyurethane or methylmethacrylate, a material treated speci#cally to withstand
exposure to UV-A rays. Lamp
Protection Plexiglas made of transparent acridite (SICURPLEX) treated for UV-A rays.
Splitting system selector with key to turn on face section, body section or both
Medium loudnes 79 dB
Loudnes:
ONLY FOR INFORMATION
www.isoitalia.us

6
DECLARATION OF COMPLIANCE
WITH EU SAFETY STANDARDS AND DIRECTIVES
The manufacturer:
I.SO Italia S.p.A.
Via G. Di Vittorio n° 30
30029 S. Stino di Livenza (VE) - ITALY
The President, under his personal liability,
DECLARES
herewith that the Model Matrix L33ER (electrical apparatus for skin treatments with UV rays.):
•complies with the requirements of EU directives, including the most recent modi!cations, and with Italian
legislation implementing said directives:
DIRECTIVE 89/336 / EEC - ELECTROMAGNETIC COMPATIBILITY
Council Directive of 3 May 1989 on the approximation of the laws of the Member States relating to electroma-
gnetic compatibility (89/336/EEC).
Amended by:
DIRECTIVE 91/263/EEC Council Directive of 29 APRIL 1991
DIRECTIVE 92/31/EEC Council Directive of 28 APRIL 1992
DIRECTIVE 93/68/EEC Council Directive of 22 JULY 1993
DIRECTIVE 2006/95/ EEC – VOLTAGE LIMITS
Council Directive of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical
equipment designed for use within certain voltage limits
Amended by:
DIRECTIVE 93/68/EEC Council Directive 93/68/EEC of 22 July 1993.
•the CE mark has been applied in compliance with the aforesaid directives.
N.B.: Compliance with this apparatus refers to installation in suitable locations equipped with an electrical
system in compliance with applicable safety standards. In addition, the procedures of assembly, installation
and use must be those indicated in the documentation accompanying the apparatus.
S. Stino di Livenza (VE), 2007
The President of I.SO Italia S.p.A.
(Sig. Lino Zonta)
ONLY FOR INFORMATION
www.isoitalia.us

7
AUTORIZATION TO MARK
This autorizes the application of the Certi•cation Marks shown below to the product Covered (also to the multi-
ple listee model identi•ed on the correlation page of the Listing Report where applicable)
when made in accordance with the description and under the conditions set forth in the Certi•cation Agreement
and Listing Report:
Applicant: I.SO ITALIA S.p.A.
Via G. Di Vittorio, 30
30029 San Stino di Livenza (VE)
Italy
Manufacturer: Same as applicant
Party Authorized To Apply Mark: Same as Manufacturer
Report Issuing Of!ce: INTERTEK ETL Semko Campoformido (Udine), ITALY
Report No.: I0607008
Product Covered: • L33 ER
.
Description: Permanent connected Ultra-violet tanning bed and booth.
Standard(s): Standard for Safety Portable Sun/Heat Lamps, UL 482, Issue: 2005/09/02 Ed: 9
Radiant Heaters and Infrared and Ultraviolet Lamp Assemblies for Cosmetic or
Hygienic Purposes in Nonmedical Applications General Instruction No 1-2
(R2004), CSA C22.2 No. 224, Issue: 1989/09/01
This document is the property of Intertek Testing Services and is not transferable. Only the Applicant may
reproduce this document. The certi•cation mark(s) may be applied only at the above noted location of the Party
Authorized To Apply Mark.
Owner / Operator Number : 9087049
ONLY FOR INFORMATION
www.isoitalia.us

8
READ THIS MANUAL BEFORE INSTALLING THE APPARATUS.
!Obey!all!warnings!and!follow!all!instructions!given!both!in!this!manual!and!on!the!exterior!of!the!apparatus.
!Position!the!apparatus!on!a!stable!horizontal!surface!strong!enough!to!support!the!load,!consisting!in!the!
weight!of!the!apparatus!itself!and!the!weight!of!the!user!being!treated.
!Ensure!that!there!is!suf"!cient!space!around!the!apparatus!for!the!circulation!of!air!(see!page!21).
!Do!not!use!the!apparatus!near!water,!and!take!care!not!to!spill!liquids!onto!any!part!of!the!apparatus.
!The!apparatus!must!be!installed!away!from!heat!sources.
!Avoid!locations!that!are!damp,!dusty!or!subject!to!rapid!temperature!changes.
!Before!cleaning!or!disinfecting!the!apparatus,!turn!off!the!main!switch!to!disconnect!it!from!the!mains!
power!supply.
!Check!that!the!voltage!of!the!mains!power!supply!corresponds!to!the!power!supply!requirements!indicated!
by!the!data!plate!of!the!apparatus.
!The!electrical!system!to!which!the!apparatus!is!to!be!connected!with!a!"!xed!connection!or!a!cable!and!plug!
must!be!connected!to!a!protective!ground!earth!!system.!The!entire!electrical!system!must!be!installed!by!
quali"!ed!and!authorized!technicians!in!compliance!with!applicable!legislation!and!standards!(in!Italy!Law!
46/90!and!CEI!Standard!64-4!-!“Safety!standards!for!electrical!systems!in!premises!for!medical!use”!and!
CEI!Standard!64-8!section!710!-!particular!environments!and!applications!are!applicable).
!In!case!of!any!doubts!what!so!ever,!consult!the!installation!and!maintenance!service!responsible!for!the!
electrical!supply!system.
!Never!use!adapters,!trailing!sockets!or!extension!cables!to!connect!the!apparatus!to!the!electrical!system.
!If!the!power!cable!supplied!with!the!apparatus!is!damaged!and!needs!to!be!changed,!it!must!be!replaced!
with!an!identical!cable.!This!operation!must!be!carried!out!only!by!technicians!trained!and!authorized!by!
I.SO!Italia!S.p.A.!In!case!of!doubts,!consult!the!manufacturer!or!supplier.
Place!the!panel!with!the!main!switch!in!an!easily!accessible!location.!Position!the!power!cable!so!as!!to!
prevent!it!from!being!trodden!on.!!!!!!!!!!!!!!!!!!!
!The!apparatus!is!electrilly!protected!indicated!in!chart!“Electrical!protection!device”!on!page!5!of!the!tech-
nical!characteristics!if!you!need!upper!bypass!currents,!call!the!builder
!Location!and!conditions!of!use:
1.! The!apparatus!must!operate!in!an!environment!in!which!the!temperature!never!exceeds!28–30°C.
2.! The!environment!must!have!suf"!cient!ventilation.
3.!!!Air!intakes!of!suitable!dimensions!for!the!ventilation!system!of!the!apparatus!must!be!provided.
THIS APPARATUS MUST BE CONNECTED TO A GROUND/EARTH SYSTEM.
GENERAL INFORMATION AND SAFETY PRECAUTIONS
CAUTION!!!
• ONLY TECHNICIANS TRAINED AND AUTHORIZED BY I.SO ITALIA MAY CARRY OUT
THE COMPLEX OPERATIONS OF UNPACKING, ASSEMBLY, INSTALLATION, SETTING
UP AND REPAIR.
• THIS APPARATUS IS NOT ELECTRICAL MEDICAL EQUIPMENT, BUT IS AN ELECTRI-
CAL APPARATUS FOR BEAUTY TREATMENTS, INTENDED FOR USE EXCLUSIVELY BY
PROFESSIONAL BEAUTICIANS FOR THE SOLE PURPOSE OF TANNING HEALTHY US-
ERS.
• BEAUTICIANS MUST HAVE AN ADEQUATE KNOWLEDGE OF ALL THE RISKS IN-
VOLVED IN THE USE OF THIS APPARATUS AND MUST TAKE ALL NECESSARY PRE-
CAUTIONS, ADOPTING SPECIFIC INTERNAL SAFETY PROCEDURES.
ONLY FOR INFORMATION
www.isoitalia.us

9
!The!insertion!of!foreign!bodies!into!the!apparatus!through!cooling!slots!can!cause!malfunctions!and!create!
the!risk!of!electric!shock!and!"!res.
!Do!not!carry!out!any!type!of!technical!operation!on!the!apparatus!apart!from!the!operations!described!in!
this!manual.
!Pace-maker!wearers!must!take!particular!care,!as!the!apparatus!could!interfere!with!the!correct!operation!of!
the!pace-maker.
!Operation!in!the!vicinity!of!a!machine!for!short-wave!or!microwave!therapy!or!other!devices!that!generate!
signi"!cant!electromagnetic!interference!may!cause!malfunctions!in!electronic!components!of!the!appara-
tus,!also!jeopardising!the!health!of!the!user!being!treated.
!Do!not!replace!anti-interference!"!lters!with!non-original!spares!or!with!spares!not!supplied!by!I.SO!Italia,!
as!these!could!compromise!the!electromagnetic!compatibility!of!the!apparatus.
!Before!every!session!check!the!correct!operation!of!all!parts!and!functions!of!the!apparatus.
!Do not use the apparatus without protection •lters or with broken or non-original •lters.
!Changes!of!positions!on!the!sockets!of!lamp!ballasts,!intended!to!restore!the!nominal!power!output,!can!
be!made!only!every!200!hours!of!operation!of!the!UV!lamps;!this!operation!must!be!carried!out!only by
technicians trained and authorized!by!I.SO!Italia.
!UV!equipment!must!not!be!used!for!people!who!suffer!sunburn!without!becoming!tanned!when!exposed!to!
sunlight,!by!persons!who!suffer!from!solar!erythema,!by!children!and!by!persons!suffering!or!who!have!
previously!suffered!coetaneous!neoplasia!or!are!susceptible!to!this!disease.
-! The!functioning!of!the!buffer!batteries,!used!for!the!black-out!of!the!appliance,!is!to!be!checked!every!six!
months!and!its!replacement!is!advised!every!three!years;!when!they!have!to!be!disposed!of,!these!compo-
nents!are!to!be!considered!special!waste,!therefore!their!disposal!must!follow!the!established!regulations!
controlling!the!sector.
-! It!is!advisabe!to!verify!emergency!button!functioning!at!least!once!a!mounth.
-! When!they!have!to!be!disposed!of,!all!the!lamps!of!the!appliance!are!to!be!considered!special!waste,!there-
fore!their!disposal!must!follow!the!established!regulations!controlling!the!sector.
CAUTION:!At!the!end!of!every!daily!session!of!use!and!when!the!apparatus!is!left!unattended,!turn!off!the!
main!switch!to!disconnect!the!apparatus!from!the!mains!power!supply.
At!an!experimental!stage,!I.SO!Italia!has!adopted!further!safety!measures!(not prescribed by the regula-
tions in force),!regarding!radiation!hazards!from!high!pressure!lamps:
1.! for!the!new!generation!appliances!:!all!the!"!lters!are!"!tted!with!a!new!electronic!device!made!with!
an!electric!circuit!that!breaks!only!when!there!are!breaks!or!cracks.!Then!a!special!electronic!circuit!will!
automatically!stop!the!tanning!machine.
2.! for!all!the!other!types!of!appliance:!a!mechanical!micro-switch!is!positioned!in!contact!with!each!
"!lter!of!the!face!part.!This!switch!comes!into!action!only!after!complete!breaks.!Then!a!special!electronic!
circuit!will!automatically!stop!the!tanning!machine.
However,!since!the!break!can!occur!in!various!ways!(e.g.!only!in!limited!zones!or!with!imperceptible!
cracks,!etc.)!and!as!these!devices!are!still!at!the!experimental!stage,!there!is!no!absolute!certainty!of!their!
coming!into!action;!in!any!case!they!are!considered!only!as!a!back-up!to!the!checks!of!the!operators.
It is, in any event, always up to the operator to check, before each session, that the •lters are
perfectly intact and to switch off the appliance immediately if a break or crack, however slight,
in the •lter is found or if white light is passing, however small the amount. Also it is advisable to
inform the client of these problems and explain the most suitable conduct to follow.
ONLY FOR INFORMATION
www.isoitalia.us

10
SPECIFIC SAFETY ADVICE AND WARNINGS
Ultraviolet!radiation!can!cause!injuries!to!the!eyes!and!skin.!Read!the!instructions!carefully.!These!biologi-
cal!effects!depend!on!the!quality!and!quantity!of!radiation,!and!also!on!the!sensitivity!of!the!skin!of!indi-
vidual!users.
Persons!being!treated!must!always!wear!speci"!c!protective!glasses!and!must!not!look!directly!at!the!radia-
tion!source.!If!unprotected,!the!eyes!can!be!subject!to!surface!in#!ammation,!and!in!some!cases!the!retina!
may!be!damaged!after!excessive!exposure.!Repeated!sessions!of!exposure!can!cause!the!formation!of!
cataracts.
Special!precautions!are!required!in!the!case!of!extreme!sensitivity!to!ultraviolet!rays!and!when!certain!
drugs!or!cosmetics!are!used.!It!is!always!advisable!to!use!speci"!c!products.
Before!each!session!it!is!advisable!to!remove!make-up!and!contact!lenses.!It!is!also!advisable!to!remove!
all!ornaments!and!other!objects!(necklaces,!bracelets,!rings,!watches,!etc),!to!avoid!uneven!tanning!and!
possible!injuries!caused!by!altered!heat!transmission.
Excessive!exposure!may!burn!the!skin.!Excessively!repeated!exposure!to!sunlight!or!a!UV!apparatus!may!
cause!premature!skin!ageing,!and!may!also!increase!the!risk!of!skin!cancer.!Consult!a!doctor!for!further!
information.
Perform!an!additional!check!on!the!duration!of!the!session,!both!beforehand!and!while!in!progress,!to!en-
sure!the!correct!operation!of!the!timer.!If!the!timer!is!defective!or!broken,!do!not!use!the!solarium.!Contact!
a!technician!trained!and!authorized!by!!I.SO!!Italia!S.p.A.
The!following!precautions!must!be!taken:
A.! remove!cosmetics!before!exposure!and!do!not!apply!non-speci"!c!creams!or!other!products;!only!
creams!with!a!“0”!"!lter!rating!may!be!used;
B.! refrain!from!exposure!in!periods!during!which!drugs!that!increase!sensitivity!to!ultraviolet!radiation!
are!being!taken;!in!case!of!doubt!consult!a!doctor;
C.! do!not!expose!any!part!of!the!body!more!than!once!a!day,!and!refrain!from!exposure!to!sunlight!on!the!
same!day;
D.! follow!the!instructions!for!duration,!intervals!between!exposure!sessions!(see!charts!on!page!12)!and!
the!distance!from!lamps!(see!page!11);
E.! If!persistent!swelling!on!the!skin,!ulcers!or!red!marks!are!noted,!consult!a!doctor.
The!persons!treated!must!not!assume!body!positions!other!than!those!recommended!by!the!manufacturer.
Do!not!assume!body!positions!that!are!unsuitable!for!the!type!of!solarium.
Scrupulously!follow!the!recommended!exposure!program,!taking!into!due!consideration!exposure!times!
and!techniques,!intervals!between!exposure!sessions!and!individual!skin!sensitivity.
Allow!at!least!48!hours!to!elapse!between!the!"!rst!two!exposure!sessions.
The!recommended!exposure!time!for!the!"!rst!session!must!not!exceed!the!time!indicated!in!the!charts!on!page!12.
The!number!of!exposure!sessions!in!one!year!must!not!exceed!the!number!indicated!in!the!charts!on!page!12.
Use!of!solarium!it!will!be!done!by!only!one!person!for!session
CAUTION:!The!manufacturer!acknowledges!its!liability!for!the!safety!of!the!apparatus!only!if!
modi"!cations,!repairs!and!other!technical!operations!are!performed!by!persons!trained!and!autho-
rized!by!the!manufacturer,!working!in!compliance!with!the!instructions!provided!by!this!latter.!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
The!manufacturer!declines!all!and!any!liability!whatsoever!in!the!case!of!failure!to!respect!the!instruc-
tions!given!in!the!sections!on!General!Safety!Precautions!and!Speci"!c!Safety!Advice!and!Warnings,!
and!also!elsewhere!in!this!manual.
-ATTENTION!! This apparatus is provided with a hot air extractor. It is an obligation to install the
•exible tube for the expulsion before proceeding with the starting of the solarium. The functioning of the
apparatus in the absence of the expulsion tube can compromise the safety of the people that •nd them-
selves near the extractor. The removal of the extraction tube for technical assistance must be done only
when the apparatus is off and in complete absence of ventilation.
ONLY FOR INFORMATION
www.isoitalia.us

11
PROCEDURES FOR CORRECT TANNING
1. Before the tanning session ascertain that no drugs which could cause allergic photoreactions have been
taken:
CONTRAINDICATED AND PHOTOTOXIC SUBSTANCES PHOTOALLERGENS
Tetracycline Abelmosk
Phenothazine Sulfa drugs
Bergapten Bithionol
Derivatives of para-aminobenzoic acid Chlorpromazine
………………………. …………………
If drugs of any kind have been taken, it is always necessary however to seek a medical opinion.
2. Before the tanning session the skin must be clean, without creams or other types of cosmetic products,
except for the speci!c creams supplied by the manufacturer.
3.Take care to distribute speci!c cosmetic products uniformly, so as to avoid the formation of areas with
different tan intensities.
4. In case of particularly light skin (Photo types 1 and 2), particular attention should be given in the !rst ses-
sions to the zone of the buttocks and breasts.
5. During tanning sessions, the user is advised to avoid static body positions, since the stagnation of blood
circulation and the diffusion of tanning rays could produce a tan that is insuf!ciently uniform.
To obtain the best effects from the concentration of the diffusors, during tanning sessions it is advisable to
remain in a central position; it is always advisable to refrain from resting against the plexiglas.
7. With the solariums UV type 4, keep to the following instructions: “Attention" User under medical advice
only”.
Description of process
- The tan is obtained in two phases; in the !rst, UV-B rays form the pigments (granules of melanin), which
are subsequently darkened by the UV-A rays, thus producing a tan.
- The presence of pigments varies according to individual skin types, and the response of each user to the
tanning session is therefore different.
Exposure time of subject treated to UV rays.
- As can be seen from Chart 1, a certain correlation exists between skin type and the color of hair, eyes and
non-exposed skin. These properties, which are genetically determined, are examined in the !rst set of que-
stions. The second set of questions regards personal tanning experience. The !nal questions allow the recent
“UV history” of the subject to be reconstructed. If in fact a tanning program has recently been completed, it
is clear that the skin will still contain pigment protection, and will thus be correspondingly thicker. As a result
the skin is less sensitive, and the tanning program must consequently be varied.
- Chart 2 indicates the phototype of the subject. Taking the total points obtained from Chart 1 by adding up
the points for each reply, the phototype corresponding to the relative range of values is given in the last colu-
mn.
- Our laboratories, using special equipment and computerized data analysis procedures, have calculated the
maximum exposure times recommended for tanning sessions, shown in Charts 3 and 4 . You are strongly
advised not to exceed these limits, as the times indicated represent the erythema threshold, not the time re-
commended for tanning.
Do not take more than three sessions a week, and never more than one session per day.
The exposure times would be referred to the uniform solarium working, that corresponds at three minutes
with high pressure lamps and one minute with low pressure lamps. So the skin treatment for the UV rays will
start only after the attainment of the uniform solarium working
ONLY FOR INFORMATION
www.isoitalia.us

12
Chart 2: Phototype
Chart 1: Intrinsic characteristics for each type relative to skin tanning
The beautician must always respect the instructions given by the manufacturer for the tanning proce-
dures to be used for the various types of subject.
Answer these 10 questions to determine your skin type
Hereditary factors 0 1 2 3 4 Points
1.What color are your eyes? light blue, light
grey, light green blue, green, grey light brown dark brown brown / dark
2. What is your natural hair color? sandy red blond light brown/
dark blond dark brown black
3. What is the color of your skin (without tan)? reddish very light light/beige light/
brown dark brown
4. Do you have freckles on untanned skin? very many many not many only a few none
Personal experience 0 1 2 3 4 Points
5. What happens when you are frequently
exposed to the sun?
paintful
reddening,
peeling, blisters
unform sunburn
with peeling
sunburn,
sometimes
with peeling
sunburn
only rarely never sunburnt
6. How much do you tan? never or hardly
at all
slight tan, light
in color
reasonable
tan
very easy
tan very quick tan
7. Do you go brown immediately after
sunbathing? never hardly ever sometimes often always
8. How does your face react to sun ? very sensitive sensitive normal very
resistant no problems
Your tanning habits 0 1 2 3 4 Points
9. Do you try to tan your whole body? never hardly ever sometimes often always
10.How long ago where you exposed to sun or
solarium ?
more than 3
months ago 2-3 months ago 1-2 months
ago
less than a
month ago
less than 15
days ago
Total Points
Total points skin sensitivity Skin type
0-7 Very sensitive Fototype 1
8-16 Sensitive Fototype 2
17-25 Normal Fototype 3
25 or over Very resistant Fototype 4
ONLY FOR INFORMATION
www.isoitalia.us

13
RECOMMENDED EXPOSURE SCHEDULE (IN MINUTES)
MAXIMUM EXPOSURE TIME IS 12 MINUTES
Depending upon skin types, noticeable results occur after 1 or 2 sessions and a favourable tan is experienced
after 4 – 6 sessions. Your tan can be maintained with 1 – 2 sessions per week, depending on your skin type.
MINIMUM USE DISTANCE: 5”
Lie on padded bench and lower top section no closer than 5” from the highest point of your body. The use
of any other position may result in over exposure. Tanning can begin on a regular basis. An appearance of
tanning normally appears after a few exposures and maximizes after four (4) weeks of exposure following the
recommended schedule of your skin type. Use the protective eyewear, Super sunnies, whenever the equip-
ment is energized.
SOLARIUM MODEL L33ER/B
Skin Type week 1 week 2 week 3 week4 week5
1st-3rdsession 4th-6thsession 7th-9thsession 10th-12thsession subsequentsession
I Very fair we do not recommend tanning for this skin type
II Fair 3 6 9 11 12
III Medium 3 6 10 12 12
IV Dark 4 9 11 12 12
V Very dark 4 9 11 12 12
ONLY FOR INFORMATION
www.isoitalia.us

14
INSTRUCTIONS FOR USE
CONTROL PANEL
The control panel has a 4-!gure LED display and the following buttons for operating the solarium:
Button A (START)
Press button A (START) to start session.
Button B (STOP)
When button B (STOP) is pressed for two seconds the tanning session is interrupted, and all end-of-session functions
are started . Button B (STOP) must be used only if it becomes necessary to interrupt the session before the available
time has terminated.
Three buttons C-D-E to choose one of the memorized session times
Before starting the session, using buttons C (time 1) — D (time 2) — E (time 3) one of the three times can be selected.
To do this, press one of the three buttons. The display will show the memorized time selected and the corresponding
LED indicator will light up.
NB: At the end of every session the solarium returns to time 1.
Two buttons F-G for selection of face/body
After the START. Press the buttons F-G it is now possible to position the Solar Group. At the end of the session, the
motor will automatically go to the initial position.
when the led blink show time to change lamps
Two buttons H (-) and I (+) to adjust ventilation and the various parameters that can be set
Use buttons H – I to set the desired "ow of air on face and body. The ventilation range is from 0 to 8, and it is adju-
sted by repeatedly pressing the button, not by holding them down. This operation can also be performed during the
period of delayed ventilation.
Led of periodic maintenance R ( service )
On the consolle is present led R(service) it is active when maintenance time are spend.
Emergency button (red mushroom)
The emergency button must be used only in case of extreme necessity.
The emergency button immediately shuts down the power supply to the machine, thereby preventing normal end-of-
session functions from being completed, and it must be remembered that this may cause damage to components such
as lamps, electronic circuit boards, etc.
Headphones socket
Do not leave the plug inserted when the headphones are not being used, as this will prevent sound and messages from
being relayed over the loudspeakers.
ONLY FOR INFORMATION
www.isoitalia.us

15
CONTROL PANEL
Matrix L33-ER
8
7
5
4
2
3
6
1
8
7
6
3
2
1
4
5
91
Graphic description STP-MEM
consolle board
serial connection
to the SPWR
connector for connection at wire
remote control (if present optional
electric movement)
Connection to the serigraphy
membrane
Button A (START)
Press button A (START) to
start session.
Display (TIME)
Indicated selected time,
elapsed time and message of
service
Button 1 2 3
Selection of exposure times
Before starting the session,
using buttons C (time 1) D
(time 2) E (time 3) one of the
three times can be selected
SERVICE
Led of signal periodic mainte-
nance R
Button B (STOP)
When button B(STOP) is pres-
sed for two seconds the tanning
session is interrupted
Selection body(F) face(G)
The buttons used for selecting
face and body lamps are F
(BODY) and G (FACE), with
indicator LEDs, when the led
blink show time to change
lamps
Ventilation
After the START. With button
H–I it possible adjusted regula-
tion air for ventilation face and
body
2
select
ITALIA S.r.l.
1
body face
3
start
stop
ONLY FOR INFORMATION
www.isoitalia.us

16
PROGRAMMING
VIEWING THE DISPLAY
USE OF CONTROLS, MEMORIZATION FUNCTIONS
AND PROGRAMMING FUNCTIONS
INITIAL PROCEDURE
When power is supplied to the panel, the central segments of the four LED displays will light up for a few
seconds. A test is then performed on all LEDs (displays and indicators) and !nally the solarium is set to the
!rst memorized time with both face and body lamps selected.
To set the various parameters the solarium must be switched on, and the session, the various ventilation phases
and/or the raising of the motors must have been fully completed.
Reset procedure 1
With the button (C) pressed down and the solarium switched on, all memorized values are reset to the origi-
nal factory-programmed values. The display will show the message dEF for a few seconds, after which the
panel returns to default values.
Setting time 1
Press on succession buttons (B - A) to access program (time 1). The LED of button (C) will start to !ash. It
is now possible to vary the memorized time with buttons (H-I).
Setting time 2
Push button (B) again to access program (time 2). The LED of button (D) will start to !ash. It is now pos-
sible to vary the memorized time with buttons (H-I).
Setting time 3
Push button (B) again to access program (time 3). The LED of button (E) will start to !ash. It is now pos-
sible to vary the memorized time with buttons (H-I).
End of programming phase
Press button (B) again to end the programming phase for the three times. Times can range from a minimum
of 1 minute to a maximum of 6 minutes. The factory-programmed times are 15, 10 and 5 minutes respec-
tively for times 1, 2 and 3.
When button (C) (program time 1) is pressed for 10 seconds, only time 1 will be activated.
Selection of the other two times is impeded. Repeat the operation to allow all three times to be selected again.
Display of number of times switched on
Press on succession buttons (B - I). The LED of button (C) will start to !ash, and the display will show the
number of times the apparatus has been switched on (up to a maximum of 9999).
Key N°1 Modi!cation of the exposure times setting
Key N°2 Visualization of only one time of exposure on the display.
Key N°3 Reading of hours and n° of starts, accumulated hours ,
change of lamps and periodic maintenance
ONLY FOR INFORMATION
www.isoitalia.us

17
Display of number of operating hours of face lamps
Press button (B). The LED of button (D) will start to !ash, and the display will show the number of hours
for which the face lamps have operated (up to a maximum of 9999).
Display of number of operating hours of body lamps
Press button (B) again. The LED of button (E) will start to !ash, and the display will show the number of
hours for which the body lamps have operated (up to a maximum of 9999).
Display of operating hours accumulated for replacement of face lamps
Press button (B) again. The LED of button (H) will start to !ash, and the display will show the number of
operating hours accumulated for the replacement of the face lamps (shown on the 4-!gure display up to a
maximum of 1000). When the hours shown on the 4-!gure display exceed the preset time the LED corre-
sponding to the selection of the face lamps (LED of button F) will start to "ash.
Display of operating hours accumulated for replacement of body lamps
Press button (B) again. The LED of button (I) will start to !ash, and the display will show the number of
operating hours accumulated for the replacement of the body lamps (shown on the 4-!gure display up to a
maximum of 1000). When the hours shown on the 4-!gure display exceed the preset time the LED corre-
sponding to the selection of the body lamps (LED of button G) will start to "ash.
Display of operating hours accumulated for periodic maintenance
Press button (B) again. The LED of button (A) will start to !ash, and the display will show the number of
operating hours accumulated for periodic maintenance (shown on the 4-!gure display up to a maximum of
1000). When the hours shown on the 4-!gure display exceed the preset time the LED Rcorresponding to
the periodic maintenance symbol will start to "ash.
End of programming phase
Press button (B) again to close the programming phase. The machine will be set for a new operating cycle.
USE OF TANNING LAMP FUNCTIONS (FACE/BODY IF POSSIBLE TO SELECT )
This function must be enabled only before the session is started.
The buttons used for selecting face and body lamps are F (BODY) and G (FACE), with indicator LEDs, and
the key selector (T).
In stand-by status the panel shows the last selection made. In default status both the face and body functions
are selected.
Proceed as follows to set functions:
1- Press both buttons F-G. If the message SEL appears on the display proceed with selection. If the message
BLOC appears, turn the mechanical key (T) until the message SEL appears.
2- Use buttons F-G to select the new setting desired.
3- To lock the new selection for all subsequent selections, turn the mechanical key and check that the message
SEL changes to BLOC.
4- Finally press stop button (B) to exit from the selection program.
5- From point 2 — If the new selection is to be used without locking selection with the mechanical key, press
stop button (B) to exit from the selection program.
6- From the moment buttons (F-G) are pressed there are 30 seconds available for making changes. Several
changes can be made, but only the !nal setting is memorized.
ONLY FOR INFORMATION
www.isoitalia.us

18
MAINTENANCE
CLEANING AND DISINFECTION
CAUTION!: THE OPERATOR MUST SWITCH OFF POWER FROM THE APPARATUS
BEFORE CLEANING AND/OR DISINFECTING THE MACHINE.
The !lters must be cleaned periodically by the operator (about every 30 hours of operation) with water or glass detergent, after hav-
ing carefully followed the indications given by technicians trained and authorized by I.SO. Italia. During cleaning operations it is
essential to take the greatest care to avoid touching the lamps with the naked hands. If this does occur, clean the lamps touched
with a cloth soaked in denatured ethyl alcohol. Also take great care to avoid exchanging the !lters, and ensure that !lters are cor-
rectly repositioned, preventing white light from escaping.
The protective plexiglas panels of both the high-pressure lamps and the low pressure neon tubes, the synthetic leather upholstery
of the mattress or armchairs and the thermoformed plastic or polyurethane components of the tanning machine can be cleaned with
soap and water or speci!c products. Take care however to avoid the use of alcohol-based products.
CHECKING AND MAINTENANCE PROCEDURES
1Every day the operator must check that cooling fans function correctly, that they expel air at a constant rate and that no
abnormal noises are produced.
2
Before every session the operator must check protection !lters for possible damage, also ensuring that no white light
escapes in the direction of the lamps.In this case, switch off the machine at once and immediately contact the authorized
technician for the replacement of the broken !lter.
3 The operator must warn the user not to obstruct ventilation grilles with objects and/or clothes.
4
At the end of the session the operator must allow the apparatus to complete the ventilation cycle for cooling of the lamps,
which lasts 3–6 minutes according to the model.The solarium is !tted with a timer for residual ventilation. Should this
ventilation cycle fail to be activated, contact the technician authorized by I.SO. Italia S.p.A.
5
The operator must warn the user to touch neither the blue !lters nor the lamps themselves with the naked hands.If contact
with the hands occurs, the !lters and lamps must be carefully cleaned with a speci!c product or with alcohol, spraying it
onto a cloth and then wiping only the external surface of the lamp and of the blue !lter.
6 The !lters and protective glass panels can be cleaned with any glass detergent.
7The plexiglas (SICURPLEX) panels giving external protection can be cleaned with speci!c products. They must NEVER
be cleaned with alcohol-based products.
8 Do not look directly at any type of white light given off by the apparatus or from one of its openings.
9
The operator (Caution"" Has the power supply to the apparatus been switched off !rst?) must periodically lubricate and
grease the mechanical components that are part of the movement mechanisms for the backrest and face lamp units, using
lubricating oil or grease.The most important parts to be lubricated on the face lamp units are the sliding carriages and the
backrest hinges. Access can be easily obtained to these parts by removing protection covers and the base sections of seats.
The lubricating points on tanning beds are located mainly on the rotation shafts of the main movement mechanisms, where
to facilitate lubrication operations speci!c grease nipples have been !tted. Access to these points is generally obtained by
removing the rear protection covers.
10 Check the air !lters regularly so that air is able to #ow correctly to the turbines at all times, for cooling the lamps and for
the operation of the optional air conditioners.
11 Once a month control the functioning of the emergency button and the automatic return of the motors (where present)
12
Since various tan products’ combinings (oil, cream, etc.), that should be used during tanning sessions, where, in association
with UV rays, could cause unknown effects on the plexiglass and on the hal#eather, I.So Italia invites all costumer to use
protections everytime on the people support area:
- !lm prepared for uv rays with plexiglass,
- paper roll or towel with hal#eather mattress.
IMPORTANT:
The requested periodic controls during the !rst year of guaranty must be done every 500 hours of working time, or at least every
6 months. The periodic controls after the !rst year are advised every 500 hours of working time or at least once a year.
For optimum yield of the of the apparatus, the UV-A ray emission should be measured by an authorized technician using a
speci!c instrument (at least every 300 hours of operation).It is advisable to replace the plexiglas every 400 hours of operation. If
impairment is noted earlier than this, check the correct operation of the ventilation system and the conditions of !lters or glass
panels.It is advisable to replace the tanning lamps after about 400 hours of operation, and the neon tubes after about 600 hours
of operation, using only original replacements.These maintenance operations must be carried out by technicians trained and
authorized by I.SO Italia
ONLY FOR INFORMATION
www.isoitalia.us

19
FILTER MAINTENANCE
CLEANING AND DISINFECTIONS
Fig 1
Fig 2
Fig 3
Access to the internal parts,such as !lters and
lamps is very easy.
You must open the side in plexyglass clicked
closed using the appropriate accessory given
with the machine, from the side vhere there are
not any hinges.
To remove the trasparent !lter you must turn
the spring support and slip out the glass,see
the picture. Cleaning the re"ector be carefull
not to touch the lamps with the hands.
NB: During the maintenance and cleaning pay
attenction not to move the !lters from the place
,because even a minimum movement could cau-
se the interruption of the control circuit.
Now it is suf!cient to un screw the screw (without
taking them out completely ) which !xes the side
with the blue !lters to be able to access to the
transparent glass and then the lamps.
At this point you are able to do the cleaning
operations, the maintenance and the substicyion
of the lamps.
1
3
4
2
6
7
5
Blue !lter door
Transparent !lter
Fixing screw
Control circuit
Support springs
lamp
Plexiglas
1
3
4
2
6
7
5
ONLY FOR INFORMATION
www.isoitalia.us

20
Matrix L33-ER
GRAPHIC DESCRIPTION
Tanning units
Tube for the hot air extraction
Matress support for person
Lower ring for the support of the tanning unit
Support base for electric panel
ventilation feet side
Upper ring for the support of the tanning unit
Support base (conteing electric pannel)
Key selector
Radio
Emergency mushroom
Loudspeaker
Consolle control
ONLY FOR INFORMATION
www.isoitalia.us
