Matsui MUL55W12E User manual

UNDERCOUNTER LARDER FRIDGE
INSTRUCTION MANUAL
MUL55W12E
Kjøleskap under benk
INSTRUKSJONSBOK
Pöydän alla pidettävä ruokakaappi-pakastin
KÄYTTÖOHJE
Inbyggbart kylskaeri
BRUKSANVISNING
Skabskøleskab uden fryser
DRIFTSVEJLEDNING
NO
FI
SE
DK
Undercounter Larder Fridge
INSTRUCTION MANUAL
GB

Contents GB
Unpacking........................................................................................5
Installation.......................................................................................6
Location ......................................................................................6
Reversing the Door Swing...........................................................6
Levelling the Unit........................................................................9
Cleaning Before Use....................................................................9
Before UsingYour Unit.................................................................9
Interior Accessories......................................................................9
Product Overview...........................................................................10
Operation.......................................................................................11
Switching OnYour Unit..............................................................11
Adjusting theTemperature........................................................11
Noises Inside the Unit!...............................................................12
Shopping for Chilled Foods........................................................12
Tips for Keeping Food in the Unit...............................................12
Cleaning.........................................................................................13
Defrosting .................................................................................13
Cleaning the Interior and the Exterior of the Unit......................13
CleaningTips.............................................................................13
Maintenance..................................................................................14
Changing the Internal Light......................................................14
CareWhen Handling / MovingYour Unit ...................................14
Servicing...................................................................................14
Switching O for Long Periods ofTime......................................14
Disposal .........................................................................................14
Specications.................................................................................15
Safety Warnings.............................................................................65
Innholdsfortegnelse NO
Pakke opp ......................................................................................17
Installasjon ....................................................................................18
Plassering..................................................................................18
Bytte dørhengslingen................................................................18
Nivellere enheten......................................................................21
Rengjøring før bruk...................................................................21
Før du bruker enheten...............................................................21
Interiørtilbehør .........................................................................21
Produktoversikt..............................................................................22
Betjening.......................................................................................23
Slå på enheten ..........................................................................23
Justere temperaturen................................................................23
Lyder inne i enheten!.................................................................24
Handle nedkjølte matvarer........................................................24
Tips for oppbevaring av matvarer i enheten..............................24
Rengjøring.....................................................................................25
Avriming ...................................................................................25
Bruk en fuktig klut til å rengjøre enheten
innvendig og utvendig..............................................................25
Rengjøringstips.........................................................................25
Vedlikehold....................................................................................26
Skifte ut den innvendige lampen ..............................................26
Varsomhet under håndtering/ytting av enheten.....................26
Reparasjon................................................................................26
Slå av for en lang periode uten bruk..........................................26
Avhending .....................................................................................26
Spesikasjoner...............................................................................27
Sikkerhetsadvarsler........................................................................65

Innehåll SE
Packa upp ......................................................................................29
Installation.....................................................................................30
Plats..........................................................................................30
Ändra dörrens gångjärn............................................................30
Ställa enheten vågrätt...............................................................33
Rengöring före användning.......................................................33
Innan du använder enheten......................................................33
Inre tillbehör.............................................................................33
Produktöversikt..............................................................................34
Hantering.......................................................................................35
Slå på din enhet ........................................................................35
Inställning av temperaturen......................................................35
Oväsen inuti enheten!...............................................................36
Inhandlandet av kyld mat.........................................................36
Tips för förvaring av livsmedel i enheten...................................36
Rengöring......................................................................................37
Avfrostning ...............................................................................37
Rengöring av insidan och utsidan av enheten...........................37
Rengöringstips..........................................................................37
Underhåll.......................................................................................38
Byta den interna lampan...........................................................38
Försiktighet vid hantering /föryttning av enheten..................38
Service ......................................................................................38
Stänga av under längre perioder...............................................38
Avyttring........................................................................................38
Specikationer...............................................................................39
Säkerhetsvarningar........................................................................66
Sisältö FI
Pakkauksesta purkaminen.............................................................41
Asennus .........................................................................................42
Paikka .......................................................................................42
Oven kääntymissuunnan vaihtaminen......................................42
Laitteen asettaminen vaakasuoraan.........................................45
Puhdistus ennen käyttöä...........................................................45
Ennen laitteen puhdistamista...................................................45
Sisätilan varusteet.....................................................................45
Tuotteen yleiskatsaus.....................................................................46
Käyttö ............................................................................................47
Laitteen kytkeminen päälle.......................................................47
Lämpötilan säätäminen ............................................................47
Laitteen sisältä kuuluu ääniä!....................................................48
Kylmän ruoan ostaminen..........................................................48
Vihjeitä ruoan säilyttämiseen....................................................48
Puhdistus.......................................................................................49
Sulattaminen ............................................................................49
Laitteen sisä- ja ulkopuolen puhdistaminen..............................49
Puhdistusvihjeitä ......................................................................49
Kunnossapito .................................................................................50
Sisälampun vaihtaminen ..........................................................50
Ole varovainen käsitellessäsi/siirtäessäsi laitetta ......................50
Huolto.......................................................................................50
Virran kytkeminen pois päältä pitkäksi aikaa............................50
Hävittäminen.................................................................................50
Tekniset tiedot ...............................................................................51
Turvallisuusvaroitukset ..................................................................66

Indhold DK
Udpakning .....................................................................................53
Installation.....................................................................................54
Placering...................................................................................54
Sådan skiftes åbningsretningen................................................54
Nivellering af enheden..............................................................57
Rengøring før brug....................................................................57
Før du tager enheden i brug......................................................57
Indvendigt tilbehør...................................................................57
Produktoversigt..............................................................................58
Betjening.......................................................................................59
Sådan tænder du for din enhed.................................................59
Indstilling af temperaturen.......................................................59
Støj indeni enheden..................................................................60
Når du handler efter nedkølede madvarer.................................60
Råd til opbevaring af mad i enheden. .......................................60
Rengøring......................................................................................61
Afrimning..................................................................................61
Rengøring af enheden, indvendigt og udvendigt......................61
Tips til rengøringen...................................................................61
Vedligeholdelse .............................................................................62
Udskiftning af pæren indeni enheden.......................................62
Udvis forsigtighed når du håndterer/ytter enheden................62
Servicering................................................................................62
Når enheden skal slukkes i længere tid .....................................62
Bortskaelse..................................................................................62
Specikationer...............................................................................63
Sikkerhedsadvarsler.......................................................................67

5
GB
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so
according to local regulations.

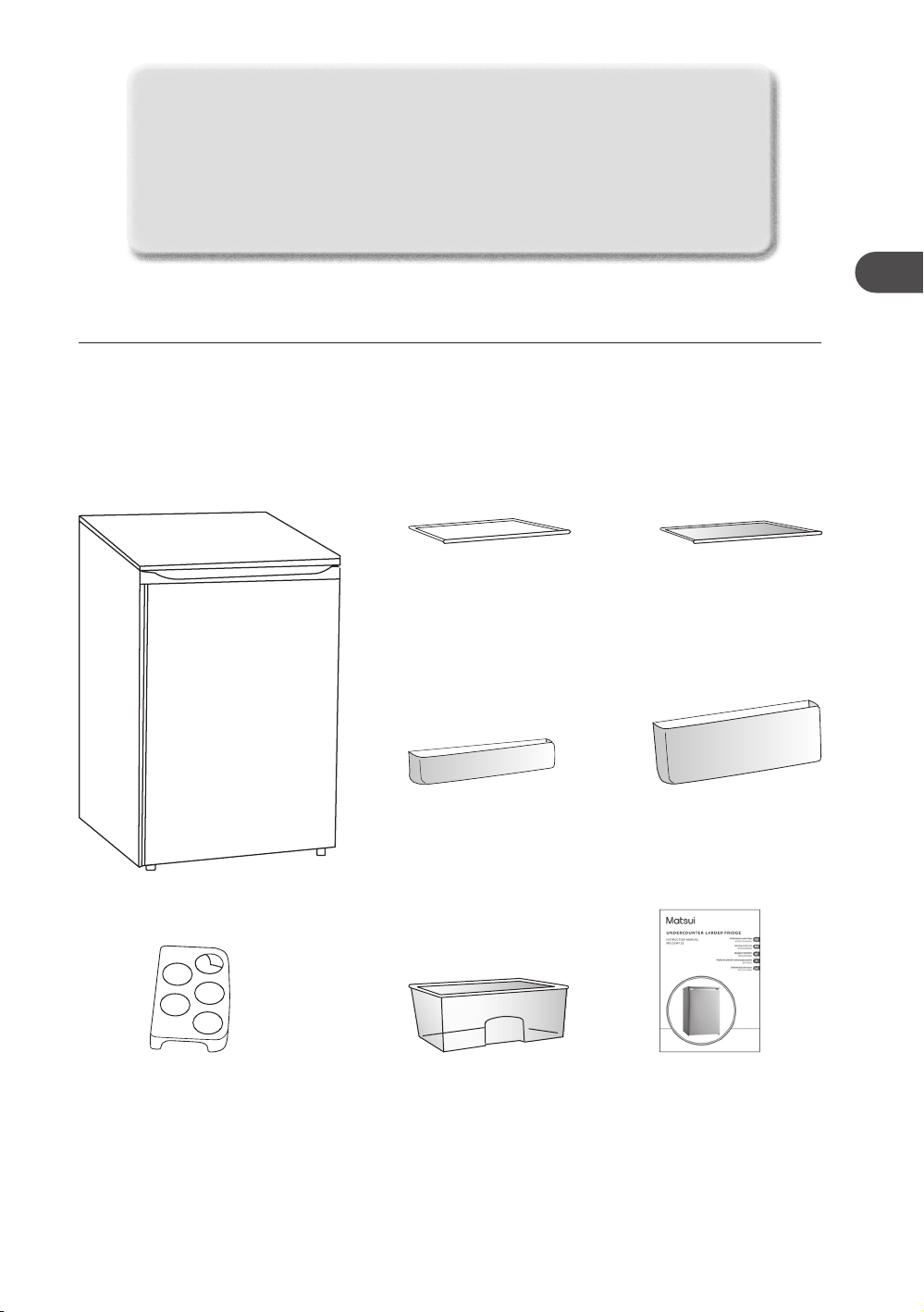

The following items are included:
The Main Unit
Salad Bin
P.N.: 501111340001
Adjustable Glass Shelf x 2
P.N.: 503601040007
Salad Bin Cover
P.N.: 503603040015
Instruction Manual
P.N.: MUL55W12E-001
Door Shelf x 2
P.N.: 501113040097
Lower Door Shelf
P.N.: 501113040096
Thank you for purchasing your new Matsui Larder Fridge.
We recommend that you spend some time reading this instruction manual
in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
Egg Tray
P.N.: 501119710072

INSTALLATION
6
GB
Location
When selecting a position for your unit you should make sure the floor is flat and firm, and
the room is well ventilated with an average room temperature of between 16°C and 38°C.
Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct
sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures
may also cause the unit not to perform properly. This unit is not designed for use in a garage
or outdoor installation. Do not drape the unit with any covering.
When installing the unit, ensure that 200 mm of free space is left at both sides, 200 mm at
the rear and 300 mm at the top of the unit. The door can be opened to the right or the left,
depending on what better suits the location. Please ensure there is adequate space for the
door to fully open.
Reversing the Door Swing
Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner
1. Tilt the unit slightly towards the rear and
prop it securely. Two people are required
to tilt the unit during the door reversal
process.
• If you want to have the door swing reversed, we recommend that you contact a
qualified technician. You should only try to reverse the door yourself if you believe
that you are qualified to do so.
• All parts removed must be saved to do the reinstallation of the door. You should
rest the unit on something solid so that it will not slip during the door change
process. Do not lay the unit flat as this may damage the coolant system. Ensure the
unit is unplugged and empty.
• Ensure the unit is unplugged and empty.
• Adjust the two levelling feet to their highest position.
• To take the door off it is necessary to tilt the unit backwards. You should rest the
unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
Installation

INSTALLATION
7
GB

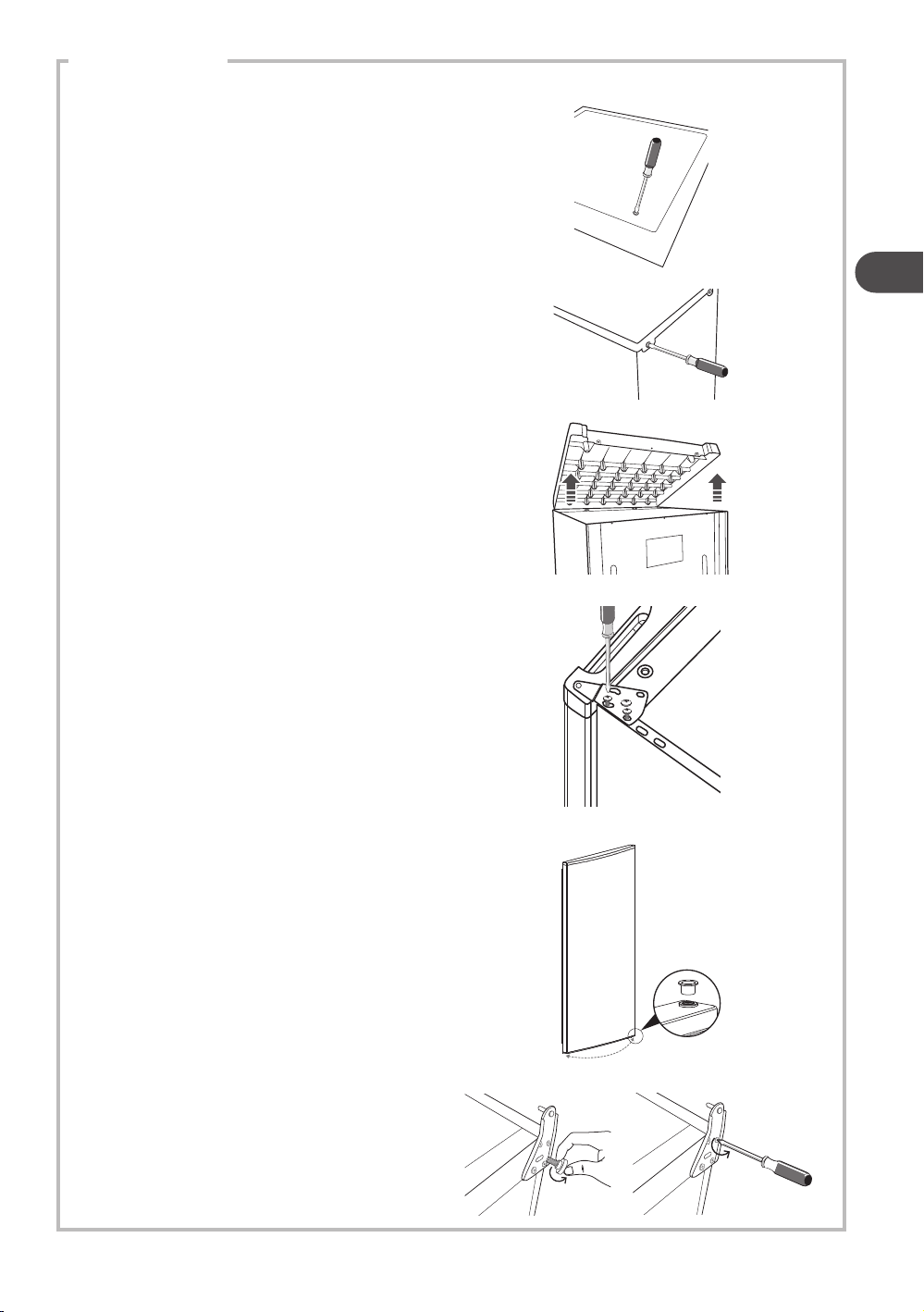

3. Remove the 2 screws on the back.
4. Lift the top cover away from the fridge.
5. Remove the three screws, then remove
the upper hinge that hold the door
in place. Lift the door and place it on
a padded surface to prevent it from
scratching.
6. Swap the bottom bushing and bottom
bushing cap of the upper door. The
bottom bushing key must be in the
correct position to allow it to be inserted
correctly.
2. Remove the 2 screw covers first, then
undo the screws underneath.
7. Remove the lower screws, hinge bracket
and adjustable feet from the unit bottom.
unscrew unscrew

INSTALLATION
8
GB
screw screw
8. Remove the screw-type adjustable feet
from another side of the unit bottom and
transfer it to the corresponding position
on the opposite side of the unit bottom.
9. Reattach the two lower screws, hinge
bracket and adjustable feet to the
opposite side of the unit bottom. Loosely
secure.
10. Carefully set the upper door back into
place. Ensure the fridge door is aligned
horizontally and vertically so that the
seals are closed on all sides before finally
tightening the top hinge.
Insert the hinge bracket and screw it to
the top of the unit.
11. Use a spanner to tighten it if necessary.
13. With the door closed, check that the
door is aligned horizontally and vertically
and that the seals are closed on all sides
before finally tightening the bottom
hinge. Re-adjust the levelling feet as
needed.
12. Put the top cover back and fix it in place
with the screws.

INSTALLATION
9
GB
Levelling the Unit
To do this adjust the two levelling feet at the front
of the unit.
If the unit is not level, the door and magnetic seal
alignments will not be covered properly.
Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm
water using a‘wrung-out’ sponge or cloth. Wash the shelves and salad bin in warm soapy
water and dry completely before replacing in the unit. Clean the exterior of the unit with a
damp cloth.
If you require more information refer to the Cleaning section.
Before Using Your Unit
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is
working properly and to allow it time to fall to the correct temperature. Your unit should not
be overfilled.
Interior Accessories
Various glass or plastic storage shelves are included with your appliance – different models
have different combinations.

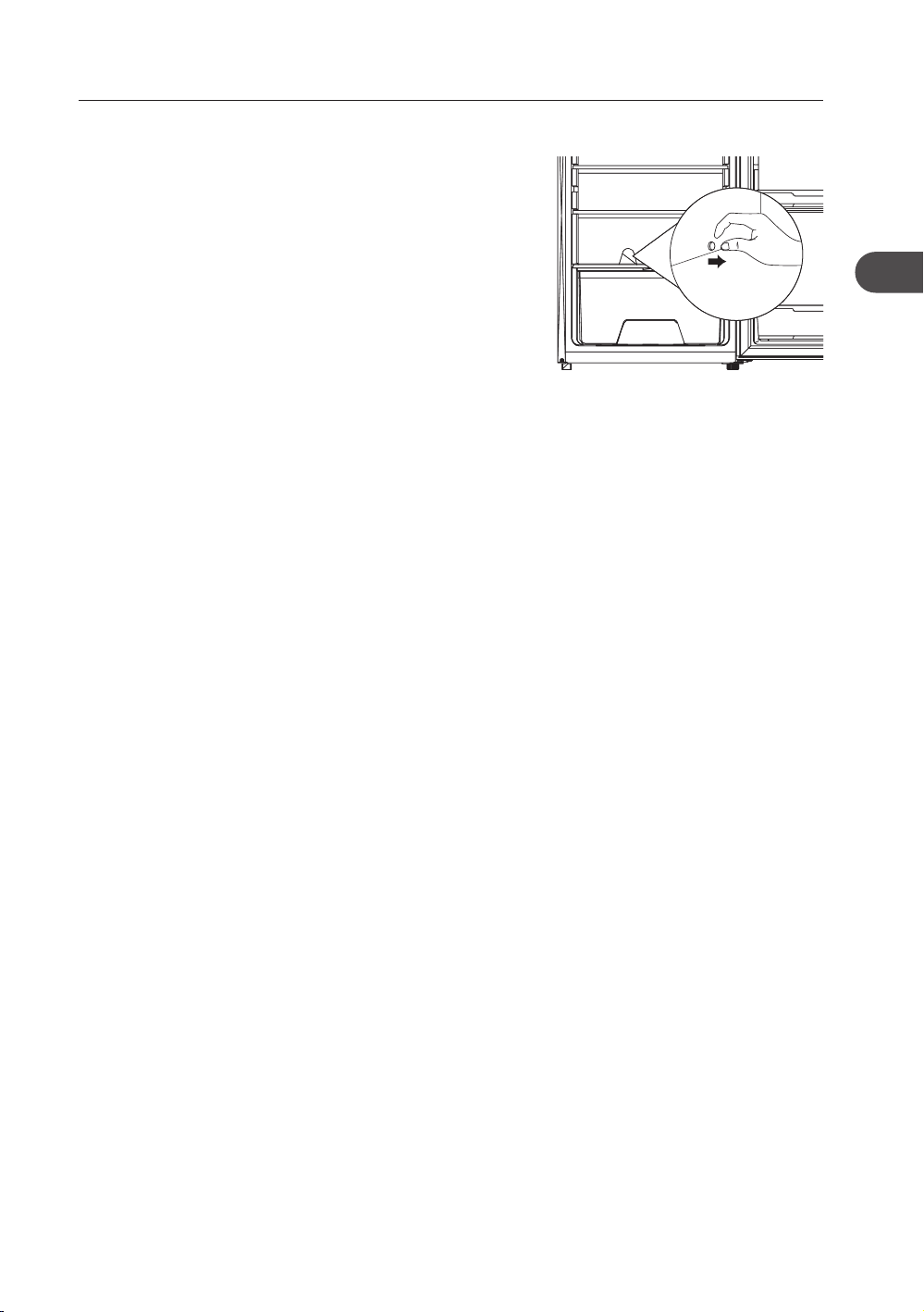

You should always slide one of the full size glass storage shelves into the lowest set of
guides, above the fruit and vegetable containers, and keep it in this position. To do this, pull
the storage shelf forward until it can be swivelled upwards or downwards and removed.
Please do the same in reverse to insert the shelf at a different height.
• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the
unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time
to settle.
In order to make the most of the volume of the fresh food storage compartment, the
user can remove one or more shelves, drawers, according to daily use.

10
GB
Product Overview
Adjustable
Glass Shelves
Salad Bin
Cover
Salad Bin
Internal Light and
Thermostat Control Dial
Lower
Door Shelf
Levelling Feet
Door
Shelves
Egg Tray

11
GB
Operation
Switching On Your Unit
1. Before connecting the unit to the mains supply
make sure that the thermostat control dial is set
at position OFF. This is located on the right side of
the cabinet. Connect the mains cable to the mains
socket.
2. Adjust the thermostat control dial to the desired
position, bear in mind that the higher the number,
the lower the temperature. Position 4is the
recommended setting when operating at normal
room temperature (between 16°C and 38°C).
3. The unit may not operate at the correct
temperature if it is in a particularly hot or a
particularly cold room, or if you open the door
often.
4. To ensure that the unit is cool enough to sufficiently
chill your food, wait 24 hours before filling it with
food.
5. If you are concerned that your unit is not being kept
cold enough and wish to check the temperature,
you will need a special fridge/freezer thermometer.
These are available from most supermarkets and
hardware shops.
Place the thermometer in the centre of the unit,
where it can be read easily. Leave overnight, the
temperature in the unit should be 5°C or lower.
Adjusting the Temperature
The internal temperature of the unit is controlled by a thermostat. The recommended position
is between 1to 4for colder working environments (i.e. during winter) and between 5to 6for
hotter environments. Please adjust according to the environment.

12
GB
Noises Inside the Unit!
You may notice that your unit makes some unusual noises. Most of these are perfectly normal,
but you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has
become more pronounced since the introduction of CFC free gases. This is not a fault and will
not affect the performance of your unit. This is the compressor motor working, as it pumps the
refrigerant around the system.
Shopping for Chilled Foods
• Take a quick look at the chilled food package and make sure it is in perfect condition.
• Try to keep chilled food together whilst shopping and on the journey home as this will help
to keep the food cold.
• Don’t buy chilled food unless you can chill it straight away. Specially insulated bags can be
bought from most supermarkets and hardware shops. These bags can keep chilled food cold
for longer while transporting.
• Food that has been left in a car or at room temperature for a prolonged period of time could
raise the food temperature to a dangerous level, which allows harmful bacteria to grow.
• Always unpack and place chilled food in the unit before storing dry food.
Tips for Keeping Food in the Unit
• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid
bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect
juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the
unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and
vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain
the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the
door. We recommend that you only open the door when you need to put food in or take
food out.

13
GB
Cleaning
Defrosting
Frost may accumulate on the inner rear surface of the
appliance which will automatically defrost during the off
cycle of the compressor.
Water is channelled via the drain hole to the collection tray
above the compressor where it will evaporate.
Please ensure the drain hole is checked and cleaned on a
regular basis so water can exit the storage compartment.
Cleaning the Interior and the Exterior of the Unit
• Remove all the shelves and the salad bin. To remove the salad bin first remove the lower
door shelf.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with
warm water using a‘wrung-out’ sponge or cloth. Wipe completely dry before replacing the
shelves and salad bin.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make
sure that the door is closed to avoid the polish getting on the magnetic door seal or inside
the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be
vacuumed using a soft brush attachment.
Cleaning Tips
Condensation may appear on the outside of the unit. This may be due to a change in room
temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified
technician for assistance.

14
GB
Maintenance

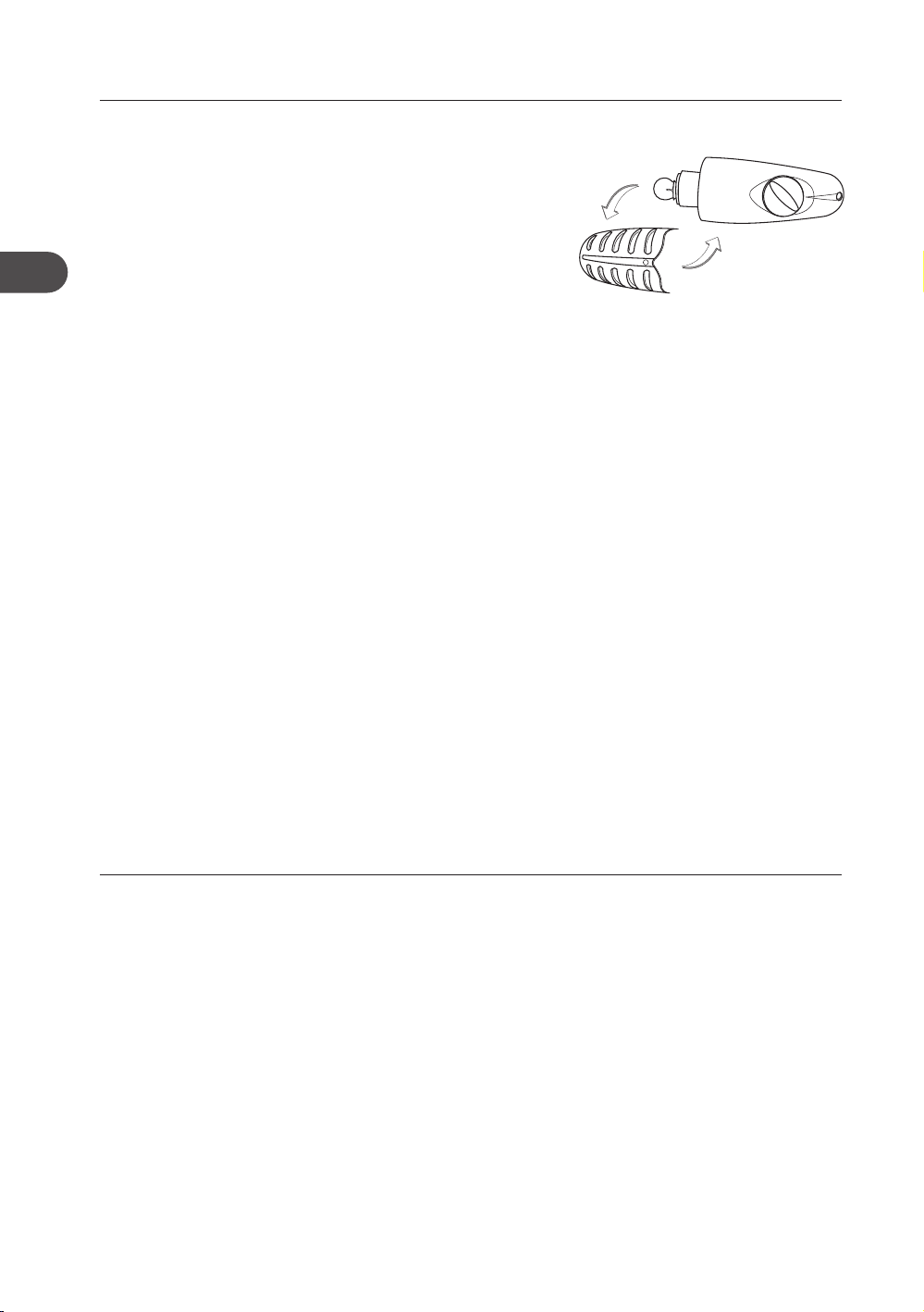

Changing the Internal Light
1. Before carrying out the bulb replacement always
adjust the thermostat control dial to Position 0, then
disconnect the mains supply.
2. Hold and unscrew the light bulb cover.
3. Remove the plastic light bulb cover.
4. Remove the old bulb by unscrewing in an
anti-clockwise direction.
5. Replace with a new bulb (10W SES). Please make sure that it is secure in the bulb cover.
6. Refit the light bulb cover and reconnect the unit to the mains supply and switch on.
Care When Handling / Moving Your Unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be
lifted by holding the edges of the top surface.
Servicing
The unit should be serviced by an authorised engineer and only genuine spare parts should be
used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried
out by inexperienced persons may cause injury or serious malfunction. Contact a qualified
technician.
Switching O for Long Periods of Time
When the unit is not in use for a long period of time, disconnect it from the mains supply,
empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.
Disposal
Old units still have some residual value. An environmentally friendly method of disposal will
ensure that valuable raw materials can be recovered and used again. The refrigerant used in
your unit and insulation materials require special disposal procedures. Ensure that none of the
pipes on the back of the unit are damaged prior to disposal.
Up to date information concerning options of disposing of your old unit and packaging from
the new one can be obtained from your local council office.
When disposing of an old unit break off any old locks or latches and remove the door as a
safeguard.

15
GB
Specications
Model MUL55W12E
Fresh Food Storage Compartment
Volume 133L
Storage Temperature 0 - 8°C, average ≤ 4°C
Energy Consumption 0.33 kWh/24hr
Energy consumption 120 kWh per year, based on standard test results for 24 hours.
Actual energy consumption will depend on how the appliance is used and where it is located.
Household Appliances Category Category 1 (Refrigerator)
Energy Grading A+
EU Ecolabel N/A
Defrosting Type Auto Defrost
Climate Class N/ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Airborne Acoustical Noise 42dB
Rated Voltage 220V - 240V
Rated Current 0.6A
Overall Dimension (W x D x H) 553 x 574 x 845 mm
Features and specifications are subject to change without prior notice.

16
GB
Normal energy
consumption
Increased energy
consumption
Installation site In a ventilated room. In an enclosed, unventilated room.
Protected from direct sunlight. In direct sunlight.
Not situated near to a heat source
(radiator, oven).
Situated near to a heat source
(radiator, oven).
Where the ideal ambient room
temperature is approx 20°C.
Where there is a high ambient room
temperature.
Use Only open the doors when necessary
and for as short a time as possible.
Frequent opening of the doors for
long periods will cause a loss of
coldness.
Store food in an organised way. If food is not stored in an organised
way, searching for an item will mean
the door is open for longer.
Allow hot food and drinks to cool
down before placing them in the
unit.
Placing hot food in the unit will cause
the compressor to run for a long
time, as the unit will have to work
harder to lower the temperature.
Store food covered or packaged. The evaporation or condensation of
liquids will cause a loss of coldness in
the unit.
Do not over-fill the appliance to
allow air to circulate.

17
NO
Pakke opp
Fjern all emballasje fra enheten. Ta vare på emballasjen. Ta hensyn til lokale forskrifter om
avfallshåndtering hvis du må kaste emballasjen.
Følgende elementer er inkludert:
Hovedenheten
Salatsku
Delnr.: 501111340001
Justerbar glasshylle x 2
Delnr.: 503601040007
Hylle over salatsku
Delnr.: 503603040015
Bruksanvisning
Delnr.: MUL55W12E-001
Dørhylle x 2
Delnr.: 501113040097
Nedre dørhylle
Delnr.: 501113040096
Takk for at du kjøpte ny Matsui kjøleskap.
Vi anbefaler at du tar deg tid til å lese gjennom hele bruksanvisningen for å
bli fortrolig med alle funksjonene.
Les alle sikkerhetsanvisningene nøye før bruk og oppbevar
bruksanvisningen for fremtidig referanse.
Eggbrett
Delnr.: 501119710072

INSTALLASJON
18
NO
Plassering
Når du skal velge hvor enheten skal stå, må du sørge for at gulvet er flatt og stabilt og at
rommet er godt ventilert med en gjennomsnittlig romtemperatur mellom 16 °C og 38°C.
Ikke sett enheten i nærheten av en varmekilde, f.eks. komfyr, varmtvannsbereder eller
radiator. Direkte sollys må også unngås, fordi dette kan øke strømforbruket. Svært kalde
omgivelser kan også føre til at enheten ikke yter som den skal. Denne enheten er ikke
beregnet for bruk i en garasje eller utendørs installasjon. Ikke dekk enheten med noe slags
materiale.
Når enheten installeres, kontroller at det er 200 mm åpent rom på begge sidene, 200 mm
på baksiden og 300 mm på oversiden av enheten. Døren kan åpnes til høyre eller til venstre,
avhengig av hva som passer best til plasseringen. Kontroller at det er tilstrekkelig plass så
døren kan åpnes helt.
Bytte dørhengslingen
Påkrevd verktøy: Stjerneskrutrekker, flat skrutrekker og skiftenøkkel.
1. Vipp enheten litt bakover og støtt den
opp i denne stillingen. Det kreves to
personer for å skråstille enheten når
dørhengslingen skal byttes.
• Hvis du ønsker å bytte dørhengslingen, anbefaler vi at du ber en kvalifisert tekniker
om hjelp. Hvis du ønsker å bytte dørhengslingen selv, må du være kvalifisert til å
gjøre dette.
• Alle deler som fjernes må oppbevares for å kunne installere døren igjen. Enheten
må stå støtt, slik at den ikke glir, mens dørhengslingen byttes. Ikke legg enheten
ned, fordi dette kan skade kjølesystemet. Kontroller at enheten er frakoblet strøm
og tom.
• Kontroller at enheten er frakoblet strøm og tom.
• Juster de to nivåføttene til sin høyeste posisjon.
• Det er nødvendig å vippe enheten bakover for å kunne ta av døren. Enheten må stå
støtt, slik at den ikke glir, mens dørhengslingen byttes.
• Alle deler som fjernes må oppbevares for å kunne installere døren igjen.
• Ikke legg enheten ned, fordi dette kan skade kjølesystemet.
• Vi anbefaler at to personer håndterer enheten under monteringen.
Installasjon

INSTALLASJON
19
NO
3. Fjern de to skruene på baksiden.
4. Løft toppdekslet bort fra kjøleskapet.
5. Fjern de tre skruene, fjern deretter det
øvre hengslet som holder døren på plass.
Løft døren av og sett den på en myk
overflate så den ikke blir ripet.
6. Bytt den nederste hylsen og det nederste
hylsedekslet til den øvre døren. Den
nederste hylsetilpasningen må være
i riktig posisjon for å kunne bli riktig
innført.
2. Fjern de to skruedekslene, løsne deretter
skruene under dekslene.
7. Fjern de nedre skruene, hengselbraketten
og de justerbare føttene fra
enhetsbunnen.
skru løs skru løs

INSTALLASJON
20
NO
skrue skrue
8. Fjern de justerbare føttene med skruing
fra hver sin side av enhetsbunnen og flytt
dem til den tilsvarende posisjonen på
den motsatte siden av enhetsbunnen.
9. Fest de to nedre skruene,
hengselbraketten og de justerbare
føttene på den motsatte siden av
enhetsbunnen. Festes løselig.
10. Sett den øvre døren forsiktig tilbake
på plass. Kontroller at kjøleskapdøren
er riktig innrettet både horisontalt og
vertikalt slik at pakningene er lukket på
alle sidene før du til slutt strammer det
øverste hengslet.
Sett på hengselbraketten og skru den
fast øverst på enheten.
11. Bruk en skiftenøkkel til å stramme den
om nødvendig.
13. Se etter at døren, når den er lukket,
har riktig innretning både vannrett og
loddrett samt at pakningene er lukket på
alle sidene før du til slutt strammer det
nederste hengslet. Juster nivåføttene på
nytt etter behov.
12. Sett toppdekslet tilbake og fest det med
skruene.
