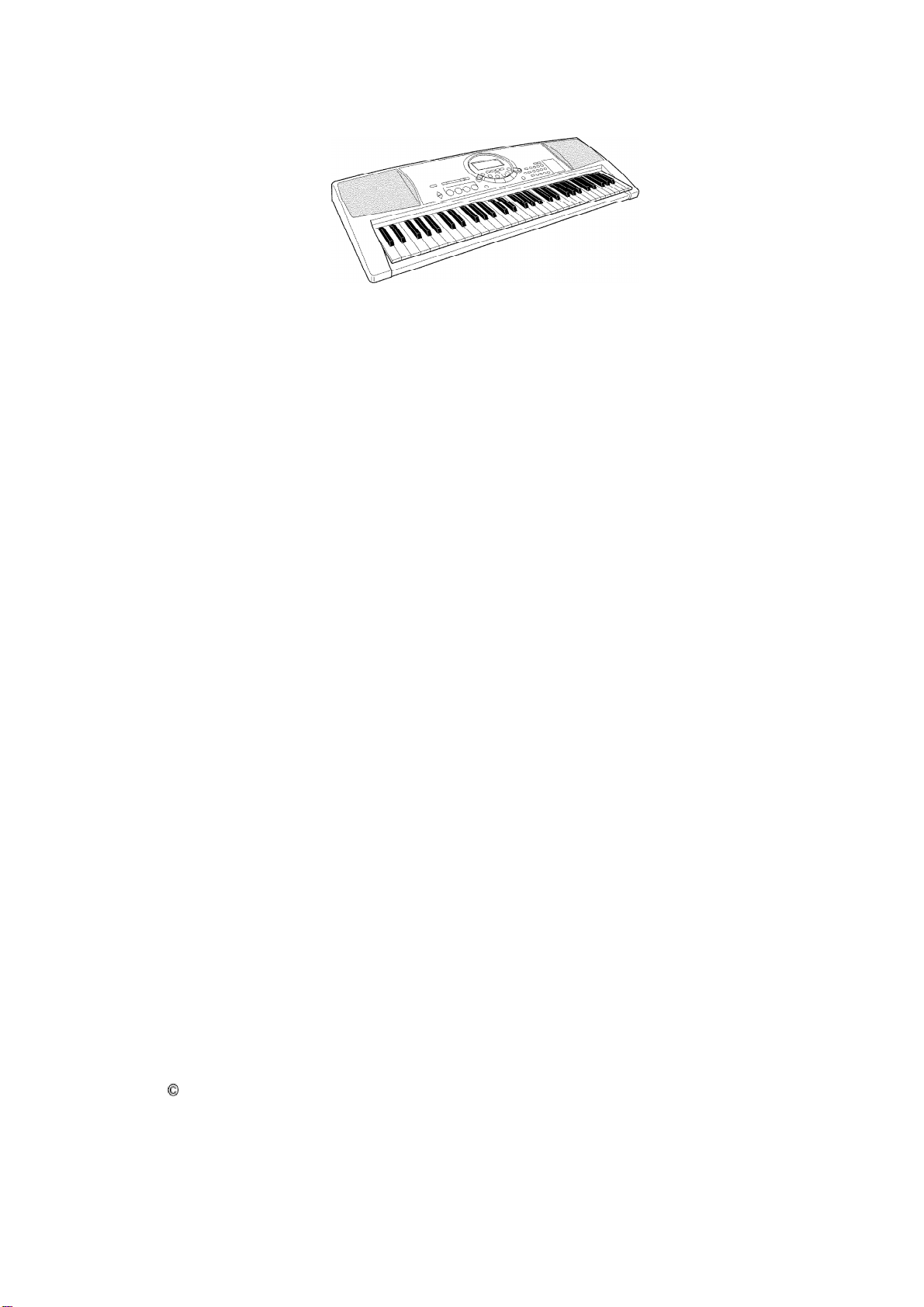

Matsushita Electric SX-KC211 User manual

ORDERNO. EMID0103012A0
A5
PCMKEYBOARD
SX-KC211
(P) U.S.A.
(PC)Canada
(PY) Mexico
(EX) Norway, Sweden, Denmark, Finland, Spain, Portugal, Greece,
South Africa
(EZ) Germany
(EG)Switzerland, Italy, Austria, Holland, Belgium, France
(EB)the United Kingdom
(GN)Australia, New Zealand
(XS) Malaysia, Singapore
(XT) Taiwan
(X) Thailand, Indonesia, U.A.E., Columbia, Panama, Chile, Brazil,
Philippines
(XA)Argentina
(XD)Saudi Arabia, Hong Kong, Kuwait
Please fileand use thismanual together with the service manual for
Model No.SX-KC200, Order No.EMID0003003C0.
1

SPECIFICATIONS
SPECIFICATIONS
KEYBOARD 61 KEYS (WITH INITIALTOUCH)
SOUND GENERATOR PCM
MAX. POLYPHONY 24 NOTES
SOUNDS 150 SOUNDS
EFFECT TOUCH, SUSTAIN
HARMONY 10 TYPES
TRANSPOSE G - C - F#
RHYTHMS 100 RHYTHMS
RHYTHM CONTROLS SYNCHRO START, START/
STOP, COUNTINTRO, FILL IN,
TEMPO
PARTY PADS 4PADS, 4BANKS
AUTO PLAY CHORD MODE: ONE FINGER,
FINGERED, PIANIST
MUSIC TRAINER BEATMASTER(TRAINING,
CHALLENGE), CHORD FINDER,
PIANO STYLIST, SOLO PIANO,
MINUS ONE, 100 SONGS
CONTROLS MAIN VOLUME, APC/SONG
VOLUME, ONE TOUCH PLAY,
EXECUTE, MENU
DISPLAY CUSTOM LCD (WITH
BACKLIGHT)
DEMO Supported
TERMINALS MIDI IN, MIDI OUT, FOOTSW,
PHONES/LINE OUT, AUX IN
OUTPUT 5W(2.5W× 2)
SPEAKERS 12 cm × 2
POWER REQUIREMENT DC IN 10 V (WITH EXCLUSIVE
AC ADAPTOR)
POWER CONSUMPTION 4.4W(WHEN POWER IS OFF
BY THE PLAY BUTTON: 2W)
DIMENSIONS (W×H×D) 96.0cm × 14.6cm × 37.8cm (37-
25/32” x5-3/4” x14-7/8”)
NETWEIGHT 5.1kg(11.2lbs)
ACCESSORIES AC ADAPTOR, MUSIC STAND,
SONG BOOK
2001 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
2

1. SIMPLIFIED GUIDE
This manual mentions the revisions of original Service Manual SX-KC200.
-Measuring Condition
-SchematicDiagram (MAIN, FAJ)
-Printed CircuitBoard (MAIN, FAJ)
-Replacement Parts List
-Cabinet Parts Location
-Packaging
The otheritems are referedtooriginal Service Manual.
2. MEASURING CONDITION
2.1. Measuring condition of MAINP.C.B.
Check Point 2 - 5
Set tothe Self-diagnostic Mode followings.
-Whilepressing twoEkeyssimultaneously, turn on the power
switch.
-MAINVOLUME: Max.
(Insert the headphone jack into PHONE/LINEOUT.)
-Keyboard: C4
Check Point 1and 6
Set tothe Initial mode (referto“OWNERS MANUAL” ).
3

2.2. Measuring condition of FAJP.C.B.
Check Point 1 - 4
Set tothe Self-diagnostic Mode followings.
-Whilepressing twoEkeyssimultaneously, turn on the power
switch.
-MAINVOLUME: Max.
(Insert the headphone jack into PHONE/LINEOUT.When you
measure “3 SPL” and “4 SPR”,turn the MAINVOLUME downand
pull out the headphone jack.)
-Keyboard: C4
4

3. SCHEMATIC DIAGRAM
4. PRINTED CIRCUIT BOARD
4.1. MAIN, FAJP.C.B.
5. REPLACEMENT PARTS LIST
Notes:
*Important safetynotice:
Components identifiedbymark have special characteristics important forsafety.
Furthermore, special parts whichhave purposes of fire-retardant (resistors), high-qualitysound
(capacitors), low-noise (resistors), etc. are used.
Whenreplacing anyof components, be sure touse onlymanufacture’s specifiedparts shownin
the parts list.
*Warning: This product uses a laserdiode. Refertocaution statements.
*ACHTUNG: Die lasereinheit nicht zerlegen. Die lasereinheit darf nurgegeneinc vomhersteller
spezifizierte einheit ausgetauscht werden.
*Capacityvalues are inmicrofarads (uF) unless specifiedotherwise. P=Pico-farads (pF), F=
farads (F)
*Resistance values are inohms, unless specifiedotherwise. 1K=1,000 (OHM), 1M=1,000K (OHM)
*The marking <RTL> indicates that the Retention Time is limitedforthis item. Afterthe
discontinuation of this assemblyinproduction, the itemwill continue tobe available fora
specific period of time. The retentionperiod of availabilityis dependant on the type of assembly,
and inaccordance withthe laws governing part and product retention. Afterthe end of this
period, the assemblywill no longerbe available.
*”<IA>”-”<II>” marks inRemarks indicate languages of instruction manuals. [<IA>: Dansk, <IB>:
English, <IC>: English, <ID>:French, <IE>: Germany, <IF>: Italiano, <IG> : Espanol, <IH>:
Nederlands, <II>:Chinese]
*MAIN, FAJ, BLED, RLED, MKB1, MKB2 and MKB3 inRemarks indicate the Circuits and P. C.
B.s. If the same Ref. No. is found inthe replacement parts list, check those indications inthe
Remarks.
*[M] indicate inRemarks columns parts that are suppliedbyMESA.
*[SPC] indicate inRemarks columns parts that are suppliedbySPC.
5

Ref. No. PartNo. PartName& Description Pcs Remarks
1QGPG0148HB CONTOROL PANEL 1 [M]
2QGMG0026AF PUNCHING NET(L/R) 2 [M]
3SHSG1970A KEY FELT(UPPER/LOW) 2 [SPC]
4QMWG6014CAK KEY SWITCH(13KEY) 1 [SPC]
5QMWG6015CAK KEY SWITCH(12KEY) 4 [SPC]
6QMRG1034CA BACKLIGHTCOVER 1 [M]
7QMGG064CA RUBBER CONTACT 2 [M]
8QSLG027AB LCD 1 [M]
9QMRG1032EA BACK LIGHTCOVER 1 [M]
10 QMRG2096AA LIGTH SPREAD SHEET 1 [M]
11 QGPG0149EB LCD PANEL 1 [M]
12 QKWG038AD LCD WINDOW 1 [M]
13 RFKJXKC211-P BOTTOMCABINETASS'Y 1 PONLY[M]
13 RFKJXKC211PC BOTTOMCABINETASS'Y 1 EXCEPTP[M]
14 QGUG1487AD BUTTON A 1 [M]
15 QGUG1488AD BUTTON B 1 [M]
16 QGUG1494AD BUTTON H 1 [M]
17 QGUG1490AD BUTTON D 1 [M]
18 QGUG1491AD BUTTON E 1 [M]
19 QGUG1492AD BUTTON F 1 [M]
20 QGUG1493AD BUTTON G 1 [M]
21 QMRG5235AA LEG FELT 4 [M]
22 QMRG1033BA LIGHTING CHIP 1 [M]
23 QHDG064AA SCREW 5 [M]
24 XYE3+FG12 SCREW 3 [SPC]
25 QMRG2099AA REFLECTION SHEET 1 [M]
26 QEXGVH02052A SPEAKER WIRE(R) 1 [M]
27 QASG12P09A SPEAKER UNIT 2 [M]
31 QMWG1030AAK WHITEKEY (4KEY) 5 [M]
32 QMWG1031AAK WHITEKEY(3KEY) 4 [M]
33 QMWG2004AAK BLACK KEY (5KEY) 5 [M]
34 QMWG1031BAK WHITEKEY(5KEY) 1 [M]
35 XTB3+10JFZ SCREW 20 [SPC]
36 XTB3+20JFZ SCREW 41 [M]
37 QHDG065AA SCREW 35 (E)[M]
38 QGNGKC211MA NAMEPLATE 1 P,PY[M]
38 QGNGKC211CA NAMEPLATE 1 PC[M]
38 QGNGKC211EA NAMEPLATE 1 EX EZ EG EF[M]
38 QGNGKC211KA NAMEPLATE 1 EB[M]
38 QGNGKC211SA NAMEPLATE 1 XXS XT[M]
38 QGNGKC211DA NAMEPLATE 1 XD[M]
38 QGNGKC211AA NAMEPLATE 1 GN[M]
38 QGNGKC211XA NAMEPLATE 1 XA[M]
39 QMRG5226AA URETHAN TAPE (B.B.D) 1 [M]
40 QMRG5227AA URETHAN TAPE (B.B.D) 1 [M]
41 QGAG2017AB MUSIC RACK 1 [M]
42 QPFG090AA MUSIC RACK BAG 1 [M]
43 QFAG016BA AC ADAPTOR 1 XXS XT[SPC]
43 QFAG018BA AC ADAPTOR 1 XD[SPC]
43 QFAG033AC AC ADAPTOR 1 PPC PY[M]
43 QFAG035AB AC ADAPTOR 1 EX EZ EG EF[M]
43 QFAG034AB AC ADAPTOR 1 EB[M]
43 QFAG036AB AC ADAPTOR 1 GN[M]
6

Ref. No. PartNo. PartName& Description Pcs Remarks
43 QFAG026BA AC ADAPTOR 1 XA[M]
A1 QQTG0596A INSTRUCTION MANUAL 1 P<IB>[M]
A1 QQTG0597A INSTRUCTION MANUAL 1 PY EX XXA<IA><IG>[M]
A1 QQTG0598A INSTRUCTION MANUAL 1 PC PY EX EB XGN XS XD<IC>[M]
A1 QQTG0598A INSTRUCTION MANUAL 1 XTXA<IC>[M]
A1 QQTG0599A INSTRUCTION MANUAL 1 PC EG EF<ID>[M]
A1 QQTG0600A INSTRUCTION MANUAL 1 EZ EG<IE>[M]
A1 QQTG0601A INSTRUCTION MANUAL 1 EG<IF><IH>[M]
A1 QQTG0602A INSTRUCTION MANUAL 1 XD<II>[M]
A1 QQTG0604A INSTRUCTION MANUAL 1 XT<IJ>[M]
A2 QQTG0547A SONG BOOK 1 [M]
A3 QQCG0394A REFARENCEGUIDE 1 [M]
A4 SJP5213-2 PLUG ADAPTOR 1 XXTONLY[SPC]
A5 RQCB0831 SERVICENTER LIST 1 P ONLY[M]
A6 QQAG016A WARRANTYCARD 1 PONLY[M]
A6 RQX7433ZA WARRANTYCARD 1 GN ONLY[M]
A7 QQAG021A USER CARD 1 PONLY[M]
A8 QQAG018A REQUESTWARRANTYCARD 1 EB ONLY[M]
C1 ECEA1HKS010 50V1U 1 FAJ[M]
C1 ECJ1VG1H471J 470PF 1 MAIN[M]
C2 ECJ1VG1H471J 470PF 1 MAIN[M]
C3 ECEA1CKA470 16V47PF 1 FAJ[M]
C3 ECJ1VG1H471J 470PF 1 MAIN[M]
C3 ECKT1H223ZF 50V0.022U 1 MKB1[M]
C4 ECFR1E104ZF5 25V0.1U 1 F1C1E1040003 FAJ[M]
C4 ECKT1H223ZF 50V0.022U 1 MKB2[M]
C5 ECKT1H223ZF 50V0.022U 1 MKB2[M]
C6 ECEA0JKA470E 6.3V47U 1 MKB2[SPC]
C7 ECFR1E104ZF5 25V0.1U 1 F1C1E1040003 FAJ[M]
C8 ECEA1HKS010 50V1U 1 FAJ[M]
C8 ECJ1VG1H471J 470PF 1 MAIN[M]
C9 ECA1CM221 16V220U 1 FAJ[SPC]
C9 ECJ1VG1H471J 470PF 1 MAIN[M]
C10 ECCR1H221J5 220PF 1 MKB1[M]
C10 ECEA1CKA470 16V47PF 1 FAJ[M]
C11 ECCR1H221J5 220PF 1 MKB1[M]
C11 ECEA1CKA470 16V47PF 1 FAJ[M]
C12 ECA1CM101 16V100UF 1 FAJ[SPC]
C12 ECCR1H221J5 220PF 1 MKB1[M]
C12 ECJ1VB1C563K 0.056U 1 MAIN[M]
C13 ECA1CM101 16V100UF 1 FAJ[SPC]
C13 ECCR1H221J5 220PF 1 MKB1[M]
C13 ECJ1VG1H100D 10PF 1 MAIN[M]
C14 ECCR1H221J5 220PF 1 MKB1[M]
C15 ECCR1H221J5 220PF 1 MKB1[M]
C15 ECJ1VB1C563K 0.056U 1 MAIN[M]
C15 ECQB1H103JZ 50V0.1U 1 FAJ[M]
C16 ECCR1H221J5 220PF 1 MKB1[M]
C16 ECJ1VB1C563K 0.056U 1 MAIN[M]
C16 ECQB1H103JZ 50V0.1U 1 FAJ[M]
C17 ECA1CM471B 16V470UF 1 FAJ[SPC]
C17 ECCR1H221J5 220PF 1 MKB1[M]
7

C17
ECCR1H221J5
220PF
1
MKB1[
M]
8

Ref. No. PartNo. PartName& Description Pcs Remarks
C17 ECJ1VB1C563K 0.056U 1 MAIN[M]
C18 ECEA1HKS010 50V1U 1 MAIN[M]
C18 ECQB1H224JF3 0.22U 1 FAJ[M]
C19 ECJ1VG1H100D 10PF 1 MAIN[M]
C19 ECQB1H224JF3 0.22U 1 FAJ[M]
C20 ECCR1H221J5 220PF 1 MKB2[M]
C20 ECJ1VG1H101J 50V100P 1 MAIN[M]
C21 ECCR1H221J5 220PF 1 MKB2[M]
C21 ECJ1VG1H101J 50V100P 1 MAIN[M]
C22 ECA0JM471G 6.3V470U 1 FAJ[M]
C22 ECCR1H221J5 220PF 1 MKB2[M]
C22 ECJ1VG1H101J 50V100P 1 MAIN[M]
C23 ECCR1H221J5 220PF 1 MKB2[M]
C23 ECJ1VG1H101J 50V100P 1 MAIN[M]
C24 ECCR1H221J5 220PF 1 MKB2[M]
C24 ECJ1VG1H101J 50V100P 1 MAIN[M]
C24 ECQB1H103JZ 50V0.1U 1 FAJ[M]
C25 ECCR1H221J5 220PF 1 MKB2[M]
C26 ECCR1H221J5 220PF 1 MKB2[M]
C26 ECJ1VB1C563K 0.056U 1 MAIN[M]
C27 ECCR1H221J5 220PF 1 MKB2[M]
C27 ECJ1VB1C563K 0.056U 1 MAIN[M]
C27 ECQB1H103JZ 50V0.1U 1 FAJ[M]
C28 ECCR1H470J5 47PF 1 FAJ[SPC]
C28 ECJ1VB1C563K 0.056U 1 MAIN[M]
C29 ECA1CM102 16V1000U 1 FAJ[M]
C29 ECJ1VB1C563K 0.056U 1 MAIN[M]
C30 ECA1CM102 16V1000U 1 FAJ[M]
C31 ECA1CM331 16V330PF 1 FAJ[M]
C31 ECJ1VB1C563K 0.056U 1 MAIN[M]
C32 ECFR1E104ZF5 25V0.1U 1 F1C1E1040003 FAJ[M]
C32 ECJ1VB1C563K 0.056U 1 MAIN[M]
C33 ECJ1VB1C104K 0.1U 1 MAIN[SPC]
C34 ECJ1VB1C563K 0.056U 1 MAIN[M]
C35 ECJ1VB1C563K 0.056U 1 MAIN[M]
C36 ECJ1VB1C563K 0.056U 1 MAIN[M]
C39 ECJ1VB1C563K 0.056U 1 MAIN[M]
C40 ECJ1VB1H103K 0.01U 1 MAIN[SPC]
C46 ECEA1CKN010B 50V1U 1 FAJ[M]
C47 ECEA1CKN010B 50V1U 1 FAJ[M]
C49 ECJ1VB1C563K 0.056U 1 MAIN[M]
C50 ECEA0JKS470 6.3V47U 1 MAIN[M]
C53 ECEA0JKS470 6.3V47U 1 MAIN[M]
C57 ECJ1VG1H100D 10PF 1 MAIN[M]
C58 ECJ1VG1H100D 10PF 1 MAIN[M]
C68 ECA0JM102 6.3V1000U 1 FAJ[M]
CN1 RJS1A5207 CONNECTOR(7P) 1 K1KB07A00016 MKB2[M]
CN2 RJS1A5212 CONNECTOR 1 K1MN12A00031 CP[M]
CN4 RJS1A5210 CONNECTOR(10P) 1 K1MP10A00003 FAJ[M]
CN5 RJS1A5212 CONNECTOR 1 K1MN12A00031 FAJ[M]
CN6 RJS1A5210 CONNECTOR(10P) 1 K1MP10A00003 MKB2[M]
CN7 RJS1A5208 CONNECTOR 1 K1MP08A00006 CP[M]
CN9,10 RJS1A5208 CONNECTOR 2 K1MP08A00006 MKB3[M]
9

Ref. No. PartNo. PartName& Description Pcs Remarks
CN11 RJS1A5210 CONNECTOR(10P) 1 K1MP10A00003 MKB1[M]
CN12 RJS1A5209 CONNECTOR 1 K1MP09A00002 MKB1[M]
CN17 RJT029W02V-1 EH CONNECTOR 1 K1KA02A00228 FAJ[M]
D1 MA4062H DIODE 1 FAJ[SPC]
D1 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D2 MA111TX DIODE 1 MA2J11100L MAIN[M]
D2 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D3 MA8024TX ZENER 1 MAIN[M]
D3 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D3 RVD1SS133TA DIODE 1 B0AACK000004 FAJ[M]
D4 AK03WK DIODE 1 FAJ[SPC]
D4 MA111TX DIODE 1 MA2J11100L MAIN[M]
D4-D6 RVD1SS133TA DIODE 3 B0AACK000004 MKB1[M]
D7 MA1039MTR DIODE 1 MAIN[M]
D7 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D8 MA111TX DIODE 1 MA2J11100L MAIN[M]
D8 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D9 MA111TX DIODE 1 MA2J11100L MAIN[M]
D9 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D10 MA111TX DIODE 1 MA2J11100L MAIN[M]
D10 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D11 MA111TX DIODE 1 MA2J11100L MAIN[M]
D11 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D11 RVD1SS133TA DIODE 1 B0AACK000004 FAJ[M]
D12 MA111TX DIODE 1 MA2J11100L MAIN[M]
D12 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D13 1D3E DIODE 1 FAJ[M]
D13 MA111TX DIODE 1 MA2J11100L MAIN[M]
D13 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D14 MA111TX DIODE 1 MA2J11100L MAIN[M]
D14 MA4036M ZENER 1 MAZ40360M FAJ[M]
D14 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D15 MA111TX DIODE 1 MA2J11100L MAIN[M]
D15 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D15 RVD1SS133TA DIODE 1 B0AACK000004 FAJ[M]
D16 MA111TX DIODE 1 MA2J11100L MAIN[M]
D16 MA4051-L DIODE 1 MAZ40510L FAJ[M]
D16 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D17 MA111TX DIODE 1 MA2J11100L MAIN[M]
D17 MA4051-L DIODE 1 MAZ40510L FAJ[M]
D17-20 RVD1SS133TA DIODE 4 B0AACK000004 MKB1[M]
D20 TLOH156PJ52A DIODE 1 FAJ[M]
D21 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D21 TLOH156PJ52A DIODE 1 FAJ[M]
D22 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D22 TLOH156PJ52A DIODE 1 FAJ[M]
D23 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D23 SEL5255STP15 LED SANKEN 1 FAJ[M]
D24 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D24 SEL5255STP15 LED SANKEN 1 FAJ[M]
D25 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
D25 SEL5255STP15 LED SANKEN 1 FAJ[M]
D26 RVD1SS133TA DIODE 1 B0AACK000004 MKB1[M]
10

Ref. No. PartNo. PartName& Description Pcs Remarks
D26 SEL5255STP15 LED SANKEN 1 FAJ[M]
D27-48 RVD1SS133TA DIODE 22 B0AACK000004 MKB1[M]
D49-96 RVD1SS133TA DIODE 48 B0AACK000004 MKB2[M]
D97-22 RVD1SS133TA DIODE 26 B0AACK000004 MKB3[M]
IC1 PC900V PHOTO COUPLER 1 FAJ[M]
IC1 SED1278F LCDC 1 MAIN[M]
IC1 TC74HC138P CMOSIC 1 MKB1[M]
IC2 LA4227 IC 1 FAJ[M]
IC2 TC74HC138P CMOSIC 1 MKB2[M]
IC2 TMP95CW65DF CPU 1 MAIN[M]
IC3 M5256DF10VLL 256K SRAM 1 MAIN[M]
IC3 NJM4558L OPAMP 1 FAJ[M]
IC4 TC200C060003 D99 LSI 1 MAIN[M]
IC10 QSIGX3C16009 MASK ROM 1 MAIN[SPC]
IC11 BU9480F-E2 D/A 1 MAIN[M]
IC13 QSIGX3C16018 MASK ROM 1 MAIN[M]
JK1 QJJG017AA PIN JACK 1 FAJ[M]
JK2 QJJG020AA JACK 1 FAJ[M]
JK3 QJJG020AA JACK 1 FAJ[M]
JK5 QJJG019AA JACK 1 FAJ[M]
JK6 QJJG016AA JACK 1 FAJ[M]
JK12 QJJG018AA JACK 1 FAJ[M]
IP1 ICP-N38T104 IC PROTECTOR 1 FAJ[SPC]
JP1 ECCR1H221J5 220PF 1 FAJ[M]
JP2 ECCR1H221J5 220PF 1 FAJ[M]
JP5 ERJ3GEY0R00V CHIPJUMPER 1 MAIN[SPC]
L1 ERJ3GEYJ101V 100 1 MAIN[SPC]
L1 QLQGT3T131LA 130MH × 3 1 FAJ[SPC]
L2 ERJ3GEYJ101V 100 1 MAIN[SPC]
L3 ERJ3GEYJ101V 100 1 MAIN[SPC]
L4 ERJ3GEYJ101V 100 1 MAIN[SPC]
L4 QLQGT3T131LA 130MH × 3 1 FAJ[SPC]
L5 ERJ3GEYJ101V 100 1 MAIN[SPC]
L5 QLQGT3T131LA 130MH × 3 1 FAJ[SPC]
L7 QLQGT3T131LA 130MH × 3 1 FAJ[SPC]
L8 QLQGT2T100LA 10UH × 2 1 FAJ[SPC]
L9 QLQGT1B101KA 100UH 1 FAJ[SPC]
L11 QLQGT3T131LA 130MH × 3 1 FAJ[SPC]
P1 QPGG0495AA CARTON BOX 1 [M]
P2 QPNG0754BA CUTTION(L) 1 [M]
P3 QPNG0755AA CUTTION(R) 1 [M]
P4 QPGG0469AA MUSIC RACK PAT 1 [M]
PCB1 SXPG234531 MAIN P.C.B. 1 EXCEPTPPY[M] <RTL>
PCB1 SXPG234541 MAIN P.C.B. 1 PPY ONLY[M] <RTL>
PCB2 SXPG234621 FAJ/BLED/RLED P.C.B. 1 [M] <RTL>
PCB3 SXPG234211 CPP.C.B. 1 [M] <RTL>
PCB4 SXPG234311 MKB1/2P.C.B. 1 [M] <RTL>
11

PCB4
SXPG234311
MKB1
/
2
P.C.B.
1
[
M]
<
RTL>
12

Ref. No. PartNo. PartName& Description Pcs Remarks
PCB5 SXPG234411 MKB3P.C.B. 1 [M] <RTL>
Q1 2SD601R TRANSISTOR 1 2SD0601AR MAIN[M]
Q1 B1ACKD000002 TRANSISTOR 1 FAJ[M]
Q2 2SB709AR TRANSISTOR 1 MAIN[SPC]
Q2 B1AACF000068 TRANSISTOR 1 FAJ[M]
Q3 2SB709AR TRANSISTOR 1 MAIN[SPC]
Q3 B1ACCF000041 TRANSISTOR 1 FAJ[M]
Q4 2SB709AR TRANSISTOR 1 MAIN[SPC]
Q4 B1ACCF000041 TRANSISTOR 1 FAJ[M]
Q5 2SB709AR TRANSISTOR 1 MAIN[SPC]
Q5 B1AACF000068 TRANSISTOR 1 FAJ[M]
Q6 2SB709AR TRANSISTOR 1 MAIN[SPC]
Q6 B1ACCF000041 TRANSISTOR 1 FAJ[M]
Q7 2SD601R TRANSISTOR 1 2SD0601AR MAIN[M]
Q7 B1AACF000068 TRANSISTOR 1 FAJ[M]
R1 ERJ3GEYJ104V 100K 1 MAIN[SPC]
R1 ERD2FCJ4R7 4.7 1 FAJ[M]
R2 ERJ3GEYJ104V 100K 1 MAIN[SPC]
R2 ERDS2FJ103 10K 1 FAJ[M]
R3 ERJ3GEYJ221V 220 1 MAIN[SPC]
R3 ERDS2FJ471 470 1 FAJ[M]
R4 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R4 ERDS2FJ101 100 1 FAJ[M]
R5 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R5 ERDS2FJ473 47K 1 FAJ[M]
R6 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R6 ERDS2FJ102 1K 1 FAJ[M]
R7 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R7 ERDS2FJ330 33 1 FAJ[M]
R8 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R8 ERDS2FJ104 100K 1 FAJ[M]
R9 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R9 ERDS2FJ330 33 1 FAJ[M]
R10 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R10 ERDS2FJ221 220 1 FAJ[M]
R11 ERJ3GEYJ332V 3.3K 1 MAIN[SPC]
R11 ERDS2FJ680 68 1 FAJ[M]
R12 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R12 ERDS2FJ680 68 1 FAJ[M]
R13 ERDS2FJ680 68 1 FAJ[M]
R13 ERJ6GEYJ472V 4.7K 1 MAIN[M]
R14 ERJ3GEYJ101V 100 1 MAIN[SPC]
R14 ERDS2FJ102 1K 1 FAJ[M]
R15 ERJ3GEYJ101V 100 1 MAIN[SPC]
R15 ERDS2FJ471 470 1 FAJ[M]
R16 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R16 ERDS2FJ471 470 1 FAJ[M]
R17 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R17 ERDS2FJ472 4.7K 1 FAJ[M]
R18 ERJ3GEYJ221V 220 1 MAIN[SPC]
R18 ERDS2FJ681 680 1 FAJ[M]
R19 ERJ3GEYJ221V 220 1 MAIN[SPC]
13

Ref. No. PartNo. PartName& Description Pcs Remarks
R19 ERDS2FJ472 4.7K 1 FAJ[M]
R20 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R20 ERDS2FJ683 68K 1 FAJ[M]
R21 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R21 ERDS2FJ151 150 1 FAJ[M]
R22 ERJ3GEY0R00V CHIPJUMPER 1 MAIN[SPC]
R22 ERDS2FJ333 33K 1 FAJ[M]
R23 ERD25FVJ682T 6.8K 1 MAIN[SPC]
R23 ERDS2FJ102 1K 1 FAJ[M]
R24 ERJ3GEYJ221V 220 1 MAIN[SPC]
R24 ERDS2FJ683 68K 1 FAJ[M]
R25 ERJ3GEYJ101V 100 1 MAIN[SPC]
R25 ERDS2FJ683 68K 1 FAJ[M]
R26 ERDS2FJ333 33K 1 FAJ[M]
R27 ERDS2FJ333 33K 1 FAJ[M]
R28 ERJ3GEYJ105V 1M 1 MAIN[SPC]
R28 ERDS2FJ561 560 1 FAJ[M]
R29 ERJ3GEYJ101V 100 1 MAIN[SPC]
R29 ERDS2FJ561 560 1 FAJ[M]
R29 ERJ3GEYJ101V 100 1 MAIN[M]
R30 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R30 ERDS2FJ472 4.7K 1 FAJ[M]
R31 ERJ3GEYJ101V 100 1 MAIN[SPC]
R31 ERDS2FJ472 4.7K 1 FAJ[M]
R32 ERDS2FJ151 150 1 FAJ[M]
R33 ERDS2FJ151 150 1 FAJ[M]
R34 ERDS2FJ472 4.7K 1 FAJ[M]
R35 ERDS2FJ472 4.7K 1 FAJ[M]
R36 ERDS2FJ101 100 1 FAJ[M]
R37 ERDS2FJ332 3.3K 1 FAJ[M]
R38 ERDS2FJ332 3.3K 1 FAJ[M]
R39 ERDS2FJ682 6.8K 1 FAJ[M]
R40 ERDS2FJ682 6.8K 1 FAJ[M]
R41 ERDS2FJ683 68K 1 FAJ[M]
R42 ERDS2FJ333 33K 1 FAJ[M]
R43 ERDS2FJ470 47 1 FAJ[M]
R45 ERD2FCJ4R7 4.7 1 FAJ[M]
R46 ERDS2FJ103 10K 1 FAJ[M]
R47 ERDS2FJ472 4.7K 1 FAJ[M]
R48 ERDS2FJ222 2.2K 1 FAJ[M]
R49 ERJ3GEYJ221V 220 1 MAIN[SPC]
R49 ERDS2FJ681 680 1 FAJ[M]
R50 ERJ3GEYJ105V 1M 1 MAIN[SPC]
R50 ERD2FCJ4R7 4.7 1 FAJ[M]
R51 ERJ3GEYJ470V 47 1 MAIN[SPC]
R52 ERJ3GEYJ332V 3.3K 1 MAIN[SPC]
R53 ERJ3GEYJ822V 8.2K 1 MAIN[SPC]
R54 ERJ3GEYJ822V 8.2K 1 MAIN[SPC]
R55 ERJ3GEYJ332V 3.3K 1 MAIN[SPC]
R56 ERJ3GEYJ822V 8.2K 1 MAIN[SPC]
R57 ERJ3GEYJ822V 8.2K 1 MAIN[SPC]
R58 ERJ3GEYJ332V 3.3K 1 MAIN[SPC]
R59 ERJ3GEYJ822V 8.2K 1 MAIN[SPC]
14

Ref. No. PartNo. PartName& Description Pcs Remarks
R60 ERJ3GEYJ822V 8.2K 1 MAIN[SPC]
R61 ERJ3GEYJ332V 3.3K 1 MAIN[SPC]
R62 ERJ3GEYJ822V 8.2K 1 MAIN[SPC]
R63 ERJ3GEYJ822V 8.2K 1 MAIN[SPC]
R64 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R65 ERJ3GEYJ101V 100 1 MAIN[SPC]
R66 ERJ3GEYJ101V 100 1 MAIN[SPC]
R67 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R68 ERJ3GEYJ101V 100 1 MAIN[SPC]
R69 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R70 ERJ3GEYJ101V 100 1 MAIN[SPC]
R71 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R74 ERJ3GEYJ101V 100 MAIN[SPC]
R75 ERJ3GEYJ221V 220 1 MAIN[SPC]
R76 ERJ3GEYJ221V 220 1 MAIN[SPC]
R77 ERJ3GEYJ221V 220 1 MAIN[SPC]
R78 ERJ3GEYJ221V 220 1 MAIN[SPC]
R79 ERJ3GEYJ221V 220 1 MAIN[SPC]
R80 ERJ3GEYJ221V 220 1 MAIN[SPC]
R81 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R82 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R84 ERJ3GEYJ471V 470 1 MAIN[SPC]
R85 ERJ3GEYJ471V 470 1 MAIN[SPC]
R86 ERJ3GEYJ471V 470 1 MAIN[SPC]
R87 ERJ3GEYJ471V 470 1 MAIN[SPC]
R88 ERJ3GEYJ471V 470 1 MAIN[SPC]
R89 ERJ3GEYJ471V 470 1 MAIN[SPC]
R90 ERJ3GEYJ471V 470 1 MAIN[SPC]
R91 ERJ3GEYJ471V 470 1 MAIN[SPC]
R92 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R93 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R94 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R95 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R96 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R97 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R98 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R99 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R100 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R101 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R102 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R103 ERJ3GEYJ472V 4.7K 1 MAIN[SPC]
R104 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R105 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R106 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R107 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R108 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R109 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R110 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R111 ERJ3GEYJ103V 10K 1 MAIN[SPC]
R112 ERJ3GEYJ221V 220 1 MAIN[SPC]
R113 ERJ3GEYJ221V 220 1 MAIN[SPC]
R114 ERJ3GEYJ221V 220 1 MAIN[SPC]
R115 ERJ3GEYJ221V 220 1 MAIN[SPC]
R116 ERJ3GEYJ101V 100 1 MAIN[SPC]
15

Ref. No. PartNo. PartName& Description Pcs Remarks
R117 ERJ3GEYJ101V 100 1 MAIN[SPC]
R118 ERJ3GEYJ101V 100 1 MAIN[SPC]
R119 ERJ3GEYJ101V 100 1 MAIN[SPC]
R120 ERJ3GEYJ104V 100K 1 MAIN[SPC]
R121 ERJ3GEYJ104V 100K 1 MAIN[SPC]
R122 ERJ3GEYJ104V 100K 1 MAIN[SPC]
R123 ERJ3GEYJ104V 100K 1 MAIN[SPC]
R124 ERJ3GEYJ221V 220 1 MAIN[SPC]
R125 ERJ3GEYJ221V 220 1 MAIN[SPC]
R126 ERJ3GEYJ221V 220 1 MAIN[SPC]
R127 ERJ3GEYJ221V 220 1 MAIN[SPC]
R152 ERJ3GEYJ221V 220 1 MAIN[SPC]
R153 ERJ3GEYJ221V 220 1 MAIN[SPC]
R154 ERJ3GEYJ221V 220 1 MAIN[SPC]
R155 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R156 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R157 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R158 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R159 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R160 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R161 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R162 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R163 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R164 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R165 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R166 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R167 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R168 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R169 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R170 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R171 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R172 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R173 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R174 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R175 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R176 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R177 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R178 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R179 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R180 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R181 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R182 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R183 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R184 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R185 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R186 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R187 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R188 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R189 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R190 ERJ3GEYJ102V 1K 1 MAIN[SPC]
R210 ERJ3GEYJ221V 220 1 MAIN[SPC]
R211 ERJ3GEYJ221V 220 1 MAIN[SPC]
R212 ERJ3GEYJ221V 220 1 MAIN[SPC]
R213 ERJ3GEYJ221V 220 1 MAIN[SPC]
16

Ref. No. PartNo. PartName& Description Pcs Remarks
R214 ERJ3GEYJ221V 220 1 MAIN[SPC]
R215 ERJ3GEYJ221V 220 1 MAIN[SPC]
R216 ERJ3GEYJ221V 220 1 MAIN[SPC]
R217 ERJ3GEYJ221V 220 1 MAIN[SPC]
R218 ERJ3GEYJ221V 220 1 MAIN[SPC]
R219 ERJ3GEYJ221V 220 1 MAIN[SPC]
R220 ERJ3GEYJ221V 220 1 MAIN[SPC]
R221 ERJ3GEYJ221V 220 1 MAIN[SPC]
R222 ERJ3GEYJ151V 150 1 MAIN[SPC]
R223 ERJ3GEYJ151V 150 1 MAIN[SPC]
R224 ERJ3GEYJ151V 150 1 MAIN[SPC]
R225 ERJ3GEYJ151V 150 1 MAIN[SPC]
R226 ERJ3GEYJ471V 470 1 MAIN[SPC]
R227 ERJ3GEYJ471V 470 1 MAIN[SPC]
R228 ERJ3GEYJ471V 470 1 MAIN[SPC]
R229 ERJ3GEYJ471V 470 1 MAIN[SPC]
R230 ERJ3GEYJ471V 470 1 MAIN[SPC]
R231 ERJ3GEYJ471V 470 1 MAIN[SPC]
R232 ERJ3GEYJ471V 470 1 MAIN[SPC]
R233 ERJ3GEYJ471V 470 1 MAIN[SPC]
R234 ERJ3GEYJ471V 470 1 MAIN[SPC]
R235 ERJ3GEYJ471V 470 1 MAIN[SPC]
R236 ERJ3GEYJ471V 470 1 MAIN[SPC]
R237 ERJ3GEYJ471V 470 1 MAIN[SPC]
R238 ERJ3GEYJ471V 470 1 MAIN[SPC]
R239 ERJ3GEYJ471V 470 1 MAIN[SPC]
R240 ERJ3GEYJ471V 470 1 MAIN[SPC]
R241 ERJ3GEYJ471V 470 1 MAIN[SPC]
R242 ERJ3GEYJ471V 470 1 MAIN[SPC]
R243 ERJ3GEYJ471V 470 1 MAIN[SPC]
R244 ERJ3GEYJ471V 470 1 MAIN[SPC]
R245 ERJ3GEYJ471V 470 1 MAIN[SPC]
R246 ERJ3GEYJ221V 220 1 MAIN[SPC]
R247 ERJ3GEYJ221V 220 1 MAIN[SPC]
R248 ERJ3GEYJ221V 220 1 MAIN[SPC]
R249 ERJ3GEYJ221V 220 1 MAIN[SPC]
R250 ERJ3GEYJ221V 220 1 MAIN[SPC]
R251 ERJ3GEYJ221V 220 1 MAIN[SPC]
R252 ERJ3GEYJ221V 220 1 MAIN[SPC]
R253 ERJ3GEYJ221V 220 1 MAIN[SPC]
R254 ERJ3GEYJ221V 220 1 MAIN[SPC]
R255 ERJ3GEYJ221V 220 1 MAIN[SPC]
R256 ERJ3GEYJ221V 220 1 MAIN[SPC]
R257 ERJ3GEYJ221V 220 1 MAIN[SPC]
R258 ERJ3GEYJ221V 220 1 MAIN[SPC]
R259 ERJ3GEYJ221V 220 1 MAIN[SPC]
R260 ERJ3GEYJ221V 220 1 MAIN[SPC]
R261 ERJ3GEYJ221V 220 1 MAIN[SPC]
SW1-12 - SWITCH 12 MKB1*1
SW13-24 - SWITCH 12 MKB1*1
SW25-36 - SWITCH 12 MKB2*1
SW37-48 - SWITCH 12 MKB2*1
SW49-61 - SWITCH 13 MKB3*1
17

Ref. No. PartNo. PartName& Description Pcs Remarks
SW1,2 - SWITCH 2CP*1
SW13-54 - SWITCH 42 CP*1
SW57-61 - SWITCH 5 CP*1
SW68-79 - SWITCH 12 CP*1
X1 QSXG2F1400A CERAMIC OCS(14MHZ) 1 MAIN[SPC]
X3 QSXG2F3200CA CERAMIC OCS(32MHZ) 1 MAIN[SPC]
Notes:
*1: Since SW consists of buttons and P.C.B.s, we do not supplyit as anindividual part (referto
“CABINET PARTS LOCATION ” on ).
6. CABINET PARTS LOCATION
18

19

7. PACKAGING
20
