Max ADVANTAGE 831.153961 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before
using this equipment. Save this
manual for future reference.
Model No. 831.153961
Serial No.
Write the serial number in the
space above for future reference.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
RESISTANCE SYSTEM EXERCISER
User’s Manual
Visit our website at
www.weiderfitness.com
Serial Number Decal (under seat)

2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

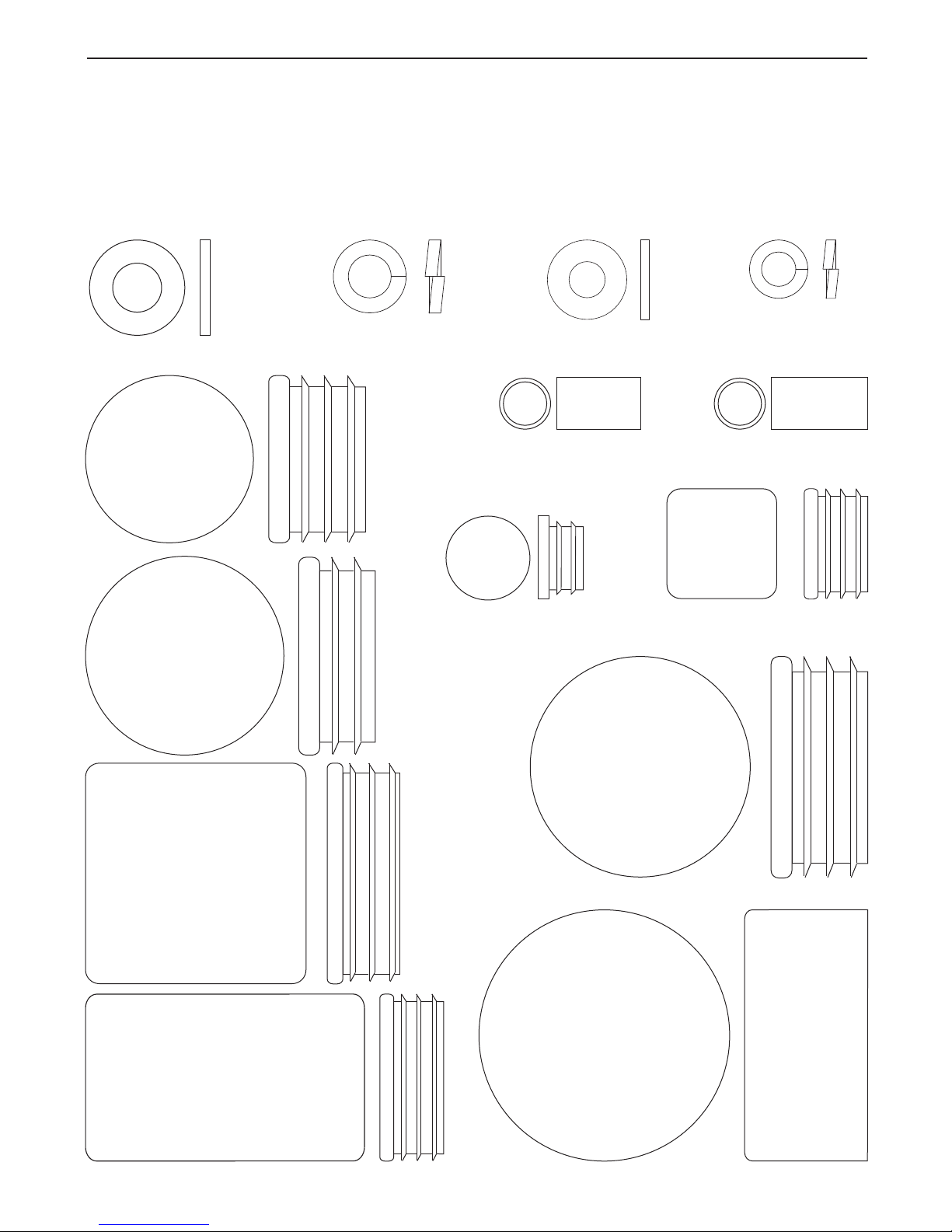

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-
ning assembly.
MAX by WEIDER is a trademark of ICON IP
, Inc.
TABLE OF CONTENTS

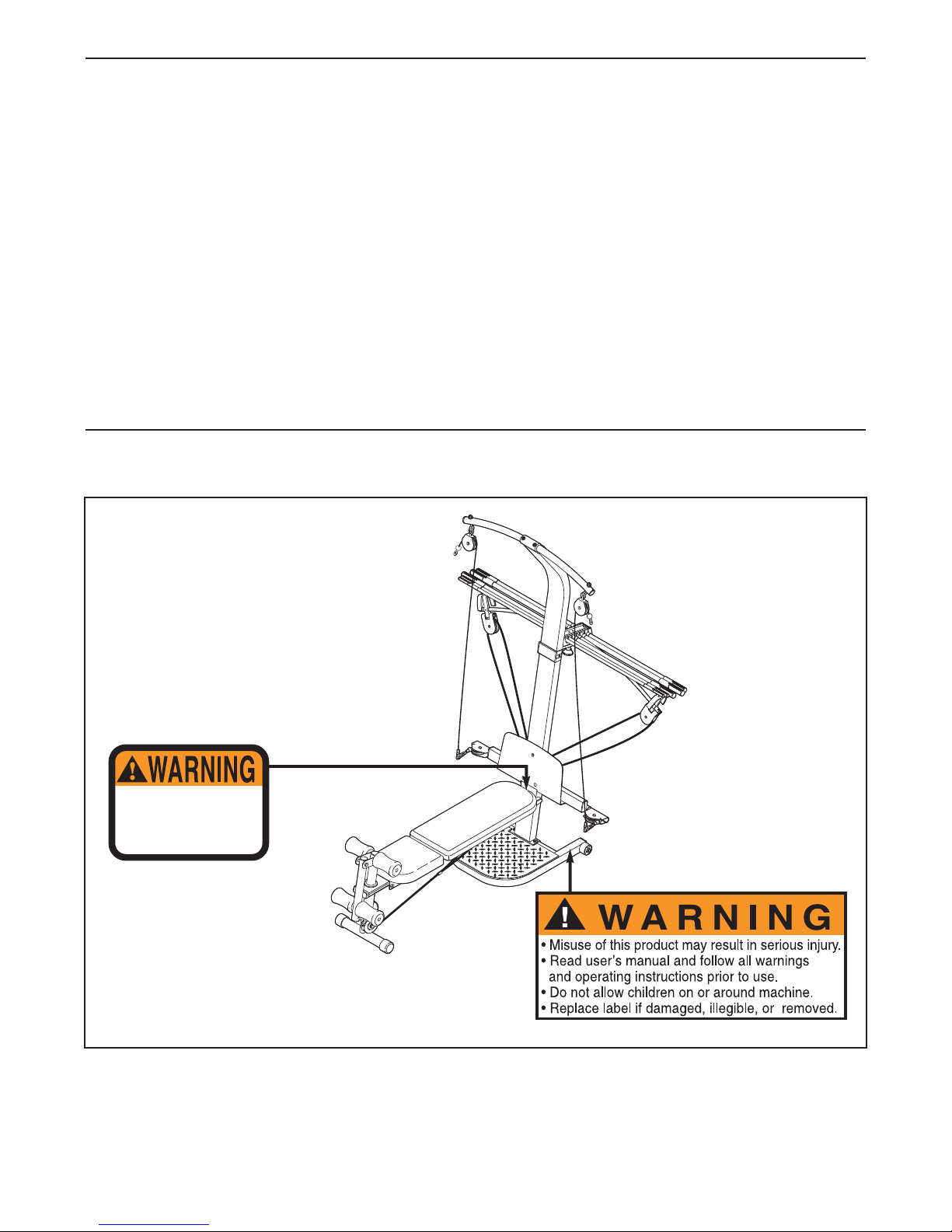

The decals shown here have been
placed on the resistance system. If a
decal is missing or illegible, please call
1-877-992-5999 to order a free replace-
ment decal. Apply the decal in the loca-
tion shown.
Keep hands and
fingers clear of
this area.

3
1. Read all instructions in this manual before
using the resistance system. Use the resist-
ance system only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the resistance system are
adequately informed of all precautions.
3. The resistance system is intended for home
use only. Do not use the resistance system in
any commercial, rental, or institutional setting.
4. Use the resistance system only on a level
surface. Cover the floor beneath the resist-
ance system to protect the floor.
5. Make sure that all parts are properly tight-
ened each time the resistance system is
used. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the resistance system at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protec-
tion while exercising.
9. The top frame is not designed to be used for
pull-up exercises. Do not hang on the top
frame.
10. The resistance system is designed to sup-
port a maximum user weight of 300 pounds.
11. Pull on the low pulley cable only while sitting
on the bench or standing on the base plate.
Pull on the high pulley cables only while sit-
ting on the bench, with the seat in one of the
three positions closest to the upright base,
or while standing on the base plate.
12. Make sure the storage knob is in place and
fully tightened each time the resistance sys-
tem is used.
13. When adding resistance, both ends of the
resistance bars must rest under the two “U”-
channels. Add and remove resistance bars
from the “U”-channels one resistance bar at
a time.
14. Keep clear of the area around the “U”-chan-
nels while the resistance system is in use.
Do not add or remove resistance bars from
the “U”-channels while the end of the long
cable is pulled out.
15. Always adjust the resistance bar assembly to
the horizontal position and make sure the
fulcrum knob is secure before using the
resistance system.
16. Make sure the rings on the resistance bars
are pushed against the tray before using the
resistance system.
17. Always disconnect the lat bar from the short
cables when performing an exercise that
does not require it.
18. The resistance system is designed to be
used with the included resistance, and the
resistance included with a MAX by WEIDER™
Power Pak. Do not use the resistance system
with any other type of resistance.
19. Make sure that the cables remain on the pul-
leys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys. Replace all
cables at least every two years.
20. Keep the resistance system indoors, away
from moisture and dust. Do not put the
resistance system in a garage or covered
patio, or near water.
21. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. Sears assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the resistance system.
IMPORTANT PRECAUTIONS

4
Top Frame
High Pulley
Lat Tower
Backrest
Storage Knob
Fulcrum Knob
Upright
Low Pulley
Base Plate
Leg Lever
Lat Bar
Seat Knob
Seat
Foot Plate
Resistance Bars
“U”-Channel
BEFORE YOU BEGIN
Thank you for selecting the innovative MAX by
WEIDER™ADVANTAGE resistance system. The resist-
ance system offers a selection of stations designed to
develop every major muscle group of the body. Whether
your goal is to tone your body, build dramatic muscle
size and strength, or improve your cardiovascular sys-
tem, the resistance system will help you to achieve the
specific results you want.
For your benefit, read this manual carefully before
using the resistance system. If you have questions
after reading this manual, call 1-800-4-MY-HOME®
(1-800-469-4663). To help us assist you, please note
the product model number and serial number before
calling. The model number is 831.153961. The serial
number can be found on a decal attached to the resist-
ance system (see the front cover of this manual for the
location of the decal).

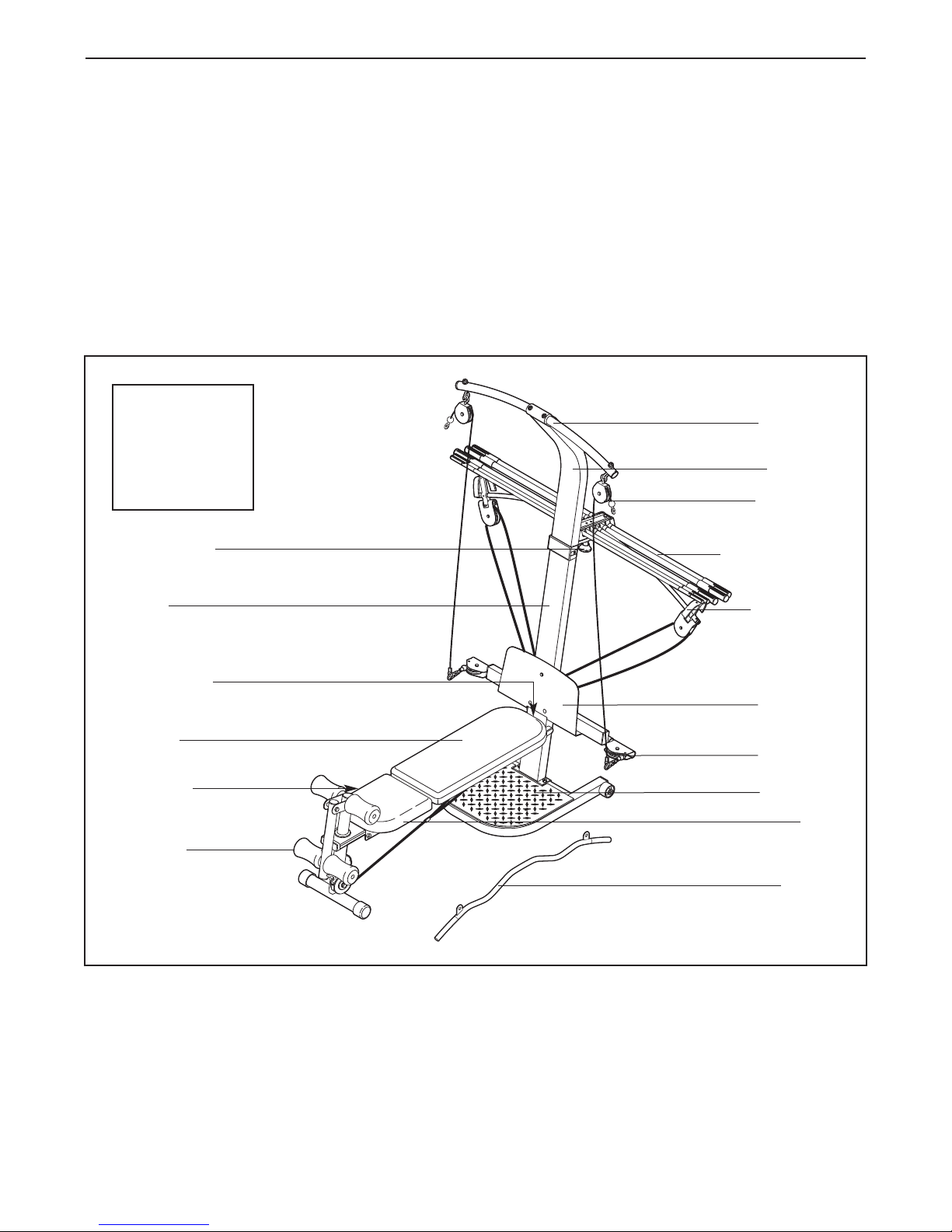

Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.
ASSEMBLED
DIMENSIONS:
Height: 82 in.
Width: 66 in.
Depth: 80 in.

5
Before beginning assembly, carefully read the
following information and instructions:
•Assembly requires two persons.
•Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
•For help identifying small parts, use the PART
IDENTIFICATION CHART. Note: Some small
parts may have been pre-attached for shipping. If
a part is not in the parts bag, check to see if it
has been pre-attached.
•Tighten all parts as you assemble them, unless
instructed to do otherwise.
•As you assemble the resistance system, make
sure all parts are oriented as shown in the draw-
ings.
The included Allen wrenches and the follow-
ing tools (not included) are required for assem-
bly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
This manual is designed to ensure that the resist-
ance system can be assembled successfully by
most people. However, it is important to realize
that the versatile resistance system has many
parts and that the assembly process will take
time. Most people find that by setting aside plenty
of time, assembly will go smoothly.
ASSEMBLY
1
1.
Press two 50mm Square Inner Caps (98) into the
Base (1).
Attach two Plastic Feet (53) and two Large Plastic
Feet (102) to the Base (1) with four M4 x 16mm
Screws (62).
Attach the Upright (3) to the Base (1) with two
M10 x 66mm Carriage Bolts (83), two M10 x
72mm Bolts (64), and four M10 Nylon Locknuts
(76) as shown. Note: This step will be easier to
complete if the Upright and Base are tipped
on their sides.
Before beginning assembly, make sure that
you have read and understand the informa-
tion in the box above.
76
76
76
64
3
62
1
53
53
62
102
62
102
98
98
83

75
6
2. Attach a Wheel (31) to the outside of the Base (1)
with an M10 x 108mm Bolt (81), three M10
Washers (75), and an M10 Nylon Locknut (76).
Do not overtighten the Locknut; the Wheel
must be able to turn easily.
Attach the other Wheel (not shown) in the
same manner.
2
131
75
76
75
81
3. Press a 38mm x 64mm Inner Cap (41) into each
end of the Cross Tube (11).
Orient the Cross Tube (11) as shown, with the
welded tubes at the bottom. Attach the Foot Plate
(23) and the Cross Tube to the Upright (3) with
two M10 x 140mm Carriage Bolts (73), two M10
Washers (75), and two M10 Nuts (47). Do not
insert a bolt into the top hole in the Foot Plate
yet.
3
4
41
3
73
41
Welded
Tube
11
47
23

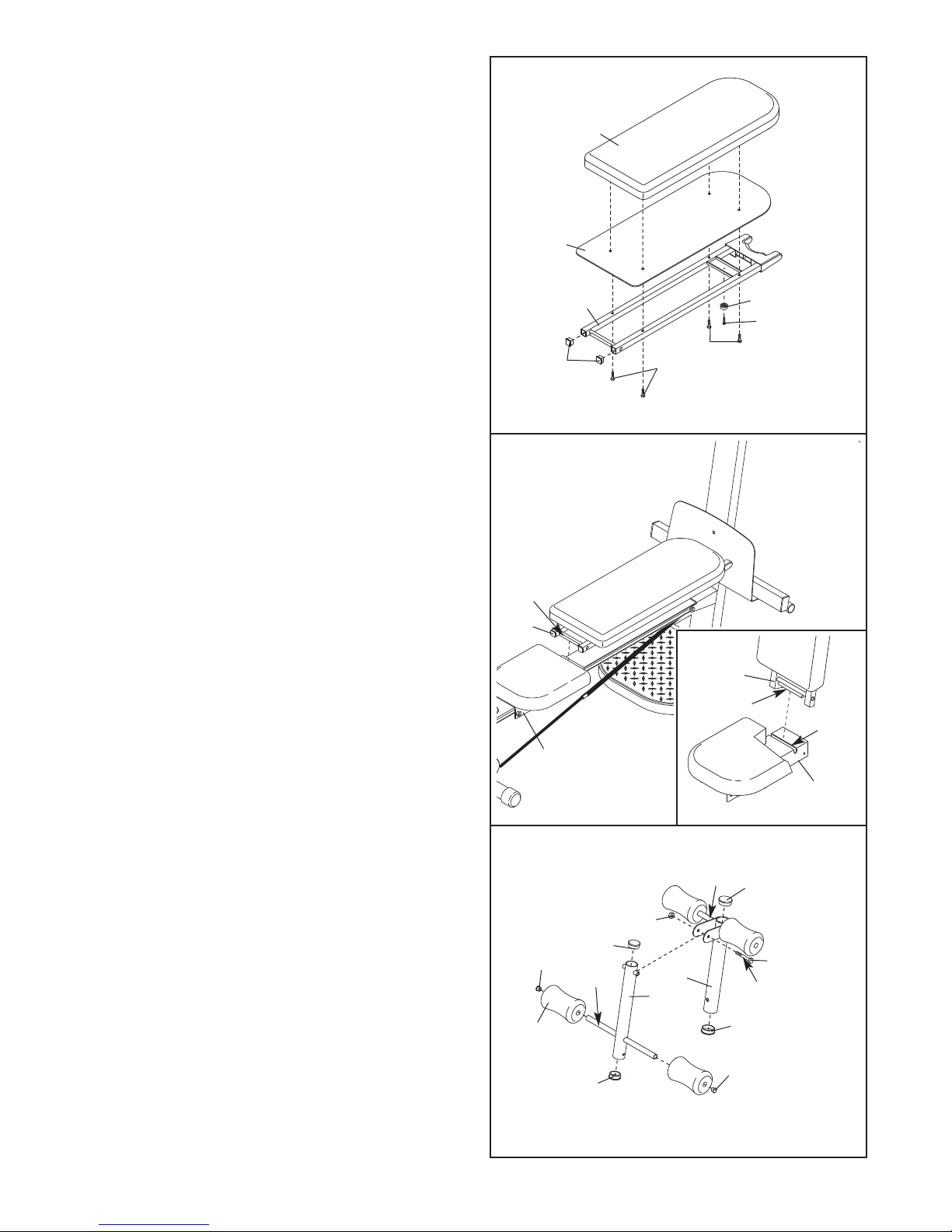

5. See the inset drawing. Snap the Seat Knob (45)
into the Seat Carriage (12) and attach it with two
M6 x 16mm Screws (82) and two M6 Black Nylon
Locknuts (69). Make sure the slot in the Knob
is aligned with the slot in the Seat Carriage.
Orient the Seat (13) and Seat Backing (9) as
shown. Attach the Seat and Seat Backing to the
Seat Carriage (12) with four M6 x 16mm Screws
(82).
4. Press two 57mm Round Outer Caps (27) onto the
ends of the Front Leg (6).
Orient the Bench Rail (5) as shown. Slide the Rail
Bracket (105) into the indicated end of the Bench
Rail, and align the holes in the Bracket with the
holes in the Bench Rail.
Orient the Front Leg (6) as shown. Attach the
Front Leg to the Bench Rail (5) with the Rail
Bracket (105), four M8 x 25mm Button Screws
(46), and four M8 Split Washers (52).
5
5
105
Holes
6
46
52
52
46
27
27
13
9
Round
End
Slot
12
12
45 69
82
82 82

7

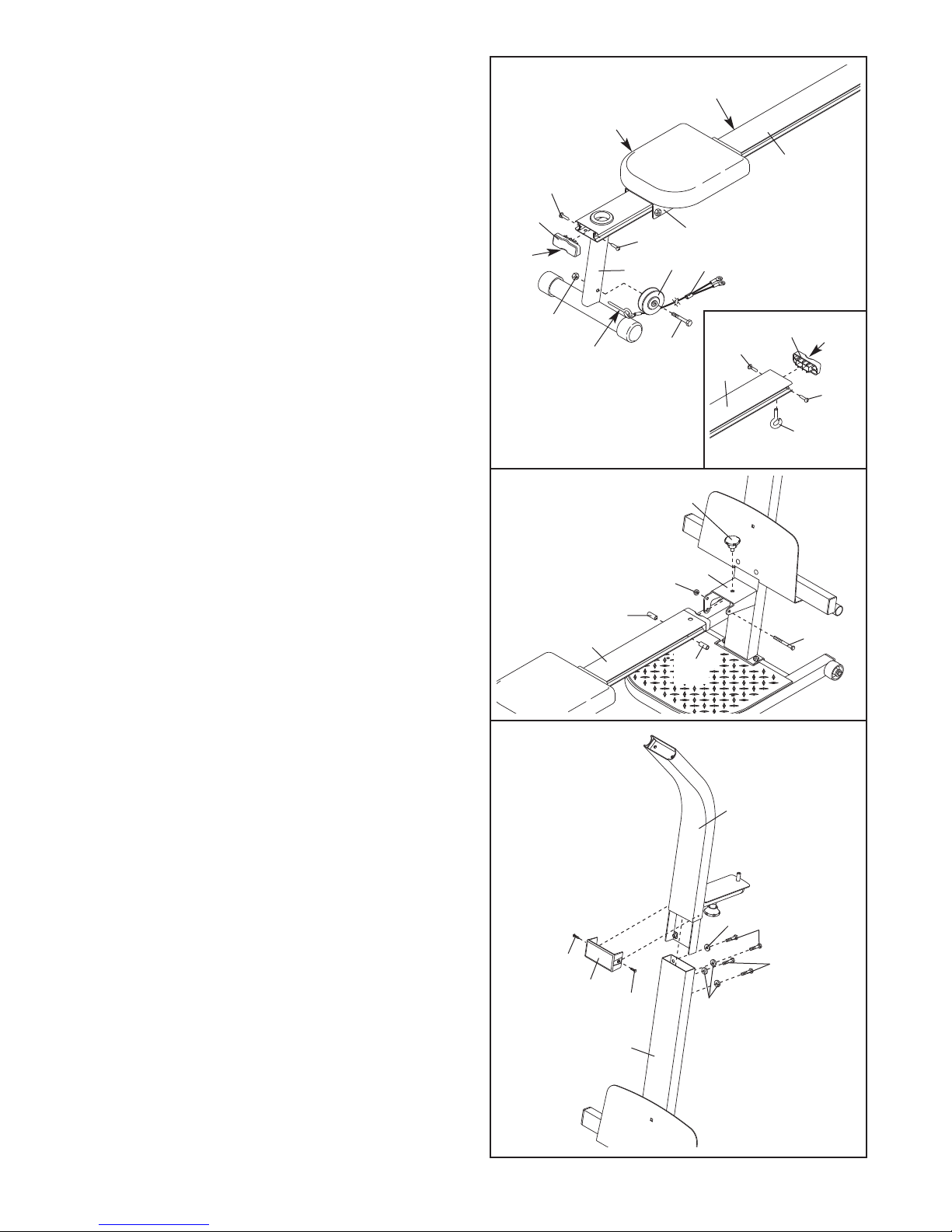

8. Attach the Lat Tower (4) to the Upright (3) with
four M10 x 25mm Button Head Screws (87) and
four M10 Split Washers (103).
Attach the Name Plate (89) to the Lat Tower (4)
with two M4 x 16mm Screws (62).
4
3
89 62
62 87
87
103
103
106
7. Attach the Bench Rail (5) to the Upright (3) with
an M10 x 132mm Bolt (66), a 19mm Spacer (17),
a 22mm Spacer (106), and an M10 Nylon
Locknut (76). Fully tighten the Storage Knob (30)
into the Upright and Rail.
7
8
5
76
17
66
3
30
6. Pull the Seat Knob (45, not shown) out as far as
it will go, and slide the Seat Carriage (12) onto
the Bench Rail (5). Engage the Seat Knob into
the third hole from the end of the Bench Rail.
See the inset drawing. Attach a Hook (104) to
the bottom of the Bench Rail (5).
Press the two Rail Inner Caps (99), with the wide
ends on the top or bottom (as indicated), into the
ends of the Bench Rail (5). Attach the Caps with
four M4 x 16mm Screws (62).
Locate the Leg Lever Cable (32), which has three
ends connected in the middle with a bracket.
Route the end of the Cable with the eyebolt under
a “V”-pulley (92). Attach the Pulley to the Front
Leg (6) with an M10 x 107mm Bolt (97) and an
M10 Nylon Locknut (76). Slide the other two
ends of the Cable onto the Hook (104).
6Third
Hole
99
Wide
End
Eyebolt
Wide
End
62
45
62
62
62
99
104
12
97
92
76
32
6
5
5

8
9. Press two 38mm Round Inner Caps (38) into the
ends of the Top Frame (10).
Attach two Eyebolts (34) to the Top Frame (10)
with two M8 Washers (59) and two M8 Nylon
Locknuts (65). Do not overtighten the Locknuts;
the Eyebolts must be able to rotate freely.
Attach the Top Frame (10) to the Lat Tower (4)
with two M10 x 65mm Button Head Screws (70),
two M10 Washers (75), and the Top Frame Cover
(93). Make sure that the Eyebolts (34) are ori-
ented as shown in the inset drawing. If they
are not, turn the Top Frame around and reat-
tach it.
9
38
65
65
10
34
59
34
70
59
93
75
4
38
34
10
4
Side View
10. Attach the two 10-pound Short Caps (20) to the
10-pound Center Resistance Bar (44) with two
M4 x 12mm Flat Head Screws (85).
Using ten M4 x 12mm Flat Head Screws (85),
attach the two 10-pound Caps (101) to the 10-
pound Removable Resistance Bar (67), the two
20-pound Caps (88) to the 20-pound Removable
Resistance Bar (36), the four 80-pound Caps
(100) to the two 80-pound Resistance Bars (95),
and the two 40-pound Caps (79) to the 40-pound
Resistance Bar (96).
10
79
88
101
20
100
67
36
95
96
85
85
85
85
85
44
11
86
72
Rings on
this side
96
95
95
44
36
67
18
Rods
Edges
up
35
18
4
11. Locate the Fulcrum (18) on the Lat Tower (4) (see
the inset drawing). Slide the Tray (35) onto the
rods on the Fulcrum. Make sure the Tray is ori-
ented as shown in the drawing.
Set the resistance bars into the Tray (35) in the fol-
lowing order: the 10-pound Removable Resistance
Bar (67), the 20-pound Removable Resistance Bar
(36), an 80-pound Resistance Bar (95), the 10-
pound Center Resistance Bar (44), an 80-pound
Resistance Bar (95), and the 40-pound
Resistance Bar (96). Make sure the indicated
rings are on the side shown and the arrows
point toward the Tray.
Attach the Cover Plate (72), with the edges up, to
the Tray (35) with two M8 x 19mm Button Head
Screws (86).

9
13. Insert the rod on the Backrest Frame (15) into the
slot in the Seat Carriage (12). Hold the Backrest
Frame vertically over the Seat Carriage and
slide the rod into the slot, as shown in the
inset drawing.
15
15
12
12
Rod
Slot
Rod
13
8
58
58
14
12. Press two 25mm Square Inner Caps (54) into the
indicated end of the Backrest Frame (15).
Attach a Plastic Foot (53) to the Backrest Frame
(15) with an M4 x 16mm Screw (62).
Orient the Backrest (14) and the Backrest
Backing (8) as shown. Attach the Backrest and
the Backrest Backing to the Backrest Frame (15)
with four M6 x 45mm Screws (58).
12
53
62
15
54
14. Press two 50mm Round Inner Caps (57) into the
top and bottom of the Leg Developer (19). Press
two 45mm Round Inner Caps (56) into the top
and bottom of the Leg Lever (7).
Lubricate an M10 x 69mm Bolt (60) with grease.
Attach the Leg Lever (7) to the Leg Developer
(19) with the Bolt and an M10 Nylon Locknut (76).
Do not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
Press two 19mm Round Inner Caps (78) into the
tube on the Leg Lever (7). Slide two Foam Pads
(26) onto the tubes. Repeat with the tube on the
Leg Developer (19).
14
Lubricate
7
19
57
78
26
Tube
Tube
76
60
78
56
56
57

10
18. Attach a Pulley Housing (94) to the indicated “U”-
channel on the 10-pound Center Resistance Bar
(44) with an M10 x 102mm Button Head Bolt (24),
two Pivot Bushings (74), and an M10 Nylon
Locknut (76).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Pulley
Housing (94) with an M10 x 42mm Button Head
Bolt (71) and an M10 Nylon Locknut (76).
18
24
94
28
80
44
76
76
71
74
74

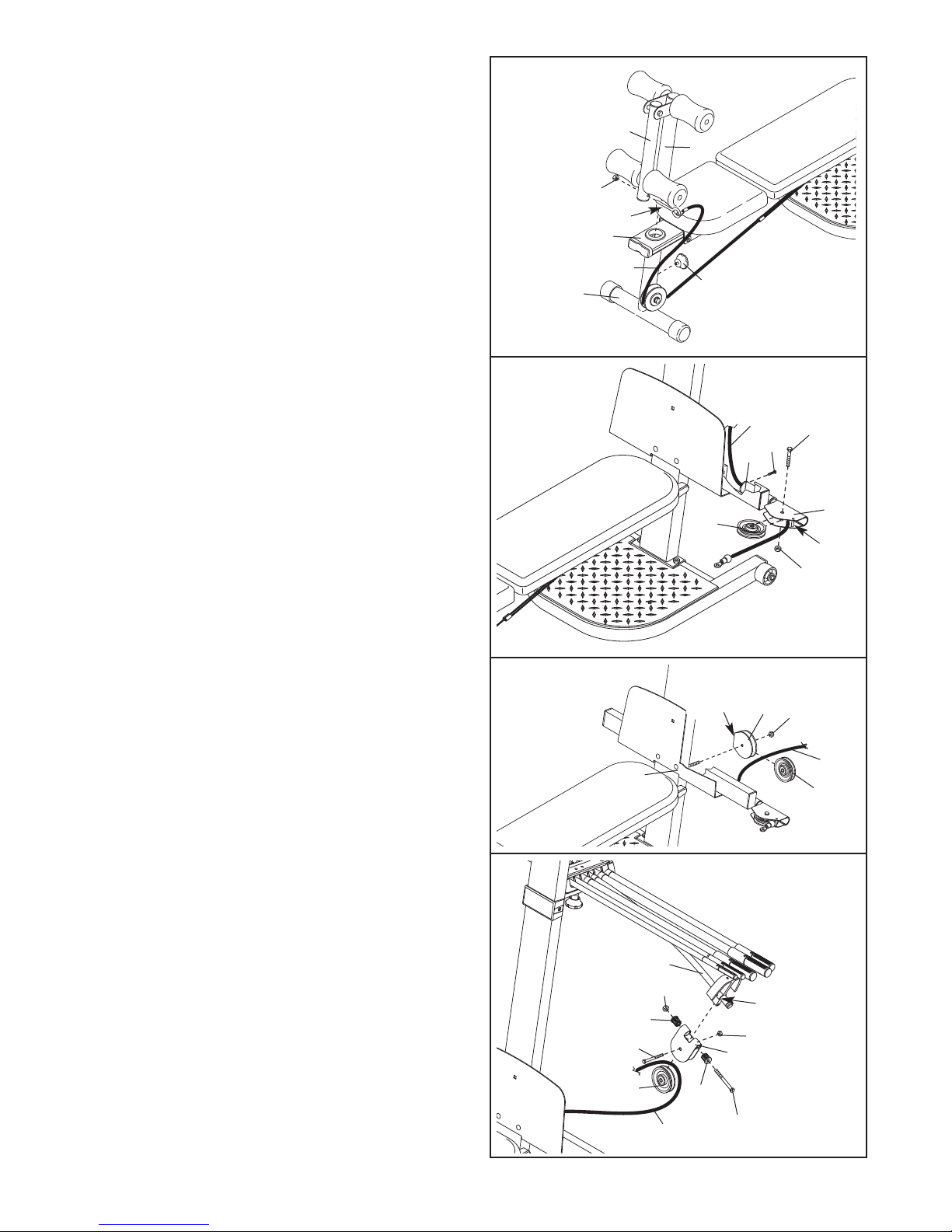

17. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley and a Pulley Guard (29) to
the indicated M10 x 140mm Carriage Bolt (73)
with an M10 Nylon Locknut (76). Make sure the
flat edge of the Pulley Guard is on the side
shown.
17
76
28
80
73
29
Flat
Edge
16. Locate the Long Cable (80). Insert one end of
the Cable through the welded tube on the indicat-
ed end of the Cross Tube (11) and then through a
Swivel Arm (22). If necessary, use the tip of a
screwdriver to pull the end of the Cable out of the
Swivel Arm. Make sure the Cable is on the indi-
cated side of the welded rod in the Swivel Arm.
Insert the Swivel Arm (22) into the welded tube
on the Cross Tube (11). Secure the Swivel Arm
with an M4 x 5mm Screw (107).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Swivel Arm
(22) with an M10 x 42mm Button Head Bolt (71)
and an M10 Nylon Locknut (76).
16
71
22
107
28
80
11
76
Rod
“U”-Channel
15. Slide the Leg Developer (19) into the Bench Rail
(5). Align the hole in the Leg Developer with a
hole in the Front Leg (6). Tighten the Bench Knob
(42) into the hole in the Leg Developer.
Connect the eyebolt on the Leg Lever Cable (32)
to the indicated side of the Leg Lever (7) with an
M8 Nylon Locknut (65).
42
6
19
5
65
Eyebolt
7
32
15

11
22
80
Rod
28
71
76
11
20. Attach a Pulley Housing (94) to the indicated “U”-
channel on the 10-pound Center Resistance Bar
(44) with an M10 x 102mm Bolt (24), two Pivot
Bushings (74), and an M10 Nylon Locknut (76).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Pulley
Housing (94) with an M10 x 42mm Button Head
Bolt (71) and an M10 Nylon Locknut (76).
21. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley and a Pulley Guard (29) to
the indicated M10 x 140mm Carriage Bolt (73)
with an M10 Nylon Locknut (76). Make sure the
flat edge of the Pulley Guard is on the side
shown.
19. Wrap the Long Cable (80) under a 90mm Pulley
(28) as shown. Attach the Pulley and a Pulley
Guard (29) to the Upright (3) with an M10 x
113mm Button Head Bolt (40) and an M10 Nylon
Locknut (76). Make sure the flat edge of the
Pulley Guard is on the bottom.
19
20
21
80
29
40
28
3
76
28
74
94
74
76
76
80
71
28
80
Flat
Edge
29
76
73
24
44
Flat
Edge
22 107
22. Make sure there are no resistance bars (not
shown) under the “U”-channels on the 10-pound
Center Resistance Bar (not shown). Have a sec-
ond person pull on the Long Cable (80) to create
slack in the Cable.
Insert the end of the Long Cable (80) through the
welded tube on the indicated end of the Cross
Tube (11) and then through the remaining Swivel
Arm (22). Make sure the Cable is on the indicat-
ed side of the welded rod in the Swivel Arm.
Insert the Swivel Arm (22) into the welded tube
on the Cross Tube (11). Secure the Swivel Arm
with an M4 x 5mm Screw (107).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Swivel Arm
(22) with an M10 x 42mm Button Head Bolt (71)
and an M10 Nylon Locknut (76).

12
24. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENTS, beginning on the following page.
Before using the resistance system, pull the long cable a few times to be sure that it moves smoothly over
the pulleys. If the cable does not move smoothly, find and correct the problem. IMPORTANT: If the cables
are not properly installed, they may be damaged when heavy resistance is used. See the CABLE
DIAGRAM on page 16 for proper cable routing.
23. Locate the two Short Cables (33). Wrap one of
the Cables around a 90mm Pulley (28). Attach
the Pulley to a High Pulley Housing (21) with an
M10 x 42mm Button Head Bolt (71) and an M10
Nylon Locknut (76).
Repeat this step with the other Short Cable
(33).
23
76
71
21
28
33

This section explains how to adjust the resistance system. See the EXERCISE GUIDELINES on page 17 for
important information about how to get the most benefit from your exercise program. Also, refer to the accompa-
nying exercise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time the resistance system is used. Replace worn parts immedi-
ately. The resistance system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use
solvents. The resistance bars can be cleaned with a vinyl and rubber protectant, available at an automotive or
department store.
13
ADJUSTMENTS
ADJUSTING THE SEAT
The Seat (13) can be secured in any of five positions
on the Bench Rail (5). To move the Seat, pull the
Seat Knob (45) out as far as it will go, and slide the
Seat to the desired position. Engage the Seat Knob
into an adjustment hole in the Bench Rail.
To perform row exercises, the leg press strap must be
attached to the long cable (see ATTACHING THE
ACCESSORIES, on page 14), and the Seat Carriage
(12) must be able to roll along the Bench Rail (5).
First, remove the Backrest (14) from the Seat
Carriage (see ADJUSTING THE BACKREST on page
15). Then, pull the Seat Knob (45) out as far as it will
go, and turn the Knob so that the pin rests at the end
of the “L”-shaped slot (see the inset drawing).
13
14
12
5
12
45
Pin
“L”-Slot
Ball
ATTACHING THE HIGH PULLEYS AND LEG LEVER
To use a high pulley, slide the hook on the High
Pulley Housing (21) onto an Eyebolt (34). Attach the
end of the Short Cable (33) without the ball to the end
of the Long Cable (80) with a Cable Clip (51). Attach
the other high pulley in the same manner.
To use the Leg Lever (not shown), attach the two
ends of the Leg Lever Cable (32) to the ends of the
Long Cable (80) with two Cable Clips (51).
Remove the high pulleys, and detach the Leg Lever
Cable (32), when not in use. Store the ends of the
Leg Lever Cable on the Hook (104) under the Bench
Rail (not shown).
33
21
51
51
104
80
32
34

14
49
80
ATTACHING THE ACCESSORIES
T
o attach a Short Handle (49) to a high pulley, first
attach the high pulley to the resistance system (see
ATTACHING THE HIGH PULLEYS AND LEG LEVER
on page 13). Then, attach the Short Handle to the
Short Cable (33) with a Cable Clip (51).
The Long Handles (not shown) and the Ankle Strap
(not shown) can be attached to the Long Cable (80)
with Cable Clips (51). Attach the Leg Press Strap (not
shown) to both ends of the Long Cable, or the Lat Bar
(not shown) to the Short Cables (33), with two Cable
Clips.
33
51
44
35
67
36
80
“U”-Channel
“U”-Channel
Resistance
Bars
ADJUSTING THE RESISTANCE
To add resistance, hold a “U”-channel on the 10-
pound Center Resistance Bar (44) firmly and push
the end of a resistance bar under it. Repeat with the
other end of the resistance bar. If more resistance is
needed, add one resistance bar at a time.
Note: When adding resistance, always start with the
heaviest resistance bar to be used, and finish with the
lightest resistance bar. When removing resistance
bars from the “U”-channels, start with the lightest
resistance bar and finish with the heaviest.
Note: The resistance system uses progressive resist-
ance. As the resistance bars begin to bend, the
amount of resistance will increase gradually. As the
resistance bars bend further, the resistance will
increase rapidly.
Additional resistance can be added to the resistance
system. To purchase more resistance, please call
1-877-992-5999 and asking for model number
WEMC0642 (100-Pound Power Pak) or WEMC0942
(200-Pound Power Pak).
WARNING: When adding resist-
ance, make sure that both ends of the resist-
ance bar rest under the two “U”-channels. The
rings on the Removable Resistance Bars (36,
67) must be pushed against the Tray (35). Do
not add or remove resistance bars from the
“U”-channels while an end of the Long Cable
(80) is pulled out.

15
30
31
1
Resistance
Bars
6
7
3
43
44
“U”-Channel
“U”-Channel
80
10
13
STORING THE RESISTANCE SYSTEM
To store the resistance system, slide the ends of the
Leg Lever Cable (32) onto the Hook (104). Be sure
the Seat (13) is in the position closest to the Front
Leg (6) (see ADJUSTING THE SEAT on page 13).
Next, remove the Storage Knob (30) from the Upright
(3). Lift the Front Leg toward the Top Frame (10), and
tighten the Storage Knob into the side of the Upright
and the Bench Rail. Remove all of the resistance bars
from the “U”-channels on the 10-pound Center
Resistance Bar (44) (see ADJUSTING THE
RESISTANCE on page 14). Finally, loosen the
Fulcrum Knob (43) and pull it out as far as it will go.
Turn the resistance bar assembly vertically and
engage the Fulcrum Knob into the fulcrum on the Lat
Tower (4). Note: Storing the resistance bars verti-
cally will prolong the life of the resistance bars.
To move the resistance system, place the toe of your
shoe on the end of the Base (1) and hold the resist-
ance system in the indicated area. Tilt the resistance
system back onto the Wheels (31) and roll it to the
new location. Be careful not to let the Front Leg (6)
or Leg Lever (7) pinch your hands when you tilt
the system back.
WARNING: Make sure that all of
the resistance bars are removed from the “U”-
channels before moving the resistance bar
assembly to the stored position.
Make sure that the resistance bar assembly is
in the horizontal position and that the Storage
Knob (30) is in place and fully tightened each
time the resistance system is used.
32
14
15
12
13
Rod
Slot
5
12
19
7
3
ADJUSTING THE BACKREST
The Backrest (14) can be used in a level position or
one of three inclined positions. To use the Backrest in a
level position, secure the Seat Carriage (12) at the hole
in the Bench Rail (5) closest to the Leg Developer (19)
(see ADJUSTING THE SEAT on page 13).
To use the Backrest (14) in an inclined position,
secure the Seat Frame (12) at one of the three
adjustment holes on the Upright (3) side of the Bench
Rail (5). Rest the Backrest against the Upright (3).
For row exercises and for using the Leg Lever (7),
remove the Backrest (14) from the Seat Carriage
(12). Hold the Backrest vertically over the Seat (13)
and lift the rod out of the slot in the Seat Carriage
(see the inset drawing). To use the Leg Lever (7),
secure the Seat Carriage (12) at the second hole
from the Leg Developer.
Stored Position
104
Hold in
this area

CABLE DIAGRAM
The cable diagram shows the proper routing of the
Long Cable (80). Use the diagram to make sure that
the cable has been assembled correctly. If the cable
has not been correctly routed, the resistance system
will not function properly and damage may occur. The
numbers show the correct route for the cable.
74
5
6
1
2
Long Cable (80)
3
16
USING THE REMOVABLE RESISTANCE BARS
The Removable Resistance Bars (36, 67) can be used
to exercise apart from the resistance system, as shown
in the video or on the exercise guide. To remove a
Resistance Bar, pull it out of the Tray (35).
To replace the Removable Resistance Bars (36, 67),
slide them into the Tray (35) from the side shown, so
that the arrows on the rings point toward the Tray.
Make sure the rings are pushed against the Tray.
35
19
42
6
5
36
67
Rings
ADJUSTING THE LEG DEVELOPER
To adjust the height of the Leg Developer (19),
remove the Bench Knob (42) from the Front Leg (6).
Align the hole in the Leg Developer with one of the
holes in the Front Leg. Retighten the Knob into the
Front Leg and Leg Developer.

17
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles,
push them close to their maximum capacity. Your mus-
cles will continually adapt and grow as you progres-
sively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of resistance used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of resistance for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of resistance.
Toning
You can tone your muscles by pushing them to a mod-
erate percentage of their capacity. Select a moderate
amount of resistance and increase the number of rep-
etitions in each set. Complete as many sets of 15 to
20 repetitions as possible without discomfort. Rest for
1 minute after each set. Work your muscles by com-
pleting more sets rather than by using high amounts of
resistance.
Weight Loss
To lose weight, use a low amount of resistance and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Cross training is an efficient way to get a complete and
well-balanced fitness program. An example of a bal-
anced program is:
• Plan strength training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an elliptical or
exercise bike, on Tuesday and Thursday.
• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exer-
cise will reshape and strengthen your body, plus devel-
op your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdo-
ing it during the first few months of your exercise pro-
gram. You should progress at your own pace and be
sensitive to your body’s signals. If you experience pain
or dizziness at any time while exercising, stop immedi-
ately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise pro-
gram.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and deliver-
ing more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercis-
es. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompany-
ing this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on page
18 to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.

Rest for a short period of time after each set. The
ideal resting periods are:
• Rest for three minutes after each set for a muscle
building workout.
• Rest for one minute after each set for a toning work-
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. The
chart on page 19 of this manual can be photocopied
and used to schedule and record your workouts. List
the date, the exercises performed, the resistance
used, and the numbers of sets and repetitions com-
pleted. Record your weight and key body measure-
ments at the end of every month. Remember, the key
to achieving the greatest results is to make exercise a
regular and enjoyable part of your everyday life.
N
O
P
Q
R
S
T
U
W
V
M
L
J
G
F
H
I
K
E
C
D
B
A
MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Rectus Abdominus (stomach)
M. Adductor (inner thigh)
N. Trapezius (upper back)
O. Rhomboideus (upper back)
P. Deltoid (shoulder)
Q. Triceps (back of arm)
R. Latissimus Dorsi (mid back)
S. Spinae Erectors (lower back)
T. Gluteus Medius (hip)
U. Gluteus Maximus (buttocks)
V. Hamstring (back of leg)
W. Gastrocnemius (back of calf)
18

19
MONDAY
Date:
/ /
EXERCISE RESISTANCE SETS REPS
EXERCISE RESISTANCE SETS REPS
EXERCISE RESISTANCE SETS REPS
AEROBIC EXERCISE
AEROBIC EXERCISE
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
FRIDAY
Date:
/ /
Make photocopies of this page for scheduling and recording your workouts.

M8 Washer (59)
M10 Split Washer (103)
38mm Round
Inner Cap (38)
25mm Square Inner Cap (54)
19mm Round Inner Cap (78)
38mm x 64mm Inner Cap (41)
50mm Square
Inner Cap (98)
57mm Round Outer Cap (27)
50mm Round
Inner Cap (57)
45mm Round
Inner Cap (56)
M8 Split Washer (52)
19mm Spacer (17) 22mm Spacer (106)
M10 Washer (75)
PART IDENTIFICATION CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST on the reverse side of this page. Important: Some
parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts bags,
check to see if it has been pre-assembled. If a part is missing, call toll-free 1-877-992-5999.
