MaxiMist SprayMate TNT HVLP ST610 Guide

US
MaxiMist™
SprayMate TNT HVLP ST610
Spray Tanning System
With “Twist N Tan” Spray Gun
Instruction Manual and Users Guide

SprayMate HVLP ST610 TNT
Contents
1. Explanation of symbols used .....................................................1
2. Field of application ..............................................................1
3. Important Safety Instructions ....................................................1
4. Processable materials ............................................................4
5. Non-processable materials .......................................................4
6. Preparation of the spray area.....................................................5
7. General preparations before the application of spray tanning solution.............5
8. Preparation of the skin ...........................................................5
9. Start-up .........................................................................5
10. Operation ......................................................................6
11. Tips on using the spray tanning system..........................................7
12. After application of the spray tanning solution ..................................8
13. Cleaning the spray tanning system..............................................8
14. Maintenance ................................................................. 10
15. Storage ......................................................................10
16. Spare parts ..................................................................10
17. Correction of Malfunctions....................................................11

1
SprayMate HVLP ST610 TNT US
Congratulations on purchasing a MaxiMist™ SprayTanning System.This product has been
specially designed to provide an ecient application of tanning solution products.
Take a minute to read and understand how to operate your new MaxiMist™ system and
you will be able to provide the perfect tan with every application.
Read all safety information before operating the equipment.
Save these instructions.
1. Explanation of symbols used
Indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
i
Indicates tips for use and other particularly useful information.
2. Field of application
The MAXIMIST™ SprayTanning System has been specically developed for the professional
application of liquid spray tanning solution. Any application other than that described in
this operating manual is not permitted.
3. Important Safety Instructions
To reduce the risks of re or explosion, electrical shock and the
injury to persons, read and understand all instructions included in
this manual. Be familiar with the controls and proper usage of the
equipment.
•
DO NOT use the spray guns to spray ammable substances.
•
DO NOT clean spray guns with ammable solvents.
•
There must be no sources of ignition such as open res, smoke of lit cigarettes, cigars and
tobacco pipes, sparks, glowing wires, hot surfaces, etc. in the vicinity during spraying.
•
Caution against dangers that can arise from the sprayed substance and observe the
text and information on the containers or the specications given by the substance
manufacturer directly or via a SDS (Safety Data Sheet).
•
DO NOT spray any liquid of unknown hazard potential.
•
ATTENTION! Spray tanning solutions do not generally oer any protection against
sunburn. Repeated unprotected contact with the sun increases the risk of skin cancer,
skin aging and other harmful eects.
•
This Spray Tanning System is intended for use by persons 14 years and over.

2
SprayMate HVLP ST610 TNT
US
•
DO NOT let children play with the Spray Tanning System.
•
NEVER leave spray tanning system unattended.
•
Stay alert and watch what you are doing.
•
DO NOT operate the unit when fatigued or under the inuence of drugs or alcohol.
•
Follow all appropriate local, state, and national codes governing ventilation, re
prevention, and operation.
•
The United States Government Safety Standards have been adopted under the
Occupational Safety and Health Act (OSHA). These standards, particularly part 1910
of the General Standards and part 1926 of the Construction Standards should be
consulted.
•
NEVER direct the spray gun at animals.
•
Ensure that the spray area is well ventilated.
•
DO NOT breathe in spray tanning solution. Wearing nasal plugs and operating an
extraction fan designed for the purpose is recommended.
•
DO NOT spray into the eyes.
•
If spray tanning solution is sprayed into the eyes, wash them out with water
immediately and consult a doctor.
•
DO NOT spray spray tanning solution into open wounds or onto damaged skin.
•
Cover your hair when spraying your face. Otherwise bleached hair in particular could
be stained by the spray tanning solution.
•
NEVER immerse the Spray Tanning System into water.
• WARNING!NEVER use your Spray Tanning System near bath tubs, shower
trays or other receptacles that contain water.
•
NEVER place the Spray Tanning System near a washbasin or another water source.
Water always represents a hazard even when the system is switched o.
•
NEVER expose the equipment to rain.
•
DO NOT use outdoors or operate where aerosol (spray) products are being used.
•
NEVER drop or insert any object into any opening or hose.
•
NEVER block air openings of the spray turbine.
•
Keep electrical cord plug and spray gun trigger free from liquids.
NEVER hold the cord at plug connections to support the cord. Failure to observe may
result in an electrical shock.
•
Keep cord away from heated surfaces.
•
NEVER operate spray tanning system if cord or plug is damaged.
•
As additional protection, the installation of a circuit protective device such as ALCI or
GFCI is recommended. Ask your installer for advice.
•
Connect to a grounded outlet and use grounded extension cords.
•
DO NOT use a 3 to 2 adapter.
•
Unplug turbine before cleaning any parts.
•
Use only manufacturer authorized parts. User assumes all risks and liabilities when
using parts that do not meet the minimum specications and safety devices of the
turbine manufacturer.

3
SprayMate HVLP ST610 TNT US
•
NEVER open the Spray Tanning System yourself to carry out electrical repairs!
•
DO NOT place the spray gun on its side, as material could leak out.
Grounding Instructions
This product must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current.This
product is equipped with a cord having a grounding wire with an appropriate grounding
plug. The plug must be plugged into an outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING  Improper installation of the grounding plug can result in a
risk of electric shock.
Ifrepairorreplacementofthecordorplugisnecessary,donotconnectthegreengroundingwire
toeitheratbladeterminal.Thewirewithinsulationhavingagreenoutersurfacewithorwithout
yellow stripes is the grounding wire and must be connected to the grounding pin.
Check with a qualied electrician or serviceman if the grounding instructions are not
completely understood, or if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided. If the plug will not t the outlet, have the
proper outlet installed by a qualied electrician.
This product is for use on a nominal 120 volt ac circuit and has a grounding plug that looks
like the plug illustrated below. Make sure that the product is connected to an outlet having
the same conguration as the plug. No adapter shall be used with this product.
Grounded Outlet
Grounding Pin
Cover for grounded outlet box
Important Electrical Information
Use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle
that will accept the plug on the product. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry the current your
product will draw. An undersized cord will cause a drop in line voltage resulting in loss of
power and overheating. A SJT type cord is required. Cord shall be 14 AWG minimum for
general indoor use.
SAVE THESE INSTRUCTIONS

4
SprayMate HVLP ST610 TNT
US
4. Processable materials
Liquid spray tanning solution
i
Only use spray tanning solution up to the expiry date specied on the package.
12 M
means, for example, that the substance can be used for 12 months after
opening. Actual date of opening needs to be noted by the user and marked
on the container or package.
5. Non-processable materials
All materials not approved for skin treatment

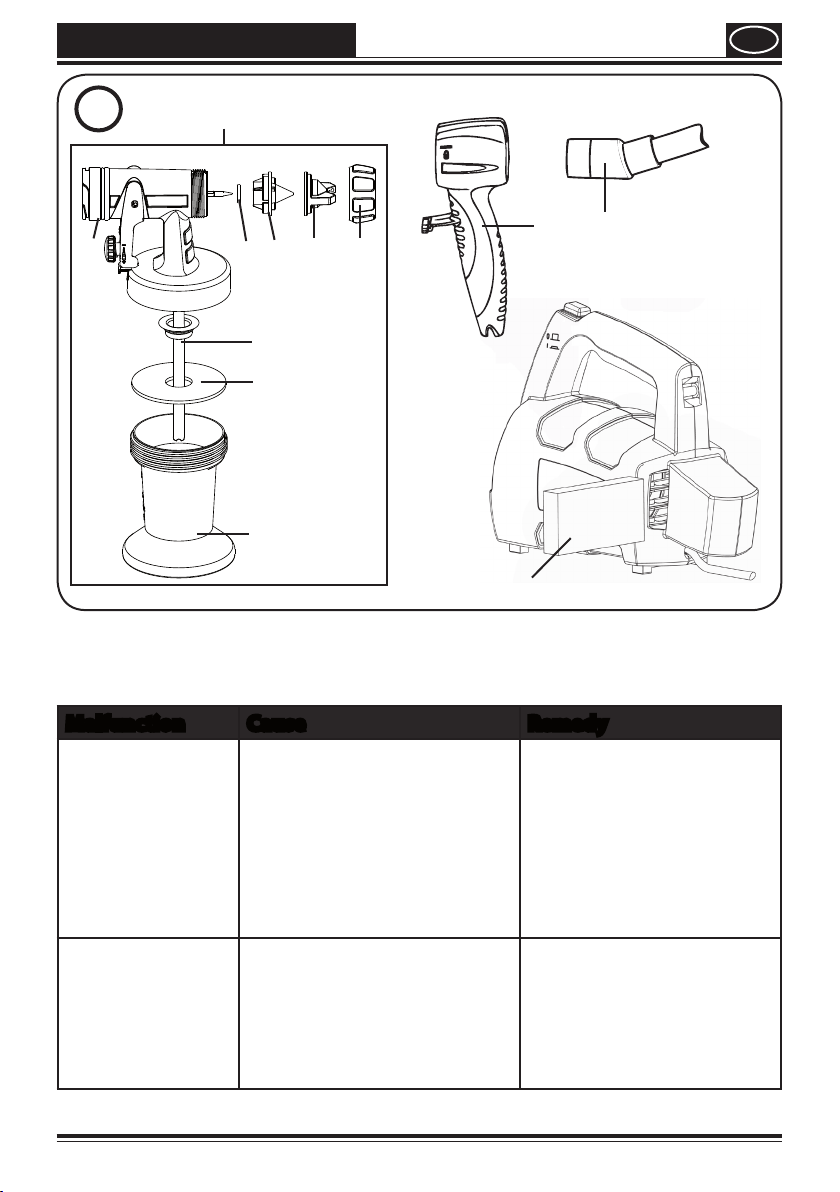

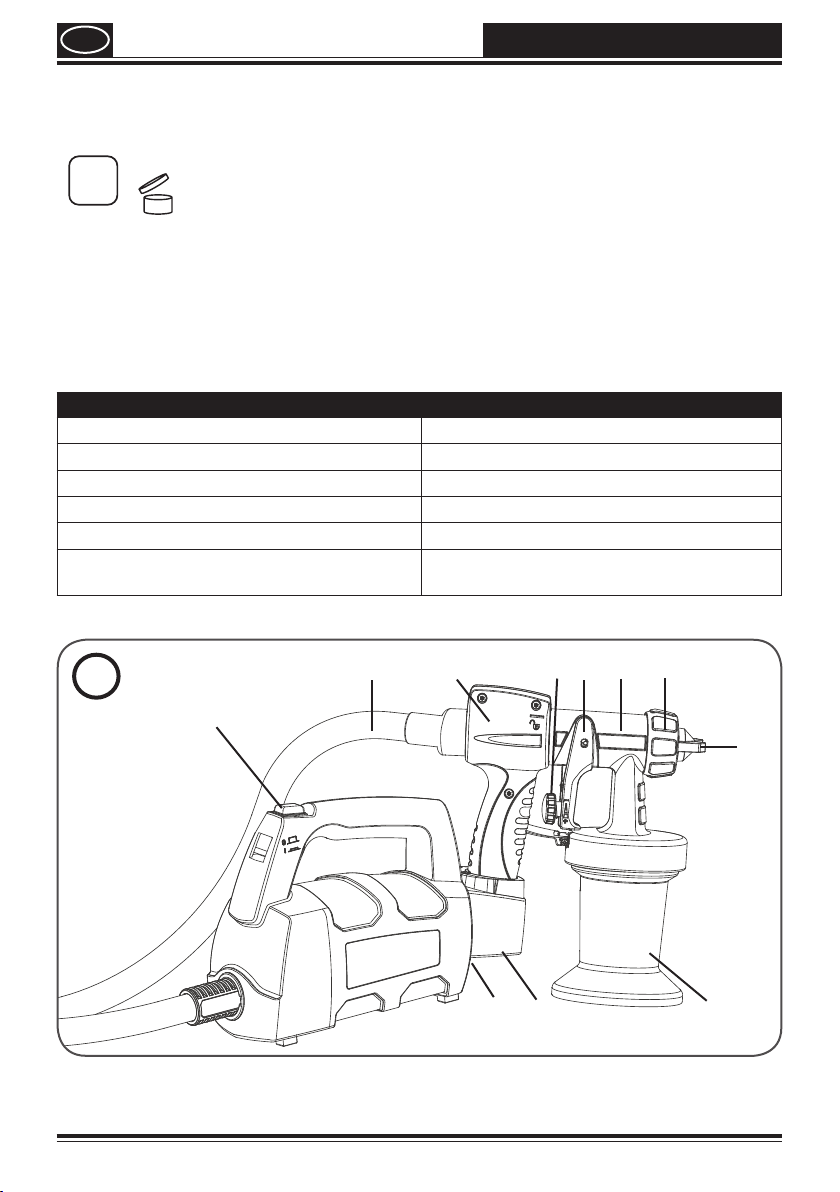

Description (Fig. 1)
1) Air cap /Nozzle 2) Union nut
3) Spray attachment 4) Trigger
5) Material volume regulation 6) Gun handle
7) Air hose 8) ON/OFF switch
9) Air lter 10) Gun holder
11) Container 12) Service kit (suction tube, container
seal, air lter and lubricant)
1
1
2
5
8
10 11
3
4
6
7
9

5
SprayMate HVLP ST610 TNT US
6. Preparation of the spray area
•
Remove all objects from the spray area if possible, to avoid contamination from
overspray.
•
Work in a room with a smooth, easy-to-clean surface.
The use of a spray booth/spray tent and tanning extraction fan is recommended.
7. General preparations before the application of spray
tanning solution
iTest the compatibility of the spray tanning solution on a small patch of skin
approx. 24 hours before the actual application. Stop application if skin irritation
occurs.
•
Approx. 24-48 hours prior to treatment remove body hair by shaving or waxing.
•
Do not apply any perfume, deodorant or make-up. These products can negatively
inuence the tanning result.
•
On the day of the treatment wear dark, loose-tting clothing, in order to prevent
discoloration of clothing by the spray tanning solution.
•
Remove all jewelry, in order to avoid discoloration by the spray tanning solution.
8. Preparation of the skin
i
Correct preparation of the skin is key to an even and long lasting tanning result.
Please note the following instructions:
•
Remove all dead skin cells by means of exfoliation before applying the spray tanning
solution.
•
Make sure that the moisture content of the skin is as uniform as possible.
Use barrier cream for dry areas (e.g. elbows and knees). Let the moisturizer dry before
commencing the treatment.
•
Apply a little barrier cream to lips, nails, palms of the hands, eyebrows and the hairline
for protection.
9. Start-up
Before connecting to the power supply, be sure that the supply voltage is identical with
the value given on the rating plate.
1. Unscrew the container from the spray attachment.
2. Prepare spray tanning solution according to manufacturer's instructions and pour
into the container.
3. Screw the container rmly onto the spray attachment.

6
SprayMate HVLP ST610 TNT
US

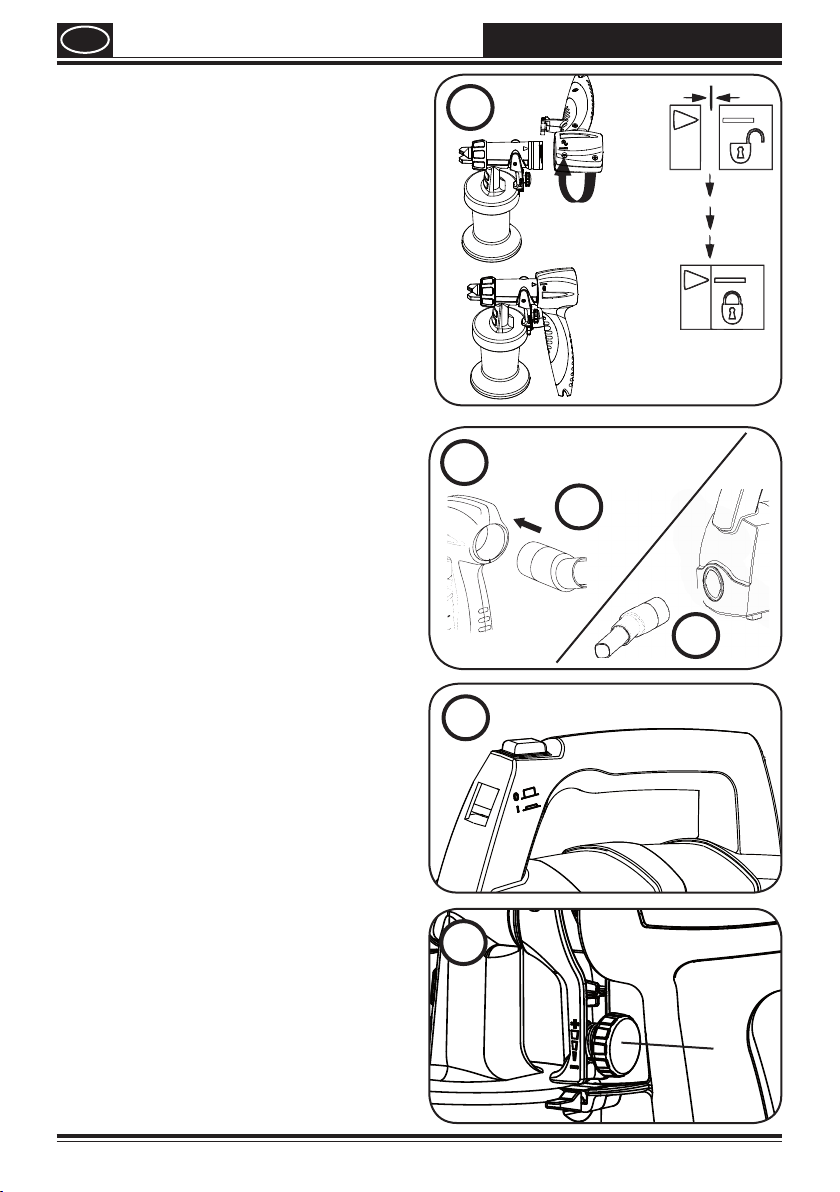

4. Connect the front part of the gun and the
gun handle to each other. (Fig. 2)
5. Mount the air hose (Fig. 3, a + b).
6. Place the turbine only on a clean, at
horizontal surface. Otherwise, the device
may suck in dust, etc.
7. Press the ON/OFF switch at the turbine.
(Fig.4)
10. Operation
How the SprayTanning system is handled,
including preparation of the work place
and spray tanning solution as well as the
nal result, is the sole responsibility of
the operator.
MaxiMist Tanning Systems excludes any
liability for damage which may arise from
overspray, applica-tion errors, touch-ups,
or non-compliance with the instructions
provided here.
•
Turn the material control (Fig. 5, 1), in
order to adjust the desired delivery rate.
lower material volume (-):
 turn anti-clockwise
higher material volume (+):
 turn clockwise
Your goal is a 4 inch wide spray
pattern spraying 4 inches away.
•
Turn the air cap (Fig. 6, 1) with the union
nut (2) slightly unscrewed, to adjust the
shape of the spray jet:
Fig. 7a vertical at jet:
For spray movements from left to
right
Fig. 7b horizontal at jet:
For spray movements from top to
bottom
•
Pull the trigger to spray the tanning
solution.
2
➟
3
a
b
➟
4

5
1

7
SprayMate HVLP ST610 TNT US
11. Tips on using the spray
tanning system
Before commencing
application, check that all
necessary protective measures
(nasal plugs, hair covering)
have been taken.
i
Practice on a large piece of
newspaper or cotton towel rst in
order to nd the optimal settings
for the spray tanning solution
used.
•
If a tanning extraction fan is available,
place in the near vicinity of spraying and
switch on.
•
Avoid interruptions during the spray
movement. Maintain a constant pace.
•
The spray movement should come
from the arm, not just from the wrist.
This ensures that a uniform distance is
maintained between the spray gun and
the body during the spray operation.
Fig. 8 a: CORRECT even distance
Fig. 8 b: INCORRECT uneven distance
will result in uneven tanning
•
Move the spray gun at an even speed.
•
When tanning is complete, switch o
turbine and any tanning extraction fan (if
used) after fumes/mist have cleared.
4 inches

a
b
8
6
1
2
a
b
7

8
SprayMate HVLP ST610 TNT
US
12. After application of the spray tanning solution
i
The full tanning eect develops during the rst 6-12 hours after the treatment.
•
Allow the spray tanning solution to dry for
5-10 minutes before getting dressed again.
iYou can also use the air from the
air hose to accelerate the drying
process of the spray tanning
solution. To do this, simply
remove the spray attachment
from the handle and switch the
system on.
•
Do not shower or bathe in the first 6-8
hours after application, as this will affect the tanning result. This will vary depending
on the tanning solution used.
•
Prolonged hot baths and showers should be avoided, in order to maintain the tanning
effect for as long as possible. Daily moisturizing of the skin is also recommended.
13. Cleaning the spray tanning system
i
Clean the SprayTanning System as required at the end of the working day. Dried
spray tanning solution makes cleaning more dicult and can even damage
the system.
1) Turn the system o and unplug.
2) Divide the spray gun. Press the hook
(Fig. 9 "click") slightly downwards.
Turn the gun front part and gun rear
part against each other.
3) Unscrew the container.
4)
Pour any remaining spray tanning
solution back into the original
packaging.
5) Clean the container and feed tube with
a brush.
6) Clean the ventilating bore (Fig. 10, 1).
7) Pour 2 . oz of MaxiClean Spray Gun
Cleaner into the container. Screw the
container back on.
Do not use ammable materials for
cleaning purposes.
8) Assemble the gun again.
CLICK
9

9
SprayMate HVLP ST610 TNT US
1
2
12
9) Turn on the system and spray the
cleaner into a sink or a cloth.
10) Fill container with 2 . oz of water, spray
until empty.
11) Repeat the above procedure until the
water emerging from the nozzle is clear.
12) Turn o the system and divide the spray
gun.
13) Unscrew the container and empty it.
Pull out the feed tub with container seal.
CAUTION! NEVER clean seals, nozzles or
air holes of the spray gun with
metal objects.
14)
Unscrew the union nut and remove the
air cap and nozzle (Fig. 11). Clean the
air cap, nozzle seal and nozzle with a
brush and water.
15)Clean the outside of the spray gun and
container with a cloth soaked in water.
16)Assemble the parts again (see
“Assembly”).
1
10
11
Assembly
1) Slide the nozzle seal (Fig. 12, 1) with the
groove (slot) facing forwards into the
nozzle (2).
2) Put the nozzle onto the gun body and nd
the correct position by turning it.
3) Put the air cap onto the nozzle and tighten
it using the union nut.
4) Place the container seal (Fig. 13, 1) from
below on the feed tube (2) and slide it over
the collar, while turning the container seal
slightly.
5) Insert the feed tube with container seal
in the gun body.
13
1
2
3

10
SprayMate HVLP ST610 TNT
US
14. Maintenance
Important! NEVER operate the system
without the air lter; dirt could
be sucked in and interfere with
the function of the system.

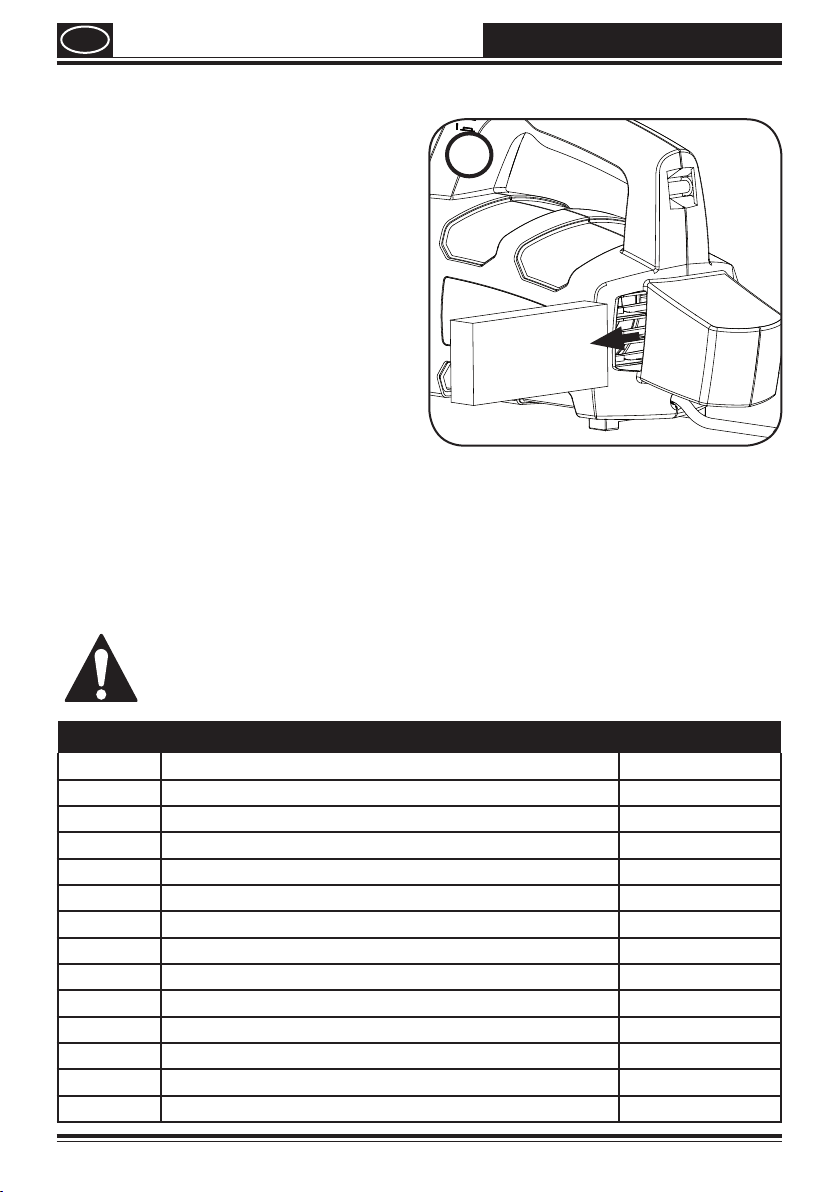

1) Change the air lter if it is soiled (check
daily).
2) For this pull the air lter out of the unit
(Fig. 14).
3) Insert a new air lter.
In order to mount the gun more easily
apply lubricating grease (enclosed)
liberally to the O-ring at the spray
attachment (Fig. 13, 3).
15. Storage
Store unit away in a safe place with cord wrapped around unit without any twisting.
16. Spare parts
This unit contains no user servicable electrical parts.
DO NOT attempt to service unit yourself.
Spare Parts List (Fig. 15)
Pos. Designation Order No.
1 Spray attachment complete with 6.75 . oz container 2334 403
2 Union nut 2334 405
3 Air cap 2334 407
4 Nozzle 2334 409
5 Nozzle seal 0417 706
6 O-ring of spray attachment 0417 308
7 Feed tube 2334 413
8 Container seal 2323 039
9 Container with cover 6.75 . oz 2334 417
10 Gun handle 2334 880
11 Air hose 2347 546
12 Air lter 2308 502
Lubricant 2315 539
14

11
SprayMate HVLP ST610 TNT US
10
15
11
8
9
7
1
432
5
6
12
17. Correction of Malfunctions
Malfunction Cause Remedy
No spray tanning
solution comes out
of the nozzle
•
Nozzle clogged
•
Material volume setting
turned too far anticlockwise
•
No pressure build-up in
container
•
Container empty
•
Feed tube loose
•
Feed tube clogged
➞Clean
➞Turn material volume
setting clockwise
➞Tighten container
➞Rell
➞Insert
➞Clean
Spray tanning
solution drips out
of the nozzle
•
Spray tanning solution has
accumulated on the air cap,
nozzle or needle
•
Nozzle loose
•
Nozzle seal worn
•
Nozzle worn
➞Clean
➞Union nut tighten
➞Change
➞Change

12
SprayMate HVLP ST610 TNT
US
Malfunction Cause Remedy
Atomization too
coarse •
Material volume setting
turned too far clockwise
•
Nozzle contaminated
•
Too little pressure build-up in
container
•
Air lter heavily soiled
➞Turn material volume
setting anticlockwise
➞Clean
➞Tighten container
➞Replace
Uneven spray
pattern •
Spray tanning solution in the
container is running out
•
Nozzle seal worn
•
Air lter heavily soiled
➞Rell
➞Replace
➞Replace
Excessive overspray • Distance too large
•
Material volume setting
turned too far clockwise
➞Reduce distance
➞Turn material volume
setting anticlockwise
Spray tanning
solution runs down
body
•
Too much spray tanning
solution applied
•
Spray paths overlap too much
•
Spraying distance too small or
spray movement too slow
➞Carefully dab aected
points with a towel,
reduce ow setting if
required and lightly
overspray again
Technical Data
Power source: 120 V ~, 60 Hz
Current: 2.3 A
Protection class: I
Sound pressure level 81 dB (A); Uncertainty K= 4 dB
Sound pressure output 94 dB (A); Uncertainty K= 4 dB
Oscillation level < 8.2 ft/s²; Uncertainty K = 4.9 ft/s²
Air hose length: 11.5 ft
Container capacity: 6.75 . oz
Weight: approx. 3.5 lbs
Environmental protection
The appliance and accessories should be recycled in an environmentally
friendly way. Do not dispose of the appliance with household waste. Support
environmental protection by taking the appliance to a local collection point or
obtain information from a specialist retailer.

13
SprayMate HVLP ST610 TNT US
MaxiMist™
12 Month Limited warranty
1 Year Turbine Motor warranty
This machine and equipment is guaranteed by MaxiMist Tanning Systems for a total
period of TWELVE MONTHS from the ORIGINAL date of purchase by the ORIGINAL
PURCHASER. Proof of purchase to be included and all SHIPPING CHARGES on
returns are to be pre-paid. Client is responsible for shipping both the return and the
replacement unit.
MaxiMist Tanning Systems upon examination of the machine/equipment will replace or
repair at their discretion any defects in material or workmanship.
This WARRANTY does NOT include: misuse, damage, neglect, alterations, disassembled
equipment or modications, lack of maintenance, cleaning, water damage to electrical
parts and INCORRECT VOLTAGE CONNECTION. This WARRANTY is in lieu of all other
express warranties, any WARRANTY implied by law, including but not limited to implied
warranties of merchantability or tness, is excluded to the maximum extent permitted
by law and, if not excludable, it is limited to the duration of the express warranty. No
representative or person is authorised to extend this warranty or to create for MaxiMist
Tanning Systems any other liability in connection with the sale of any MaxiMist Tanning
Systems product. MaxiMist Tanning Systems shall not be liable for any consequential,
incidental, or special damages of any kind directly or indirectly resulting from breach of
any express or implied warranty.
Some States do allow the exclusion of limitation of incidental or consequential
damages or limitations on the length of any warranty so that the above limitations and
exclusions may not apply to you; however, to the maximum extent permitted under
applicable law, the only rights and remedies shall be to obtain a replacement for any
defective product. This warranty gives you specic legal rights and you may also have
other rights.
What’s covered?
1. The turbine motor for 12 months.
2. The power switch on the turbine unit.
3. Leaking container and spray guns.
PLEASE CONTACT YOUR DEALER FOR ALL WARRANTY AND
SUPPORT ISSUES

14
SprayMate HVLP ST610 TNT
US
MaxiMist Tanning Systems
11920 31st Ct N
St.Petersburg, Florida 33716
Sales: Tel: [phone]
Tech Support: Tel: [phone]
www.maximist.co
Part. No. 2347130 06/2014_RS Not responsible for errors and changes.
