MaxiMist™
SprayMate TNT HVLP ST610EU
Spray Tanning System
With “Twist N Tan” Spray Gun
Instruction Manual and Users Guide

SprayMate HVLP ST610EU TNT
Contents
1. Explanation of symbols used .....................................................1
2. Field of application ..............................................................1
3. Important Safety Instructions ....................................................1
4. Processable materials ............................................................2
5. Non-processable materials .......................................................2
6. Preparation of the spray area.....................................................3
7. General preparations before the application of spray tanning solution.............4
8. Preparation of the skin ...........................................................4
9. Start-up .........................................................................5
10. Operation ......................................................................5
11. Tips on using the spray tanning system..........................................6
12. After application of the spray tanning solution ..................................7
13. Cleaning the spray tanning system..............................................8
14. Maintenance ...................................................................9
15. Storage ........................................................................9
16. Spare parts ..................................................................10
17. Correction of Malfunctions....................................................11

1
SprayMate HVLP ST610EU TNT EU
Congratulations on purchasing a MaxiMist™ SprayTanning System.This product has been
specially designed to provide an ecient application of tanning solution products.
Please read the operating manual carefully before operating the Spray Tanning
System and note the safety instructions. Keep the operating instructions in a safe
place.
1. Explanation of symbols used
Indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
i
Indicates tips for use and other particularly useful information.
2. Field of application
The MAXIMIST™ SprayTanning System has been specically developed for the professional
application of liquid spray tanning solution. Any application other than that described in
this operating manual is not permitted.
3. Important Safety Instructions
To reduce the risks of re or explosion, electrical shock and the
injury to persons, read and understand all instructions included in
this manual. Be familiar with the controls and proper usage of the
equipment.
•
DO NOT use the spray guns to spray ammable substances.
•
The spray guns are not to be cleaned with ammable solvents.
•
There must be no sources of ignition such as, for example, open res, smoke of lit
cigarettes, cigars and tobacco pipes, sparks, glowing wires, hot surfaces, etc. in the
vicinity during spraying.
•
Caution against dangers that can arise from the sprayed substance and observe the
text and information on the containers or the specications given by the substance
manufacturer.
•
DO NOT spray any liquid of unknown hazard potential.
•
ATTENTION! Spray tanning lotions do not generally oer any protection against
sunburn. Repeated unprotected contact with the sun increases the risk of skin cancer,
skin aging and other harmful eects.
•
This SprayTanning System is not intended for use by persons (including children under
8 years) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of
the Spray Tanning System by a person responsible for their safety.

2
SprayMate HVLP ST610EU TNT
EU
•
DO NOT let children play with the Spray Tanning System.
•
NEVER direct the spray gun at animals.
•
Ensure that the spray area is well ventilated.
•
DO NOT breathe in spray tanning lotion. Wearing nasal plugs is recommended.
•
DO NOT spray into the eyes.
•
If spray tanning lotion is sprayed into the eyes, wash them out with water immediately
and consult a doctor.
•
DO NOT spray spray tanning lotion into open wounds or onto damaged skin.
•
Cover your hair when spraying your face. Otherwise bleached hair in particular could
be stained by the spray tanning lotion.
•
NEVER immerse the Spray Tanning System under water.
• WARNING: NEVER use your Spray Tanning System near bath tubs, shower
trays or other receptacles that contain water.
•
ALWAYS remove the power plug after use, if the Spray Tanning System is located near
a washbasin or another water source. Water always represents a hazard even when
the system is switched o.
•
As additional protection, the installation of a residual current protective device (FI/
RCD) with a rated tripping current of no more than 30 mA is recommended in the
bathroom circuit. Ask your installer for advice.
•
NEVER operate spray tanning system if cord or plug is damaged.
•
ALWAYS remove the power plug before cleaning the system.
•
Only use genuine spare parts from the manufacturer. With original MaxiMist
accessories and spare parts, you have the guarantee that all safety regulations are
fullled.
•
NEVER open the Spray Tanning System yourself to carry out electrical repairs!
•
DO NOT place the spray gun on its side, as material could leak out.
4. Processable materials
Liquid spray tanning solution
i
Only use spray tanning solution up to the expiry date specied on the package.
12 M
means, for example, that the substance can be used for 12 months after
opening. Actual date of opening needs to be noted by the user and marked
on the container or package.
5. Non-processable materials
All materials not approved for skin treatment

3
SprayMate HVLP ST610EU TNT EU
Description (Fig. 1)
1) Air cap /Nozzle 2) Union nut
3) Spray attachment 4) Trigger
5) Material volume regulation 6) Gun handle
7) Air hose 8) ON/OFF switch
9) Air lter 10) Gun holder
11) Container 12) Service kit (suction tube, container
seal, air lter and lubricant)
1
1
2
5
8
10 11
3
4
6
7
9
6. Preparation of the spray area
•
Remove all objects from the spray area if possible, to avoid contamination from
overspray.
•
Work in a room with a smooth, easy-to-clean surface.
The use of a spray booth/spray tent and tanning extraction fan is recommended.

4
SprayMate HVLP ST610EU TNT
EU
7. General preparations before the application of spray
tanning solution
iTest the compatibility of the spray tanning solution on a small patch of skin
approx. 24 hours before the actual application. Stop application if skin irritation
occurs.
•
Approx. 24-48 hours prior to treatment remove body hair by shaving or waxing.
•
Do not apply any perfume, deodorant or make-up. These products can negatively
inuence the tanning result.
•
On the day of the treatment wear dark, loose-tting clothing, in order to prevent
discoloration of clothing by the spray tanning solution.
•
Remove all jewelry, in order to avoid discoloration by the spray tanning solution.
8. Preparation of the skin
i
Correct preparation of the skin is key to an even and long lasting tanning result.
Please note the following instructions:
•
Remove all dead skin cells by means of exfoliation before applying the spray tanning
solution.
•
Make sure that the moisture content of the skin is as uniform as possible.
Use barrier cream for dry areas (e.g. elbows and knees). Let the moisturizer dry before
commencing the treatment.
•
Apply a little barrier cream to lips, nails, palms of the hands, eyebrows and the hairline
for protection.

5
SprayMate HVLP ST610EU TNT EU
9. Start-up
Before connecting to the power supply, be
sure that the supply voltage is identical with
the value given on the rating plate.
1. Unscrew the container from the spray
attachment.
2. Prepare spray tanning solution according
to manufacturer's instructions and pour
into the container.
3. Screw the container rmly onto the spray
attachment.
4. Connect the front part of the gun and the
gun handle to each other. (Fig. 2)
5. Mount the air hose (Fig. 3, a + b).
6. Place the turbine only on a clean, at
horizontal surface. Otherwise, the device
may suck in dust, etc.
7. Press the ON/OFF switch at the turbine.
(Fig.4)
10. Operation
How the SprayTanning system is handled,
including preparation of the work place
and spray tanning solution as well as the
nal result, is the sole responsibility of
the operator.
MaxiMist Tanning Systems excludes any
liability for damage which may arise from
overspray, applica-tion errors, touch-ups,
or non-compliance with the instructions
provided here.
•
Turn the material control (Fig. 5, 1), in
order to adjust the desired delivery rate.
lower material volume (-):
 turn anti-clockwise
higher material volume (+):
 turn clockwise
Your goal is a 10 cm wide spray pattern
spraying 10 cm away.
2
➟
3
a
b
➟
4

5
1

6
SprayMate HVLP ST610EU TNT
EU
•
Turn the air cap (Fig. 6, 1) with the union
nut (2) slightly unscrewed, to adjust the
shape of the spray jet:
Fig. 7a vertical at jet:
For spray movements from left to
right
Fig. 7b horizontal at jet:
For spray movements from top to
bottom
•
Pull the trigger to spray the tanning
solution.
11. Tips on using the spray
tanning system
Before commencing
application, check that all
necessary protective measures
(nasal plugs, hair covering)
have been taken.
i
Practice on a large piece of
newspaper or cotton towel rst in
order to nd the optimal settings
for the spray tanning solution
used.
•
If a tanning extraction fan is available,
place in the near vicinity of spraying and
switch on.
•
Avoid interruptions during the spray
movement. Maintain a constant pace.
•
The spray movement should come
from the arm, not just from the wrist.
This ensures that a uniform distance is
maintained between the spray gun and
the body during the spray operation.
Fig. 8 a: CORRECT even distance
Fig. 8 b: INCORRECT uneven distance
will result in uneven tanning
•
Move the spray gun at an even speed.
•
When tanning is complete, switch o
turbine and any tanning extraction fan (if
used) after fumes/mist have cleared.
10cm

a
b
8
6
1
2
a
b
7

7
SprayMate HVLP ST610EU TNT EU
12. After application of the spray tanning solution
i
The full tanning eect develops during the rst 6-12 hours after the treatment.
•
Allow the spray tanning solution to dry for 5-10 minutes before getting dressed again.

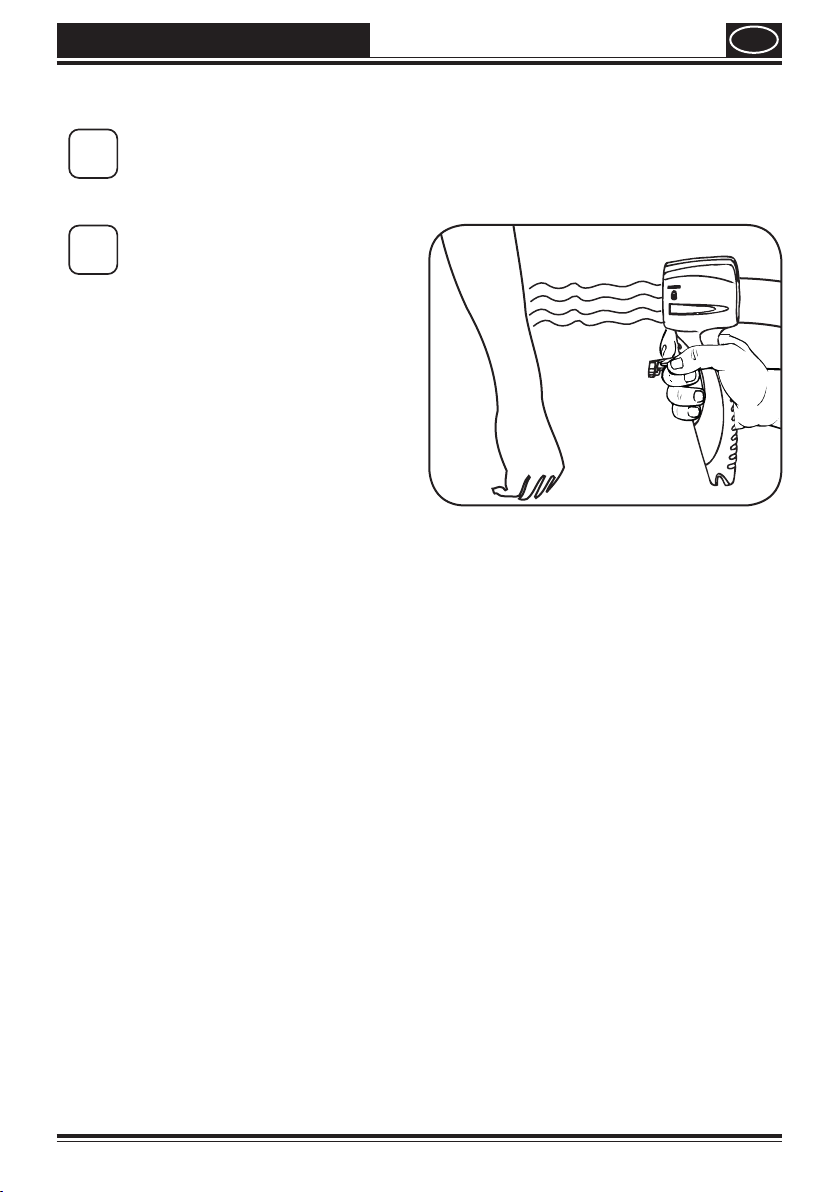

iYou can also use the air from the
air hose to accelerate the drying
process of the spray tanning
solution. To do this, simply
remove the spray attachment
from the handle and switch the
system on.
•
Do not shower or bathe in the first 6-8
hours after application, as this will affect
the tanning result. This will vary depending
on the tanning solution used.
•
Prolonged hot baths and showers should
be avoided, in order to maintain the tanning effect for as long as possible. Daily
moisturizing of the skin is also recommended.

8
SprayMate HVLP ST610EU TNT
EU
13. Cleaning the spray tanning system
i
Clean the SprayTanning System as required at the end of the working day. Dried
spray tanning solution makes cleaning more dicult and can even damage
the system.
1) Turn the system o and unplug.
2) Divide the spray gun. Press the hook
(Fig. 9 "click") slightly downwards.
Turn the gun front part and gun rear
part against each other.
3) Unscrew the container.
4)
Pour any remaining spray tanning
solution back into the original
packaging.
5) Clean the container and feed tube with
a brush.
6) Clean the ventilating bore (Fig. 10, 1).
7) Pour 60 ml of MaxiClean Spray Gun
Cleaner into the container. Screw the
container back on.
Do not use ammable materials for
cleaning purposes.
8) Assemble the gun again.
9) Turn on the system and spray the
cleaner into a sink or a cloth.
10) Fill container with water, spray until
empty.
11) Repeat the above procedure until the
water emerging from the nozzle is clear.
12) Turn o the system and divide the spray
gun.
13) Unscrew the container and empty it.
Pull out the feed tub with container seal.
CAUTION! NEVER clean seals, nozzles or
air holes of the spray gun with
metal objects.
14)
Unscrew the union nut and remove the
air cap and nozzle (Fig. 11). Clean the
air cap, nozzle seal and nozzle with a
brush and water.
15)Clean the outside of the spray gun and
container with a cloth soaked in water
CLICK
9
1
10
11
16)Assemble the parts again (see “Assembly”).

9
SprayMate HVLP ST610EU TNT EU
1
2
12
Assembly
1) Slide the nozzle seal (Fig. 12, 1) with the
groove (slot) facing forwards into the
nozzle (2).
2) Put the nozzle onto the gun body and nd
the correct position by turning it.
3) Put the air cap onto the nozzle and tighten
it using the union nut.
4) Place the container seal (Fig. 13, 1) from
below on the feed tube (2) and slide it over
the collar, while turning the container seal
slightly.
5) Insert the feed tube with container seal
in the gun body.
14. Maintenance
Important! NEVER operate the system
without the air lter; dirt could
be sucked in and interfere with
the function of the system.
1) Change the air lter if it is soiled (check
daily).
2) For this pull the air lter out of the unit
(Fig. 14).
3) Insert a new air lter.
In order to mount the gun more easily
apply lubricating grease (enclosed)
liberally to the O-ring at the spray
attachment (Fig. 13, 3).
15. Storage
Store unit away in a safe place with cord
wrapped around unit without any twisting.
13
1
2
3
14

10
SprayMate HVLP ST610EU TNT
EU
16. Spare parts
Spare Parts List (Fig. 15)
Pos. Designation Order No.
1 Spray attachment complete with 200 ml container 2334 403
2 Union nut 2334 405
3 Air cap 2334 407
4 Nozzle 2334 409
5 Nozzle seal 0417 706
6 O-ring of spray attachment 0417 308
7 Feed tube 2334 413
8 Container seal 2323 039
9 Container with cover 200 ml 2334 417
10 Gun handle 2334 880
11 Air hose 2347 546
12 Air lter 2308 502
Lubricant 2315 539
10
15
11
8
9
7
1
432
5
6
12

11
SprayMate HVLP ST610EU TNT EU
17. Correction of Malfunctions
Malfunction Cause Remedy
No spray tanning
solution comes out
of the nozzle
•
Nozzle clogged
•
Material volume setting
turned too far anticlockwise
•
No pressure build-up in
container
•
Container empty
•
Feed tube loose
•
Feed tube clogged
➞Clean
➞Turn material volume
setting clockwise
➞Tighten container
➞Rell
➞Insert
➞Clean
Spray tanning
solution drips out
of the nozzle
•
Spray tanning solution has
accumulated on the air cap,
nozzle or needle
•
Nozzle loose
•
Nozzle seal worn
•
Nozzle worn
➞Clean
➞Union nut tighten
➞Change
➞Change
Atomization too
coarse •
Material volume setting
turned too far clockwise
•
Nozzle contaminated
•
Too little pressure build-up in
container
•
Air lter heavily soiled
➞Turn material volume
setting anticlockwise
➞Clean
➞Tighten container
➞Replace
Uneven spray
pattern •
Spray tanning solution in the
container is running out
•
Nozzle seal worn
•
Air lter heavily soiled
➞Rell
➞Replace
➞Replace
Excessive overspray • Distance too large
•
Material volume setting
turned too far clockwise
➞Reduce distance
➞Turn material volume
setting anticlockwise
Spray tanning
solution runs down
body
•
Too much spray tanning
solution applied
•
Spray paths overlap too much
•
Spraying distance too small or
spray movement too slow
➞Carefully dab aected
points with a towel,
reduce ow setting if
required and lightly
overspray again

12
SprayMate HVLP ST610EU TNT
EU
Technical Data
Power source: 230 V ~, 50 Hz
Power consumption: 280 W
Double insulation:
Sound pressure level 81 dB (A); Uncertainty K= 4 dB
Sound pressure output 94 dB (A); Uncertainty K= 4 dB
Oscillation level < 2.5 m/s²; Uncertainty K = 1.5 m/s²
Air hose length: 3.5 m
Container capacity: 200 ml
Weight: approx. 1.6 kg
Environmental protection
The appliance and accessories should be recycled in an environmentally
friendly way. Do not dispose of the appliance with household waste. Support
environmental protection by taking the appliance to a local collection point or
obtain information from a specialist retailer.
Important Note regarding Product Liability!
According to an EU directive, the manufacturer is only liable without limitation for faults
in the product if all parts come from the manufacturer or have been approved by the
manufacturer and have been mounted to the device and are operated properly. If third-
party accessories or spare parts are used, the manufacturer is exonerated wholly or partly
from his/her liability if use of the third-party accessories or spare parts have caused a
defect in the product.
Guarantee
The guarantee runs for one year, counting from the date of sale (sales slip). It covers and is
restricted to free-of-charge rectication of faults which are demonstrably attributable to the
use of faulty materials in manufacture, or assembly errors; or free-of-charge replacement
of the defective parts. The guarantee does not cover incorrect use or commissioning or
tting or repair work which is not stated in our operating instructions. Wearing parts are
also excluded from the guarantee.This includes in particular cables, valves, nozzles, uid-
carrying housing components, lters, hoses, seals, etc.. We expressly reserve the right to
full the guarantee. The guarantee expires if the tool is opened up by persons other than
MaxiMist Tanning Systems service personnel. Transport damage, maintenance work and
loss and damage due to faulty maintenance work are not covered by the guarantee. Under
any guarantee claim, there must be proof of purchase of the tool through submission of

13
SprayMate HVLP ST610EU TNT EU
the original receipt. Wherever legally possible, we exclude all liability for injury, damage
or consequential loss, especially if the tool has been used for a purpose other than that
stated in the operating instructions, commissioned or repaired other than in accordance
with our operating instructions or if repairs are performed by someone who is unqualied.
We reserve the right to perform any repairs in excess of those stated in our operating
instructions. In case of guarantee or repair, please refer to your point of sale.
PLEASE CONTACT YOUR DEALER FOR ALL GUARANTEE AND
SUPPORT ISSUES
CE Declaration of Conformity
We declare under sole responsibility that this Spray Tanning System conforms to the
following relevant stipulations:
2006/95/EC, 2004/108/EC, 2011/65/EC, 2002/96/EC
Applied harmonised norms:
EN 60335-1:2012; EN 60335-2-23:2003+A1:2008+A11:2010; EN 55014-1:2006
+A1:2009+A2:2011; EN 55014-2:1997+Corrigendum 1997+A1:2001+A2:2008; EN
61000-3-2:2006+A1:2009+A2:2009; EN 61000-3-3:2013; EN 62233:2008
May 12, 2014 Chris Cramer
CEO
Maximist Tanning Systems
TBT LLC
11920 31st Ct N
St.Petersburg, Florida 33716
USA

14
SprayMate HVLP ST610EU TNT
EU
MaxiMist Tanning Systems
11920 31st Ct N
St.Petersburg, Florida 33716
Sales: Tel: [phone]
Tech Support: Tel: [phone]
www.maximist.co
Part. No. 2348015 05/2014_RS Not responsible for errors and changes.
