MAXINCOM MUC1004 Service manual

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 1 / 112
MUC1004/2008/2016
IP PBX
Administrator guide V1.1
Version 12.1.0.14
Xiamen Maxincom Technologies Co., Ltd.

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 2 / 112
Table of Contents
1. Introduction .............................................. 5
1.1 Overview ............................................................................................... 5
1.2 Product Features .................................................................................... 5
1.3 Product Appearance................................................................................ 6
1.4 Scenario of Application............................................................................ 9
2. Installation Guide.................................... 10
2.1 Installation Notice................................................................................. 10
2.2 Installation Procedure ........................................................................... 10
2.2.1 Connect Drawing......................................................................... 10
3. WEB Interface Configuration .................. 11
3.1 Access MUC2008 unit............................................................................ 11
3.2 Parameters Configuration...................................................................... 12
3.3 System Information .............................................................................. 13
3.3.1 System Information..................................................................... 13
3.3.2 Extensions Status........................................................................ 14
3.3.3 Trunk Status............................................................................... 14
3.4 Network Configuration .......................................................................... 15
3.4.1 LAN Configuration ....................................................................... 15

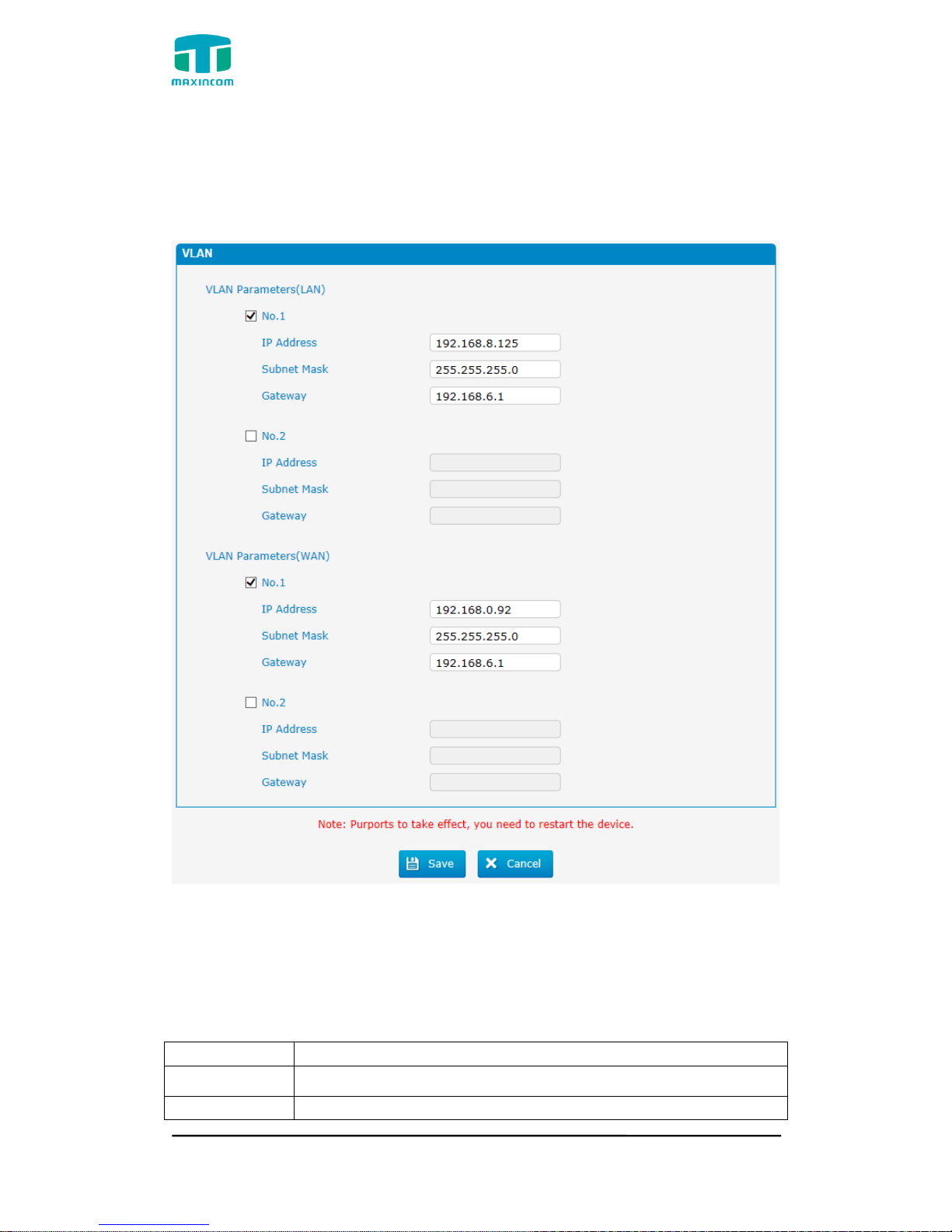

3.4.2 VLAN Configuration ..................................................................... 17
3.4.3 ARP Configuration ....................................................................... 19
3.4.4 VPN Configuration ....................................................................... 20
3.4.5 DDNS Server............................................................................... 21
3.4.6 Static Route................................................................................ 21
3.4.7 DHCP Server............................................................................... 23
3.5 Trunks................................................................................................. 24
3.5.1 Physical Trunks(PSTN and GSM Trunks)........................................ 24
3.5.2 IP Trunk (Peer to Peer Mode)....................................................... 28

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 3 / 112
3.5.3 VoIP Trunk ................................................................................. 30
3.6 PBX Basic............................................................................................. 34
3.6.1 Extensions.................................................................................. 34
3.6.2 Feature Codes............................................................................. 45
3.6.3 Speed dial .................................................................................. 49
3.6.4 Outbound Routes ........................................................................ 50
3.6.5 Parking Lot ................................................................................. 54
3.6.6 Time Groups............................................................................... 55
3.6.7 General Preferences .................................................................... 57
3.7 PBX Inbound Call Control ...................................................................... 59
3.7.1 Inbound Routes .......................................................................... 59
3.7.2 Blacklist...................................................................................... 64
3.7.3 IVR ............................................................................................ 64
3.7.4 Queue........................................................................................ 67
3.7.5 Ring Groups................................................................................ 71
3.7.6 Conferences ............................................................................... 73
3.7.7 Callback ..................................................................................... 75
3.8 PBX Advanced Settings ......................................................................... 76
3.8.1 SIP settings ................................................................................ 76
3.8.2 IAX Setting ................................................................................. 82
3.8.3 PIN Sets..................................................................................... 83
3.8.4 PIN Users ................................................................................... 84
3.8.5 DISA .......................................................................................... 85
3.8.6 Paging and Intercom ................................................................... 87
3.9 Voice Management ............................................................................... 88
3.9.1 System Recordings...................................................................... 88
3.9.2 Music on Hold ............................................................................. 89
3.9.3 Voicemail Settings ....................................................................... 91
3.9.4 System Prompts Settings ............................................................. 92
3.10 System Preferences ............................................................................ 94

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 4 / 112
3.10.1 Firewall Rules............................................................................ 94
3.10.2 Security Info ............................................................................. 96
3.10.3 Firmware update ....................................................................... 97
3.10.4 Data Backup ............................................................................. 99
3.10.5 Data Restore............................................................................. 99
3.10.6 Password.................................................................................100
3.10.7 Time & Date ............................................................................100
3.10.8 Reset ......................................................................................101
3.10.9 Reboot ....................................................................................101
3.11 Phone Provisioning.............................................................................102
3.11.1 General Settings.......................................................................102
3.11.2 Phones ....................................................................................103
3.12 Reports.............................................................................................104
3.12.1 CDR Report..............................................................................104
3.12.2 System Logs ............................................................................105
3.12.3 Firewall Logs............................................................................106
3.12.4 Trace Logs...............................................................................106
3.13 System tools .....................................................................................108
3.13.1 SMTP Parameter ......................................................................108
3.13.2 AMI Settings ............................................................................109
3.13.3 Ping ........................................................................................110
3.13.4 Tracert ....................................................................................110
3.13.5 Packet Capture.........................................................................111
3.13.6 Text to Wav .............................................................................112
3.13.7 Certificates ..............................................................................112

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 5 / 112
1. Introduction
1.1 Overview
MUC Series PBX—IP PBX for Small Business/Home Office
MUC1004/2008/2016 IP PBX is a standalone embedded hybrid PBX for small
businesses and remote branch offices of larger organizations. It is designed to
bring enterprise-grade Unified Communications and Security Protection in an
easy-to-manage fashion.
1.2 Product Features
● Alert
● Firewalls
● Blacklist
● HTTPS
● Call Back
● Integrated built-in packet capture
tools
● Call Detail Records(CDR)
● Interactive Voice Response (IVR)
● Call Forward,Call Parking
● Intercom/Zone Prompt
● Call Pickup
● Music On Hold
● Call Recording
● Open VPN
● Call Routing
● Paging/Intercom
● Call transfer
● Phone Provisioning
● Call Waiting
● PIN Users
● Caller ID
● QoS
● Conference
● Queue
● DDNS
● Ring Group
● Define Office Time
● Speed Dial
● Direct Inward System Access
(DISA)
● Spy functions
● Distinctive Ringtone
● Static Route
● Do Not Disturb(DND)
● VLAN
● External Storage
● Voicemail
●T.30,T.38 Faxes
●Alert Settings
●IP Blacklist
●AMI Settings
●Extension CDR

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 6 / 112
1.3 Product Appearance
The appearance of MUC1004/2008/2016 shows as follow
Figure 1-3-1 Front view of MUC1004
Figure 1-3-2 Front view of MUC2008
Figure 1-3-3 Front view of MUC2016

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 7 / 112
Table 1-3-1 Description of Front view
Index
Indicators
Description
1
RUN
On: Starting
Off: Abnormal
Blinking every 0.5s: Normal status
2
PWR
On: Power on
Off: Power off
3
WAN,LAN
Green LED: indicates the Internet interface is in Link .
Yellow LED: ON is indicates 100MBps Ethernet port.
4
1~4,(5~8),
(9~16)
Red LED stands for FXO port
Orange LED indicates presence of a BRI port.
Green LED stands for FXS port
Red LED blinks: FXO port isn‟t connected to PSTN line.
Alternately blinks Red and Green: FXO port has an
incoming call.
Alternately blinks Red and Green fast: FXO port is in a
call.
Alternately blinks Green and Red: FXS port is ringing.
Alternately blinks Green and Red fast: FXS port is in a
call.
Figure 1-3-4 Rear view of MUC1004

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 8 / 112
Figure 1-3-5 Rear view of MUC2008
Figure 1-3-6 Rear view of MUC2016
Table 1-3-2 Description of Rear view
Index
Interface
Description
1
RST
Reset button to restore default IP and password or
restore factory setting.
Hold RST button 8 seconds, RUN LED being ON during
this time
2
DC 12V
Power connector of DC power. Input: DC12V 3A/DC12

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 9 / 112
1A(MUC1004 only)
3
USB
For the storage of call recording files
4
WAN,LAN
MUC2008 provides two 10/100 adaptive RJ45 Ethernet
ports, marked as LAN and WAN.
-LAN port :LAN port is for the connection to Local Area
Network
-WAN port:WAN port is the netword port for the
connection to internet. It supports “DHCP
server”,”PPPoE/dynamic DNS”,and”static IP”for IP
address assignment.
5
1~4,(5~8),
(9~16)
FXO port(red light):For the connection of PSTN lines or
FXS port of traditional PBX.MU2008 uers could make or
receive calls via FXO port.
FXS port(green light):For the connection of analog
phones.
BRI port(orange port):For the connection of ISDN BRI
lines. MU2008 uers could make or receive calls via BRI
port.
Note:The sequence number of the port corresponds to
that of the indicator lights in the front panel.
1.4 Scenario of Application
Application 1
Figure 1.4.1

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 10 / 112
Application 2
Figure 1.4.2
2. Installation Guide
2.1 Installation Notice
We use the MUC2008 device as an installation case as follows:
MUC2008 adapts 12VDC Power adapter, make sure AC power supply grounded
well to ensure the reliability and stability;
Notes: incorrect power connection may damage power adapter and device.
MUC2008 provides standard RJ45 with 10Mbps or 100Mbps interfaces.
2.2 Installation Procedure

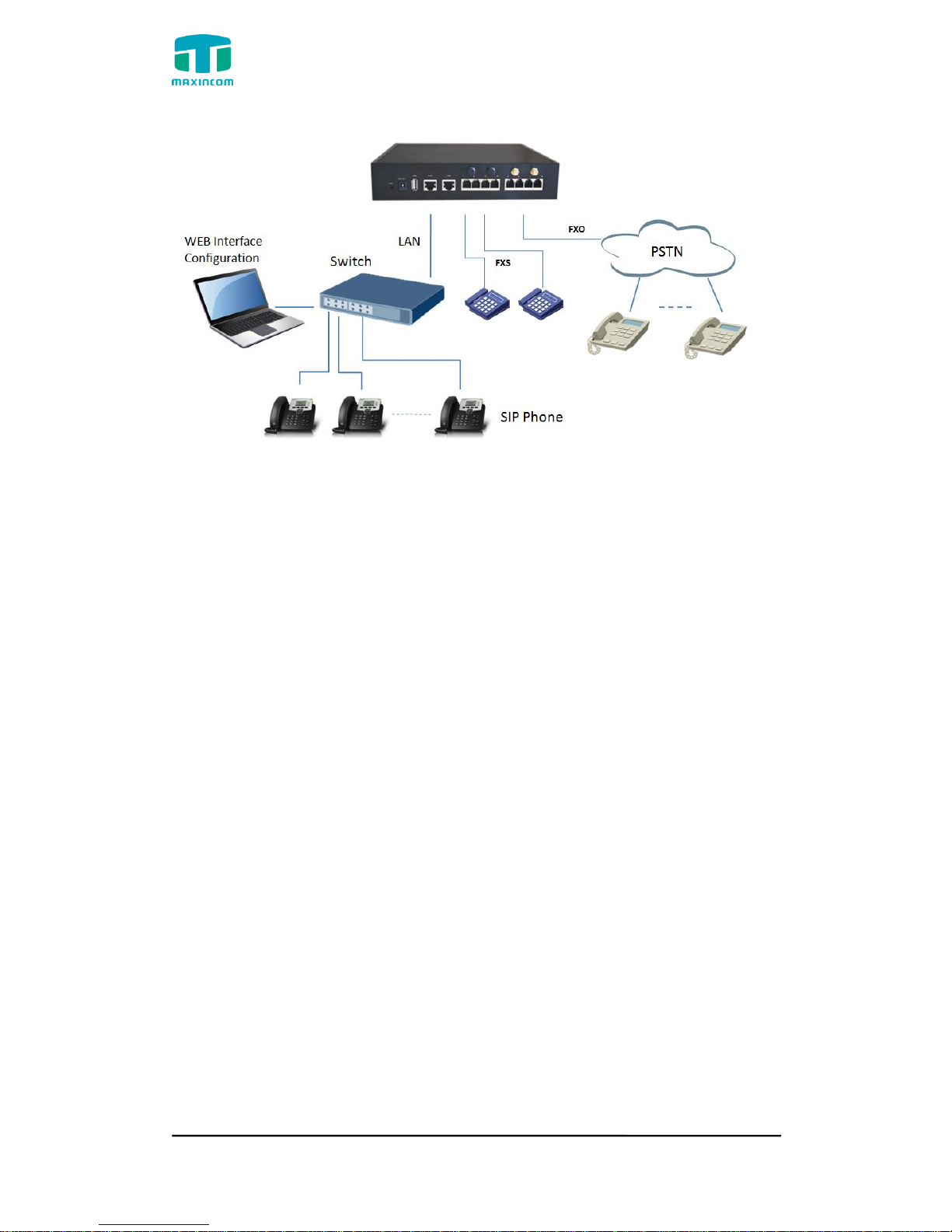

2.2.1 Connect Drawing
Figure 2.2.1 Connect Drawing

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 11 / 112
3. WEB Interface Configuration
PBX IP PBX has the same web interface. This charpter describes web
configuration of PBX. The PBX contains an embedded web server to set
parameters by using the HTTP protocol. We are strongly recommend
to access device with Google Chrome or Firefox Browser.
We use the MUC2008 device as a configuration case as follows:
3.1 Access MUC2008 unit
Enter IP address of MUC2008 in IE/Google Chrome/Firefox Browser. The
default IP of LAN port is 192.168.6.200. and the GUI shows as below:
In this example, the IP address is 192.168.6.91
Figure 3.1.1 WEB login interface

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 12 / 112
Enter username and password and then click “Login”in configuration interface.
The default username and password are “admin/admin”. It is strongly
recommended, change the default password to a new password for system
security .
3.2 Parameters Configuration
PBX WEB configuration interface consists of the navigation tree and the detail
configuration interfaces.
Figure 3.2.1 WEB introduction
Go through navigation tree, user can check, view, modify, and set the device
configuration on the right of configuration interface.

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 13 / 112
3.3 System Information
System information interface shows the basic information of status information,
mobile information and SIP information.
3.3.1 System Information
Figure 3.3.1 system Information
Table 3.3.1 System Information
Parameters
Description
MAC Address
Displays the current MAC of the gateway, for example:
70-B3-D5-1B-3D-02
Network
Current IP address and subnet mask of gateway
DNS Server
Displays DNS server IP address in the same network with the
gateway
System Up
Time
Shows the time period of the device running. For
example, :1h : 20m : 24s
Traffic
Statistics
Calculates the net flow, including the total bytes of message
received and sent。
Version info
Shows the current firmware version

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 14 / 112
3.3.2 Extensions Status
Figure 3.3.2 Extensions Status
3.3.3 Trunk Status
Figure 3.3.3 Trunk Stratus
Trunk Status Description:
VoIP Trunk:
Status
Rejected: Trunk registration failed.
Registered: Successful registration, trunk is ready for use.
Request Send: Registering.
Waiting: Waiting for authentication.
Service Provider:
Status
OK: Successful registration, trunk is ready for use.

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 15 / 112
Unreachable: The trunk is unreachable.
Failed: Trunk registration failed.
FXO Trunk:
Status
Idle: The port is idle.
Busy: The port is in use.
Unavailable: The port hasn‟t connected to the PSTN line.
More detail message, please refer to the LED indication of front panel.
Table 3.3.3 Trunk Status
Parameters
Description
Status
Shows the registration status of Trunk channel, including
registered and unregistered.
Trunk Type
Trunk mode will allow IP phone or IPPBX to register or trunk
mode to register to provider
Name
It describes this VoIP channel for the ease of identification. Its
value is character string
SIP/IAX
Choose the type of this trunk, SIP or IAX
Transfer
Protocol
This will be the transport method used by the trunk. The
options are UDP (default) or TCP or TLS.
User Name
The number for this VoIP channel
Hostname/IP
Address
Hostname or IP Address of this VoIP channel
3.4 Network Configuration
3.4.1 LAN Configuration
Figure 3.4.1 LAN Configuration

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 16 / 112
Table 3.4.1 Description of Local network
Parameter
Description
Dynamic (DHCP)
Enable the device obtain IP Address automatically
Static IP Address
Configure the "IP Address", "Subnet Mask" and
"Default Gateway" by manual
Hostname
Set the host name for PBX
IP Address
Set the IP Address for PBX, It is recommended to
configure a static IP address for PBX
Subnet Mask
Set the subnet mask for PBX
Gateway
Set the gateway for PBX
IP Address 2
Set the second IP Address for PBX
Subnet Mask2
Set the second subnet mask for PBX
MTU
Message transmit unit, default is 1500
Dynamic DNS Address
Obtain DNS Server Address Automatically
Static DNS Address
Obtain Primary DNS Server by manual
Primary DNS Server
Set the primary DNS Server for PBX.
Secondary DNS Server
Set the Secondary DNS Server for PBX.

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 17 / 112
Figure 3.4.1.2 WAN Configuration
Table 3.4.1.2 Description of WAN Configuration
Parameter
Description
Use WAN
Enalbe use wan
Dynamic (DHCP)
Enable the device obtain IP Address automatically
Static IP Address
Configure the "IP Address", "Subnet Mask" and "Default
Gateway" by manual
IP Address
Set the IP Address for PBX, It is recommended to
configure a static IP address for PBX
Subnet Mask
Set the subnet mask for PBX
Default Gateway
Set the default gateway for PBX
Primary DNS
Set the primary DNS Server for PBX.
Secondary DNS
Set the Secondary DNS Server for PBX.
PPPoE
Use PPPoE to achieve IP address
User Name
PPPoE user name
Password
PPPoE password
3.4.2 VLAN Configuration
A VLAN (Virtual LAN) is a logical local area network (or LAN) that extends
beyond a single traditional LAN to a group of LAN segments, given specific
configurations.

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 18 / 112
Note: PBX is not the VLAN server, a 3-layer switch is still needed, please
configure the VLAN information there first, then input the details in PBX, so that
the packages via PBX will be added the VLAN label before sending to that
switch.
Figure 3.4.2 VLAN Configuration
Table 3.4.2 Description of VLAN Configuration
Parameter
Description
NO.1
Click the NO.1 you can edit the first VLAN over LAN
IP Address
Set the IP Address for PBX VLAN over LAN.

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 19 / 112
Subnet Mask
Set the Subnet Mask for PBX VLAN over LAN.
Gateway
Set the Default Gateway for PBX VLAN over LAN
3.4.3 ARP Configuration
The ARP function is mainly used to query and add the map of IP and MAC.
There are static or dynamic ARP entries.
Like other routers, the gateway can automatically find the network device on
the same segment. But, sometimes you don't want to use this automatic
mapping, you'd rather have fixed (static) associations between an IP address
and a MAC address. Gateway provides you the ability to add static ARP entries
to:
● Protect your network against ARP spoofing
● Prevent network confusion as a result of misconfigured network device
Click “Dynamic ARP”
to check ARP buffer
Figure 3.4.3a Dynamic ARP

MUC1004/2008/2016 Administrator guide
Http://www.maxincom.com 20 / 112
Figure 3.4.3 Add ARP
3.4.4 VPN Configuration
A Virtual Private Network (VPN) is a method of computer networking--typically
using the public internet--that allows users to privately share information
between remote locations, or between a remote location and a business' home
network. A VPN can provide secure information transport by authenticating
users, and encrypting data to prevent unauthorized persons from reading the
information transmitted. The VPN can be used to
send any kind of network traffic securely. PBX supports OpenVPN.
Figure 3.4.4 VPN Configuration
Table 3.4.4 Description of VPN Parameter
Parameters
Description
Import VPN
Configuration Files
Import configuration file of OpenVPN.
Notes:
1. Don't configure “user” and “group” in the “config” file. You can get the config
package from the OpenVPN provider.
2. PBX works as VPN client mode only.
This manual suits for next models
2
Table of contents
