Maxmeen MG-601E User manual

- 1 -
INSTRUCTION MANUAL
MG-601E
MG-301E
ECHO MIXER AMPLIFIER

- 2 -
1.Security Precautions
◎Carefully to READ the instruction in this manual before use.
◎Certainly to OBSERVE the INSTRUCTION in this manual regard convention of safety
symbols and messages
◎Please KEEP this user MANUAL nearby for anytime reference.
Safety symbol and Message Conventions
Below-described safety symbols and messages are to prevent bodily injury and property
damage. Before operating the amplifier, read this manual first so you completely knowing
the potential safety hazard and understanding the meaning of the safety symbols and
messages.
WARNING
Indicates a potentially hazardous situation, which, if
mishandled, could result in death or serious body
injury, and/or property damage.
CAUTION
Indicates a potentially hazardous situation, which, if
mishandled, could result in moderate or minor body
injury, and/or property damage.
■When Installing the Amplifier
DO NOT installing or mounting the amplifier in unstable locations, such as on the
rickety table or the slanted surface. It may result in the amplifier falling down and
causing body injury and/or property damage.
Be sure to ground to the safety ground (earth) terminal to avoid electric shock.
Never to ground to a gas pipe for tragic disaster may occur.
Use the amplifier only with the voltage specified on the amplifier. Using the
voltage higher than specified may cause fire or electric shock.
DO NOT cut, twist, damage, nor modify the power supply cord. In addition, avoid
using the power cord close to heaters, and don’t place heavy object, including the
amplifier itself, on the power cord, for it may cause fire or electric shock.
DO NOT expose the amplifier to rain or the environment where it may be splashed
by water or other liquids, for doing so, it may cause fire or electric shock.
WARNING

- 3 -
■When using the Amplifier
When found following irregular situation during amplifier is in use, immediately
switch off the power, disconnect the power supply plug from the AC outlet. Don’t try
to operate the amplifier again. Contact your local dealer to check the amplifier.
The amplifier falls.
Amplifier is malfunction.
Water or any metallic object gets into the amplifier.
The smoke or strange smell coming from the amplifier.
The power supply cord is damaged, such as exposure of the core, disconnection etc..
DO NOT put cups, bowls, or other containers with liquid or metallic object in it on the
top of the amplifier. If they spill accidentally into the amplifier, it may result in fire or
electric shock.
DO NOT touch the power supply plug during thundering and lightning, for it may result
in electric shock.
DO NOT insert or drop the metallic objects or flammable materials into the ventilation
slots of the amplifier, for it may result in fire or electric shock.
DO NOT open nor remove the amplifier cover to prevent fire or electric shock, for
there are high voltage components inside the amplifier.
■When Installing the Amplifier
DO NOT remove nor plug in the power supply plug with wet hands, for it may cause
electric shock.
When unplug the power supply cord, be sure to grasp the power supply plug. DO
NOT pull on the cord itself. Operating the amplifier with damaged power supply cord
may cause fire or electric shock.
Avoid installing the amplifier in humid or dusty places, the area exposed to the direct
sunlight, locations generating smoke or steam, or the spot near the heaters. It may
result in fire or electric shock.
When moving the amplifier, be sure to remove its power supply cord from the wall
outlet. Moving the amplifier with the power cord connected to the outlet may cause
damage to the power cord, and resulting in fire or electric shock. When removing the
power cord, be sure to grasp its plug to pull.
DO NOT block the ventilation slots of the amplifier chassis. It will cause the
temperature rising and result in fire.
CAUTION

- 4 -
■When Using the Amplifier
Make sure that the volume control is turned to minimum position before power is
switched on. Loud sound produced at high volume when power is switched on
may impair hearing.
DO NOT place heavy objects on the amplifier, for it may cause it fall and may
result in body injury and/or property damage. Besides, the object itself may
cause damaged or body injury.
DO NOT operate the amplifier for the extended period of time with the sound
distorting. It is an indication of malfunction, which can cause heat and result in
fire.
Switch the power off, and unplug the power supply plug from the AC outlet for
safety purposes, when cleaning or leaving the amplifier unused for 7 days or more.
Fire or electric shock may occur.
If the dust accumulates on the power supply plug or in the wall AC outlet, fire may
result in. Clean it periodically. In addition, make sure the plug is inserted in the
wall outlet securely.
Contact your local dealer to clean the dust, it the dust has accumulated in the
amplifier for a long period of time. Dust accumulation may result in fire or
damage.
2.Description
MG-***1E series is the echo mixer amplifier of output power 60W and 30W. There are
totally 6 inputs, including 3 microphones, 3 AUX inputs.
For convenient to operate, AUX level control are on the front panel. All other input and
output level, volume, and tone controls are on the front. Echo Delay Control., Echo Repeat
Control, Echo Repeat Control
One the rear there is speaker screw terminal, that has low impedance 4 ohm and 8 ohm,
and high level 70V and 100V. Choose only one of these output connections to match the
speaker. Furthermore, that has record output.
To ensure the amplifier safety, it has speaker short, over temperature, and over load
protection. Besides AC power source, MG-***1E series has DC 24V input power screw
connector as backup power source.
MG-****1E series is ideal and convenient amplifier for the application of multi-input.

- 5 -
3. Panel Description

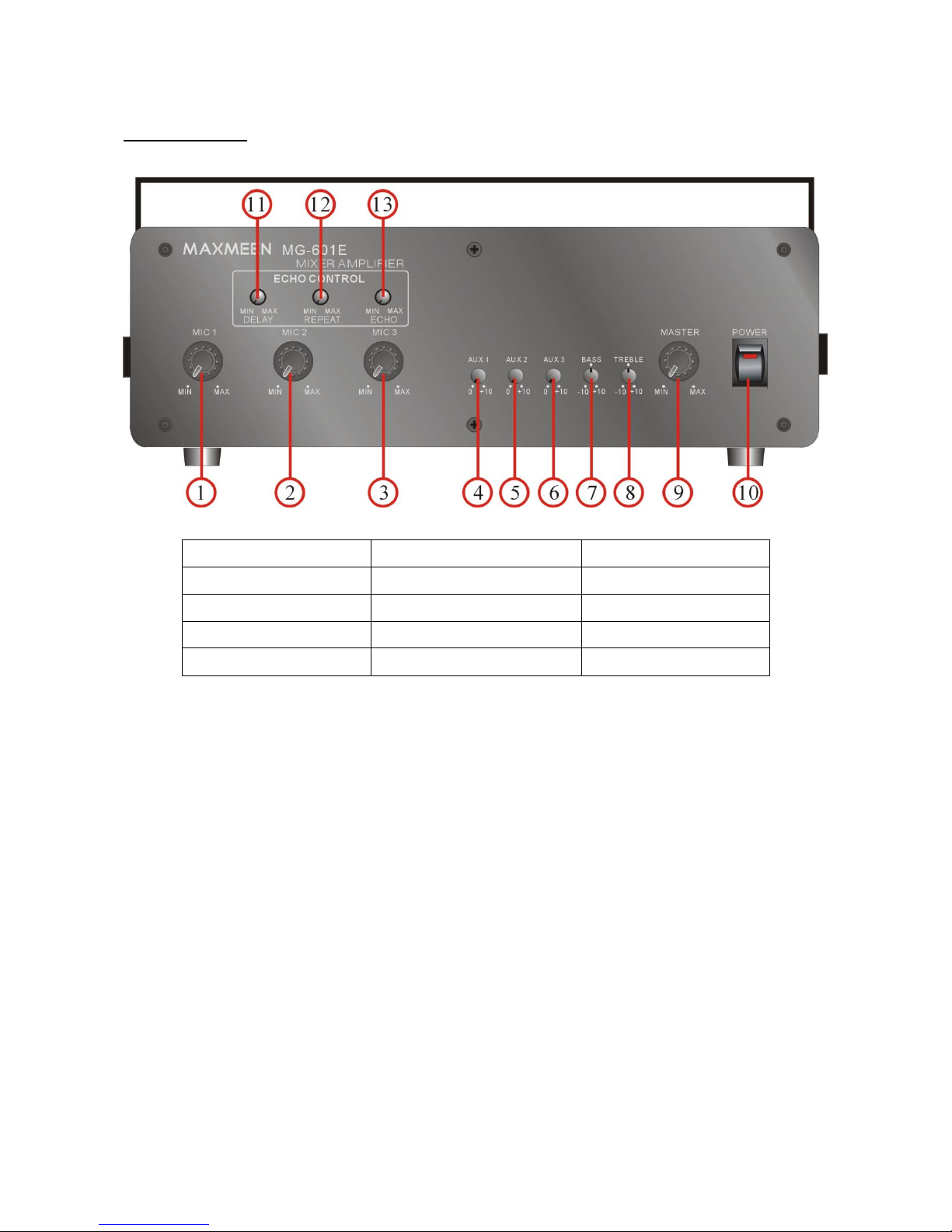

FRONT PANEL
1. Mic. 1 Level Control
6. AUX 3 Level Control
11. Echo Delay Control
2. Mic. 2 Level Control
7. Master Tone Control (Bass)
12. Echo Repeat Control
3. Mic. 3 Level Control
8. Master Tone Control (Treble)
13. Echo Volume Control
4. AUX 1 Level Control
9. Master Volume Control
5. AUX 2 Level Control
10. Power On / Off Switch

- 6 -
REAR PANEL
1. Main Power Input Socket
6. Mic 3 Input Jack
11. AUX 3 Input Jack
2. Power Fuse
7. Mic 2 Input Jack
12. AUX 2 Input Jack
3. Earth Connection Screw
8. Mic 1 Input Jack
13. AUX 1 Input Jack
4.DC 24V Power Supply Terminals
9. Pre Out Jack
5. Speaker Output Screw Terminals
10. Record Out Jack
4. Power Source
AC Power Source
The supply transformer has been designed for use on either 230Vac, selected by a push
switch on the rear panel. The amplifier is factory set at 230Vac mains voltage.
DC Power Source
Battery Connection (24Vdc)
When using external batteries, earth the amplifier via the screw terminal because of the
high voltages present. Electrical stability of the system is increased by earthed the case.
NOTE: The connection cable must be fitted with an in-line fuse; suggest to using
quick-blow type F8A. When Connect batteries, please ensure correct polarity.
5. Connection
Microphone Connection
Mic1~3 inputs are unbalanced standard 1/4” phone jack on the rear panel.

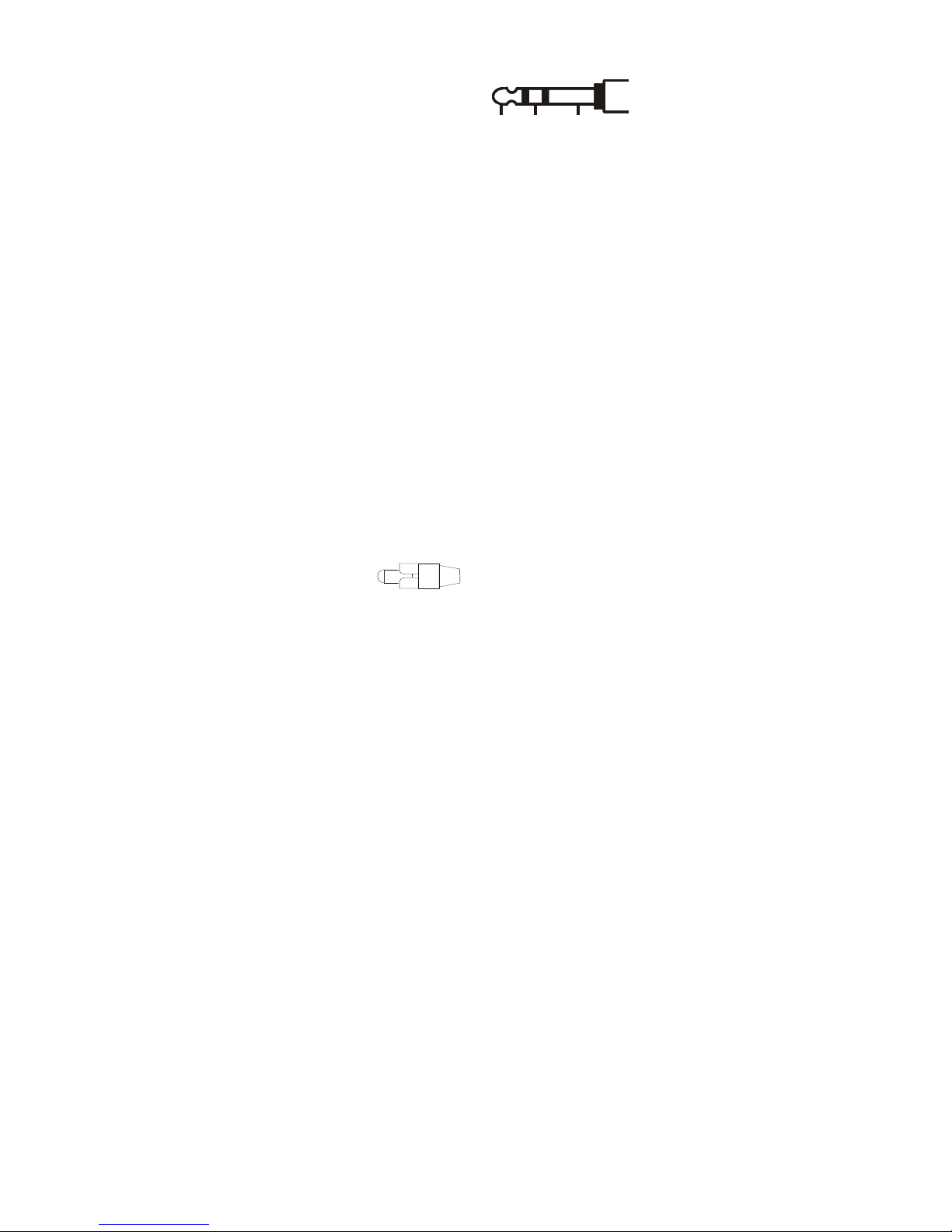

1/4” Phone Jack Plug (Balanced operation)

- 7 -
Tip : signal (live)
TIPRING
SLEEVE
Ring : Signal (Return)
Sleeve : Screen
Echo Microphone
Mic1~3 be Echo function
AUX Connection
TheAUX input, which may be used for connecting other signal sources such as a Radio
Tuner, CD or Cassette player. Beside it is level (volume) control. And turn it clockwise
to increase the volume or anticlockwise to reduce the volume.
TheAux input sockets are standard RCAstereo jack, sockets are supplied and these
are linked together internally, this allows stereo signal source to be used without the
need to obtain a special lead. However, you may check with the manufacturer of the
signal source to ensure that no damage will occur if the left and right output channels
are connected in parallel.
RCAplug connections
Sleeve-Screen
SLEEVEPIN
Pin- Signal
Loudspeaker Connection
There are speaker output screw terminals. Can connection of the standard low impedance
of 4Ωor 8Ω loudspeakers, or 70V, or 100V line loudspeaker. Use only one of these output
connections for corresponding speaker.
Record Out
It is for the use of record, when it is demanded.
6. Operation
Level/Volume Control
On the front panel, there are 3 level/volume controls for microphone 1~3, 3 for AUX input.
For the output, its own volume, treble, and bass control. Adjust them to what you desired.

- 8 -
7. Technical Specifications
Model
MG-301E
MG-601E
Type
Echo Mixer Amplifier
Power
Supply
Mains Voltage
AC 230V, 50 Hz ± 10%
Battery Voltage
DC 24V (MAX 10% deviation)
Power Output
30W
60W
Total Harmonic Distortion
<= 1% @ 1KHz, rated power
Sensitivity
Mic 1 ~3 1/4”Phone Jack (Unbalanced)
1.5mV @600 ohm
AUX 1~3 RCAJack (Unbalanced)
200mV @10K ohm
Frequency Response
50 Hz ~ 15K Hz +/- 3 dB
Output
100V, 70V, 8 ohm, 4 ohm
Signal to Noise Ratio
80dB
Tone
Bass 100 Hz +/-10 dB
Treble 10KHz +/-10 dB
AC Power Consumption
80 W @ RATED POWER
160 W @ RATED POWER
DC Power Consumption
4A @ RATED POWER
8A @ RATED POWER
Dimension
88(H) x 275(W) x 240mm (D)
Weight
5 KGS
6 KGS
Mounting
Free Standing or Hang-bracket
Agent:
AL MANAMEEN for Sound Systems
& Electronics
Saudi Arabia –Eastern Province
P O Box 534, 31911 Tel: [phone]
