SL100K
This product is marked with
in accordance with the Class II product requirements
specified in the R+TTE Directive, 1999 5 EC.
"We hereby declare that the above named product is
in conformity to all the essential requirements of
Directive 1999 5 EC".
French Translation
Nous déclarons que le produit référencé ci-dessus
satisfait aux exigences
R&TTE 1999 5 EC qui lui sont applicables.
Spanish Translation
Certificamos que el aparato es conforme con lo
establecido en las disposiciones de la
Directiva 1999 5 CE.
German Translation
"Wir möchten hiermit bekanntgeben, daß das oben
genannte Produkt in Übereinstimmung mit allen
erforderlichen Bedürfnissen der 1999 5 EC Direktive
seht"
Italian Translation
"Con la presente dichiariamo che il prodotto
suindicato è conforme a tutti i requisiti essenziali della
Direttiva 1999 5 CEE"
ENGLISH
1
0168 !
All manuals and user guides at all-guides.com

CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
MAXON SL100K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
KEY FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
DESCRIPTION OF RADIO . . . . . . . . . . . . . . . . . . . . . .4
NOTES TO THE USER . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . .5
CARE OF THE EQUIPMENT . . . . . . . . . . . . . . . . . . . . .5
PREPARING FOR USE . . . . . . . . . . . . . . . . . . . . . . . . . .6
UNPACKING AND INSPECTION . . . . . . . . . . . . . . . . . .6
FITTING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . .6
ATTACHING AND REMOVING THE ANTENNA . . . . . . .6
ATTACHING AND REMOVING THE BATTERY . . . . . . .6
ATTACHING AND REMOVING THE BELT CLIP . . . . . .6
RADIO PERFORMANCE . . . . . . . . . . . . . . . . . . . . . . . . .7
BATTERY CHARGING AND CARE . . . . . . . . . . . . . . . . .8
RECYCLING / DISPOSAL OF BATERIES . . . . . . . . . . . .8
SL100K OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
POWER ON VOLUME POWER OFF . . . . . . . . . . . . . . .9
CHANNEL SELECT . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
KEYPAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
TRANSMIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
RECEIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
STATUS INDICATORS AND AUDIBLE ALERT TONES .11
DIAGNOSTIC MESSAGES . . . . . . . . . . . . . . . . . . . . . . .12
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

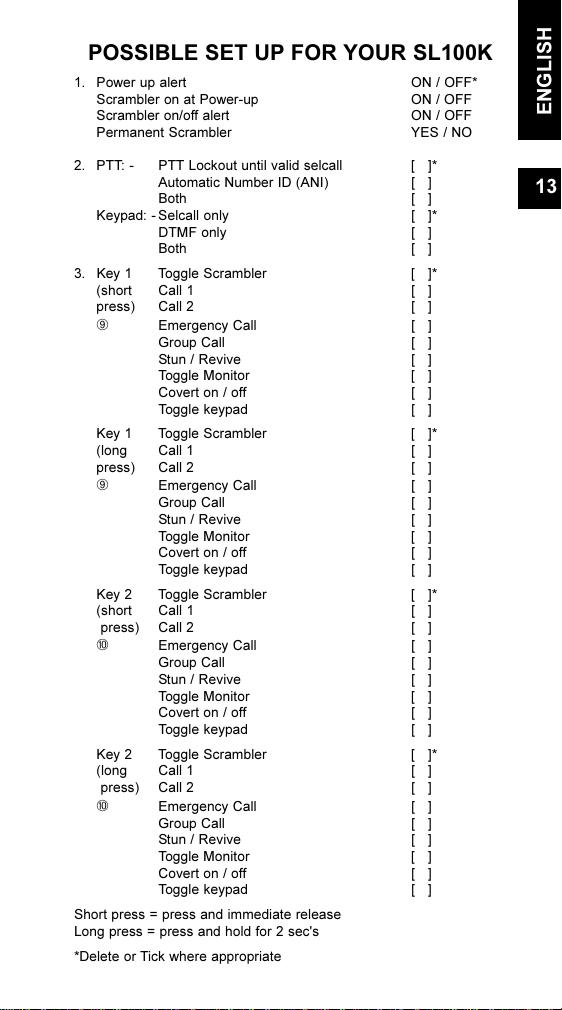

POSSIBLE SET UP FOR YOUR SL100K . . . . . . . . . . . .13
ENGLISH
2
All manuals and user guides at all-guides.com

INTRODUCTION
MAXON SL100K
KEY FEATURES
·Synthesized operation with 199 channel capability
·1 or 5 Watt power output - internally adjustable
·12.5 20 25 kHz channel spacing
·CTCSS DCS Tone signaling
·Busy channel lockout
·Fully programmable tone-sets, including EEA, CCIR and
ZVEI
·Automatic Number Identification (ANI)
·DTMF Encode
·Emergency Calling
·Stun and Revive
·Group Calling
·Programmer definable Keys
·Optional Penalty Modes and PTT Time Out
·Covert mode of operation
·Inversion scrambler
·Status transmission
·3 x 4 dual function keypad
·Rugged and reliable construction
·Tri-colour LED indicator shows you the status of the radio
ENGLISH
3
All manuals and user guides at all-guides.com

DESCRIPTION OF RADIO
Key To D agram:-
1 Antenna Socket
2 LED
3 LCD
4 On Off Volume
5 Battery Latch
6 Speaker
7 Push To Talk (PTT)
8 Microphone
9 Key 1
10 Key 2
11 Up Down Channel Change
12 Accessory Socket
13 Keypad
ENGLISH
4
All manuals and user guides at all-guides.com

NOTES TO THE USER
SAFETY INFORMATION
· Do not hold the radio in such a manner that the antenna
is touching exposed parts of the body, especially the face
or eyes, while transmitting.
· Do not transmit if antenna is damaged as minor burns
could occur if the metallic core is exposed and is touched.
· Do not allow children to operate transmitter-equipped
radio equipment.
· Do not operate the radio near unshielded electrical
blasting caps or in an explosive atmosphere.
· Do not press and hold the transmit switch (PTT) when not
actually wishing to transmit.
· Never use the radio in an aircraft.
· Never use the radio near to sensitive medical equipment
or in areas where instructed, e.g. Petrol filling stations
·When used in a vehicle, do not mount the radio unit on or
near the Airbag or Airbag activating device.
·The use of an accessory not recommended or supplied by
Maxon may cause damage to equipment or injury to
personnel.
·When using any of the charging accessories, the mains
socket-outlet must be installed near the equipment. The
outlet must not be obstructed and must be easily
accessible at all times.
·Never attempt to disassemble, modify or repair the unit
unless the work is carried out by a Maxon approved
Reseller. Incorrect assembly, modification or repair may
cause irreparable damage to your unit and will invalidate
warranty. For service or repair always return your radio to
an authorized Maxon Reseller.
CARE OF THE EQUIPMENT
·Keep the exterior of the radio clean using a soft damp
cloth.
·Do not submerge the radio.
·Do not use solvents or spirits for cleaning as they may
damage the radio housing.
·Do not carry the radio by the antenna.
·Keep battery contacts clean and free of corrosion.
·Do not store batteries in a discharged state.
ENGLISH
5
All manuals and user guides at all-guides.com

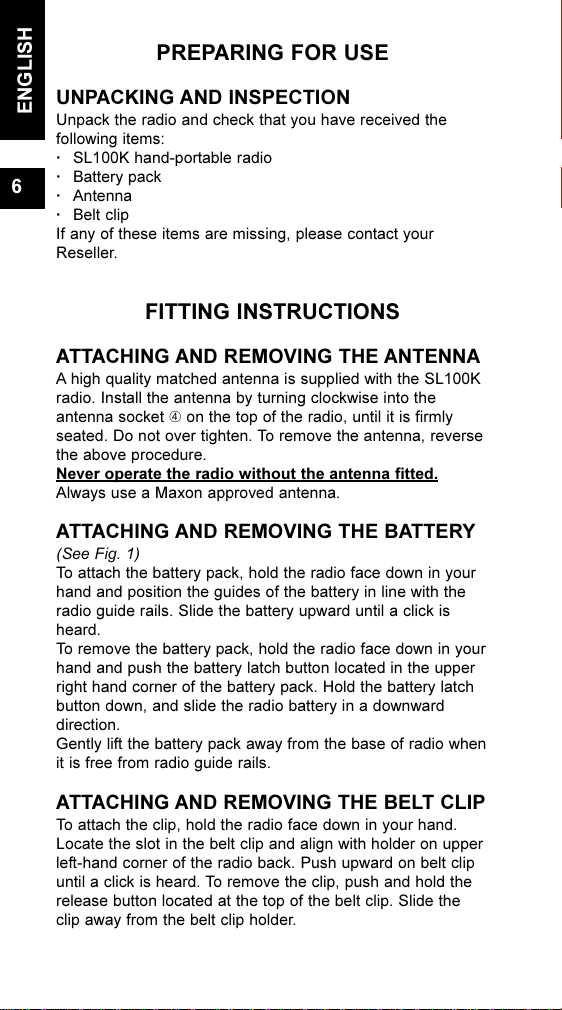

PREPARING FOR USE
UNPACKING AND INSPECTION
Unpack the radio and check that you have received the
following items:
·SL100K hand-portable radio
·Battery pack
·Antenna
·Belt clip
If any of these items are missing, please contact your
Reseller.
FITTING INSTRUCTIONS
ATTACHING AND REMOVING THE ANTENNA
A high quality matched antenna is supplied with the SL100K
radio. Install the antenna by turning clockwise into the
antenna socket Ãon the top of the radio, until it is firmly
seated. Do not over tighten. To remove the antenna, reverse
the above procedure.
Never operate the rad o w thout the antenna f tted.
Always use a Maxon approved antenna.
ATTACHING AND REMOVING THE BATTERY
(See Fig. 1)
To attach the battery pack, hold the radio face down in your
hand and position the guides of the battery in line with the
radio guide rails. Slide the battery upward until a click is
heard.
To remove the battery pack, hold the radio face down in your
hand and push the battery latch button located in the upper
right hand corner of the battery pack. Hold the battery latch
button down, and slide the radio battery in a downward
direction.
Gently lift the battery pack away from the base of radio when
it is free from radio guide rails.
ATTACHING AND REMOVING THE BELT CLIP
To attach the clip, hold the radio face down in your hand.
Locate the slot in the belt clip and align with holder on upper
left-hand corner of the radio back. Push upward on belt clip
until a click is heard. To remove the clip, push and hold the
release button located at the top of the belt clip. Slide the
clip away from the belt clip holder.
ENGLISH
6
All manuals and user guides at all-guides.com

F gure 1
RADIO PERFORMANCE
Optimum positioning of the radio will significantly improve the
effective transmission range, i.e. hold the radio close
(approximately 5cm) to your mouth whilst talking. Mounting
the radio on a belt and using a lapel microphone may
degrade performance in marginal signal areas. In poor
signal areas, moving the radio just a few metres may
produce a clearer signal.
ENGLISH
7
All manuals and user guides at all-guides.com

BATTERY CHARGING AND CARE
To ensure peak performance from your radio, the battery
pack must be fully charged. To obtain maximum capacity and
performance it is recommended that you cycle your new
batteries with at least 3 charges and 2 discharges.
Remove the charger base and power supply from the
packaging, and plug in the power supply's DC connector into
the jack on the back of the charging base. Plug the AC
power cord into the standard mains AC outlet.
To charge a battery while attached to a radio, simply place
the radio into the front charging well. The charger will identify
the battery condition, and then automatically initiate a charge
mode - rapid or top-up trickle.
To charge a battery removed from the radio, place the
battery into the rear charging well. (Belt clip side facing rear.)
Again, the charger will identify the battery condition, and
automatically rapid charge or top-up trickle charge, the
battery pack.
Note the colour of the LED charge indicators: flashing red for
brief battery analysis, red for rapid charge cycle, green for
the top-up trickle charge cycle.
When using both charging wells of the fast charger, only one
can rapid charge at a time. The front charging well always
has priority for rapid charging. After the front well cycles from
rapid to top-up trickle charge, the back well will initiate its
rapid charge mode. Again, note the colour of the charging
well's LED to define the current charging cycle.
Note: To ensure peak performance from your radio,
periodically discharge the battery completely and recharge
fully. This action will prevent the battery from developing a
"memory" of short-term use, and will permit a good service
life.
To prolong battery life in general usage, make sure that the
radio is programmed to use the power save mode.
RECYCLING / DISPOSAL OF BATERIES
The battery should be recycled at the end of its useful life.
Under various local laws, Ni-MH and Ni-Cad batteries must
be recycled or disposed of properly and cannot be discarded
in landfills or incinerators.
For further information on how to safely dispose of your used
batteries, contact your reseller.
ENGLISH
8
All manuals and user guides at all-guides.com

SL100K OPERATION
Many of the features of the SL100K are User Defined and
will have been determined by the Reseller and End User
together. Page 13 shows how your radio may have been
programmed.
POWER ON/VOLUME/POWER OFF
Turn the radio on by rotating the off on volume control À
clockwise.
You will hear a click and (if enabled via dealer programming),
the radio's self-test alert tones. Increase the radio volume by
continuing the clockwise rotation.
To turn the radio off, rotate the control anti-clockwise until a
click is heard.
CHANNEL SELECT
To change radio channels, simply press and release the
buttons sor tuntil the desired channel is reached. Or,
to scroll through your programmed channels more quickly,
press and hold the sor t buttons. The channel numbers
will appear in the radio's LCD Â (Located on top panel of
unit).
To lock the Channel Select buttons (to prevent accidental
channel change) press and hold Key 1 Èfor 4 seconds.
"LO" will appear in the LCD display Â. To unlock the
Channel Select buttons, press and hold Key 1 again for 4
seconds
KEYPAD
The Keypad can be locked, by pressing the * (star) and #
(hash) keys at the same time for approximately 1 second.
Repeat the procedure to unlock the keypad.
The following comments are intended to be used as a guide
only, due to the variable nature of the software and radio
features.
TRANSMIT
To Transmit a fixed Selcall address, Group Call, or an
Emergency Call: -
A short or long press on a Call Key, either Key 1 Èor Key 2
Édepending on set-up. Briefly the LED Áon the top panel
illuminates RED. Conversation can begin by pressing the
PTT Æbutton.
ENGLISH
9
All manuals and user guides at all-guides.com

To Transmit a variable Selcall address: -
A variable selcall address may be selected using the
numerical keys 0 - 9 .
The number of variable digits will be determined at
programming.
Pressing the * key generates the default address (call 1)
which includes the appended variable digits.
Pressing the # key generates the default address (call 2)
which includes the appended variable digits.
For e.g. calling radio 37325, the default address is 373KK,
so only 2 and 5 have to be pressed on the keypad, and then
* to send.
To Transmit DTMF: -
The radio can be programmed for DTMF transmission only,
or can be programmed to toggle between Selcall and DTMF.
If programmed with this "toggle keypad" mode, press the
"toggle keypad" key (defined at programming stage) and
press the DTMF keys to transmit. Pressing the "toggle
keypad" key once more will return the keypad to selcall
mode.
At power-up, the radio will default to Selcall mode.
In DTMF mode only, press the DTMF keys to transmit.
With all of the above features, when ready to speak, hold the
radio microphone area approximately 5 - 8cm from your
mouth, keeping the antenna vertical. Press and hold the PTT
button Æon the side of the radio, and begin speaking in a
clear, normal tone. Release the PTT button when you have
finished speaking.
To Transmit Status: -
If programmed to send Status, a long press on the # key
places the radio into status mode. The status digit(s) can
then be entered and a further long press on the # key stores
the status digit(s). Pressing the Call 1 Key or the * key will
then transmit the status digit with the Selcall address.
CAUTION: Operation of the transmitter without a proper
antenna fitted may result in permanent damage to the radio.
NOTE: The radio's LED will illuminate red continuously when
you have the PTT button pressed and are transmitting. If the
red LED starts "flashing", the battery needs to be recharged
and transmission will cease. Recharge the battery fully
before reusing.
ENGLISH
10
All manuals and user guides at all-guides.com

RECEIVE
Flashing green LED indicates call received, and if
programmed, an alert tone is generated. Conversation can
then begin by pressing the PTT button. LED will continue to
flash until call has been answered.
STATUS INDICATORS
AND AUDIBLE ALERT TONES
The SL100K radio provides a range of audible alert tones.
Upon each power-up, a quick melody* indicates that the self-
test of the microprocessor functions has been completed. A
variety of audible tones* may be sounded with any of the
following conditions:
·PTT lockout
·Tx Timeout timer
·Toggling scrambler on and off
·Toggling keypad on and of
·Keypad alerts
·Side button alerts
·Decode of valid selcall address
·Auto-mute alert
·All audible tones can be programmed off for silent
operation
ENGLISH
11
All manuals and user guides at all-guides.com

DIAGNOSTIC MESSAGES
In addition to the low battery condition, a flashing red status
LED may also indicate fault conditions
Should your radio apparently not operate correctly, replace
the battery with one known to be fully charged. If the
condition persists, or the radio emits an unexpected
continuous pattern of audio beeps, or will not transmit or
receive as it does normally, return the radio to your Maxon
Reseller.
NOTE: All audible tones can be programmed 'off' for silent
operation
ACCESSORIES
A full range of Maxon accessories are available to use with
this product. Please contact your Maxon Reseller for more
information or visit www.maxon.co.uk
ENGLISH
12
Status Descr pt on LED LCD Tone
Colour Ind cat on
Normal Power On - 188 Melody
Call Received Orange Chan Number -
Correct Call Green Chan Number -
Busy Channel Orange Chan Number -
Valid Selcall Flashing Chan Number 1 to 3
Decode Green Tone Alert
Transmit Red Chan Number -
Transmit Not Red Alternating UL 2 Beeps
Allowed Flashing Chan Number Repeated
Radio Stunned N A Chan Number 2 Beeps
Radio Revived N A Chan Number Melody
Warning Low Battery Red LC 3 Beeps
Flashing Repeated
Busy Channel Orange bL Single beep
Lockout repeated
Tx Inhibit N A _h r0 2 beeps
Eprom Error - Er Single beep
repeated
Out of Lock - UL 2 Beeps
Repeated
All manuals and user guides at all-guides.com

POSSIBLE SET UP FOR YOUR SL100K
1. Power up alert ON OFF*
Scrambler on at Power-up ON OFF
Scrambler on off alert ON OFF
Permanent Scrambler YES NO
2. PTT: - PTT Lockout until valid selcall [ ]*
Automatic Number ID (ANI) [ ]
Both [ ]
Keypad: - Selcall only [ ]*
DTMF only [ ]
Both [ ]
3. Key 1 Toggle Scrambler [ ]*
(short Call 1 [ ]
press) Call 2 [ ]
ÈEmergency Call [ ]
Group Call [ ]
Stun Revive [ ]
Toggle Monitor [ ]
Covert on off [ ]
Toggle keypad [ ]
Key 1 Toggle Scrambler [ ]*
(long Call 1 [ ]
press) Call 2 [ ]
ÈEmergency Call [ ]
Group Call [ ]
Stun Revive [ ]
Toggle Monitor [ ]
Covert on off [ ]
Toggle keypad [ ]
Key 2 Toggle Scrambler [ ]*
(short Call 1 [ ]
press) Call 2 [ ]
ÉEmergency Call [ ]
Group Call [ ]
Stun Revive [ ]
Toggle Monitor [ ]
Covert on off [ ]
Toggle keypad [ ]
Key 2 Toggle Scrambler [ ]*
(long Call 1 [ ]
press) Call 2 [ ]
ÉEmergency Call [ ]
Group Call [ ]
Stun Revive [ ]
Toggle Monitor [ ]
Covert on off [ ]
Toggle keypad [ ]
Short press = press and immediate release
Long press = press and hold for 2 sec's
*Delete or Tick where appropriate
ENGLISH
13
All manuals and user guides at all-guides.com

FRANÇAIS
14
SL100K : Gu de d'ut l sat on
Ce produit porte le label
conformément aux exigences spécifiées dans la directive
R+TTE, 1999 5 EC pour les produits de classe II.
Nous déclarons que le produit référencé ci-dessus satisfait
aux exigences R&TTE 1999 5 EC qui lui sont applicables.
0168 !
All manuals and user guides at all-guides.com

SOMMAIRE
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
MAXON SL100K . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
PRINCIPALES CARACTÉRISTIQUES . . . . . . . . . . . . .16
DESCRIPTION DU RADIO . . . . . . . . . . . . . . . . . . . . .17
NOTES À L'ATTENTION DE L'UTILISATEUR . . . . . . . .18
SÉCURITÉ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
ENTRETIEN DU MATÉRIEL . . . . . . . . . . . . . . . . . . . .18
PRÉPARATION AVANT UTILISATION . . . . . . . . . . . . . .19
DÉBALLAGE ET INSPECTION . . . . . . . . . . . . . . . . . .19
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
MISE EN PLACE ET RETRAIT DE L'ANTENNE . . . . .19
MISE EN PLACE ET RETRAIT DE LA BATTERIE . . . .19
MISE EN PLACE ET RETRAIT DE LA PINCE DE . . . . .
CEINTURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PERFORMANCE DU RADIO . . . . . . . . . . . . . . . . . . . . .21
RECHARGE ET ENTRETIEN DE LA BATTERIE . . . . . .21
RECYCLAGE / ÉLIMINATION DES BATTERIES . . . . . .22
FONCTIONNEMENT DU SL100K . . . . . . . . . . . . . . . . . .22
MARCHE VOLUME ARRÊT . . . . . . . . . . . . . . . . . . . .22
SÉLECTION DE CANAL . . . . . . . . . . . . . . . . . . . . . . .23
CLAVIER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
RÉCEPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
INDICATEURS D'ETAT ET
SIGNALISATIONS SONORES . . . . . . . . . . . . . . . . . . .25
MESSAGES DE DIAGNOSTIC . . . . . . . . . . . . . . . . . . . .26
ACCESSOIRES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
CONFIGURATION POSSIBLE
POUR VOTRE SL100K . . . . . . . . . . . . . . . . . . . . . . . . . .27
15
FRANÇAIS
All manuals and user guides at all-guides.com

INTRODUCTION
MAXON SL100K
PRINCIPALES CARACTÉRISTIQUES
·Fonctionnement synthétisé avec capacité de 199 canaux
·Puissance d'émission 1 ou 5 watts, réglable en interne
·Espacement des canaux 12,5 20 25 kHz
·Signalisation CTCSS DCS
·Verrouillage de canal occupé
·Tonalités entièrement programmables, y compris EEA,
CCIR et ZVEI
·Identification automatique de numéro (ANI)
·DTMF
·Appel d'urgence
·Neutralisation à distance et réactivation en cas de
vol perte
·Appel de groupe
·Clavier programmable
· Modes de pénalité et arrêt PTT optionnels
·Mode de fonctionnement clandestin
·Scrambler à inversion
·Transmission d'état
·Clavier double fonction 3 x 4
·Construction robuste et fiable
·LED tricolore indique l'état du radio
FRANÇAIS
16
All manuals and user guides at all-guides.com

DESCRIPTION DU RADIO
Légende du d agramme :-
1. Prise pour antenne
2. LED
3. Ecran à cristaux liquides
4. Bouton Marche Arrêt Volume
5. Bouton de blocage de la batterie
6. Haut-parleur
7. Push To Talk (PTT) : Transmission
8. Microphone
9. Touche 1
10. Touche 2
11. Changement de canal vers le haut bas
12. Prise pour accessoire
13. Clavier
17
FRANÇAIS
All manuals and user guides at all-guides.com

NOTES A L'ATTENTION DE
L'UTILISATEUR
SÉCURITÉ
· Ne pas tenir le radio de telle sorte que l'antenne touche
des parties exposées du corps, plus particulièrement le
visage ou les yeux, durant la transmission.
· Ne pas transmettre si l'antenne est endommagée car des
brûlures légères peuvent se produire si l'âme métallique
est exposée et touchée.
· Ne pas laisser des enfants utiliser de matériel radio
équipé de transmetteur.
· Ne pas utiliser le radio près d'amorces électriques non
protégées ou dans une atmosphère explosive.
· Ne pas appuyer sur le bouton de transmission (PTT)
quand vous ne souhaitez pas transmettre.
· Ne jama s utiliser le radio à bord d'un avion.
· Ne jama s utiliser le radio près de matériel médical
sensible ou dans des zones où il est interdit de le faire,
par ex. stations service.
·Quand vous utilisez le radio dans un véhicule, ne pas le
monter sur ou près de l'airbag ou du dispositif de
déclenchement de l'airbag.
·L'utilisation d'un accessoire non recommandé ou fourni
par Maxon peut endommager le matériel ou entraîner des
préjudices corporels.
·Quand vous utilisez l'un des accessoires de recharge, la
prise secteur doit être installée près du matériel. La prise
ne doit pas être obstruée et doit être facilement accessible
à tout moment.
·Ne tentez jamais de démonter, modifier ou réparer
l'appareil sauf si le travail est exécuté par un revendeur
agréé par Maxon. Un montage, une modification ou une
réparation incorrects peuvent entraîner des dégâts
irréparables et invalider la garantie. Pour les révisions et
réparations, adressez-vous toujours à un revendeur agréé
par Maxon.
ENTRETIEN DU MATÉRIEL
·L'extérieur du radio doit toujours être propre. Utilisez un
chiffon doux humide.
· Ne submergez jamais le radio.
·N'utilisez ni solvants ni alcools pour le nettoyage car ils
risquent d'endommager le boîtier du radio.
·Ne portez pas le radio par l'antenne.
·Les contacts de la batterie doivent rester propres et sans
corrosion.
·Ne stockez pas les batteries à l'état déchargé.
FRANÇAIS
18
All manuals and user guides at all-guides.com
