Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per-
formance and control - indeed we are setting the highest standards of excel-
lence.
In addition to this you find environmental and energy saving aspects as an inte-
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect-
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

3Contents
Contents
Operating Instructions 5
Safety instructions 5
Description of the Appliance 7
General Overview 7
Control Panel 8
Oven Features 9
Oven accessories 10
Before Using for the first time 11
Setting and changing the time 11
Initial Cleaning 12
Using the Rings 13
Setting the heat setting 14
Using the Oven 15
Switching the Oven On and Off 15
Oven Functions 16
Inserting the Combination Shelf, Baking Tray and Roasting Pan 17
Inserting/Removing the Fat Filter 18
Clock Functions 19
Switching Off the Time Display 20
Uses, Tables and Tips 25
Cooking table 25
Baking 26
Baking table 28
Table for Bakes and Gratins 34
Frozen Ready Meals Table 35
Roasting 36
Roasting table 36
Grill Sizes 38
Grilling table 38
Defrosting 39
Defrosting table 39
Drying 40
Making Preserves 41

Contents4
Cleaning and Care 42
Outside of the appliance 42
Oven interior 42
Accessories 42
Fat Filter 42
Shelf Support Rails 43
Oven Shelf Runner 44
Cleaning the Oven Shelf Runner 45
Oven Lighting 46
Oven Ceiling 47
Oven door 48
Oven door glass 50
What to do if … 54
Disposal 55
Installation Instructions 56
Safety information for the installer 56
Guarantee/Customer Service 60
Service 63

5Operating Instructions
Operating Instructions
1Safety instructions
Electrical safety
•This appliance must be only connected by a registered electrician.
•In the event of a fault or damage to the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only be carried out by qualified service engi-
neers. Considerable danger may result from improper repairs. If repairs be-
come necessary, please contact our Customer Services or your dealer.
Child Safety
•Never leave children unsupervised when the appliance is in use.
Safety whilst Using
•People (including children) who, because of their physical, sensory or mental
capabilities or their inexperience or ignorance are not able to use the device
safely, should not use this device without supervision or instruction by a re-
sponsible person.
•This appliance is intended to be used for cooking, roasting and baking food in
the home.
•Take care when connecting electric appliances to sockets nearby. Do not allow
connecting leads to come into contact with or to catch beneath the hot oven
door.
•Warning: Risk of burns! The interior of the oven becomes hot during use.
•Using ingredients containing alcohol in the oven may create an alcohol-air
mixture that is easily ignited. In this case, open the door carefully. Do not have
embers, sparks or naked flames in the vicinity when opening the door.
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, espe-
cially in products containing starch, can constitute a health risk due to acryla-
mides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.

Safety instructions6
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking trays, pots,
etc. on the oven floor, as the heat that builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you will not
be able to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could cause dam-
age to or discolouration of the enamel.
•Rough handling, especially around the edges of the front panel, can cause the
glass to break.
•Do not store any flammable materials inside the oven. These could ignite
when the oven is switched on.
•Do not store any moist foods inside the oven. This could damage the oven
enamel.
•After switching off the cooling fan, do not keep uncovered dishes in the oven.
Moisture may condense in the oven interior or on the glass doors and may get
into the units.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not af-
fect the appliance’s suitability for normal and correct use. They therefore do not
constitute a defect in the sense of the warranty law.

7Description of the Appliance
Description of the Appliance
General Overview
Full glass door
Control panel
Door
handle

Description of the Appliance8
Control Panel
Oven Power Indicator Temperature Pilot Light
Oven Functions Temperature selector
Hob Cooking Zone Control
Clock function buttons
Time display
Hob Cooking Zone Control

9Description of the Appliance
Oven Features
Inside of door
On the inside of the oven door you will find
the numbers of the different oven shelves.
You will also find some brief information
about the oven's functions, recommended
shelves and temperatures for cooking the
most popular dishes.
Top heat and heating elements
Oven lighting
Fat Filter
Fan heating element
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable

Description of the Appliance10

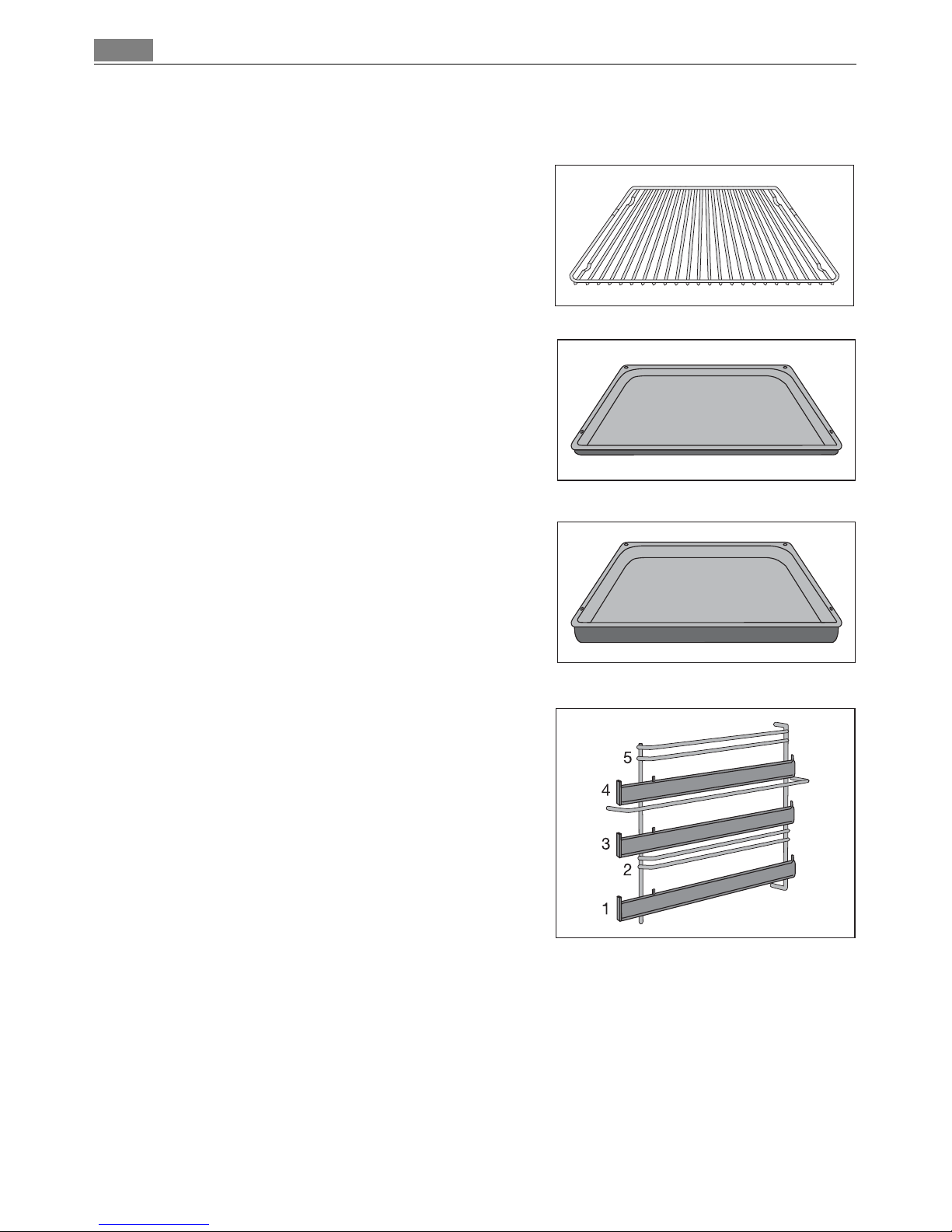

Oven accessories
Oven shelf
For cookware, cake tins, roasts and grilled
foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for col-
lecting fat.
Triple shelf runner for ovens
2 side rails with 3 telescopic runners.

11Before Using for the first time
Before Using for the first time
Setting and changing the time
3The oven only operates when the time has been set.
When the appliance has been connected to
the electrical supply or when there has
been a power cut, the function indicator
Time (TAGESZEIT) flashes automatically.
1. To change a time that has already been set,
press the Selection (AUSWAHL) button re-
peatedly until the function indicator Time
(TAGESZEIT) flashes.
2. Using the or button, set the current
time.
After approx. 5 seconds, the flashing stops
and the clock displays the time set.
The appliance is now ready to use.
3The time can only be changed if no auto-
matic function (Cook time (DAUER) or End
time (ENDE)) has been set.

Before Using for the first time12
Initial Cleaning
Before using the oven for the first time you should clean it thoroughly.
1Caution: Do not use any caustic or abrasive cleaners. The surface could be dam-
aged.
3To clean metal fronts use commercially available cleaning agents.
1. Set the oven functions dial to Light .
2. Remove all accessories and the shelf support rails and wash them with warm
water and washing up liquid.
3. Then wash out the oven with warm water and washing-up liquid, and dry.
4. Wipe the front of the appliance with a damp cloth.
5. Insert the oven shelf runners supplied, as described in the chapter ”Cleaning and
Care”.

13Using the Rings
Using the Rings
3Also refer to the operating instructions for your built-in hob. It contains impor-
tant information on ovenware, operation, cleaning and care.
Heat settings
•You may select the heat settings within the range of settings 1-9.
•Intermediate positions may be selected between settings 2 and 7.
1 = lowest heat setting
9 = highest heat setting
2Switch the cooking zone off approx. 5-10 minutes before cooking is finished to
make use of the residual heat. This saves electricity.
3The cooker has pop-up ring switches.
Press the ring switch to use it. The switch will then pop up.
Hob Cooking Zone Control Knobs
front left rear left rear right front right

Using the Rings14
Setting the heat setting
1. Select the heat setting.
2. To end the cooking process, turn back to the
Off position.
3The corresponding ring pilot light is lit while
the ring is operating.

15Using the Oven
Using the Oven
Switching the Oven On and Off
1. Turn the oven functions dial to the desired function.
2. Turn the temperature selector to the desired temperature.
The power indicator is lit as long as the oven is in operation.
The temperature pilot light is lit as long as the oven is heating up.
3. To turn the oven off, turn the oven functions dial and the temperature selector
to the Off position.
3Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool.
When the oven is switched off, the fan continues to run to cool the appliance
down, then switches itself off automatically.
Temperature Pilot Light
Oven Functions Temperature selector
Oven Power Indicator

Using the Oven16
Oven Functions
The oven has the following functions:
Oven function Application
Light Using this function you can light up the oven interior, e.g. for
cleaning.
Convection with
ring heating
element
For baking on up to three oven levels at the same time.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Pizza setting For baking on one oven level dishes that require more inten-
sive browning and a crispy base.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Conventional For baking and roasting on one oven level.
Bottom heat For baking cakes with crispy or crusty bases.
Defrost For defrosting e. g. flans and gateaux, butter, bread, fruit or
other frozen foods.
Grill For grilling flat foodstuffs placed in the middle of the grill
and for toasting.
Dual grill For grilling flat foodstuffs in large quantities and for toast-
ing.
Rotitherm For roasting larger joints of meat or poultry on one level.
The function is also suitable for gratinating and browning.

17Using the Oven
Inserting the Combination Shelf, Baking Tray and Roasting Pan
Inserting the baking tray or roasting
pan
Insert baking tray or or roasting pan on the
telescopic runners of the selected oven lev-
el so that the two holes engage on the
front retaining pins on the telescopic run-
ners.
Inserting the oven shelf:
Insert the oven shelf so that the feet point
downwards.
Insert the oven shelf on the telescopic run-
ners of the selected oven level.
3The high rim around the oven shelf is an
additional device to prevent cookware from
slipping.
Inserting the oven shelf and roasting
pan together:
Lay the oven shelf on the roasting pan.
Insert the oven shelf and the roasting pan
on the telescopic runners of the selected
oven level so that the two holes of the
roasting pan engage on the front retaining
pins on the telescopic runners.
3To make it easier to insert the insertable component when runners are extended
to different extents, lay the insertable component onto the runners at the back,
push it in as far as the stop and then lower it onto the retaining pins at the
front.

Using the Oven18
Inserting/Removing the Fat Filter
Only use the fat filter when roasting to
protect the rear heating elements from fat
splashes.
Inserting the fat filter
Hold the fat filter by the grip and
insert the two mounts downwards
into the opening on the rear wall of
the oven (fan opening).
Taking out the fat filter
Hold the fat filter by the grip and
unhook it.

19Using the Oven
Clock Functions
Countdown (KURZZEIT)
To set a countdown. A signal sounds after the time has elapsed.
This function does not affect the functioning of the oven.
Cook time (DAUER)
To set how long the oven is to be in use.
End time (ENDE)
To set when the oven is to switch off again.
Time (TAGESZEIT)
To set, change or check the time
(See also section “Before Using for the First Time”).
Selector Button Button
Button
Time display Function IndicatorsFunction Indicators

Using the Oven20
3How to use the clock functions
•After a function has been selected, the corresponding function indicator
flashes for about 5 seconds. During this period, the desired times can be set
using the or button.
•When the desired time has been set, the function indicator continues to flash
for approx. 5 seconds. After that the function indicator is then lit. The set time
begins to run.
•Press any of the buttons to stop the audible signal.
•The desired oven function and temperature can be selected before or after the
clock functions Cook time (DAUER) and End time (ENDE) are set.
•When the cooking process is completed, turn the oven function dial and the
temperature selector back to the OFF position.
2Switching Off the Time Display
By switching off the time display you can save energy.
Switching off the time display
Press and hold down any two buttons until the display becomes dark.
Switching on the time display
Hold down any button until the time reappears in the display.
3The display can only be switched off if none of the clock functions Cook time
(DAUER), End time (ENDE) or Countdown (KURZZEIT) is in use.
