MAXWORKS 50545 User manual

Read and understand this entire manual before assembling,
installing, operating, or servicing this product.
SAVE THIS MANUAL
Copyright c2012 by Maxx Group.,LLC All rights reserved. No portion of this manual or any artwork contained herein may
be reproduced in any shape or form without the express written consent of Maxx Group., LLC. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for assembly and
maintenance may not be included.
Instruction Manual
&
Part List
70 Lbs Folding Shopping
Cart with Dual Baskets and
Swivel Wheels
Model 50545
Model 50545 Page 1

IMPORTANT SAFETY
INFORMATION
This is a SAFETY ALERT symbol.
It is used to alert you to
potential personal
injury hazards. Obey all
safety messages that follow
this symbol to avoid possible injury or death.
DANGER indicates a
hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING indicates a
hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION indicates a
hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE indicates
important information which, if not followed,
may cause damage to equipment.
SAVE THIS MANUAL
Keep this manual for the safety warnings
and precautions. The manual offers impor-
tant information on how to assemble, use
and maintain this product.
Write the product’s model number and
purchase date on the cover page of this
manual.
Keep this manual (and your purchase re-
ceipt) in a safe place.
UNPACKING
The shipment should be thoroughly inspected as
soon as it is received. The signed “bill of lad-
ing” is acknowledgement by the carrier of receipt
in good condition or shipment covered by our
invoice. For your own protection, if any of the
goods called for on the bill of lading are shorted
or damaged, do not accept them until the carrier
makes a notation on the freight bill of the shorted
or damaged goods.
Notify MaxWorks immediately if any hidden
loss or damage is discovered after receipt.
Definition of Symbols
WARNING concerning Risk of Eye
Injury. Wear ANSI approved eye
protection.
WARNING concerning Risk of
Hearing Loss. Wear hearing pro-
tection.
IMPORTANT SAFETY
INSTRUCTIONS
1. Read and understand all
safety warnings and in-
structions. Failure to follow the warnings
and instructions may result in serious injury
or death. Save all warnings and instructions
for future reference.
2. Personal and Work Area Safety
A. Always wear ANSI approved
safety goggles.
B. Always wear hearing protec-
tection when working in
noisy environments. Prolonged exposure
to high intensity noise can cause hearing
loss.
C. Use safety equipment. Safe-
ty shoes, dust mask, hard hat
and work gloves must be used for applicable
conditions.
D. Dress appropriately. Never wear loose
fitting clothing or jewelry when working.
Contain long hair, and keep hair, clothing
and gloves away from moving parts.
E. Use common sense when working.
Stay alert and concentrate when assembling
and using the Folding Shopping Cart. Never
work while under the influence of alcohol,
drugs or medications.
Model 50545 Page 2

Personal and Work Area Safety (continued)
F. While assembling and using the
Folding Shopping Cart, keep work area
clean and well lighted. Keep spectators
and children out of the work area.
3. Use of the Folding Shopping Cart
A. Do not modify this product and do not
use this product for purposes that it was not
designed for. The maximum capacity of the
cart is 70 lbs, do not exceed this capacity.
B. This Product is designed for portable
shopping and has multiple applications like
short-distance transportation, camping gear,
housing storage and garden tools etc.
(please note the capacity)
C. This product is
not a toy and should be in an area away
from children and out of reach of children.
Small hardware components such as bolts
and nuts can be accidently swallowed by
children at play.
D. Complete assembly of this product is
required. Make sure you have pliers before
assembly and every component should be
tighten enough, any parts appear to be
loose or damaged may cause personal
injury.
E. Save packaging information, warnings
and this manual. They contain important in-
formation and must always remain readable.
Contact MaxxHaul for replacements.
Keep in mind that the warnings previous-
ly discussed cannot cover all possible
conditions or situations that could occur.
It is important that the person setting up
and using this product understand that
common sense and caution are factors
which cannot be built into this product
and must be supplied by the person(s)
using this product.
Limited Warranty
Maxx Group, LLC warrants to the original retail
purchaser that the product is free of defects in
material and workman ship at the time of
shipment. This product is warranted for 90 days
from the date of purchase. This warranty is
expressly in lieu of all other warranties, express
or implied. Proof of purchase is required for
warranty transactions; a copy of the original
invoice or sales receipt is required.
Assembling and Using the Folding
Shopping Cart
Always wear ANSI approved
safety goggles when assembling
this product.

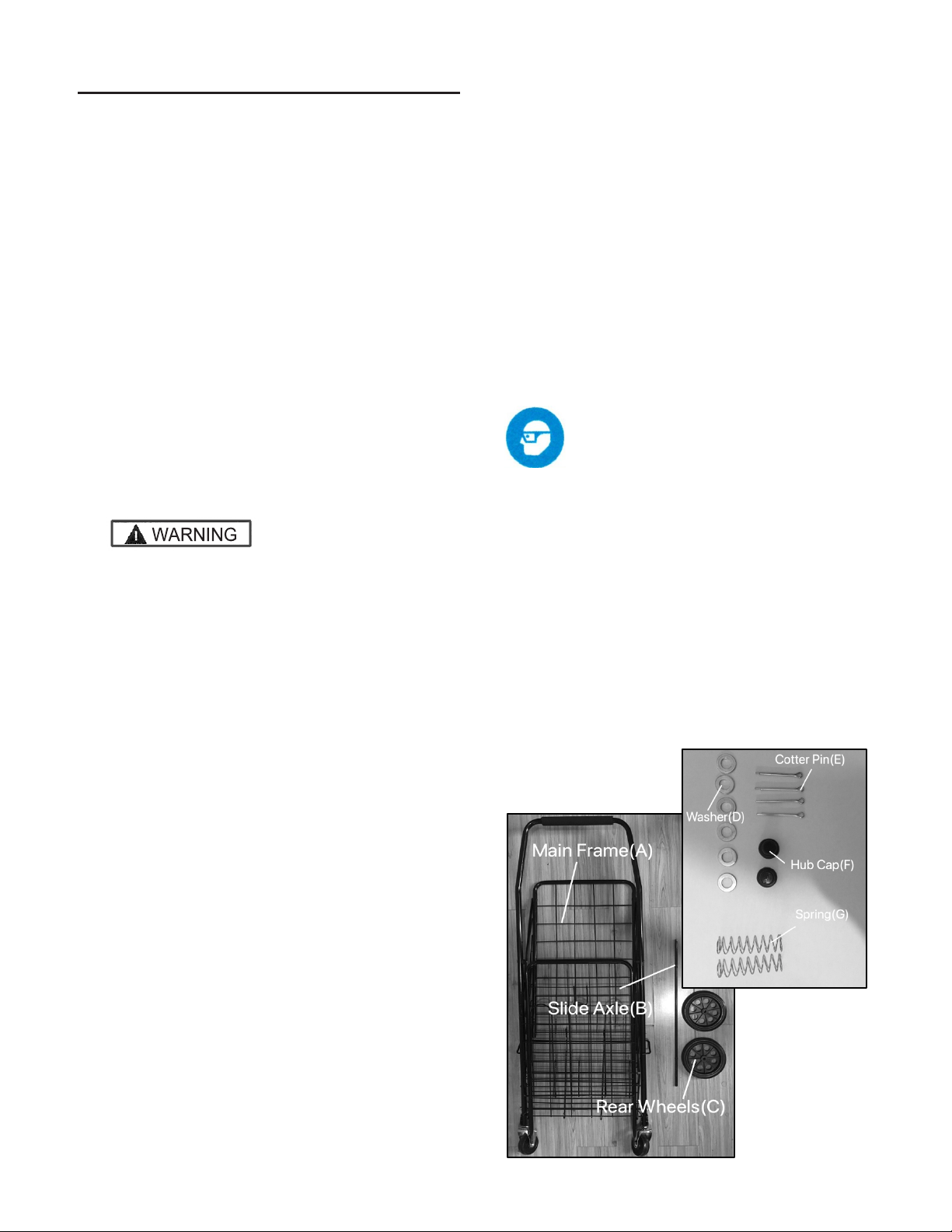

Refer to the photo below when assembling
the Folding Shopping Cart.
A. Read and adhere to all Personal and
Work Area Safety Warnings on pages 2 and
3 before assembling and using this product.
B. Make sure you have pliers before
assembly, find a convenient and safe
working area (away from children and pets)
for the assembly of this product.
C.
Model 50545 Page 3

D. Lay out and identify all components,
note that the two front wheels have bee-
n pre-installed. Be aware of the sharp
cotter pin.
Step 1
Recognize the rear legs of the cart,
slide axle through each hole of the rear
legs. Center the axle and insert the
Cotter Pins(E) into 2 Axle Holes. Bend
the Cotter Pins(E) using pliers to lock
the axle into place.
Step 2
Inserting Washer(D), Spring (G) and
Washer(D) in turn, then attach the Rear
Wheel(C). Insert the Washer(D) and
another Cotter Pin(E), using the Pliers
to bend the Pin again then seal the Hub
with the Cap(F).
Step 3
Repeat Step 2 to assemble the other
rear wheel, then the Assembly is
complete.
SPECIFICATIONS
Please note: The above is manual measurement,
and the dimension error is not more than 0.4”.
Maintaining the Folding Shop-
ping Cart
A. The general condition of this product
should be checked periodically. Make
sure that all hardware is tightened. Make
sure that the Wheels are functioning
properly.
B. Keep the product clean.
Manufactured for and distributed by:
Maxx Group, LLC, Oxnard, CA 93030 USA
www.maxxhaul.com
Capacity
70 Lbs
Front Wheel
Swivel
Material
Steel pipe+Wire+Sponge+Spring
Small Basket Size
13”x4.13”x13”
Big Basket Size
13.8”x6.3”x17.3”
Overall Size(Fully
Extended)
17.7”x13”x20”
Folded Size
15.8”x1.57”x39.4”
Front/Back
Wheel Size
2.76”(diameter)x0.79”(thickness)
5.71”(diameter)x0.87”(thickness)
