Maxx Cold X Series User manual

SERIAL NUMBER INF RMATI N
The serial number of all self-contained refrigerators and freezers is located inside the
unit on the left hand side near the top on the wall. Always have the serial number of
your unit available when calling for parts or service.
RECEIVING AND INSPECTING THE
EQUIPMENT
Use care during unloading so the equipment is not damaged while being moved
into the building.
1. Visually inspect the exterior of the package and skid or container. Any damage
should be noted and reported to the delivering carrier immediately.
2. If damaged, open and inspect the contents with the carrier.
3. In the event that the exterior is not damaged, yet upon opening, there is con-
cealed damage to the equipment, notify the carrier. Notification should be made
verbally as well as in written form.
4. Request an inspection by the shipping company of the damaged equipment. This
should be done within 10 days from receipt of the equipment.
5. Be certain to check the compressor compartment housing and visually inspect the
refrigeration package. Be sure lines are secure and base is still intact.
6. Freight carriers can supply the necessary damage forms upon request.
7. Retain all crating material until an inspection has been made or waived.
SAVE THESE INSTRUCTI NS
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 4

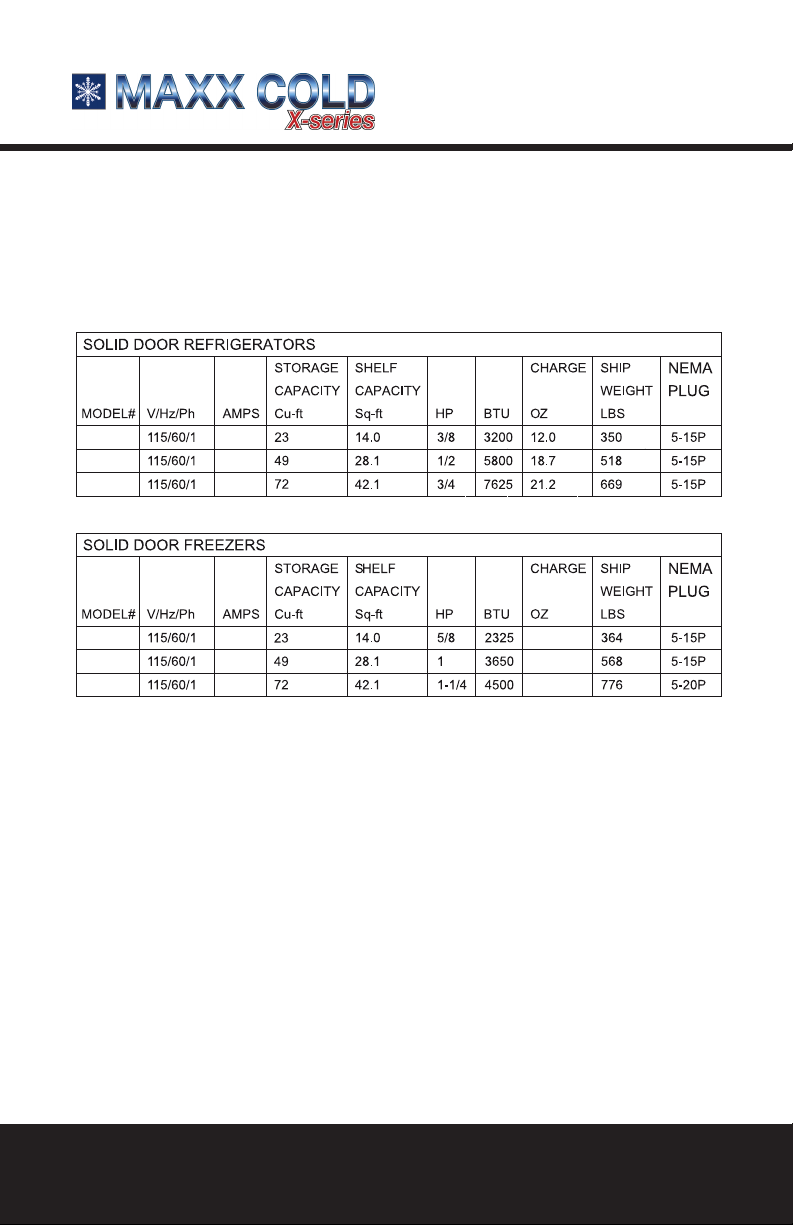

SPECIFICATI NS
3
6
9
10
11
12
16
28R
56R
82R
28F
56F
82F
14.1
25
28.9
MXCR›23FD
MXCR›49FD
MXCR›72FD
MXCF›23FD
MXCF›49FD
MXCF›72FD
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 5

Location:
Units represented in this manual are intended for indoor use only. Be sure the loca-
tion chosen has a floor strong enough to support the total weight of the cabinet and
contents. A fully loaded unit can weigh as much as 1500 pounds. Reinforce the floor
as necessary to provide for maximum loading. For the most efficient refrigeration, be
sure to provide good air circulation inside and out.
Inside cabinet:
Do not pack refrigerator so full that air cannot circulate. The refrigerated air is dis-
charged at the top rear of the unit. It is important to allow for proper air flow from the
top rear to the bottom of the unit. bstructions to this air flow can cause evaporator
coil freeze ups and loss of temperature or overflow of water from the evaporator
drain pan. The shelves have a rear turn up on them to prevent this. However, bags
and other items can still be located to the far rear of the cabinet. Air is broug ht into
the evaporator coil with fans mounted to the front of the coil. Prevent obstruction by
locating large boxes and tall stacks of product to the bottom of the cabinet.
utside cabinet:
Be sure that the unit has access to ample air. Avoid hot corners and locations near
stoves and ovens. It is recommended that the unit be installed no closer than 2" from
any wall with at least 12" of clearance above the unit.
Leveling:
A level cabinet looks better and will perform better because the doors will line up
with the frames properly, the cabinet will not be subject to undue strain and the con-
tents of the cabinet will not move around on the shelves. Use a level to make sure the
unit is level from front to back and side to side. If the unit is supplied with casters, it
has already been leveled. Ensure the floor where the unit is to be located is level.
Stabilizing:
All models are supplied with casters for your convenience, ease of cleaning under-
neath and for mobility. It is very important, however, that the cabinet be installed in a
stable condition with the front wheels locked while in use. Should it become neces-
sary to lay the unit on its side or back for any reason, allow at least 24 hours before
start-up so as to allow compressor oil to flow back to the sump. Failure to meet this re-
quirement can cause compressor failure and unit damage.
4
INSTALLATI N
Unit repairs will not be subject to standard unit warranties
due to improper installation procedures.
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 6

5
INSTALLATI N
Electrical connection:
Refer to the amperage data on page 3, the serial tag, your local code or the Na-
tional Electrical Code to be sure the unit is connected to the proper power source. A
protected circuit of the correct voltage and amperage must be run for connection
of the line cord, or permanent connection to the unit.
The on/off switch must be turned to OFF and the unit discon›
nected from the power source whenever performing service,
maintenancefunctions or cleaning therefrigerated area.
PERATI N
Refrigerated cycle
Refrigerators: During the refrigeration cycle, the evaporator fans will run continuously
even when one or more doors are open. The door switch will activate the lights when
opened.
1. Every 6 hours, the unit will shut off and let the evaporator coil clear up the ice, the
controller will display a defrost symbol. When the coil temperature reaches 41° F or
after 20 minutes, the unit will start to work again.
2. Anti-condensation heaters on door frames work in conjunction with the compres-
sor.
3. The factory setting for temperature range is 34 0 to 38" F
Freezers: During the refrigeration cycle the controller supplies power to the condens-
ing unit and evaporator fan motors. The evaporator fans will run at any time when
the evaporator coil temperature is below 35" F, they will also keep running during
door openings but cycle off during a defrost period. The door switch will activate the
lights when opened.
1. Every 6 hours, the unit will be off and electric heater wi ll be on to clear up the ice.
The controller will display defrost symbol. When the coil temperature reaches 45° F or
after 20 minutes, the unit will start to work again.
Do not throw items into the storage area. Failure to heed
these recommendations could result in damage to the interior
of the cabinet.
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 7

6

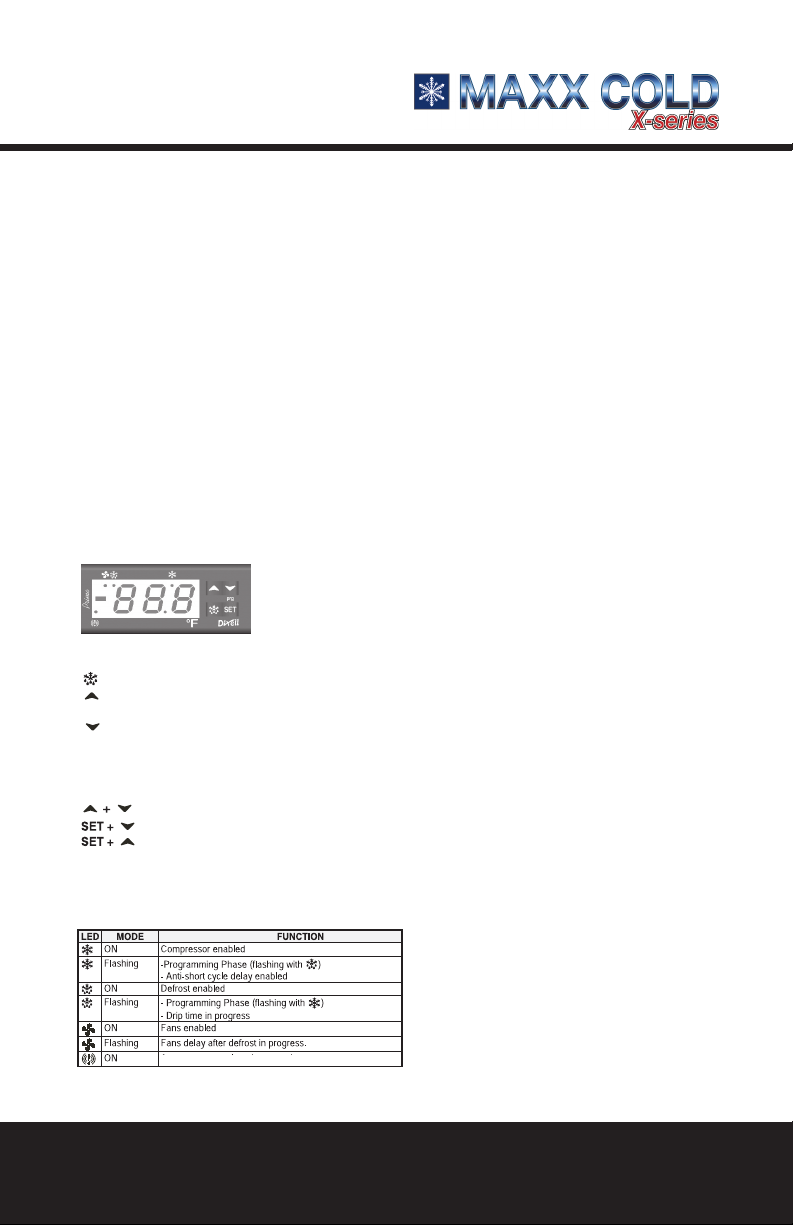

1. FR NT PANEL C MMANDS
SET: To display target set point; in programming mode it se-
lects a parameter or confirms an operation
(DEF) To start a manual defrost
(UP):To see the last temperature alarm; in programming mode it browses
the parameter codes or increases the displayed value
(D WN)To see the last temperature alarm; in programming mode it browses
the parameter codes or decreases the displayed value.
KEY C MBINATI NS:
To lock & unlock the keyboard.
To enter in programming mode.
To return to the room temperature display.
1.1 USE F LEDS
Each LED function id described in the following table.
2. Anti-condensation heaters on door frames work in conjunction wi th the compres-
sor.
3. The factory setting for temperature range is ,r to , 3" F
n/ ff Switch:
An on/off switch is located on the front of the top shroud. When the unit is on, the
switch will glow green.
PERATI N
Temperature alarm
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 8

7
MAINTENANCE
Refrigerators and Freezers
The interior and exterior can be cleaned using soap and warm water. If this isn't suffi-
cient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the
exterior, always rub with the "grain" of the stainless steel to avoid marring the finish.Do
not use an abrasive cleaner because it will scratch the stainless steel and plastic and
can damage the breaker strips and gaskets.
Cleaning the Condenser Coil
The condenser coil requires regular cleaning, at least every 90 days. In some in-
stances though you may find that there is a large amount of debris and dust or
grease accumulated prior to the 90 day time frame. In these cases the condenser
coil should be cleaned every 30 days.If the build up on the coil consists of only light
dust and debris the condenser coil can be cleaned with a simple brush, heavier dust
build up may require a vacuum or even compressed air to blow through the con-
The power switch must be turned to OFF and the unit discon›
nected from the power source whenever performing service,
maintenance functions or cleaning the refrigerated area.
HOW TO RESET
Condenser probe failaneP3
CSd Condenser alarm
3.1 HOW TO SEE THE ALARM AND RESET THE RECORDED ALARM
1. Push the UP or Down key, the alarm signals are displayed.
2. When the signal is displayed, hold the SET key untill the "rst" message is displayed, and push the
SET again, the "rst" message starts blinking and the normal temperature will be displayed.
2. MAIN FUNCTI NS
confirm
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 9

8
Stainless Steel Care and Cleaning
To prevent discoloration of rust on stainless steel several important steps need to be
taken. Stainless steel contains 70-80% iron which will rust. It also contains 12-30%
chromium which forms an invisible passive film over the surface which acts as a shield
against corrosion. As long as the protective layer is intact, the metal is still stainless. If
the film is broken or contaminated, outside elements can begin to break down the
steel and begin to form rust of discoloration.Proper cleaning of stainless steel requires
soft cloths or plastic scouring pads,
Cleaning solutions need to be alkaline based or non-chloride cleaners. Any cleaner
containing chlorides will damage the protective film of the stainless steel. Chlorides
are also commonly found in hard water, salts, and household and industrial cleaners.
If cleaners containing chlorides are used be sure to rinse repeatedly and dry thor-
oughly upon completion.
Routine cleaning of stainless steel can be done with soap and water. Extreme stains
or grease should be cleaned with a non-abrasive cleaner and plastic scrub pad. It is
Never use a high pressure water wash for this cleaning pro›
cedure as water can damage the electrical components lo›
cated near or at the condenser coil.
NEVER USE STEEL PADS, WIRE BRUSHES OR SCRAPERS!
denser coil.If heavy grease is present there are de-greasing agents available for re-
frigeration use and specifically for the condenser coils. The condenser coil may re-
quire a spray with the de-greasing agent and then blown through with compressed
air.Failure to maintain a clean condenser coil can initially cause high temperatures
and excessive run times, continuous operation with dirty or clogged condenser coils
can result in compressor failures. Neglecting the condenser coil cleaning procedures
will void any warranties associated with the compressor or cost to replace the com-
pressor.
In order to maintain proper refrigeration performance, the condenser fins must be
cleaned of dust, dirt and grease regularly. It is recommended that this be done at
least every three months. If conditions are such that the condenser is totally blocked
in three months, the frequency of cleaning should be increased. Clean the con-
denser with a vacuum cleaner or stiff brush. If extremely dirty, a commercially avail-
able condenser cleaner may be required.
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 10

9
always good to rub with the grain of the steel. There are also stainless steel cleaners
available which can restore and preserve the finish of the protective layer.
Early signs of stainless steel breakdown can consist of small pits and cracks. If this has
begun, clean thoroughly and start to apply stainless steel cleaners in attempt to re-
store the passivity of the steel.
Gasket Maintenance
Gaskets require regular cleaning to prevent mold and mildew build up and also to
keep the elasticity of the gasket. Gasket cleaning can be done with the use of warm
soapy water. Avoid full strength cleaning products on gaskets as this can cause them
to become brittle and prevent proper seals. Also, never use sharp tools or knives to
scrape or clean the gasket which could possibly tear the gasket and rip the bel-
lows.Gaskets can easily be replaced and do not require the use of tools or author-
ized service persons, The gaskets are "Dart" style and can be pulled out of the grove
in the door and new gaskets can be "pressed" back into place.
Doors/Hinges
ver time and with heavy use doors the hinges may become loose. If it is noticed
that the door is beginning to sag, it may become necessary to tighten the screws
that mount the hinge brackets to the frame of the unit. If the doors are loose or sag-
ging this can cause the hinge to pull out of the frame which may damage both the
doors and the door hinges. In some cases this can require qualified service agents or
maintenance personnel.
Drain Maintenance
Each unit has a drain located inside the unit which removes the condensation from
the evaporator coil and evaporates it at an external condensate evaporator pan.
Each drain can become loose or disconnected from moving or bumping the drain. If
you notice excessive water accumulation on the inside of the unit be sure the drain
tube is connected from the evaporator housing to the condensate evaporator drain
pan. If water is collected underneath the unit you may want to check the conden-
sate evaporator drain tube to be sure it is still located inside the drain pan. The level-
ing of the unit is important as the units are designed to drain properly when on a level
surface, if your floor is not level this can also cause drain problems. Be sure all drain
lines are free of obstructions typically food product is found blocking drain lines caus-
Never use an acid based cleaning solution! Many food products
have an acidic content which can deteriorate the finish. Be sure
to clean the stainless steel surfaces of ALL food products.
MAINTENANCE
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 11

10
MAINTENANCE
ing water to back up and overflow the drain pans.
pen the top shroud
Loosen the screws on the bottom of top shroud, then swing top shroud up 180° until it
rest on top of the cabinet.
Door Replacement and Adjustment
1. pen the top shroud and swing it up until it rests
on top of the unit.
2. pen the door to about 100°-110° until the door
remain open.
3. l oosen and remove the top screw of the self-clos-
ing cartridge and the three hinge screws, then slide
the door up and out.
4. Prepare new door. Use a wrench to rotate the
square head of the cartridge shaft approximately
1200 in the closing direction of the door. The hinge is
now preloaded and ready to be secured to the top hinge
5. Hold the door at about 100° from the closed position, insert the top hinge over the
square shaft of the cartridge so that the hinge is facing the cabinet. Insert the mount-
ing screw and fasten securely.
6. Still holding the the entire door/hinge assembly at about100°, slide it over the bot-
tom hinge pin, make sure all the alignment then fasten the upper hinge securely
7. Allow the door to freely swing, make sure it swings closed by itself with no restriction
8. Plug the unit in and make sure the interior light turns off and actives the evap fan
when the door closes
9. If not, adjust the door height by adding the plastic spacer/washer provided to the
bottom hinge pin
Remove the bottom shroud (apply to bottom-mounted only) Loosen
and remove the top screws, slide the shroud up and out
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 12

11
WIRING DIAGRAM
28R
56R,82R
MXCR›23FD
MXCR›49FD
MXCR›72FD
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 13

12

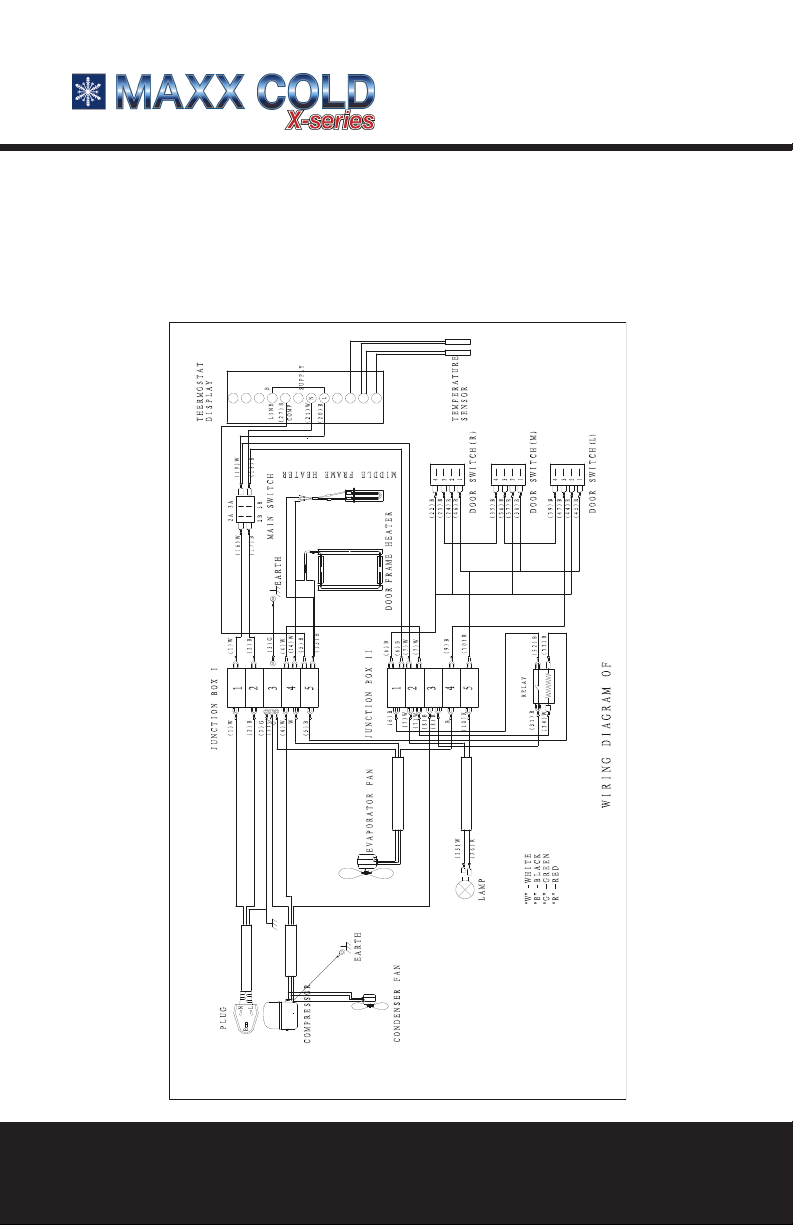

WIRING DIAGRAM
28F
56F,8 2F
MXCF›23FD
MXCF›49FD
MXCF›72FD
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 14

13

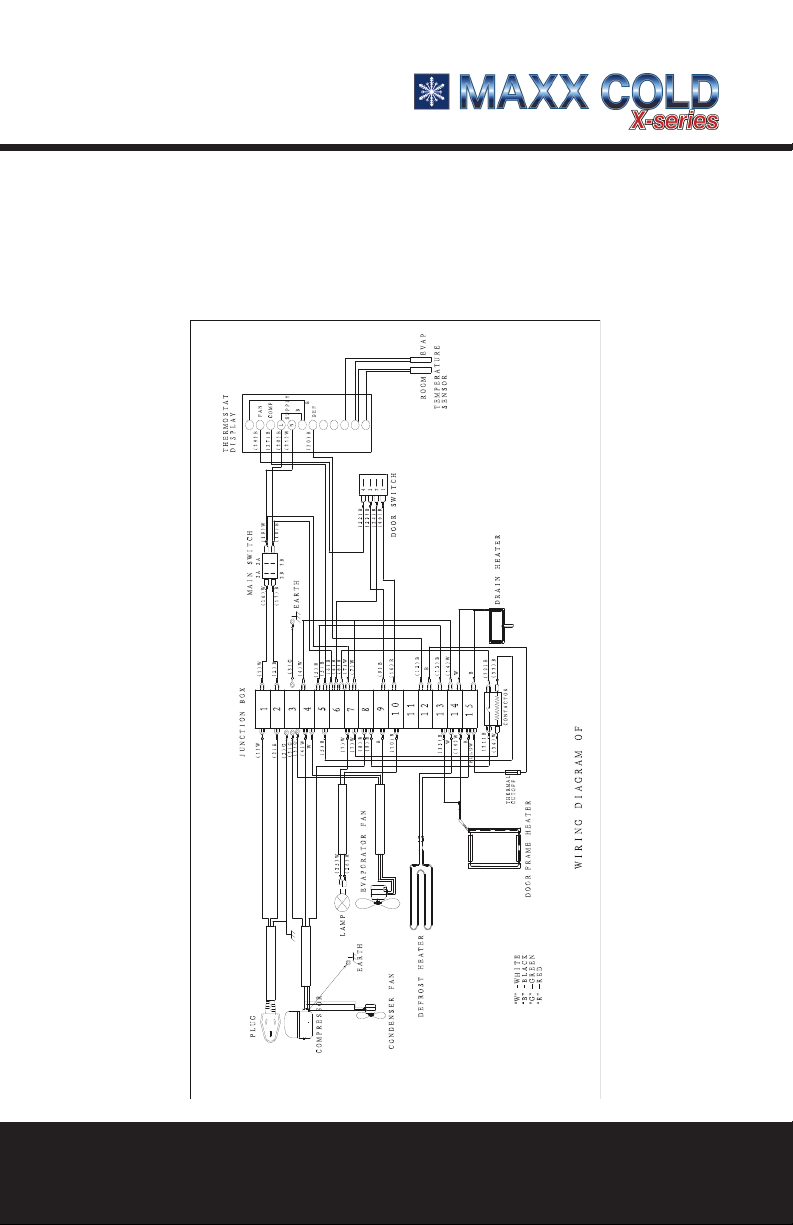

WIRING DIAGRAM
MXCR›23FD
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 15

14

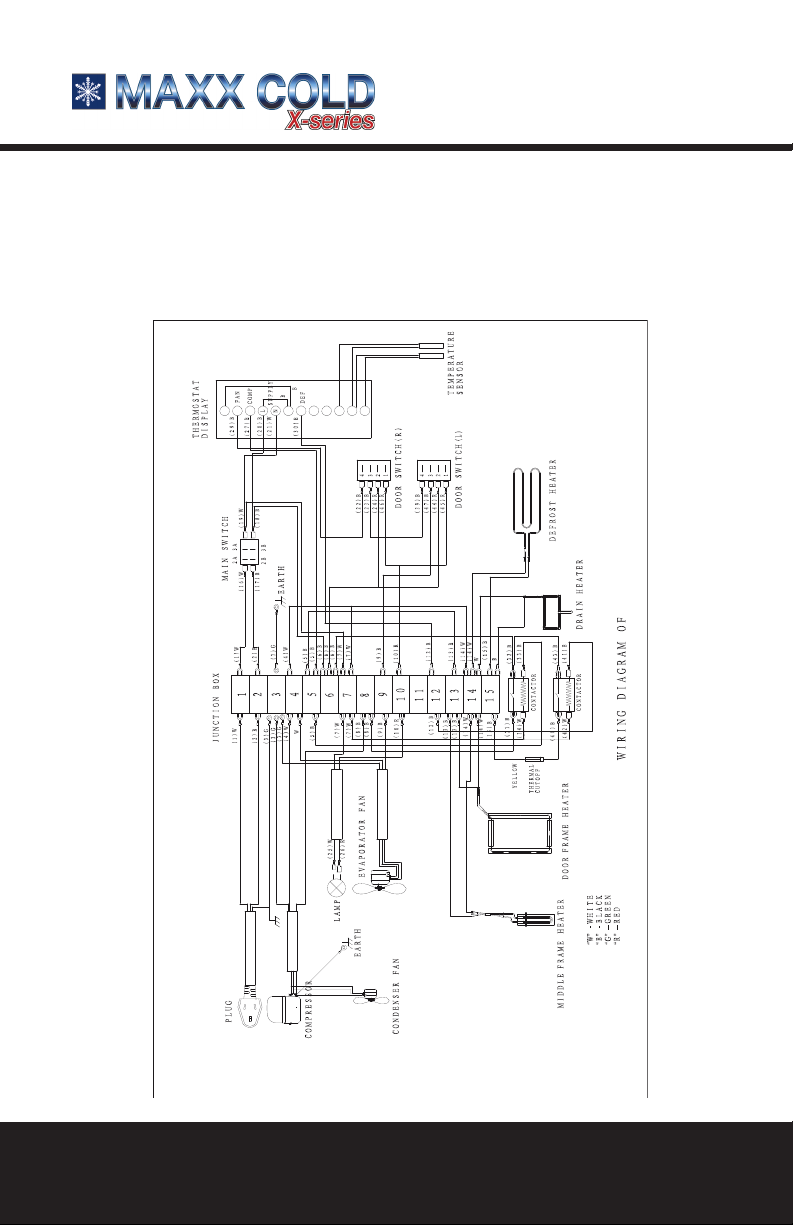

WIRING DIAGRAM
MXCR›49FD
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 16

15
WIRING DIAGRAM
MXCR›72FD
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 17

16
WIRING DIAGRAM
MXCF›23FD
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 18

17
WIRING DIAGRAM
MXCF›49FDRE
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 19

18
WIRING DIAGRAM
MXCF›72FDRE
Maxxx Cold Reach-in Manual 2012VerA:Layout 1 6/7/2012 10:47 AM Page 20
