maxxess eMAX-MR51e User manual

eMAX-MR51e
READER INTERFACE MODULE
Installation Guide and Specifications
This device complies with FCC Part 15, Class A Specifications.
The device meets CE Specifications, and is RoHS Certified.
This device is UL 294 Recognized. August, 2012

August 20, 2012 eMAX-MR51e-Man Rev B 2 of 17
TABLE OF CONTENTS
Paragraph Title Page No.
1. General …………………………………………………………………………………………………………………………………….. 3
2. eMAX-MR51e Hardware …………………………………………………………………………………………………………… 4
3. eMAX-MR51e Terminal Blocks and Jumpers/Jacks …………………………………………………………………… 5
4. Input Power …………………………………………………………………………………………………………………………….. 6
5. Communication Wiring ……………………………………………………………………………………………………………. 6
6. Reader Wiring ………………………………………………………………………………………………………………………….. 7
7. Input Circuit Wiring ………………………………………………………………………………………………………………….. 8
8. Relay Output Circuit Wiring ……………………………………………………………………………………………………… 8
9. Status LEDs ………………………………………………………………………………………………………………………………. 10
10. Configuring the eMAX-MR51e …………………………………………………………………………………………………. 10
11. Specifications ………………………………………………………………………….………………………………………………. 11

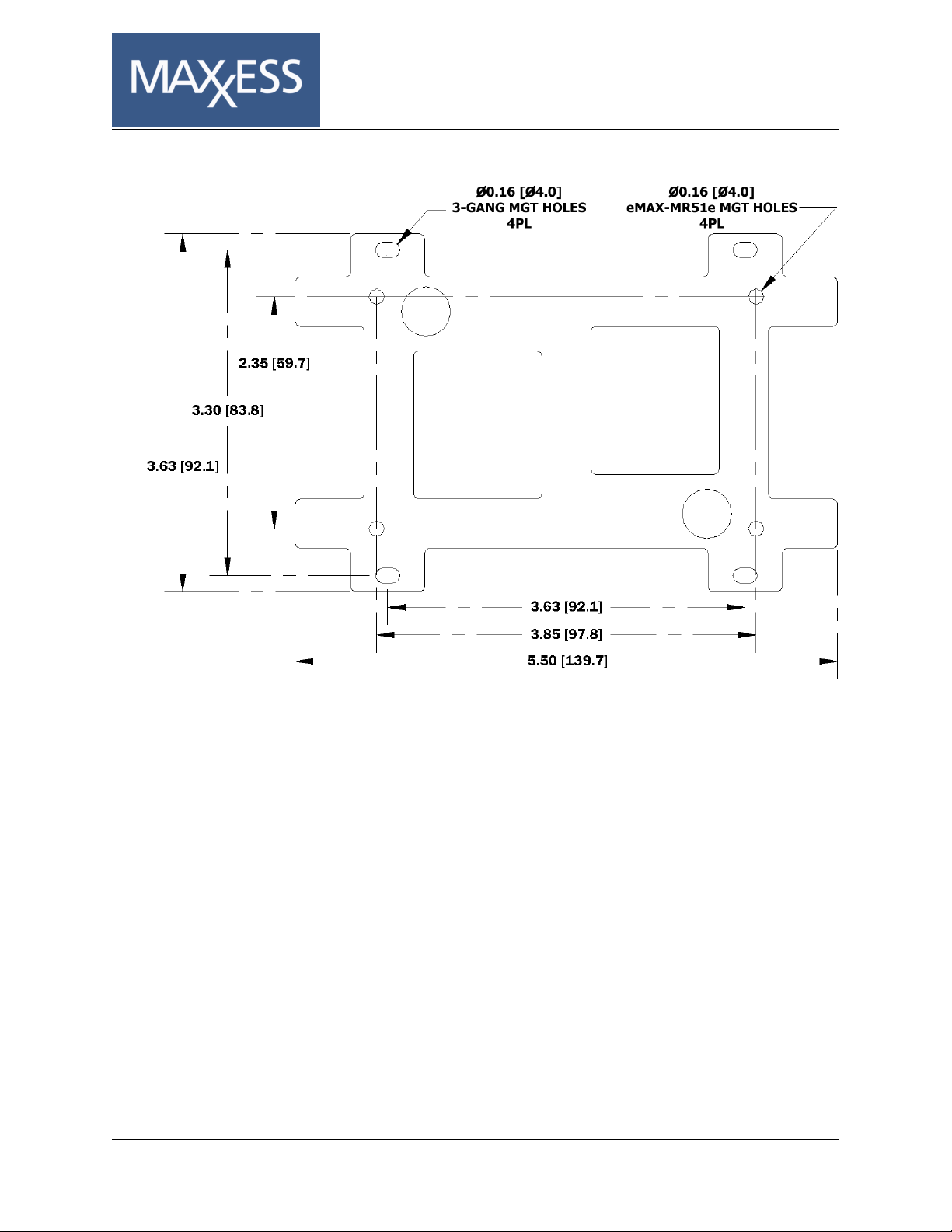

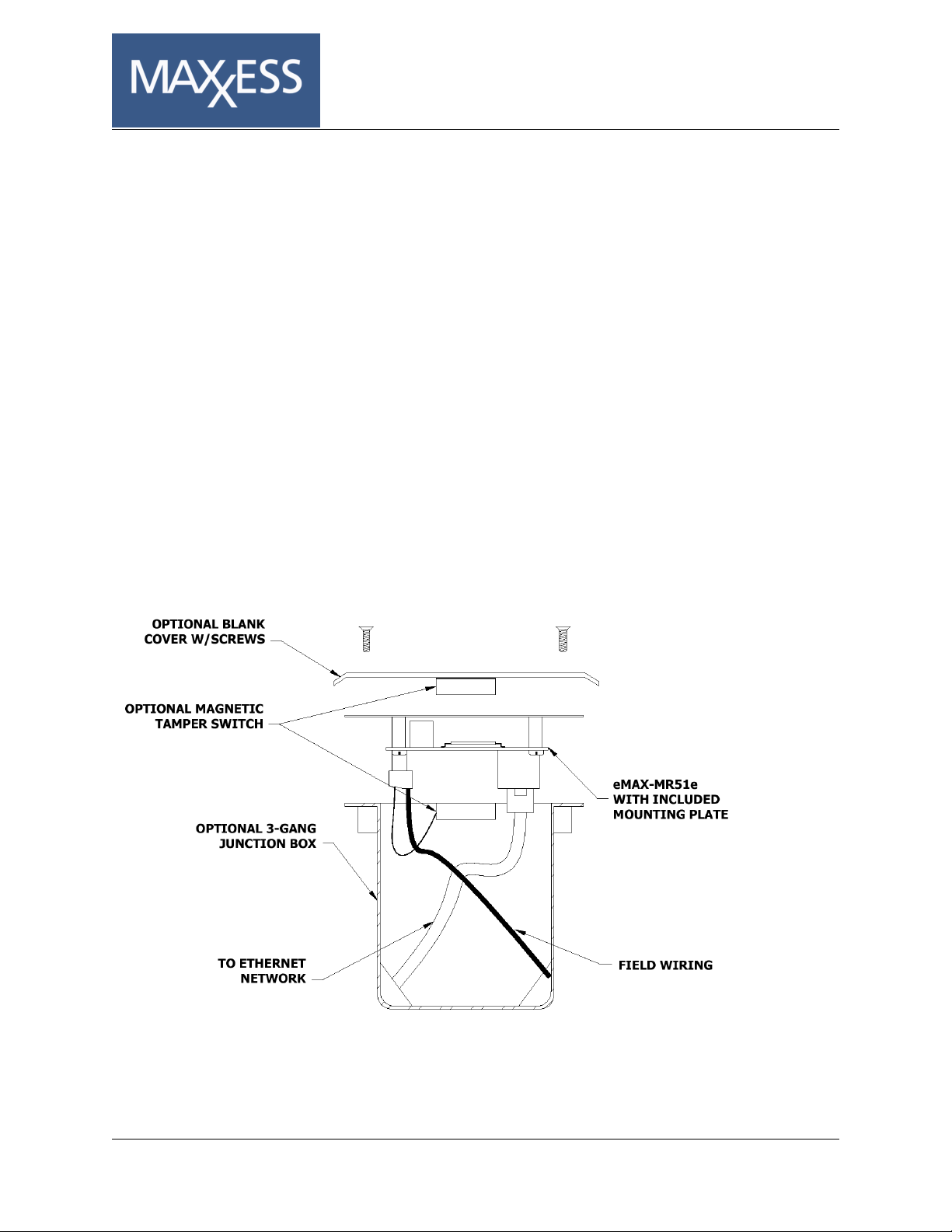

12. Mounting Information –3-Gang Electrical Box ………………………………………………………………………… 12
13. Enclosure Mounting ………………………………………………………………………………………………………………… 14
Change History:
Revision A Document Revision to add support for two (2) separate Doors w/readers, October, 2011
added enclosure mounting info, added TOC, and general document updates.
Revision B Document revised to include new American enclosure option and improve mounting August, 2012
of panels in enclosure.

August 20, 2012 eMAX-MR51e-Man Rev B 3 of 17
1. General:
The eMAX-MR51e Reader Interface Module provides a direct IP network connected, dual card reader interface
to an eMAX-EP Area Controller and the Maxxess eAxxess or eFusion Access Control System. The eMAX-MR51e
provides control of a single door with paired readers (Reader IN & Reader OUT), or two separate controlled
doors with a Card Reader to enter and a REX to exit. The eMAX-MR51e is Power over Ethernet (PoE) capable,
and provides interfacing for TTL/Wiegand/*RS-485 type readers to the door hardware. The on-board Ethernet
connection with PoE support enables an easy and cost-effective installation.
Note: For UL installations, POE powered devices shall not be used. Power for these devices
must be provided by a UL 294 listed, class 2 rated, power limited source (12Vdc).
The eMAX-MR51e provides two (2) Card Reader connection ports. The first reader port can accommodate a
reader that utilizes Wiegand (data0/data1), Magnetic Stripe (clock/data), or *2-wire RS-485 electrical signaling
standards, as well as one or two-wire LED controls, and buzzer control (one wire LED mode only). The second
reader port can accommodate a reader that utilizes Wiegand or Magnetic Stripe signaling, along with one or
two-wire LED controls, and buzzer control (one wire LED mode only).
The eMAX-MR51e provides two (2) configurable Form-C relay outputs to be used for door strike control or alarm
signaling. The relay contacts are rated at 5A @ 28Vdc, dry contact configuration. Four configurable inputs are
also provided for monitoring the door contacts, exit push buttons, or other alarm contacts. The eMAX-MR51e
requires power from PoE, or local 12Vdc. The eMAX-MR51e may be mounted in a 3-gang switch box with a
special mounting plate that is supplied with the unit. Alternatively, the eMAX-MR51e may be mounted in the
Maxxess enclosure on a din rail.
* Contact Factory for availability.

August 20, 2012 eMAX-MR51e-Man Rev B 4 of 17

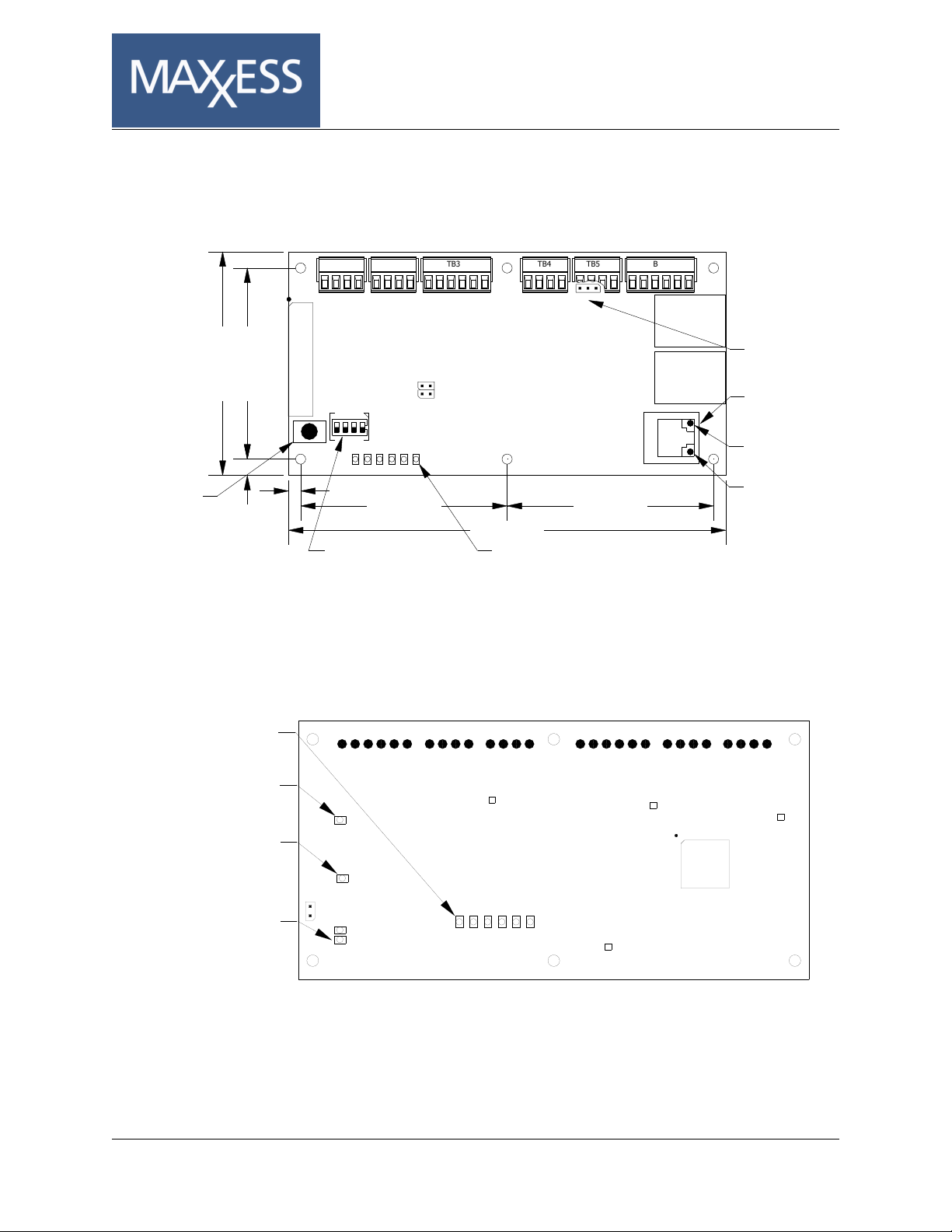

2. eMAX-MR51e Hardware:
1 2 3 4 5 6
VO
VO IN2 IN1
IN3
IN4
LED
BZR
CLK
DAT
GND
LED
BZR
CLK
DAT
NC GNDGND
VIN
NO
RLY 1
NO
RLY 2
NC CC
TB6
TB5
TB4
TB3
TB2
TB1
J1
6V
5V
3.3V
LNK
ACT
(K1)
(K2)
J4
D24
D19
ETHERNET
STATUS
LEDs
RELAY K1
LED
RELAY K2
LED
STATUS LEDs
SOLDER SIDE
2
3
4
1
S1
S2
1
2
3
4
5
6
ON
J3
J7
K1
K2
12V
J5
PoE
J6
TB1
TB2
TB3
TB4
TB5
TB6
1
1
1
1
1
1
IN1
IN2
IN3
IN4
VO
LED
BZR
CLK
DAT
GND
VO
GND
DAT
CLK
BZR
LED
GND
VIN
NO
NC
2-C
NO
NC
1-C
J2
0.2 [5.08]
2.35 [59.69]
0.15 [3.81]
2.55 [64.77]
2.55 [64.77]
5.4 [137.16]
STATUS LEDs
2.75 [69.85]
DIP SWITCH
RESET SWITCH
PoE/12Vdc
POWER SELECTOR
JUMPER
ETHERNET RJ45
CONNECTOR
ACTIVITY
(YELLOW)
LINK
(GREEN)

August 20, 2012 eMAX-MR51e-Man Rev B 5 of 17
3. eMAX-MR51e Terminal Blocks and Jumpers/Jacks:
eMAX-MR51e CONNECTIONS
TB1-1
IN1
Input 1 (Default Door 1 Sensor - NC)
TB1-2
IN1
TB1-3
IN2
Input 2 (Default Door 1 Request to Exit - NO)
TB1-4
IN2
TB2-1
IN3
Input 3 (Default Door 2 Sensor –NC, or spare)
TB2-2
IN3
TB2-3
IN4
Input 4 (Default Door 2 Request to Exit –NO, or spare)
TB2-4
IN4
TB3-1
VO
Reader 1 Power Output (12VDC)
TB3-2
LED
Reader 1 LED Output
TB3-3
BZR
Reader 1 Buzzer Output
TB3-4
CLK
Reader 1 CLK/Data 1/TR+
TB3-5
DAT
Reader 1 DAT/Data 0/TR-
TB3-6
GND
Reader 1 Ground
TB4-1
LED
Reader 2 LED Output
TB4-2
BZR
Reader 2 Buzzer Output
TB4-3
CLK
Reader 2 CLK/Data 1 Input
TB4-4
DAT
Reader 2 DAT/Data 0 Input
TB5-1
VO
Auxiliary Power Output (12Vdc)
TB5-2
GND
Auxiliary Power Output Ground
TB5-3
VIN
Input Power 12Vdc (from local power supply)
TB5-4
GND
Input Power Ground
TB6-1
NO
Relay K1 –Normally Open Contact (Default Door 1 Lock)
TB6-2
1-C
Relay K1 –Common Contact (Default Door 1 Lock)
TB6-3
NC
Relay K1 –Normally Closed Contact (Default Door 1 Lock)
TB6-4
NO
Relay K2 –Normally Open Contact (Default Door 2 Lock if used
or Auxiliary)
TB6-5
2-C
Relay K2 –Common Contact (Default Door 2 Lock if used or
Auxiliary)
TB6-6
NC
Relay K2 –Normally Closed Contact (Default Door 2 Lock if
used or Auxiliary)

August 20, 2012 eMAX-MR51e-Man Rev B 6 of 17
Jumpers:
JUMPER
SET AT
DESCRIPTION
J1
N/A
Factory Use Only
J2
N/A
Factory Use Only
J3
N/A
Factory Use Only
J4
N/A
Factory Use Only
J5
PoE
eMAX-MR-51e powered from the Ethernet
connection
12V
eMAX-MR-51e powered from an external 12Vdc
power source connected to TB5-3 (VIN), TB5-4 (GND)
J6
N/A
Ethernet Connection with POE support
J7
N/A
Factory Use Only
DIP Switches:
All S1 switch settings are unassigned and are reserved for future use. Set all switches to the OFF position.
4. Input Power:
The eMAX-MR51e is powered by one of two ways (jumper selected):
•Power can be supplied via the Ethernet connection using Power over Ethernet (PoE), fully compliant to IEEE
802.3af .
OR
•Power can be supplied via a local 12Vdc power supply (minimum 1A), wired to TB5-3 (VIN), TB5-4 (GND).
Note: For UL installations, POE powered devices shall not be used. Power for these devices
must be provided by a UL 294 listed, class 2 rated, power limited source (12Vdc).
Approved UL 294 listed, class 2 rated, power limited power supplies:
Altronix model: AL1012ULXPD4CB
Altronix model: AL1012ULXPD8CB
Altronix model: AL1012ULXPD16CB
GROUNDING
Care should be taken to ensure proper grounding of all Power Supply connections. Ensure that the 12Vdc Power
Supply that is providing power to the eMAX-MR51e is properly grounded to an Earth Ground point.

August 20, 2012 eMAX-MR51e-Man Rev B 7 of 17
5. Communication Wiring:
Communication between the eMAX-MR51e and the eMAX-EP controller is via TCP/IP Ethernet (10Base-
T/100Base-TX). The Communication connection is via the on-board Ethernet RJ45 connector. Cabling should
be standard Cat5 or Cat6 network cabling. It is recommended that the network connection to the eMAX-MR51e
is connected to the same Network Switch as the eMAX-EP Area Controller to which it is assigned to.

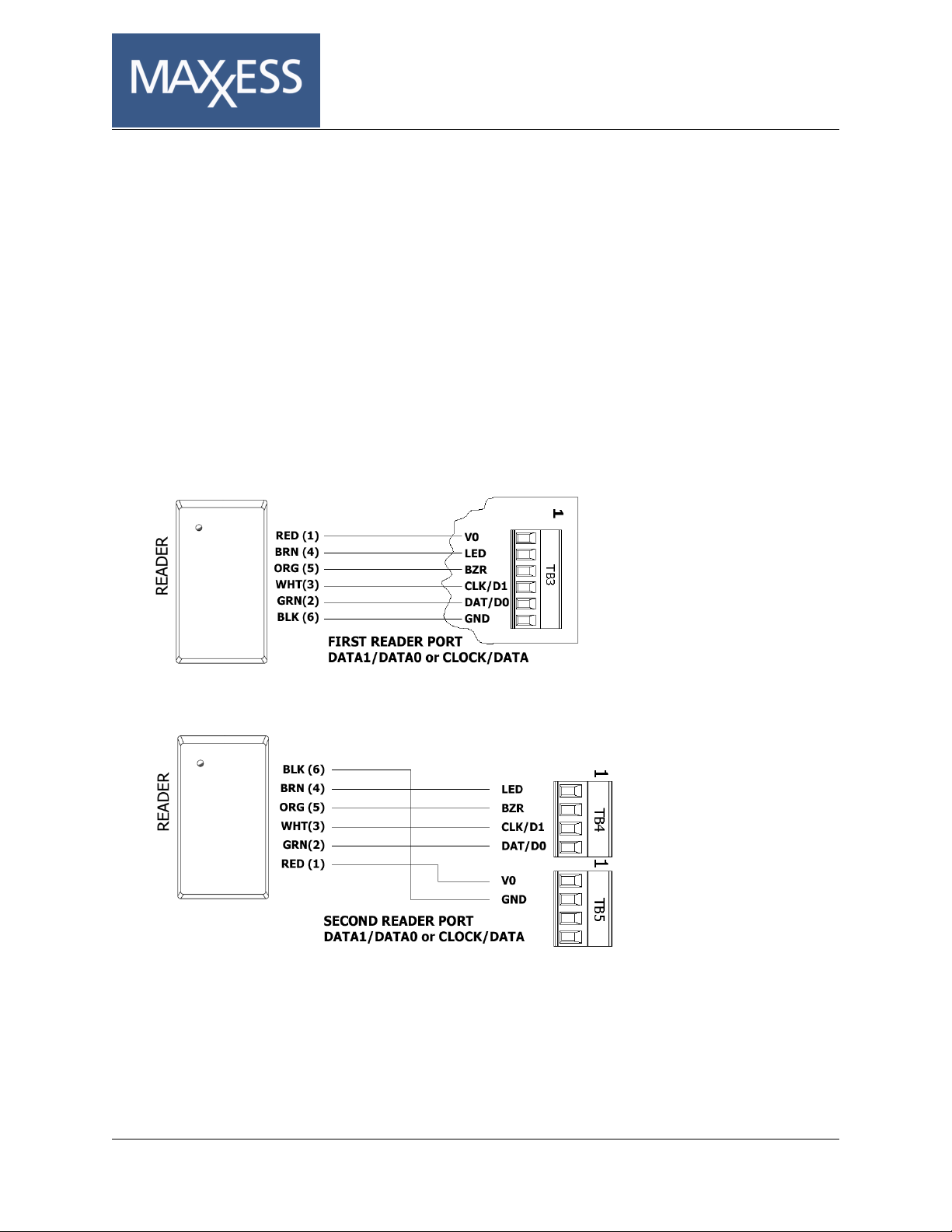

6. Reader Wiring:
The first reader port supports Wiegand, magnetic stripe, and *2-wire RS-485 electrical interfaces. The second
reader port supports Wiegand and magnetic stripe electrical interfaces. Power to the first reader is 12Vdc and
is current limited to 150mA. The second reader may be powered from the auxiliary power output on TB5-1 and
TB5-2. Readers that require different voltage or have high current requirements should be powered separately.
Refer to the reader manufacture specifications for cabling requirements. In the 2-wire LED mode, the Buzzer
output is used to drive the second LED. Reader port configuration is set via the host software.
NOTE: When powering a remote device(s) from the eMAX-MR51e, such as a Card Reader, care must be taken not
to exceed the maximum current rating available from the board. Size/gauge of the cable used must also be
verified. Consult the Specifications section of this document for details.

August 20, 2012 eMAX-MR51e-Man Rev B 8 of 17
7. Input Circuit Wiring:
Typically, the inputs of the eMAX-MR51e are used to monitor door position switches, request to exit devices, or
auxiliary alarm contacts. The operational defaults are; Input 1 for the Door 1 contact, Input 2 for the Door 1
Request to Exit, Input 3 for the Door 2 contact (or spare), Input 4 for the Door 2 Request to Exit (or spare). Input
circuits can be configured as Supervised or Unsupervised circuits. When unsupervised, reporting consists of
only the open or closed states.
When configured as Supervised, the input circuit will report not only open and closed, but will also detect and
report open circuit, shorted circuit, grounded circuit, and foreign voltage. A supervised input circuit requires
two resistors be added to the circuit wiring to facilitate proper reporting. The standard supervised circuit
requires two (2) 1K Ohm, 1% resistors and should be located as close to the sensor as possible.
Note: Grounded and foreign voltage states are not a requirement of UL 294 and therefore not verified by UL.
The input circuit wiring configurations shown are supported but may not be typical:
8. Relay Circuit Wiring:
Two relays are provided for controlling door lock mechanisms or alarm signaling. The relay contacts are rated
at 5A @ 28Vdc, dry contact configuration. Each relay has a Common pole (C), a Normally Open pole (NO) and a
Normally Closed pole (NC). When controlling the delivery of power to the door strike, the Normally Open and
Common poles are used. When momentarily removing power to unlock the door, as with a mag lock, the
Normally Closed and Common poles are used. Check with local building codes for proper egress door
installation.
Door lock mechanisms can generate feedback to the relay circuit that can cause damage and premature
failure of the relay. For this reason, it is recommended that either a diode or MOV (metal oxide varistor) be
used to protect the relay. Wire should be of sufficient gauge to avoid voltage loss.

August 20, 2012 eMAX-MR51e-Man Rev B 9 of 17
Diode Selection:
Diode current rating: 1x strike current. Diode breakdown voltage: 4x strike voltage.
For 12Vdc or 24Vdc strike, diode 1N4002 (100V/1A) typical.
MOV Selection:
Clamp voltage: 1.5x Vac RMS. For 24Vac strike, Panasonic ERZ-C07DK470 typical.
See documentation included with locking device regarding suppression diode requirements.
NOTE: It is possible for the eMAX-MR51e to provide power for a 12Vdc Door Lock/Strike. However, care must be
taken not to exceed the maximum current rating available from the board. Size/gauge of the cable used must also
be verified. Consult the Specifications section of this document for details.

August 20, 2012 eMAX-MR51e-Man Rev B 10 of 17
9. Status LEDs:
At power up, LEDs 2 through 6 are turned ON then OFF in sequence.
After the above sequence has completed successfully, the eMAX-MR51e goes to the “waiting for IP address”
mode:
LED
DESCRIPTION
1
Off-line: .2 second ON, .8 second OFF
2
Waiting for IP address: .5 second ON, .5 second OFF
3
Flashes when data is received from either reader
4
Input IN1 Status: OFF = Inactive, ON = Active, Flashing = Trouble
5
Input IN2 Status: OFF = Inactive, ON = Active, Flashing = Trouble
6
Input IN3 Status: OFF = Inactive, ON = Active, Flashing = Trouble
Note: There is no LED for IN4.
After the eMAX-MR51e has received its IP address, the following table describes the LEDs in the normal running
mode. If the communication is lost, the eMAX-MR51e reverts back to the “waiting for IP address” mode:
LED
DESCRIPTION
1
On-line, encryption disabled = .8 second ON, .2 second OFF
On-line, encryption enabled = four pulses, .1 second ON, .1 second OFF per
second
2
Flashes when there is host communication
3
Flashes when data is received from either reader
4
Input IN1 Status: OFF = Inactive, ON = Active, Flashing = Trouble
5
Input IN2 Status: OFF = Inactive, ON = Active, Flashing = Trouble
6
Input IN3 Status: OFF = Inactive, ON = Active, Flashing = Trouble
Note: There is no LED for IN4.
10. Configuring the eMAX-MR51e
The eMAX-MR51e is an IP Network connected device. Therefore, when adding the eMAX-MR51e to the
eAxxess or eFusion Access System, the hardware (MAC) address and the IP address will be required for the
device. The MAC address must be entered using a colon ( : ) as a separator between digits, not a dash ( - ).
{ i.e. 11:22:33:44:55:66 } The device panel address may be 0 –31.
It is recommended that the IP address be within the same subnet as the eMAX-EP controller that this eMAX-
MR51e is assigned to. The eMAX-MR51e must be no more than one hop from its eMAX-EP controller.

August 20, 2012 eMAX-MR51e-Man Rev B 11 of 17
The eMAX-EP controller will automatically assign the IP address to the eMAX-MR51e device after saving the
record. See section 9 for LED status confirmation of IP setting.
11. eMAX-MR51e Specifications:
The eMAX-MR51e Reader Interface Module is for use in low voltage, class 2 circuits only.
Power Input: PoE Power Input 12.95W, compliant to IEEE 802.3af
–OR –
12Vdc ±10%, 900mA maximum
Note: For UL installations, POE power shall not be used. Power for these
devices must be provided by an UL 294 listed, class 2 rated, power limited
source (12Vdc).
Power Output: 12Vdc @ 700mA maximum (reader and AUX outputs combined)
Reader 1 power out (TB3) 12 Vdc (10.3 through 12.6) @ 150mA maximum
AUX power out (TB5) 12 Vdc (10.7 through 13.0) @ 700mA maximum
Outputs: 2 Relay Outputs, Form-C contacts rated at 5A @ 28Vdc
Inputs: 4 unsupervised/supervised, End of Line resistors, 1k/1k ohm, 1/4W watt, 1%
standard. (resistors not included)
Reader Interface:
Reader Power: See Power Output above.
Reader LED Output: TTL compatible, high > 3V, low < 0.5V, 5mA source/sink maximum
Buzzer Output: Open collector, 5Vdc open circuit maximum, 10mA sink maximum
Reader Data Inputs: TTL compatible inputs or *2-wire RS-485
Cable Requirements:
Communication: TCP/IP Ethernet, Cat5 minimum
Power: 18AWG, 1 twisted pair
RS-485: 24AWG, 120-ohm impedance, twisted pair shielded. 4000-ft (1,219 m) max.
Alarm Inputs: 1 twisted pair per input, 30-ohm maximum
Reader data (TTL): 18AWG, 6 conductors, 500-foot (150 m) maximum
*Reader data (RS-485): 24AWG, 120-ohm impedance, twisted pair, shielded, 4000-ft (1,219 m) max.
(termination resistors not required)
* Contact factory for availability

August 20, 2012 eMAX-MR51e-Man Rev B 12 of 17
Mechanical:
Dimension: 5.5" (140mm)W x 2.75" (70mm)L x 0.96" (24mm)H without bracket
5.5" (140mm)W x 3.63" (92mm)L x 1.33" (34mm)H with bracket
Weight: 4.2 oz. (120g) without bracket
5.3 oz. (150g) with bracket
Environment:
Temperature: -55°C to +85°C, storage
0°C to +70°C, operating
Humidity: 10% to 95% Relative Humidity, non-condensing
12. Mounting Information –3 Gang Electrical Box:
Sources for the optional items shown below:
▪3-gang stainless steel blank cover: Leviton part number 84033-40.
Available from Graybar, part number 88158404
▪Magnetic switch set: G.R.I. part number: 505
Side View:

August 20, 2012 eMAX-MR51e-Man Rev B 13 of 17
Mounting Plate Dimensions:

August 20, 2012 eMAX-MR51e-Man Rev B 14 of 17
13. Enclosure Mounting:
Maxxess North American Enclosure (small 14.0” x 14.0”)
The eMAX-MR51e board may be mounted in the Maxxess enclosure. Up to six eMAX-MR51e panels per small
enclosure (four eMAX-MR51e panels will allow space for battery backup). Sheet metal screws are included with
the eMAX-EP1501 for mounting. The eMAX-EP1501 mounts in the holes marked A1 through A6.
Legend:
A1 through A6 - Mounting holes for EP1501 or MR51e.
B1 - Mounting holes for EP1502, MR52, MR16IN, MR16OUT.
C1 - Mounting holes for EP2500.
D1 and D2 - Mounting studs for Maxxess DIN rain.
E - Wall mounting holes.
F - Grounding stud.
G - Mounting holes for BUPS.

August 20, 2012 eMAX-MR51e-Man Rev B 15 of 17
Maxxess North American Enclosure (large 14.0” x 17.5”)
The eMAX-MR51e board may be mounted in the Maxxess enclosure. Up to eight eMAX-MR51e panels per Large
enclosure. Sheet metal screws are included with the eMAX-EP1501 for mounting. The eMAX-EP1501 mounts in
the holes marked A1 through A8.
Legend:
A1 through A8 - Mounting holes for EP1501 or MR51e.
B1 and B2 - Mounting holes for EP1502, MR52, MR16IN, MR16OUT.
C1 and C2 - Mounting holes for EP2500.
D1 and D2 - Mounting studs for Maxxess DIN rain.
E - Wall mounting holes.
F - Grounding stud.

August 20, 2012 eMAX-MR51e-Man Rev B 16 of 17
Maxxess European Enclosure
The eMAX-MR51e board may be mounted in the Maxxess enclosure. A total of four (4) eMAX-MR51e, two per din
track, fit per enclosure and allows space for the power supply and battery backup. Din rail mounting kits are sold
separately.
A A
A
B
B
B
B
B
B
B
B
B
B
C
C
C
C
D
E
E
E E
E
A
B
C
D
E
Housing Mounting Holes
EP1502, EP2500, MR16IN, MR16OUT & MR52 Mounting Holes
Din Rail Mounting Holes for MR50, MR51e & EP1501
Standard Power Supply Mounting Point
Monitored Power Supply Mounting Points

August 20, 2012 eMAX-MR51e-Man Rev B 17 of 17
Warranty
Maxxess Systems, Inc. warrants this product is free from defects in material and workmanship under normal
use and service with proper maintenance for one year from the date of factory shipment. Maxxess Systems, Inc.
assumes no responsibility for products damaged by improper handling or installation. This warranty is limited
to the repair or replacement of the defective unit.
There are no expressed warranties other than set forth herein. Maxxess Systems, Inc. does not make, nor
intends, nor does it authorize any agent or representative to make any other warranties, implied or otherwise,
and expressly excludes and disclaims all implied warranties of merchantability or fitness for a particular purpose.
Returned units are repaired or replaced from a stock of reconditioned units. Returns must be accompanied by
a return authorization number (RMA) obtained from customer service, and prepaid postage and insurance.
Liability
The Interface should only be used to control exits from areas where an alternative method for exit is available.
This product is not intended for, nor is rated for operation in life-critical control applications. Maxxess Systems
is not liable under any circumstances for loss or damage caused by or partially caused by the misapplication or
malfunction of the product. Maxxess Systems liability does not extend beyond the purchase price of the
product.
