Operating Instructions
Type 0262, 0263
2/2-way diaphragm control valve
2/2-Wege-Membransteuerventil
Vanne de commande à membrane 2 voies

2
1 THE OPERATING INSTRUCTIONS
The operating instructions contain important information.
▶Read the instructions carefully and follow the safety instructions
in particular.
▶Keep the instructions and provide them to every user.
▶The liability and warranty do not apply if the procedures in the
operating instructions are not followed.
1.1 Symbols
▶Highlights instructions to avoid a danger.
→Designates a procedure which you must carry out.
Warning of injuries:
Danger!
Immediate danger! Serious or fatal injuries.
Warning!
Possible danger! Serious or fatal injuries.
Caution!
Danger! Moderate or minor injuries.
Warning of damage:
note!
Table of contents
1 The operating instructions.......................................................... 2
2 Intended use.............................................................................. 3
3 Basic safety instructions ............................................................ 4
4 Product description ................................................................... 5
5 Structure and function ............................................................... 5
6 Technical data............................................................................ 7
7 Assembly................................................................................... 9
8 Start-up ................................................................................... 11
9 Removal .................................................................................. 12
10 Spare parts.............................................................................. 12
11 Transportation, storage, disposal ............................................. 14
english

3
2 INTENDED USE
Non-intended use of the diaphragm control valve Type 0262 and
Type 0263 may be dangerous to people, nearby equipment and
the environment.
▶The device is designed for controlling the ow rate of liquid and
gaseous media.
▶In potentially explosive atmospheres, only use devices approved
for use in those areas. These devices are labeled with a separate
Ex type label. For such use, note the information provided on
the separate Ex type label and the additional explosion-related
information or separate explosion-related operating instructions.
▶The device is approved for use in Zone 1 and 21 in accordance
with ATEX directive 2014/34/EU category 2 G/D.
▶Use according to the authorized data, operating conditions, and
conditions of use specied in the contract documents and oper-
ating instructions.
▶Use the device only in conjunction with third-party devices and
components recommended and authorized by Bürkert.
▶Correct transportation, storage and installation as well as care-
ful operation and maintenance are essential for reliable and
fault-free operation.
▶Use the device for its intended purpose only.
2.1 Warranty
The warranty is only valid if the device is used as intended in
accordance with the specied application conditions.
2.2 Information on the Internet
The operating instructions for Type 0262 and 0263 can be found on
the Internet at: www.burkert.com
english

4
3 BASIC SAFETY INSTRUCTIONS
These safety instructions do not consider any contingencies or inci-
dents which occur during installation, operation and maintenance.
The operator is responsible for observing the location-specic safety
regulations, also with reference to the personnel.
Risk of injury due to high pressure.
▶Before working on the system or device, switch o the pressure
and vent or drain lines.
Risk of injury from electric shock.
▶Before working on the system or device, switch o the power
supply and secure to prevent reactivation.
▶Observe the applicable accident prevention and safety regula-
tions for electrical equipment.
Risk of burns during continuous operation due to hot device
surface.
▶Keep device away from highly ammable substances and
media and do not touch with bare hands.
General hazardous situations.
To prevent injuries:
▶Operate the device only in perfect state and in consideration of
the operating instructions.
▶Do not make any changes to the device and do not subject it to
mechanical stress.
▶Secure device or system to prevent unintentional activation.
▶Only trained technicians may perform installation and mainte-
nance work.
▶Install the device according to the regulations applicable in the
country.
▶After an interruption in the power supply, ensure that the pro-
cess is restarted in a controlled manner.
▶Observe the general rules of technology.
english

5
4 PRODUCT DESCRIPTION
4.1 General description
The externally controlled valve Type 0262 and 0263 is pneumatically
actuated.
It uses neutral gases or air (control media) to control the ow rate of
media, e.g. water, alcohol, oil, fuel, hydraulic uid, saline solution,
lye, organic solvent and steam.
4.2 Properties
•Glandless, double spindle seal,
•Actuator housing made of acid and lye-resistant plastic,
•High ow values through the stream-lined valve body,
•Type 0263 has a hermetically sealing diaphragm between the
valve body and actuator.
4.3 Device versions
A variant for steam application with PTFE seal is available for Type
0262.
5 STRUCTURE AND FUNCTION
5.1 Structure
The valve consists of a membrane actuator and a 2-way valve
body.
Control diaphragm
Spring plate
Lip seal
O-ring
Seal
Body

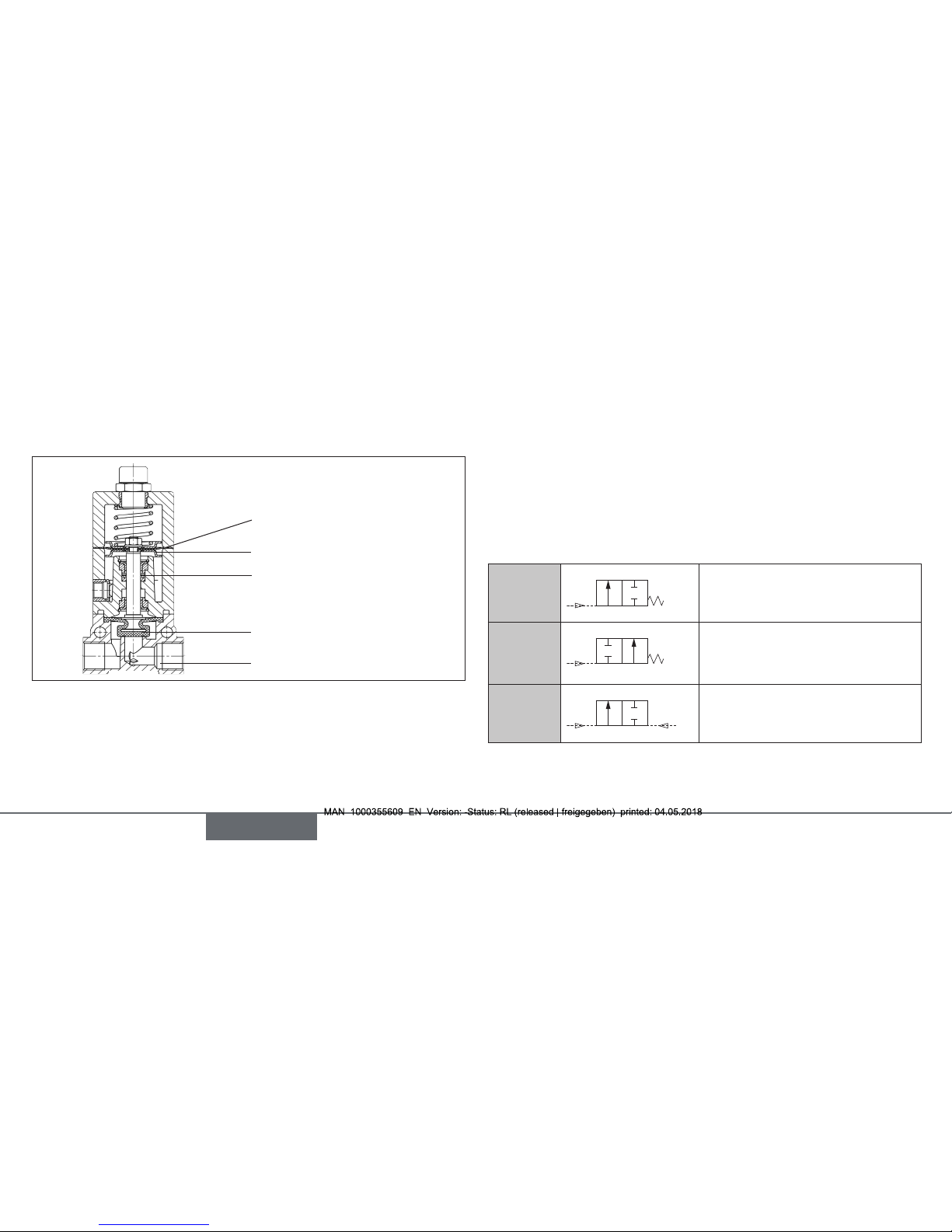

Fig. 1: Structure of Type 0262
english

6
In Type 0263 the actuator is hermetically sealed from the medium
by a diaphragm.
Control diaphragm
Spring plate
Lip seal
Diaphragm
Body
Fig. 2: Structure of Type 0263
5.2 Function
Spring force (CFA) or pneumatic control pressure (CFB and CFI)
generates the closing force on the seat seal or diaphragm. The
force is transferred via a spindle which is connected to the control
diaphragm.
5.2.1 Control function
Control function (CF)
CFA
P
A
Closed by spring force in rest
position
CFB
P
A
Opened by spring force in rest
position
CFI
P
A
Actuating function via reciprocal
pressurization
english

7
5.2.2 Incoming ow under seat
The valve is closed against the medium ow by spring force
(control function A, CFA) or by control pressure (control function B,
CFB). As the medium pressure is under the seat seal, this pressure
contributes to opening of the valve.
note!
Seat seal or diaphragm subject to wear.
When the incoming ow is over the seat, powerful water
hammers may occur, especially in the case of liquid media.
▶Do not use device for incoming ow over the seat.
▶Observe arrow for direction of ow on the valve body.
6 TECHNICAL DATA
6.1 Conformity
The device conforms to the EU directives as per the EU Declaration
of Conformity (if applicable).
6.2 Standards
The applied standards, which are used to demonstrate conformity
with the directives, are listed in the EU type examination certicate
and/or the EU Declaration of Conformity (if applicable).
6.3 Type label
Type
Control function
Orice Seal material
Body material
Order number
Control pressure
Connection type, operating
pressure
0262 A 25,0 FKM MS
Made in Germany
0028410
W12MN
Pilot 3-6 bar
G1 P
N 0 -1 bar
english

8
6.4 Operating conditions
6.4.1 Temperature ranges
Type Seal material Medium tem-
perature [°C]
Ambient tem-
perature [°C]
0262 NBR -10...+90 -10...+90
FKM -10...+100
EPDM -10...+100
PTFE/EPDM -10...+140
PTFE/FKM -10...+140
0263 NBR -10...+90 -10...+90
FKM -10...+100
EPDM -10...+100
If a pilot valve is used, the maximum ambient temperature is
+55 °C.
Temperature of the control medium max. +90 °C
6.4.2 Pressure ranges
Type Orice Medium pressure for circuit
function [bar]
Max.
control
pressure
[bar]
A normal
spring
A rein-
forced
spring
B
normal
spring
0262 10 0...5 0...10 0...10 6
12 0...3.5 0...6 0...10 6
20 0...1.5 0...1.5 6
25 0...1 0...1 6
0263 10 0...2.5 0...5 0...10 6
12 0...2 0...4.5 0...10 6
Observe minimum control pressure according to the speci-
cations on the type label.
english

9
6.4.3 Permitted media
Seal material Permitted media
NBR Neutral media, e.g. compressed air, town
gas, water, hydraulic oil
FKM Per solutions, oxygen, hot air
EPDM Oil and grease-free media, e.g. hot water,
alkaline washing and bleaching lyes
PTFE/EPDM Oil and grease-free media, e.g. hot water
and steam
PTFE/FKM Hot oil, hydrocarbons, aromatic compounds
and steam
Control medium neutral gases and liquids, in particular air,
water, hydraulic uids up to max. +90 °C
7 ASSEMBLY
Danger!
Risk of injury from high pressure and discharge of medium.
▶Before working on the device or system, switch o the pressure.
Vent or drain lines.
Risk of injury from electric shock.
▶Before working on the device or system, switch o the power
supply. Secure against reactivation.
▶Observe applicable accident prevention and safety regulations
for electrical equipment.
Warning!
Risk of injury due to incorrect assembly.
▶Assembly may be carried out only by trained technicians and
with the appropriate tools.
▶Secure system against unintentional activation.
▶Following assembly, ensure a controlled restart.
english

10
7.1 Before installation
Installation position: optional, preferably with actuator face up.
→Remove contaminants from pipelines.
→Ensure that the pipelines are aligned.
→Observe ow direction.
7.2 Installation
→Connect valve body to pipeline.
Ensure that the valve body is installed torsionally rigid.
Warning!
Danger if incorrect lubricants used.
Unsuitable lubricant may contaminate the medium. In oxygen
applications there is a risk of an explosion.
▶Only use approved lubricants for specic applications, such as
oxygen or analytical applications.
7.3 Pneumatic connection
Warning!
Risk of injury due to unsuitable hoses.
▶Use only hoses which can withstand the pressure and tempera-
ture of the medium.
▶Observe technical data of the hose manufacturer.
For control function I: Danger due to the control pressure failing.
If the control pressure fails, the valve remains in an undened position.
▶For a controlled restart, pressurize the device with control pres-
sure and then connect the medium.
7.3.1 Connection of the control medium
Control function A:
→Connect control medium to lower connection of the actuator.
Control function B:
→Connect control medium to upper connection of the actuator.
Control function I:
→Connect control medium to upper and lower connections of the
actuator. Pressure on the lower connection opens the valve.
Pressure on the upper connection closes the valve.
english

11

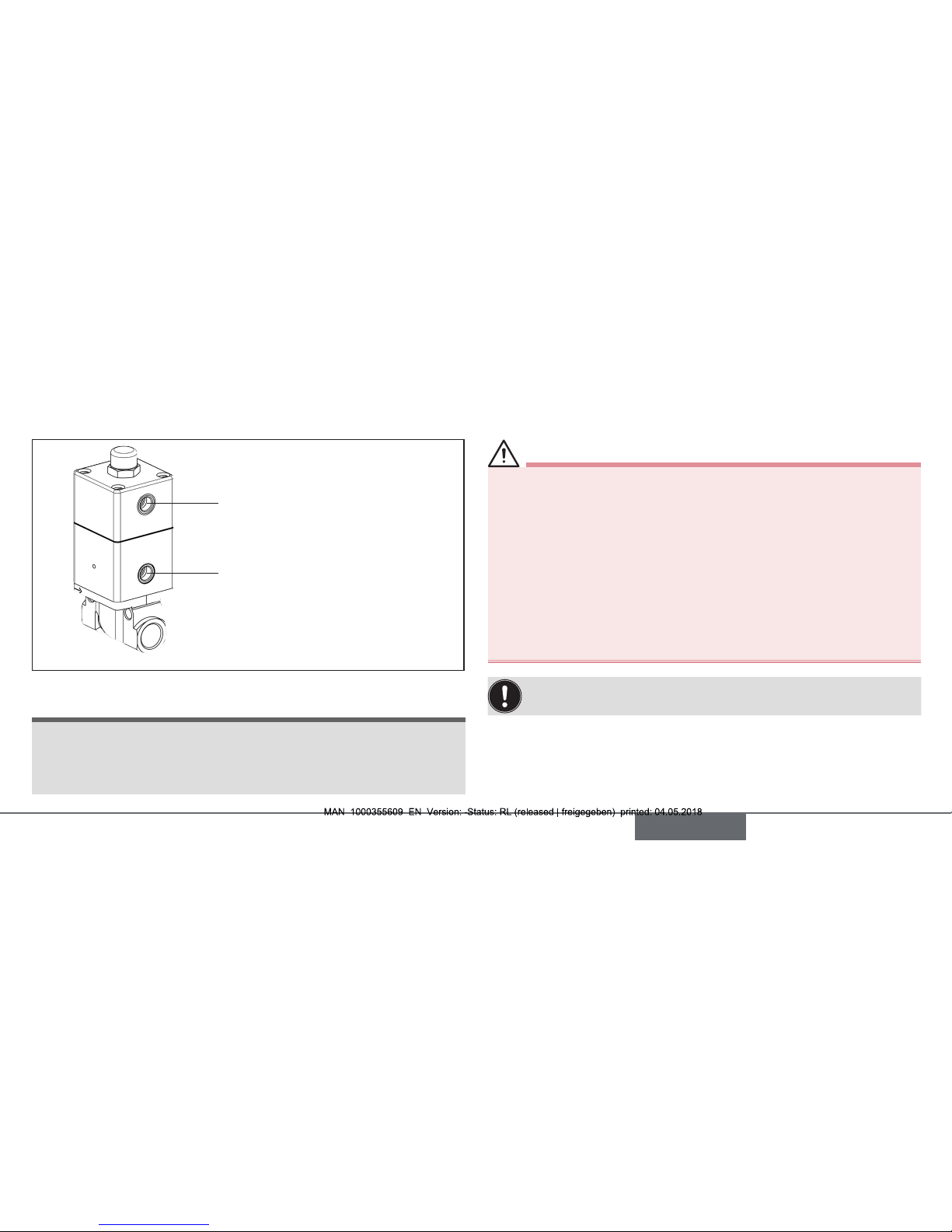

Connecting thread: G 1/8
Upper pilot air port
Lower pilot air port
Fig. 3: Pilot air ports
note!
Seat seal and diaphragm subject to wear with control
function I.
▶To prevent powerful water hammers with CFI, contact the pilot
air via an intake air throttle.
8 START-UP
Warning!
Risk of injury due to incorrect operation.
▶Prior to start-up, make sure operating personnel are familiar
with the operating instructions and have understood them.
▶The device or system should be started up by fully trained
personnel only.
For control function I: Danger due to the control pressure
failing.
If the control pressure fails, the valve remains in an undened
position.
▶For a controlled restart, pressurize the device with control pres-
sure and then connect the medium.
Observe specications on the type label and in the chapter
Technical data.
→Set pilot air according to specications on the type label.
english

12
9 REMOVAL
Warning!
Risk of injury due to improper removal.
▶Removal should be performed only by trained personnel using
suitable tools.
Risk of injury from hazardous media.
▶Before loosening lines or valves, ush out hazardous media,
depressurize and drain the lines.
→Loosen pneumatic connection.
→Remove device.
10 SPARE PARTS
Caution!
Risk of injury and/or damage due to the use of incorrect parts.
Incorrect accessories and unsuitable spare parts may cause injuries
and damage the device and the surrounding area.
▶Use original accessories and original spare parts from Bürkert
only.
The following spare parts are available for Type 0262 and 0263:
•Actuator set (consists of Pos. 1 and Pos. 2).
•Seal set (consists of Pos. 2).
DN10 DN20, DN25
1
1
2
english

13
10.3.1 Actuator set Type 0262
Seal material Circuit function A
DN10/12 DN20 DN25
EPDM 015 082 015 205 015 211
NBR 015 196 015 206 015 212
FKM 015 197 015 207 015 213
Seal material Circuit function B
DN10/12 DN20 DN25
EPDM 015 202 015 208 015 214
NBR 015 203 015 209 015 215
FKM 015 204 015 210 015 216
10.3.2 Actuator set Type 0263
Seal material Circuit function
A B
EPDM 015 217 015 220
NBR 015 218 015 221
FKM 015 219 015 222
10.3.3 Seal set Type 0262
Seal material Orice
DN20 DN25
EPDM 624 343 624 346
NBR 624 341 624 344
FKM 624 342 624 345
english

14
11 TRANSPORTATION, STORAGE,
DISPOSAL
note!
Damage in transit due to inadequately protected devices.
•Protect the device against moisture and dirt in shock-resistant
packaging during transportation.
•Observe permitted storage temperature.
Incorrect storage may damage the device.
•Store the device in a dry and dust-free location.
•Storage temperature. -20 to +55 °C.
Damage to the environment caused by device components
contaminated with media.
•Dispose of the device and packaging in an environmentally
friendly manner.
•Observe applicable disposal and environmental regulations.
english

www.burkert.com
International address
www.burkert.com
Manuals and data sheets on the Internet : www.burkert.com
Bedienungsanleitungen und Datenblätter im Internet: www.buerkert.de
Manuels d'utilisation et fiches techniques sur Internet: www.burkert.fr
© Bürkert Werke GmbH & Co. KG, 2018
Operating Instructions 1804/03_EU-ML_00893165 / Original DE
Bürkert Fluid Control Systems
Sales Center
Christian-Bürkert-Str. 13-17
D-74653 Ingelfingen
Tel. + 49 (0) 7940 - 10-91 111
Fax + 49 (0) 7940 - 10-91 448
E-mail: [email protected]
