MAXXTER ACT-WNP-RP-002 User manual

USER MANUAL
HANDBUCH
HANDLEIDING
MANUEL DESCRIPTIF
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
КЕРІВНИЦТВО КОРИСТУВАЧА
ACT-WNP-RP-002
WIFI REPEATER, 300 MBPS
WIFI-REPEATER, 300 MBPS
WIFI VERSTERKER, 300 MBPS
RÉPÉTEUR WIFI, 300 MBPS
РЕТРАНСЛЯТОР WIFI СИГНАЛОВ, 300 МБИТ/СЕК
РЕТРАНСЛЯТОР WIFI СИГНАЛІВ, 300 МБИТ/СЕК

2
All brands and logos are registered trademarks of their respective owners
ACT-WNP-RP-002 WIFI REPEATER, 300 MBPS
Features
300 Mbps WiFi repeater with integrated antennas
Supports all IEEE802.11b/g/n WiFi standards (2.4GHz networks)
Up to 300 Mbps data transfer rate via the wireless 802.11n protocol
Maximum WLAN security with WPA2, WPA and WEP(128/64)
WPS button for easy WPS security setup
Can also be used as a normal wireless router
In ’repeater’ mode the LAN port can be used as wired network
connection
Practical signal strength indicator
Specifications
Supported standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b,
IEEE 802.3, IEEE 802.3u
Wireless transmission rate: max. 300 Mbps
Ports: 1 x 10/100M RJ45
Chipset: Realtek 8196E
Frequency band: 2.4~2.4835 GHz
Channels: 1-13 (Europe)
Power class: RF power 14 dBm (max. EIRP)
Internal antenna gain (typical): 3 dBi ±1 dBi

3
All brands and logos are registered trademarks of their respective owners
ACT-WNP-RP-002 WIFI REPEATER, 300 MBPS
Receive sensitivity 11n : -70dBm@10% PER; 11g : -70dBm@10%
PER; 11b: -85dBm@8% PER
Spread Spectrum: DSSS
Modulation: BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/
64-QAM)
Transmission distance: up to 100 m (indoor), 300 m (outdoor open air),
depending on the environment
Power consumption: up to 3 W
Supports 64/128bit WEP, complies with 128 bit WPA/WPA2
Supported modes: Router mode, repeater mode, AP client mode
Cascading: up to 5 levels (depending on usage environment)
Dimensions: 90 x 40 x 60 mm (W x D x H)
Net weight: 150 g
Operating temperature: 0 ~ 40 °C
Storage temperature: -40 ~ 70 °C
Operating humidity: 10 ~ 90% non-condensing
Storage humidity: 5 ~ 95% non-condensing

4
All brands and logos are registered trademarks of their respective owners
ACT-WNP-RP-002 WIFI REPEATER, 300 MBPS

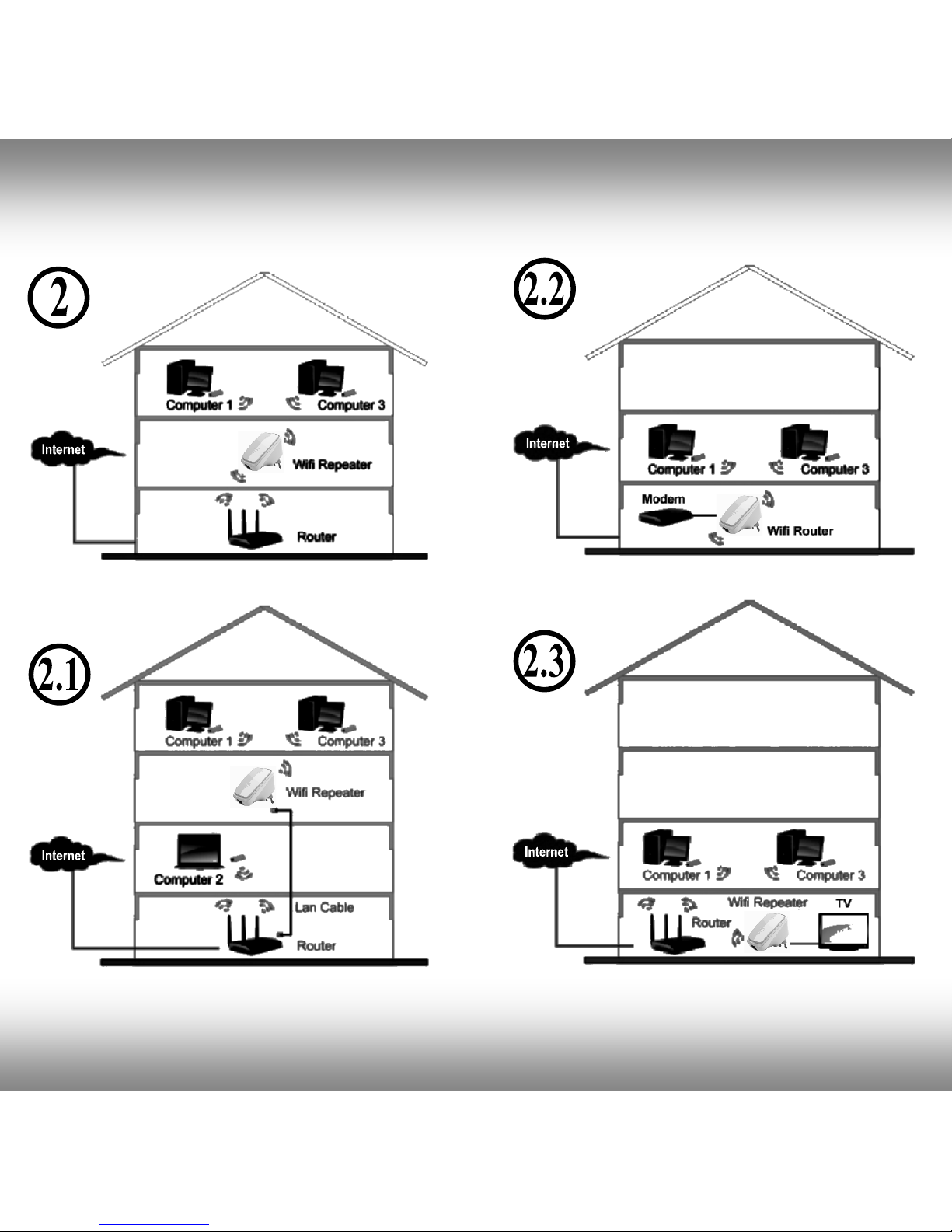

5
All brands and logos are registered trademarks of their respective owners
ACT-WNP-RP-002 WIFI REPEATER, 300 MBPS

6
All brands and logos are registered trademarks of their respective owners
ACT-WNP-RP-002 WIFI REPEATER, 300 MBPS

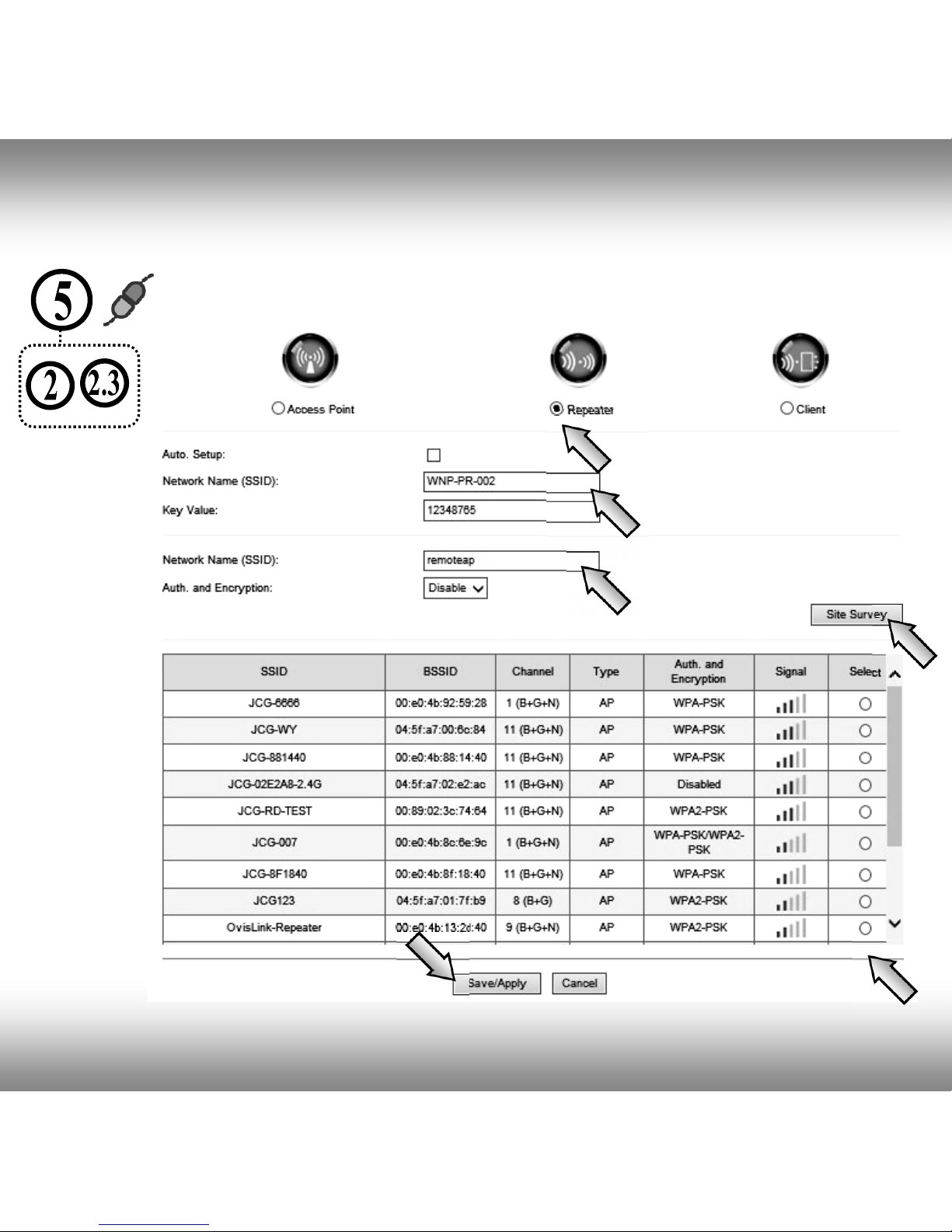

12348765
WiFi-Repeater

7
All brands and logos are registered trademarks of their respective owners
ACT-WNP-RP-002 WIFI REPEATER, 300 MBPS

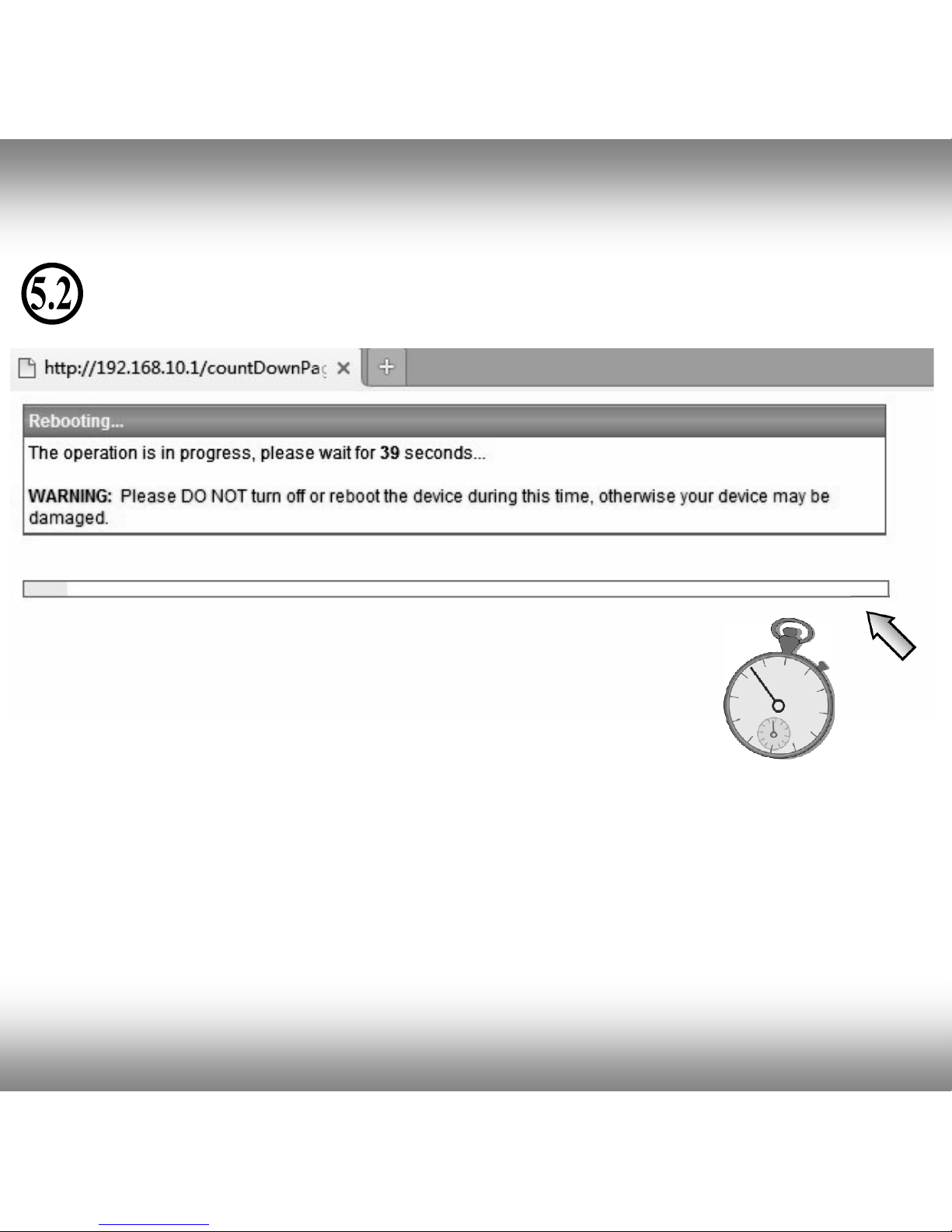

8
All brands and logos are registered trademarks of their respective owners
ACT-WNP-RP-002 WIFI REPEATER, 300 MBPS

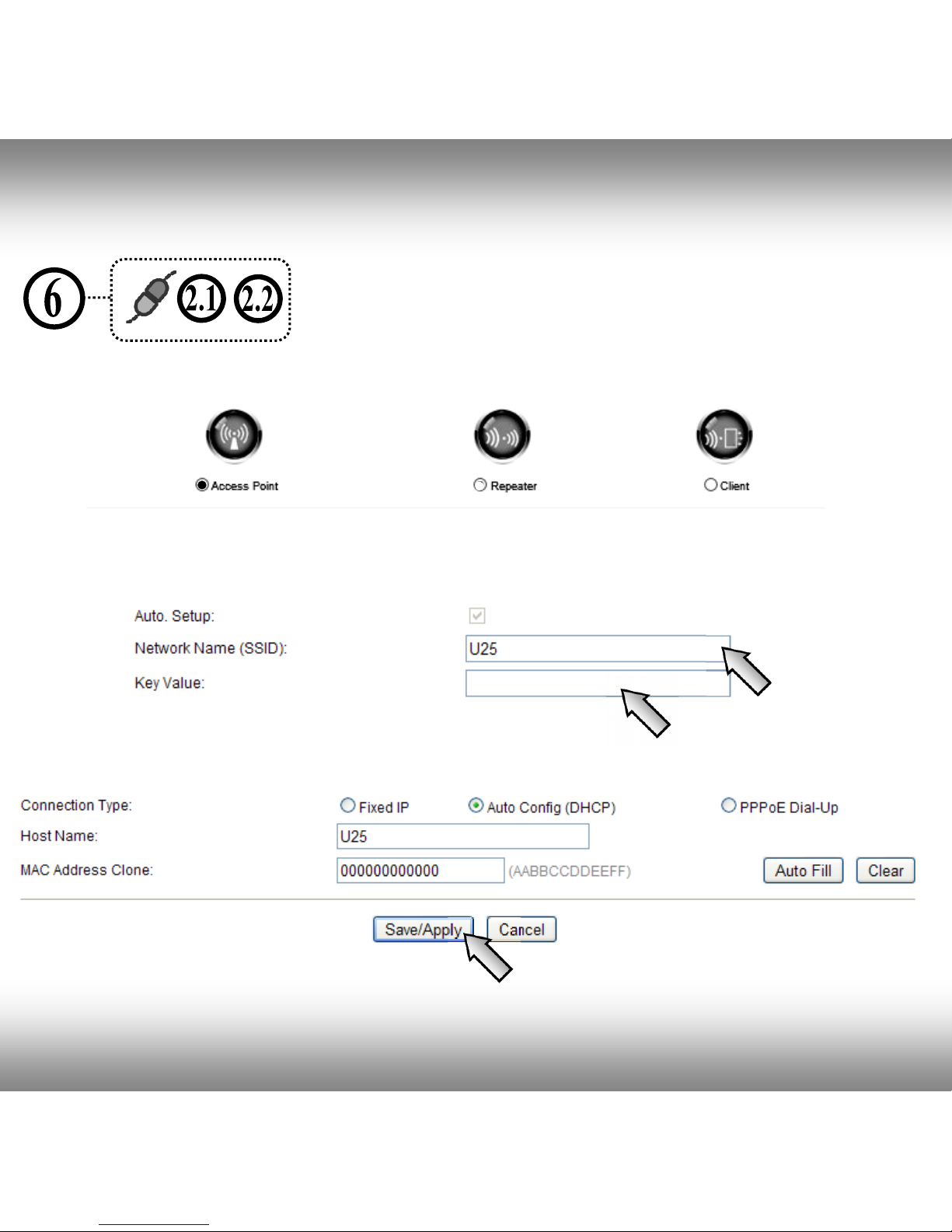

9
All brands and logos are registered trademarks of their respective owners
ACT-WNP-RP-002 WIFI REPEATER, 300 MBPS

10
All brands and logos are registered trademarks of their respective owners
ACT-WNP-RP-002 WIFI REPEATER, 300 MBPS

11
All brands and logos are registered trademarks of their respective owners
ACT-WNP-RP-002 WIFI REPEATER, 300 MBPS
Waste disposal:
Do not deposit this equipment with the
household waste. Improper disposal can harm
both the environment and human health. For
Information about waste collection facilities for
used electrical and electronic devices, please
contact your city council or an authorized
company for the disposal of electrical and
electronic equipment.
Entsorgungshinweise:
Werfen Sie dieses Gerät nicht in den
Hausmüll. Unsachgemäße Entsorgung kann
sowohl der Umwelt als auch der menschlichen
Gesundheit schaden. Informationen zu
Sammelstellen für Altgeräte erhalten Sie bei
Ihrer Stadtverwaltung oder einer autorisierten
Stelle für die Entsorgung von Elektro-und
Elektronikgeräten.
Richtlijnen m.b.t. afvalverwerking
Batterijen en accu’s dienen als klein-
chemisch afval afgeleverd te worden bij
toegewezen afvalverzamelpunten (zie
www.afvalgids.nl). U dient ervoor te zorgen
dat de batterijen/accu’s leeg zijn en dus geen
stroom meer kunnen leveren. Let op, de
batterijen/accu’s dienen onbeschadigd
ingeleverd te worden.
Gooi dit product niet weg in uw vuilnisbak. Dit
kan zowel het milieu als de menselijke
gezondheid schade toebrengen. Informatie
over het inleveren van dit product kunt u
inwinnen bij uw gemeentelijke vuilnisdienst of
andere geautoriseerde instelling in uw buurt.
Traitement des déchets:
Ne jetez pas cet appareil dans les déchets
domestiques. Un traitement inapproprié peut
être dommageable à l'environnement et à la
santé humain.
Vous trouvez des informations sur les centres
de rassemblement des appareils vieux chez
l'administration municipale ou
chez un centre autorisé pour le traitement des
appareils électriques ou électroniques.

12
All brands and logos are registered trademarks of their respective owners
ACT-WNP-RP-002 WIFI REPEATER, 300 MBPS
www.maxxter.biz
(ENG) Declaration of conformity This product is tested and complies with
the essential requirements of the laws of member states concerning R&TTE
(1999/5/EC). The CE declaration can be found under www.maxxter.biz
(NL/BE) Verklaring van overeenstemming
Dit product is getest en voldoet aan alle geldende nationale en Europese
richtlijnen en regelgeving met betrekking tot R&TTE (1999/5/EC). Dit product
heeft een CE-markering en de bijbehorende CE-verklaring van
overeenstemming is beschikbaar op onze website: www.maxxter.biz
(FR/BE) Déclaration de conformité
Le produit est contrôlé et rempli les exigences des directives nationales et
de la directive R&TTE (1999/5/EC). La conformité CE a été démontrée et les
déclarations correspondantes sont déposées chez le fabricant a:
www.maxxter.biz
(DE) Konformitätserklärung
Dieses Produkt wurde getestet und stimmt mit den grundlegenden
Anforderungen der Richtlinie R&TTE 1999/5/EC) überein. Die
Konformitätserklärung kann auf unserer Webseite www.maxxter.biz
eruntergeladen werden.
