Maytag MEW6627DDB - 27" Electric Double Oven User manual

Cutout depth: 24"
27"
Penetration into cabinet:
Cutout height:
Recommended cutout location from floor :
Distance from face of cabinet to
front of closed door handle:
Cutout width:
Minimum cabinet width:
Distance from face of cabinet to
outer edge of open doors (Door swing):
Overall unit width:
Overall unit height:
Top overlap:
Bottom overlap:
Right side overlap:
Left side overlap: 5/8"
5/8"
0"
1/4"
23 1/2"
50 1/4"
26 3/4"
15/16"
20 1/2"
4" - 12"
50"
25 1/2"

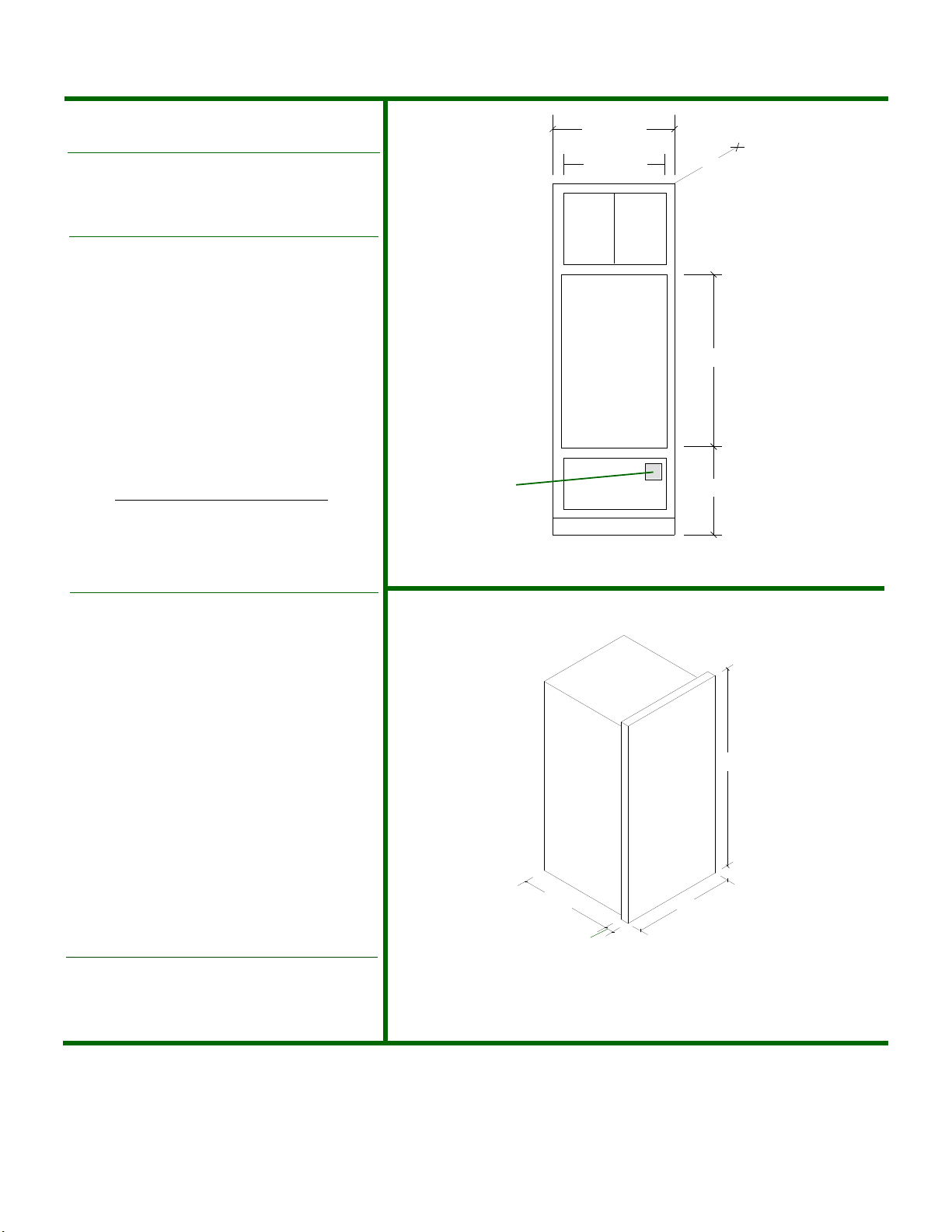

Overall Dimensions
(not to scale)
50 1/4"
26 3/4"
Cabinet Opening
(not to scale)
4" - 12"
50"
25 1/2"
27"
24"
Oven overlap distances when using
cutout dimensions listed above:
15/16"
23 1/2"
Provide for
120/208-240 volt
electrical
connection in this
area.
• Cutout in cabinet should be level and straight. There
are no provisions to level the unit after it is installed.
• Do not block air intake slots along bottom of oven.
• Construct 5/8" minimum plywood floor flush with
bottom of opening. Floor must be level and straight and
capable of supporting 250 lbs.
• A three-wire, single phase, A.C. 120/208-240 volt,
60Hz cycle electrical system protected by a 40 amp
fuse or comparable circuit breaker must be provided .
7/8" O.D. flexible cable 4 feet long is furnished by
manufacturer. Mount junction box in area under
plywood floor if adequate lower cabinet space is
available. Locate 1 1/4" conduit access hole in the
back right hand side of the plywood floor.
• For European style cabinets (flush front) the required
clearance for operation of the oven door is a minimum
spacing of 1" between the cutout and the door, hinge or
drawer of the cabinet.
See page 2 for additional information
www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]
• Dimensions (Actual Size) •
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at [phone] •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of odd numbered months at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
27" Electric Double Ovens:
MEW6627DDB, MEW6627DDS, MEW6627DDQ and
MEW6627DDW
• Product Model Number (s): •
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2003.
This Data Sheet Includes Information On
BN207.5 • A213B276 • • 031211 • 82155 • 90845
• Additional Information •
213
Maytag

Oven Control Console
There must be 1"
minimum between
bottom of cabinet
door and top of
oven console.
Cabinet door
1" minimum from oven
opening floor to top of
cabinet door or drawer
front.
1 1/2"
minimum
wide rail
Side View
(not to scale)
Cabinet door or
drawer front
Oven opening floor
Additional Information:
Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or
outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00.
Copyright © Dimension Express, 2003.
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand [phone]
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at [phone] •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of odd numbered months at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
27" Electric Double Ovens:
MEW6627DDB, MEW6627DDS, MEW6627DDQ and
MEW6627DDW
• Product Model Number (s): •
This Data Sheet Includes Information On
BN207.5 • A213B276 • • 031211 • 82155 • 90845
