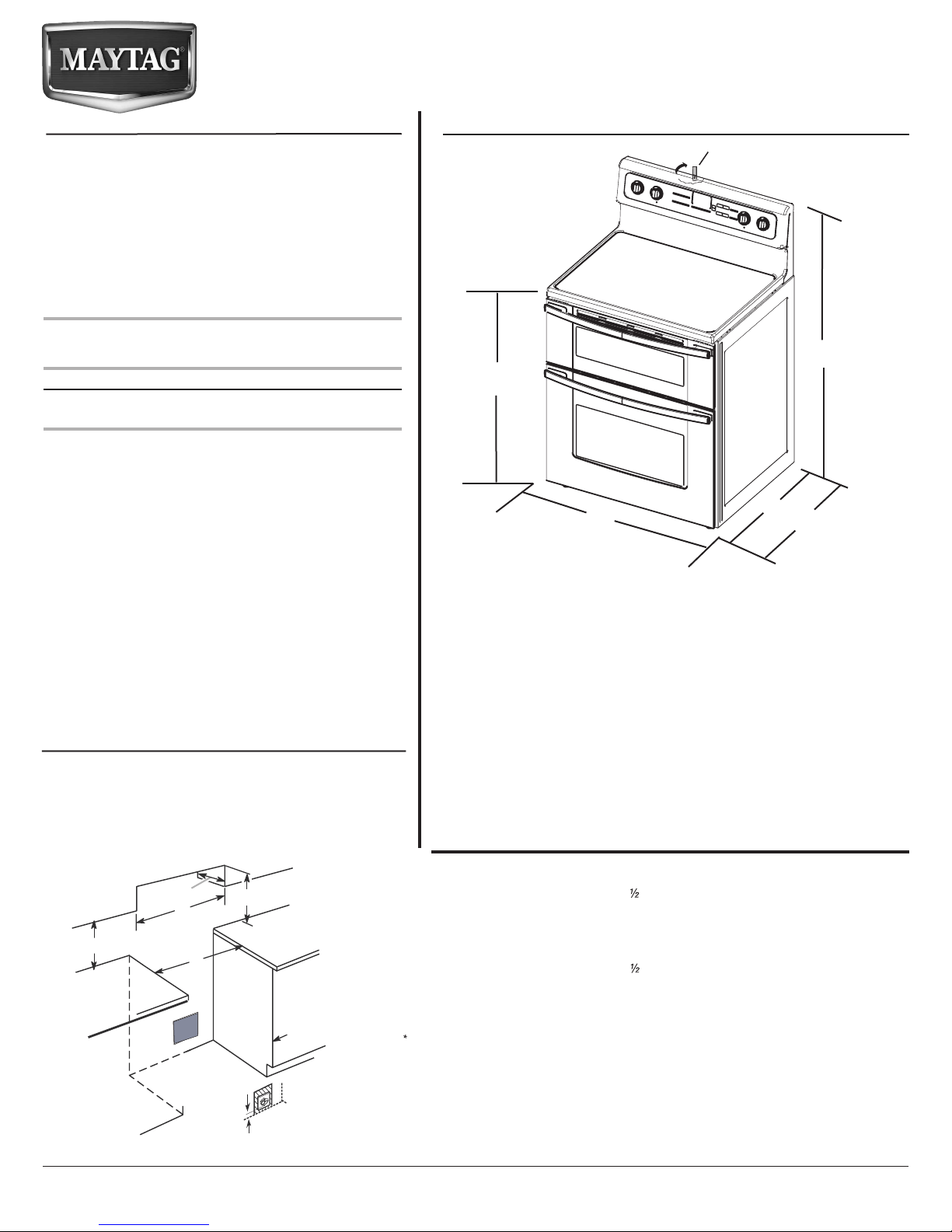

Cabinet opening dimensions shown are for:
25" (63.5 cm) countertop depth,
24" (61 cm) base cabinet depth,
36" (91.4 cm) countertop height
30" (76 cm) Freestanding Electric Range
PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS
CABINET OPENING DIMENSIONS
MET8665X
MET8775X
MET8776B
MET8885X
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Electrical Connection:
● This range is manufactured with the neutral terminal
connected to the cabinet. Use a 3-wire, UL listed, 40- or
50-amp power supply cord (pigtail) (see the following Range
Rating chart). If local codes do not permit ground through the
neutral, use a 4-wire power supply cord rated at 250 volts, 40
or 50 amps and investigated for use with ranges.
Ref. W10430958A
8/7/13
A. 18" (45.7 cm) upper cabinet
to countertop
B. 13" (33.0 cm) upper cabinet
depth
C. 30" (76.2 cm) min. opening
width
D. For minimum clearance to the
top of the cooktop, see
NOTE.
E. 30" (76.2 cm) min. opening
width
F. Cabinet door or hinge should
not extend into cutout*
side cabinet
H. 2" (5.1 cm) min. from floor
I. 7" (17.8 cm) min. from floor
J. 8" (20.3 cm) width
Proper positioning of outlet shown above.
from wall or ran
e will not slide all the way back.
Nothing located in shaded areas can extend more than 1½" (3.8 cm)
G. 1 " (3.8 cm) min. from right
K. 3 " (8.91 cm) min. from floor
NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet is
covered by not less than ¹⁄₄" (0.64 cm) flame retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel,
0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the cooking platform
and the bottom of an uncovered wood or metal cabinet.
Range Rating* Specified Rating of
Power Supply Cord Kit
and Circuit Protection
120/240 Volts 120/208 Volts Amps
8.8 - 16.5 KW 7.8 - 12.5 KW 40 or 50**
16.6 - 22.5 KW 12.6 - 18.5 KW 50
**The NEC calculated load is less than the total connected load
listed on the model/serial rating plate.
** If connecting to a 50-amp circuit, use a 50-amp rated cord
with kit. For 50-amp rated cord kits, use kits that specify use
with a nominal 1³⁄₈" (34.9 mm) diameter connection
opening.
● A circuit breaker is recommended.
● The range can be connected directly to the circuit breaker box
(or fused disconnect) through flexible or nonmetallic
sheathed, copper or aluminum cable. See the “Electrical
Connection - U.S.A. Only” section.
*Range can be raised approximately 1" (2.5 cm) by adjusting
the leveling legs.
**Model/serial/rating plates may be rotated up from behind the
control panel for viewing from the front of the range.
***Excludes handle. Dimension given is from wall to front of oven
door and will vary based on electric outlet receptacle
installation.
A. " ±" (90.8 cm ± 0.3 cm)
cooktop height (minimum) with
leveling legs screwed all the
way in*
B. Model/serial/rating plates
(located behind the control
panel)**
C. " ±" (119.7 cm ± 0.3 cm)
overall height (minimum) with
leveling legs screwed all the
way in*
D. " ±" (72.4 cm ± 0.6 cm)
depth with handle
E. 26 " ±" (66.4 cm ±0.3 cm)***
F. 2 9 " ±" (76.0 cm ± 0.2 cm)
width
A*
B**
C*
D
FE***
35¾
47½
8½
8
½
8½
8
½
828½ ¼
¼
16
¼
16
15
A
B
C
D
E
F
G
H
I
J
K
