CABINET PARTS
1

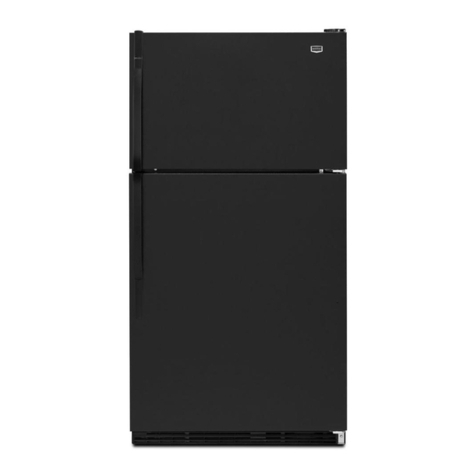

For Models: MTB1954MEW00, MTB1954MEB00, MTB1954MES00
(White) (Black) (Stainless Steel)
01−07 Litho In U.S.A. (rrm) Part No. W10123155 Rev. A
REFRIGERATOR

CABINET PARTS
2
For Models: MTB1954MEW00, MTB1954MEB00, MTB1954MES00
(White) (Black) (Stainless Steel)
W10123155
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
2314273 Service &
Wiring Sheet
2320399 Energy Label
2320198 Use & Care Guide
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677969 Do−It−Yourself
Manual Ref./Fzr.
2 2189410 Hinge (Top)
3 2166108 Roller, Front (2)
4 2189356 Clip, Grille
6 2221797 Rivet
7 3400504 Screw
8 489385 Tube Clamp
9 489427 Screw
10 549193 Clamp, Cord
11 489497 Screw
12 2254618 Hinge, Center
13 2183854 Shim, Hinge
Center
14 8281265 Screw
15 2254473 Hinge Butt
16 Fitting, Water Tube
(NOT SERVICED)
17 Hole Plug (6)
2201012 White
2183998 Black
18 Corner Filler (2)
2201014 White
2201017 Black
19 Grille
(Includes
Illus. 4 & 22)
2254386 White
2254388 Black
20 489341 Washer, Plain
21 487576 Washer, Nylon
22 2254385 Clip, Grille
23 Cover, Hinge
2213360 White
2213363 Black
24 Rail, Center
(NOT SERVICED)
25 2254578 Cover, Unit
26 Cabinet (Not a
Serviceable Part)
27 489442 Screw

LINER PARTS
3
For Models: MTB1954MEW00, MTB1954MEB00, MTB1954MES00
(White) (Black) (Stainless Steel)
W10123155

LINER PARTS
4
For Models: MTB1954MEW00, MTB1954MEB00, MTB1954MES00
(White) (Black) (Stainless Steel)
W10123155
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2197380 Grommet (2)
3 2254359 Gasket, Evaporator
Cover (2)
4 2314156 Timer, Defrost
5 2212485 Thermostat Tube
Barrier
7 2310055 Wire Assembly,
Control Box
8 2162085 Socket, Light
9 2179858 Damper, Air
10 2214986 Fan Motor
11 2163777 Fan Blade
12 2200820 Control Box
13 2200830 Thermostat Assembly
(Includes
Illus. 5 & 18)
14 2176341 Clip, Defrost
Timer
15 487996 Cap
16 2320191 Cover, Evaporator
17 527949 Light Bulb (2)
18 2200831 Weight, Thermal
19 1118894 Rocker Arm
Switch
20 2310097 Wire Assembly,
Frzr. Compartment
(Includes
Illus. 28)
21 2176281 Cover, Air
Diffuser
22 2200863 Knob, Thermostat
23 2254354 Air Tower
24 2189452 Air Diffuser,
Bottom
25 2205003 Cover, Hole
26 2210390 Air Separator,
Assembly
27 488208 Screw
28 2319915 Defrost, BI−Metal
29 2254453 Bracket,
Fan Motor
31 2204639 Shield, Heat
32 2320183 Retainer−Screw
33 489478 Screw
34 2302536 Knob, Damper
35 2254454 Bracket
Evap. Fan, Rear
36 2205079 Seal, Rear
Thermostat
37 941839 Hole Plug
(Icemaker)
39 2300417 Housing Base
41 2187601 Wiring Harness,
Freezer Light
42 2193491 Electrical Shield,
Freezer Light
43 850166 Light Bulb
44 2179859 Post, Damper
45 2163810 Bracket,
Damper Knob
46 2166284 Gasket, Rear
47 2210509 Valve

SHELF PARTS
5
For Models: MTB1954MEW00, MTB1954MEB00, MTB1954MES00
(White) (Black) (Stainless Steel)
W10123155

SHELF PARTS
6
For Models: MTB1954MEW00, MTB1954MEB00, MTB1954MES00
(White) (Black) (Stainless Steel)
W10123155
Illus. Part
No. No. DESCRIPTION
1 2210522 Shelf, Ladder (2)
2 2300520 Shelf, Ladder
Center
3 2163762 Cup, Shelf Mounting
5 489478 Screw
8 3400065 Screw
9 2314548 Crisper Cover
11 2221693 Glass, Crisper
Cover
12 2214892 Slide, Pan
13 2314477 Crisper, Support
14 2176275 Shelf, Freezer
15 2218130 Pan, Crisper
(13−Inch)
(Includes 17
20 & 23)
16 2218127 Pan, Meat
17 2176222 Slide, Humidity
Control
19 2218129 Pan, Crisper
(10−Inch)
(Includes 17
20 & 22)
20 2212446 Body, Humidity
Control
21 2214910 Shelf Assembly
(W/Pan Slide)
22 2320366 Trim−Crspr Pan 10"
23 2320357 Trim−Crspr Pan 13"
24 2176356 Trim, Meat Pan
25 2214908 Shelf Assembly(2)

REFRIGERATOR DOOR PARTS
7
For Models: MTB1954MEW00, MTB1954MEB00, MTB1954MES00
(White) (Black) (Stainless Steel)
W10123155

REFRIGERATOR DOOR PARTS
8
For Models: MTB1954MEW00, MTB1954MEB00, MTB1954MES00
(White) (Black) (Stainless Steel)
W10123155
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes
Illus. 6 & 8)
2205395 White
2205398 Black
2218280 Stainless Steel
4 2189202 Bracket, Door
Stop
5 489276 Screw, 8 x 1/2
6 2183003 Thimble
7 Hole Plug,
Hinge Sleeve
2212648 White
2212651 Black
8 Door Gasket,
Magnetic
2202874 Mist Beige
2202881 Black
9 2210566 Housing Compartment
10 2159302 Tray, Door
11 Handle, Endcap
2300579W White
2300579B Black
12 2179605 Bin, Door (3)
13 2195949 Trim, Door Shelf
14 2218109 Door Compartment
15 2159312 Trim, Door Shelf
16 Hole Plug,
EndCap
2204837 White
2204840 Black
17 2177340 Endcap, Door Trim
18 2156006 Plug, Trim

UNIT PARTS
9
For Models: MTB1954MEW00, MTB1954MEB00, MTB1954MES00
(White) (Black) (Stainless Steel)
W10123155

UNIT PARTS
10
For Models: MTB1954MEW00, MTB1954MEB00, MTB1954MES00
(White) (Black) (Stainless Steel)
W10123155
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2320188 Plate, Unit
Mounting
2 2169104 Insulation,
Sound Dampening
3 2214960 Condenser
4 2315531 Heater, Defrost
5 2254250 Evaporator Assy.
6 8533859 Screw
7 2254294 Drain Pan
8 2176301 Bracket, Heater
9 2319835 Grommet−Cond(4)
10 2300638 Extension, Air
Baffle
11 2255113 Strap
12 4387731 Cover
(Service Only)
13 4390624 Overload
(Service Only)
14 Grommet (4)
1100826 Production
4387558 Service
15 2225929 Start−Device
Combination
(Start Relay and
Overload For
Production
Compressor Only)
16 2201184 Support Block
17 2150304 Roller (2)
18 2179826 Rivet
19 2182338 Clip, Heater
20 489373 Screw
21 3400518 Screw
22 4387765 Wire Assembly
(Service Only)
23 2183454 Relay
(Service Only)
28 2218968 Compressor
(Includes Items
12,13,14,22,23,
29 & 32)
29 Drier
2317845 Service
30 2155774 Clamp
32 Capacitor
2169373 Production
1118576 Service
33 2315541 Air Baffle
34 2188874 Motor, Condenser
35 2187382 Wire Assembly
Unit
36 2225834 Fan Blade
37 2205384 Tube, Discharge
38 2225237 Tube, Suction
39 2154109 Tube, Process
40 488500 Screw
41 2254574 Evaporator Tray
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
4.0 Ozs.
(R134A)
