Maytag RST2400EAE Manual

Repair
Parts
List
MODEL NUMBER
RST2400EAE
When requesting service or ordering parts, always
provide the following information:
- Product Type - Part Number
- Model Number - Part Description
REFRIGERATOR
©2005 Maytag Services

Section: UNIT COMPARTMENT & SYSTEM
A51-69
Model: RST2400EAE
1

UNIT COMPARTMENT & SYSTEM
No. Part No. Description
Section:
Series Qty
- 61001017 WIRE HARNESS, COMPRESSOR 10 1
1 12000059 KIT, COMPRESSOR Note: COMPRESSOR 10 1
2 17245-4 GROMMET, COMPRESSOR 10 4
3 65275-9 SCREW, COMPRESSOR MOUNTING Note: SCREW, COMPRESSOR 10 4
4 68857-2 RELAY, START Note: RELAY, START 10 1
5 69105-3 OVERLOAD Note: OVERLOAD 10 1
- 400017-1 SCREW Note: SCREW, RUN CAPACITOR 10 1
6 65889-4 CAPACITOR, RUN Note: CAPACITOR, RUN 10 1
7 69754-1 COVER, TERMINAL 10 1
8 59596-1 CLIP, TERMINAL COVER Note: CLIP, TERMINAL COVER 10 1
9 52890-3 CORD, POWER 10 1
- 60408-2 U-NUT, CONDENSER Note: U-NUT, CONDENSER 10 4
10 N 64998-1 CONDENSER 10 1
- 414001-1 SCREW Note: SCREW, CONDENSER 10 3
11 N 53351-1 GROMMET, CONDENSER TUBING Note: GROMMET, CONDENSER TUBING 10 1
12 N 61001533 BAFFLE, AIR DIVIDER 10 1
- 9986-45 SCREW Note: SCREW, BAFFLE 10 1
- 65275-33 SCREW Note: SCREW, MOTOR 10 3
13 Y61001016 MOTOR, CONDENSER FAN Note: MOTOR, CONDENSER FAN 10 1
14 69958-2 BLADE, CONDENSER FAN 10 1
15 61001686 WASHER, FAN BLADE 10 1
16 Y19914 CLIP, FAN BLADE 10 1
17 69181-1 BRACKET, FAN MOTOR 10 3
18 56933-1 GROMMET, BRACKET Note: GROMMET, BRACKET 10 3
- 400017-1 SCREW Note: SCREW, COVER 10 12
19 N 66381-1 COVER Note: COVER, WIRE HARNESS 10 1
- 70266-1 WIRE HARNESS, MAIN 10 1
20 61001140 HEATER, DEFROST 10 1
21 52067-1 CLIP, DEFROST HEATER Note: CLIP, DEFROST HEATER 10 4
22 68236-1 PAN, DRAIN 10 1
23 53523-2 TROUGH, DRAIN 10 1
24 N 26911-25 HOSE, DRAIN 10 1
25 9602-3 CLAMP, DRAIN HOSE 10 1
26 53516-5 CLAMP, DRAIN HOSE 10 2
- 65275-5 SCREW Note: SCREW, COVER 10 1
27 61001228 COVER, UNIT COMPARTMENT Note: COVER, UNIT COMPARTMENT 10 1
- N 26088-23 SLEEVE Note: COVER, HEAT EXCHANGER 10 1
28 61001039 HEAT EXCHANGER Note: HEAT EXCHANGER 10 1
- 66223-1 WIRETIE 10 1
29 13900-1 DRIER 10 1
30 52085-29 THERMOSTAT, DEFROST 10 1
31 52551-22 EVAPORATOR Note: EVAPORATOR 10 1
32 N 68834-2 HOUSING, EVAPORATOR Note: HOUSING, EVAPORATOR 10 1
33 55878-1 BOARD, TERMINAL 10 1
34 N 66325-18 SEAL Note: SEAL, HOUSING 10 1
35 N 65063-1 SEAL, STYROFOAM-(LEFT) Note: SEAL, STYROFOAM (LT) 10 1
36 N 65064-1 SEAL, STYROFOAM-(RIGHT) Note: SEAL, STYROFOAM (RT) 10 1
37 29915-13 SHIELD, DEFROST HEATER Note: SHEILD, DEFROST HEATER 10 2
- 400017-1 SCREW Note: SCREW, SHIELD 10 6
38 N 52561-1 BRACKET, HEATER SHIELD Note: BRACKET, HEATER SHIELD 10 2
- 61001570 MANUAL, USE & CARE 10 1
- N 16000327 GUIDE, QUICK REF. - MAYTAG 10 1
2
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: ICE BIN
A56-61
Model: RST2400EAE
3

ICE BIN
No. Part No. Description
Section:
Series Qty
1 70027-2 RING, DRIVE Note: RING, DRIVE 10 1
2 67826-1 BIN Note: BIN, ICE 10 1
3 67833-1 AUGER 10 1
4 N 67172-2 BEARING Note: BEARING, AUGER 10 1
5 67829-1 ICE DAM Note: DAM, ICE 10 1
6 67834-2 WASHER, THRUST 10 1
7 492007-703 PIN, COTTER 10 2
- 415013-35 SCREW Note: SCREW, FRONT & ICE DAM 10 8
8 69612-1 FRONT, ICE BIN Note: FRONT, ICE BIN 10 1
9 63052-2 YOKE, ICE DISPENSER Note: YOKE 10 1
10 65186-1 MOTOR, AUGER 10 1
- 69048-1 WIRE HARNESS, AUGER MOTOR 10 1
- 406026-103 SCREW Note: SCREW, AUGER MOTOR 10 4
4
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

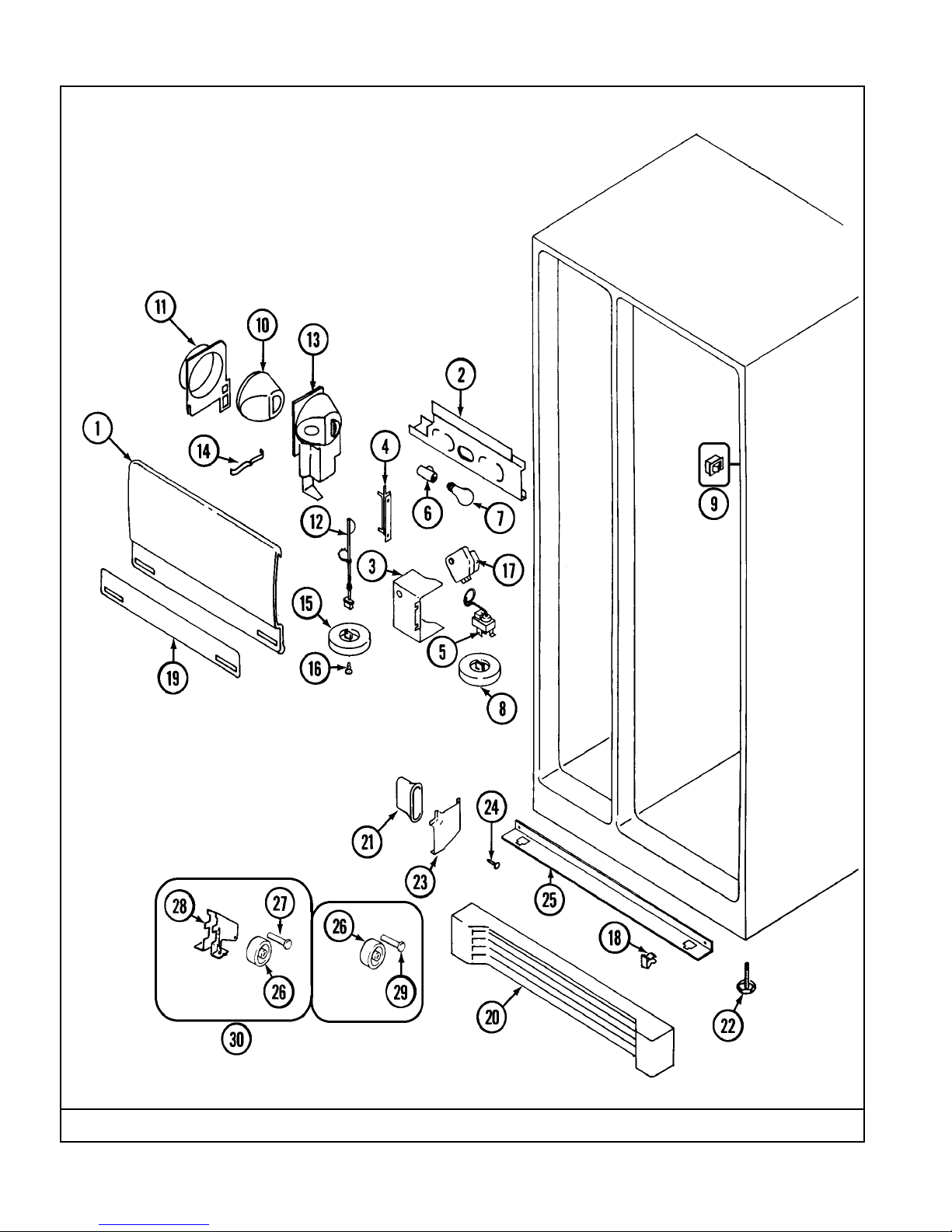

Section: FRESH FOOD COMPARTMENT
A52-174
Model: RST2400EAE
5

FRESH FOOD COMPARTMENT
No. Part No. Description
Section:
Series Qty
1 N 67113-4 SHIELD, LIGHT Note: SHIELD, LIGHT 10 1
2 N 69193-2 HOUSING, LITE & WIRE Note: HOUSING, RECEPTACLE & WIRE 10 1
- 400017-1 SCREW Note: SCREW, HOUSING 10 3
3 70178-1 HOUSING, TEMPERATURE CONTROL Note: HOUSING, TEMP. CONTROL 10 1
- 400017-1 SCREW Note: SCREW, HOUSING 10 2
4 N 67125-1 SUPPORT, LIGHT SHIELD 10 1
5 69694-3 CONTROL, TEMPERATURE 10 1
- 401024-1 SCREW Note: SCREW, CONTROL 10 2
6 68974-3 RECEPTACLE, BULB Note: RECEPTACLE, BULB 10 1
7 55771-2 BULB, LIGHT (60W) Note: BULB, LIGHT 10 1
8 67145-5 KNOB, CONTROL Note: KNOB, TEMP. CONTROL 10 1
9 66987-1 SWITCH, LIGHT 10 1
10 N 58767-1 INSULATION, HOUSING 10 1
11 61001230 ORIFICE, FRZ. CONTROL (INLET) 10 1
12 67609-1 DAMPER, FRZ. CONTROL 10 1
13 67354-1 HOUSING, FRZ. CONTROL 10 1
- 415017-1 SCREW Note: SCREW, HOUSING 10 4
14 52648-1 SPRING, BAFFLE Note: SPRING, DAMPER 10 1
15 67145-6 KNOB, CONTROL Note: KNOB, FRZ. CONTROL 10 1
16 400001-1 SCREW Note: SCREW, FRZ. KNOB 10 1
- 405007-1 SCREW Note: SCREW, DEFROST TIMER 10 2
17 68233-3 TIMER, DEFROST 10 1
18 70285-1 CLIP, KICKPLATE 10 2
19 N 67476-10 INSERT, LIGHT SHIELD Note: INSERT, LIGHT SHIELD 10 1
20 70288-9 KICKPLATE W/CLIPS (WHT) Note: (WHT) 10 1
21 67684-1 TUNNEL, AIR RETURN 10 1
22 68664-1 LEG, LEVELING Note: LEG, LEVELING 10 2
23 N 69982-1 COVER, AIR RETURN Note: COVER, AIR RETURN 10 1
24 28013-2 RIVET, AIR TUNNEL Note: RIVET, RETURN COVER 10 2
- 65275-42 SCREW Note: SCREW, RAIL 10 4
25 61001032 RAIL, HORIZONTAL SUPPORT 10 1
26 69812-1 WHEEL 10 4
27 N 64965-1 PIN, WHEEL Note: PIN, WHEEL (FRT.) 10 2
- 400062-1 SCREW Note: SCREW, BRACKET 10 4
28 52846-1 BRACKET Note: BRACKET, WHEEL 10 2
29 64965-3 PIN, WHEEL (REAR) 10 2
30 72019-1 WHEEL ASSY. (FRONT) Note: WHEEL ASSY. (FRT.) 10 2
6
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: FRESH FOOD OUTER DOOR
A54-335
Model: RST2400EAE
7

FRESH FOOD OUTER DOOR
No. Part No. Description
Section:
Series Qty
1 N 72341-2-WW PANEL, F.F. DOOR (WHT) Note: (WHT) 10 1
- 495034-900 PLUG BUTTON, DOOR 10 1
2 67922-1 HANDLE Note: HANDLE, F.F. DOOR 10 1
3 67920-1 FRAME,HANDLE Note: FRAME, HANDLE 10 1
4 67924-2 INSERT, HANDLE (WHT) Note: (WHT) 10 1
5 65275-44 SCREW Note: SCREW, HANDLE TO INSERT 10 4
6 65275-80 SCREW Note: SCREW, HANDLE & TRIM 10 5
7 N 67932-8 TRIM, EXTENSION (UPR - WHT) Note: (UPPER-WHT) 10 1
8 67932-9 TRIM, EXTENSION (LWR - WHT) Note: (LOWER-WHT) 10 1
9 67926-1 SHIM, TRIM LOCK (UPR) Note: SHIM, TRIM LOCK (UPPER) 10 1
10 67926-2 SHIM, TRIM LOCK (LWR) Note: SHIM, TRIM LOCK (LOWER) 10 1
11 67928-2 ENDCAP, HANDLE Note: END CAP, EXT. TRIM 10 2
12 414004-35 SCREW Note: SCREW, END CAP 10 2
13 70121-4 COVER, UPPER HINGE (WHT) Note: (WHT) 10 1
14 53709-28 HINGE, UPPER Note: HINGE, UPPER 10 1
- 65275-86 SCREW, UPPER HINGE 10 3
15 65031-1 SHIM, UPPER HINGE 10 1
- 65275-51 SCREW, LOWER HINGE 10 2
16 N 69516-2 HINGE, LOWER (BLK) Note: HINGE, LOWER (BLK) 10 1
17 69510-1 SHIM, LOWER HINGE 10 1
18 67874-1 TAPPING PLATE, LOWER HINGE 10 1
- 65275-59 SCREW Note: SCREW, TAPPING PLATE 10 1
19 69845-1 PIN, LOWER HINGE 10 1
20 67483-2 WASHER, LOWER HINGE 10 1
8
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: FREEZER OUTER DOOR
A55-278
Model: RST2400EAE
9

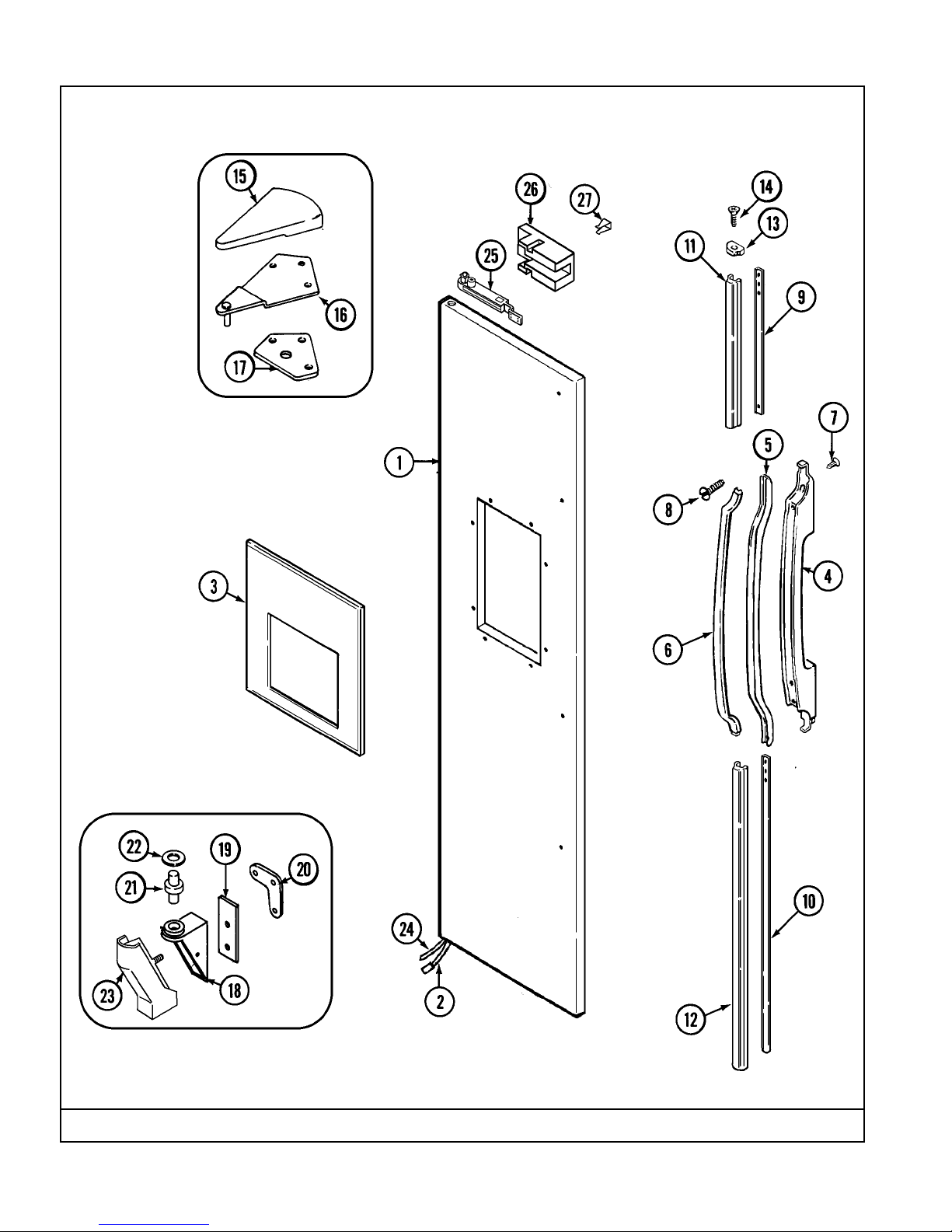

FREEZER OUTER DOOR
No. Part No. Description
Section:
Series Qty
1 N 72346-30-WW PANEL, FRZ. DOOR (WHT) Note: (WHT) 10 1
- 495034-900 PLUG BUTTON, DOOR 10 1
2 N 69865-9 WIRE HARNESS, DOOR 10 1
3 N 61001576 ESCUTCHEON (WHT) 10 1
- N 405004-35 SCREW Note: SCREW, ESCUTCHEON 10 1
4 67922-1 HANDLE Note: HANDLE, FRZ. DOOR 10 1
5 67920-1 FRAME,HANDLE Note: FRAME, HANDLE 10 1
6 67924-2 INSERT, HANDLE (WHT) Note: (WHT) 10 1
7 65275-44 SCREW Note: SCREW, HANDLE TO INSERT 10 4
8 65275-80 SCREW Note: SCREW, HANDLE & TRIM 10 5
9 67926-1 SHIM, TRIM LOCK (UPR) Note: SHIM, TRIM LOCK (UPPER) 10 1
10 67926-2 SHIM, TRIM LOCK (LWR) Note: SHIM, TRIM LOCK (LOWER) 10 1
11 N 67932-8 TRIM, EXTENSION (UPR - WHT) Note: (UPPER-WHT) 10 1
12 67932-9 TRIM, EXTENSION (LWR - WHT) Note: (LOWER-WHT) 10 1
13 67928-2 ENDCAP, HANDLE Note: END CAP, EXT. TRIM 10 2
14 414004-35 SCREW Note: SCREW, END CAP 10 2
15 70121-4 COVER, UPPER HINGE (WHT) Note: (WHT) 10 1
- 65275-86 SCREW, UPPER HINGE 10 3
16 N 53709-26 HINGE UPPER Note: HINGE, UPPER 10 1
17 65031-1 SHIM, UPPER HINGE 10 1
18 69516-1 HINGE, LOWER (BLK) Note: HINGE, LOWER (BLK) 10 1
- 65275-51 SCREW, LOWER HINGE 10 2
19 69510-1 SHIM, LOWER HINGE 10 1
20 67874-1 TAPPING PLATE, LOWER HINGE 10 1
- 65275-59 SCREW Note: SCREW, TAPPING PLATE 10 1
21 N 70060-1 PIN, HINGE Note: PIN, LOWER HINGE 10 1
22 67483-3 WASHER, DOOR SPACER Note: WASHER, LOWER HINGE 10 1
23 68978-1 COVER, LOWER HINGE (BLK) Note: COVER, HINGE WIRE (BLK) 10 1
- 65275-47 SCREW, HINGE COVER (BLACK) Note: SCREW, COVER 10 1
24 67187-8 TUBING, DOOR Note: TUBING, FOUNTAIN TO UNION 10 1
25 N 69258-1 CLOSER, DOOR 10 1
- 414004-35 SCREW Note: SCREW, CLOSER 10 2
26 70049-1 INSULATION DOOR Note: (BACK) 10 1
26 52613-1 INSULATION, CLOSER Note: INSULATION, CLOSER (FRT.) 10 1
27 69261-1 BRACKET, CLOSER 10 1
10
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: ICE MAKER
A56-53
Model: RST2400EAE
11

ICE MAKER
No. Part No. Description
Section:
Series Qty
- 400017-1 SCREW Note: SCREW, ICE MAKER (#8 X 1/2") 10 1
- 400031-1 SCREW Note: SCREW, ICE MAKER (#8 X 1") 10 2
1 95109-1 MODULE, ICE MAKER 10 1
2 61001239 COVER, ICE MAKER 10 1
- 95106-1 SCREW Note: SCREW, MODULE TO SUPPORT 10 3
3 95103-1 SUPPORT, MODULE HOUSING 10 1
- N 401018-1 SCREW Note: SCREW, WATER VALVE 10 1
4 61001021 VALVE, WATER (120V) 10 1
5 67666-1 TUBE, WATER ENTRY Note: TUBE, FILL 10 1
- 61001162 CLAMP, FILL TUBE 10 1
6 Y695832 NUT, COMPRESSION (5/16") 10 1
7 Y695831 NUT, COMPRESSION (1/4") 10 1
8 61001112 TUBING, TANK VALVE Note: TUBING, VALVE TO TANK 10 1
9 67579-2 TUBING, VALVE TO GROMMET 10 1
10 Y694321 NUT, BRASS (1/4") Note: NUT, BRASS (1/4") 10 1
11 Y694311 SLEEVE, BRASS 10 1
12 95104-1 RETAINER, THERMOSTAT 10 1
13 95092-1 THERMOSTAT 10 1
- N 95093-1 CEMENT, ALUMILASTIC (4 OZ.) Note: CEMENT, ALUMILASTIC (4 OZ.) 10 1
14 95100-1 INLET, WATER 10 1
15 95101-1 EJECTOR, ICE 10 1
16 70142-1 ARM, SENSOR 10 1
17 95098-1 MOLD & HEATER ASSY. 10 1
18 95102-1 STRIPPER, ICE 10 1
19 Y951071 BRACKET, MODULE & HEATER 10 1
- 95108-1 SCREW, BRACKET Note: SCREW, BRACKET 10 1
20 70076-1 WIRE HARNESS, ICE MAKER 10 1
12
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: WIRING INFORMATION
15001864
Model: RST2400EAE
13

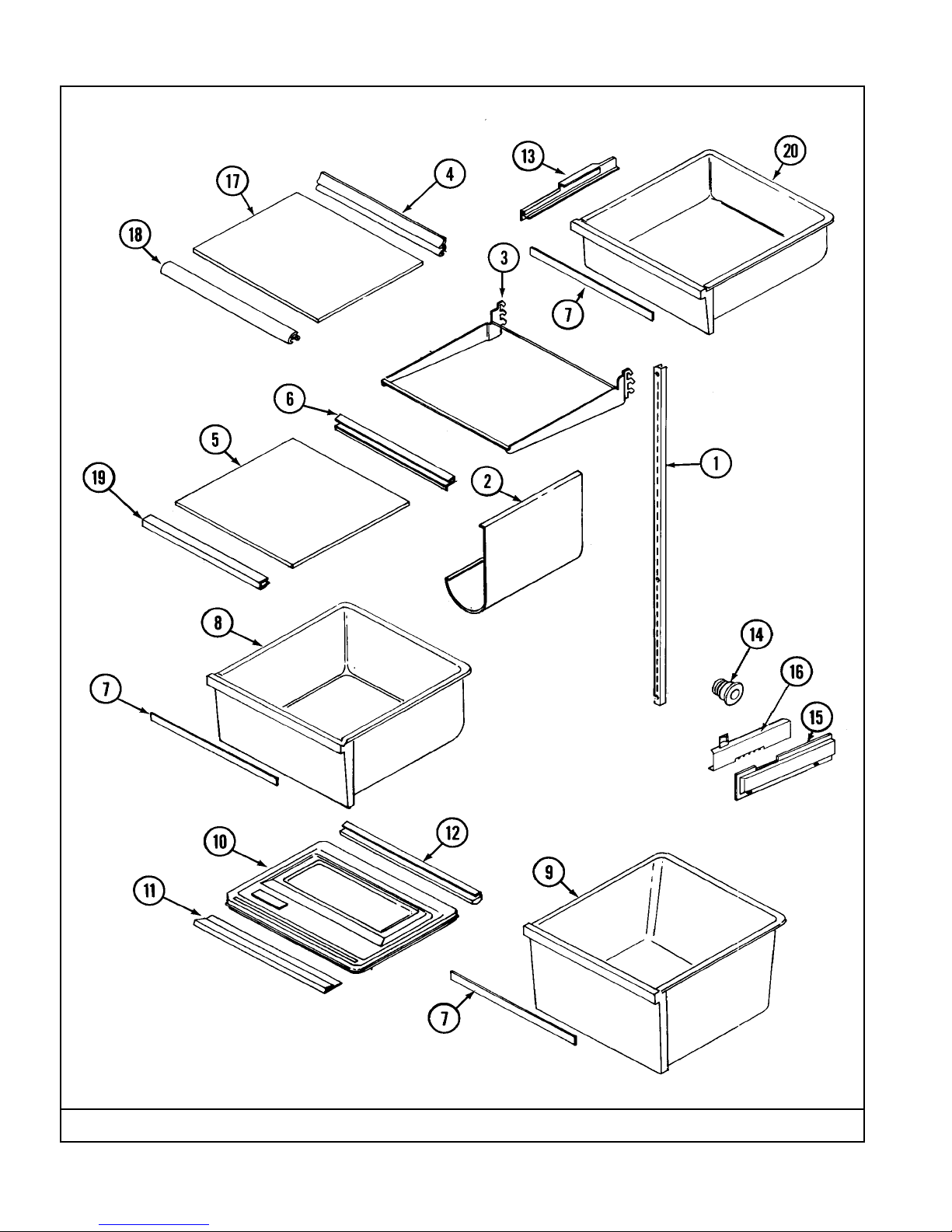

Section: SHELVES & ACCESSORIES
A57-84
Model: RST2400EAE
14

SHELVES & ACCESSORIES
No. Part No. Description
Section:
Series Qty
1 N 67311-1 RAIL, SHELF SUPPORT 10 2
- 400037-28 SCREW Note: SCREW, SUPPORT RAIL 10 6
2 N 61001622 HOLDER, WINE BOTTLE 10 1
3 65618-7 FRAME, DELI SHELF Note: FRAME, SHELF (DELI) 10 1
3 70106-7 FRAME, SHELF 10 2
4 70110-5 TRIM, SHELF (REAR) Note: TRIM, SHELF (REAR) 10 3
5 68139-23 CRISPER SHELF(GLASS) Note: GLASS, CRISPER SHELF 10 1
6 68157-2 SEAL, CRISPER PAN (REAR) 10 1
7 61001572 INSERT, CRISPER PAN Note: INSERT, PAN HANDLE 10 3
8 61001573 PAN, CRISPER Note: PAN, CRISPER 10 1
9 61001574 PAN, MEAT 10 1
10 N 65608-6 COVER, MEAT PAN 10 1
11 N 65648-2 SEAL, MEAT PAN (FRONT) Note: SEAL, MEAT PAN (FRT.) 10 1
12 N 65649-2 SEAL, MEAT PAN (REAR) 10 1
13 68805-2 RAIL, DELI PAN 10 2
14 53726-2 TUNNEL, AIR (MEAT) 10 1
- 56686-5 CLIP, SECONDARY SEAL Note: CLIP, HOUSING 10 2
15 N 65737-2 CONTROL HOUSING Note: HOUSING, AIR TUNNEL 10 1
16 N 65736-1 SLIDE CONTROL, (MEAT) Note: SLIDE, CONTROL 10 1
17 68139-22 GLASS, CANTILEVER SHELF Note: GLASS, SHELF 10 2
17 N 68139-28 GLASS, DELI Note: GLASS, SHELF (DELI) 10 1
18 61001660 TRIM, SHELF (FRONT) Note: TRIM, SHELF (FRT.) 10 3
19 66650-2 SEAL, CRISPER PAN (FRONT) Note: SEAL, CRISPER PAN (FRT.) 10 1
20 61001451 PAN, DELI 10 1
15
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: FREEZER COMPARTMENT
A53-220
Model: RST2400EAE
16

FREEZER COMPARTMENT
No. Part No. Description
Section:
Series Qty
1 67466-1 CUP, SHELF 10 4
1 60313-1 CUP, SHELF Note: CUP, ICE DOOR 10 2
2 67353-1 SHIELD, AIR DIRECTIONAL 10 1
- N 53727-1 RETAINER, AIR TUNNEL Note: RETAINER, MEAT TUNNEL 10 1
3 N 70034-1 RETAINER, AIR RETURN 10 1
4 N 67297-6 COVER, COIL UPPER Note: COVER, COIL (UPPER) 10 1
5 68058-1 SWITCH, INTERLOCK 10 1
6 N 68630-6 SHELF, DISPENSER 10 1
7 68139-25 SHELF Note: SHELF, FRZ. 10 3
8 68946-6 SEAL Note: SEAL, UPPER COVER (12") 10 1
9 66325-20 SEAL Note: SEAL, UPPER COVER (44 3/4") 10 1
10 68974-3 RECEPTACLE, BULB Note: RECEPTACLE, BULB 10 1
11 31956-1 BULB, LIGHT 10 1
12 66987-1 SWITCH, LIGHT 10 1
13 N 67292-1 SHIELD, LIGHT 10 1
14 N 68551-1 BRACKET, MOTOR Note: BOX, AUGER MOTOR 10 1
- N 400015-36 SCREW Note: SCREW, MOTOR BOX 10 4
15 N 69611-1 DOOR, ICE ACCESS Note: DOOR, ICE ACCESS 10 1
16 69298-1 MOTOR, FAN EVAPORATOR Note: MOTOR, EVAPORATOR FAN 10 1
- 69593-1 WIRE HARNESS, FRZ. ADAPTER Note: WIRE HARNESS, FRZ. ADAPTER 10 1
- N 403067-1 SCREW Note: SCREW, MOTOR 10 2
17 52120-4 BLADE, EVAPORATOR FAN 10 1
- 9986-45 SCREW Note: SCREW, BRACKET 10 2
18 64856-1 BRACKET, FAN MOTOR 10 1
19 N 67225-3 SHIELD, FAN Note: SHIELD, FAN 10 1
20 67335-3 COVER, COIL LOWER Note: COVER, COIL (LOWER) 10 1
- N 400015-36 SCREW Note: SCREW, LOWER COVER 10 10
21 N 67352-1 ORIFICE, FRZ. CONTROL (OUTLET) 10 1
- 400017-1 SCREW Note: SCREW, BRACKET 10 4
22 N 67288-1 BRACKET, MOUNTING Note: BRACKET, AUGER MOTOR BOX 10 2
23 N 61001456 DRAWER, FRZ. Note: DRAWER, FRZ. 10 1
24 61001161 CLAMP, WATER LINE 10 1
25 67579-2 TUBING, VALVE TO GROMMET 10 1
26 69219-1 GROMMET Note: GROMMET, WATER ENTRY 10 1
27 23197-8 CLAMP, FEEDER TUBE Note: CLAMP, TUBING 10 4
28 N 26527-11 TUBE, DRAIN 10 1
29 52526-1 GROMMET Note: GROMMET, DRAIN TUBE 10 1
30 69314-1 SEAL COVER (SIDE) Note: GASKET, LOWER COVER 10 2
31 68572-1 LATCH Note: LATCH, ICE DOOR 10 1
- 400016-1 SCREW Note: SCREW, LATCH 10 2
32 N 67837-1 INSULATION, AIR RETURN 10 1
33 N 70137-2 TRIM, SHELF Note: TRIM, SHELF (FRT.) 10 3
34 N 61001575 TRIM, DRAWER Note: INSERT, DRAWER HANDLE 10 1
35 N 68629-1 DIVIDER SHELF Note: SHELF, DIVIDER 10 1
36 68654-1 DIVIDER Note: DIVIDER, I/M ENCLOSURE 10 1
- N 61001028 SCREW Note: SCREW, SPACER 10 2
37 68823-1 SPACER, DIVIDER 10 2
17
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: FRESH FOOD INNER DOOR
A54-308
Model: RST2400EAE
18

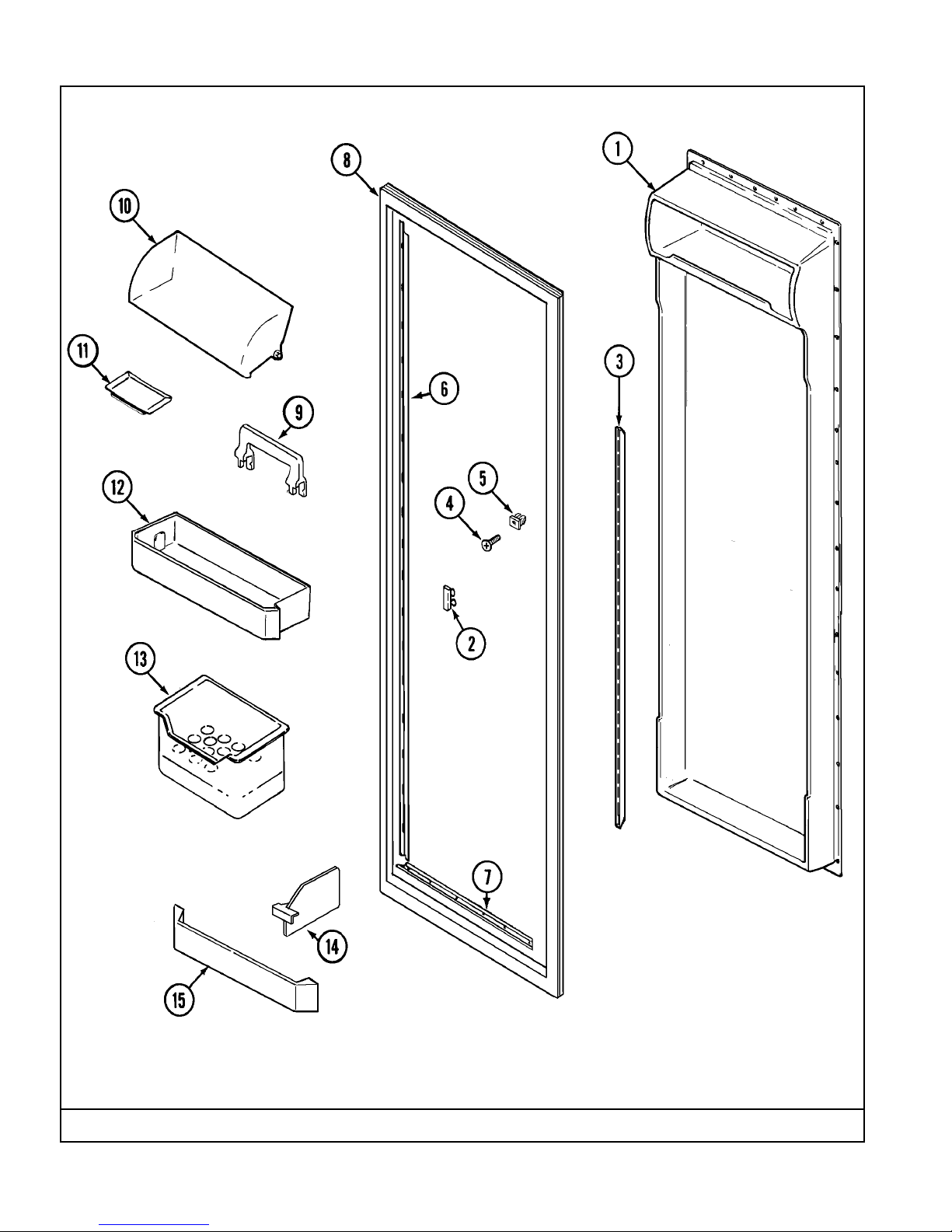

FRESH FOOD INNER DOOR
No. Part No. Description
Section:
Series Qty
1 N 69241-1 LINER, F.F. DOOR Note: LINER, F. F. DOOR 10 1
- 65275-5 SCREW Note: SCREW, LINER 10 42
2 67043-6 HOOK, P.O. SHELF (RT.-RT.SHF.) Note: (RT) 10 4
- 59920-17 RIVET Note: RIVET, P.O. HOOK 10 8
2 67043-5 HOOK, P.O. SHELF (LT.-LT.SHF) Note: HOOK, P.O. SHELF (LT) 10 4
3 N 61001705 RAIL, SHELF SUPPORT Note: RAIL, SHELF SUPPORT 10 2
4 N 400027-28 SCREW Note: SCREW, SUPPORT RAIL 10 8
5 67144-1 GROMMET, PICK-OFF Note: GROMMET, RAIL SCREW 10 8
6 69992-1 RETAINER, GASKET Note: RETAINER, GASKET (SIDE) 10 2
7 N 69992-2 RETAINER, GASKET Note: RETAINER, GASKET (TOP/BOTTOM) 10 2
8 70024-4 GASKET, F.F. DOOR (WHT) Note: GASKET, F.F. DOOR (WHT) 10 1
9 69795-1 RETAINER, BOTTLE 10 1
- 28272-6 BUMPER, DOOR Note: BUMPER, DAIRY DOOR 10 2
10 69918-2 DOOR, DAIRY 10 1
11 29936-2 TRAY, BUTTER 10 1
12 69872-4 SHELF, PICK-OFF Note: SHELF, PICK-OFF 10 4
13 67215-2 TRAY, EGG 10 1
14 N 67027-6 ORGANIZER, P.O. SHELF Note: ORGANIZER, SHELF 10 2
15 69871-5 FRONT, PICK-OFF Note: FRONT, PICK-OFF 10 1
19
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
