Maytag STACKED WASHER- DRYER User manual

240EdwardsStreet,$E
Cievelaeg,Tennessee373;;
TeL:[phone]
Fax:[phone]

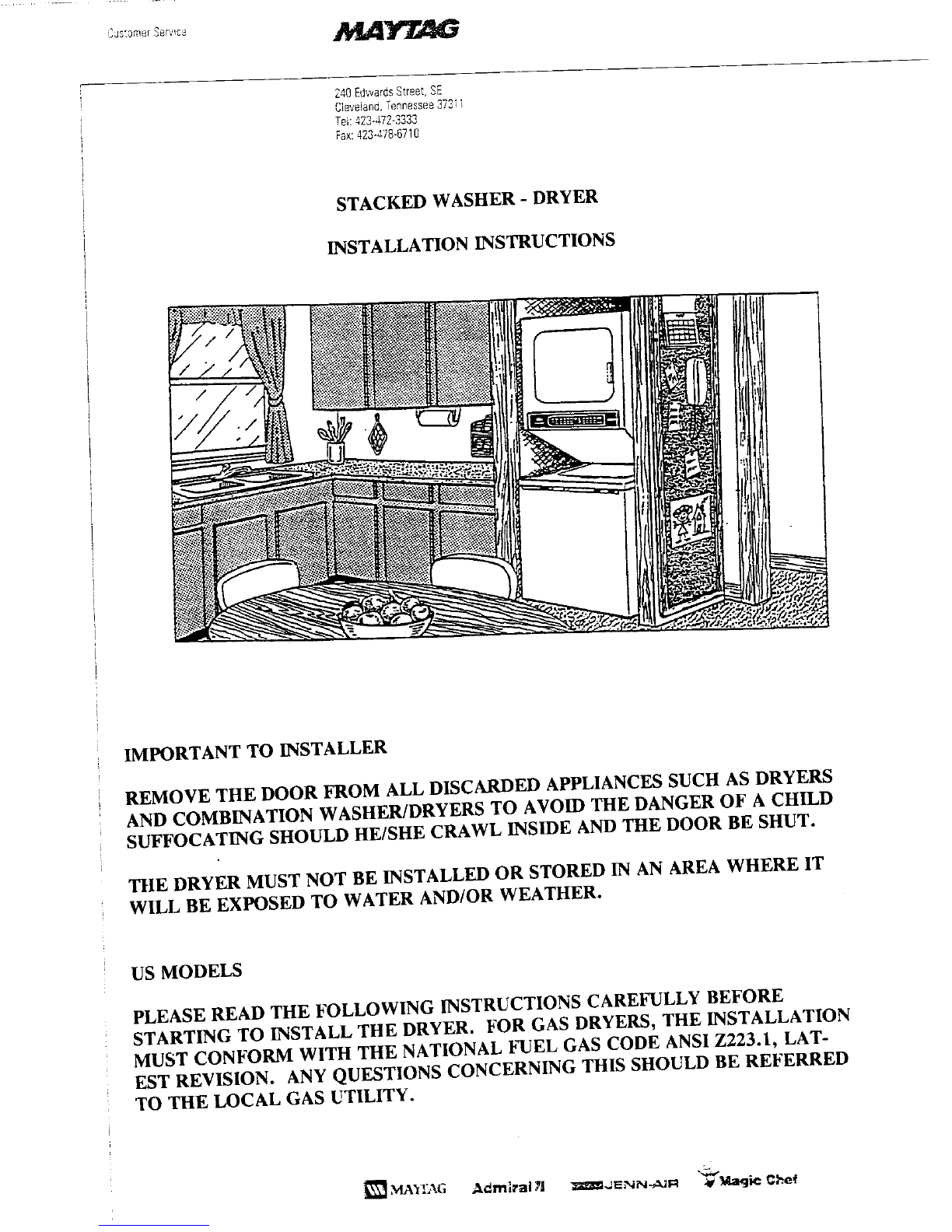

STACKED WASHER- DRYER
INSTALLATIONINSTRUCTIONS
IMPORTANT TO INSTALLER
REMOVETHE DOOR FROM ALL DISCARDED APPLIANCES SUCH AS DRYERS
AND COMBINATION WASHER/DRYERS TO AVOID THE DANGER OFA CHILD
SUFFOCATING SHOULD HE/SHE CRAWL INSIDE AND THE DOOR BE SHUT.
THEDRYER MUSTNOT BE INSTALLED OR STORED IN AN AREA WHERE IT
WILL BE EXPOSED TO WATER AND/OR WEATHER.
US MODELS
PLEASE READ THE FOLLOWING INSTRUCTIONSCAREFIJLLY BEFORE
STARTING TO INSTALL THE DRYER. FOR GAS DRYERS, THE INSTALLATION
MUST CONFORM WITH THE NATIONAL FUEL GAS CODE ANSI Z223.1, LAT-
EST REVISION. ANY QUESTIONS CONCERNING THIS SHOULD BE REFERRED
TO THE LOCAL GAS UTILITY.

C_sto_erSe_i_e __
240EdwardsStreet,SE
Cleveiand,Tennessee3731l
Tel:[phone]
Fax:[phone]
IMPORTANT TO OWNER
Retain these instructions for futurereference.
This new Maytag appliance is designed to serve you dependably for manyyears.However,
it cannot do so unless provided with sufficient electrical power, suitable exhausting and if a
gas model, adequate gas supply. We urge you to read this carefully to make sure all
requirements are met.
Operating instructions,safety precautions and your warranty are in the accessory package
with each appliance. Read the operating instructions carefully.
NOTE:A wiring diagram for the dryer is located on the inside of the dryer access panel.A
wiring diagram for the washer is located on the inside of the washer front panel.
UNCRATING
To remove carton, cut around bottomof cartononor below dotted line. Cut down each
corner of carton (vertically) and "peel" carton away from stacked washer/dryer. Fold carton
material for removal. Check the unit for shipping damage.
The control cablefor thewasher is taped to the rear of the dryer stand at the bottom.
Remove tape from control cable and temporarily place end of control cable in dryer vent.
From the back of the Stacked Washer/Dryer, grasp the dryer and stand.Pull dryer and stand
back and off of washer and shipping base. As dryer and stand are pulled back, carefully drop
dryer stand rear legs to the floor before clearing shipping base. (Do not drop dryer and stand
off of shipping base!).

CustomerSe,_Jice A4__
2a(]EdwardsStreet.SE
Cleveland,Tennessee37311
Tel:[phone]
Fax:[phone]

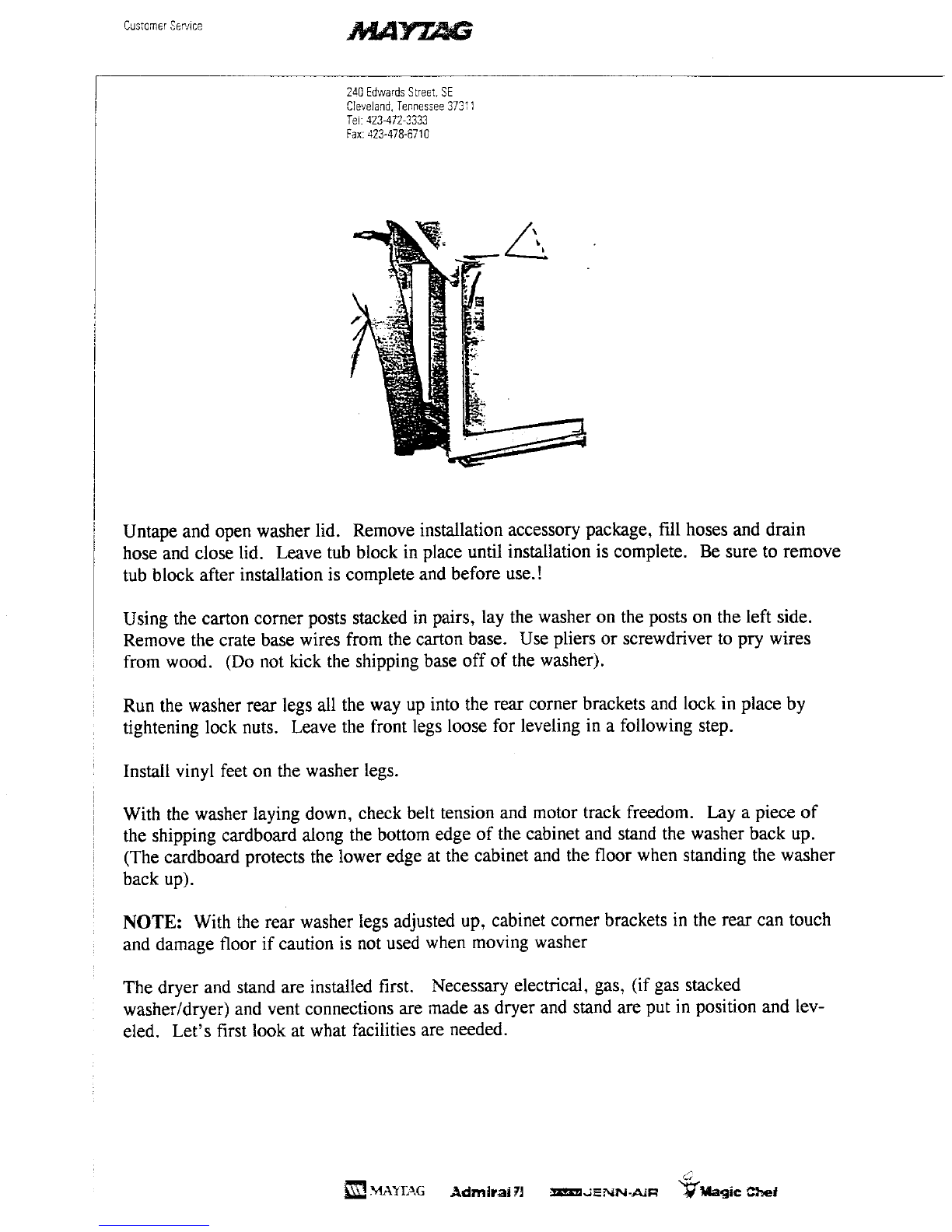

Untape and open washer lid. Remove installation accessory package, fill hoses and drain
hose and close lid. Leave tub block in place until installation is complete. Be sure to remove
tub block after installation is complete and before use. !
Using the carton corner posts stacked in pairs, lay the washer on the posts on the left side.
Remove the crate base wires from the carton base. Use pliers or screwdriver to pry wires
from wood. (Do not kick the shipping base off of the washer).
Run the washer rear legs all the way up into the rear corner brackets and lock in place by
tightening lock nuts. Leave the front legs loose for leveling in a following step.
Install vinyl feet on the washer legs.
With the washer laying down, check belt tension and motor track freedom. Lay a piece of
the shipping cardboard along the bottom edge of the cabinet and stand the washer back up.
(The cardboard protects the lower edge at the cabinet and the floor when standing the washer
back up).
NOTE: With the rear washer legs adjusted up, cabinet corner brackets in the rear can touch
and damage floor if caution is not used when moving washer
The dryer and stand are installed first. Necessary electrical, gas, (if gas stacked
washer/dryer) and vent connections are made as dryer and stand are put in position and lev-
eled. Let's first look at what facilities are needed.

2a-OEdwardsStreet.SE
Cleveland,Tennessee3731i
Tei:423-4723352,
Fax:_.23-478-6710
PREINSTALLATION CONSIDERATIONS
Location: Thestacked washer/dryer is approved for zeroclearance installationon the sides
and the back (depending on venting used). The location selected must take into consideration
the dimensions of the unit and convenience for customer use and access in case service should
be needed. The floor must be capable at supporting the weight of the unit (approximately
340 pounds) plus water (approximately 130 pounds) and be stable enough to prevent exces-
sive vibration in spin cycles. Afloor which is adequate for the standard washer is sufficient
for the stacked washer/dryer.
The following specifications and drawings show dimensionsand locations of fill valve, ter-
minal block (electric dryer) gas inlet (gas dryer) and drain outlet.
STACKED WASHER AND DRYER
Basic Dimensions 27 1/2" W x 27 1/2"D x 73" H (min). See drawings for complete
dimensions. Uncrated Weight: Approximately 340 pounds.
KEY FACTS - WASHER
Capacity: Standard (16gallons)
Water Usage: (full cycle) - 36 (30 Imp.) gal: 136liters - large
30 (25 Imp.) gal: 114 liters - medium
24 (20 Imp.) gal." 91 liters - small
Motor:1/2 H.E rated; 115 volt; 60 Hz; reversible; thermoprotectedagainst overload;
automatic reset. Model LDE7804 available in 220-240 volt; to Hz.
Power:O.1 - O.17 kwh depending on cycle.
Hose Lengths: Inlet 5 feet (1.52 m); drain 4 feet (I.22 m).
Installation Requirements:Hot and cold water connections with water pressure within 30-
120 p.s.i. (2.11-8.44 kg/cm) range; 120F to 140F hot water; a drain; a 120 volt, 60Hz
electrical outlet properly grounded and protected by a 15 amp fuse.
UncratedWeight:Approximately 340 pounds.
_"_ MA'_r._.C .ldm|rai _1 "_w'i" J E N N -,,_II=I _MilcJi¢ C,"'le|

240EdwardsStreet.SE
Cieve!and,Tenpessee373T
Tel:[phone]
Fax:423--t78-6710
KEY FACTS- DRYER
Air Flow:180 cubic feet per minute.
Exhaust: 4 inch (10.2 cm)duct pe_-,_itsa maximum of 50 feet (15.4 m) rigid aluminum
ductwork. Subtract 8 feet (2.44 m) for each 90 degree elbow and 8 feet for an exhaust hood.
Dryer vented out of the back.
Motor: 1/4 H.P. rated; 115 volt; 60 Hz; thermoprotected against overload; automatic reset.
Export Model - Model LDE7804 available in 220-240 volt; 50 Hz.
Heat Source: Electric - Nichrome helix coil, 240 volt 3-wire, 4600 watts, 30 amp fuse.
Gas - Single port burner; l8,000 BTU/hr; electric ignition; automatic shut-off.
13W'
cm
Note:Recessed 69.9cm ._. 271/£
back panelpermits 69.9cm
flush-to-wall installation.
[] MAYI'AG Admiral 7J _,OENN.,aa_ "_'__9_ ¢,Nef

C stom r ,hCI,AY'J I G
240EdwardsStreet.SE
C!eveland,TenPessee3731;
Tei:423-472-32,33
Fax:[phone]!0
ALCOVE OR CLOSET INSTALLATION
When the stacked washer/dryer is tobe installed in an alcove area or a closet, clearance
should be provided around the unit for an adequate air supply and for ease of installation and
servicing. An appliance installed in a closet shall have no other fuel burning appliance
installed in the same closet, such as gas furnace, water heater or space heater, etc.
The dryer must be exhausted to the outside to minimize excessive lint accumulation and to
maintain good drying. We recommend allowance for more clearance than the minimum
installation clearances as shown. Ceiling
./' _L c,o,.,oo.
I.,It:: \'\ \
BI _ sq. t
.. O_nin!
\[
0" - , I, 0"/
i a"
t ,J, r"
FRONTVIEW --_.- SlOE_'
1/2"VIEW
Eachopeningareamusthavea minimum of36 squareinches. Theseopeningsmustnotbe
obstructed. (Louvereddoorwithequivalentair openingis acceptable).
MOBILE HOMEINSTALLATION
Installation of Maytag dryers certified by the American Gas Association and bearing alabel
stating they are suitable for installation in mobile homes, when installed in mobile homes,
must conform to the Manufactured Home Construction and Safety Standard Title 24 CFR,
part 32-80.
When installing a dryer in a mobile home, provisions for anchoring the dryer should be
made. An anchor bracket kit is available, Part No. 303740 to fasten dryer stand to floor.
Instructions for installing the anchor brackets are contained in each kit.
All mobile home installations must be exhausted to the outside with the exhaust duct termi-
nation securely fastened to the mobile home structure, using materials that will not support
combustion. Exhaust the dryer using flexible metal exhausting materials and locate in an area
that provides adequate make-up air. The exhaust duct may not terminate beneath the mobile
home.

240EdwardsStre_:,SE
C_evefand.Tennessee_731T
Tel:422-472-,7,33S
Fax:[phone]_3
MAKE - UP AIR
For proper operationof the dryer unit, it is important tomake sure the location has adequate
make-up air. This is especially important in any confined area such as a bathroom or closet.
There must be at least two 36 inch square unobstructed openings for intake air. This can be a
louvered door or other equivalent opening.
On gas dryer units in particular, adequate clearance as noted on the dryer minimum clearance
label should be maintained to insure enough air for combustion and proper operation of the
dryer. The area where located must not obstruct the flow of combustion or ventilating air.
When installing a Maytag Stacked Washer/Dryer the following minimum clearances to com-
bustible surfaces must be maintained; clearance to wall and sides, 0 inches, top, 6 inches,
front I/2 inch to washer, rear 0 inches with an outside exhaust, 4 inches with an inside
exhaust (not recommended). See Exhausting Section and Installation Accessories for exhaust
kits.
SERVICE ACCESS
Location should allow access to the foot at the unit for washer and dryer service. Access
must be available totwo screws at the top front corners of the dryer front panel (on the top).

240EdwardsS:r,_e':,SE
C!eveland,Tenressee27SIi
Tel:42_-472-2223
Fax:_.23-478-67"0
EXHAUSTING
The free air flowrateis approximately 180cubic feetper minute.The vent system carries
lint and moisture away and to the outside.Thelength of the venting and the number of
elbows affect theair flowrateand the efficiency of the exhaust system.
DO NOTEXHAUST DRYERINTO ANY WALL,CEILING, CRAWL SPACE OR A
CONCEALED SPACE OF A BUILDING,VENT CONNECTION,GAS VENT OR
CHIMNEY. THIS COULD CREATE A FIRE HAZARD FROM LINTEXPELLED BY
THEDRYER.FOR THE SAME REASON,WE RECOMMEND ONLY METAL
EXHAUST DUCT TO MINIMIZE RESTRICTED AIR FLOWAND RELIABLY INSURE
THE CONTAINMENT OF EXHAUST AIR, HEAT AND LINT. NEVERINSTALL A
SCREEN OVER EXHAUST OUTLET. NEVER USE PLASTIC OROTHER COMBUS-
TIBLE DUCTWORK. AT LEASTONCE A YEAR, INSPECTAND CLEAN INTERIOR
OFDUCTWORK, FREQUENTLY CHECKAND CLEAN VENT HOOD TO ASSURE
PROPEROPERATION.
A clothes dryerproduces combustiblelintand the area around the clothes dryer should be
kept free of lint.DO NOT STORE FLAMMABLE LIQUIDS OR MATERIALS NEAR
A DRYER.
It isrecommended that a dryer be exhausted to the outsideusing 4" rigid or flexible metal
ducting.
When located in a bedroom, bathroom or closet, the dryer must be exhausted to the outside.
The stacked washer/dryercan only be exhausted out the back. A 4"vent should be installed
to accept the exhaust from thedryer.
To permit sufficient air circulation underthe exhaust hood,there shouldbe no less thana12"
clearance between the bottom ofthe exhaust hoodandthe ground. When possible the
exhaust hood should not exhaust directly into a window well. DO NOTterminate exhaust
under a building.
NOTE: Where the exhaust hood is to be installed through masonry, a special masonry saw is
necessary to cut the hole.
Install the exhaust hood and secure with screws to the outside wall and seal with caulking
compound.
[] MA'_TAGAdf'_]l'a| 7]ZI_-JENN-A_I:I _"_ie<:he[

2_0EdwardsStreet SE
Cieveiand.Tennessee87311
Tel:[phone]
Fax:_22-4786710

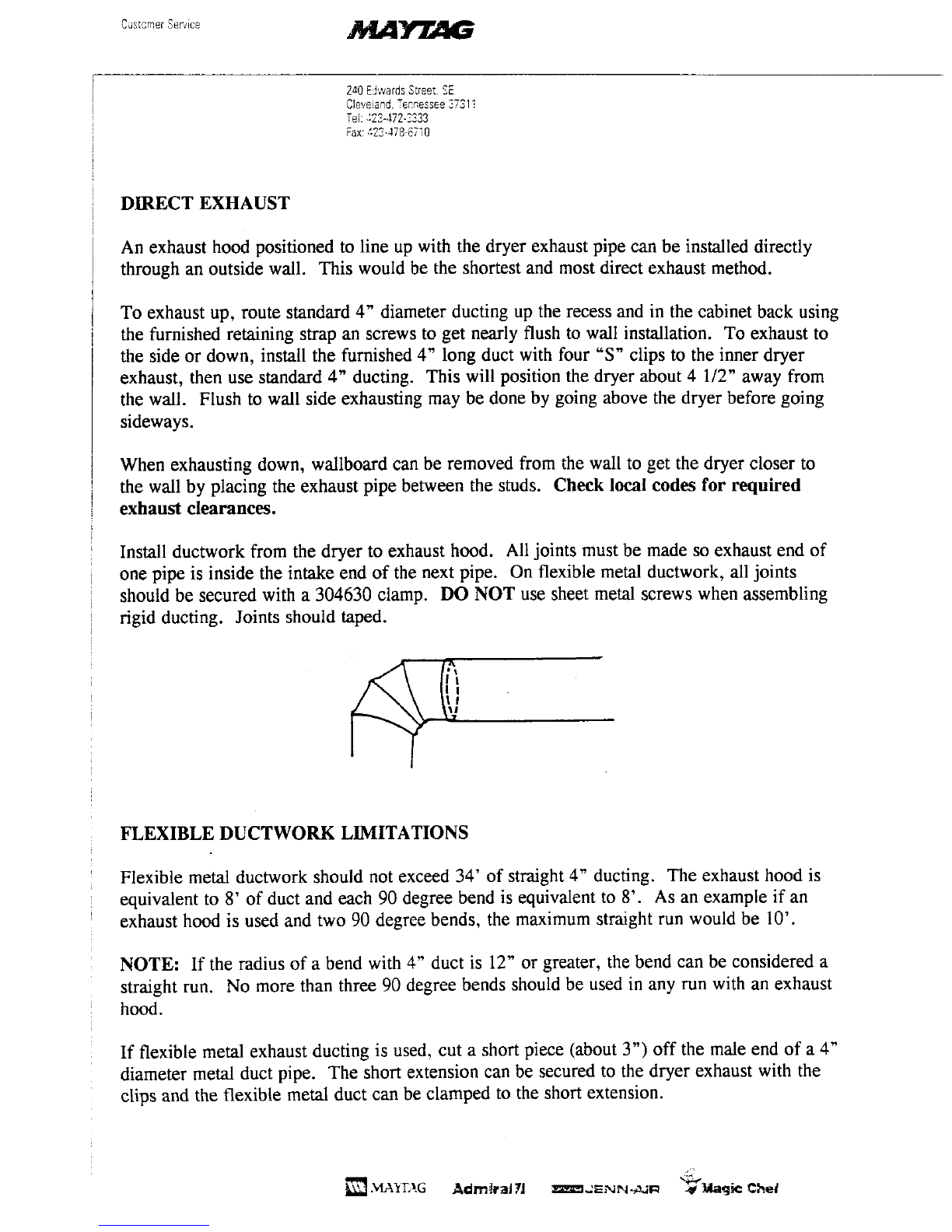

DIRECT EXHAUST
An exhaust hood positionedtoline up with the dryer exhaustpipe can be installed directly
through an outside wall. This wouldbe the shortest andmost direct exhaust method.
Toexhaust up, route standard4" diameter ducting up the recess and in the cabinet back using
the furnished retaining strap an screws toget nearly flush towall installation. Toexhaust to
the sideordown, install the furnished 4" long duct with four "S" clips tothe inner dryer
exhaust, then use standard4" ducting. This willposition the dryer about 4 1/2" away from
the wall. Flush towall side exhausting may be done by going above the dryer before going
sideways.
When exhausting down,wallboardcan be removed from the walltoget the dryer closer to
the wall by placing the exhaust pipe between the studs. Checklocal codes for required
exhaust clearances.
Install ductwork from the dryer toexhaust hood. All joints must be made soexhaust end of
one pipe is inside the intake end of the next pipe. On flexible metal ductwork, all joints
should be secured with a 304630 clamp. DO NOT use sheet metal screws when assembling
rigid ducting. Joints should taped.
Ill
FLEXIBLE DUCTWORK LIMITATIONS
Flexible metal ductwork shouldnot exceed34' of straight 4" ducting. The exhaust hood is
equivalent to8' ofduct andeach 90 degree bendis equivalent to8'. As an example if an
exhaust hood is used and two90 degree bends, the maximum straight run wouldbe 10'.
NOTE: If the radius of a bend with 4" duct is 12" or greater, the bend can be considered a
straight run. No more than three 90 degree bends should be used in any run with an exhaust
hood.
If flexible metal exhaust ducting is used, cut a short piece (about 3") off the male end of a 4"
diameter metal duct pipe. The short extension can be secured to the dryer exhaust with the
clips and the flexible metal duct can be clamped to the short extension.
MA_TAGAdm_r:al_! [d/NN-AJPl "_'}llla_Jk_C_et

C tamerSe ie0 hl,4
240EdwardsStreet,SE
Cleve4and,Tennessee,37311
Tel:[phone]
Fax:423-,i78-8710
RIGID DUCTWORK LIMITATIONS
Rigid metal ductwork should not exceed 50' of straight 4"duct. Each 90 degree elbow and
the exhaust hood should be considered equivalent to 8' of straight ductwork.
For example, if an exhaust hood and two 90 degree elbows are used, the maximum straight
duct allowed would be 26'. Not more than three 90 degree elbows should be used in any
rigid ductwork run with an exhaust hood.Four feet of straight duct should be allowed
between 90 degree elbows

C st0mer 0 ice hllA
240EdwardsStreet,SE
Cleveland,Tennessee37311
Tel:423-472-$333
Fax:423-478-'3710

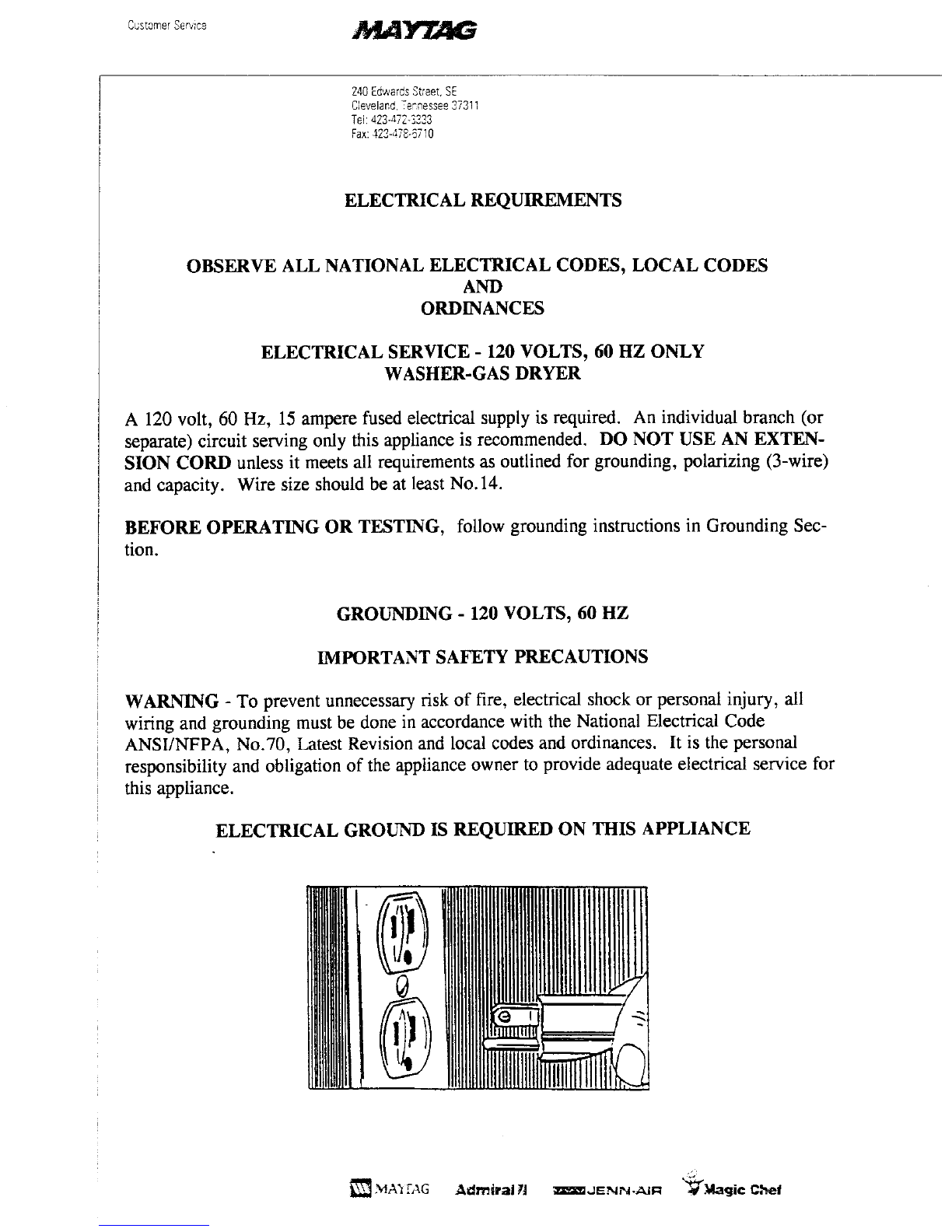

ELECTRICAL REQUIREMENTS
OBSERVE ALL NATIONAL ELECTRICAL CODES, LOCAL CODES
AND
ORDINANCES
ELECTRICAL SERVICE - 120 VOLTS, 60 HZ ONLY
WASHER-GAS DRYER
A 120 volt,60 Hz,15ampere fused electrical supplyis required. An individual branch (or
separate)circuit serving only this applianceis recommended. DO NOT USE AN EXTEN-
SION CORD unless it meets all requirementsas outlined for grounding,polarizing (3-wire)
and capacity. Wire size should be at leastNo.14.
BEFORE OPERATING OR TESTING,follow grounding instructions in Grounding Sec-
tion.
GROUNDING - 120 VOLTS, 60 HZ
IMPORTANT SAFETY PRECAUTIONS
WARNING - To prevent unnecessaryrisk of fire, electrical shockor personal injury, all
wiring and grounding mustbe done in accordance withthe National Electrical Code
ANSI/NFPA,No.70,LatestRevision and local codes and ordinances. It is the personal
responsibility and obligation of the appliance ownerto provide adequateelectrical service for
this appliance.
ELECTRICAL GROUND IS REQUIRED ON THIS APPLIANCE
J_
MA'I .rAG.ldrr_i'al lJ -'_'_'_JE_N.Ai_ 9j't,l_gi¢ C_',ef

CustomerSer,,'ica .i_j_"_l_
240EdwarosStreet.SE
C'_eve]and,Tennessee373!1
Tek423-472-3333
Fax:423J-78-67;0
GROUNDING INSTRUCTIONS
This appliance mustbe grounded. In theevent ofmalfunction or breakdown,grounding will
reducetheriskof electric shock byproviding a pathof least resistance for electric current.
This applianceis equippedwithacordhaving an equipment-grounding conductor and a
grounding plug. The plug must beplugged into an appropriateoutlet thatis properly
grounded in accordance with alllocal codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether the appliance is properly grounded.
Donot modify the plug provided with the appliance. If it will not fit the outlet, have a
proper outlet installed by a qualified electrician
ADDITIONALGROUND PROCEDURE - WHERE LOCAL CODE PERMITS.
An external ground wire, clampand screws are provided forassistancein meeting local
codes.Where approved,it is recommended thisadditional ground be installed.Asuitable
external ground connection MUST be determined prior towirehookup. Consult local build-
ing officials and qualified electrician in the event any questions exist.
NEVER CONNECT GROUND WIRE TO PLASTIC PLUMBING LINES, GAS OR
HOT WATER PIPES.
ALL GROUNDING AND WIRING MUST BE DONE IN ACCORDANCE WITH
NATIONAL AND LOCAL CODES.
i
V_,_XYrAGAdmira| _1 _ JE_N-AJR _-_la_icChef

240EdwardsStreet.SE
Cleveland,Tennessee37311
Tel:[phone]
Fax:[phone]

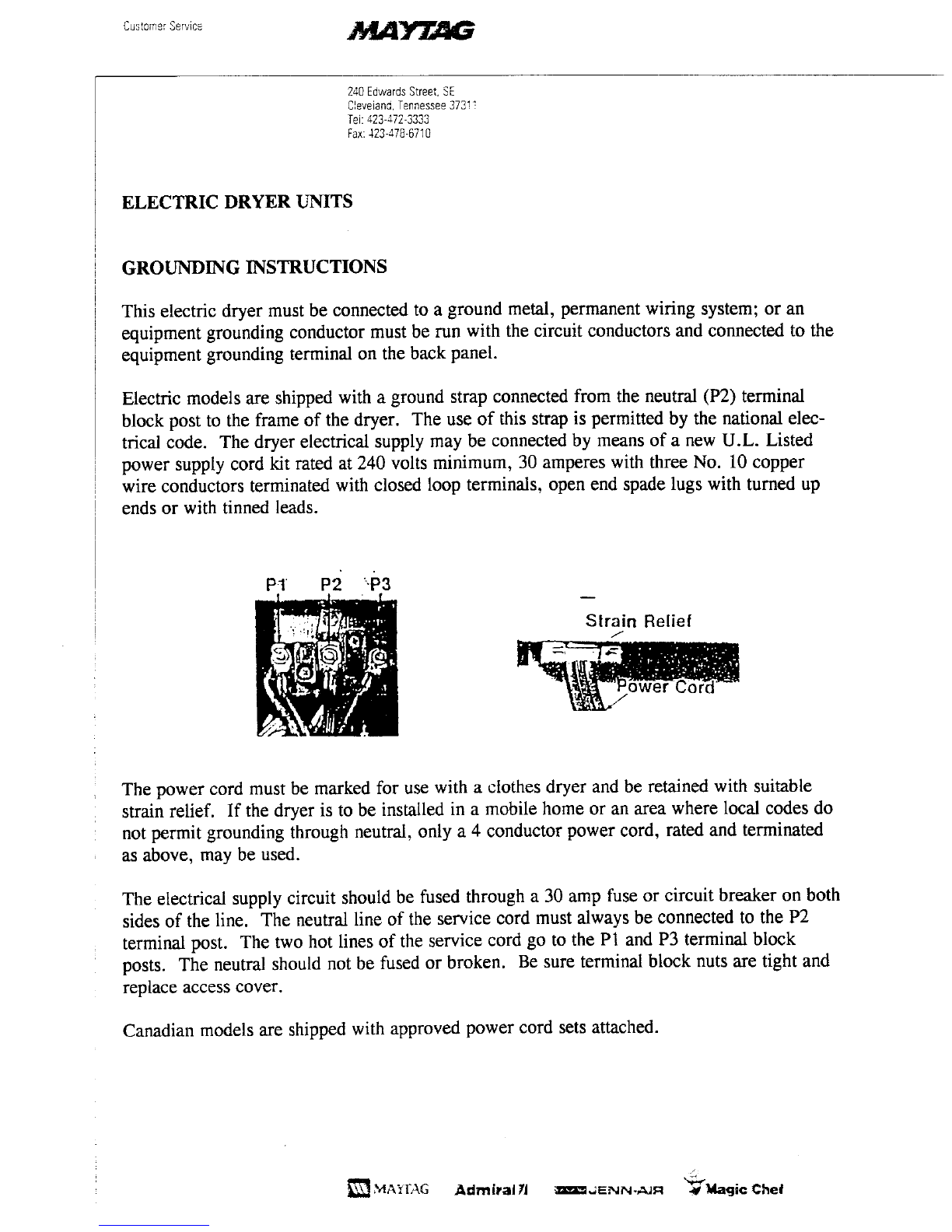

ELECTRIC DRYER UNITS
GROUNDING INSTRUCTIONS
This electric dryer mustbe connected to a ground metal, permanent wiring system; or an
equipmentgrounding conductor must be run withthe circuit conductors and connected to the
equipmentgrounding terminalon the back panel.
Electric models are shipped witha ground strapconnected from the neutral(P2)terminal
block post to the frame of the dryer. The use ofthis strapis permittedby the national elec-
trical code.The dryerelectrical supply may be connected by means of a newU.L. Listed
power supply cord kit rated at 240 volts minimum, 30amperes withthree No. 10 copper
wire conductors terminated withclosed loop terminals,open end spadelugs withturned up
ends or withtinned leads.
P-lP2 '-Ps
Thepower cord must bemarkedfor use with a clothes dryer and be retainedwith suitable
strain relief. If the dryer is to be installed in a mobile home or an area where local codes do
not permit grounding through neutral, only a 4 conductor power cord, rated and terminated
as above, may be used.
The electrical supply circuit should be fused through a 30 amp fuse or circuit breaker on both
sides of the line. The neutral line of the service cord must always be connected to the P2
terminal post. The two hot lines of the service cord go to the P1 and P3 terminal block
posts. The neutral should not be fused or broken. Be sure terminal block nuts are tight and
replace access cover.
Canadian models are shipped with approved power cord sets attached.
[] MA'_FAG Admiral 71 ,_'_,_E_N-,_r_"_gaeji¢Chet

CustomerSe_i_a __
240EdwardsStreet,SE
C[eveiand.Tennessee37311
Tel:[phone]
Fax:[phone]

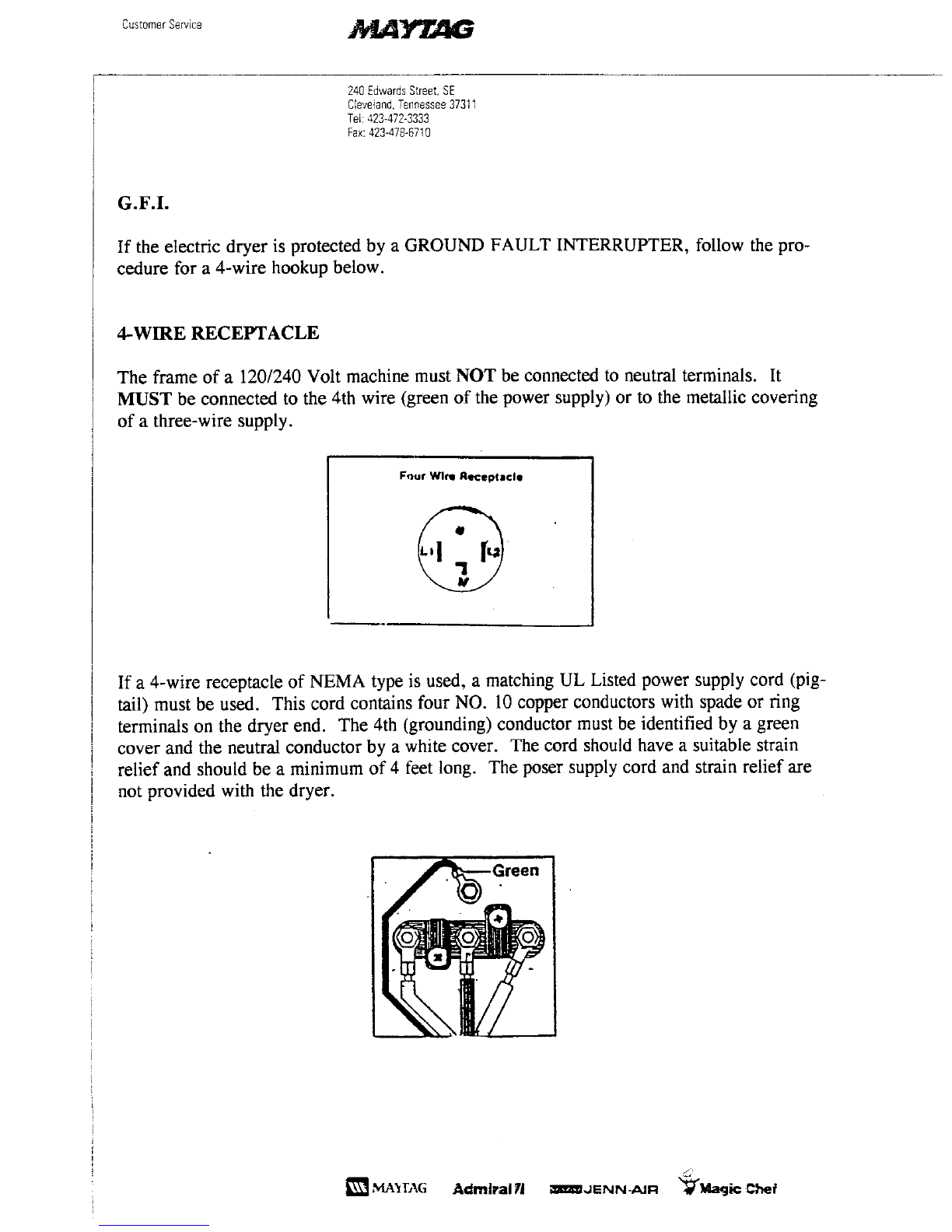

G.F.I.
If the electric dryer is protected by a GROUND FAULT INTERRUPTER, follow the pro-
cedure for a 4-wire hookup below.
4-WIRERECEPTACLE
The frame of a 120/240 Volt machine must NOT be connected to neutral terminals. It
MUST be connected to the 4th wire (green of the power supply) or to the metallic covering
of a three-wire supply.
Four Wh'l ReCeplacle
If a 4-wire receptacle of NEMA type is used, a matching UL Listed power supply cord (pig-
tail) must be used. This cord contains four NO. 10 copper conductors with spade or ring
terminals on the dryer end. The 4th (grounding) conductor must be identified by a green
cover and the neutral conductor by a white cover. The cord should have a suitable strain
relief and should be a minimum of 4 feet long. The poser supply cord and strain relief are
not provided with the dryer.
MA_TAGAdmiral _J :'mnmJENN-A.II::I _'J)L3cJi¢ C:"_ef

240EdwardsStreet.SE
Clevebnd,l_nne.<_ee37311
Tel:[phone]S:3
Fax:[phone]"0
4-WIRE SYSTEM CONNECTIONS
1. Remove the terminal block cover.
2. Remove the ground strap from the ground screw and center (silver colored) terminal of
the terminal block.
3. Connect the neutral (white) wire of the power supply cord to the center (silver colored)
terminal of the terminal block. Connect the grounding (green) wire of the cord to the exter-
nal ground connector, sing the green screw.
4.connect the other two wires of thecord to theouter terminals of the terminal block.
5.Replace the terminal block cover.
208 VOLT OPERATION
A306378 kit is used to convert the electricmicroprocessor stacked washer/dryer for 208 volt
operation. A new heater element label and instructions are included.
The elctrical mechanical stacked washer/dryer is not available for 208 volt operation.
['_ MA'_r.\G Admiral rl _._,J_NN-A_"_agi¢ ehet

C_s:cme,Se_,ice __
240EdwardsS[ree[.SE
Cleveiand,Tennessee2,7311
Tel:[phone]
Fax:[phone]

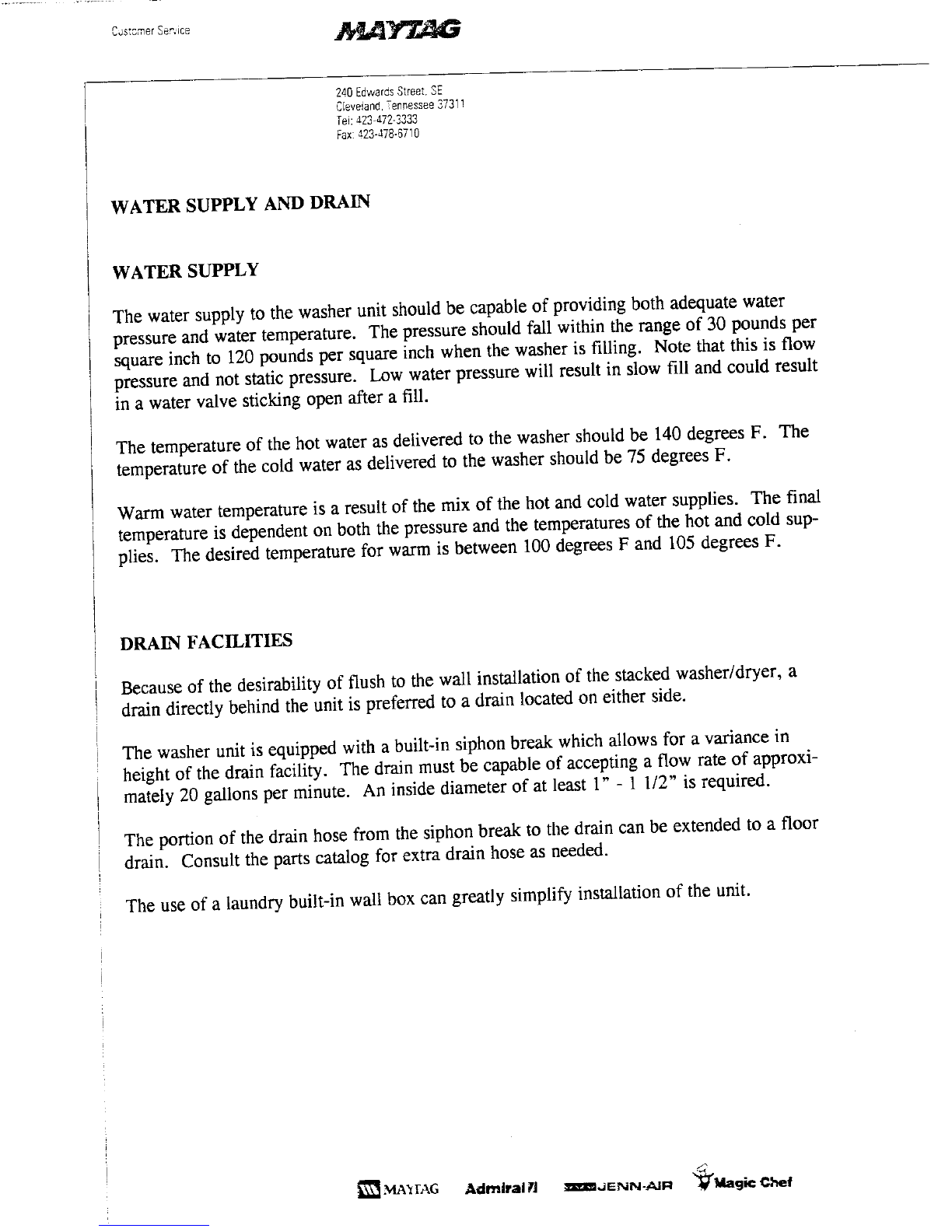

WATER SUPPLY AND DRAIN
WATER SUPPLY
The water supply to the washer unit should be capable of providing both adequate water
pressure and water temperature. The pressure should fail within the range of 30 pounds per
square inch to 120 pounds per square inch when the washer is filling. Note that this is flow
pressure and not static pressure. Low water pressure will result in slow fill and could result
in awater valve sticking open after a fill.
The temperatureof the hot water as delivered tothe washer should be 140 degrees F. The
temperature of the cold water as delivered to the washer should be 75 degrees F.
Warm water temperature is a result of the mix ofthe hot and cold water supplies. The final
temperature is dependent on both the pressure and the temperatures of the hot and cold sup-
plies. The desired temperature for warm is between 100 degrees F and 105 degrees F.
DRAIN FACILITIES
Because of the desirability of flush to the wall installation of the stacked washer/dryer, a
draindirectly behind the unit is preferred to a drain located on either side,
The washer unit isequipped with a built-in siphon break which allows for a variance in
height of the drain facility. The drain must be capable of accepting a flow rate of approxi-
mately 20 gallons per minute. An inside diameter of at least 1" - 1 l/2" is required.
The portion of the drain hose from the siphon break to the drain can be extended to a floor
drain. Consult the parts catalog for extra drain hose as needed.
The use of a laundry built-in wail box can greatly simplify installation of the unit.
.'vlA'_rA6 Admiral _|_'L_ jENN .g_l]l:l _-_'!bllagiC'C}'_e|

C_0merSe_isa __
240EdwardsStreet,SE
C!eveiand,Tennessee27311
Tel:[phone]
Fax:[phone]
Models are available that incorporate water supply, water drain, 120 Volt AC and 240 Volt
AC connections. An example is shown.
O©
3
If the faucets and/or drain is locatedtoeither side of the stacked washer/dryer, openings are
located in the dryer stand uprights to allow hoses and power cords to be passed through.
This is to allow installation against the back wall. (This is dependent on venting used.)
_[_"_,VIA'fl-AG Adm|raiT|m,JENN-AJR "J_'_ic Chef

Cus 0merSe ic ,/i gtlG
240EdwardsStreet,SE
C1eveiand,Tennessee37311
Tel:[phone]
Fax:_23-478-67:0

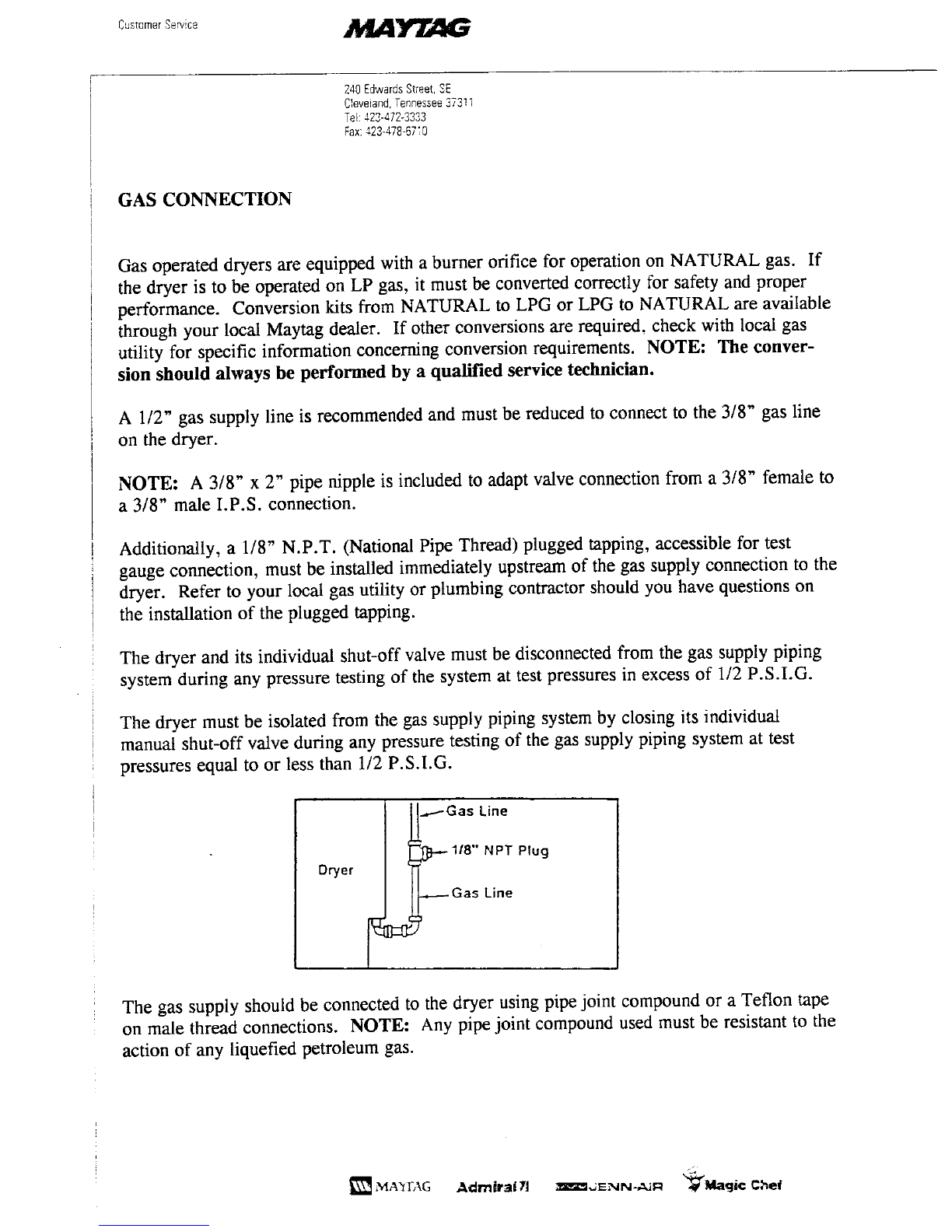

GAS CONNECTION
Gas operated dryers are equipped with a burner orifice for operation on NATURAL gas. If
the dryer is to be operated on LP gas, it must be converted correctly for safety and proper
performance. Conversion kits from NATURAL to LPG or LPG to NATURAL are available
through your local Maytag dealer. If other conversions are required, check with local gas
utility for specific information concerning conversion requirements. NOTE: The conver-
sion should always be performed by a qualified service technician.
A 1/2" gassupply lineis recommended and must be reduced to connect to the 3/8" gas line
on the dryer.
NOTE: A 3/8" x 2"pipe nipple is included to adapt valve connection from a 3/8"female to
a 3/8" male I.P.S. connection.
Additionally, a 1/8"N.P.T. (National Pipe Thread) plugged tapping, accessible for test
gauge connection, must be installed immediately upstream of the gas supply connection to the
dryer. Refer to your local gas utility or plumbing contractor should you have questions on
the installation of the plugged tapping.
The dryer and its individual shut-off valve must be disconnected from the gas supply piping
system during any pressure testing of the system at test pressures in excess of 1/2 P.S.I.G.
The dryer must be isolated from the gas supply piping system by closing its individual
manual shut-off valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 P.S.I.G.
.,_-Gas Line
1/8" NPTPlug
Dryer /_-Gas Line
The gas supply should be connected to the dryer using pipe joint compound or a Teflon tape
on male thread connections. NOTE: Any pipe joint compound used must be resistant to the
action of any liquefied petroleum gas.
MA_[AGAdmiral 7| _n_-JE_IN-AJR x_llacJi¢ ¢_ef

240EswardsStreet,SE
Cbve4and,Tennessee37311
Tel:[phone]
Fax:£23-478-8710
Turn on gas supply and open the shutoff at the gas valve. Check all gas connections for leaks
using a soap solution. If bubbles occur, tighten connections and recheck. DO NOT use an
open flame to cheek for gas leaks.
NOTE: As a courtesy, many local gas utilities will inspect a gas appliance installation.
Check with your utility to see if this service is provided in your area.
NOTE: The minimum permissible gas (natural or mixed) supply pressure for purposes in
input adjustment is 4.5 inches of water.
GAS IGNITION
This dryer uses an automatic ignition system to light the main burner when the dryer is
turned on.
If a 4-wire receptacle of NEMA type is used, a matching UL Listed power supply cord (pig-
tail) must be used. This cord contains four No. 10copper conductors with spade or ring
terminals on the dryer end. The 4th (grounding) conductor must be identified by a green
cover and the neutral conductor by a white cover. The cord should have a suitable strain
relief, and should be a minimum of 4 feet long. The power supply cord and strain relief are
not provided with the dryer.

Cus 0meS0r,
240EdwardsStreet,SE
Cleveland,Tennessee37311
Tel:[phone]
Fax:[phone]
INSTALLATION
INSTALL DRYER UNIT AND STAND
The dryer and standare installed first.With the connections preparedfor exhausting, electric
power and gas (if gas stacked washer/dryer, see Gas Connection), the dryer and stand are
moved to the location.
NOTE:When moving the dryer and stand on an appliance hand truck,it is recommended
that the dryer and stand be trucked upside down. Protective padding should be used to avoid
damage to the cabinet finish.
Install the vinyl feeton the dryer stand legs.Note the rear legs are "washer" legs and use
the larger feet.
Install electric power cord (electric stacked washer/dryer). See Electrical Requirements sec-
tion.
Thevent connection is lined up from underneath the dryer as the dryer and stand are moved
back into position when a straight-out-the-back vent is used. When venting down, up, or to
the side, an elbow or fiat duct section is placed on to the dryer exhaust before the dryer is
slid into position.
Level the dryer and stand and lock leveling legs using leg lock nuts.
Connect gas line for gas units and check for leaks. Use a liquid soap solution or leak detec-
tor. DO NOT use a match or open flame !
With dryer "andstand in position, exhaust vent connected, unit leveled and gas line connected
(if gas unit), power cord set installed (if electric unit), plug power cord into electric outlet.
INSTALL WASHER UNIT
Install washer glide bars on rear of washer cabinet. The glide bars are in the installation
package found in the washer tub. Install with rounded edge down. The glide bars will
extend beyond the edge of the cabinet on each side when properly installed.
[] MA_/I'AGAdmiral _JmJENN1.A]I:I_"i_lgi¢: C,_le[
