Maytag W10343072A User manual

W10343072A
W10376241A - SP
WASHER/DRYER
USE AND CARE GUIDE
Table of Contents
WASHER/DRYER SAFETY ...........................................2
ACCESSORIES..............................................................4
USING LESS WATER AND ENERGY ...........................4
CHECK YOUR VENT SYSTEM
FOR GOOD AIR FLOW ................................................4
CONTROL PANEL AND FEATURES ............................5
WASHER CYCLE GUIDE ..............................................6
DRYER CYCLE GUIDE .................................................7
USING YOUR WASHER................................................8
USING YOUR DRYER .................................................11
WASHER/DRYER MAINTENANCE ............................13

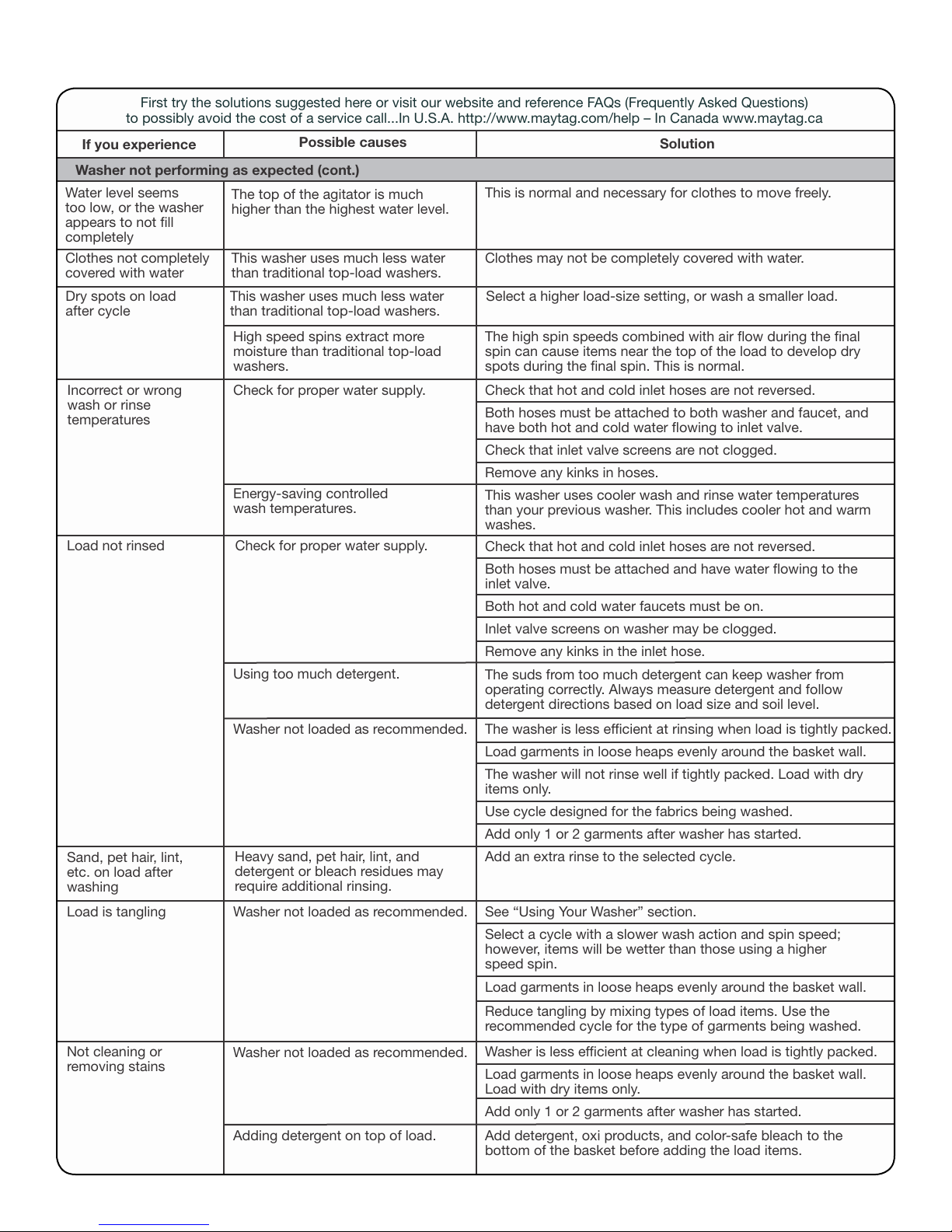

TROUBLESHOOTING.................................................16
WARRANTY.................................................................22
ASSISTANCE OR SERVICE........................Back Cover
Table des matières
SÉCURITÉ DE LA LAVEUSE/SÉCHEUSE .................23
ACCESSOIRES............................................................25
RÉDUCTION DE LA CONSOMMATION D’EAU
ET D’ÉNERGIE ............................................................25
VÉRIFICATION D’UNE CIRCULATION
D’AIR ADÉQUATE POUR LE SYSTÈME
D’ÉVACUATION ..........................................................26
TABLEAU DE COMMANDE ET
CARACTÉRISTIQUES.................................................27
GUIDE DE PROGRAMMES DE LA LAVEUSE ...........28
GUIDE DE PROGRAMMES DE LA SÉCHEUSE ........29
UTILISATION DE LA LAVEUSE ..................................30
UTILISATION DE LA SÉCHEUSE...............................33
ENTRETIEN DE LA LAVEUSE/SÉCHEUSE ...............35
DÉPANNAGE ...............................................................39
GARANTIE...................................................................47
ASSISTANCE OU SERVICE............ Couverture arrière
LAVEUSE/SÉCHEUSE
GUIDE D’UTILISATION
ET D’ENTRETIEN

2

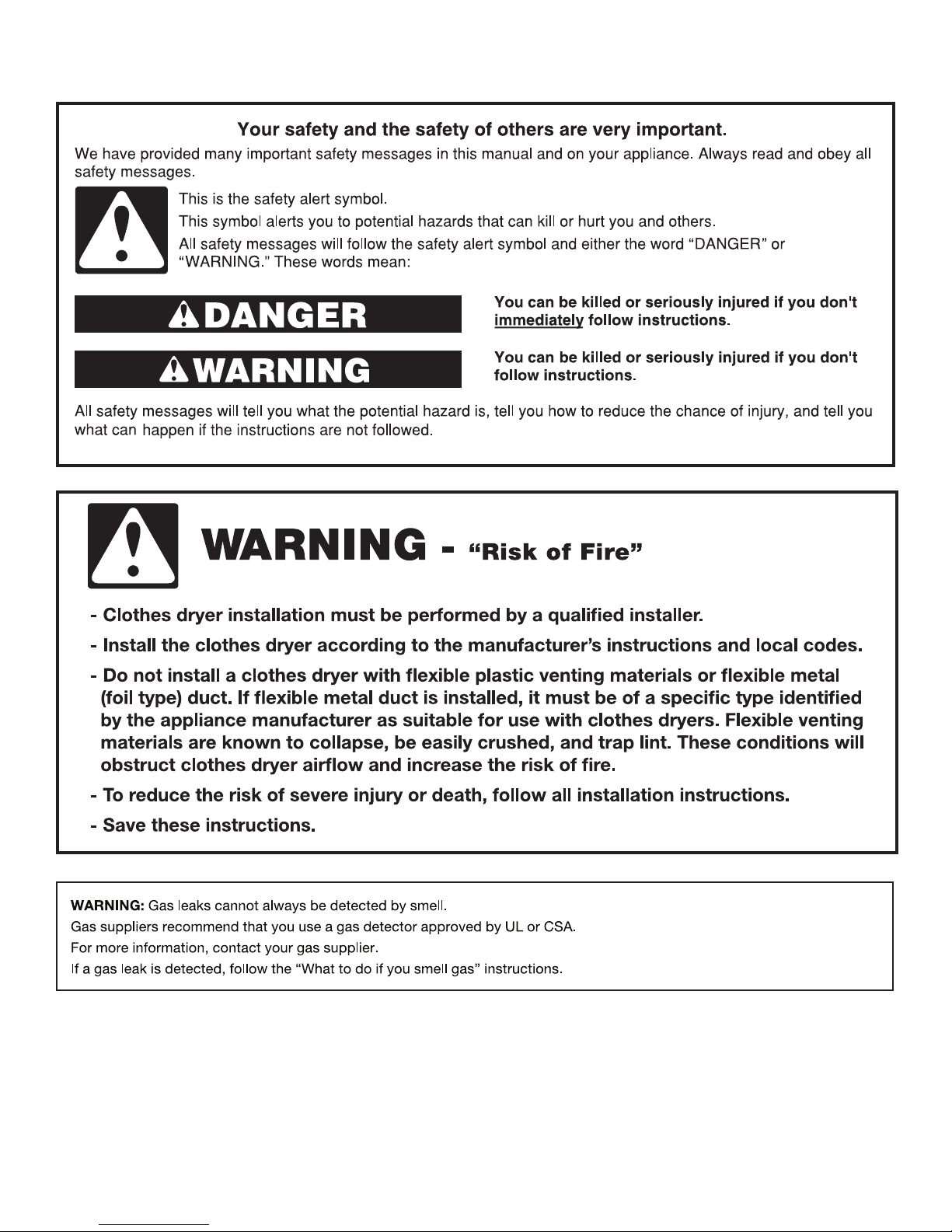

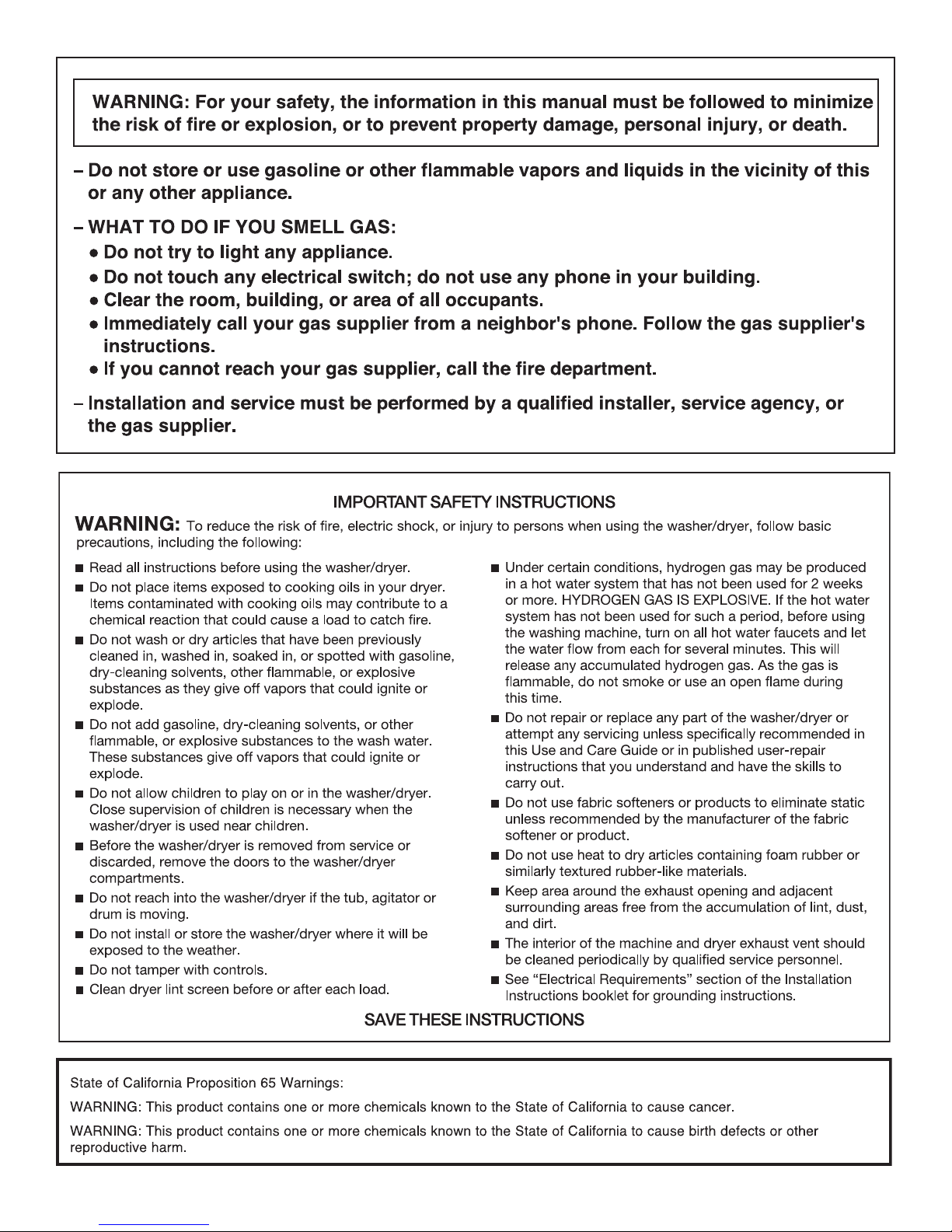

WASHER/DRYER SAFETY

3

4
CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW
Good air ow
Along with heat, dryers require good air ow to efciently
dry laundry. Proper venting will reduce your drying times
and improve your energy savings. See “Installation
Instructions.”
The venting system attached to the dryer plays a big role in
good air ow.
Service calls caused by improper venting are not covered
by the warranty and will be paid by the customer, regardless
of who installed the dryer.
Maintain good air ow by:
Good Better
n Cleaning your lint screen before each load.
n Replace plastic or foil vent material with 4" (102 mm)
diameter heavy, rigid vent material.
n Use the shortest length of vent possible.
n Use no more than four 90° elbows in a vent system;
each bend and curve reduces air ow.
n Remove lint and debris from the exhaust hood.
n Remove lint from the entire length of the vent system at
least every 2 years. When cleaning is complete, be sure
to follow the “Installation Instructions” supplied with your
dryer for nal product check.
n Clear away items from the front the dryer.
4"
(102 mm)
ACCESSORIES
This washer does not include inlet water hoses. See
“Installation Instructions” for installation accessories.
Enhance your dryer with these premium accessories.
For more high-quality items or to order, call 1-800-901-2042,
or visit us at www.maytag.com/accessories. In Canada call
1-800-807-6777, or visit us at www.whirlpoolparts.ca.
Part Number Accessory:
8212526 Washer drip tray, ts under all
All-purpose appliance cleaner
31682
Laundry supply storage cart
1903WH
Use Sensor Dry cycles for better fabric care and energy savings
Use the Sensor Dry cycles to provide the most energy savings and enhanced fabric care from the dryer. During Sensor Dry
cycles, drying air temperature or moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the
dryer shuts off when the load reaches the selected dryness. The Energy Preferred cycle will provide optimal energy savings.
With Timed Dry, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to
over-drying. Use Timed Dry for the occasional damp load that needs a little more drying time or when using the drying rack.
USING LESS WATER AND ENERGY
This washer is designed to use less water and energy, and complies with
all 2011 energy standards. Wash cycles with controlled temperatures are
designed to maintain cleaning performance while using less water and
energy compared to older traditional washers. As a result, water levels will
be lower, and hot and warm wash temperatures may not be as warm as
you are used to.
Traditional washer Reduced water washer

5
34
1
CONTROL PANEL AND FEATURES
2
WASH CYCLE KNOB
Use the Wash Cycle knob to select available cycles on your
washer. Turn the knob to select a cycle for your laundry load.
See “Cycle Guide” for detailed descriptions of cycles.
WASH TEMPERATURE
You may select a Wash Temperature based on the type of
fabric and soils being washed. Use the warmest wash water
safe for the fabric. Follow garment label instructions.
WATER LEVEL
Use this option to adjust the amount of water used with
your load size. Use enough water to allow the load to
move freely.
NOTE: The highest water level will be lower than that
of pre-2011 washers.
FABRIC SOFTENER
This option must be selected if using fabric softener
during a cycle. It ensures that fabric softener is added
at the correct time in the rinse for even distribution.
1
2
3
4
5
6
Not all features and options are available on all models.
Appearance may vary.
5 6
END OF CYCLE SIGNAL/PUSH TO START
The End of Cycle Signal produces an audible sound when
the drying cycle is nished. Promptly removing clothes at
the end of the cycle reduces wrinkling.
Turn the END OF CYCLE SIGNAL knob to select the
desired setting (On or Off). Press the PUSH TO START
knob to start the dryer.
DRYER CYCLE KNOB
Use your Dryer Cycle knob to select available cycles on
your dryer. Turn the knob to select a cycle for your laundry
load. See “Cycle Guide” for detailed descriptions of cycles.
TIMED DRY
Will run the dryer for the specied time on the control.
Drying time and temperature will depend on your dryer
model.
SENSOR DRY
Senses moisture in the load or air temperature and shuts
off when the load reaches the selected dryness level.
Gives the best drying in the shortest time. Drying time will
vary based on fabric type, load size, and dryness setting.
WASHER DRYER

6
* You should use the amount of detergent or presoak additive recommended by the manufacturer. After the cycle ends, you may add
detergent and start a new wash cycle.
**Approximate time in minutes.
WASHER CYCLE GUIDE
Items to wash: Cycle: Wash Times**: Wash/Spin
Speed: Cycle Details:
Light to moderately
soiled delicate items
and washable knits
Delicate Low/Low
Permanent press
blends and
synthetic fabrics
that are lightly to
moderately soiled
Cottons and
linens; loads that
are moderately or
heavily soiled
Heavily soiled
or stained
items that need
pretreatment
Casual
Normal
Prewash*
Gently removes soils and minimizes wrinkling.
Features a cool down, rinse and low-speed nal
spin to reduce wrinkling.
You may select a wash time based on the soil level
of your load.
Brief periods of agitation and soak followed by a
4-minute Pre-Wash featuring high-speed agitation.
6–10
6–14
4
High and
Low/Low
High and
Low/High
High/High
6–10
Not all cycles or options are available on all models.
Refer to the cycle control knob on your washer.
Wash temperatures are selected using the Wash Temperature
control knob.
For best fabric care, choose the cycle that best ts the load being
washed.

7
DRYER CYCLE GUIDE — SENSOR DRY CYCLES
Not all cycles and settings are available on all models.
SENSOR DRY – Sensor dry cycles give the best drying
in the shortest time. They sense moisture in the load or air
temperature and shut off when the load reaches the selected
dryness level. Drying time varies based on fabric type, load size,
and dryness setting.
Select a drying temperature based on the fabrics in your load. If
you are unsure of the temperature to select for a load, select the
lower setting rather than the higher setting.
Items to dry: Available
Options: Cycle Details:
End of Cycle Signal
NOTE: If loads do not seem as dry as you would like, select More Dry next time you dry a similar load. If loads seem drier than you
like, select Less Dry next time you dry a similar load.
SENSOR DRY
(Low Heat)
SENSOR DRY
(High Heat) End of Cycle Signal Sensor Dry cycles include a cool down cycle to make the load easier to handle.
An ENERGY PREFERRED cycle (*) is available for optimal
energy savings.
Cycle:
DRYER CYCLE GUIDE — TIMED DRY
Items to dry: Temperature:Cycle: Available
Options: Cycle Details:
Not all cycles and settings are available on all models.
Will run the dryer for the selected time.
Heavy, bulky, or
lightweight items Timed Dry Time Adjustment
End of Cycle Signal
Completes drying if items are still damp.
High
Rubber, plastic,
heat-sensitive fabrics Air Fluff No Heat Time Adjustment
End of Cycle Signal
No-heat drying.
Any load Wrinkle Prevent No Heat Time Adjustment
End of Cycle Signal
Helps remove wrinkles, such as those
found in clothes packed in a suitcase
or in items wrinkled from being left in
the dryer too long.
Most loads, including
jeans, heavy work
clothes, towels
Medium to lightweight
synthetics, permanent
press, no-iron items
or smaller, lighter
loads, including work
clothes, medium
weight fabrics, sheets,
casual, shirts, pants,
lightweight items,
synthetics, delicates,
athletic wear

8
• Emptypockets.Loosechange,buttons,oranysmallobject
can pass under the agitator and become trapped, causing
unexpected sounds.
• Sortitemsbyrecommendedcycle,watertemperature,
and colorfastness.
• Separateheavilysoileditemsfromlightlysoiled.
• Separatedelicateitemsfromsturdyfabrics.
• Donotdrygarmentsifstainsremainafterwashing,because
heat can set stains into fabric.
• Treatstainspromptly.
• Closezippers,fastenhooks,tiestringsandsashes,and
remove non-washable trim and ornaments.
• Mendripsandtearstoavoidfurtherdamagetoitems
during washing.
Helpful Tips:
• Whenwashingwater-prooforwater-resistantitems,load
evenly.
• Usemeshgarmentbagstohelpavoidtanglingwhenwashing
delicate or small items.
• Turnknitsinsideouttoavoidpilling.Separatelint-takersfrom
lint-givers. Synthetics, knits, and corduroy fabrics will pick up
lint from towels, rugs, and chenille fabrics.
NOTE: Always read and follow fabric care label instructions to
avoid damage to your garments.
1. Sort and prepare your laundry
Add a measured amount of detergent into the bottom of
the washer basket before adding clothes. If using an Oxi or
color-safe bleach laundry boost product, add to the bottom
of the washer basket, as well.
IMPORTANT: Follow the manufacturer’s instructions to
determine the amount of detergent to use.
2. Add detergent
USING YOUR WASHER

9
5. Add fabric softener to dispenser
(on some models)
Pour a measured amount of liquid fabric
softener into dispenser, always follow
manufacturer’s directions for correct amount
of fabric softener based on your load size.
Dilute liquid fabric softener by lling the dispenser with warm
water until liquid reaches the underside of the rim. See max ll
line arrows.
IMPORTANT: Fabric Softener option must be selected to “On”
to ensure proper distribution at correct time in cycle.
Adding Liquid Fabric Softener Manually to Wash Load
During the nal rinse, wait until the washer has completed lling,
push in the Cycle knob to pause the washer. Lift the lid and add
the measured recommended amount of liquid fabric softener
(diluted with 1/2 to 1 cup [125 to 250 mL] warm water). Do not
allow liquid fabric softener to spill, splash, drip, or run into the
basket or on load. Do not use more than the recommended
amount. Close the lid and pull out the Cycle knob to start the
washer.
IMPORTANT: Fabric Softener option must be selected to “On”
to ensure proper distribution of the fabric softener during the
rinse portion of the cycle.
4. Add liquid chlorine bleach
to dispenser
Liquid
Chlorine Bleach
Do not overll, dilute, or use more than 1 cup (250 mL).
Do not use color-safe bleach or Oxi products in the same
cycle with liquid chlorine bleach.
Load garments in loose heaps evenly around basket wall.
For best results, do not pack the load tightly. Do not wrap large
items such as sheets around the agitator; load them in loose
piles around the sides of the basket. Try mixing different sized
items to reduce tangling.
3. Load laundry into washer
MAX FILL
Turn Cycle knob clockwise to choose your wash cycle.
For more information, see “Cycle Guide.”
6. Select cycle
IMPORTANT: Do not tightly pack or force items into washer.
Items need to move freely for best cleaning and to reduce
wrinkling and tangling.

10
Wash Temp
Hot
Some cold water is added to save
energy. This will be cooler than
your hot water heater setting.
Warm
Some cold water will be added, so
this will be cooler than what your
previous washer provided.
Cool
Warm water may be added to
assist in soil removal and to help
dissolve detergents.
Cold
This is the temperature from your
faucet. If your tap cold water is
very cold, warm water may be
added to assist in soil removal and
help dissolve detergent.
Suggested Fabrics
8. Select TEMPERATURE
Once you select a cycle, select the desired wash temperature
by turning the WASH TEMPERATURE knob to the appropriate
setting based on your load. All rinses are tap cold.
NOTE: Always read and follow fabric care label instructions
to avoid damage to your garments.
10. Pull out Cycle knob to begin wash
cycle
Pull out the Cycle knob to start the washer.
To stop or restart your washer:
• Tostopthewasheratanytime,pushintheCycleknob.
• Torestartthewasher,closethedoor(ifopen)andpullout
the Cycle knob.
Set FABRIC SOFTENER to ON if you want to add fabric softener.
IMPORTANT: Fabric Softener option must be selected to “On” to
ensure proper distribution at correct time in cycle. Do not overll
or dilute.
Whites and pastels
Durable garments
Heavy soils
Bright colors
Moderate to light soils
Colors that bleed
or fade
Light soils
Dark colors that
bleed or fade
Light soils
9. Select FABRIC SOFTENER On or Off
Select the load size setting most suitable for your load. Small
will add a low amount of water for smaller loads and Large will
add the most amount of water for large or bulky loads. Items
need to move freely.
7. Select WATER LEVEL

11
USING YOUR DRYER
1. Clean the lint screen
Clean the lint screen before each load. Pull the lint screen straight
up. Roll lint off the screen with your ngers. Do not rinse or wash
screen to remove lint. Push the lint screen rmly back into place.
For additional cleaning information, see “Cleaning the Lint
Screen.”
2. Load the dryer
Place laundry in the dryer. Close the door.
NOTE: Your model may have a different door than the one
shown. Some models have drop down doors.
Do not tightly pack the dryer; clothes should be able to
tumble freely.
WARNING: To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this dryer.
Before using your dryer, wipe the dryer drum with a damp cloth
to remove dust from storing and shipping.
3. Select cycle
Select the desired cycle for your load. See “Cycle Guide”
for more information about each cycle.
SENSOR DRY Cycles
You can select a different dryness level, depending on your
load, by turning the knob to dryness level.
Selecting More Dry, ENERGY PREFERRED, or Less Dry
automatically adjusts the dryness level at which the dryer will
shut off. Once a dry level is set, it cannot be changed without
stopping the cycle.
SENSOR DRY cycles give the best drying in the shortest time.
Drying time varies based on fabric type, load size, and dryness
setting.
NOTE: More Dry removes more load moisture. ENERGY
PREFERRED is used for a starting point for SENSOR DRY
cycles. Choose ENERGY PREFERRED for optimal energy
savings. Less Dry removes less moisture and used for loads
you may want to put on a hanger to complete drying.

12
5. Press PUSH TO START to
begin cycle
Push and hold the PUSH TO START knob to begin the cycle.
Promptly remove garments after cycle has completed to reduce
wrinkling. Use the Wrinkle Prevent feature to avoid wrinkling
when you are unable to remove a load from the dryer as soon
as it stops.
4. Select End of Cycle signal
(optional)
Your dryer may have an End of Cycle signal. The signal is
helpful when drying items that should be removed from the
dryer as soon as it stops. The End of Cycle signal is part of
the PUSH TO START button and is selectable. Turn the PUSH
TO START button to ON or OFF. The signal will sound only if
the selector is set to ON.
NOTE: When the Wrinkle Prevent setting is selected and the
End of Cycle signal is on, the tone will sound every 5 minutes
until the clothes are removed or the Wrinkle Prevent setting
ends.

13
CLEANING YOUR WASHER
Keep your washer as clean and fresh as your clothes. To keep
washer interior odor-free, follow this recommended monthly
cleaning procedure:
1. Make sure the washer is empty.
2. Using recommended AFFRESH®washer cleaner,
add one tablet to washer basket
OR
If using liquid chlorine bleach, add 1 cup (250 mL) to
liquid chlorine bleach dispenser.
IMPORTANT: Do not add detergent. Do not use more than
recommended amount of bleach to avoid damaging product
over time.
3. Close washer door.
4. Select Normal Heavy cycle, hot Temperature, and large
Water Level.
5. Pull out the Cycle knob. Water will pour into washer
for a moment and pause, door will lock, then cycle will
continue.
NOTE: For best results, do not interrupt cycle. If cycle must
be interrupted, push in the Cycle knob.
Cleaning the liquid fabric softener dispenser
1. Remove dispenser by grasping top with both hands and
squeezing, while pushing upward with thumbs.
2. Rinse dispenser under warm water, then replace it.
NOTE: To avoid damage to the washer or clothing, do not
wash clothes with the liquid fabric softener dispenser removed.
Cleaning the bleach dispenser
Wipe the inside of the bleach dispenser with a clean, damp
cloth.
To clean exterior:
1. Use a soft, damp cloth or sponge to wipe up any spills.
2. Use all-purpose surface cleaner, if needed.
IMPORTANT: To avoid damaging the washer’s nish, do not
use abrasive products.
Replace inlet hoses after 5 years of use to reduce the risk of
hose failure. Periodically inspect and replace inlet hoses if
bulges, kinks, cuts, wear, or leaks are found.
When replacing your inlet hoses, mark the date of replacement
on the label with a permanent marker.
WATER INLET HOSES
WASHER/DRYER MAINTENANCE
Keep washer/dryer area clear and free from items that
would block the air ow for proper washer/dryer operation.
This includes clearing piles of laundry in front of the washer/
dryer.
CLEANING THE DRYER INTERIOR
To clean dryer drum
1. Apply a liquid, nonammable household cleaner to the
stained area of the drum and rub with a soft cloth until
stain is removed.
2. Wipe drum thoroughly with a damp cloth.
3. Tumble a load of clean cloths or towels to dry the drum.
NOTE: Garments that contain loose dyes, such as denim
blue jeans or brightly colored cotton items, may discolor the
dryer interior. These stains are not harmful to your dryer and
will not stain future loads of clothes. Dry these items inside
out to avoid drum staining.
REMOVING ACCUMULATED LINT
From Inside the Dryer Cabinet
Lint should be removed every 2 years, or more often,
depending on dryer usage. Cleaning should be done
by a qualied servicer.
From the Exhaust Vent
Lint should be removed every 2 years, or more often,
depending on dryer usage.
CLEANING THE WASHER/DRYER LOCATION

14
CLEANING THE LINT SCREEN
Every load cleaning
The lint screen is located in the door opening of the dryer.
A screen blocked by lint can increase drying time.
To clean:
1. Pull the lint screen straight up. Roll lint off the screen
with your ngers. Do not rinse or wash screen to
remove lint. Wet lint is hard to remove.
2. Push the lint screen rmly back into place.
IMPORTANT:
n Do not run the dryer with the lint screen loose,
damaged, blocked, or missing. Doing so can cause
overheating and damage to both the dryer and fabrics.
n If lint falls off the screen into the dryer during removal,
check the exhaust hood and remove the lint. See
“Venting Requirements.”
As needed cleaning
Laundry detergent and fabric softener residue can build
up on the lint screen. This buildup can cause longer drying
times for your clothes, or cause the dryer to stop before
your load is completely dry. The screen is probably clogged
if lint falls off while the screen is in the dryer.
Clean the lint screen with a nylon brush every 6 months,
or more frequently, if it becomes clogged due to a residue
buildup.
To wash:
1. Roll lint off the screen with your ngers.
2. Wet both sides of lint screen with hot water.
3. Wet a nylon brush with hot water and liquid detergent.
Scrub lint screen with the brush to remove residue
buildup.
4. Rinse screen with hot water.
5. Thoroughly dry lint screen with a clean towel.
Reinstall screen in dryer.
VACATION, STORAGE, AND MOVING CARE
Non-Use or Storage Care
Operate your washer/dryer only when you are at home.
If you will be on vacation or not using your washer/dryer
for an extended period of time, you should:
1. Unplug washer/dryer or disconnect power.
2. Turn off water supply to washer, to avoid ooding due
to water pressure surge.
3. For gas dryers only: Close shut-off valve to gas supply
line.
4. Clean lint screen. See “Cleaning the Lint Screen.”
Moving Care
For power supply cord-connected washer/dryers:
1. Unplug the power supply cord.
2. Make sure leveling legs are secure in washer/dryer base.
3. Use tape to secure washer/dryer doors.
For direct-wired washer/dryers:
1. Turn off power at fuse or breaker box.
2. Disconnect wiring.
3. Make sure leveling legs are secure in washer/dryer base.
4. Use tape to secure washer/dryer doors.
For gas washer/dryers:
1. Unplug or disconnect power to washer/dryer.
2. Close shut-off valve in gas supply line.
3. Disconnect gas supply line pipe and remove ttings
attached to dryer pipe.
4. Cap the open fuel supply line.
5. Make sure leveling legs are secure in washer/dryer base.
6. Use tape to secure washer/dryer doors.
Reinstalling the Washer/Dryer
Follow the “Installation Instructions” to locate, level,
and connect the washer/dryer.

15
WINTER STORAGE CARE
IMPORTANT: To avoid damage, install and store washer/dryer
where it will not freeze. Because some water may stay in
hoses, freezing can damage washer/dryer. If storing or moving
during freezing weather, winterize your washer/dryer.
To winterize washer/dryer:
1. Shut off both water faucets, disconnect and drain water
inlet hoses.
2. Put 1 qt. (1 L) of R.V. - type antifreeze in basket and run
washer on RINSE cycle for about 30 seconds to mix
antifreeze and remaining water.
3. Unplug washer/dryer or disconnect power.
TRANSPORTING YOUR WASHER/DRYER
1. Shut off both water faucets. Disconnect and drain water
inlet hoses.
2. If washer/dryer will be moved during freezing weather,
follow Winter Storage Care directions before moving.
3. Disconnect drain from drain system and drain any
remaining water into a pan or bucket. Disconnect drain
hose from back of washer.
4. Unplug power cord.
5. Place inlet hoses and drain hose inside washer basket.
6. Drape power cord over edge and into washer basket.
7. Place packing tray from original shipping materials back
inside washer/dryer. If you do not have packing tray, place
heavy blankets or towels into basket opening. Close doors
and place tape over doors and down front of washer/dryer.
Keep doors taped until washer/dryer is placed in new
location.
REINSTALLING/USING WASHER/DRYER AGAIN
To reinstall washer/dryer after non-use, vacation, winter
storage or moving:
1. Refer to “Installation Instructions” to locate, level, and
connect washer/dryer.
2. Before using again, run washer/dryer through the following
recommended procedure:
To use washer/dryer again:
1. Flush water pipes and hoses. Reconnect water inlet hoses.
Turn on both water faucets.
2. Plug in washer/dryer or reconnect power.
3. Run washer through a complete cycle to clean washer
and remove antifreeze, if used. Use half the manufacturer’s
recommended amount of detergent for a medium-size load.
In the U.S.A.
In Canada
CHANGING THE DRUM LIGHT (on some models)
1. Unplug dryer or disconnect power.
2. Open the dryer door. Locate the light bulb cover on the
back wall of the dryer. Using a Phillips-head screwdriver,
remove the screw located in the lower right-hand corner
of the cover. Remove the cover.
3. Turn bulb counterclockwise. Replace the bulb with
a 10-watt appliance bulb only. Replace the cover and
secure with the screw.
4. Plug into a grounded outlet or reconnect power.

16
First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)
to possibly avoid the cost of a service call...In U.S.A. http://www.maytag.com/help – In Canada www.maytag.ca
If you experience Possible Causes Solution
Feet may not be in contact with the
oor and locked. Front and rear feet must be in rm contact with oor, and
washer/dryer must be level to operate properly. Jam nuts must
be tight against the bottom of the cabinet.
Check oor for exing or sagging. If ooring is uneven, a 3/4"
(19 mm) piece of plywood under your washer/dryer will reduce
sound.
See “Level the Washer/Dryer” in “Installation Instructions.”
Load could be unbalanced. Load dry items in loose heaps evenly around basket wall.
Adding wet items to washer or adding more water to basket
could unbalance washer.
Do not tightly pack. Avoid washing single items.
See “Cycle Guide” and “Using Your Washer” in this “Use and
Care Guide.”
Empty pockets before washing. Loose items such as coins
could fall between basket and tub or may block pump.
It may be necessary to call for service to remove items.
It is normal to hear metal items on clothing such as metal snaps,
buckles, or zippers touch against the stainless steel basket.
Objects caught in washer drain
system.
Clicking or metallic
noises
Gurgling or humming It is normal to hear the pump making a continuous humming
sound with periodic gurgling or surging as nal amounts of
water are removed during the Spin cycle.
Washer may be draining water.
Check the following for
proper installation or
see “Using Your
Washer” section. Washer/dryer may not be level.
Vibration or Off-Balance
Noises
TROUBLESHOOTING – WASHER
Washer not level. Water may splash off basket if washer is not level. Check that
load is not unbalanced or tightly packed.
Fill hoses not attached tightly. Tighten ll-hose connection.
Make sure all four ll hose at washers are properly seated.
Drain hose connection. Pull drain hose from washer cabinet and properly secure it to
drainpipe or laundry tub.
Do not place tape over drain opening.
Check household plumbing for leaks
or clogged sink or drain. Water can back up out of a clogged sink or drainpipe. Check all household plumbing for leaks (laundry tubs, drain pipe,
water pipes, and faucets.)
Fill hose washers.
Check the following for
proper installation:
Improper loading can cause basket to be out of alignment
and cause water to splash off tub. See “Using Your Washer”
for loading instructions.
Washer not loaded as
recommended.
Water Leaks
Washer not performing as expected
Washer won’t run
or ll, washer stops
working
Check for proper water supply. Both hoses must be attached and have water owing to
inlet valve.
Both hot and cold water faucets must be turned on.
Check that inlet valve screens have not become clogged.
Check for any kinks in inlet hoses, which can restrict water ow.
Humming You may hear the hum of the sensing spins after you have
started the washer. This is normal. Sensing spins will take
several minutes before water is added to the washer.
Washer is in sensing spin.

17
TROUBLESHOOTING – WASHER cont.
In the U.S.A. In Canada
If you experience Possible Causes Solution
Normal washer operation. Door must be closed for washer to run.
Washer will pause during certain phases of cycle. Do not
interrupt cycle.
Washer spins the dry load for several minutes before lling to
determine if load is balanced. You may hear the hum of the
spins. This is normal.
Washer not loaded as
recommended. Remove several items, rearrange load evenly in basket and add detergent. Close door and press PUSH TO START.
Do not add more than 1 or 2 additional items after cycle has
started to avoid tightly packing or unbalancing.
First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)
to possibly avoid the cost of a service call...In U.S.A. http://www.maytag.com/help – In Canada www.maytag.ca
Washer not performing as expected (cont.)
Use a cycle with a low spin speed. Cycles with lower spin speeds remove less water than cycles
with high spin speeds. Use the recommended cycle/speed spin
for your garment. To remove extra water in the load, select Spin.
Load may need to be rearranged to allow even distribution of the
load in the basket.
Small items may have been caught in pump or between basket
and tub, which can slow draining.
Empty pockets and use garment
bags for small items.
Washer not draining/
spinning, loads are
still wet
Washer not loaded as recommended. Tightly packing or unbalanced loads will not allow the washer to
spin correctly, leaving the load wetter than normal. See “Using
Your Washer” for loading recommendations.
Check plumbing for correct drain hose
installation. Drain hose extends into
standpipe farther than 4.5" (114 mm).
Check drain hose for proper installation. Use drain hose form
and securely attach to drainpipe or tub. Do not tape over drain
opening. Lower drain hose if the end is higher than 96" (2.4 m)
above the oor. Remove any clogs from drain hose.
Washer won’t run
or ll, washer stops
working (cont.)
Too much detergent causing suds
to slow or stop draining and spinning. Always measure and follow detergent directions for your load. To remove extra suds, select Rinse and Spin. Do not add
detergent.
Plug into a grounded outlet or reconnect power.
Do not use an extension cord.
Ensure there is power to outlet.
Reset a tripped circuit breaker. Replace any blown fuses.
NOTE: If problems continue, contact an electrician.
Check proper electrical supply.

18
If you experience Possible causes Solution
Incorrect or wrong
wash or rinse
temperatures
Check for proper water supply. Check that hot and cold inlet hoses are not reversed.
Both hoses must be attached to both washer and faucet, and
have both hot and cold water owing to inlet valve.
Check that inlet valve screens are not clogged.
Remove any kinks in hoses.
This washer uses cooler wash and rinse water temperatures
than your previous washer. This includes cooler hot and warm
washes.
Load not rinsed Check for proper water supply.
First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)
to possibly avoid the cost of a service call...In U.S.A. http://www.maytag.com/help – In Canada www.maytag.ca
Washer not performing as expected (cont.)
Energy-saving controlled
wash temperatures.
Check that hot and cold inlet hoses are not reversed.
Both hoses must be attached and have water owing to the
inlet valve.
Both hot and cold water faucets must be on.
Inlet valve screens on washer may be clogged.
Remove any kinks in the inlet hose.
Using too much detergent. The suds from too much detergent can keep washer from
operating correctly. Always measure detergent and follow
detergent directions based on load size and soil level.
Washer not loaded as recommended. The washer is less efcient at rinsing when load is tightly packed.
Load garments in loose heaps evenly around the basket wall.
The washer will not rinse well if tightly packed. Load with dry
items only.
Use cycle designed for the fabrics being washed.
Add only 1 or 2 garments after washer has started.
The high spin speeds combined with air ow during the nal
spin can cause items near the top of the load to develop dry
spots during the nal spin. This is normal.
High speed spins extract more
moisture than traditional top-load
washers.
Add an extra rinse to the selected cycle.Heavy sand, pet hair, lint, and
detergent or bleach residues may
require additional rinsing.
Sand, pet hair, lint,
etc. on load after
washing
Load is tangling Washer not loaded as recommended. See “Using Your Washer” section.
Select a cycle with a slower wash action and spin speed;
however, items will be wetter than those using a higher
speed spin.
Load garments in loose heaps evenly around the basket wall.
Reduce tangling by mixing types of load items. Use the
recommended cycle for the type of garments being washed.
Not cleaning or
removing stains Washer is less efcient at cleaning when load is tightly packed.
Load garments in loose heaps evenly around the basket wall.
Load with dry items only.
Add only 1 or 2 garments after washer has started.
Washer not loaded as recommended.
TROUBLESHOOTING – WASHER cont.
Adding detergent on top of load. Add detergent, oxi products, and color-safe bleach to the
bottom of the basket before adding the load items.
Water level seems
too low, or the washer
appears to not ll
completely
The top of the agitator is much
higher than the highest water level.
This is normal and necessary for clothes to move freely.
Clothes not completely
covered with water This washer uses much less water
than traditional top-load washers. Clothes may not be completely covered with water.
Dry spots on load
after cycle Select a higher load-size setting, or wash a smaller load.
This washer uses much less water
than traditional top-load washers.

19
If you experience Possible Causes Solution
First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)
to possibly avoid the cost of a service call...In U.S.A. http://www.maytag.com/help – In Canada www.maytag.ca
Using too much detergent.
Not using correct cycle for fabric type.
Not using dispensers.
Not washing like colors together.
The suds from too much detergent can keep washer from
operating correctly. Always measure detergent and follow
manufacturer’s directions based on load size and soil level.
Use a higher soil level cycle option and warmer wash
temperature to improve cleaning.
Use Heavy cycle for tough cleaning.
Use dispensers to avoid chlorine bleach and fabric softener
staining.
Load dispensers before starting a cycle. Set FABRIC SOFTENER
to ON when using fabric softener.
Do not add products directly to load.
Wash like colors together and remove promptly after the cycle
is complete to avoid dye transfer.
Washer not performing as expected (cont.)
Clogged dispenser.
Incorrect dispenser
operation
Fabric damage Sharp items were in pockets during
wash cycle. Empty pockets, zip zippers, and snap or hook fasteners before
washing to avoid snags and tears.
Strings and straps could have tangled. Tie all strings and straps before starting wash load.
Items may have been damaged before
washing. Mend rips and broken threads in seams before washing.
Fabric damage can occur if load is
tightly packed. Load garments in loose heaps evenly around the basket wall. Load with dry items only.
Use cycle designed for the fabrics being washed.
Add only 1 or 2 garments after washer is started.
Monthly maintenance not done as
recommended. See “Cleaning Your Washer” in “Washer/Dryer Maintenance.”
Unload washer as soon as cycle is complete.
Be sure to measure correctly. Always follow the manufacturer’s
directions.
See “Cleaning your Washer” section.
Odors
Liquid chlorine bleach may have been
added incorrectly. Do not pour liquid chlorine bleach directly onto load. Wipe up
bleach spills.
Undiluted bleach will damage fabrics. Do not use more than
recommended by manufacturer.
Do not place load items on top of bleach dispenser when
loading and unloading washer.
Garment care instructions may not
have been followed. Always read and follow garment manufacturer’s care label
instructions.
Using too much detergent.
Not cleaning or
removing stains (cont.)
Use only liquid chlorine bleach in the bleach dispenser. Use only
fabric softener in the fabric softener dispenser.
TROUBLESHOOTING – WASHER cont.

20
First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)
to possibly avoid the cost of a service call...In U.S.A. http://www.maytag.com/help – In Canada www.maytag.ca
If you experience Possible Causes Solution
TROUBLESHOOTING – DRYER
Door not closed completely. Make sure the dryer door is closed completely.
Household fuse is blown or circuit
breaker has tripped. Electric dryers use 2 household fuses or circuit breakers. The
drum may be turning, but you may not have heat. Replace both
fuses or reset the circuit breaker. If the problem continues, call
an electrician.
Dryer will not run
PUSH TO START knob not pressed
rmly or held long enough.
Incorrect power supply. Electric dryers require 240-volt power supply.
Check with a qualied electrician.
Wrong type of fuse. Use a time-delay fuse.
Unusual sounds Dryer had a period of non-use. If the dryer hasn’t been used for awhile, there may be a
thumping sound during the rst few minutes of operation.
Check the front and rear edges of the drum for small objects.
Clean out pockets before laundering.
The four legs are not installed, or the
dryer is not level front to back and
side to side.
The dryer may vibrate if not properly installed.
See “Installation Instructions.”
A coin, button, or paper clip is
caught between the drum and front
or rear of the dryer.
Clothing knotted or balled up. When balled up, the load will bounce, causing the dryer to
vibrate. Separate the load items and restart the dryer.
Press and hold the PUSH TO START knob until you hear the
dryer drum moving.
It is a gas dryer. The gas valve clicking is a normal operating sound.
Clothes are not drying
satisfactorily, drying
times are too long
Lint screen clogged with lint. Lint screen should be cleaned before each load.
The Air Fluff cycle has been selected. Select the correct cycle for the types of garments being dried.
See “Cycle Guide.”
Load too large and heavy to dry
quickly. Separate the load to tumble freely.
Exhaust vent or outside exhaust
hood clogged with lint, restricting air
movement.
Run the dryer for 5–10 minutes. Hold your hand under the
outside exhaust hood to check air movement. If you do not feel
air movement, clean exhaust system of lint or replace exhaust
vent with heavy metal or exible metal vent. Make sure vent is
not crushed or kinked. See “Installation Instructions.”
Exhaust vent diameter not the
correct size. Use 4" (102 mm) diameter vent material.
Dryer located in a room with
temperature below 45ºF (7ºC). Proper operation of dryer cycles requires temperatures above
45ºF (7ºC).
Dryer located in a closet without
adequate opening. Closet doors must have ventilation openings at the top and
bottom of the door. The front of the dryer requires a minimum
of 1" (25 mm) of airspace, and, for most installations, the rear of
the dryer requires 5" (127 mm). See “Installation Instructions.”
Exhaust vent not the correct length. Check that the exhaust vent is not too long or has too many
turns. Long venting will increase drying times. Make sure vent
is not crushed or kinked. See “Installation Instructions.”
Fabric softener sheets blocking
the grille. Use only one fabric softener sheet, and use it only once.
Dryer not performing as expected
