Maytag MLG2000AXW User manual

STACKED WASHER/DRYER
INSTALLATION INSTRUCTIONS
FACTORY STACKED VERSION
The installation, including a proper exhaust system, is the responsibility of the owner.
LEAVE THESE INSTRUCTIONS WITH THE OWNER
For further information, call 1-888-4-MAYTAG (1-888-462-9824).
Printed in U.S.A. 6 2721750

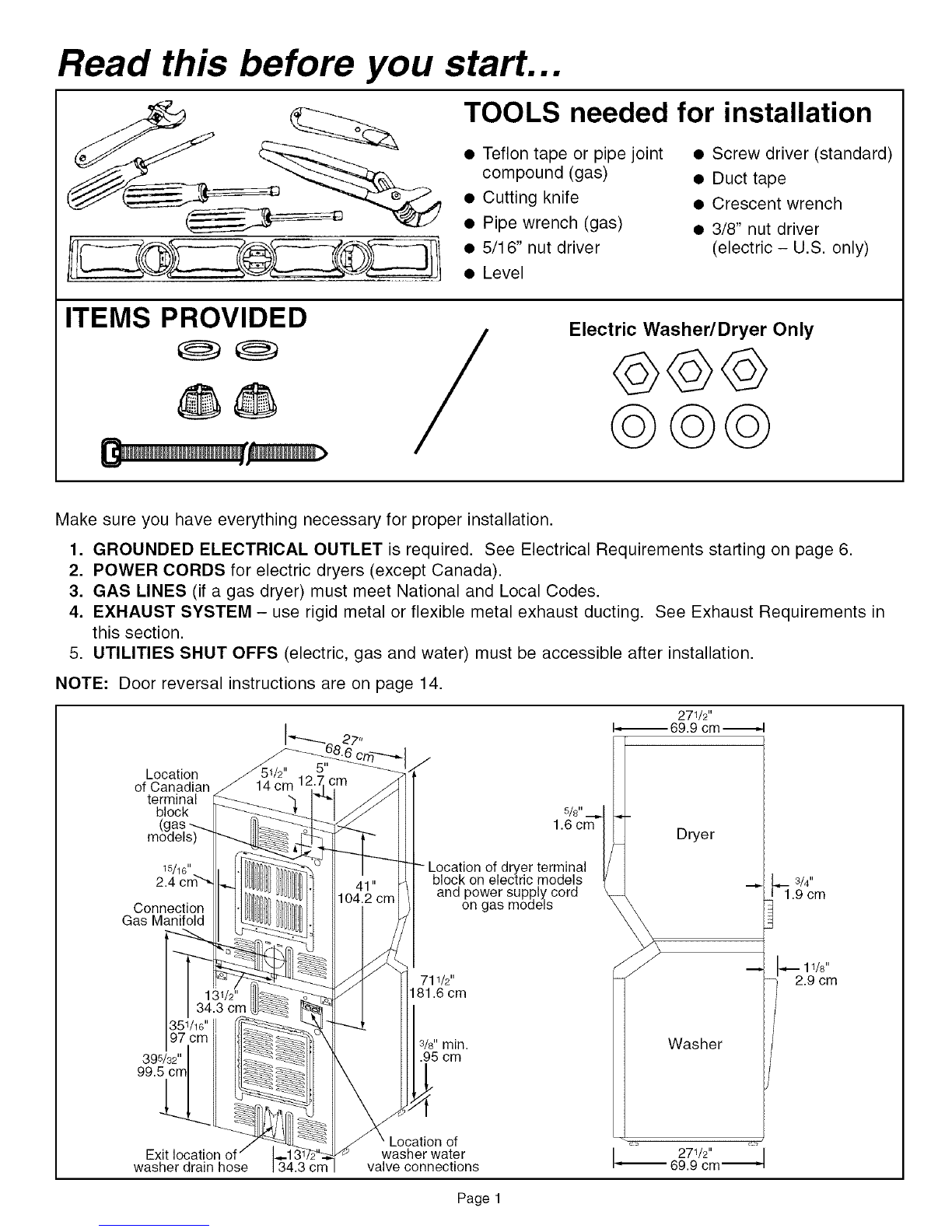

Read this before you start...
TOOLS needed for installation
•Teflon tape or pipe joint
compound (gas)
• Cutting knife
• Pipe wrench (gas)
• 5/16" nut driver
• Level
• Screw driver (standard)
• Duct tape
• Crescent wrench
• 3/8" nut driver
(electric - U.S. only)
ITEMS PROVIDED
@@ /Electric Washer/Dryer Only
©©©
©©©
Make sure you have everything necessary for proper installation.
1. GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements starting on page 6.
2. POWER CORDS for electric dryers (except Canada).
3. GAS LINES (if a gas dryer) must meet National and Local Codes.
4. EXHAUST SYSTEM - use rigid metal or flexible metal exhaust ducting. See Exhaust Requirements in
this section.
5. UTILITIES SHUT OFFS (electric, gas and water) must be accessible after installation.
NOTE: Door reversal instructions are on page 14.
Location
of Canadian
terminal
block
Connection
Gas Manifold
711/2"
81.6 cm
271/2"
I_ 69.9 cm -_,4
8/8"
1.6 cm Dryer
Loca!ion of,dryer terminal /
OIOCKon electric models
and power supply cord _ "-"
on gas models
3/8"min.
.95 cm
398/32"
99.5
Exit
washer drain hose
Location of
washer water
valve connections
Washer
271/2''
l 69.9 cm "_
11/8"
2.9 cm
Page 1

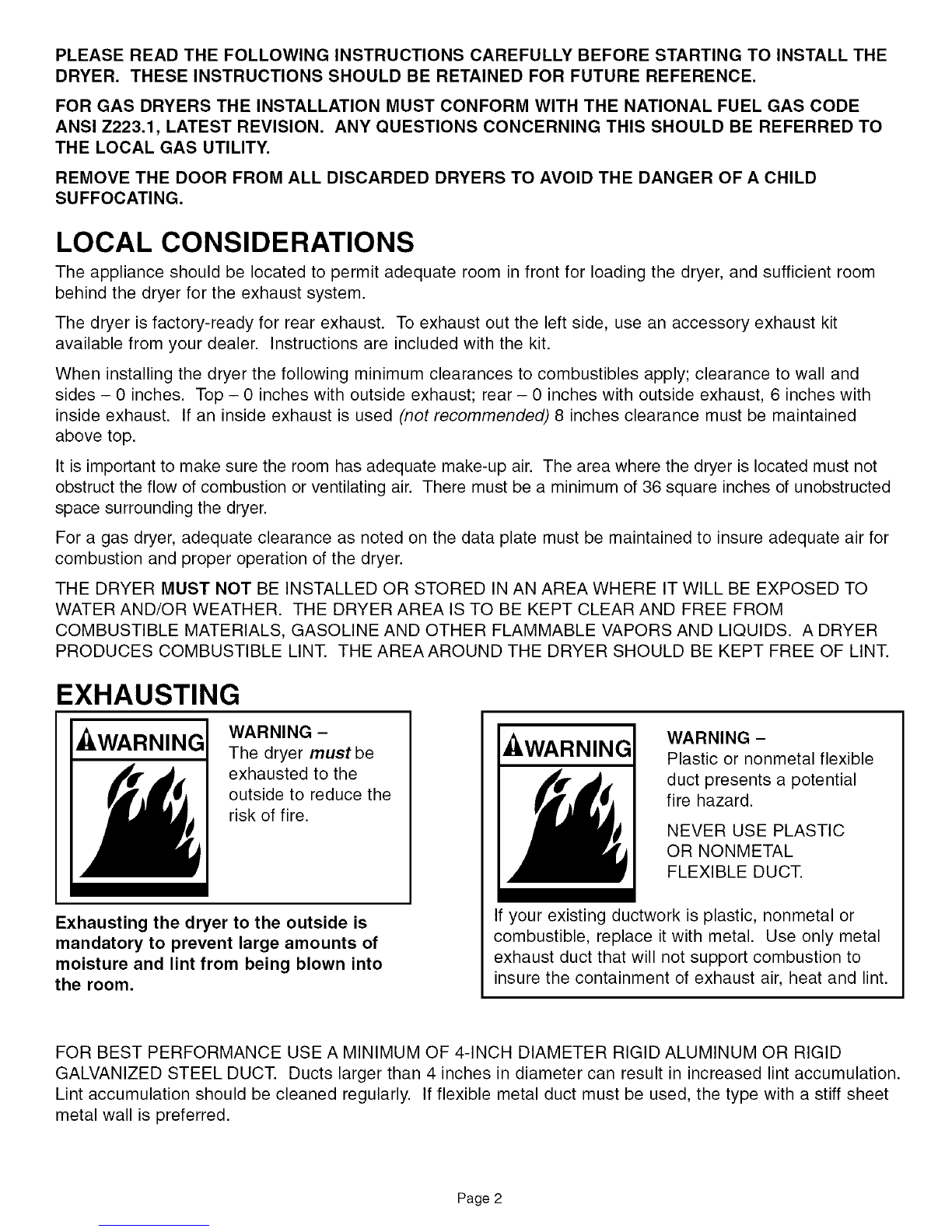

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE STARTING TO INSTALL THE
DRYER. THESE INSTRUCTIONS SHOULD BE RETAINED FOR FUTURE REFERENCE.
FOR GAS DRYERS THE INSTALLATION MUST CONFORM WITH THE NATIONAL FUEL GAS CODE
ANSI Z223.1, LATEST REVISION. ANY QUESTIONS CONCERNING THIS SHOULD BE REFERRED TO
THE LOCAL GAS UTILITY.
REMOVE THE DOOR FROM ALL DISCARDED DRYERS TO AVOID THE DANGER OF A CHILD
SUFFOCATING.
LOCAL CONSIDERATIONS
The appliance should be located to permit adequate room in front for loading the dryer, and sufficient room
behind the dryer for the exhaust system.
The dryer is factory-ready for rear exhaust. To exhaust out the left side, use an accessory exhaust kit
available from your dealer. Instructions are included with the kit.
When installing the dryer the following minimum clearances to combustibles apply; clearance to wall and
sides - 0 inches. Top - 0 inches with outside exhaust; rear - 0 inches with outside exhaust, 6 inches with
inside exhaust. If an inside exhaust is used (not recommended) 8 inches clearance must be maintained
above top.
It is important to make sure the room has adequate make-up air. The area where the dryer is located must not
obstruct the flow of combustion or ventilating air. There must be a minimum of 36 square inches of unobstructed
space surrounding the dryer.
For a gas dryer, adequate clearance as noted on the data plate must be maintained to insure adequate air for
combustion and proper operation of the dryer.
THE DRYER MUST NOT BE INSTALLED OR STORED IN AN AREA WHERE IT WILL BE EXPOSED TO
WATER AND/OR WEATHER. THE DRYER AREA IS TO BE KEPT CLEAR AND FREE FROM
COMBUSTIBLE MATERIALS, GASOLINE AND OTHER FLAMMABLE VAPORS AND LIQUIDS. A DRYER
PRODUCES COMBUSTIBLE LINT. THE AREAAROUND THE DRYER SHOULD BE KEPT FREE OF LINT.
EXHAUSTING
-&WARNING WARNING -
The dryer must be
exhausted to the
outside to reduce the
risk of fire.
Exhausting the dryer to the outside is
mandatory to prevent large amounts of
moisture and lint from being blown into
the room.
-&WARNING WARNING -
Plastic or nonmetal flexible
duct presents a potential
fire hazard.
NEVER USE PLASTIC
OR NONMETAL
FLEXIBLE DUCT.
If your existing ductwork is plastic, nonmetal or
combustible, replace it with metal. Use only metal
exhaust duct that will not support combustion to
insure the containment of exhaust air, heat and lint.
FOR BEST PERFORMANCE USE A MINIMUM OF 4-INCH DIAMETER RIGID ALUMINUM OR RIGID
GALVANIZED STEEL DUCT. Ducts larger than 4 inches in diameter can result in increased lint accumulation.
Lint accumulation should be cleaned regularly. If flexible metal duct must be used, the type with a stiff sheet
metal wall is preferred.
Page 2

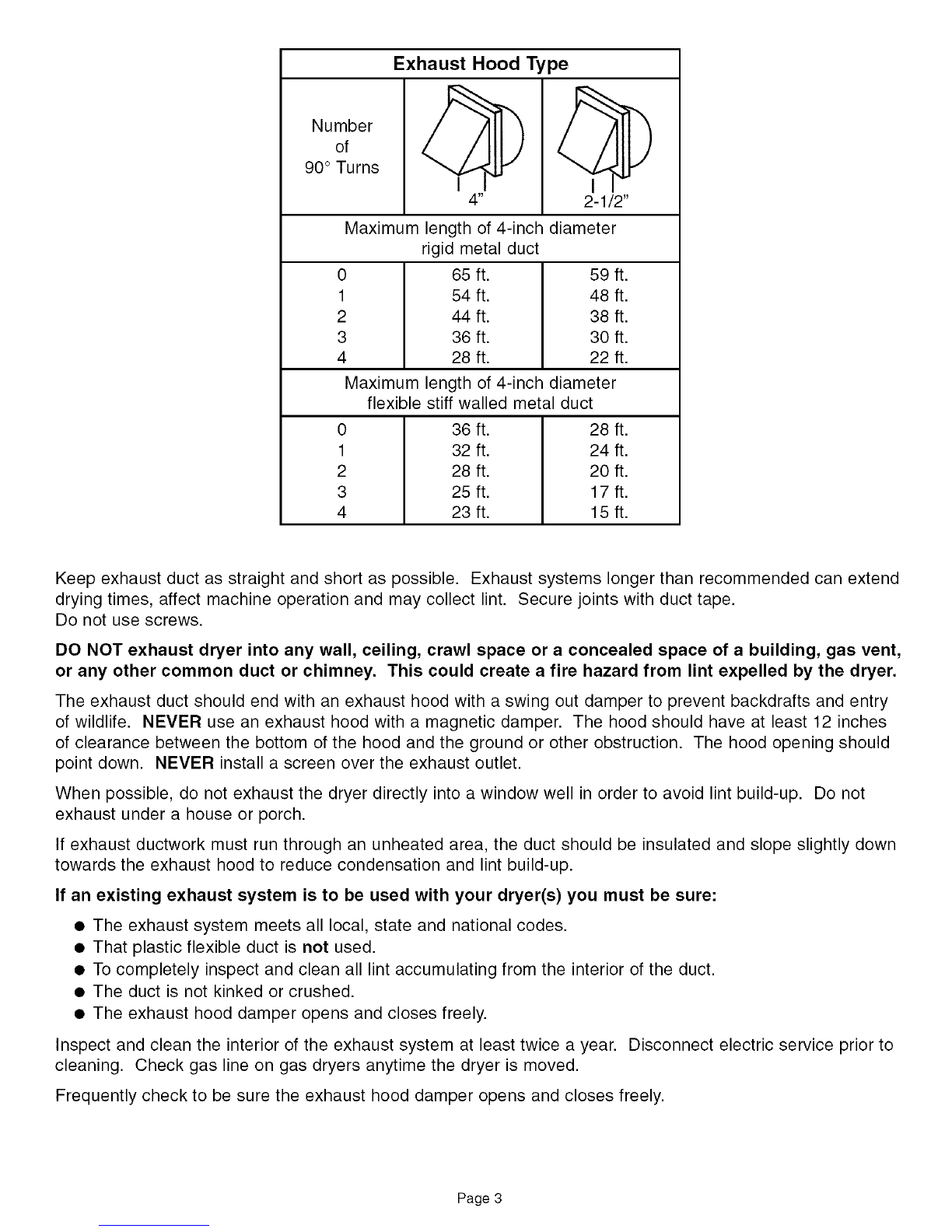

Number
of
90 ° Turns
0
1
2
3
4
Exhaust Hood Type
Maximum length of 4-inch diameter
rigid metal duct
65 ft.
54 ft.
44 ft.
36 ft.
28 ft.
Maximum length of 4-inch diameter
flexible stiff walled metal duct
59ft.
48 ft.
38 ft.
30 ft.
22 ft.
0
1
2
3
4
36 ft. 28 ft.
32 ft. 24 ft.
28 ft. 2O ft.
25 ft. 17 ft.
23 ft. 15 ft.
Keep exhaust duct as straight and short as possible. Exhaust systems longer than recommended can extend
drying times, affect machine operation and may collect lint. Secure joints with duct tape.
Do not use screws.
DO NOT exhaust dryer into any wall, ceiling, crawl space or a concealed space of a building, gas vent,
or any other common duct or chimney. This could create a fire hazard from lint expelled by the dryer.
The exhaust duct should end with an exhaust hood with a swing out damper to prevent backdrafts and entry
of wildlife. NEVER use an exhaust hood with a magnetic damper. The hood should have at least 12 inches
of clearance between the bottom of the hood and the ground or other obstruction. The hood opening should
point down. NEVER install a screen over the exhaust outlet.
When possible, do not exhaust the dryer directly into a window well in order to avoid lint build-up. Do not
exhaust under a house or porch.
If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly down
towards the exhaust hood to reduce condensation and lint build-up.
If an existing exhaust system is to be used with your dryer(s) you must be sure:
• The exhaust system meets all local, state and national codes.
• That plastic flexible duct is not used.
• To completely inspect and clean all lint accumulating from the interior of the duct.
• The duct is not kinked or crushed.
• The exhaust hood damper opens and closes freely.
Inspect and clean the interior of the exhaust system at least twice a year. Disconnect electric service prior to
cleaning. Check gas line on gas dryers anytime the dryer is moved.
Frequently check to be sure the exhaust hood damper opens and closes freely.
Page 3

WASHER REQUIREMENTS
Water pressure of 20 to 120 p.s.i, is required to correctly fill the washer to the proper levels.
DRAIN FACILITY
Recommended height of the stand pipe is 36 inches. If the stand pipe is less than 36 inches high, the drain
hose should be routed through the clip to raise the hose to the proper height. Stand pipe must be large
enough to accept the outside diameter of the drain hose.
Without the 36 inches high elevation, water may run out of the washer prematurely. Should the washer
fill and drain at the same time could indicate that the drain hose has not been elevated to the proper height.
The drain hose is attached at the factory.
Maximum flow rate is 12 gallons per minute.
FLOORING
For best performance the washer must be installed on a solidly constructed floor. Wood floors may need to
be reinforced to minimize vibration and/or unbalanced load situations. Carpeting and soft tile surfaces are
contributing factors in vibration and/or tendency for a washer to move slightly during the spin cycle. Never
install the washer on a platform or weak supported structure.
LOCATION CONSIDERATIONS
It is recommended the washer never be installed in areas where water may freeze since the washer will
always maintain some water in the water valve, pump and hose areas. This can cause damage to belts,
pump, hoses and other components. Operating temperature should be above 60°F.
Page 4

GAS REQUIREMENTS
Use only Natural or LP (liquid propane) gases.
THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL CODES,
WITH THE NATIONAL FUEL GAS CODE ANSI/Z223.1, LATEST REVISION (FOR THE UNITED STATES),
OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA).
A gas dryer is equipped with a burner orifice for operation on NATURAL gas. If the dryer is to be operated
on LP gas, it must be converted for safe and proper performance and must be converted by a
qualified service technician. Conversion kits from NATURAL to LP, or LP to NATURAL are available
through your local dealer (see Accessories). If other conversions are required, check with the local gas utility
for specific information concerning conversion requirements.
Each dryer will provide an input of 22,000 B.T.U. per hour.
A 1/2 inch gas supply line is recommended and must be reduced to connect to the 3/8 inch gas line on the
dryer.
The internal gas shut-off is accessed by removing the access panel on the dryer. The shut-off is positioned
for easy access near the gas valve.
The National Fuel Gas Code requires that an accessible, approved manual gas shut off valve be installed
within 6 feet of the dryer.
Additionally, a 1/8 inch N.ET. (National Pipe Thread) plugged tapping, accessible for test gauge connection,
must be installed immediately upstream of the gas supply connection to the dryer.
The dryer must be disconnected from the gas supply piping system during any pressure testing of the system.
DO NOT re-use old flexible metal gas line. Flexible gas line must be design certified by American Gas
Association (CGA in Canada). NOTE: Any pipe joint compound used must be resistant to the action of
any liquefied petroleum gas.
NOTE: As a courtesy, most local gas utilities will inspect a gas appliance installation.
GAS IGNITION -
The dryer use an automatic ignition system to ignite the burner. There is no constant burning pilot.
GROUNDING
• Improper connection of the equipment-grounding conductor can result in a risk of
WARNING electrical shock. Check with a qualified electrician or serviceman if you are in
doubt as to whether the appliance is properly grounded.
• Do not modify the plug provided with the appliance - if it will not fit the outlet,
have a proper outlet installed by a qualified electrician.
• To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring
and grounding must be done in accordance with the National Electrical Code
ANSI/NFPA, No. 70-Latest Revision (for U.S.) or the Canadian Electrical code
CSA C22.1-Latest Revision (for Canada) and local codes and ordinances. It is
the personal responsibility and obligation of the appliance owner to provide adequate electrical services
for this appliance.
• All gas installations must be done in accordance with the National Fuel Gas Code ANSI/Z223.1-Latest
Revision (for the U.S.) or the CAN/CGA-B149 Installation Codes-Latest Revision (for Canada) and local
codes and ordinances.
Page 5

ELECTRICAL REQUIREMENTS
NOTE: Wiring diagram is located inside the access panel.
Export models (not U.S. or Canada):
See Additional Instructions for Export Models on the following
pages.
GROUNDING
Each dryer must be grounded. In the event of malfunction or
breakdown, the ground will reduce the risk of electrical shock by
providing a path of least resistance for electrical current.
GAS MODELS
Each appliance is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
Do not modify the plug provided with the appliance - if it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
_WARNING WARNING - To prevent
unnecessary risk of fire,
electrical shock or
personal injury, all wiring
and grounding must be
done in accordance
with local codes, with
the National Electrical Code,
ANSI/NFPA (for the United States)
or the Canadian Electrical Code
CSA O22.1 (for Canada).
If a separate ground is required by local codes, a grounding kit (Part No. 12001875) is available. This kit
contains the ground wire, clamp, ground screw and washer. Connect ground wire to back of unit with the
cabinet ground screw and washer. Secure other end of ground wire to a suitable external ground connection.
The wire may be secured with the clamp to a grounded COLD metal water pipe. NEVER CONNECT
GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES OR HOT WATER PIPES.
ELECTRIC MODELS
If a power cord is not used and the electric dryer is to be perma-
nently wired, the dryer must be connected to a grounded metal,
permanent wiring system; or an equipment grounding conductor
must be run with the circuit conductors and connected to the
equipment grounding terminal.
U.S. Electric models are shipped with a ground strap connected
from the neutral terminal block post to the frame of each dryer. If
local codes prohibits the use of the ground strap, the dryer must be
grounded in accordance with local codes.
Each electric dryer must be connected to a grounded metal,
permanent wiring system; or an equipment grounding conductor
must be run with the circuit conductors and connected to the
equipment grounding terminal.
I,&WARNING WARNING: Improper
connection of the
_ equipment grounding
conductor can result in
a risk of electric shock.
Check with a qualified
electrician or serviceman if you are in
doubt as to whether the appliance is
properly grounded.
ELECTRICAL CONNECTIONS (see page 12 for connections)
BEFORE OPERATING OR TESTING, follow all grounding instructions in Grounding Section above.
An individual branch (or separate) circuit serving only this appliance is recommended. DO NOT USE AN
EXTENSION CORD.
GAS MODELS - U.S. and Canada
A 120 volt, 60 Hz AC, approved electrical supply, with a 15 ampere fuse or circuit breaker is required.
Page 6

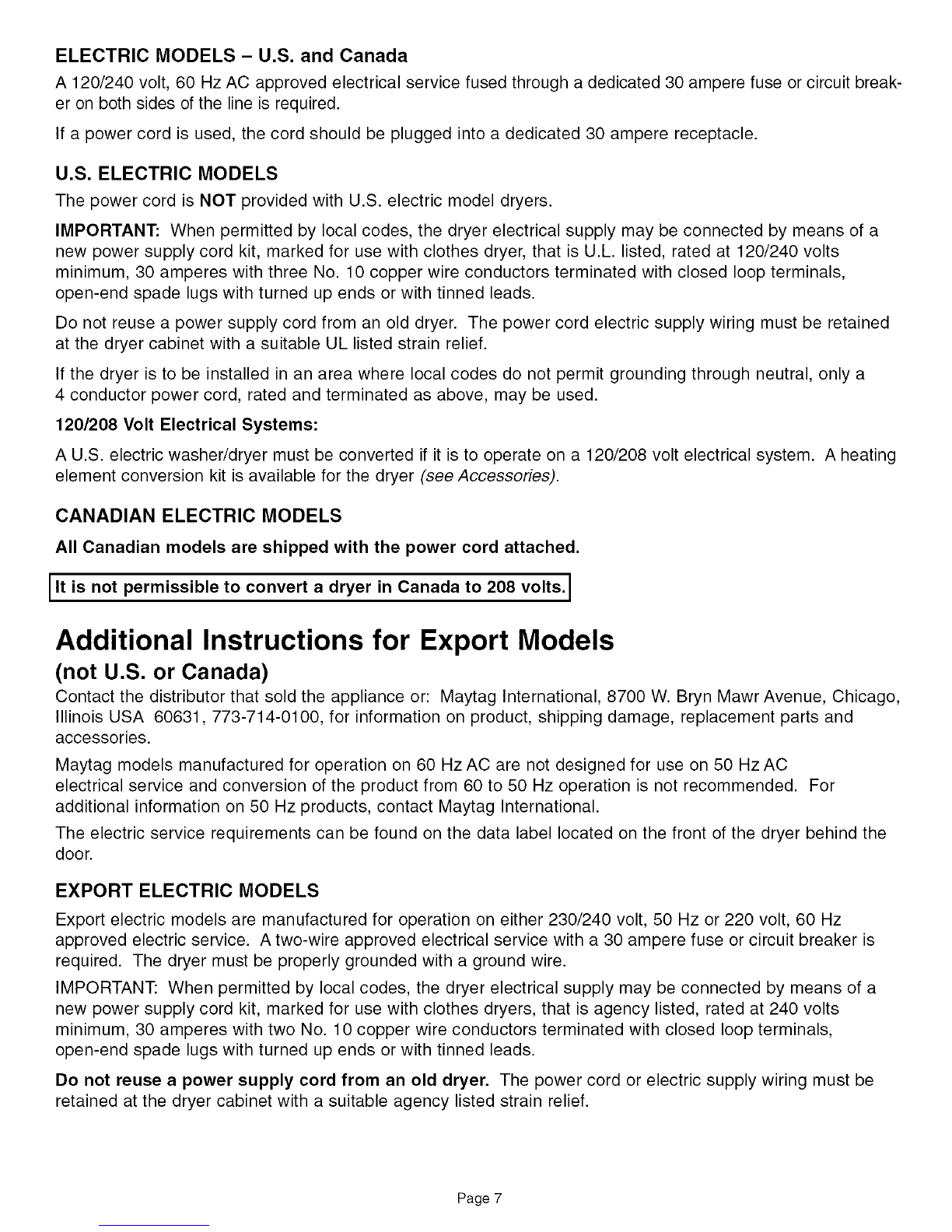

ELECTRIC MODELS - U.S. and Canada
A 120/240 volt, 60 Hz AC approved electrical service fused through a dedicated 30 ampere fuse or circuit break-
er on both sides of the line is required.
If a power cord is used, the cord should be plugged into a dedicated 30 ampere receptacle.
U.S. ELECTRIC MODELS
The power cord is NOT provided with U.S. electric model dryers.
IMPORTANT: When permitted by local codes, the dryer electrical supply may be connected by means of a
new power supply cord kit, marked for use with clothes dryer, that is U.L. listed, rated at 120/240 volts
minimum, 30 amperes with three No. 10 copper wire conductors terminated with closed loop terminals,
open-end spade lugs with turned up ends or with tinned leads.
Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring must be retained
at the dryer cabinet with a suitable UL listed strain relief.
If the dryer is to be installed in an area where local codes do not permit grounding through neutral, only a
4 conductor power cord, rated and terminated as above, may be used.
120/208 Volt Electrical Systems:
A U.S. electric washer/dryer must be converted if it is to operate on a 120/208 volt electrical system. A heating
element conversion kit is available for the dryer (see Accessories).
CANADIAN ELECTRIC MODELS
All Canadian models are shipped with the power cord attached.
[It is not permissible to convert a dryer in Canada to 208 volts.J
Additional Instructions for Export Models
(not U.S. or Canada)
Contact the distributor that sold the appliance or: Maytag International, 8700 W. Bryn Mawr Avenue, Chicago,
Illinois USA 60631,773-714-0100, for information on product, shipping damage, replacement parts and
accessories.
Maytag models manufactured for operation on 60 Hz AC are not designed for use on 50 Hz AC
electrical service and conversion of the product from 60 to 50 Hz operation is not recommended. For
additional information on 50 Hz products, contact Maytag International.
The electric service requirements can be found on the data label located on the front of the dryer behind the
door.
EXPORT ELECTRIC MODELS
Export electric models are manufactured for operation on either 230/240 volt, 50 Hz or 220 volt, 60 Hz
approved electric service. A two-wire approved electrical service with a 30 ampere fuse or circuit breaker is
required. The dryer must be properly grounded with a ground wire.
IMPORTANT: When permitted by local codes, the dryer electrical supply may be connected by means of a
new power supply cord kit, marked for use with clothes dryers, that is agency listed, rated at 240 volts
minimum, 30 amperes with two No. 10 copper wire conductors terminated with closed loop terminals,
open-end spade lugs with turned up ends or with tinned leads.
Do not reuse a power supply cord from an old dryer. The power cord or electric supply wiring must be
retained at the dryer cabinet with a suitable agency listed strain relief.
Page 7

ADDITIONAL INFORMATION
REPLACEMENT PARTS AND ACCESSORIES
If the dryer requires replacement parts or accessories, contact your local Maytag dealer from whom you
purchased your appliance or:
Maytag Customer Service
240 Edwards Street, S.E.
Cleveland, Tennessee 37311
Phone 1-888-4-MAYTAG (1-888-462-9824), for information on the nearest authorized Maytag Parts Distribu-
tor.
EXPORT MODELS
Contact the Commercial Distributor from whom you purchased your appliance or:
Maytag International
8700 W. Bryn Mawr Avenue
Chicago, Illinois, USA 60631
Phone [phone], for information on the nearest authorized Maytag Parts Distributor.
Page 8

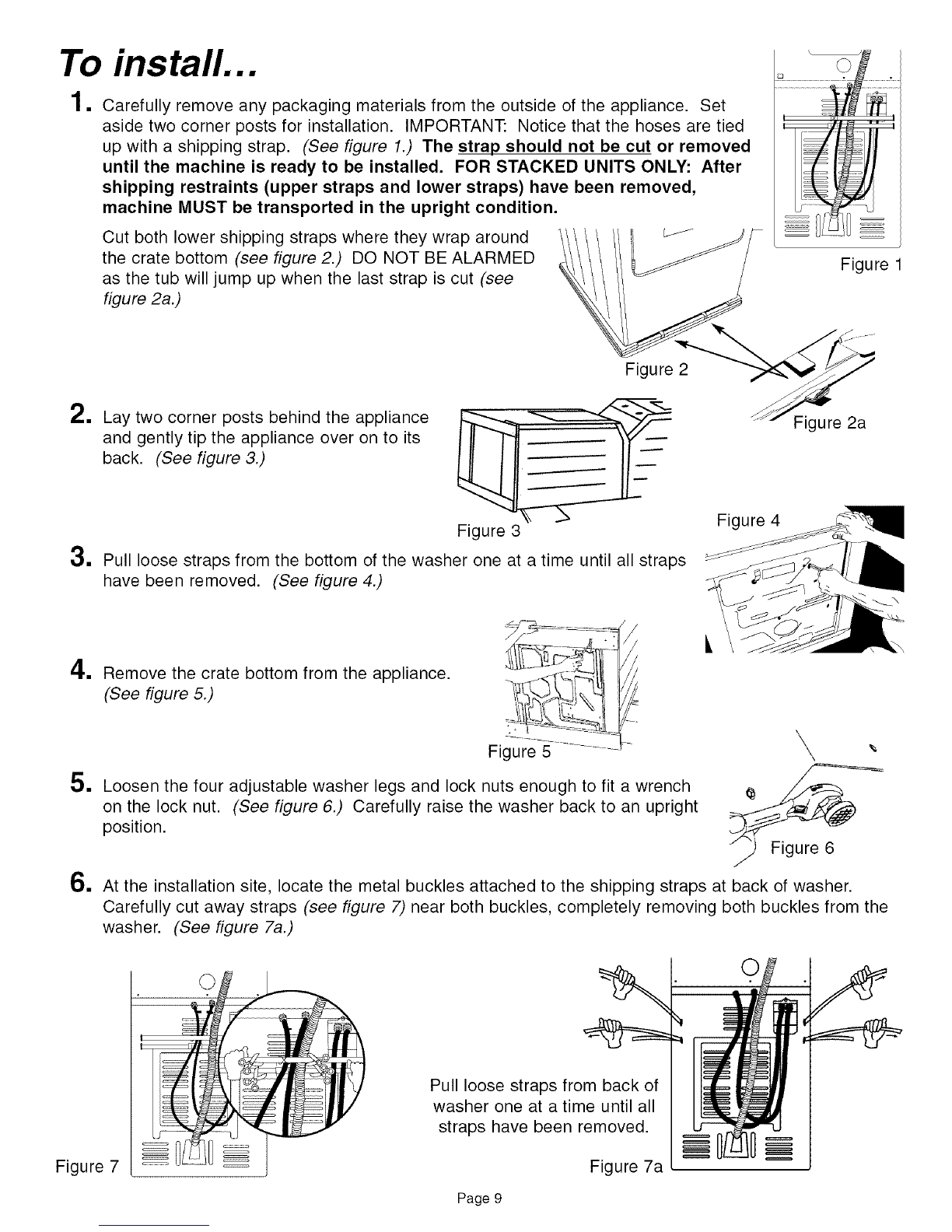

To install...
•Carefully remove any packaging materials from the outside of the appliance. Set
aside two corner posts for installation. IMPORTANT: Notice that the hoses are tied
up with a shipping strap. (See figure 1.) The strap should not be cut or removed
until the machine is ready to be installed. FOR STACKED UNITS ONLY: After
shipping restraints (upper straps and lower straps) have been removed,
machine MUST be transported in the upright condition.
Cut both lower shipping straps where they wrap around
the crate bottom (see figure 2.) DO NOT BE ALARMED
as the tub will jump up when the last strap is cut (see
figure 2a.)
Figure 1
i
i
i
i
i
Lay two corner posts behind the appliance
and gently tip the appliance over on to its
back. (See figure 3.)
Pull loose straps from the bottom of the washer one at a time until all straps
have been removed. (See figure 4.)
/....
Figure 2 _._'/'_
e 2a
Figure 3 Figure 4
Remove the crate bottom from the appliance.
(See figure 5.)
....................-;L-
Figure 5
Loosen the four adjustable washer legs and lock nuts enough to fit a wrench
on the lock nut. (See figure 6.) Carefully raise the washer back to an upright
position.
X
./
At the installation site, locate the metal buckles attached to the shipping straps at back of washer.
Carefully cut away straps (see figure 7) near both buckles, completely removing both buckles from the
washer. (See figure 7a.)
0
Figure 7
Pull loose straps from back of
washer one at a time until all
straps have been removed.
Page 9
Figure 7a

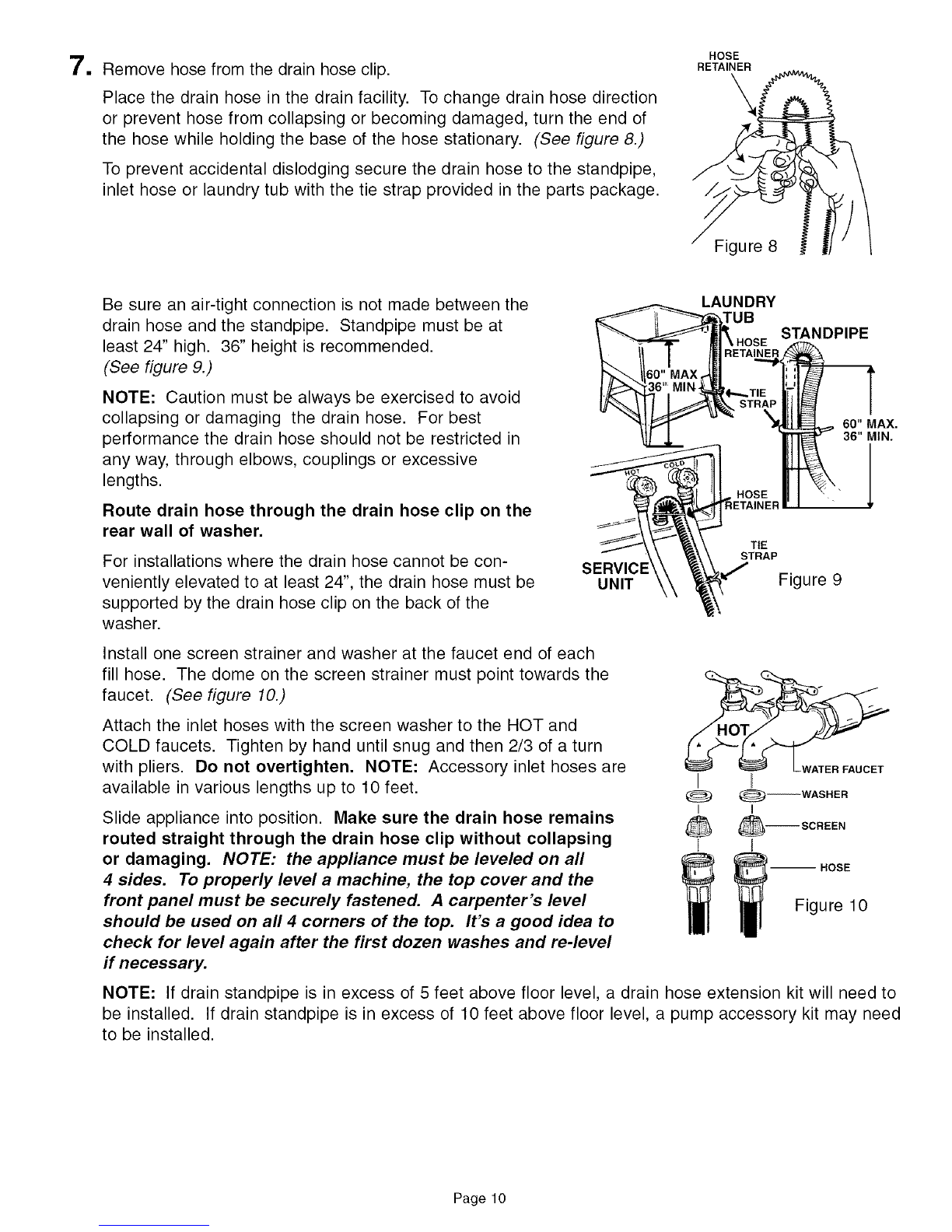

11 Remove hose from the drain hose clip.
Place the drain hose in the drain facility. To change drain hose direction
or prevent hose from collapsing or becoming damaged, turn the end of
the hose while holding the base of the hose stationary. (See figure 8.)
To prevent accidental dislodging secure the drain hose to the standpipe,
inlet hose or laundry tub with the tie strap provided in the parts package.
HOSE
RETAINER
Figure 8
Be sure an air-tight connection is not made between the
drain hose and the standpipe. Standpipe must be at
least 24" high. 36" height is recommended.
(See figure 9.)
LAUNDRY
STANDPIPE
NOTE: Caution must be always be exercised to avoid
collapsing or damaging the drain hose. For best
performance the drain hose should not be restricted in
any way, through elbows, couplings or excessive
lengths.
60" MAX.
36" MIN.
Route drain hose through the drain hose clip on the
rear wall of washer.
For installations where the drain hose cannot be con-
veniently elevated to at least 24", the drain hose must be
supported by the drain hose clip on the back of the
washer.
SERVICI
UNIT
TIE
STRAP
Figure 9
Install one screen strainer and washer at the faucet end of each
fill hose. The dome on the screen strainer must point towards the
faucet. (See figure 10.)
Attach the inlet hoses with the screen washer to the HOT and
COLD faucets. Tighten by hand until snug and then 2/3 of a turn
with pliers. Do not overtighten. NOTE: Accessory inlet hoses are
available in various lengths up to 10 feet. @ (@)--WASHER
I I
Slide appliance into position. Make sure the drain hose remains _a__SCREEN
routed straight through the drain hose clip without collapsing i I
or damaging. NOTE: the appliance must be leveled on all __-- HOSE
4sides. To properly level a machine, the top cover and the
front panel must be securely fastened. A carpenter's level Figure 10
should be used on all 4corners of the top. It's a good idea to
check for level again after the first dozen washes and re-level
if necessary.
NOTE: If drain standpipe is in excess of 5 feet above floor level, a drain hose extension kit will need to
be installed. If drain standpipe is in excess of 10 feet above floor level, a pump accessory kit may need
to be installed.
Page 10

For gas dryers apply joint compound or about 1-1/2 wraps of Teflon tape
over threaded connection on the end of the gas pipe. (See figure 11.)
An elbow is recommended, for additional depth, pointing down to allow
the unit to be located further back into the alcove.
Note: Pipe joint compound must be resistant to the action of any liquefied
petroleum gas.
Add additional fitting to connect the 3/8 inch gas pipe to a female threaded
end of a 3/4 inch flexible connector making sure the connection is tight.
DO NOT use excessive force in tightening threads as this may damage Figure 11
internal components.
Check all gas supply connections from service valve for leaks using a soap solution, DO NOT use an
open flame to check for gas leaks. If bubbles occur, tighten the connections and recheck.
NOTE: As a courtesy, many local gas utilities will inspect a gas appliance installation. Check with your
local utility to see if this service is provided in your area.
NOTE: The minimum permissible gas natural or mixed) supply pressure for purposes of input
adjustment is 4.5 inches of water.
Move unit into position, level and tighten the leveling lock nuts on the legs. Secure the vent pipe to the
exhaust duct with a 4 inch vent clamp.
Page 11

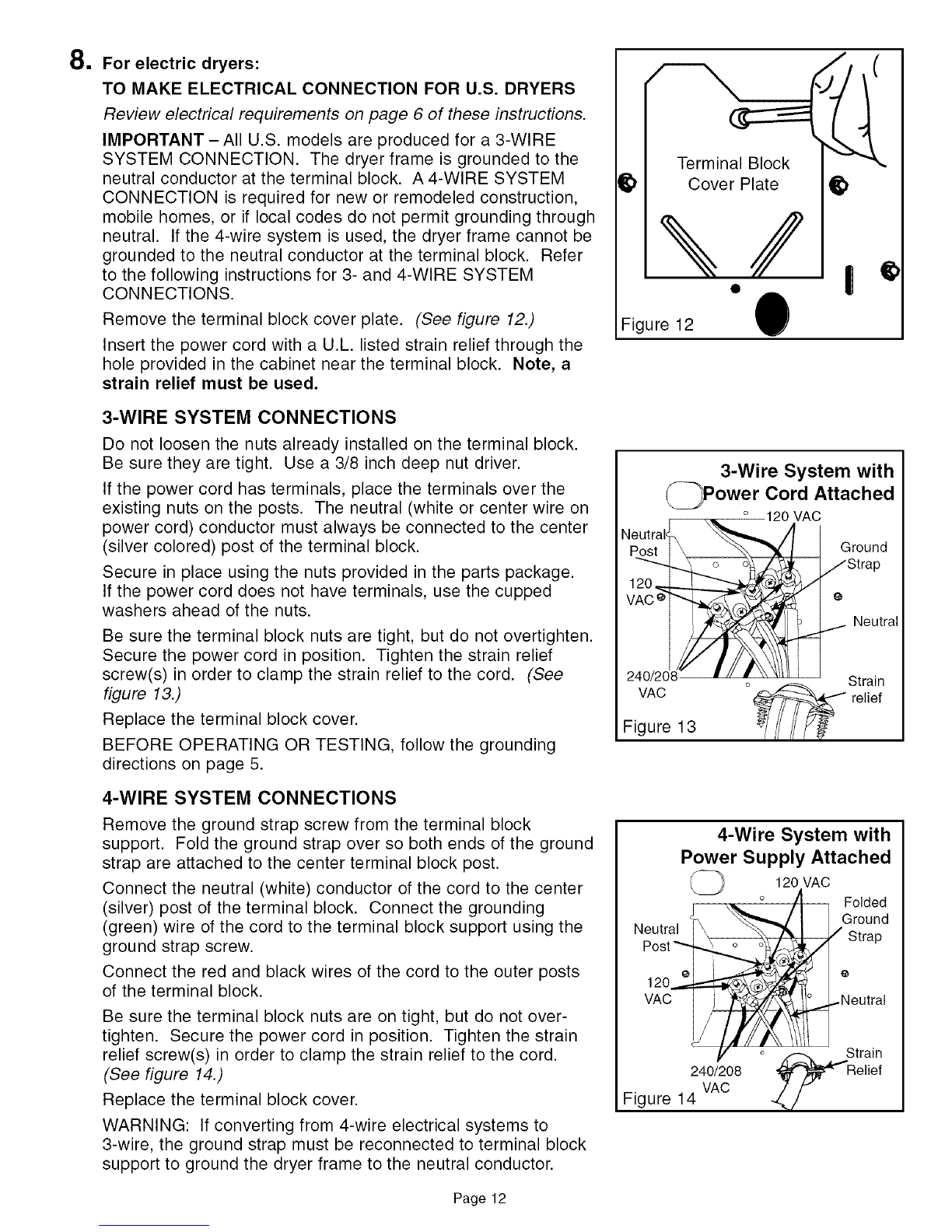

am For electric dryers:
TO MAKE ELECTRICAL CONNECTION FOR U.S. DRYERS
Review electrical requirements on page 6 of these instructions.
IMPORTANT - All U.S. models are produced for a 3-WIRE
SYSTEM CONNECTION. The dryer frame is grounded to the
neutral conductor at the terminal block. A 4-WIRE SYSTEM
CONNECTION is required for new or remodeled construction,
mobile homes, or if local codes do not permit grounding through
neutral. If the 4-wire system is used, the dryer frame cannot be
grounded to the neutral conductor at the terminal block. Refer
to the following instructions for 3- and 4-WIRE SYSTEM
CONNECTIONS.
Remove the terminal block cover plate. (See figure 12.)
Insert the power cord with a U.L. listed strain relief through the
hole provided in the cabinet near the terminal block. Note, a
strain relief must be used.
Terminal Block
Cover Plate
IN/
Figure 12 O
3-WIRE SYSTEM CONNECTIONS
Do not loosen the nuts already installed on the terminal block.
Be sure they are tight. Use a 3/8 inch deep nut driver.
If the power cord has terminals, place the terminals over the
existing nuts on the posts. The neutral (white or center wire on
power cord) conductor must always be connected to the center
(silver colored) post of the terminal block.
Secure in place using the nuts provided in the parts package.
If the power cord does not have terminals, use the cupped
washers ahead of the nuts.
Be sure the terminal block nuts are tight, but do not overtighten.
Secure the power cord in position. Tighten the strain relief
screw(s) in order to clamp the strain relief to the cord. (See
figure 13.)
Replace the terminal block cover.
BEFORE OPERATING OR TESTING, follow the grounding
directions on page 5.
3-Wire System with
_Power Cord Attached
Ground
Neutral
o Strain
VAC _ relief
Figure 13
4-WIRE SYSTEM CONNECTIONS
Remove the ground strap screw from the terminal block
support. Fold the ground strap over so both ends of the ground
strap are attached to the center terminal block post.
Connect the neutral (white) conductor of the cord to the center
(silver) post of the terminal block. Connect the grounding
(green) wire of the cord to the terminal block support using the
ground strap screw.
Connect the red and black wires of the cord to the outer posts
of the terminal block.
Be sure the terminal block nuts are on tight, but do not over-
tighten. Secure the power cord in position. Tighten the strain
relief screw(s) in order to clamp the strain relief to the cord.
(See figure 14.)
Replace the terminal block cover.
WARNING: If converting from 4-wire electrical systems to
3-wire, the ground strap must be reconnected to terminal block
support to ground the dryer frame to the neutral conductor.
4-Wire System with
Power Supply Attached
(_ o 120 VAC
/1 , Folded
\ Ground
Neutral '__,/ Strap
Post_ _ _
120_e e
VAC //_ _Neutral
° S_Rrain
240/208 elief
Figure 14 VAC
Page 12

1
2-WIRE AND GROUND SYSTEM

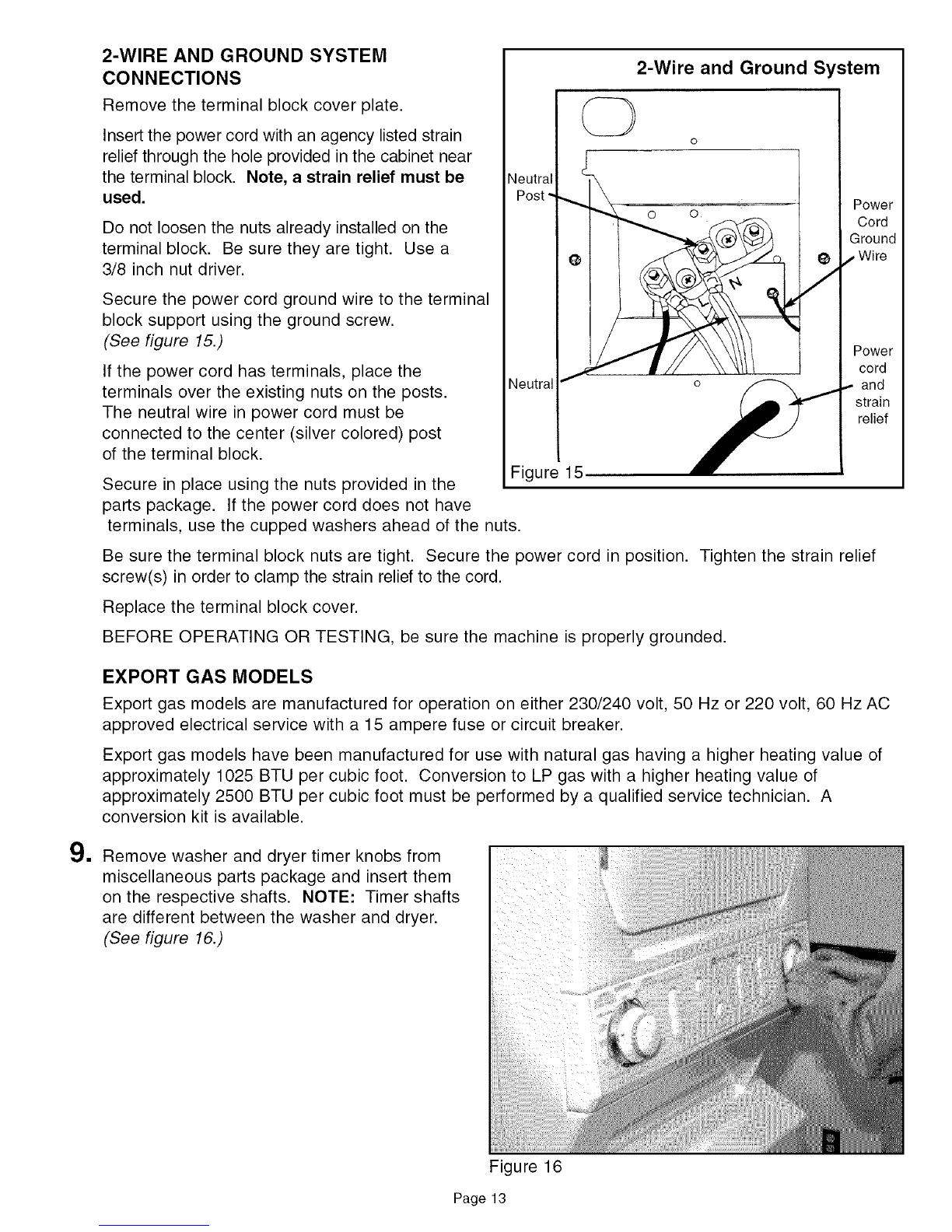

CONNECTIONS
Remove the terminal block cover plate.
Insert the power cord with an agency listed strain
relief through the hole provided in the cabinet near
the terminal block. Note, a strain relief must be
used.
Do not loosen the nuts already installed on the
terminal block. Be sure they are tight. Use a
3/8 inch nut driver.
Secure the power cord ground wire to the terminal
block support using the ground screw.
(See figure 15.)
If the power cord has terminals, place the
terminals over the existing nuts on the posts.
The neutral wire in power cord must be
connected to the center (silver colored) post
of the terminal block.
Secure in place using the nuts provided in the
parts package. If the power cord does not have
terminals, use the cupped washers ahead of the nuts.
Neutral
Post",,_
Neutral "
Figure
2-Wire and Ground S' 'stem
Power
Cord
Ground
/Wire
Power
cord
strain
relief
Be sure the terminal block nuts are tight. Secure the power cord in position. Tighten the strain relief
screw(s) in order to clamp the strain relief to the cord.
Replace the terminal block cover.
BEFORE OPERATING OR TESTING, be sure the machine is properly grounded.
EXPORT GAS MODELS
Export gas models are manufactured for operation on either 230/240 volt, 50 Hz or 220 volt, 60 Hz AC
approved electrical service with a 15 ampere fuse or circuit breaker.
Export gas models have been manufactured for use with natural gas having a higher heating value of
approximately 1025 BTU per cubic foot. Conversion to LP gas with a higher heating value of
approximately 2500 BTU per cubic foot must be performed by a qualified service technician. A
conversion kit is available.
Remove washer and dryer timer knobs from
miscellaneous parts package and insert them
on the respective shafts. NOTE: Timer shafts
are different between the washer and dryer.
(See figure 16.)
Figure 16
Page 13

10. Directions for reversing the dryer door:
1. Remove the hinge hole covers and screws.
2. While supporting the door, remove 4 screws in the hinges that secure the hinges to the cabinet and
set the door down.
3. Move the following parts to the opposite side of the door: 2 hinges and 4 hinge screws, 4 door
screws, door strike and screw, inner door cover plate and screw.
4. Attach the door to the opposite side of the cabinet using the 2 counter sunk hinge screws.
(See figure 17.)
5. Replace the hinge hole covers to the opposite side.
Door Catch
,," /" •,,'\
t/\ \
i[] tI \ x
II [ 'itl
ILII
1 I I [ t
III l !
1I_ I I
Counter Sunk Screw
Xi
--Door
Screws
[] __Door
Strike
--Door
Screws
Figure17 __
11. Directions for reversing the washer door:
1. Swing door fully open and support it while removing four hinge screws (which hold hinges to door
assembly).
2. Set door aside and transfer four color matched door screws to the opposite side of the door assembly.
3. Remove one screw holding top hinge to cabinet and one screw holding top hinge cover to cabinet
(opposite side).
4. Remove hinge and bracket from cabinet by moving them up and down to a position where they are
released.
5. Install hinge and bracket in swapped locations and drive screws to attach them securely to the
cabinet.
6. Compare top hinge and top bracket to bottom hinge and bottom bracket for correct assembly
position.
7. Repeat procedures 4 through 6 for bottom hinge to cabinet and bottom bracket to cabinet.
8. Support door in fully open position on hinge side and drive four screws to secure attach hinges to
door assembly.
9. Close door and check to see that clothes washer operates properly.
Figure 18
/
_Sunk Screw._.
\ \
IN-.z/\ --Door
_' \_ov:rs Hole 1!:!i'_ "___//II(i_Hmges i_ _ --Screws
_J III \ /yj" -- Door
............. )}_._ _ _ Screws
Page 14

FINAL INSTALLATION CHECK LIST
Instruction and Installation Kits have been removed.
Shipping straps have been removed.
Appliance is level with all legs firmly on the floor, with the lock nuts tightened against the base.
Drain hose is properly located into drain facility, snapped into drain hose retainer and is not kinked.
Gas Models - gas is turned on, there are no gas leaks.
Water is turned on and checked for leaks at faucet and water valve connections.
Washer fills properly on all temperature selections.
Exhaust duct work is hooked up and joints taped.
Use rigid or stiff walled flexible metal vent material.
Plastic or thin walled metal flexible duct is NOT used.
Appliance is plugged into a dedicated electrical outlet and is properly grounded.
Test for proper operation by running the washer through a complete cycle.
1. Select Cotton/Sturdy, Hot/Cold and Max Extract. Make sure the Extra Rinse option is not selected.
2. Turn the timer dial to Heavy-Normal-Light wash and press the Start/Stop button.
3. Verify the washer is filling from the hot water valve.
4. Verify the washer stops filling.
5. Push Start/Stop to stop washer.
6. Turn the timer dial to Final Rinse increment. Deselect Extra Rinse and select Max Extract. Press
the Start/Stop button to restart the washer.
7. Verify the washer is filing from the cold water valve, and verify the washer stops filling.
8. Wait 30 seconds for the timer to advance itself one increment into Spin.
9. Verify the washer spins. This will take several minutes as the door needs to lock and distribute
the load.
Pull on the door to make sure it has locked. Allow washer to complete spin to drain washer of water.
Reset the washer to start position.
10.
11.
Dryer runs, heats, shuts off.
Page 15

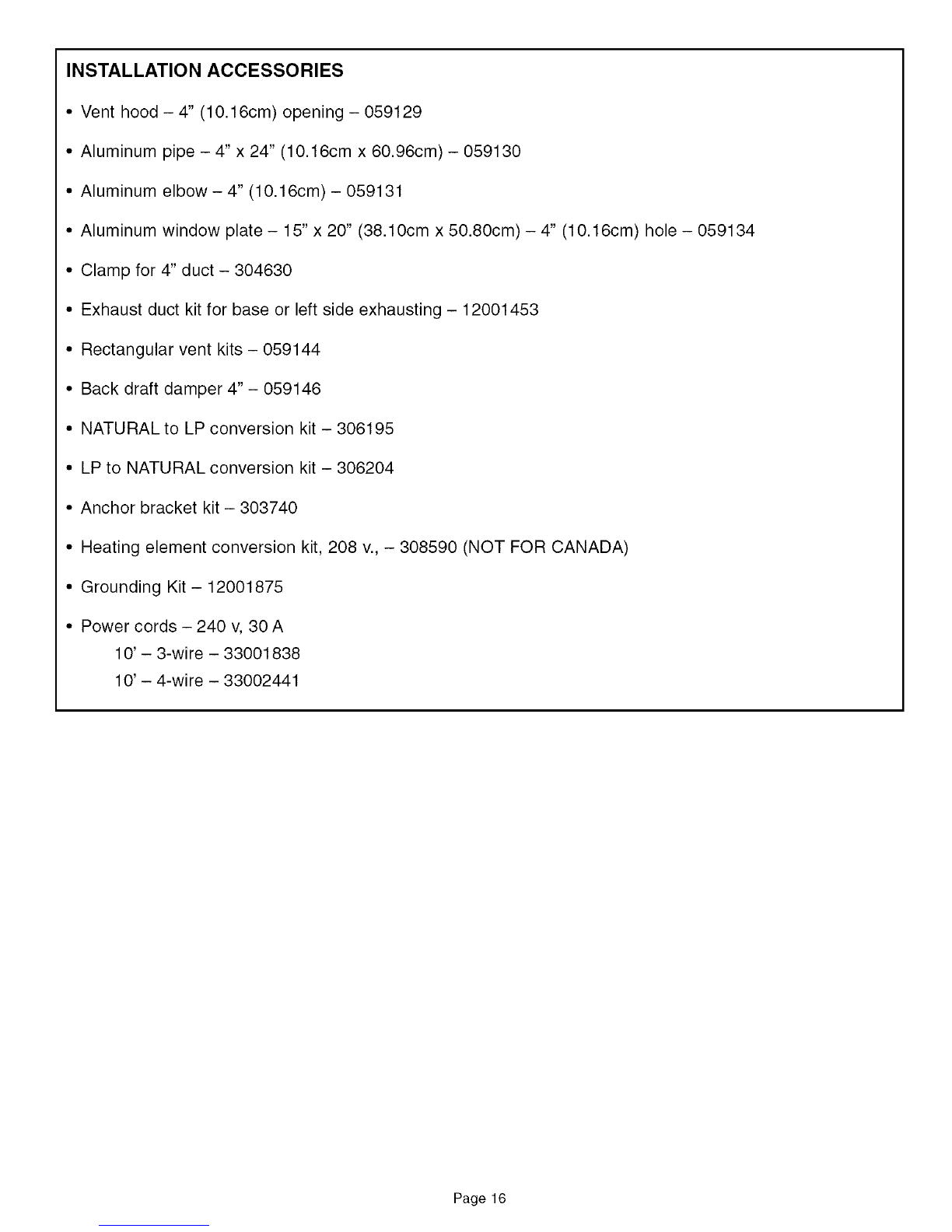

INSTALLATION ACCESSORIES
•Vent hood - 4" (10.16cm) opening - 059129
• Aluminum pipe - 4" x 24" (10.16cm x 60.96cm) - 059130
• Aluminum elbow - 4" (10.16cm) - 059131
• Aluminum window plate - 15" x 20" (38.10cm x 50.80cm) - 4" (10.16cm) hole - 059134
• Clamp for 4" duct - 304630
°Exhaust duct kit for base or left side exhausting - 12001453
°Rectangular vent kits - 059144
• Back draft damper 4" - 059146
• NATURAL to LP conversion kit - 306195
• LP to NATURAL conversion kit - 306204
°Anchor bracket kit - 303740
• Heating element conversion kit, 208 v., - 308590 (NOT FOR CANADA)
• Grounding Kit- 12001875
• Power cords - 240 v, 30 A
10' - 3-wire - 33001838
10'- 4-wire - 33002441
Page 16
