Maytag®Pet Pro System Top Load Washer
W11565084B

FOR SERVICE TECHNICIAN’S USE ONLY
2
FOREWORD
This Technical Manual (Part No. W11565084B), provides the In-Home Service Professional with service information
for the “Maytag®Pet Pro System Top Load Washer” For specific operating information on the model being serviced,
refer to the “Owner's Manual” and “Quick Start Guide” provided with the washer.
The Wiring Diagram used in this Technical Manual is typical and should be used for training purposes only. Always use
the Wiring Diagram supplied with the product when servicing the washer.
For specific operating and installation information on the model being serviced, refer to the literature provided with the
washer.
GOALS AND OBJECTIVES
The goal of this Technical Manual is to provide information that will enable the In-Home Service Professional to
properly diagnose malfunctions and repair the “Maytag®Pet Pro System Top Load Washer.”
The objectives of this Technical Manual are to:
• Understand and follow proper safety precautions.
• Successfully troubleshoot and diagnose malfunctions.
• Successfully perform necessary repairs.
• Successfully return the washer to its proper operational status.
WHIRLPOOL®CORPORATION assumes no responsibility for any repairs made on our
products by anyone other than authorized In-Home Service Professionals.
©2022 Whirlpool®Corporation. Benton Harbor, MI 49022

FOR SERVICE TECHNICIAN’S USE ONLY
3
TABLE OF CONTENTS
SECTION 1: GENERAL INFORMATION......................................................................................................... 5
SAFETY.............................................................................................................................................................. 6
PRODUCT SPECIFICATIONS............................................................................................................................... 7
PRODUCT FEATURES......................................................................................................................................... 9
MODEL NUMBER NOMENCLATURE.................................................................................................................. 10
MODEL NUMBER AND SERIAL NUMBER LABEL LOCATION ............................................................................. 11
TECH SHEET LOCATION ................................................................................................................................... 11
SECTION 2: SERVICE GUIDE .......................................................................................................................13
SERVICE GUIDE ............................................................................................................................................... 14
ACTIVATING SERVICE MODE ........................................................................................................................... 14
READING BINARY CODES ................................................................................................................................ 15
UI TEST............................................................................................................................................................ 16
AUTOMATIC TEST MODE.................................................................................................................................. 16
AUTOMATIC TEST MODE CHART/COMPONENT ACTIVATION ........................................................................... 17
SOFTWARE VERSION DISPLAY........................................................................................................................ 18
DIAGNOSTIC CYCLE CHART............................................................................................................................. 19
FAULTS AND ERROR CODES............................................................................................................................ 20
SECTION 3: TROUBLESHOOTING...............................................................................................................23
TROUBLESHOOTING GUIDE ............................................................................................................................. 24
MAIN CONTROL (ACU) BOARD CONNECTORS AND PINOUTS.......................................................................... 27
TROUBLESHOOTING TESTS............................................................................................................................. 28
COMPONENT LOCATIONS ................................................................................................................................ 32
SECTION 4: COMPONENT ACCESS............................................................................................................33
REMOVING THE CONSOLE............................................................................................................................... 34
REMOVING THE USER INTERFACE (UI) ........................................................................................................... 35
REMOVING THE WATER INLET VALVE ............................................................................................................ 36
REMOVING THE MAIN CONTROL ..................................................................................................................... 36
REMOVING THE PET HAIR FILTER ................................................................................................................... 37
REMOVING THE AGITATOR............................................................................................................................... 37
REMOVING THE TUB RING AND BASKET ......................................................................................................... 38
REMOVING THE LID LOCK ............................................................................................................................... 40
REMOVING THE LID AND HINGE...................................................................................................................... 41
REMOVING THE SHIFTER ................................................................................................................................ 42
REMOVING THE DRAIN PUMP ......................................................................................................................... 42
REMOVING THE DRIVE BELT AND MOTOR....................................................................................................... 43
REMOVING THE SPLUTCH ............................................................................................................................... 44
REMOVING THE GEARCASE............................................................................................................................. 45

FOR SERVICE TECHNICIAN’S USE ONLY
4
Notes

FOR SERVICE TECHNICIAN’S USE ONLY
5
Section 1:
General Information
This section provides general safety, parts, and
information for the “Maytag®Pet Pro System Top Load
Washer.”
■Safety
■Product Specifications
■Product Features
• Control Panel
■Model Number Nomenclature
■Model Number and Serial Number Label Location
■Tech Sheet Location

FOR SERVICE TECHNICIAN’S USE ONLY
6
Safety
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:
ɃRead all instructions before using the appliance.
ɃDo not wash articles that have been previously cleaned in, washed in,
soaked in, or spotted with gasoline, dry-cleaning solvents, or other
flammable or explosive substances, as they give off vapors that could
ignite or explode.
ɃDo not add gasoline, dry-cleaning solvents, or other flammable or
explosive substances to the wash water. These substances give off
vapors that could ignite or explode.
ɃUnder certain conditions, hydrogen gas may be produced in a
hot-water system that has not been used for 2 weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not
been used for such a period, before using a washing machine, turn
on all hot-water faucets and let the water flow from each for several
minutes. This will release any accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an open flame during this time.
ɃDo not allow children to play on or in the appliance. Close supervision
of children is necessary when the appliance is used near children.
ɃBefore the appliance is removed from service or discarded, remove
the door.
ɃDo not reach into the appliance if the tub or agitator is moving.
ɃDo not install or store this appliance where it will be exposed to the
weather.
ɃDo not tamper with controls.
ɃDo not repair or replace any part of the appliance or attempt any
servicing unless specifically recommended in the user maintenance
instructions or in published user-repair instructions that you
understand and have the skills to carry out.
ɃDo not use replacement parts that have not been recommended by the
manufacturer (e.g. parts made at home using a 3D printer).
ɃSee the Installation Instructions for grounding requirements and
installation.
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
SAVE THESE INSTRUCTIONS

FOR SERVICE TECHNICIAN’S USE ONLY
7
ProductProduct Specifications
Maytag®Pet Pro System Top Load Washer
Dimensions
Capacity (DOE) US (cu ft) 4.7
Capacity IEC CAN (cu ft) 5.4
Depth (IN, inches) 271/2
Height with Lid Open (IN, inches) 571/2
Maximum Height (IN, inches) 4211/16
Minimum Height (IN, inches) 42
Washer Door Opening Height (FL) Depth (TL) 191/2
Width (IN, inches) 271/2
Exterior
Adjustable Feet Yes
Lid/Door Finish Edge Glass
Lid/Door Lock Yes
Lid/Door Swing NA
Slow Close Lid Yes
Details
Automatic Load Size Sensing Technology Yes
Dispense System Single Dose, Detergent, Fabric Softener, Bleach
Out of Balance Sensing Yes
Suspension System 4 Springs 4 Dampers
Liquid filled upper balance ring
Drum Material Stainless Steel
Drum Rear/Base Material Plastic
Hoses Included Drain Hose
Motor Drive Type Belt
Motor Horsepower 1/3 HP
Wash Action Agitator with Pet Hair Filter
Maximum Spin Speed (RPM) 750
Controls
Automatic Temperature Controls Yes
Control Location Rear Console
Control Type Knob and Button
Feedback-Status Indicators Sense, Soak, Wash, Done
LED Color White

FOR SERVICE TECHNICIAN’S USE ONLY
8
Product Specifications (Continued)
Cycles
Number of Wash Cycles 12
Washer Cycle Selections Active Wear, Bulky Items, Clean Washer with affresh® †, Colors, Delicates,
Drain & Spin, Heavy Duty, Jeans, Normal, Quick Wash, Towels, Whites
Options
Number of Washer Options 5
Washer Option Selections Pet Pro, Deep Fill, Extra Rinse, Fabric Softener, Temperature
Modifiers
Number of Soil Levels 1
Number of Wash/Rinse Temperatures 5
Temperature Selections Hot, Cold, Tap Cold, Cool, Warm
Number of Rinse Options 2
Rinse Temperature Cold
Number of Water Levels 2
Water Levels Auto, Deep Fill
Number of Spin Speeds 1
Features
Pedestal Options No
Sound Package No
Water Faucet Yes
Certifications
CEE Tier Not Rated
Energy Rating (kWh/year) 340
UL Yes
IMEF 1.037
IWF 6.5
Prop 65 Standard
Electrical
Amps 15 A
Frequency Hz 60 Hz
Power Cord Included Yes
Volts 120 V
†affresh®is a registered trademark of Whirlpool, U.S.A.

FOR SERVICE TECHNICIAN’S USE ONLY
9
Product Features
Control Panel
POWER
Press to turn on/off or to stop/cancel a cycle.
CYCLE KNOB
Turn knob to select desired cycle.
START/PAUSE
Press and hold the Start/Pause button for 1 second until all status lights are
illuminated, then release to start cycle. Press during a cycle to pause cycle
and unlock lid.
NOTE: If machine is spinning it may take longer to unlock lid.
CYCLE MODIFIERS (Not all modifiers are available on
all cycles)
Temp
Press to modify the cycle’s available temperatures (Tap-Cold, Cold, Cool,
Warm, or Hot).
NOTE: Pressing Temp will toggle through available temperature options.
When no lights in the temperature column are illuminated the selected
temperature is Tap Cold.
OPTIONS
Press to add or remove options for each cycle. Press once to add an Extra
Rinse, twice to activate Deep Water and three times for both.
EXTRA RINSEEXTRA RINSE
Select this option to add a second rinse.
DEEP WATERDEEP WATER
Use this option to automatically add more water to your wash cycle.
You can also use this option to reduce the likelihood of white residue on
dark clothing.
PET PRO (Fabric Softener)
See notes below for how to turn these modifiers on/off.
PET PRO
Select this option to boost pet hair filtering performance. You can use this
mode anytime but it’s especially suited for loads with high amounts of pet
hair. Turn this modifier on/off with a single button press. For some load sizes
“Pet Pro” must be selected in order to collect hair.
NOTE: Pet Pro modifier is intended for removing pet hair from clothes. Do
not put pets into the Washer.
FABRIC SOFTENER
Select this option to let the machine know when you have added liquid fabric
softener. Turn this modifier on/off by holding the button until the fabric
softener light turns on/off.
D
BB C
A
A. Power
B. Cycle Knob
C. Start/Pause
D. Cycle Modifiers
*Appearance may vary depending on model

FOR SERVICE TECHNICIAN’S USE ONLY
10
Model Number Nomenclature
MODEL NUMBER M VW 6500 M BK
Brand
M = Maytag®
Category
HW = Horizontal (Front load) Washer
VW = Vertical (Top load) Washer
Capacity
6XXX = 4.7 cu ft
Year
M = 2022
Color
W = White
BK = Black Shadow

FOR SERVICE TECHNICIAN’S USE ONLY
11
Model Number and Serial Number Label Location
The Model Number and Serial Number Label location is as shown below:
Tech Sheet Location
The Tech Sheet Location is as shown below:
Model Number and
Serial Number Label
Tech Sheet Location
(Below the Console)

FOR SERVICE TECHNICIAN’S USE ONLY
12
Notes

FOR SERVICE TECHNICIAN’S USE ONLY
13
Section 2:
Service Guide
This section provides Service guide for the “Maytag®Pet
Pro System Top Load Washer.”
■Service Guide
■Activating Service Mode
■Reading Binary Code
■UI Test
■Automatic Test Mode
■Automatic Test Mode Chart/Component Activation
■Software Version Display
■Diagnostic Cycle Chart
■Faults and Error Codes

FOR SERVICE TECHNICIAN’S USE ONLY
14
SERVICE GUIDE
Before servicing, check the following:
ɃMake sure there is power at the wall outlet.
ɃHas a household fuse blown or circuit breaker tripped? Was a regular
fuse used? Inform customer that a time-delay fuse is required.
ɃAre both hot and cold water faucets open and water supply hoses
unobstructed?
ɃMake sure drain hose is not sealed into drain pipe, and that there is an
air gap for ventilation. Ensure drain height is between 39" (991 mm)
and 8' (2.4 m) above the floor.
ɃAll tests/checks should be made with a VOM (volt-ohm-milliammeter)
or DVM (digital-voltmeter) having a sensitivity of 20,000 Ω per VDC or
greater.
ɃResistance checks must be made with washer unplugged or power
disconnected.
IMPORTANT: Avoid using large diameter probes when checking
harness connectors as the probes may damage the connectors upon
insertion.
ɃCheck all harnesses and connections before replacing components.
Look for connectors not fully seated, broken or loose wires and
terminals, or wires not pressed into connectors far enough to engage
metal barbs.
ɃA potential cause of a control not washer functioning is corrosion
or contamination on connections. Use an ohmmeter to check for
continuity across suspected connections.
ɃTo properly check voltage:
1. Unplug appliance or disconnect power.
2. Attach voltage measurement probes to proper connectors.
3. Plug in appliance or reconnect power and verify voltage reading.
4. Unplug appliance or disconnect power after completing voltage
measurements.
DIAGNOSTIC LED – MAIN CONTROL (ACU)
A troubleshooting tool has been implemented onto the main control
board—a diagnostic LED.
LED Flashing – The Control is detecting correct incoming line voltage and
the processor is functioning.
LED OFF or ON – Control malfunction. Perform TEST #1: Main Control
(ACU), to verify main control functionality.

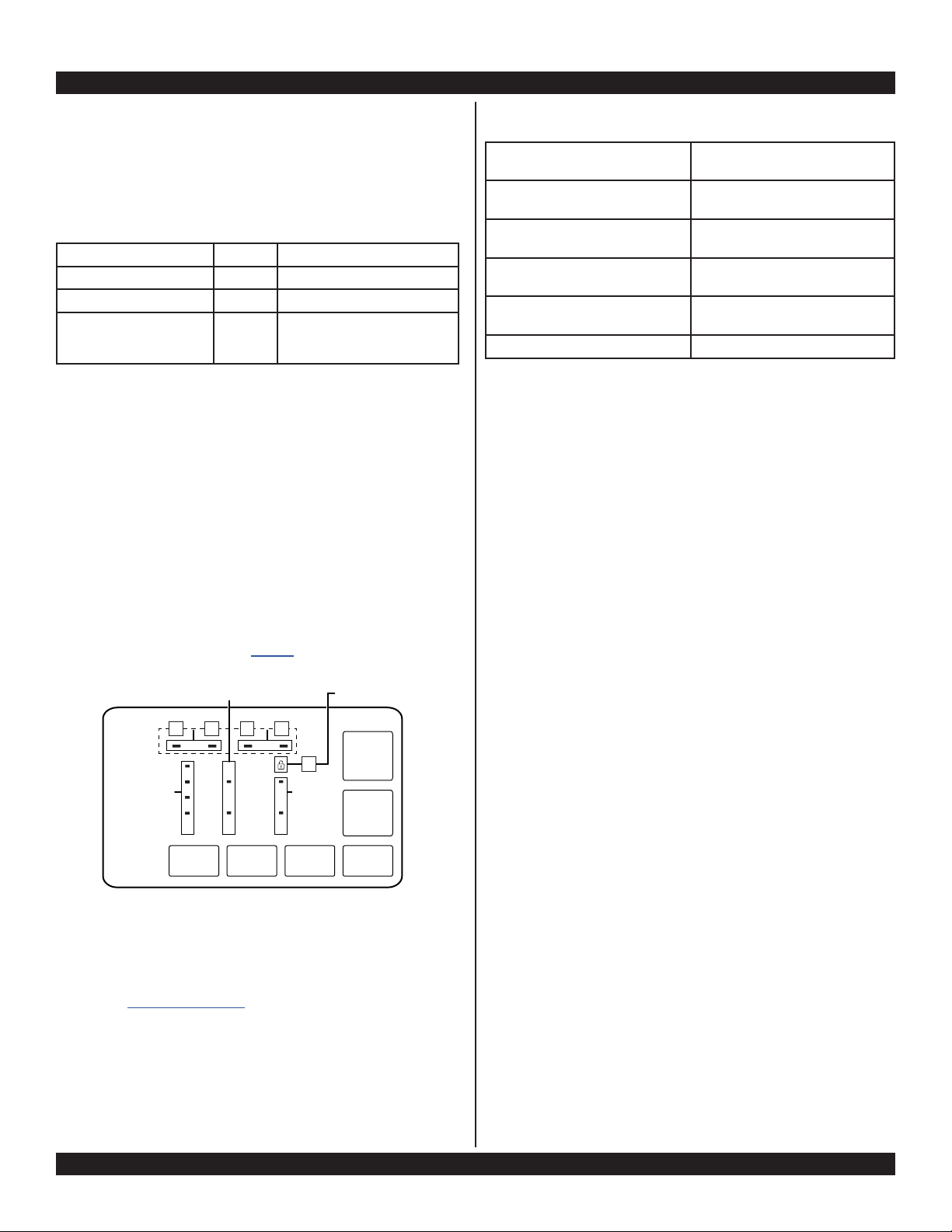

LED
Location
Figure 1 - Diagnostic LED
SERVICE MODE
These tests allow factory or service personnel to test and verify all
inputs to the main control board. You may want to do a quick and
overall checkup of the washer with these tests before going to specific
troubleshooting tests.
ACTIVATING SERVICE MODE
1. Be sure the washer is in standby mode (plugged in with all LEDs
off).
2. Follow the steps below within 8 seconds:
dzPress and Release Key 1
dzPress and Release Key 2
dzPress and Release Key 3
dzRepeat this 3 button sequence 2 more times
3. If this test mode has been entered successfully, all indicators on the
HMI will be illuminated for 1 second then will be turned OFF. After
this, If there are no saved fault codes, the STATUS indicators
(Sense, Soak, Wash and Done) will blink two times and then all the
indicators will be turned OFF.
Figure 2: Diagram of the HMI screen and navigational buttons.
Unsuccessful Activation
If entry into Diagnostic mode is unsuccessful, refer to the following
indications and actions:
Indication: None of the LEDs will turn on.
Action: Turn on the appliance by pressing the POWER Button or rotating
the knob and select any cycle.
➢If LEDs turn on after pressing the POWER Button or turning the
knob, then try to enter Service mode again: repeat step 2 mentioned
in activating sequence and complete it within 8 seconds. If these
re-entry procedures fail to enter into Diagnostic mode, there is likely
a faulty button in the HMI. Replace the HMI.
➢If no LEDs come on after selecting the cycle, go to TEST #1: Main
Control (ACU).
Activation with Saved Fault Codes
If there is a saved fault code, it will be flashing in the display. Review the
Fault/Error Codes table on page 20 for the recommended procedure. If
there is no saved fault code. All LEDs will turn OFF.
LED group 2
LED
group 1 LED
group 3
LED group 4
Key 6/
POWER
Key 5/
START
Key 4Key 3
Key 2
Key 1
Status
Indicator
1 2 3 4
5
LED group 5 LED group 6

FOR SERVICE TECHNICIAN’S USE ONLY
15
SERVICE MODE MENU TABLE
Button Press Function Behavior
Key 1 - Momentary press - Enter UI test
- Press and hold for 5 seconds. - Exits Service Diagnostics
Key 2 - Momentary press - Activates Automatic Test Mode
- Press and hold for 3 seconds. - Software Version Display
Key 3 - Momentary press - Displays Enter Fault Code Display Mode
- Press and hold for 5 seconds. - Clears the Error Codes
dzSee “Activating Service Diagnostic Mode” to activate these buttons.
LED group 5 LED group 6
1 2 3 4 Value
0 0 0 0 0
0 0 0 1 1
0 0 1 0 2
0 0 1 1 3
0 1 0 0 4
0 1 0 1 5
0 1 1 0 6
0 1 1 1 7
1 0 0 0 8
1 0 0 1 9
Sense Soak Wash Done
Example: F3E2
1. Wash and Done are ON, Lid Lock LED is ON
2. All are OFF
3. Wash is ON, Lid Lock LED is OFF
4. All are OFF
5. Back to step 1
READING BINARY CODES
dzLED ON means 1 (has an associated value, see table)
dzLED OFF means 0 (has an associated value of zero)
Frame Number Status LEDs
Lid
Lock
LED
Fault/Error
Code
Frame
Timing
(Seconds)
8 4 2 1 5
1 1 F F2 0.5
2 0.5
3 1 1 E E5 0.5
4 1
Repeat
Key 6/
POWER
Key 5/
START
Key 4Key 3Key 2Key 1
Status
Indicator
8 4 2 1

FOR SERVICE TECHNICIAN’S USE ONLY
16
UI TEST
NOTE: The Service Diagnostic mode must be activated before entering the UI
Test; see procedure on page 14.
Entry Procedure
Press and release Key 1 used to active Service Diagnostic mode. All LEDs
will flash once and then the Sense LED will illuminate. The following test will
be available:
DIAGNOSTIC: UI Test
The Encoder Test will be active immediately after successfully entering into
the UI Test:
➢When the encoder test starts, the Sense LED from the progress LEDs will
be turned ON.
➢Rotate the knob CW/CCW from the current position until a full knob
rotation is completed. Notice that the LEDs from Status indicator group
will turn ON/OFF while the knob is rotated. After the Encoder Test is
completed, all the LEDs will be turned ON and the Button Activation test
will be active.
Button Activation Test
Pressing each button will toggle ON/OFF its corresponding LEDs:
➢LED group 1 will toggle ON/OFF with Key 1.
➢LED group 2 will toggle ON/OFF with Key 2.
➢LED group 3 will toggle ON/OFF with Key 3.
➢LED group 4 will toggle ON/OFF with Key 4.
➢LED group 5 will toggle ON/OFF with Key 5/START.
➢LED group 6 will toggle ON/OFF with Key 6/POWER.
➢If LEDs do not toggle ON/OFF after pressing buttons and rotating the
cycle selector knob go to TEST: #4 HMI.
Exit Procedure
To exit UI test, press and hold Key 1 used to activate Service Diagnostic mode
for 5 seconds.
AUTOMATIC TEST MODE
NOTE: The Service Diagnostic mode must be activated before entering Automatic
test mode; see procedure on page 14.
NOTE: If, at any point, the user presses the Key 6/POWER button, the washer
exits to standby mode.
NOTE: Lid must be closed to perform test.
Active Fault Code Display in Automatic Test Mode
If the display begins flashing while in Automatic test mode, it is displaying an
active fault code. Active fault codes are codes that are currently detected. Only
one active fault code can be displayed at a time.
Entry Procedure
To enter Automatic Test Mode, press and release Key 2 used to activate
Service Diagnostic Mode. To start Automatic Test Mode, press Key 5/Start.
Perform All Tests: After pressing the START button, the test sequence from
page 17 will start.
Exit Procedure
To exit test mode before test cycles complete, press Key 6/POWER and the
machine will return to Standby mode. When the test is complete, the lid will
unlock, all status LEDs will illuminate and then flash twice and the machine will
return to the main Service Diagnostic Mode menu. To exit to Standby Mode,
press Key 6/POWER.

FOR SERVICE TECHNICIAN’S USE ONLY
17
AUTOMATIC TEST MODE CHART/COMPONENT ACTIVATION
Step# Action Component HMI response
1
User enters Automatic test mode through
Service Diagnostics by pressing
releasing Key 2 used in entry sequence.
Lid must be closed. All LEDs are OFF and machine is waiting for the
START button to be pressed.
2
Press and release the START button to
begin the test. Water valves test starts
automatically.
Water Valves Test Sequence:
dzCold Water Valve Opens for 10 seconds
or until 70 mm water is filled and then
closes.
dzHot Water Valve Opens for 10 seconds
and closes.
Sense LED from Status Indicators is ON during
this sequence.
3
Drain pump test starts automatically.
1. Press Key 1 to repeat the Water
Valve test sequence.
2. Press Key 2 to skip the Drain Pump
test sequence.
Drain Pump Test Sequence:
dzDrain Pump Turns ON for 45 seconds or
till reaching 3 mm water column in the
tub.
Soak Phase LED from status indicator is ON
during this sequence.
4
Wash Sequence starts automatically.
1. Press Key 1 to repeat the Drain test
sequence.
2. Press Key 2 to skip the wash test
sequence.
Wash Test Sequence:
dzLid Lock closes.
dzShifter changes its position to wash.
dzWash action performed for 5 seconds in
both CW/CCW.
dzLid Unlocks.
Wash LED from Status Indicators is ON during
this sequence.
5
Spin Test sequence starts automatically.
1. Press Key 1 to repeat wash test
sequence.
2. Press Key 2 to skip spin test
sequence.
Spin Test Sequence:
dzLid Lock closes.
dzShifter changes its position to spin.
dzSlow spin at 140 rpm for 5 seconds.
dzMedium spin at 300 rpm for 5 seconds.
dzFinal spin at 500 rpm for 30 seconds
or skip after 25 seconds if 500 rpm not
reached.
dzLid Unlocks after basket speed comes to
less than 60 rpm.
Done LED from Status Indicators is ON during this
sequence.
6
End of Service Cycle starts automatically.
1. Press Key 1 to repeat spin test
sequence.
2. Press Key 2 to skip water valves test
sequence.
3. No key press will take to Service
mode.
End of cycle sequence:
dzShifter turn to wash.
All LEDs from Status Indicators is ON during
this sequence.

FOR SERVICE TECHNICIAN’S USE ONLY
18
SOFTWARE VERSION DISPLAY
NOTE: The Software Version Display mode will time out after 5 minutes of user
inactivity and return to standby mode.
Entry Procedure
To enter Software Version Display, press and hold Key 2 used to activate the
Service Diagnostic mode for 5 seconds. Upon entry, the display will
automatically cycle through the following information:
Component Identifier Value display
ACU Application Firmware 1 XX:YY:ZZ
HMI Application Firmware 2 XX:YY:ZZ
Setting FIle 3 PN1:PN2:PN3:PN4:PN5:PN6:
PN7:PN8
ɃWhere XX.YY.ZZ corresponds to the 3 sets of 2 digit numbers that
describe a software version and PN1.PN2.PN3.PN4.PN5.PN6.PN7.PN8
is the 8 digit settings file part number.
ɃThe ACU, HMI and Settings file information will be displayed in the LEDs
(SENSE, SOAK, WASH, and DONE) in binary format. Consider SENSE
LED the most significant bit.
ɃThe identifier value of the component information will be displayed in
LED Group1/TEMPERATURE Group in binary format. Consider HOT LED
from top as the most significant bit. (For Example: Cold LED blinks, then
the Identifier is 1. Cold and Cool LED blinks, then the Identifier is 3).
ɃLED ON = 1, LED OFF = 0.
Exit Procedure
Pressing the POWER button will exit Software Version Display and return washer
to standby mode.
FAULT/ERROR CODES
Refer to service fault/error codes on page 20.
Fault/Error Code Display Method
ɃFault codes are composed by a F# and an E#. The F# has two digits
and indicates the suspect System/Category. The E# has two digits and
indicates the suspect Component system.
ɃThe fault codes are displayed in binary format at the LEDs (SENSE,
SOAK, WASH, and DONE). When the LED is ON it represents a binary 1
and when the LED is OFF it represents a binary 0.
Refer to "Reading Binary Codes".
ɃWhen the F# digits are displayed, the LID LOCK LED will be turned ON.
ɃWhen the E# digits are displayed, the LID LOCK LED will be turned OFF.
Up to five Fault/Error codes may be stored. Additional presses of Key 3 will
cause the system to display the next fault code. If there are no fault codes
saved, the LEDs will blink two times for each Key 3 press.
Advancing Through Saved Fault/Error Codes
Procedure for advancing through saved fault codes:
Press and release Key 3 used to
activate service diagnostics
Most recent fault code is
displayed.
Repeat Second most recent fault code is
displayed.
Repeat Third most recent fault code is
displayed.
Repeat Fourth most recent fault code is
displayed.
Repeat Fifth most recent fault code is
displayed.
Repeat Back to the most recent fault code.
Clearing Fault Codes
To clear stored fault codes, enter Service Diagnostic mode. Then press and hold
Key 3 used to enter Service Diagnostic mode for 5 seconds. Once the stored
fault codes are successfully erased, the LEDs will blink two times. Must be in
Fault Code Display mode to erase fault codes.
Exiting Service Diagnostic Mode
Use below method to exit diagnostic mode.
dzPressing the Key 6/POWER button once.
Factory Mode
The Factory Mode includes: Factory Cycle and Factory Calibration Cycle.
1. Be sure the washer is in standby mode (plugged in with all LEDs off) and
lid is closed.
2. Follow the steps below within 8 seconds:
dzPress and release Key 1.
dzPress and release Key 2.
dzPress and release Key 1.
dzPress and release Key 2.
3. Entry into service mode is confirmed by all LEDs blinking 1 time and lid
locks.
4. Rotate the Encoder 1 step. LED status changes in LED groups 5 and 6.
5. Press Keys 1 to 6 one by one. Each Key press turns ON/OFF
corresponding group LED.
6. Successful completion of Encoder and Key, unlocks the lid.
7. Open and close the lid.
8. Factory cycle will be initiated by locking the lid.
Factory Calibration Cycle
This calibrates the main control to the washer for optimal load size estimation.
Calibration must be performed when any of the following components have
been replaced:
dzMain Control
dzBasket
dzDrive Assembly
dzSuspension, Motor
dzCapacitor and Shifter
Not performing calibration will result in poor wash performance.
Do NOT interrupt calibration, disturb washer, or remove power; otherwise
calibration must be repeated.
Basket must be empty to perform test (no water or clothes).
Calibration cycle runs for approximately 2 to 4 minutes*. Cycle completes when
lid unlocks and all LEDs are off.
Exit Procedure
Pressing the Key 6/POWER button anytime will exit Factory Mode.
LED group 2
LED
group 1 LED
group 3
LED group 4
Key 6/
POWER
Key 5/
START
Key 4Key 3
Key 2
Key 1
Status
Indicator
1 2 3 4
5
LED group 5 LED group 6

FOR SERVICE TECHNICIAN’S USE ONLY
19
DIAGNOSTIC CYCLE CHART
It is recommended to take note of, then clear the Fault History before running the Diagnostic Cycle.
NOTE: The basket must be empty during this test. Some loads will not be available on all models.
Step Washer Function Recommended Procedure Estimated Time
(seconds)
1Warm water fills through the
Detergent valve
If no water, use Water Valve test sequence to manually turn on and test the hot and
cold water valves. 60
2Hot water fills through the
Detergent valve If no water, use Water Valve test sequence to manually turn on and test the valve. 5
3Cold water fills through the
Detergent valve If no water, use Water valve test sequence to manually turn on and test the valve. 5
4Drain pump turns on If water is not draining, use Drain Pump test sequence to manually turn on and test
the drain pump. 15
5Lid locks Lid must be closed. If lid does not lock, use Wash test sequence to manually test
the lid lock. 5
6Shift to Wash Use Wash test sequence to manually test the shifter. 30
7Wash Use Wash test sequence to manually test the motor operation in both direction. 5
8 Shift to Spin Use Spin test sequence to manually test the shifter. 30
9Spin up to 500 RPM then stop Use Spin test sequence to manually test the motor. 200
10 Unlock lid If lid does not unlock, use service Water valve test sequence to manually test the
lid lock. 5
Total test time in minutes is expected to be between 4-7 minutes.
Steps 1-3 will display Sense LED. Step 4 will display Soak LED. Steps 5-7 will display Wash LED. Steps 8-10 will display Done LED.

FOR SERVICE TECHNICIAN’S USE ONLY
20
FAULTS AND ERROR CODES
Faults marked with “‡” will stop the cycle execution. If no action is taken within 5-10 minutes, the display will turn off.
All faults can be viewed in the ‘Fault History’ section of Service mode.
Code Description Explanation and Recommended Procedure
F0E2 Oversuds‡
Fault is displayed when suds prevent the basket from spinning up to speed or the pressure sensor detects
rising suds level. The main control will flush water in an attempt to clear suds. If the water flush is unable to
correct the problem, this may indicate:
dzNot using HE detergent.
dzExcessive detergent usage.
dzCheck pressure hose connection from tub to main control. Is hose pinched, kinked, plugged, or leaking air?
dzMechanical friction on drive mechanism or basket (items between basket and tub).
F0E3 Overload
Fault is displayed when the main control detects a load size that exceeds the washer’s capacity OR basket
cannot be turned. This may signify:
dzLoad size exceeds washer capacity. Remove excess laundry, then restart the cycle.
dzMechanical friction on drive mechanism or basket (items between basket and tub).
F0E4 Spin Limited by Water
Temperature
Fault is displayed when the water temperature is too high to have spin at final speed. Speed will be limited to
500 RPM.
dzCheck water valve function. See TEST #2: Valves.
F0E5 Off Balance Load
Fault is stored when an off balance condition is detected.
dzCheck for weak suspension. Basket should not bounce up and down more than once when pushed.
dzItems should be distributed evenly when loading.
F0E7
Load Detected When
Running Clean Washer
Cycle‡
Fault is displayed when clothes are detected in the basket when clean washer cycle is selected.
dzRemove any load from the basket before running clean washer cycle.
F0E8 Water Ring‡Fault is displayed when too much residual water is detected.
dzRun Drain and Spin Cycle.
F0E9 OB Pause‡
Fault is displayed when an off balance condition is detected and after user interventions.
dzCheck for weak suspension. Basket should not bounce up and down more than once when pushed.
dzItems should be distributed evenly when loading.
F1E1 Main Control (ACU) Fault‡Fault is displayed indicating a main control (ACU) fault.
dzSee TEST #1: Main Control (ACU).
F2E1 HMI Stuck Button Fault is stored indicating that the user interface is detecting that a button is continuously activated.
dzSee TEST #4: HMI.
F2E2 HMI Disconnected‡Fault is displayed if the HMI is disconnected from the ACU.
dzSee TEST #4: HMI.
F3E2 Pressure System Fault‡
Fault is displayed when the main control detects an out of range or absent pressure signal.
dzCheck pressure hose connection from tub to main control. Is hose pinched, kinked, plugged, or leaking air?
dzSee TEST #6: Water Level.
F5E1 Lid Switch Fault - Lid Is
Open‡
Fault is displayed if lid is in locked state, but lid switch is open; control not sensing the strike in the lid lock.
dzUser presses START with lid open.
dzThe main control cannot detect the lid switch opening and closing properly.
dzSee TEST #8: Lid Lock.
