Miele PW 5105 Vario User manual

Operating and Installation
Instructions
PW 5105 Vario
To prevent accidents
and machine damage
read these instructions
before
installation or use. M.-Nr. 09 658 560
en-US
INDUSTRIAL USE ONLY

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

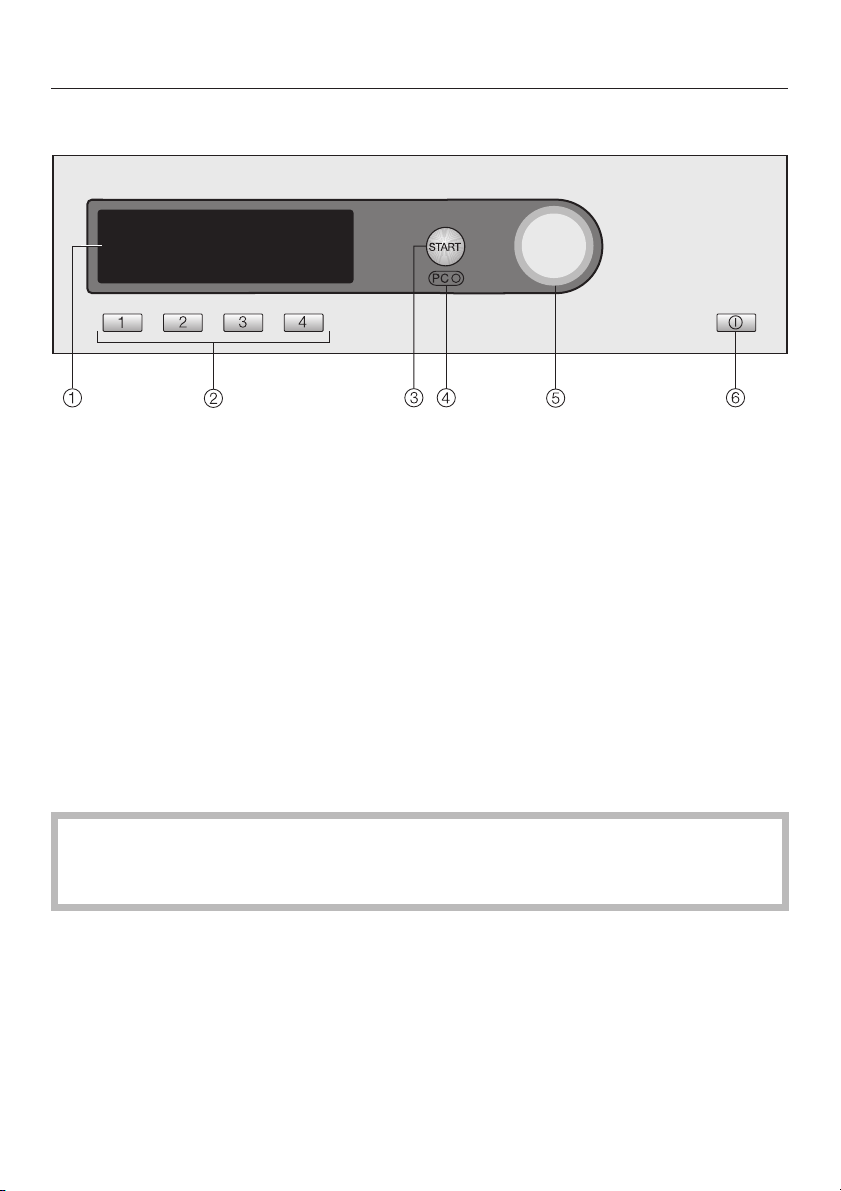

Control panel ......................................................9
Display ..........................................................10

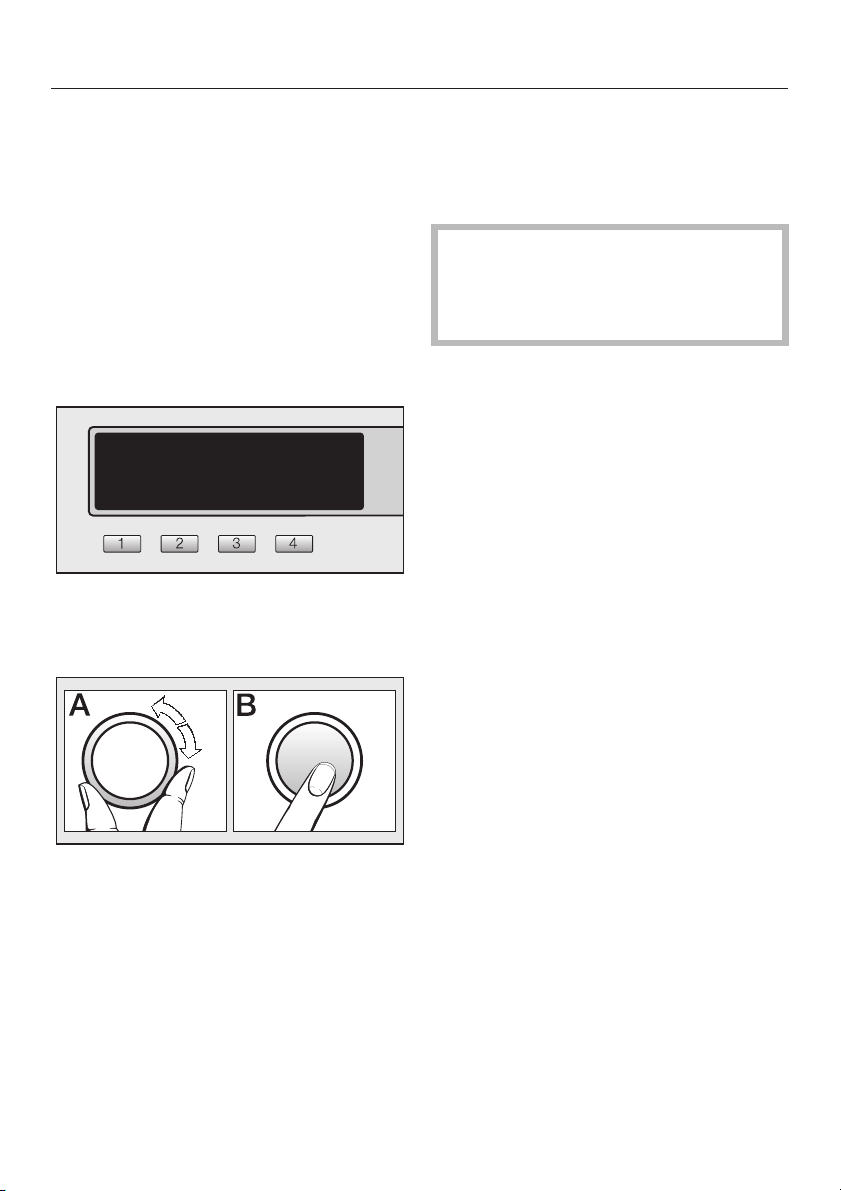

Operating the washer ..............................................12
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

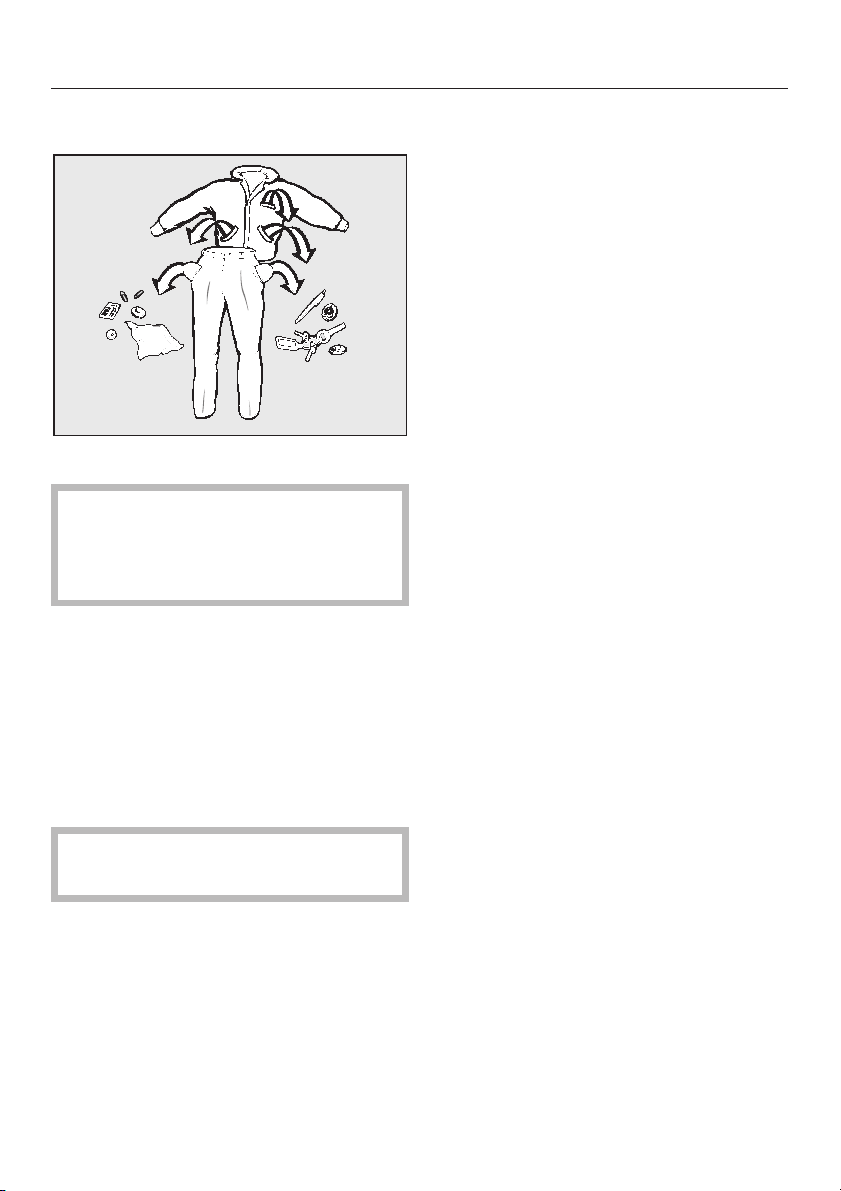

1. Sort the laundry .................................................13

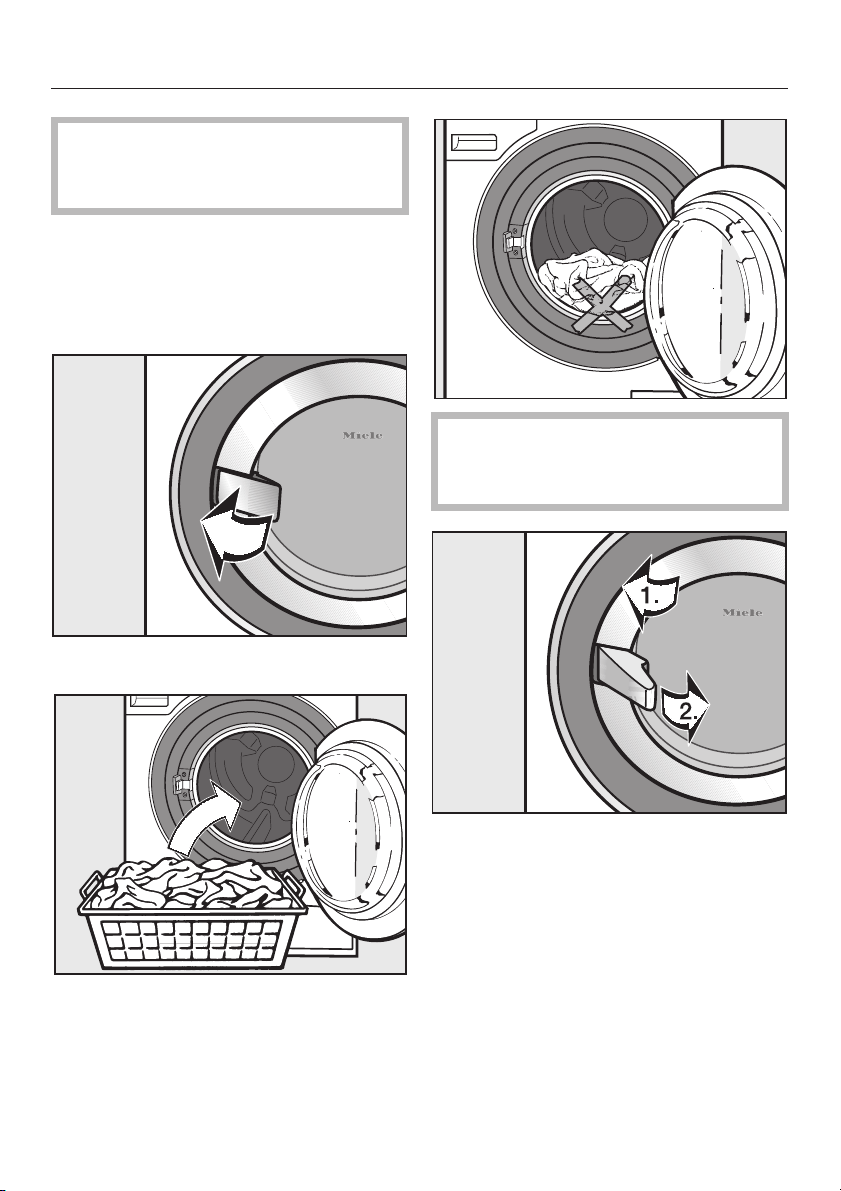

2. Load the drum ..................................................14
3. Select a program ................................................14
Wash care label symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Quick guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Select a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Selecting/changing a program .......................................20
Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Saving a favorite program ...........................................22
Extras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Pre-wash ........................................................23
Starch stop.......................................................23
Rinse hold .......................................................24
Intensive* ........................................................24
Water plus* ......................................................24
Peak load shut-off .................................................25
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Maximum final spin speed...........................................27
Rinse and interim spin ...........................................27
Changing the program sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Payment system...................................................28
Interrupting a program..............................................28
Canceling a program...............................................28
Changing a program ...............................................28
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Washing with several components ....................................30
Fabric softeners / liquid starch .......................................31
Automatic dispensing of fabric softener or liquid starch .................31
External dispensing system..........................................32
Empty sensor ..................................................32
Contents
2

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cleaning the machine ..............................................34
Cleaning the inlet hose filter .........................................37
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
The program does not start ..........................................38
A fault message appears in the display ................................39
General problems .................................................40
Poor wash results..................................................41
The door will not open ..............................................42
To continue a program after a power failure .............................42
Service interval display .............................................43
Opening the door during a power failure or when the drain is blocked ........44
Drain the machine. ..............................................44
Cleaning the drainage system .....................................45
Opening the drum door ..........................................46
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Front view........................................................50
Rear view ........................................................51
Side view ........................................................52
View from above ..................................................52
Installing the machine ..............................................52
Installation on a raised plinth .........................................53
Coin mechanism ..................................................53
Installation surface.................................................54
Removing the shipping struts ........................................54
Re-fitting the shipping struts .........................................55
Leveling the machine...............................................56
Plumbing ........................................................57
Recycled water connection .......................................58
Hot water supply................................................58
Drainage ........................................................59
Drain pump ....................................................59
Electrical connection ...............................................60
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Help protect our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Contents
3

,WARNING - To reduce the risk of
fire, electric shock or injury to
persons while using your appliance
follow basic safety precautions,
including the following:
Read all instructions before
installation or use to prevent injury
and appliance damage.
This appliance conforms to all
uniform safety codes and
regulations.
Keep these operating instructions in
a safe place and pass them on to
any future user.
SAVE THESE INSTRUCTIONS
WARNING - To reduce the risk of fire,
electric shock or injury:
Correct application
~Only use the washing machine to
wash items which are specified by the
manufacturer to be machine washable
on the fabric care label. Any other
applications may be dangerous.
~Persons who lack physical, sensory
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
~Do not allow children to play on or in
the appliance. Close supervision is
necessary when the appliance is used
near children.
~It is the responsibility of the operator
to ensure that the standard of
disinfection procedures is maintained
according to your local authority.
Disinfection programs must not be
interrupted, as this can have a limiting
effect on the disinfection result.
~The drum door glass will be hot
when washing at very high
temperatures.
Do not touch the glass. Danger of
burns! Keep children away from the
washer when in use.
~If the machine is used in a publically
accessible room, it is the supervisor's
responsibility to ensure that suitable
measures are in place which enable
operators to use it safely.
~If this machine is being used in a
commercial environment please ensure
that all relevant health and safety
regulations are obeyed.
~This appliance is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
an installation in these applications.
Please contact the Miele Technical Ser-
vice Dept. with specific requirements.
IMPORTANT SAFETY INSTRUCTIONS
4

Technical safety
~Check the packaging, the washer
and accessories for any signs of
damage. Do not use a damaged
appliance.
~GROUNDING INSTRUCTIONS
This appliance must be grounded. In
the event of malfunction or breakdown,
grounding will reduce the risk of
electric shock by providing a path of
least resistance for electric current. This
appliance is equipped with a cord
having an equipment- grounding
conductor and a grounding plug. The
plug must be plugged into an
appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
~WARNING - Improper connection of
the equipment-grounding conductor
may result in a risk of electric shock.
Check with a qualified electrician if you
are in doubt as to whether the
appliance is properly grounded.
~Do not modify the plug provided
with the appliance - if it will not fit into
the outlet, have a proper outlet installed
by a qualified electrician.
~Before connecting the machine,
ensure that the connection data on the
data plate (fusing, voltage and
frequency) match the main electrical
supply. If in doubt contact an
electrician.
~Do not use an extension cord to
connect this appliance to the power
supply. Extension cords do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
~Do not install your washing machine
in rooms where temperatures below
freezing may occur. Frozen hoses may
burst under pressure. The reliability of
the electronic control unit may be
impaired at temperatures below
freezing.
~Before using the washer for the first
time, remove the shipping struts at the
back of the appliance (see
"Installation"). Failure to remove the
shipping struts can damage the washer
and surroundings during spinning.
~During extended absences
(e.g., vacation), close the water supply.
~Danger of flooding!
Before hanging the drain hose in the
sink, make sure the water will drain
away quickly enough.
Secure the hose. The force of the water
exiting the hose can cause an
unsecured hose to pop out of the sink.
IMPORTANT SAFETY INSTRUCTIONS
5

~Do not repair or replace any part of
the appliance or attempt any servicing
unless specifically recommended in
these operating instructions.
~Ensure power is not supplied to the
appliance while maintenance or repair
work is being performed. The machine
is only completely isolated from the
electrical supply when it is turned off at
the main switch and the plug is pulled,
or by tripping the circuit breaker.
~Connect the washer, to the water
mains. Do not use old hoses. Inspect
the intake hoses regularly for damage.
They should be replaced as needed to
prevent water damage.
~Faulty components must only be
replaced with genuine Miele spare
parts.
~If the power cord is damaged it
must only be replaced by a Miele Ser-
vice technician with a genuine Miele
power cord.
~Under certain conditions, hydrogen
gas may be produced in a hot water
system that has not been used for 2
weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has
not been used for such a period, turn
on all hot water faucets and let the
water flow from each for several
minutes before using the washing
machine. This will release any built-up
hydrogen gas. Do not smoke or use an
open flame during this time, the gas is
flammable.
IMPORTANT SAFETY INSTRUCTIONS
6

Safety
~Textiles which have been
pre-treated in solvent based cleaning
agents must be thoroughly rinsed in
clean water before being washed in this
machine.
~Do not use cleaning solvents on or
near the machine or the controls.
Contact with cleaning solvents will
damage the surface and create toxic
fumes.
~Do not add gasoline, dry-cleaning
solvents, or other flammable or
explosive substances to the wash
water. These substances give off
vapors which could ignite or explode.
~Only use dyes specified by the
manufacturer as being suitable for use
in a washing machine. Always observe
the manufacturer's instructions
carefully.
~Color run and dye removers contain
sulphur compounds which can cause
damage such as corrosion. Do not use
these products in this machine.
~Avoid contact of stainless steel
surfaces (front, lid, housing) with liquid
cleaning and disinfecting agents which
contain chlorine or sodium
hypochlorite. These agents can have a
corrosive effect on stainless steel.
Aggressive vapors containing chlorine
bleach can also be corrosive. Do not
store open containers of these agents
near the machine.
~Ensure that no foreign objects are
left in pockets (e.g. nails, coins, paper
clips, etc.) this can cause damage to
clothes and the machine.
~Proper dosing of the detergent will
eliminate the need to remove lime
deposits. However, if heavy limescale
does form on the washer, select a
descaling agent with corrosion
protection. Closely follow the
instructions on the product package.
~Do not use a pressure washer or
hose to clean the machine.
~It is particularly important to observe
manufacturer's instructions when using
a combination of cleaning agents and
special application products. Products
must only be used for applications
approved by the manufacturer to avoid
any material damage or the occurrence
of strong chemical reactions.
IMPORTANT SAFETY INSTRUCTIONS
7

Chlorine damage to
components
How to handle chlorine bleach and
perchloroethylene (PCE)
~Heavy use of chlorine products
increases the risk of damage to the
appliance components.
Depending on the chlorine
concentration, the exposure time, and
the temperature, the use of liquid and
powdered chlorine-based bleaches
can erode the stainless steel protective
layer and lead to corrosion of the
appliance components. Therefore, it is
recommended that these products not
be used. Instead you can use
oxygen-based bleaches.
If you still need to use chlorine-based
bleaches for special cases, you will
always need to perform a neutralizing
step. Failure to do so can result in
permanent and irreversible damage to
the washing machine and the
laundered items.
Chlorine neutralization
Chlorine neutralization must be done im-
mediately following the use of a
chlorine-based bleach. For best results,
use hydrogen peroxide or an
oxygen-based laundry detergent or
bleach, without draining the drum.
If thiosulfate is used (especially with hard
water), lime deposits can form, leading to
residue on the laundered items or
deposits on the washing machine. The
preferable alternative solution is to use
hydrogen peroxide, because it promotes
the neutralization of chlorine.
The exact amounts to be used and the
temperatures selected should be
based on the neutralizer manufacturers'
recommendations, then checked for
efficacy. The laundry will need to be
tested to ensure that no active chlorine
remains behind after neutralization.
Accessories
~Only use genuine Miele
accessories. If unapproved parts are
used, guarantee, performance and
product liability claims may become
void.
Disposing of your old
appliance
~Ensure that the appliance presents
no danger to children while being
stored for disposal. Before discarding
an appliance, unplug it from the outlet,
cut off its power cord and remove any
doors to prevent hazards.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
IMPORTANT SAFETY INSTRUCTIONS
8

Control panel
aDisplay
See the following pages for more
information.
bDirect select buttons
To select a wash program directly.
You can also save a "Favorite" wash
program on these buttons.
cStart button
dPC / Optical interface
Allows a service technician to check
and update the wash programs
eJog shuttle
Turn to select menus
Press to confirm the selection
fOn-Off button s
* Contents in the display will vary with program offering
Before using for the first time
Before using the machine for the first time ensure that it is correctly installed
and connected. See "Installation". Also check that the drain filter is securely
tightened to prevent the risk of water leaks during use.
See the separate booklet supplied with the machine "Commissioning the
machine / Program chart / Settings".
Guide to the Washer
9

Display
Main menu
1 Cottons Uni. 60°C Program selection...
2 Minimum iron 40°C Settings F...
3 Delicates 40°C
4 Woollens H30°C 10:00
When the machine is switched on, the main menu (with four
favorite programs listed) appears and Program selection is
highlighted.
Jog shuttle
Turning the jog shuttle moves the highlighting to the next
option.
Pressing the jog shuttle selects the highlighted option.
Direct select buttons
Pressing a direct select button selects one of the four favorite
programs shown on the left of the display.
If you wish to change the programs shown in this list you can
do so (see "Saving a favorite program" for more information).
The direct select buttons have different functions in the other
menus. Where this is the case, an arrow Hwill appear in the
display above the direct select button, together with a
description of its function .
Program selection
There are two ways of selecting a program:
–Option 1: Select Program selection from the display and
press the jog shuttle.
–Option 2: Press direct select button D,E,For
G. This will automatically take you into the main menu for
that program.
Guide to the Washer
10

Program selection menu
Program
selection
Cottons Hygiene V
Cottons Uni.
Minimum iron
Delicates H
You can use the jog shuttle to select any program. The
highlighting will move up or down depending on the direction
the jog shuttle is turned in.
The HVarrows on the right of the display, indicate further
options.
Pressing the jog shuttle takes you to the main menu of the
program selected.
Wash program main menu
Cottons Uni. 60°C 1100 rpm
Duration: 0:53 h
Extras
H
Timer Y
H
Back A
H
Turn the jog shuttle to highlight program, temperature or spin
speed. Pressing the jog shuttle selects the highlighted option
and opens the relevant sub-menu.
The sub-menus Extras and Timer can be accessed by
pressing the direct select button directly below them.
To go back to the main menu press direct select button G
below the word Back.
Alternatively, you can also highlight and confirm all options by
just using the jog shuttle.
Settings menu J
The Settings menu is used for altering standard settings. See
the separate booklet supplied with the machine for further
information on how to alter settings.
Guide to the Washer
11

Operating the washer
The appearance of the main menu will vary depending on
the "Control" setting selected.
The machine is operated either with the direct select buttons
D,E,F,Gor the jog shuttle.
WS direct select buttons, basic
1 Cottons Uni. 60°C
2 Minimum iron 40°C
3 Delicates 40°C
4 Woollens H30°C
Four programs are available. To specify which programs are
available go to the "Settings - Supervisor level" menu.
WS direct select buttons + Logo
M
PROFESSIONAL
30°C
H
60°C
H
95°C
H
More
H
Twelve programs are available. To specify which programs
are available go to the "Settings - Supervisor level" menu.
Guide to the Washer
12

1. Sort the laundry
^Empty all pockets.
,Foreign objects left in pockets
(e.g. nails, coins, paper clips, etc.)
can cause damage to clothes and
the machine.
^Pre-treat stains.
Tough stains (blood, egg, coffee, tea
etc.) or badly soiled areas (collars and
cuffs) should be pre-treated with a stain
remover or a paste made of powder
detergent and warm water. Dab stains
with a damp light colored cloth. Do not
rub.
,Do not use chemical solvents in
the machine.
^Sort the laundry.
General tips
–Dark fabrics often bleed the first few
times they are washed. They should
be washed separately several times
before being included in a mixed
load.
–Remove any lead weights or strips
from curtains before washing.
–Loose under-wires should be
removed or sewn in place before
washing.
– Woolens and knitted garments
should be turned inside out.
– Close zippers and hooks and eyes
before washing.
– Comforter covers and pillowcases
should be fastened in order to
prevent small items from getting
trapped inside of them.
Do not machine wash items if it is not
recommended on the fabric care label
(hsymbol).
Tips
13

2. Load the drum
^Switch the machine on with the K
On/Off button.
^To open the drum door pull on the
handle.
Do not use force as it is fitted with a
safety device to prevent it being
opened by mistake. Forcing the door
handle can cause damage to the
locking mechanism (see "Frequently
asked questions - The door will not
open").
^Load the laundry loosely into the
drum.
For best results, wash mixed loads of
small and large items. This will improve
washing effectiveness and help
distribute the load evenly.
The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this causes creases and reduces
cleaning efficiency.
,Make sure that no items are
caught between the door and the
drum.
^Close the drum door. Press the door
firmly shut then lock the handle into
position.
Do not slam the door.
3. Select a program
^Select an appropriate program for
your wash load.
See the separate booklet supplied with
the machine "Commissioning the
machine / Program chart / Settings".
Tips
14

Washing
The number shown in the bucket is
the maximum temperature the
garment can be washed at. The
number of bars under the symbol
indicate the level of agitation
permitted.
9No bar under the symbol:
= normal agitation
4One bar under the symbol:
= reduced agitation
cTwo bars under the symbol:
= much reduced agitation
/Hand wash (if no temperature
is specified use the lowest
temperature or cold)
hDo not wash
Drying
The number of dots indicates the
drying temperature
qNormal temperature
rLow temperature
sDo not tumble dry
Ironing
The number of dots indicates the
ironing temperature
IHot iron (max sole plate temp.
approx. 392°F/200°C)
HMedium hot iron (max sole
plate temp. approx.
302°F/150°C)
GCool iron (max sole plate
temp. approx. 230°F/110°C).
Do not steam iron garments
carrying this symbol.
JDo not iron
Professional cleaning
fDry clean only. The letters
indicate the type of cleaning
agent required.
p
wProfessional Wet Clean only
DDo not dry clean
Bleaching
xAny oxidizing bleaching
agent can be used
{Only use an oxygen based
bleach or a non-chlorine
bleach
zDo not bleach
Wash care label symbols
15

,Be sure to read both the "Tips"
and "Wash care label symbols"
sections before starting a wash load.
aSort the laundry
bLoad the drum
^Turn on the machine.
^Open the drum door.
^Load the laundry loosely into the
drum.
,Make sure that no items are
caught between the door and the
drum.
^Close the drum door (1.). Press the
door firmly shut then lock the handle
into position(2.).
Do not slam the door.
Quick guide
16

cSelect a program
^Select the most appropriate program
for the load being washed.
See the separate booklet supplied with
the machine "Commissioning the
machine / Program chart / Settings" for
a list of available programs.
You can select a program either by:
–selecting a "Favorite" by pressing the
respective direct select button, or
– selecting from the "Program
selection" menu by turning the jog
shuttle.
^If desired, select "Extras" and/or a
"Timer" start time with the respective
submenus.
Coin mechanism
If a coin mechanism operates the
machine, please regard the displayed
request to pay.
If the door is opened after a
program has started or if the
program is canceled the credit is
lost.
Quick guide
17

dAdding detergent
Use detergent according to the laundry
soiling and water hardness.
Too little detergent may cause:
–Laundry not getting properly clean,
and with time may become grey and
hard to the touch.
–Greasy particles clinging to laundry.
–Limescale deposits on the heater
elements.
Too much detergent may cause:
– Over sudsing with minimal drum
movement; poor wash, rinse and
spin results.
– Higher environmental burden.
See "Detergent" for more information.
This machine is set up for
connection to an external
dispensing system for dispensing
liquid agents (see "Detergent -
External dispensing system").
^Pull out the detergent drawer and
add detergent to the compartments
as follows:
i= Detergent for the pre-wash
(1/4of the total recommended
amount of detergent)
j= Detergent for the main wash
§= Fabric softener or liquid starch
^Close the detergent drawer.
The detergent drawer must not be
opened during a program. It must
remain closed while the machine is
in use.
The §compartment is not used
during disinfection programs. Do not
put anything in the §compartment.
Quick guide
18

eStarting a program
"Start" flashes when a program can be
started.
^Press the "Start" button.
The "Start" button lights.
The display shows the approximate
program run time. It will count down in
minutes. In the first 10 minutes the
washer calculates the water
absorbency of the laundry. The overall
program time may be shortened or
lengthened.
Additionally the sequence cycle is
displayed. The washer shows the
current program step.
Press one of the following direct select
buttons during the running program:
– Button D"Extras"
can be used to select or de-select
extras.
– Button E"Timer"
the time of day and the approximate
program end is displayed.
–Button G"Cancel"
to cancel the currently running
program. The wash water will be
drained away.
fAt the end of a program
"Finish" will appear in the display.
^Open the drum door.
^Remove the laundry.
Check the drum for any missed
pieces of laundry. Items
inadvertently left in the washer may
get damaged (e.g. shrink or
discolor) during the next wash cycle.
^Close the drum door. Otherwise
foreign objects may find their way
into the drum. These could be
inadvertently washed and cause
damage to laundry.
^Turn the machine off using the
"On/Off" button.
Quick guide
19

Selecting/changing a program
Main menu
1 Cottons Uni. 60°C Program selection...
2 Minimum iron 40°C Settings F...
3 Delicates 40°C
4 Woollens H30°C 03:00
^Press direct select button D.
Main menu
Cottons Uni. 60°C 1100 rpm
Duration: 0:53 h
Extras
H
Timer Y
H
Back A
H
^Using the jog shuttle you can then highlight the following
options in the display: Program, Temperature or Spin
speed and confirm your selection by pressing the jog
shuttle.
Depending on the option highlighted, the following will be displayed:
– Program selection
Program
selection
Back A
Cottons Hygiene
Cottons Uni.
Minimum iron H
^Use the jog shuttle to select the desired program and
confirm. The main menu will reappear.
Select a program
20
