How to Use This Manual
Form No. 8Q47-EA-01F
We want to help you get the most driving
pleasure from your vehicle. Your owner's
manual, when read from cover to cover,
can do that in many ways.
Illustrations complement the words of the
manual to best explain how to enjoy your
Mazda. By reading your manual, you can
find out about the features, important
safety information, and driving under
various road conditions.
The above symbol in this manual means
"Do not do this " or "Do not let this
happen".
Index: A good place to start is the Index,
an alphabetical listing of all information
in your manual.
You'll find several WARNINGs,
CAUTIONs, and NOTEs in the manual.
The above symbol, located on some parts
of the vehicle, indicates that this manual
contains information related to the part.
Please refer to the manual for a detailed
explanation.
A WARNING indicates a situation in
which serious injury or death could
result if the warning is ignored.
A CAUTION indicates a situation in
which bodily injury or damage to your
vehicle, or both, could result if the
caution is ignored.
NOTE
A NOTE provides information and
sometimes suggests how to make
better use of your vehicle.
WARNING
CAUTION
J76Y.book Page 2 Wednesday, March 27, 2002 5:04 PM

Table of Contents
1
2
3
4
5
6
7
8
9
10
11
Form No. 8Q47-EA-01F
Your Mazda at a Glance
Interior, exterior views and part identification of your Mazda.
Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, SRS air bags and
child-restraint systems.
Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Before Driving Your Mazda
Important information about driving your Mazda.
Driving Your Mazda
Explanation of instruments and controls.
Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
In Case of an Emergency
Helpful information on what to do in an emergency.
Maintenance and Care
How to keep your Mazda in top condition.
Customer Information
Important consumer information including warranties and add-on equipment.
Specifications
Technical information about your Mazda.
Index
J76Y.book Page 3 Wednesday, March 27, 2002 5:04 PM

J76Y.book Page 4 Wednesday, March 27, 2002 5:04 PM

1-1
Form No. 8Q47-EA-01F
1Your Vehicle at a Glance
Interior, exterior views and part identification of your Mazda.
Dashboard Overview .................................................................. 1- 2
Interior Overview ........................................................................ 1- 3
Exterior Overview ....................................................................... 1- 4
J76Y.book Page 1 Wednesday, March 27, 2002 5:04 PM

1-2
Your Vehicle at a Glance
Form No. 8Q47-EA-01F
Dashboard Overview
Ashtray
Auto tilt switch
Climate control system
Lighter
Glove box
Audio system
Passenger-side air bag
Hazard warning flasher switch
Fog lights switch
Power window lock switch
Lighting control/Turn signals
Instrument cluster
Wiper and washer lever
Driver-side air bag
Cruise control switches Ignition switch
Center console
Hood release handle Cup holder
Shift lever
Parking brake handle
Cruise main switch
Rear window defroster switch
TCS-OFF switch
Coin box
Power window
switches
Outside mirror switch
Audio control switch
(page 2-23) (page 5-33)
(page 5-18)
(page 5-32)
(page 5-12)
(page 3-23)
(page 3-17)
(page 6-38)
(page 5-31)
(page 3-22)
(page 5-12)
(page 5-36)
(page 5-37)
(page 6-2)
(page 6-10)
(page 5-8)
(page 2-23)
(page 6-36)
(page 5-16)
(page 6-37)
(page 3-13)
(page 3-15)
(page 6-39)
(page 6-39)
(page 6-38)
(page 5-4)
(page 5-2)
(page 6-32)
J76Y.book Page 2 Wednesday, March 27, 2002 5:04 PM

1-3
Your Vehicle at a Glance
Form No. 8Q47-EA-01F

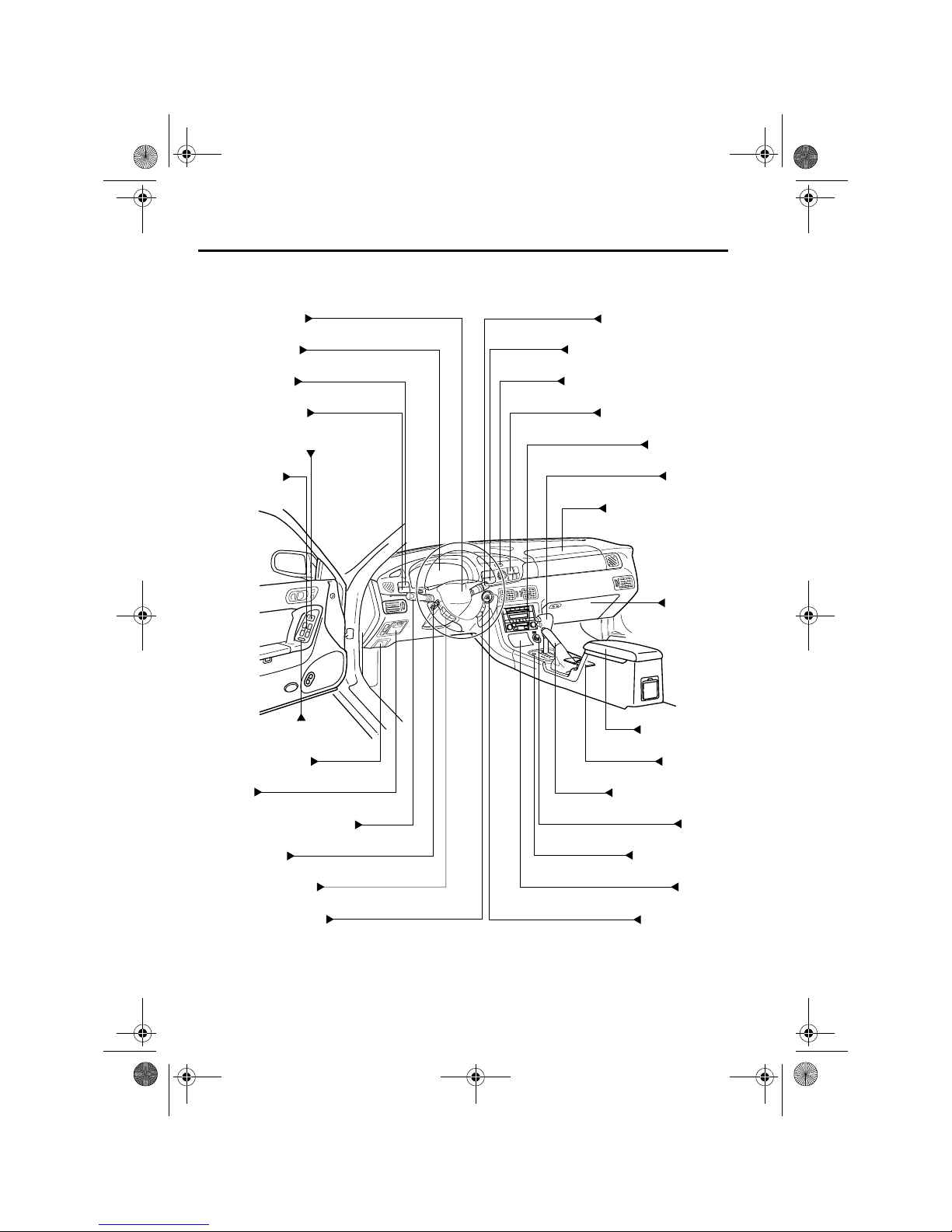

Interior Overview
Vanity mirror
Rearview mirror
Seat belts
Interior light
Sunvisors
Front seats
Side air bags
Rear seat
Map light
(page 6-34)
(page 2-7)
(page 6-35)
(page 2-5) (page 2-23)
(page 2-2)
(page 6-34)
(page 3-24)
(page 6-34)
J76Y.book Page 3 Wednesday, March 27, 2002 5:04 PM

1-4
Your Vehicle at a Glance
Form No. 8Q47-EA-01F

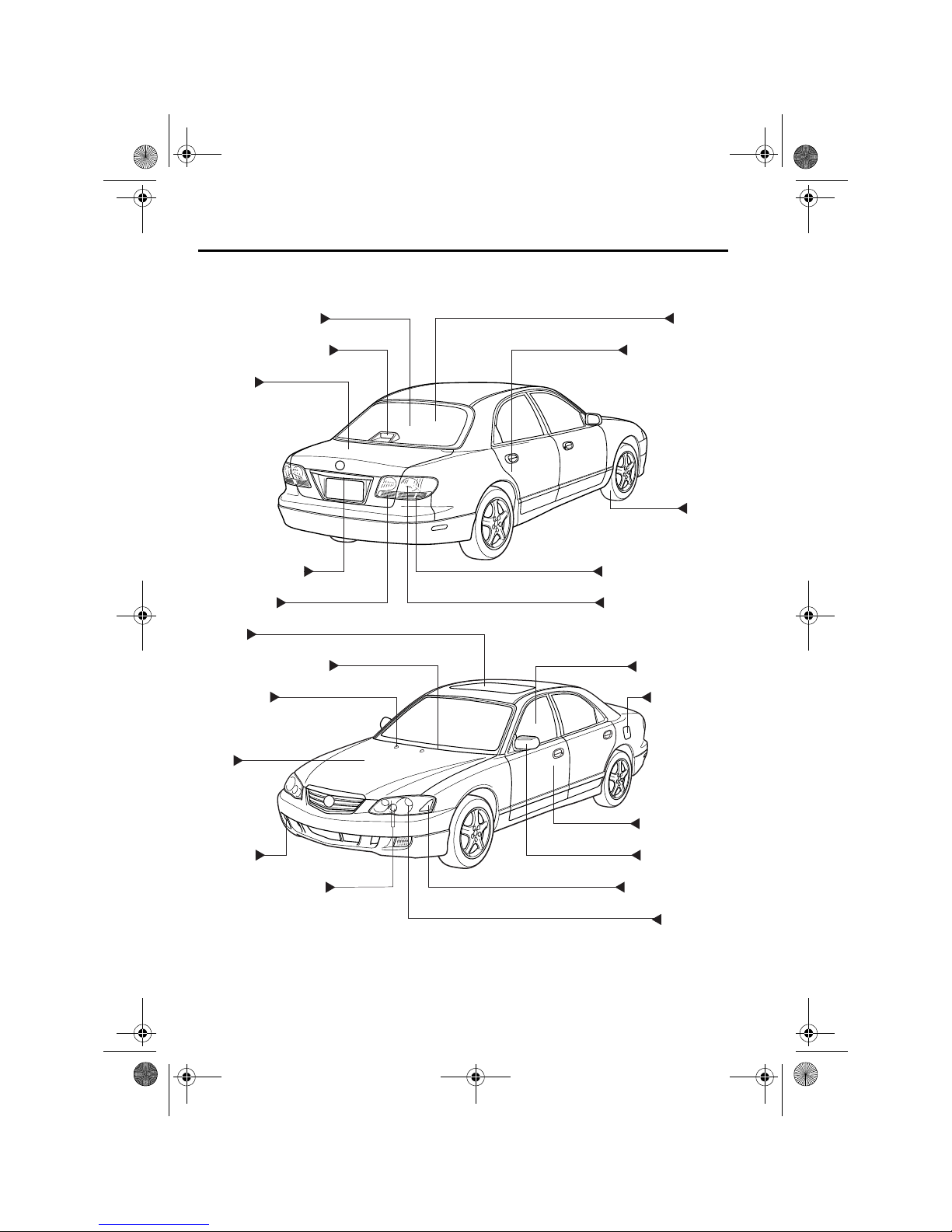

Exterior Overview
Doors and keys
Outside mirrors
Side-marker lights
Headlights
Fuel-filler lid
Child safety lock
Tires
Reverse lights
Windshield wiper blades
Washer fluid
Hood
Front turn signal lights/
Parking lights
Fog lights
Rear turn signal lights
Brake lights/Taillights
Power windows
Rear window defroster
Trunk lid
High-mount brake lights
License plate lights
Antenna
Sunroof
(page 5-36) (page 6-10)
(page 8-33)
(page 3-10)
(page 8-33)
(page 3-18)
(page 8-21)
(page 8-19)
(page 3-17)
(page 8-31)
(page 8-31)
(page 3-9)
(page 8-24)
(page 8-33)
(page 8-33)
(page 3-13)
(page 3-2)
(page 3-23)
(page 8-31)
(page 8-29)
(page 3-15)
(page 8-33)
(page 8-19)
(page 8-31)
J76Y.book Page 4 Wednesday, March 27, 2002 5:04 PM

2-1
Form No. 8Q47-EA-01F
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, SRS air bags and
child-restraint systems.
Seats .............................................................................................. 2- 2
Front Seats ............................................................................... 2- 2
Rear Seat .................................................................................. 2- 5
Seat Belt Systems ......................................................................... 2- 7
Seat Belt Precautions ............................................................... 2- 7
3-Point Type Seat Belt ............................................................. 2-10
2-Point Type Seat Belt ............................................................. 2-12
Seat Belt Extender ................................................................... 2-13
Seat Belt Warning Light .......................................................... 2-14
Seat Belt Warning Beep ........................................................... 2-15
Child Restraint ............................................................................ 2-16
Child Restraint Precautions ..................................................... 2-16
Installing Child-Restraint Systems .......................................... 2-18
SRS Air Bags ............................................................................... 2-23
Supplemental Restraint Systems (SRS) Precautions ............... 2-23
Air Bag System Description .................................................... 2-27
J76Y.book Page 1 Wednesday, March 27, 2002 5:04 PM

2-2
Essential Safety Equipment
Form No. 8Q47-EA-01F
Seats
The seat-bottom tilt, seat height, seat
slide, and seat recline can be electrically
adjusted. Move them to the desired
positions by using the switch on the seat’s
lower side.

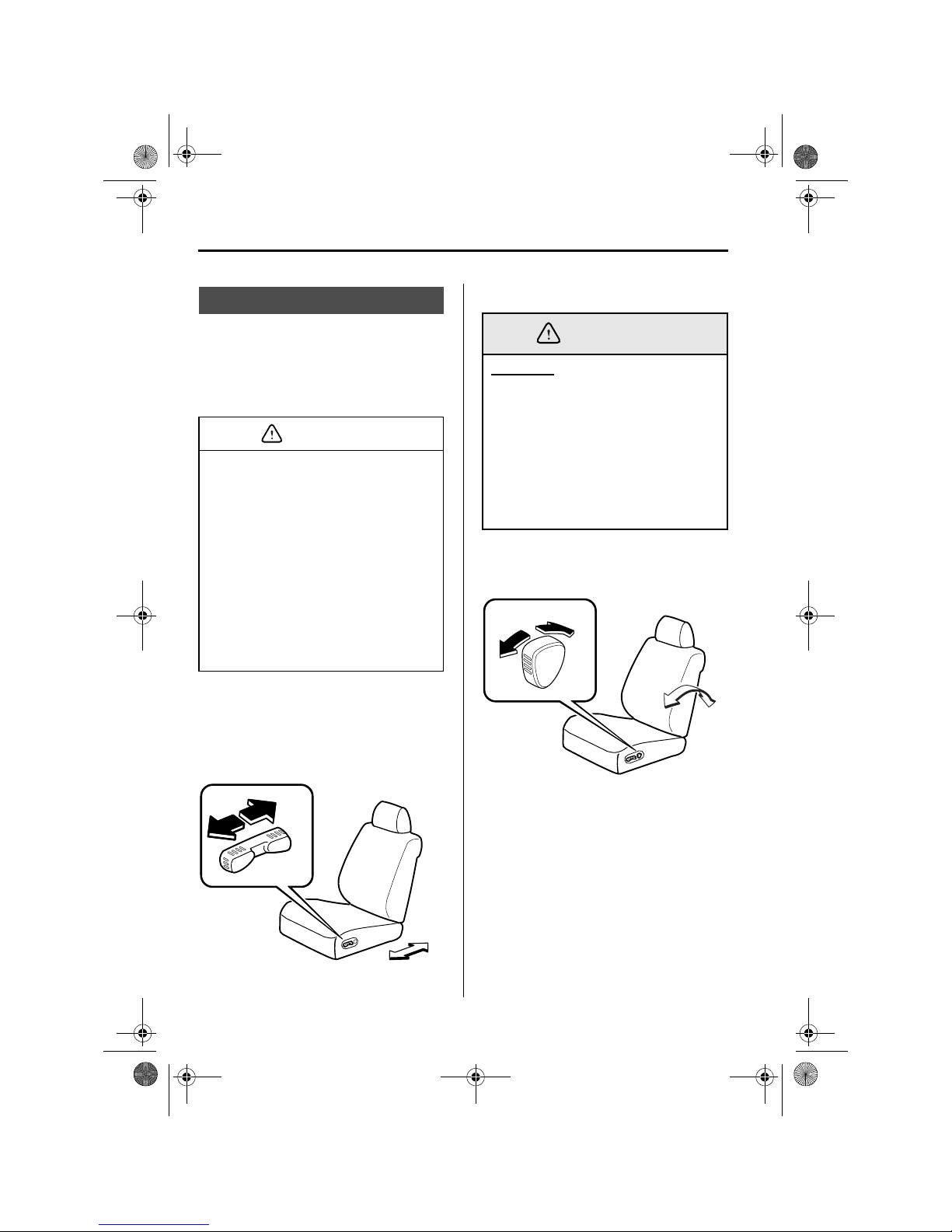

▼Seat Slide
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
▼Seat Recline
Change the seatback angle by turning the
reclining switch. When the seatback is at
the desired angle, release the switch.
Front Seats
•The seat-bottom power adjust is
operated by a motor. Avoid
extended operation because
excessive use can damage the
motor.
•To prevent the battery from running
down, avoid using the power adjust
when the engine is stopped. The
adjuster uses a great amount of
electric power.
•Don’t use the switch to make more
than one adjustment at a time.
CAUTION
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
WARNING
J76Y.book Page 2 Wednesday, March 27, 2002 5:04 PM

2-3
Essential Safety Equipment
Seats
Form No. 8Q47-EA-01F

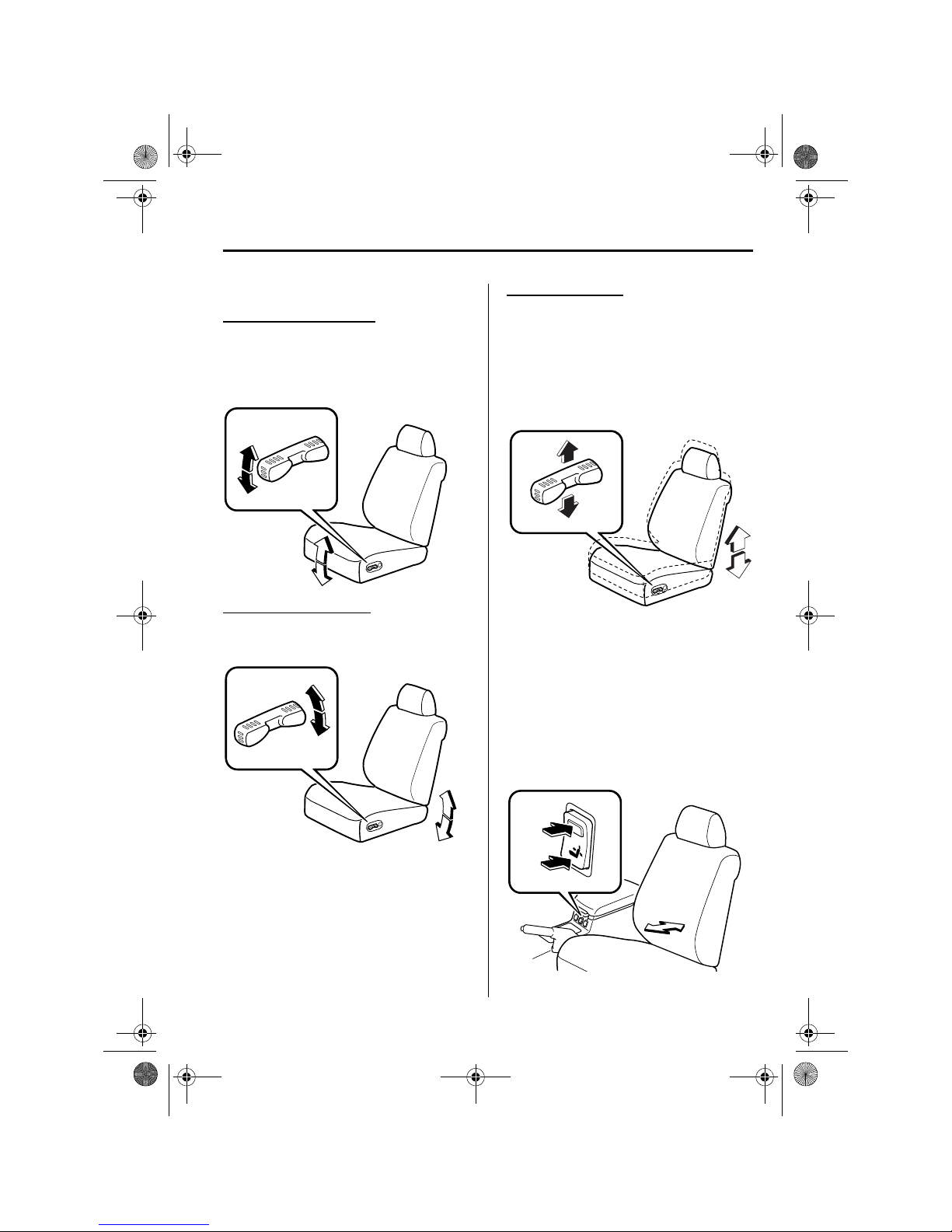

▼Seat Tilt
Front height adjustment
To adjust the front height of the seat-
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
Rear height adjustment
Raise or lower the back of the switch to
adjust the rear height of the seat-bottom.
Height adjustment
Raise the seat-bottom by pulling up on the
center of the switch. Release the switch
when the seat is where you want it.
Lower the seat-bottom by pressing down
on the center and releasing it when the
seat is where you want it.
▼Lumber Support Adjustment
(Driver’s Seat)
The lumber support switch is located at
the front of the center console. To increase
seat firmness, press and hold the upper
part of the switch to the desired position,
then release the switch.
Press the lower part of the switch to
increase softness.
J76Y.book Page 3 Wednesday, March 27, 2002 5:04 PM

2-4
Essential Safety Equipment
Seats
Form No. 8Q47-EA-01F

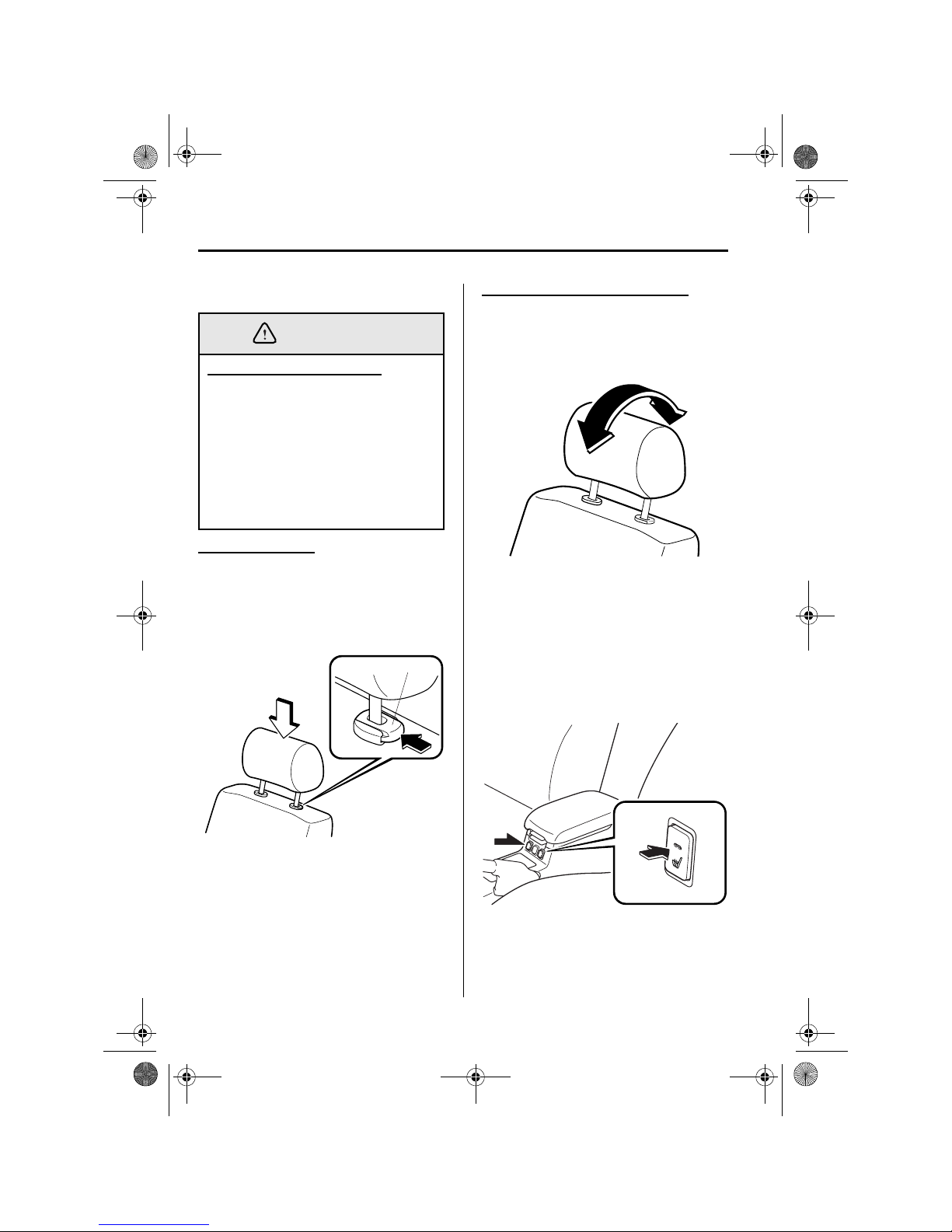

▼Head Restraint
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top
parallels the top of the passenger’s ears,
never the passenger’s neck.
Angle adjustment (Driver’s seat)
To adjust the head restraint angle apply
pressure to the top of the head restraint
and change the angle to the desired
position.
▼Seat Warmer
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Always drive with the head restraints
inserted when seats are being used
and make sure they are properly
adjusted.
WARNING
Stop-catch release
J76Y.book Page 4 Wednesday, March 27, 2002 5:04 PM

2-5
Essential Safety Equipment
Seats
Form No. 8Q47-EA-01F
▼Head Restraint
NOTE
The thermostat regulates seat
temperature by turning the current on
and off.
Rear Seat
Stacking Cargo:
Stacking luggage or other cargo
higher than the seatbacks, and
putting things on the rear package
tray is dangerous. During sudden
braking or a collision, objects can
become projectiles that may hit and
injure passengers. Don’t stack things
higher than the seatbacks or put
things on the rear package tray.
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Always drive with the head restraints
inserted when seats are being used
and make sure they are properly
adjusted.
WARNING
WARNING
J76Y.book Page 5 Wednesday, March 27, 2002 5:04 PM

2-6
Essential Safety Equipment
Seats
Form No. 8Q47-EA-01F
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top
parallels the top of the passenger’s ears,
never the passenger’s neck.
▼Armrest
The armrest can be used or placed
upright.
Stop-catch release
Armrest
J76Y.book Page 6 Wednesday, March 27, 2002 5:04 PM

2-7
Essential Safety Equipment
Form No. 8Q47-EA-01F
Seat Belt Systems
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the outboard seat belt retractors are designed to keep the lap/shoulder belts out of the
way when not in use.
The driver’s seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and rear outboard lap/shoulder belt retractors operate in
two modes: emergency locking mode, and for child-restraint systems, automatic locking
mode.
The rear center seat positions have a lap belt with manual adjustment.
Seat Belt Precautions
Not Wearing Seat Belts:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer. Always wear your seat
belt and make sure all occupants are properly restrained.
Seat Belt Damaged During an Accident:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during
an accident before they are used again.
WARNING
J76Y.book Page 7 Wednesday, March 27, 2002 5:04 PM

2-8
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q47-EA-01F
▼Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should wear seat belts. Ask your doctor for specific recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
Twisted Seat Belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt isn’t
available to absorb the impact. This puts more force on the bones beneath the belt,
which could break them or cause other serious injury or death. Don’t wear twisted
seat belts.
One Belt, One Passenger:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way can’t spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time.
Belt retraction may become difficult if the belts and rings are soiled, so try to keep them
clean.
WARNING
CAUTION
Ring
J76Y.book Page 8 Wednesday, March 27, 2002 5:04 PM

2-9
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q47-EA-01F
▼Emergency Locking Mode
If the belt has fully retracted, it will always be in the emergency locking mode until you
move it into automatic locking mode by pulling the belt all the way out to its full length. In
the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt feels tight and hinders comfortable movement while the vehicle is stopped or in
motion, you may be in the automatic locking mode because you have pulled the belt too far
out. To return to the more comfortable emergency locking mode, wait until you can stop
the vehicle in a safe area, retract the belt fully to convert it back to emergency locking
mode and then again extend it around you.
▼Automatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To get the seat belt into the automatic
locking mode, pull it all the way out and connect it as instructed on the child-restraint
system. It will retract down to the child-restraint system and stay locked on it. See the
section on child restraint (page 2-16).
J76Y.book Page 9 Wednesday, March 27, 2002 5:04 PM

2-10
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q47-EA-01F
▼Fastening the Seat Belts
1. Grasp the buckle and tongue.
2. Slowly pull out the lap/shoulder belt.
3. Insert the tongue into the buckle until
you hear a click.
4. Make sure the shoulder belt is snugly
fitted against your body.
3-Point Type Seat Belt
Belt
Tongue
Tongue
Buckle
Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
An improperly positioned belt will
provide little or no protection in a
collision. Always make sure the
shoulder portion of the seat belt is
positioned across your shoulder and
near your neck, but never under your
arm, on your neck, or on your upper
arm.
Positioning the Lap Portion of the
Seat Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
WARNING
Keep low on
hip bone
Take up slack
Too high
WARNING
J76Y.book Page 10 Wednesday, March 27, 2002 5:04 PM

2-11
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q47-EA-01F
▼Unfastening the Seat Belts
Depress the button on the buckle.
▼Shoulder Belt Adjuster
Adjust the height of the shoulder belt if
the seat belt touches your neck, or if it
crosses your arm instead of your shoulder.
Simply push the button, move it to the
desired position, and then release it. Make
sure the adjuster is locked.
NOTE
If a belt does not fully retract, inspect it
for kinks and twists.
Button
Shoulder belt
adjuster
Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
An improperly positioned belt will
provide little or no protection in a
collision. Always make sure the
shoulder portion of the seat belt is
positioned across your shoulder and
near your neck, but never under your
arm, on your neck, or on your upper
arm.
WARNING
J76Y.book Page 11 Wednesday, March 27, 2002 5:04 PM

2-12
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q47-EA-01F

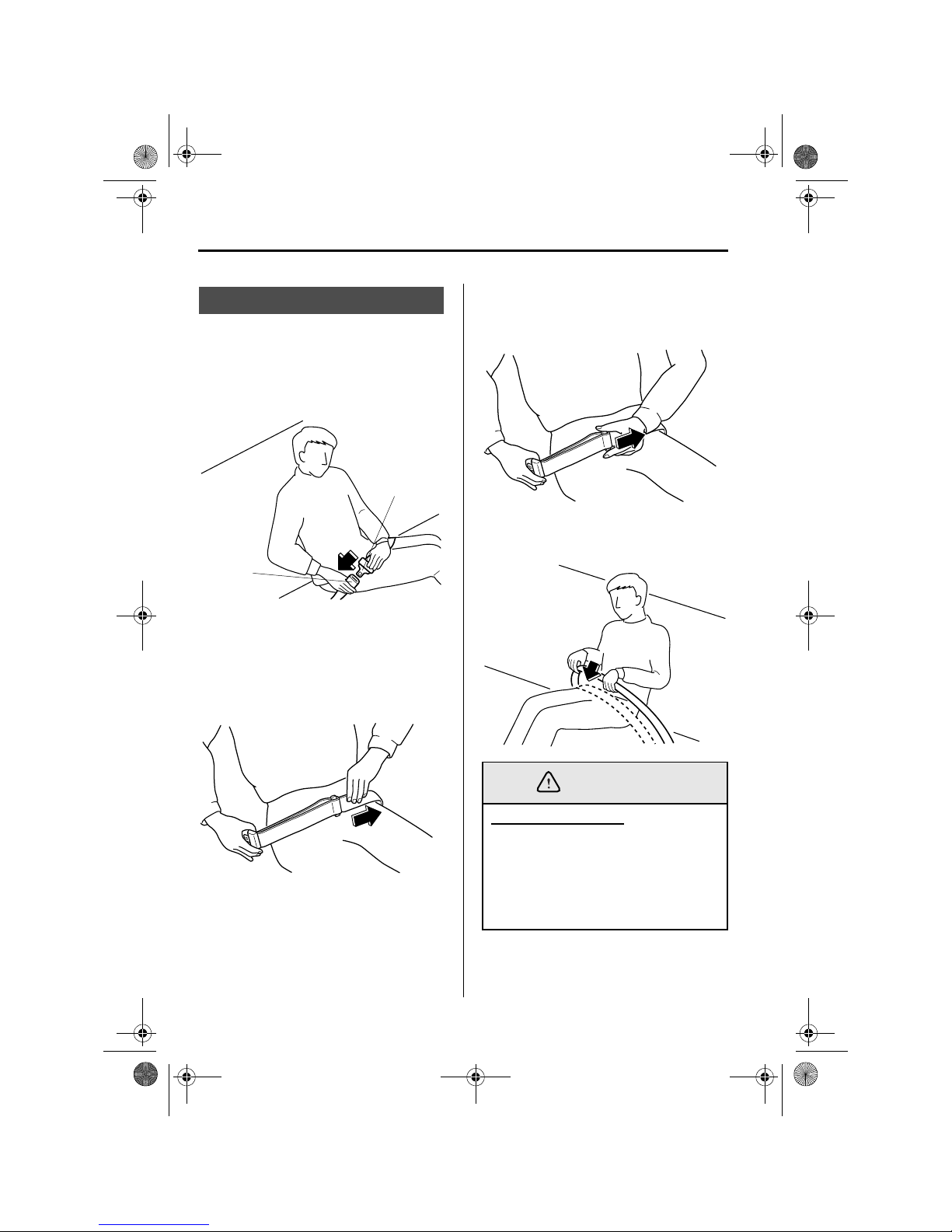

▼Fastening the Seat Belt
1. Pull the tongue to the desired length.
2. Insert it into the buckle until you hear a
click.
3. Adjust the belt length.
•To lengthen the belt, hold the tongue
at a right angle to the webbing and
pull.
•To shorten, pull the loose end of the
webbing.
4. Make sure the lap belt is snugly fitted
against your body.
2-Point Type Seat Belt
Tongue
Buckle
Lengthen
Wearing the Lap Belt:
A lap belt worn too high is dangerous.
In a collision, this would concentrate
the impact force directly on the
abdominal area, causing serious
injury. Wear the lap belt snugly and
as low as possible.
Shorten
WARNING
J76Y.book Page 12 Wednesday, March 27, 2002 5:04 PM
