Mazda 2009 B2300 Truck Guide
2009 m{ZD{ B-Series Truck
SMART START GUIDE
Optional equipment shown.
162133_09a_Mazda_b-series_073008c.indd 1 7/30/08 11:04:41 PM
162133_09a_Mazda_b-series_073008c.indd 2 7/30/08 11:04:41 PM
Key
1
REMOTE ENTRY SYSTEM
Unlocking the Doors
1Press the button and release to
unlock the driver’s door; the interior
lamps will illuminate.
2Press the button again and
release within three seconds to
unlock all of the doors.
Locking the Doors
1Press the button and release to
lock all the doors; the park lamps
will flash once to confirm lock.
2Press the button again and release
within three seconds; the lamps will flash
again and the horn will chirp to confirm
all doors are locked and closed.
Note: If either door is not properly closed, the
lamps will not flash.
Sounding the Panic Alarm
1Press the button to activate the
alarm; the horn will sound and the
parklamps will flash for approximately
three minutes. Press the button
again or turn the ignition to the ON
position to deactivate.
Auxiliary Key
Power Door Lock
Lock
Panic Alarm
Unlock
162133_09a_Mazda_b-series_073008c.indd 3 7/30/08 11:04:43 PM
2
Seats

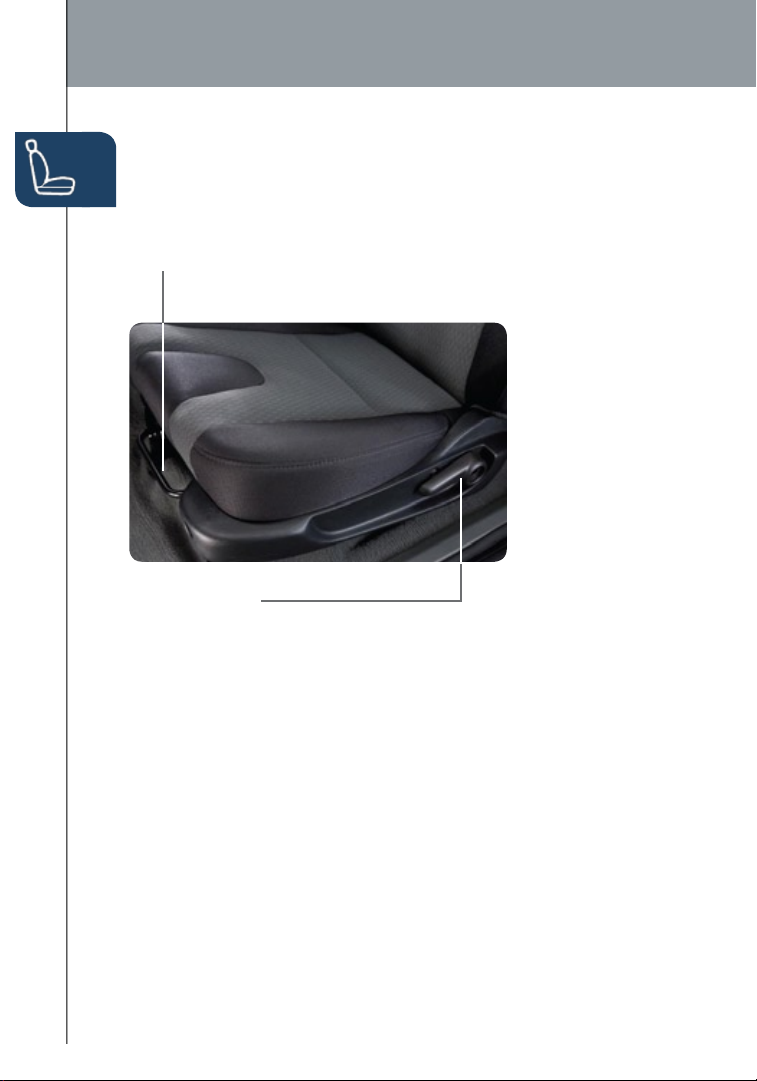

MANUALLY OPERATED DRIVER SEAT
Front Seat Lever
Lift the release bar to slide the seat
forward or backward. Ensure the
seat is locked in place.
Side Seat Lever
Pull the lever located at the side
of the seat cushion to adjust
the tilt of the seatback forward
or backward.
162133_09a_Mazda_b-series_073008c.indd 4 7/30/08 11:04:44 PM
3

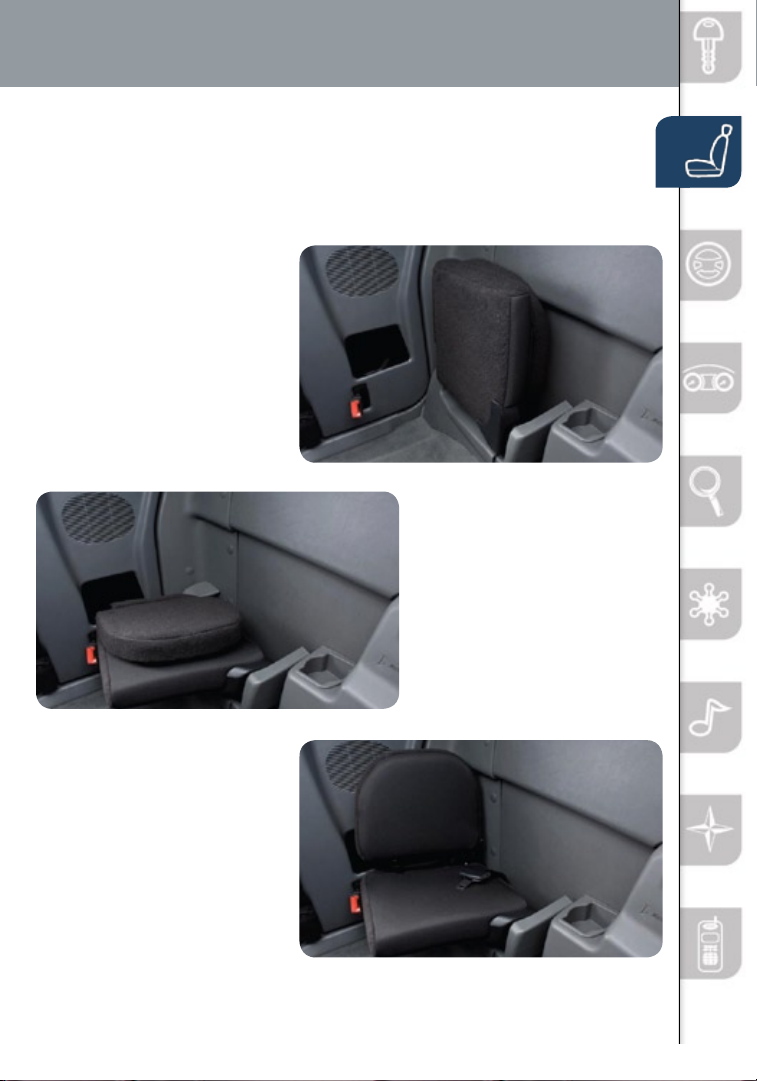

CENTER FACING JUMP SEAT
to the fully upright position.
162133_09a_Mazda_b-series_073008c.indd 5 7/30/08 11:04:45 PM

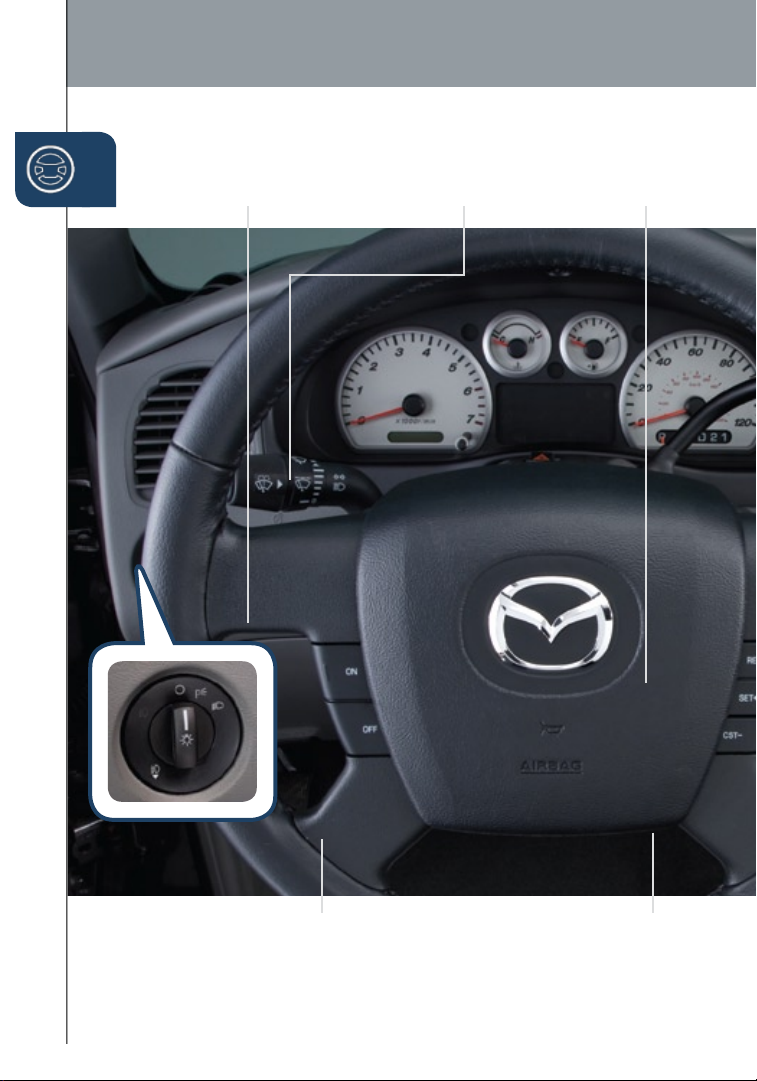

Driver’s View
4
HEADLAMP CONTROL
DRIVER AIR BAG
TURN SIGNAL/WIPER/
WASHER CONTROL
PARKING BRAKE
RELEASE
(behind steering wheel)
INSTRUMENT
PANEL DIMMER
(behind steering wheel)
HOOD RELEASE
162133_09a_Mazda_b-series_073008c.indd 6 7/30/08 11:04:50 PM
Driver’s View
5
AUXILIARY
POWER POINT
CLIMATE
CONTROL
AUDIO SYSTEM
4X4 CONTROL
PASSENGER AIR BAG
INDICATOR
HOOD RELEASE
162133_09a_Mazda_b-series_073008c.indd 7 7/30/08 11:04:55 PM
Instrument Cluster
6
See Owner’s Manual for
more details and explanations.
High Beams On
Engine Coolant
Temperature
Charging System
Cruise Control
Check Fuel Cap
Low Fuel
Tire Pressure Monitoring
System (TPMS)
Fog Lamps On
Check Engine
Anti-lock Brake
System (ABS)
Brake System
TACHOMETER
GLOSSARY OF WARNING AND INDICATOR LIGHTS
Please see Owner’s Manual for more details and explanations
ENGINE COOLANT
TEMPERATURE GAUGE
ODOMETER/
TRIP METER
TRIP ODOMETER
RESET BUTTON
P!
BRAKE
162133_09a_Mazda_b-series_073008c.indd 8 7/30/08 11:05:01 PM

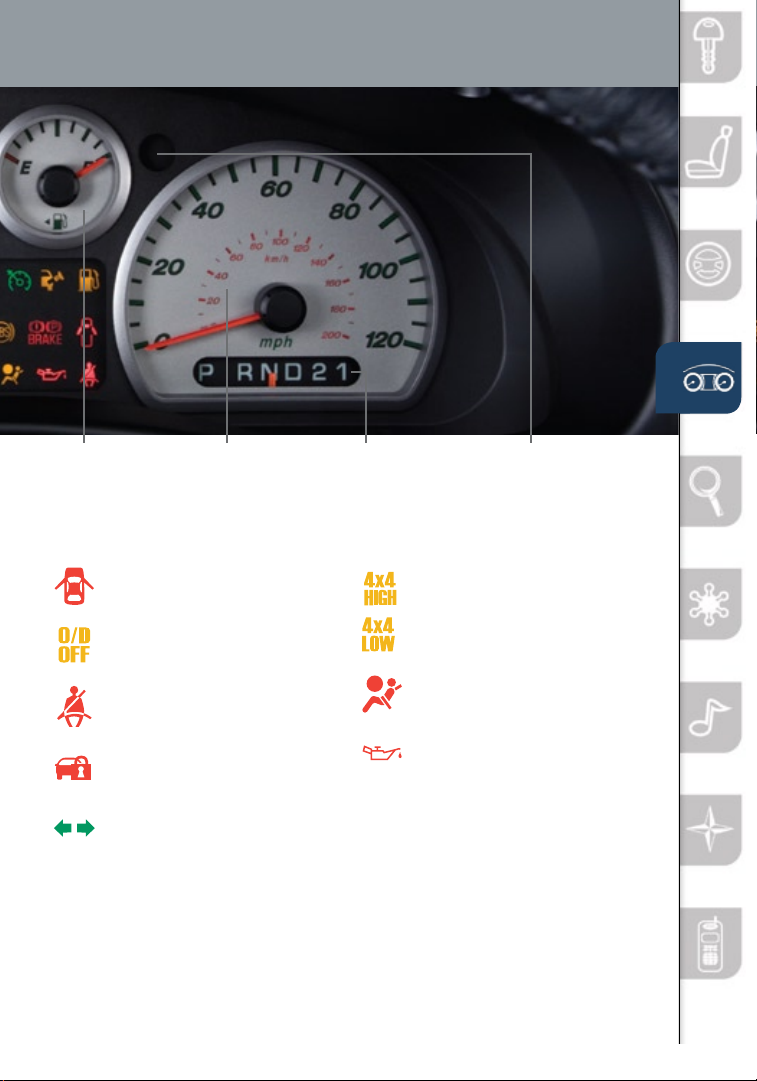

7
See Owner’s Manual for
more details and explanations.
FUEL GAUGE
Door Ajar
Overdrive Off
Seat Belt
Anti-Theft On
Turn Signal/
Hazard Warning
4X4 HIGH
4X4 LOW
Air Bag Readiness
Engine Oil Pressure
SPEEDOMETER TURN SIGNAL/
HAZARD WARNING ON
GEARSHIFT
INDICATOR (AT )*
162133_09a_Mazda_b-series_073008c.indd 9 7/30/08 11:05:06 PM
Feature Highlights
8
WINDSHIELD WIPER/WASHER
Windshield Wiper/Washer
speed of the wipers; rotate toward you to decrease the speed
of the wipers.
will make several passes across the windshield.
High Beam Operation
162133_09a_Mazda_b-series_073008c.indd 10 7/30/08 11:05:08 PM

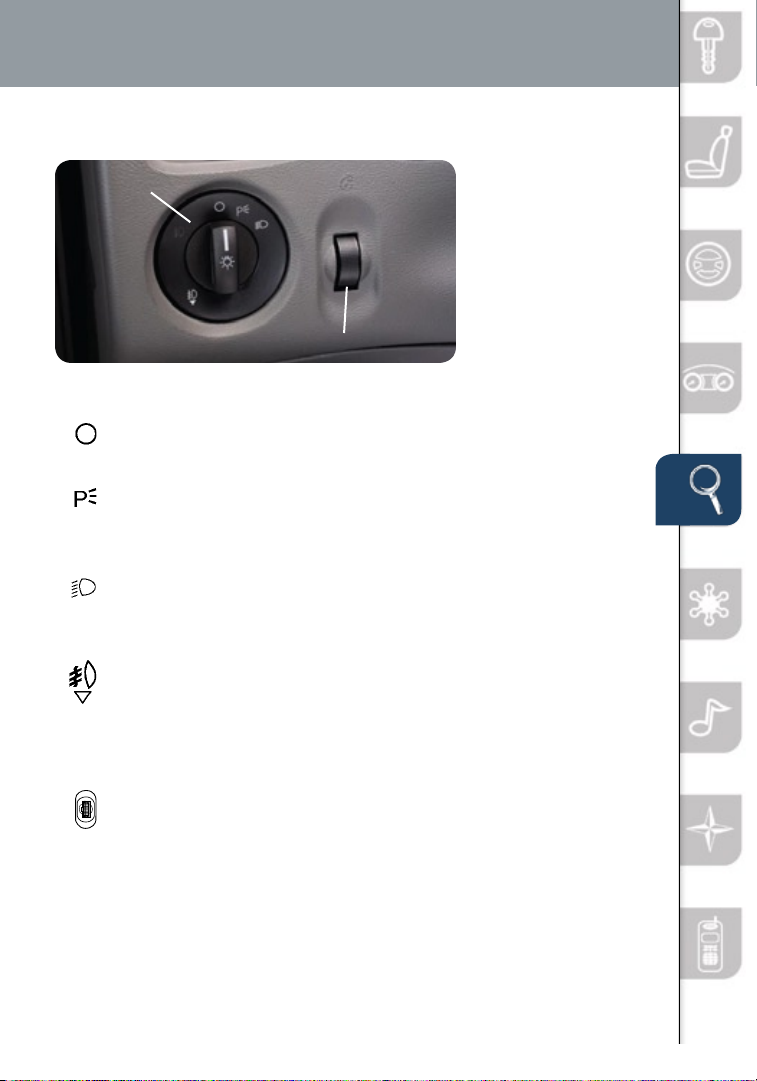

LIGHTING CONTROLS
9
Headlamp Control
turn all lights off.
to the first position to turn on tail,
parking and dashboard lights.
turn on tail, parking, dashboard
and headlights.
Pull the lighting control knob to turn
on foglamps; the indicator light will
illuminate in the instrument cluster.
Panel Dimmer Control
Move the control up or down to adjust
the intensity of the panel lighting.
Headlamp Control
Panel Dimmer Control
162133_09a_Mazda_b-series_073008c.indd 11 7/30/08 11:05:09 PM
AUTOMATIC TRANSMISSION
D (Overdrive)
D (Overdrive Off)
Press the Overdrive Off switch to disengage or re-engage overdrive.
Driving without overdrive provides a lower gear for city traffic where
continuous shifting in and out of overdrive occurs, hilly terrain,
heavy loads, trailer towing and when engine braking is required.
Feature Highlights
10
Overdrive Off
162133_09a_Mazda_b-series_073008c.indd 12 7/30/08 11:05:13 PM
11

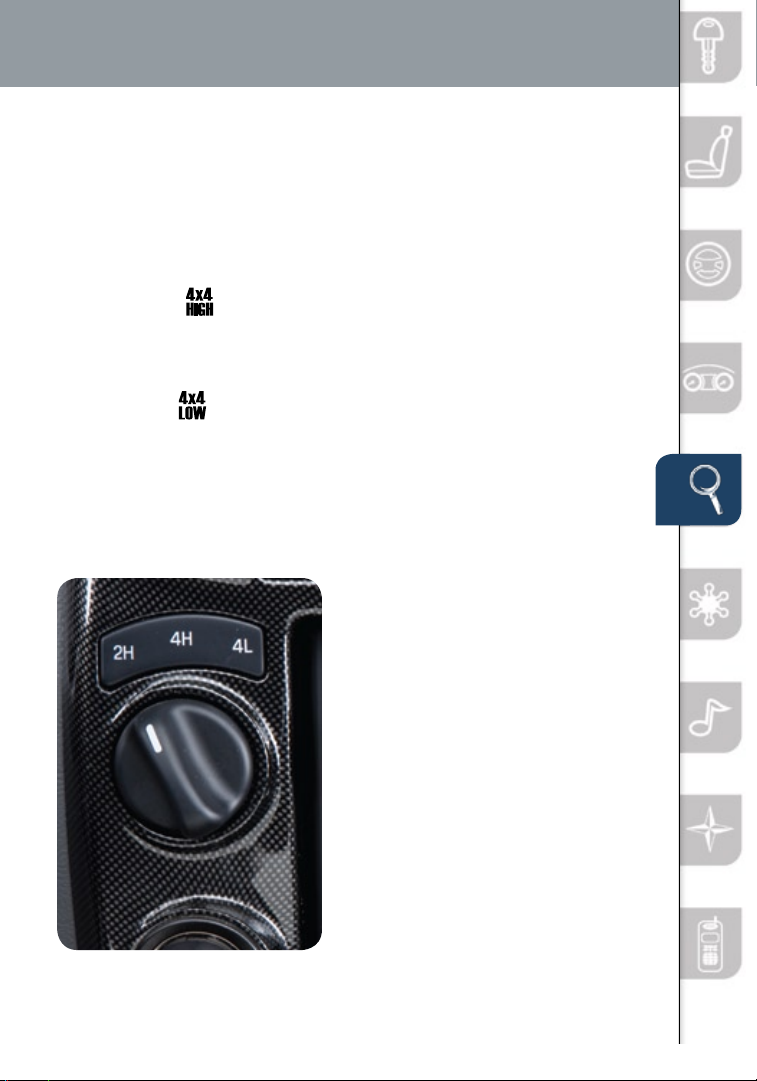

Using the Electronic Shift 4WD System
2H (2WD High)
Use this position for street and highway driving.
4H (4WD High)
Use this position for extra traction, such as on snow or icy roads or
off-road situations. Not intended for use on dry pavement.
4L (4WD Low)
Use this position for extra gearing to provide maximum power to all four
wheels. Intended only for off-road applications, such as deep sand, steep
grades or pulling heavy objects. 4L (4WD Low) will not engage while the
vehicle is moving; this is normal and should be no reason for concern.
FOUR-WHEEL DRIVE (4WD)
162133_09a_Mazda_b-series_073008c.indd 13 7/30/08 11:05:19 PM
the vehicle’s audio system.
1
2
3
the display. You should hear audio from your portable music player
although it may be low.
MP3 PLAYER INTEGRATION USING THE AUX JACK
Feature Highlights
12
Note: Set the volume level on your player to the highest level before distortion starts.
AUX JACK
162133_09a_Mazda_b-series_073008c.indd 14 7/30/08 11:05:19 PM
13
Manual Climate Control
Back-up Camera
Fan control dial
to set desired fan
speed (1-4).
Temperature
control dial
select a warmer
or cooler air
temperature.
Mode selector dial
select airflow mode.
Economically and
efficiently cools the
vehicle while
recirculating cabin
air to reduce
exhaust odors.
Uses outside air to
cool the vehicle.
instrument panel
vents only.
Dashboard vents
Dashboard and
floor vents
Defroster and
floor vents
Windshield
Defroster
A/C
MAX
A/C
162133_09a_Mazda_b-series_073008c.indd 15 7/30/08 11:05:26 PM
Audio Controls
14
Audio system on
button to turn the radio on.
or decrease volume.
Media selection
Press the appropriate button:
CD
Tuning
tuning controls:
Manual tuning
buttons will change the
frequency higher or lower.
Seek tuning
tuning buttons will seek
a higher or lower frequency
automatically.
Scan tuning
to automatically sample
strong stations.
this interval.
MENU
MENU
MENU
162133_09a_Mazda_b-series_073008c.indd 16 7/30/08 11:05:31 PM
15
Preset channel tuning
until a beep is heard.
other stations and bands you
want to store.
Menu
Autoset tuning
press again to return to normal
Manual for further information.
Mute
again for normal volume.
MENU
1.
2 .
displayed.
time when the ignition is off.
SETTING YOUR CLOCK
MENU
MENU
162133_09a_Mazda_b-series_073008c.indd 17 7/30/08 11:05:36 PM
16
Notes
162133_09a_Mazda_b-series_073008c.indd 18 7/30/08 11:05:37 PM
MyMazda.com—The Ofcial
Site for Mazda Owners
Register today on MyMazda.com—the ultimate
destination for Mazda Owners. Once registered,
you’ll be able to take advantage of benefits
exclusively for Mazda owners:
•Insideraccesstoexclusiveevents
and promotions
•Personalizedmaintenanceschedules
•Zoom-ZoomOwnerMagazine
•Warrantyinformationandon-line
Owners’ Manuals
•Wallpaper,videosandotherfunstuff
•Accessoriesspecicallydesignedfor
your vehicle
•CarCareDiscountCouponsavailable
fromyourMazdaDealer
Visit and register at MyMazda.com today!
162133_09a_Mazda_b-series_073008c.indd 19 7/30/08 11:05:38 PM
Remote Entry ................................. 1
Seats .............................................2-3
Driver’s View ................................... 4-5
Instrument Cluster ...........................6-7
and location
Wiper / Washer..................................8
Lights................................................... 9
VEHICLE PRESENTATION:
Refer to the Smart Start Guide during presentation
Transmission ................................. 10
AUX Input....................................... 12
Climate Control ............................. 13
Audio Controls ..........................14-15
Set Clock ...................................... 15
SALES
CONSULTANT
CUSTOMER
Initials
All items in the Customer Delivery
Checklist have been reviewed
with the customer and the first
maintenance appointment
has been scheduled:
*if equipped
Signed copy must be placed in dealer jacket
Customer Delivery Checklist
