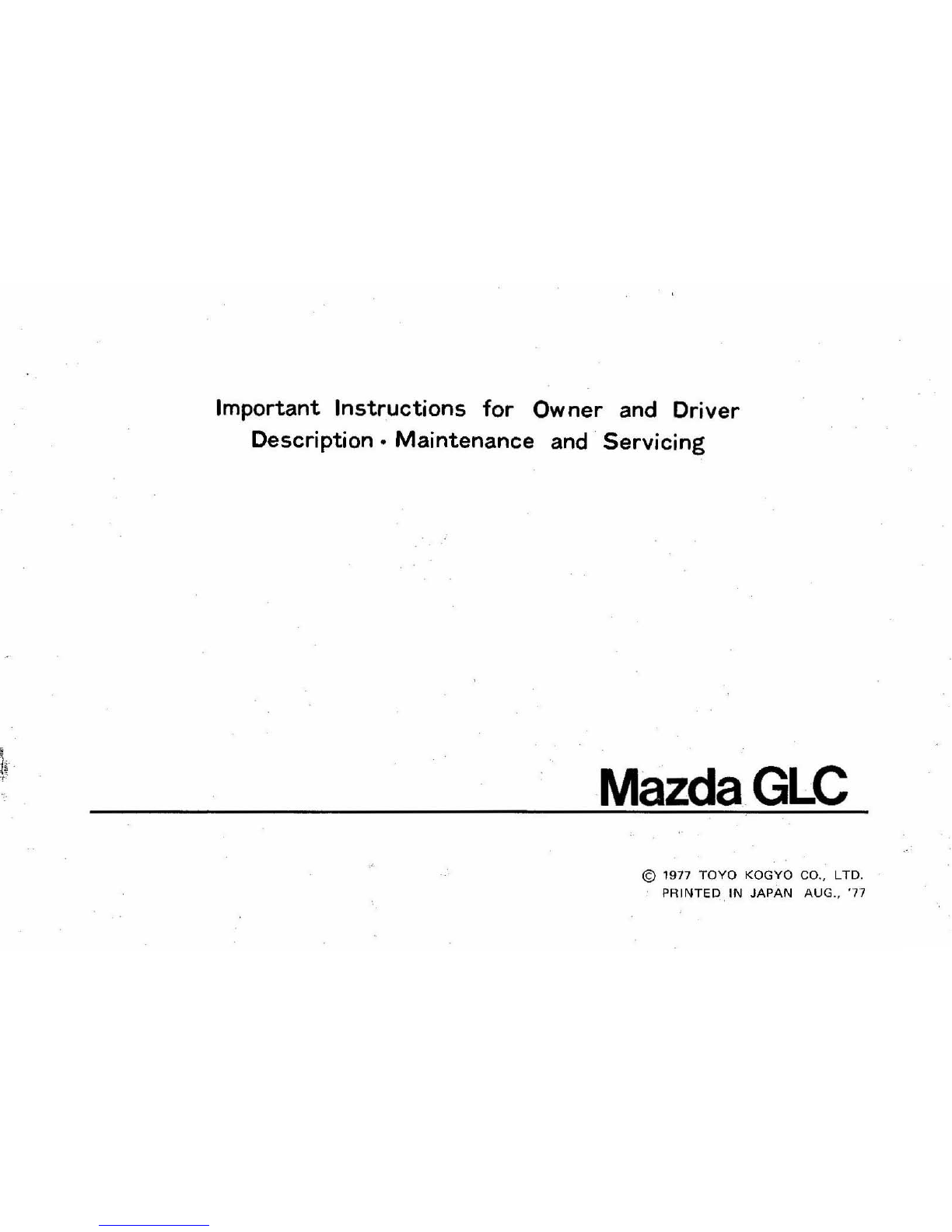

Important Instructions for Owner and Driver
Description. Maintenance and Servicing
MazdaGLC
© 1977 TOYO KOGYO CO,, LTD,
PRINTED, IN JAPAN AUG" '77

WELCOME TO MAZDA ............ .
Your Mazda dealer and the Mazda organization
thank you for choosing our product, and we
want you to be pleased with it in every way.
We urge you to read this manual carefully and
follow
the recommendations listed to help
assure enjoyable, and troublefree operation of
your vehicle -and you keep it in the glovebox
as a permanent part
of your Mazda for con·
venient reference.
When it comes
to service, remember that your
Mazda dealer knows
your vehicle best and is
vitally interested in your complete satisfaction.
He is anxious to help you with all of your
ma intenance and service needs.
Shou Id you have a question that has not been
handled
to your satisfaction, take the steps
presented
in the separate warranty and service
book under the heading, "Customer Assistance".
Toyo Kogyo CO.,Ltd.
HIROSHIMA . JAPAN
2
The specifications and de sc riptions contained in this
manual were accurate at. the time they were approved
for printing. Since improve ment is a constant goal at
Mazda,
we reserve the right to make changes at any
time
without notice and without incurri ng any obli-
gation.
It should be noted that some explanations ar e not
applicable to locally installed equipment.

TABLE OF CONTENTS
section page
1. Important Preliminary Information ...................... 1-1
2. Before Driving Your Mazda ........................... 2-1

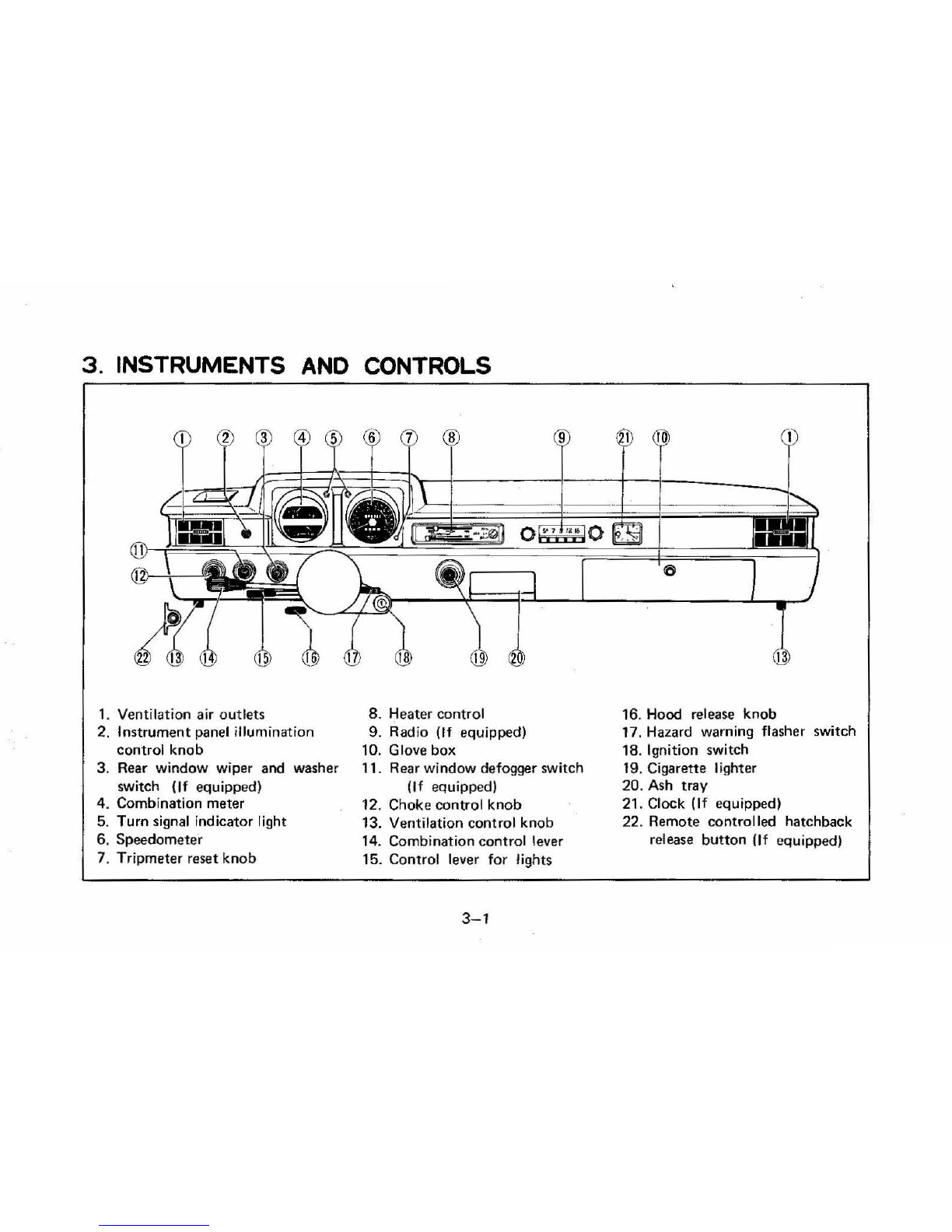

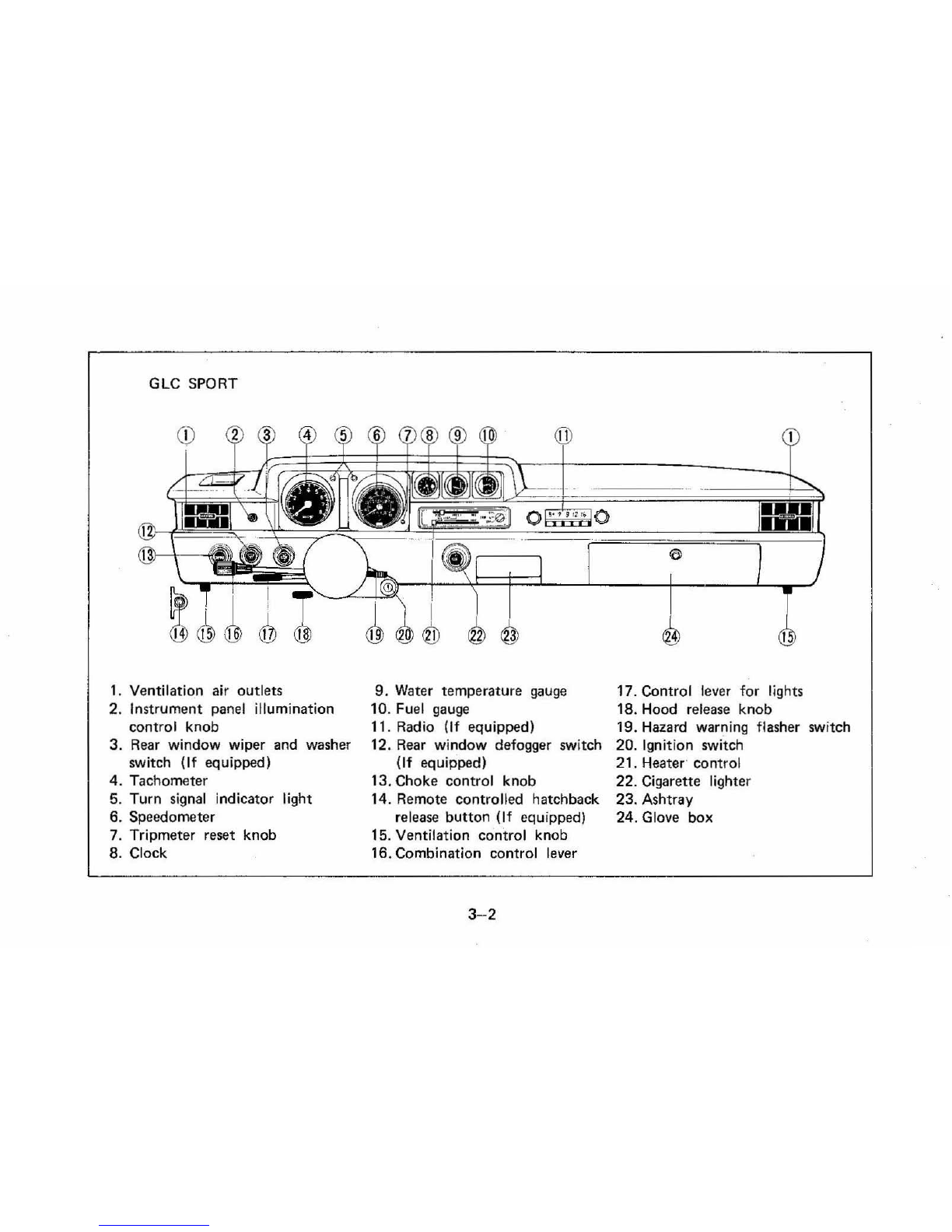

3. Instruments and Controls ............................ . 3-1
4. Starting and Operating ............................... · 4-1
5. Special and Emergency
5-1
6.
Operating Conditions .............................. .
Appearance Care
.................................... 6-1
7. Maintenance Information .............................. 7-1
8. Consumer Information ................................ 8-1
9. Specification and Service Data........ .. . . . . . . . . . . . . .. 9-1
10. Alphabetical Index .......... . ...................... 10-1
Note: Please note that references to right· or left-hand in this manual are made
when viewing the car from the rear.
3

1_ IMPORTANT PRELIMNARY INFORMATION
BREAK-IN PERIOD
Following a few simple precautions for the first few
handfed miles can add to the future performance,
economy and long life of your car.
• Do not race the engine.
• Drive at varying speeds, trying not to "strain" the
engine.
• Avoid hard stops, except in emergencies.
This will allow the brakes to seat properly.
After 2,000 miles of driving, your vehicle's first
maintenance should be performed at your Mazda dealer.
1- 1
WARRANTIES
Please refer to the separate warranty and service book,
as furnished with each Mazda vehicle for details.
FUEL REQUIREMENTS
Your new Mazda is designed to operate only on
UNLEADED GASOLINE of approximately 91 Research
Octane or higher when the engine is adjusted to
factory recommended specifications. The gasoline
should also have a Motor Octane of at least 83 .
Unleaded gasoline
is essential for proper emission
control system operation, and it will minimize spark
plug fouling.
Caution:
Never use fuel system cleaning agents
added to the fuel
tank or added to the carburetor. These materials may
be detrimental to the catalytic converter.
Operation In Foreign Countries
If you plan to drive your vehicle outside the United
States and Canada, check the quality of gasoline
available in area you expect to visit. In some count-
ries are so low in octane rating that excessive knock-
ing and lead fouling of spark plugs may result from
their use.
Also, if leaded fuels are used in vehicle with the
CATALYTIC CONVERTER, it can damage the con-
verter and can cause other related problem.

OPERATING CAUTION
Your Mazda Emission Control System can produce
oonsiderable heat. T0 - avoid problems, please be sure
to observe the following precaution:
Do
not operate or park the vehicle in areas where
flammable materials such as
dry grass may come
into contact with the hot exhaust system.
Under certain weather conditions, these materials
could be ignited by a hot exhaust system.
Failure to observe the above precaution could result
in damage to your vehicle.
CATAL VTIC CONVERTER
The catalytic converter is an emission control device
added
to the exhaust system. The converter has pellets
coated with a catalytic material containing platinum
and palladium. These material stimulate a chemical
reaction
that assists in converting carbon monoxide
(CO) and hydrocarbons (He) into harmless carbon
dioxide
and water vapor.
OPERATING PRECAUTIONS FOR CARS
EQUIPPED WITH
CATAL VTIC CONVERTER
To help av oi d overheating the exhaust system and to
maintain catalylic converter performance, the follow-
ing precautions should be observed:
1 -2
1. UNLEADED FUEL only must be used.
2.
00 not park the car over or near inflammable
objects such
as dry grass.
3.
00 not operate the vehicle when there are signs
of engine malfunction, such
as engine misfire or
other noticeable loss of performance.
4. Do
not misuse or abuse the vehicle engine.
Examples
of misuse are coasting with ignition off,
going
down steep grades in gear with ignition off
and operating with the
choke knob pulled out
when the engine is already warm.
5. Do
not operate extended high speed idling of the
engine (5 minutes or more) by using the choke when
the engine
is cold.

6. Avoid th e fuel tank from becoming empty.
7. Do not modify or tamper with any part of
the
engine or emission control system. All inspections
and adjus
tments require a qualified technician.
Failure
to observe the above precautions could result
in damages to the catalytic converter and your vehicle.
If
the catalytic converter should begin to overheat,
the heat hazard warning light will come on.
' I"l ~
c ':--' H
Heat hazard warning light
1-3
What to do:
1. Reduce speed, park your car in a safe spot where
there are
no flammable materials and turn the engine
off . Wait 5 minutes or more.
2. Check spark plug wire connections. If any
of them
are disconnected, reconnect them properly.
3.
If the spark plug wires are properly connected, have
your author ized Maz da dealer locate and correct
the trouble as soon as possible. Park your car until
the heat hazard warning light goes out and drive
your vehicle to a dealer slowly.
This warning light also comes on when
the ignition
switch
is turned on (as a check of bulb operation),
and should
go out after the engine has been started.
EMISSION CONTROL SYSTEM LAWS
Any modification of the original'equipment emissions
control systems prior
to the first sale and registra·
tion of a new vehicle is su bject to penalties under
Federal law in
the United States. Any such modifi-
cations made thereafter may also be subject to penal-
t ie s in some states.

ENGINE EXHAUST GAS CAUTION
(CARBON MONOXIDE)
Engine exhilust gases, though colorless and odorless,
contain carbon monoxide, which is dangerous or even
lethal if inhaled.
1. If at any time you suspect that exhaust fumes are
entering
the passenger compartment, have the source
located and corrected as soon as possible.
2. If it is necessary to drive under such conditions ,
do so only with all windows fully open.
3. Do not operate the engine in confined areas such as
garages
or other closed areas any more than needed
to move vehicle in or out of area.
1- 4
4. When the vehicle is stopped in an unconfined area
with th e engine running for more than a short length
of time, adjust the heating or cooling system to draw
outside air into the vehicle.
REGISTRATION IN FOREIGN COUNTRIES
If you plan to register your Mazda in another countries,
first make sure
that it meets that country's regulations
(e.g. safety standards, air pollution control standards
etc .'.
We advise you to consult us through authorized Mazda
dealer before acting.

2. BEFORE DRIVING
YOUR VEHICLE
KEY
Two keys are provided for all key cylinders. A code
number
is stamped on the key. This number should be
recorded and kept in a safe place for use in obtaining
replacement.
IGNITION KEY REMINDER BUZZER
If the key is left in the ignition, a reminder buzzer
will sound as soon as the front door is opened.
Pull up to unlock
•
..
lock
( d l~
Pull to open
Caution: Always lock the doors when driving.
2-1
DOOR LOCKS
From outside-
• The door can be locked or unlocked by using the key.
• To open. pull the outside door handle outward.
• To lock without a key. depress the inside lock button.
then hold the outside door handle up and close the
door.
From inside-
• To lock, depress the lock button.
• To open, pull the inside door handle rearward.
HOOD RELEASE
To open the hood, it must first be unlatched from
inside the car by pulling the release knob.
'I '
-I!
Ij
~
': , ./
- -.J _

Lift the hood to full open position and slide the stopper
to "B" position to prevent the hood from being blown
down.
Before closing the hood, the stopper must be returned
to "Au position. Then lower the hood and make sure
it locks into place.
HATCHBACK
To open, insert the key into the key slot and turn
it clockwise, then pull th e hatchback upward. The
opened hatchback will stay in its fully opened position
by the stay. To close, push the hatchback downward
firmly until the latch is secured.
2-2
Caution:
Do not drive with the hatchback open to avo'id drawing
dangerous exhaust gases into the car.
REMOTE CONTROLLED HATCHBACK RELEASE
(If equipped)
To release the hatchback latch from inside the car,
press the release button with the ignition switch
in the
"ON" or "ACC" position.

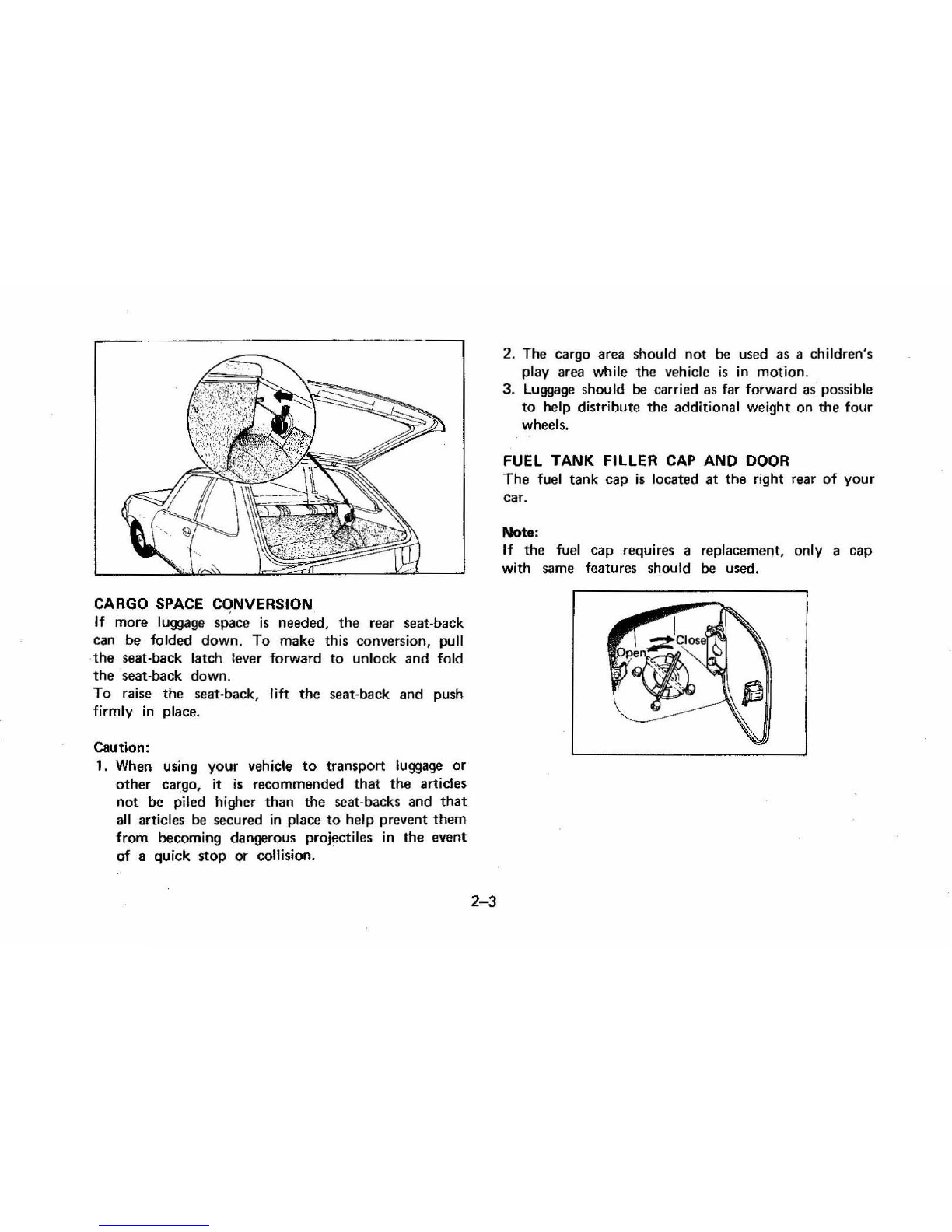

CARGO SPACE CONVERSION
If more luggage space is needed, the rear seat-back
can be folded down . To make this conversion, pull
the seat-back latch lever forward to unlock and fold
the -seat-back down.
To raise the seat-back,
lift the seat-back and push
firmly in place.
Caution:
1. When using your vehicle to transport luggage or
other cargo, it is recommended that the articles
not be piled higher than the seat-backs and that
all articles be secured in place to help prevent them
from becoming dangerous projectiles
in the event
of a quick stop or collision.
2-3
2. The cargo area should not be used as a children's
play area while the vehicle is in motion .
3. Luggage should be carried as far forward as possible
to help distribute the additional weight on the four
wheels.
FUEL TANK FILLER CAP AND DOOR
The fuel tank cap is located at the right rear of your
car.
Not.:
If the fuel cap requires a replacement, only a cap
with same features should be used.

SEATS
1. Front Seat Adjustment
To move the seat forward or backward, move the lock
lever to the rearward and hold it. Then slide the seat
to the desired position and release the lever.
Caution:
Do not adjust the driver's seat while the vehicle is
moving.
2. Reclining Seat·back Adjustment
To change the seat·back angle, lean forward and pull
upward on the lever. Then lean back to the desired
angle and release the lever.
2-4
pull lever
Front passenger's seat -3-door models
On 3·door models-
Pull the seat·back lever or depress the foot pedal. The
passenger's seat will automatically slide forward and
the seat·back will fold.
After your passengers are in or out, simply slide the
seat rearward. Make sure that the seat is locked in
place.
Caution:
Do not move the seat lock lever until the seat-back
is returned to its normal upright position and the
self·latching mechanism is locked.

To
HEAD RESTRAINTS (If equipped)
The
optimum position is now where the head restraint
is centered at just above the top of the ears. Do not
center it on the neck.
When replacing, pull it up while pushing it forward.
Caution:
Do not operate the vehicle with the head restraints
removed.
SEAT BEL T/SAFETY RESTRAINT SYSTEMS
To help protect you and your passengers from injuries
in the event of an accident, your Mazda is equipped
with seat lap-shoulder belts.
The seat lap-shoulder belts are equipped with re-
tractors which have inertia locks. The retractors
keep the belts out of the way for convenient entrance
2-5
and exit from the vehicle. The inertia locks allow
the belts to remain slack, for comfort, until a decel-
eration force occurs, such as in a sudden stop or
collision. At that time, the retractors automatically
lock the belts in position and restrain the seat
occupants from being thrown forward.
Note:
1. The
retractor will lock automatically if the belt is
pulled out quickly, or if the car inclines to an angle
greater than 25 degrees.
2. Always adjust the seat to the position in which you
will drive before fastening the seat belts.

SEAT BELTS
To Fasten Front Seat Belts:
1. Grasp the buckle end and tongue plate.
2. Slowly pull the lap-shoulder belt webbing out.
3. If the lap belt is not far enough to permit buckling.
hold the tongue plate at right angles to the lap
belt and pull the lap bell webbing until the desired
length is obtained.
4. Insert the tongue plate into the open end of the
buckle. An audible click should sound, indicating
the belt is securely locked.
5. Position the lap belt across your lap as LOW ON
THE H IPS as possible. To reduce the risk of
sliding under the belt during an accident, adjust
to a SNUG FIT by pulling the belt extending from
the tongue plate. Tne belt retractor is designed
to automatically take up excess webbing and main-
tain tension on the shoulder belt.
2- 6
To Fasten Rear Seat Belts:
1. Grasp the buckle end and longue plate.
2. In one continuous motion pull the belt webbing
(tongue side) ac ross lap far enough to permit buckl·
ing. If the pulling motion is interrupted while
extending the blet, it may be necessa
ry to fully
retract the belt
to release the lock mechanism, so
the belt can be pulled out to the proper length.
3. Insert the tongue plate into the open end of the
buckle.
4. The retractor will automatically take up excess
webbing.
To Unfasten Belts:
To unfasten the belts, depress the push button in
the center of the buckle.
Proper Use and Car. of Seat Belts
To gain maximum effectiveness from the seat belt
system, please follow these
suggestions-
1. Use the seat belts at all times -even on short trips.
2. Never use the same belt for more than one person
at a time.
3. The use
of shOUlder belts is not recommended
for passengers under six years old
or weighing
less Ihan 50 pounds (25 kg), as this increases the
chance of neck injury in an accident.

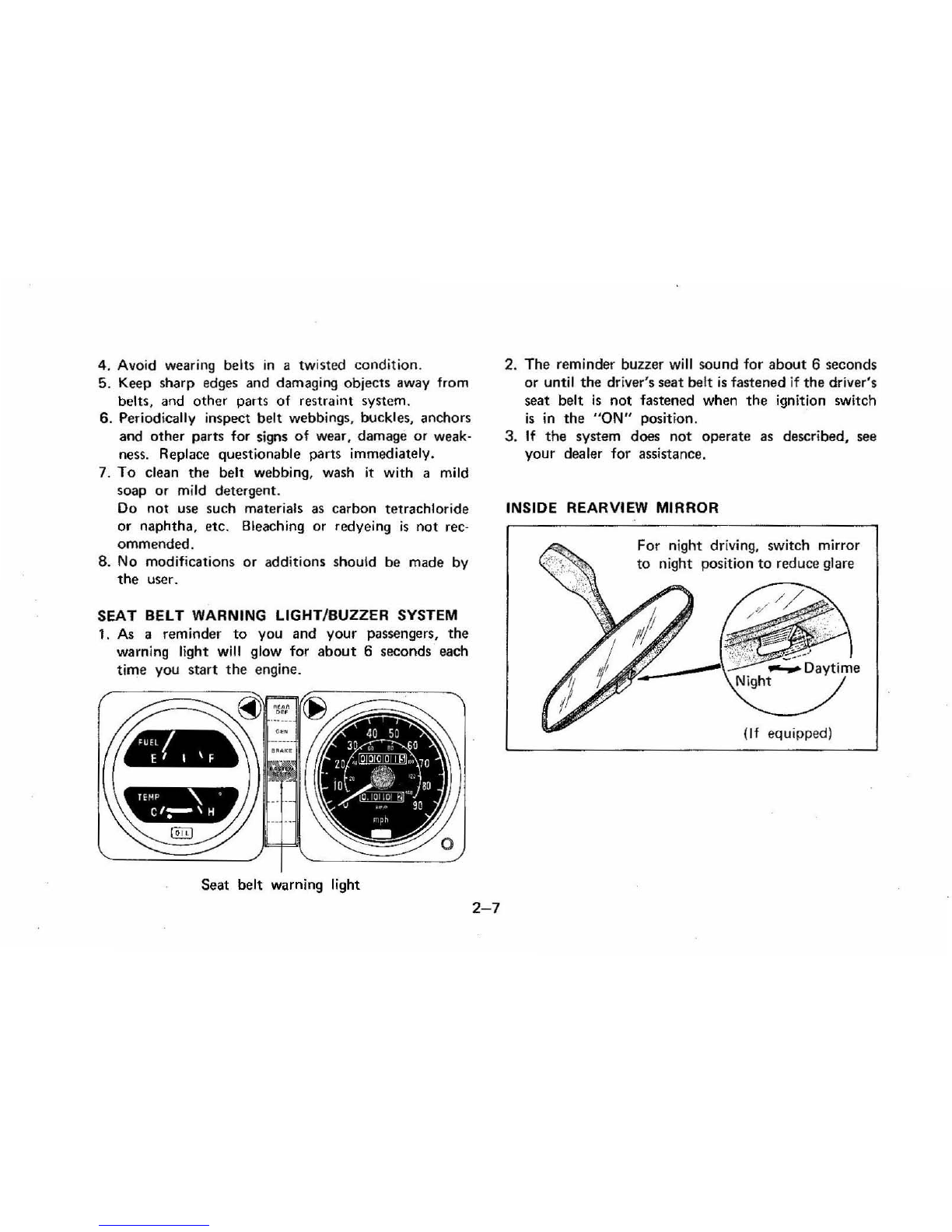

4. Avoid wearing belts in a twisted condition.
5. Keep sharp edges and damaging objects away from
belts, and
other parts of restraint system.
6. Periodically inspect belt webbings, buckles, anchors
and
other parts for signs of wear, damage or weak-
ness. Replace questionable parts immediately.
7.
To clean the belt webbing, wash it with a mild
soap
or mild detergent.
Do
not use such materials as carbon tetrachloride
or naphtha, etc. Bleaching or redyeing is not rec-
ommended.
8. No modifications
or additions should be made by
the user.
SEAT BELT WARNING LIGHT/BUZZER SYSTEM
1. As a reminder to you and your passengers, the
warning light will glow for about 6 seconds each
time you start the engine.
n"p ,, '
C ':--' H
Seat belt warning light
2-7
2. The reminder buzzer will sound for about 6 seconds
or until the driver's seat belt is fastened if the driver's
seat
belt is not fastened when the ignition switch
is in the "ON" position.
3. If the system does not operate as described, see
your dealer for assistance.
INSIDE REARVIEW MIRROR
For night driving, switch mirror
to night position to reduce glare
(If equipped)

3. INSTRUMENTS AND CONTROLS
1. Ventilation air outlets
2. Instrument panel illumination
control knob
3. Rear window wiper and washer
switch (If equipped)
4. Combination meter
5. Turn
signal indicator light
6. Speedometer
7. Tripmeter reset knob
8. Heater control
9. Radio (If equipped)
10. Glove box
11. Rear window defogger switch
(If equipped)
12. Choke control
knob
13. Ventilation control knob
14. Combination control lever
15. Control lever for lights
3-1
16, Hood release knob
17 . Hazard warning flasher switch
18. Ignition switch
19, Cigarette lighter
20, Ash t
ra y
21. Clock (If equipped)
22, Remote controlled hatchback
release button (If equipped)

GLC SPORT
1. Ventilation air out le ts
2. Instrument panel illumination
control knob
3.
Rear window wiper and washer
switch (If equipped)
4. Tachometer
5. Turn signal indicator light
6. Speedometer
7. Tripmeter reset knob
8. Clock
9. Water temperature gauge
10. Fuel gauge
11. Radio (If equipped)
12. Rear window defogger switch
(If equipped)
13. Choke control knob
14. Remote controlled hatchback
release button (If equipped)
15. Ventilation control knob
16. Combination control lever
3-2
17. Control lever for lights
18. Hood release knob
19. Hazard warning flasher switch
20. Ignition switch
21. Heater· control
22. Cigarette lighter
23. Ashtray
24. Glove box

GLC SPORT
1. Fuel gauge 1. Tachometer
2. Oil pressure warning light 2. Oil pressure
warning light
3. Water temperature gauge
3. Turn signal indicator lights
4. Turn
signal indicator light 4.
Rear window defogger indicator light
5. Rear window deffoger indicator light
(If equipped)
(If equipped) 5. Odometer
6. Odometer 7. Speedometer 8. Tripmeter 6. Speedometer 7. Tripmeter
9. Tripmeter reset knob
8. Alternator warning light
10. Alternator warning light 9. Brake system warning light
11. Brak e system warni~g light 10. Seat belt warning light
12. Seat belt warning light 11. Heat hazard warning light
13. Heat hazard warning light
12. High beam indicator light
14. High beam indicator light 13. Tripmeter reset knob
3- 3

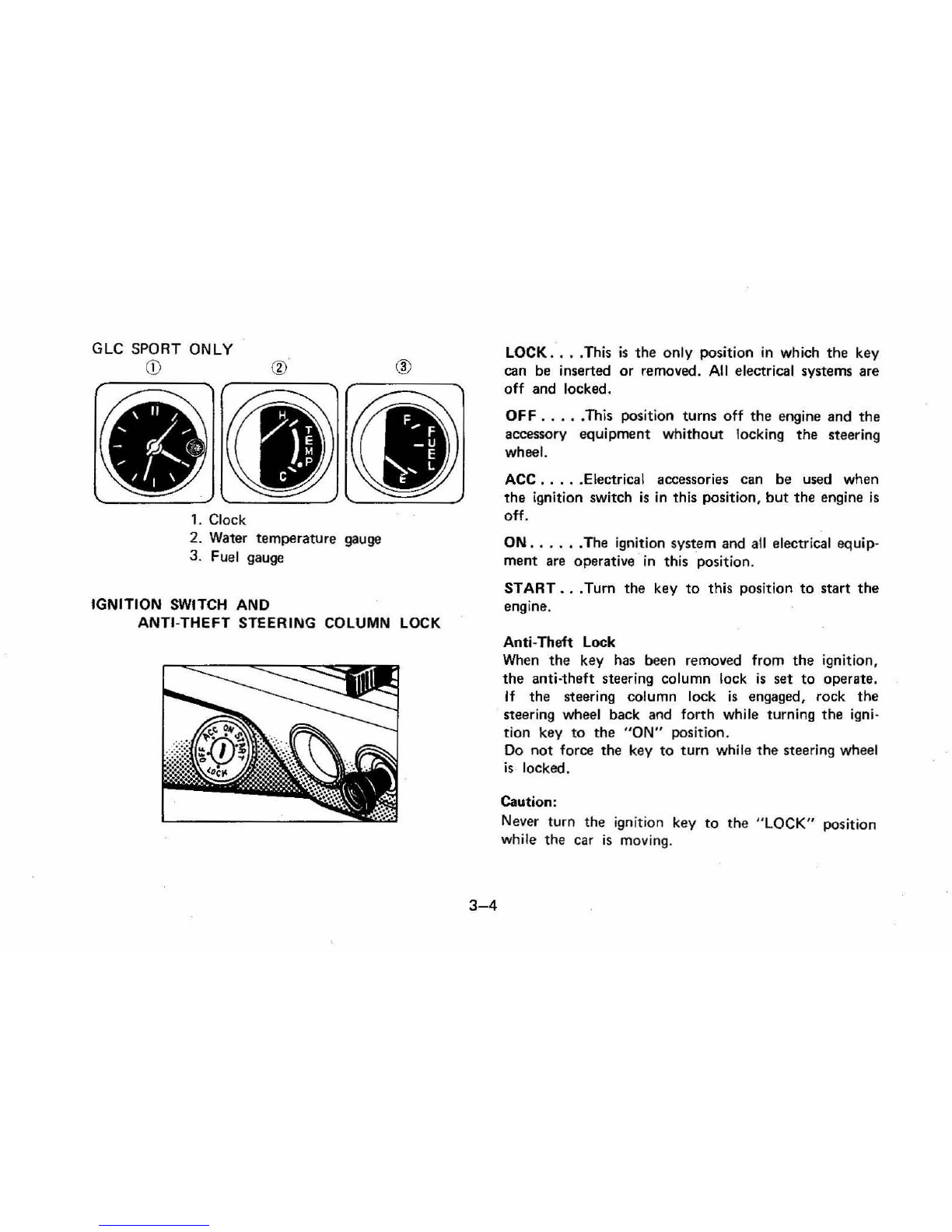

GLC SPORT ONLY
CD
1. Clock
2. Water temperature gauge
3. Fuel gauge
IGNITION SWITCH AND
®
ANTI-THEFT STEERING COLUMN LOCK
3-4
LOCK .... This is the only position in which the key
can be inserted or removed. All electrical systems are
off and locked.
OFF ....• This position turns off the engine and the
accessory equipment whithout locking the steering
wheel.
ACe ..... Electrical accessories can be used when
the ignition switch is in this position, but the engine is
off .
ON .....• The ignition system and all electrical equip·
ment are operative in this position.
START ... Turn the key to this position to start the
engine.
Anti-Theft Lock
When
the key has been removed from the ignition,
the anti-theft steering column lock is set to operate.
If the steering column lock is engaged, rock the
steering wheel back and forth while turning the igni-
tion key to the "ON" position.
Do not force the key to turn while the steering wheel
is locked.
Caution:
Never turn the ignition key to the "LOCK" position
while the
car is moving.
