MBO Systems ProNote 100 User manual

MAKE YOUR CASH FLOW
ProNote 100
BankNote
www.mbosystems.com
Phone number: 1-514-733-4274

SPEED - Counting speed
a. Thee (3) speed levels can be selected.
b. Middle (1,200) speed offers the best profile in terms of counting speed
and noise level.
+1 / +10:
The pre-programmed “batch stop” can be individually adjusted within the range of 1 to
200 notes or by pushing the “OFF” switch.
a. Pushing the “+1 / +10”key rapidlychanges the value byone (1);
b. Keeping the “+1 / +10”key pushed longer changes the value by ten (10).
1
2
DETAIL - Displaying counted notes
The “DETAIL”key is in function when the “MODE”key has been activated and
the ''VALUE BALANCING'' option has been selected.
After the counting process in the “VALUE BALANCING MODE”a detailed view
can be displayed, showing the quantity and the total value of each denomination.
CURRENCY - Currency selection
By pushing the “CURRENCY” key, you can choose between four (4)
different currencies: Canadian (CAD), American (USD), European
(EUR) and United Kingdom (GBP).
Three (3) other self-definable currencies can be selected.
FUNCTION - Setting detection
By pushing the “FUNCTION”key you can choose from the available
detections and do the settings using +1/+10 key.
(See Facts & Figures on page 6)
START
1) Clear an error message; and
2) Restart counting after an error
message.
CLEAR
Clear the counting result.
(reset device to the factory settings)
(See Save user settings on page 4)
ENGLISH
ADD - Addition counting
All BankNote bundles will be counted together instead of restarting
counting with every new bundle insert.
BATCH - Batching
By pushing the “BATCH”Key you can swap between the pre-
programmed batch stop setting OFF for one hundred-dollar bills
($100.00), fifty-dollar bills ($50.00) twenty-dollar bills ($20.00), ten-dollar
bills ($10.00) or five-dollar bills ($5.00).
MODE - Countingmodeselection
By pushing the “MODE”Key, two (2) modes can be selected:
a) VALUE BALANCING MODE; and
b) PIECE MODE.
(See Save user settings on page 4)

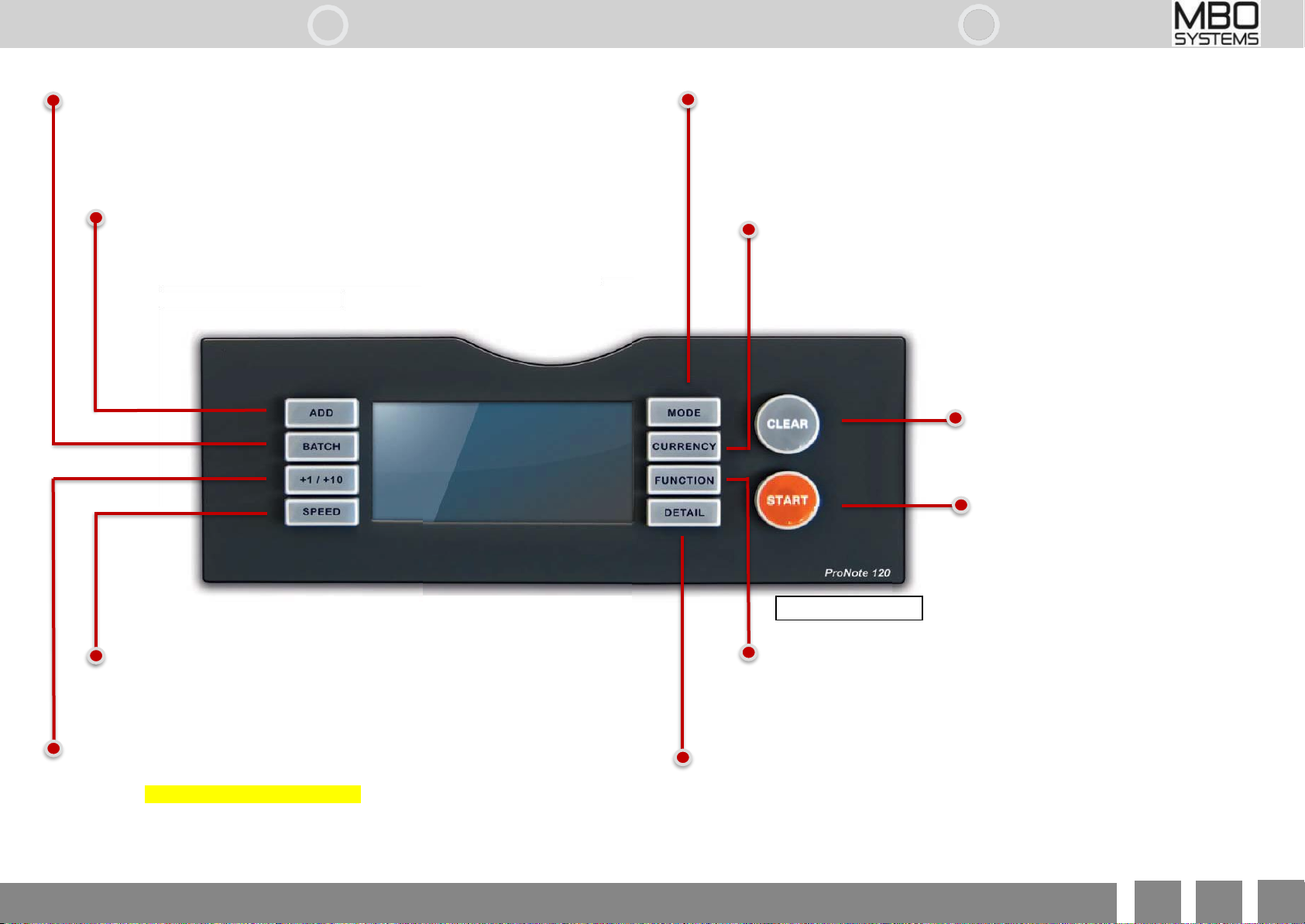

*Model ProNote 120 illustrated

5. Finish the counting process
The counting is finished as soon as:
a) No more BankNotes are left on the hopper;
b) The adjusted batch stop its reached; or
c) The stacker is full.
The display shows the number of counted notes and
the total value (when the “VALUE BALANCING
MODE”is selected).
6. Clean & Care
The abrasion of the counted note papers causes
dust in the machine. From time to time, or in case
of an error message, carefully removed dust and
dirt with a soft brush and cleaning cloth.
(included with the ProNote 100 model).
2. Adjust note guides
Move the right and left note guide gently towards each
other to adjust them at the length of the denomination
to be counted. Always place the BankNotes from
above and centered to the hopper.
3. Start counting
The counting starts automatically after placing the
BankNotes on the hopper. The BankNotes must be
placed smoothly on the hopper.
a) Make sure that the notes do not move side-
wards on the hopper; and
b) Do not forget to check the note bundle for
foreign objects such as coins or clamps, which
could damage the sensors.
Save user settings
Adjust the machine accordingly to your requirements. Hold down the "MODE" key for 3
seconds. If your personal setting is not saved, the device always goes back to the factory
settings when rebooted.
Reset device to factory settings
Push and hold down the "CLEAR" button and simultaneously switch thedevice ON,
then, confirm bypressing the "START"button.
Hints
To achieve a good feeding with bad quality notes, you may guide the bundle
gently with 2 fingers while counting.
4.Confirming errormessages
In case of an error message, please follow
the instructions on the display.
Before counting, tap the bundle at the long side on a hard surface in order to
align the notes. Place the bundle with the aligned side towards the feeder.
Bad quality BankNotes should always be checked.
Pleated and folded corners should be removed. Bundles should be fanning
to avoid BankNotes sticking to each other.
3
4
1. Switch ON
Turn ON the BankNote counter with the “ON/OFF”
switch located at the rear side of the machine.
The counter is ready after a short self-check.
ENGLISH

3
3
5
6
This Mode can be recognized by the currency symbol (e.g. €) and the display message
“VALUE
BALANCING" on the top of the display.
Size detection is automatically switched ON in this mode. Following detection can be set
for “VALUE BALANCING MODE”:
a) Double;
b) UV; and
c) MG*
* only available with the ProNote 120
MVB - Multi Value Balancing is a special
function that overtakes the job of doing the
addition yourself when doing your cash balancing.
COUNT MODES
- Value Balancing Mode:
Detection and value counting of pre-sortedBankNotes
- Piece Mode
Detection and piececounting.
PIECE MODE - Piece counting
Just the quantity of notes or other documents are
counted in this mode. In this mode you may also count
non-cash-Items (such as coupons) of following size
range: 110 x 50 ~ 175 x 85 (mm).
Followingdetectioncanbesetfor“PIECEMODE”:
a) Width;
b) Double;
c) UV; and
d) MG*
* only available with the ProNote 120
CONGRATULATIONS FOR PURCHASING A PRONOTE 100 BANKNOTES
COUNTER
ENGLISH
CURRENCIES
Value counting: Canadian (CAD), American (USD), European (EUR), United Kingdom
(GBP).
Three (3) other self-definable currencies can be selected.
ProNote 100 FACTS AND FIGURES
VALUEBALANCINGMODE- Value
counting
In this mode, the value of sorted notes of
Canadian (CAD), American (USD),
European (EUR), United Kingdom (GBP)
currencies can be counted within one
automatic counting process, from the
smallest to the biggest denomination.
Three (3) other self-definable currencies can
be selected.
(Pressthe “START" buttontoskipcertaindenomination)
DDA - Dynamic Denomination Analyze
DESCRIPTION
ProNote 100 counts BankNotes up to a speed of 1 500 Notes per
minute and detects them if required for UV and MG security features.
The clearly laid out LCD display and sophisticated menu system
provide a clear overview of all important functions. A single button push
is all that is needed to :
a) Switch between available currencies;
b) Switch between the two count modes; and
c) Report with a detailed list of all counted notes (Piece and Value).
Further information on the display shows you how to handle the
counting process in case of a certain error message.

ProNote
BankNote Counter Series
co
m
Capacity & Speed
- Capacity hopper: 300 notes
- Capacity stacker: 200 notes
- ADD- Addition counting function: yes
- BATCH –Batching : Variable 1:999 / preset
- Counting speed: 800 / 1,200 / 1,500 notes per minute
Technical data
- Dimensions (L x W x H): 287 x 243 x 248 mm
- Weight: 6.5 kg
- Power consumption: 60 W
- Power supply: AC 110-240 V / 50-60 Hz
- Ambient temperature: 0 cC ~ 40 cC
- Humidity: 40% ~ 90%
Safety featuresdetection
- UV
Interfaces
- PC-connection via RS232
- External display via RS232
Options
- External display (cable included):
a) 4 digits for piece number; and
b) 6 digits for value.
* Power cable, RS-232 cable, fuse, cleaning brush and cloth as well as user manual
included
- ProNote 100
- ProNote 120
- ProNote 200
For more information, please visit our international
website www.mbosystems.com
Certificates
- CE
- RoHS
General data
- Display type: LCD with 9-digits piece display
- Density setting: Eight (8) levels
- Document size: 110 x 50 ~ 175 x 85 (mm)
- Alarm type: Visual and Acoustic
- Alarm system: double / chain / half, skew note
8
ENGLISH
7
0

4
CASH HANDLING FOR
RETAILERS
MBO Systems
110 Watopeka street
Windsor (Quebec) J1S 1N2
Canada
Phone number : 1-514-733-4274
e-mail :[e-mail]
Website www.mbosystems.com
Specifications are subject to be changed without notice - December
2011 Pictures may show none standard options.
Error Message
Cause and action
Fluorescence sensor
UV sensor is dirty, or covered by foreign objects or in direct sunlight.
Clean the sensor with cleaning brush, get rid of foreign objects if
there is any, avoid strong light source.
Banknote feeding sensor
Remove BankNotes from hopper and clear the sensor.
Banknote receiving sensor
Remove BankNotes from stacker and clear the sensor.
Left counting sensor
Sensor is dirty, or covered by foreign objects. Remove foreign
objects, clear the sensor.
Right counting sensor
Sensor is dirty, or covered by foreign objects. Remove foreign
objects, clear the sensor.
Rotate speed sensor
Should this error occur frequently, please contact the Procoin
CashWork service team.
Internal memory fault
Device was switched off during a counting process. Reset device to
factory settings. Hold down the “CLEAR”button and switch the device on.
Display will show "-DEF-H-", confirm by pressing "START" button.
Device shows no function
Replace the burnt fuse next to the power cable connection with a new
one.
Chained / Double / Slant notes
Several BankNotes are connected, overlapped or slantwise. Please
take all BankNotes from the stacker, and re-count them. Should this
erroroccurs frequently, adjust the feeder byturningadjustingscrew.
Incomplete notes
Half piece or incomplete BankNote. Remove the last ejected
BankNote and press “START" to continue the counting.
UV error
Magnetic feature fail
Counterfeit or suspect banknote, remove the last ejected bank- note
and press the “START" button to continue counting. Should false
detection occurs frequently (taking genuine BankNotes as counterfeit
ones)youcan adjust the sensitivity to a lower level.
Width error
The banknote is nonconforming in size, remove the last ejected
banknote and press the “START"button to continue.
Receiver stacker full
There are 200 BankNotes in the stacker, its capacity is reached.
Please remove all the banknotes from stacker.
