Ribao BC-40 User manual

Currency Counter
BC-40
User Manual

BC-40 User Manual V1.3
1
Contents
Contents ............................................................................................................................................................ 1
1. Machine Overview ....................................................................................................................................... 3
1.1 Safety Instruction ................................................................................................................................. 3
1.2 Installation Instruction ......................................................................................................................... 4
1.3 Machine & Accessories ........................................................................................................................ 5
1.4 Appearance ........................................................................................................................................... 6
1.4.1 Front Appearance ...................................................................................................................... 6
1.4.2 Back Appearance ....................................................................................................................... 6
1.5 Technical Parameters ........................................................................................................................... 7
1.6 Start-up ................................................................................................................................................. 8
1.7 Notes Placement................................................................................................................................... 9
1.8 Counting error code ........................................................................................................................... 10
2. Function Introduction ................................................................................................................................ 11
2.1 Function Introduction.......................................................................................................................... 11
2.1.1 Display Interface and Touch Screen Description ..................................................................... 11
2.1.2 Operating Instructions for Function Keys ................................................................................ 11
2.1.3 Manual/Automatic Setting ...................................................................................................... 12
2.1.4 Selection of Counting Mode.................................................................................................... 12
2.1.5 Counting Speed Setting and Function Description ................................................................. 17
2.1.6 Check counting details on Machine ........................................................................................ 18
2.1.7 Batch Setting ........................................................................................................................... 18
2.1.8 Accumulation Setting .............................................................................................................. 22
2.1.9 Counterfeit Detection Setting .................................................................................................. 23
2.1.10 Time and Date Setting ........................................................................................................... 26
2.1.11 Buzzer Setting ....................................................................................................................... 27
2.1.12 Software Version Viewing ..................................................................................................... 28
2.1.13 Counting History Information ............................................................................................... 28
2.1.14 Restore Factory Setting ......................................................................................................... 30
2.2 Printer Introduction ............................................................................................................................ 31
2.2.1 Connect RIBAO printer........................................................................................................... 31
2.2.2 Connect other brand printer ..................................................................................................... 33
2.3 Introduction of uploading the counting data ...................................................................................... 34
2.3.1 Serial cable connection ............................................................................................................ 34
2.3.2 Machine Setup ......................................................................................................................... 35
2.3.3 Instruction of Data collection PC software ............................................................................. 36
2.4 Instruction of External display ........................................................................................................... 39
3. Maintenance Instruction ........................................................................................................................... 40
3.1 Software Upgrade .............................................................................................................................. 40
3.1.1 U-disk Preparation ................................................................................................................... 40
3.1.2 Software Upgrade .................................................................................................................... 40
3.2 Daily Clean instruction ...................................................................................................................... 41
3.2.1 Clean the banknote hoppersensor ............................................................................................ 42
3.2.2 Clean the banknote feeding axle and the banknote twisting axle ............................................ 42
3.2.3 Clean the banknote stacker sensor ........................................................................................... 43

BC-40 User Manual V1.3
2
3.2.4 Clean the channel internal sensors .......................................................................................... 43
3.3 Common Faults and Corresponding Descriptions ............................................................................. 45

BC-40 User Manual V1.3
3
1. Machine Overview
1.1 Safety Instruction
This product is used for counting banknotes. Our company does not assume any responsibility for any
loss arising from the application of this product for any purpose other than the above without our company's
permission, and for any loss caused by any modification of this product not by our company or by any agents
not authorized by our company.If you need to install or transport this product, please consult your local agent
to reduce (avoid) product damage due to installation errors or transportation shocks.
Please read this manual carefully before using, so as to operate the product accurately. Please contact
your local agent if you encounter any problem.
We reserve the right to change the contents of this instruction manual at any time without notice.
NOTE：
 This product is used for counting banknotes described in the specification. Please do not use this
product for any other purposes.
 This product is only used in corresponding countries or regions and may not be used in other countries
or regions due to the difference between power supply specifications and safety standards.
 Please understand that the contents of this manual are subject to change without prior notice.
 The appearance and technical specifications of this product are subject to change without prior notice.
Therefore, the actual product may be different from the instructions in this manual.
 This product may not be changed or modified in any form without the explicit written authorization of
our company.
 Please contact your nearest sales store or our designated distributor if you need to install this product.
 This machine is specially designed for indoor use. Please do not install or use it outdoors.
 Please do not install it in places that cannot bear the weight of this product or in places that are inclined
or uneven.
 Do not use or place combustible materials, inflammables and volatile items such as thinners
around/inside this product.
 Do not bend the power cord excessively, or place heavy or sharp objects on top of the machine.
 Do not use this product in an excessively humid environment.
 Please avoid strong light and strong magnetic field interference.

BC-40 User Manual V1.3
4
 When the machine is not in use, please turn off the machine switch. Prevent curtains and various entangled
materials from getting caught in the machine.
 When cleaning the machine, turn off the machine switch.
1.2 Installation Instruction
As shown in the Figure 1, please stay away from the surrounding walls and reserve sufficient operation
space for placement of banknotes, opening or closing of the cover plate, as well as for maintenance.
Unit（mm）
Figure 1
Installation
space
Maintenance
space

BC-40 User Manual V1.3
5

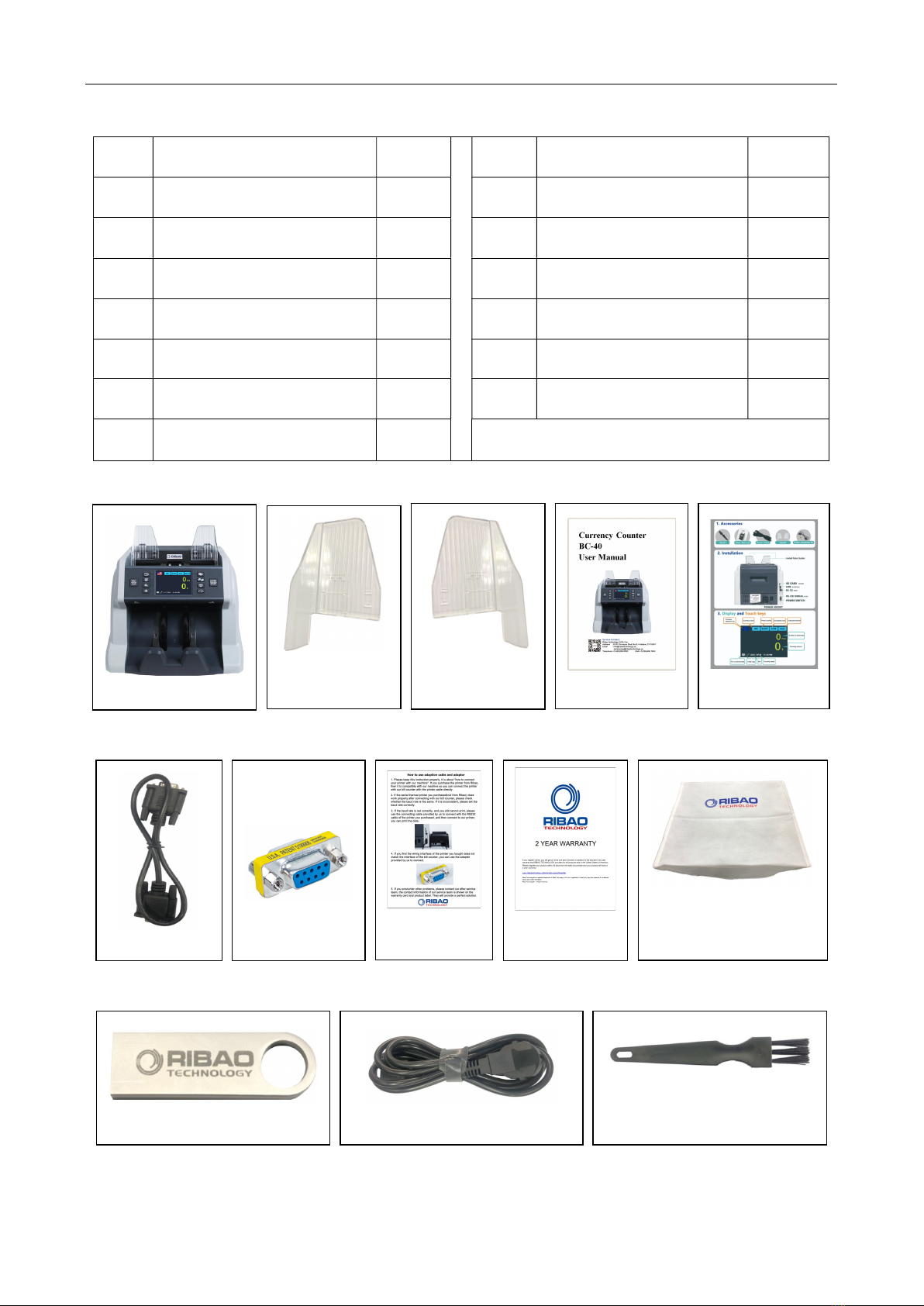

1.3 Machine & Accessories
No. Description Qty No. Description Qty
1 Machine 1 8 manual for printer cable 1
2 Note guider(left) 1 9 warranty card 1
3 Right guider(right) 1 10 dust cover 1
4 user manual 1 11 U Disk 1
5 Simple manual 1 12 Power cable 1
6 DB9 cable 1 13 Clean brush 1
7 DB9 adaptor 1
1 2 3 4 5
6 7 8 9 10
11 12 13

BC-40 User Manual V1.3
6
1.4 Appearance
1.4.1 Front Appearance
1.4.2 Back Appearance
Stacker
Hopper
Note Guider
Display
Key
SD card slot
Power jack
Serial port：
connect PC
/Printer
Feed gap knob
Rear lid open button Power switch
USB slot
RJ12：
Connect external
display
Handle：Use when
transporting the
machine, and place it
behind the machine
when counting
money.

BC-40 User Manual V1.3
7
1.5 Technical Parameters
Overall dimensions
(length×width×height)
300mm×247mm×287mm
Weight About 7KG
Applicable currency USD,EUR,MXN,CAD etc
Banknote capacity Max 4 currencies in one machine
Power requirement
220V±10%，50Hz±5%
110V±10%，60Hz±5%
Counting mode
Mix counting mode, single counting mode, piece counting mode,
automatic recognition mode, multi-country mix counting mode.
Counting speed
Value counting mode（MIX/SDC）：800/1000/1200 PCS/min
Piece counting mode（CNT）：1000/1200/1500 PCS/min
Counterfeit function UV/MG/MT/IR
Preset number 0~200
Display 3.5 inch TFT touch screen
Hopper capacity 500pcs
Stacker capacity 200pcs
Size range of sortable banknotes
Length：120mm~180mm
Width：50mm ~90mm
Thickness of sortable banknotes 0.05mm~0.15mm
Machine power standby≤15W，normal operation≤50W
Noise from machine operation No load＜60dB，operation＜75dB
Software upgrade USB upgrade
External display Optional
Use environment
Ambient temperature (0~40℃)/humidity (40~90%)
Air pressure (70-106kpa)
Storage environment
Ambient temperature (-40~55℃)/humidity (10~95%)
Air pressure (70-106kpa)

BC-40 User Manual V1.3
8
1.6 Start-up
Reminder: To ensure smooth counting please install the left and right Note Guider in the box. Please
check below Figure 2.
Figure 2

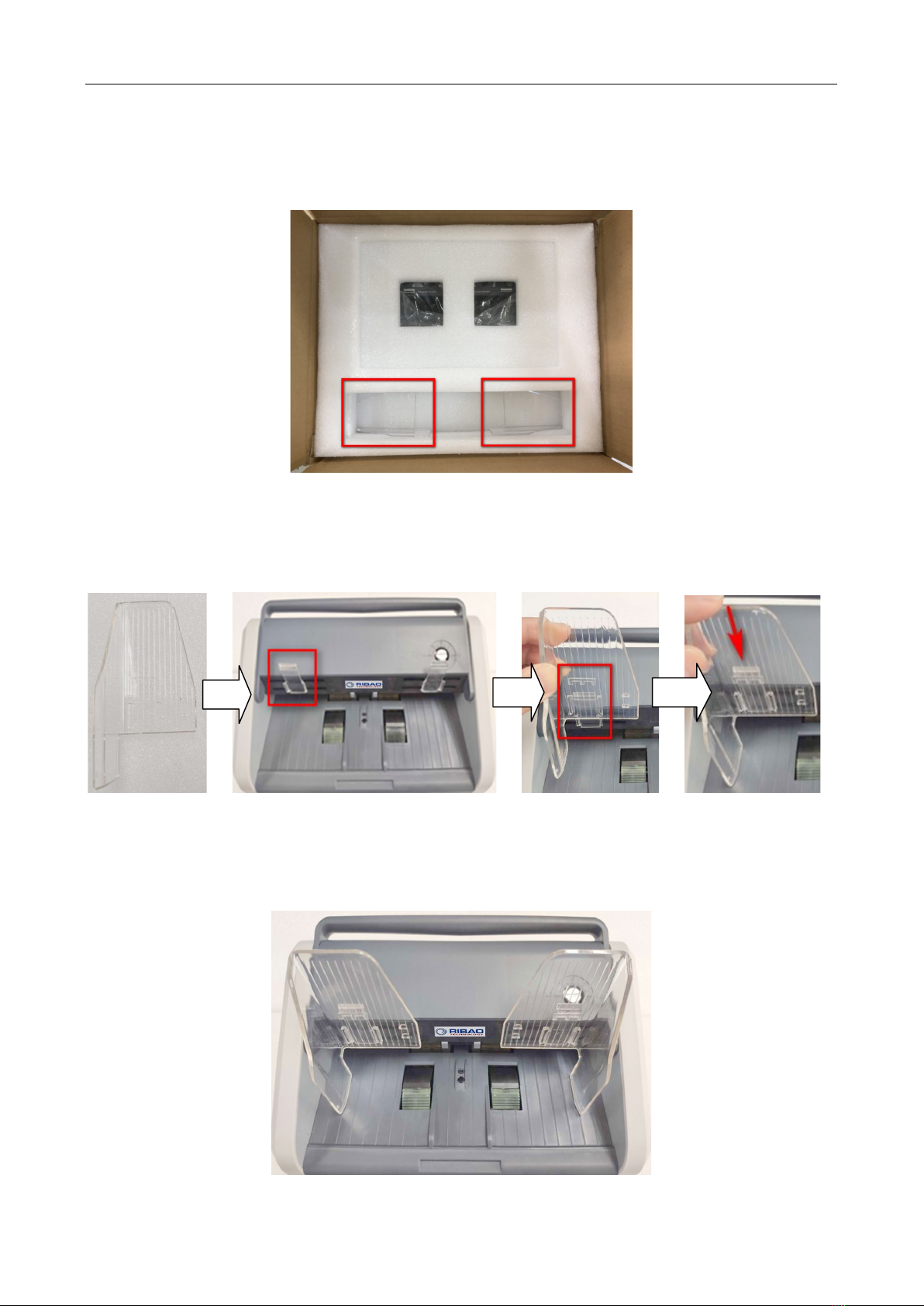

1) Take out the left Note Guider, install the click into the rail of the Note Guider, and press the Note Guider
until you hear a clicking sound, it means the Note Guider is installed in position, as shown in the Figure 3.
Figure 3
2) Then take out the right Note Guider, intall it in the same way. After you finish both, the machine looks like
this:
Figure 4

BC-40 User Manual V1.3
9
3) Connect the machine to the power supply and turn on the power switch. First, the machine enters the
loading interface. After loading, the machine enters the self-check interface, as shown in Figure 5 below. The
machine will enter the main interface after self-checking succeeds, as shown in Figure 6 below:
Figure 5 Figure 6
1.7 Notes Placement
1) Please put the handle of the machine on the back of the machine first.
2) The banknotes to be counted should be sorted according to size and then put into the hopper. The
banknotes counted should be pre-arranged and straightened out when they encounter folds, folds, and arches,
which can increase the one-time pass rate.
3) During the banknote counting process, the note guider should be limited according to the maximum size
of currently counted notes to ensure that the banknotes can be accurately identified by the relevant sensors.
Taking US dollors as an example, please arrange the banknotes first, and then limit the note guider according
to the largest size banknote. Finally, put the banknotes into the hopper and start counting, as shown in the
Figure 7:
Figure 7

BC-40 User Manual V1.3
10
1.8 Counting error code
Error reporting code Reason for error
ERROR-001 Banknotes not recognized
ERROR-002 Different denominations (Single Counting Mode)
ERROR-003 Suspicious UV reflection
ERROR-004 Suspicious MG
ERROR-005 Suspicious MT
ERROR-006 Banknote size
ERROR-007 Timeout Error
ERROR-008 Different Currency
ERROR-009 Chained Notes
ERROR-010 Double Notes
ERROR-011 IR1 Error
ERROR-012 IR2 Error
ERROR-013 IR3 Error
ERROR-014 IR4 Error
ERROR-015 IR5 Error
ERROR-016 IR6 Error
ERROR-017 IR7 Error
ERROR-018 IR8 Error
ERROR-019 IR9 Error
ERROR-026 Notes not in center
Power Abnormal! Power Abnormal
JAM Notes jam in the passage
Passage Abnormal! Passage Abnormal
Stacker Error! Stacker sensor is blocked

BC-40 User Manual V1.3
11
2. Function Introduction
2.1 Function Introduction
2.1.1 Display Interface and Touch Screen Description
Figure 8
2.1.2 Operating Instructions for Function Keys
Return key, to return to the previous interface when the function is set; Clear key.
Currency selection key.
Mode switch key.
Function key.
Counting information check key.
Accumulative function switch key.
Preset switch key.
Add
U-disk
Number of
banknotes
counted
Automatic/
manual
Counting
amount
Counting
mode
Currency
selection key
Preset
quantity
Counterfeit
level
PC or printer Counting speed

BC-40 User Manual V1.3
12
Data printing key.
Speed switch key.
Start key, start the machine manually; Save key after selecting and entering, confirming or
modifying the function.
2.1.3 Manual/Automatic Setting

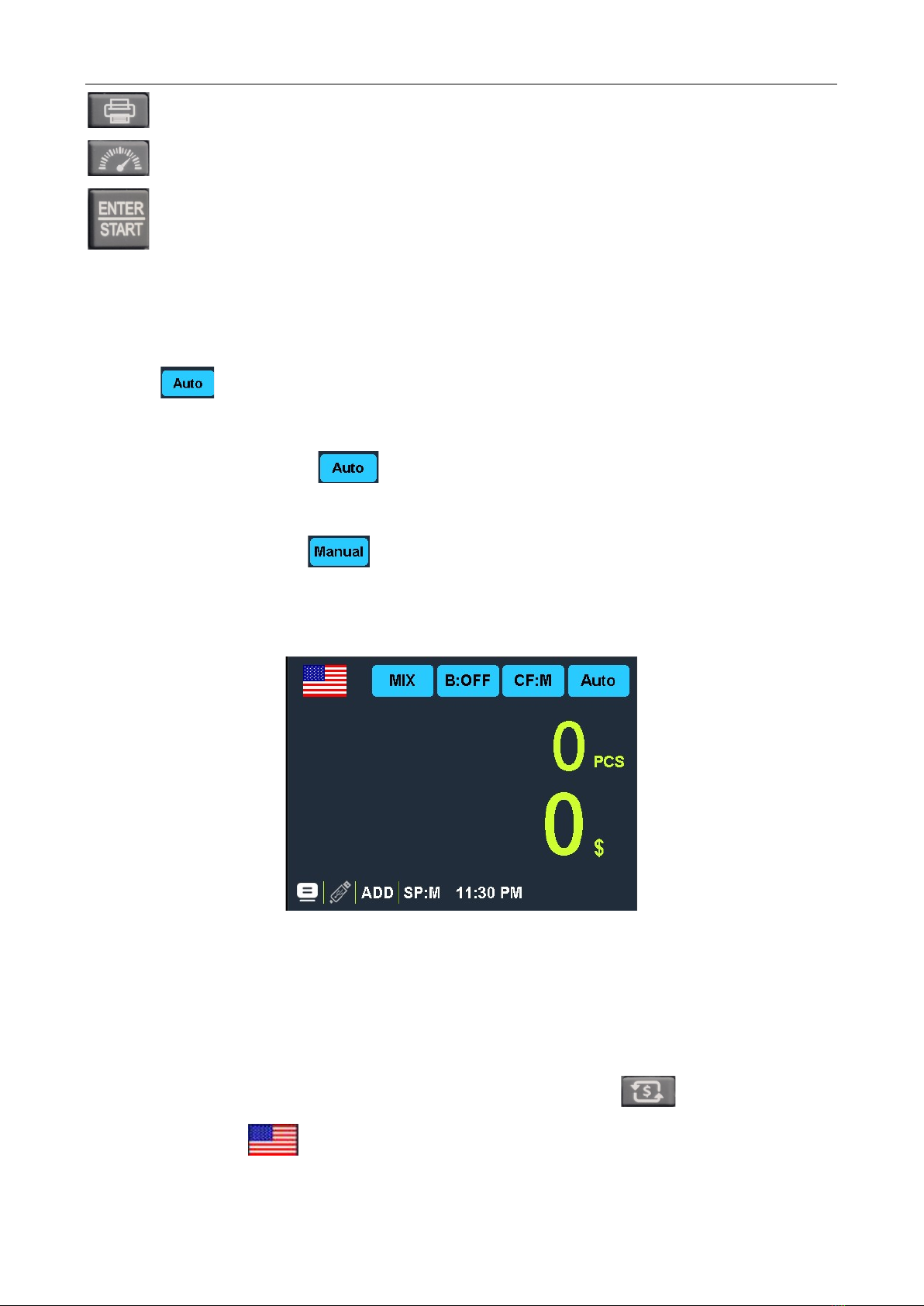

The “ ” key in the upper right corner of the display is the manual/automatic switch key. Touch it
and the mode will be changed.
Automatic mode: the word “ ” will appear in the upper right corner. The machine will count the
banknotes automatically when they are put into the banknote hopper, as shown in Figure 9.
Manual mode: the words “ ” will appear in the upper right corner. The machine will count the
banknotes when they are put into the banknote hopper. After pressing START, the machine will count the
banknotes.
Figure 9
2.1.4 Selection of Counting Mode
2.1.4.1 Single Country Currency Model

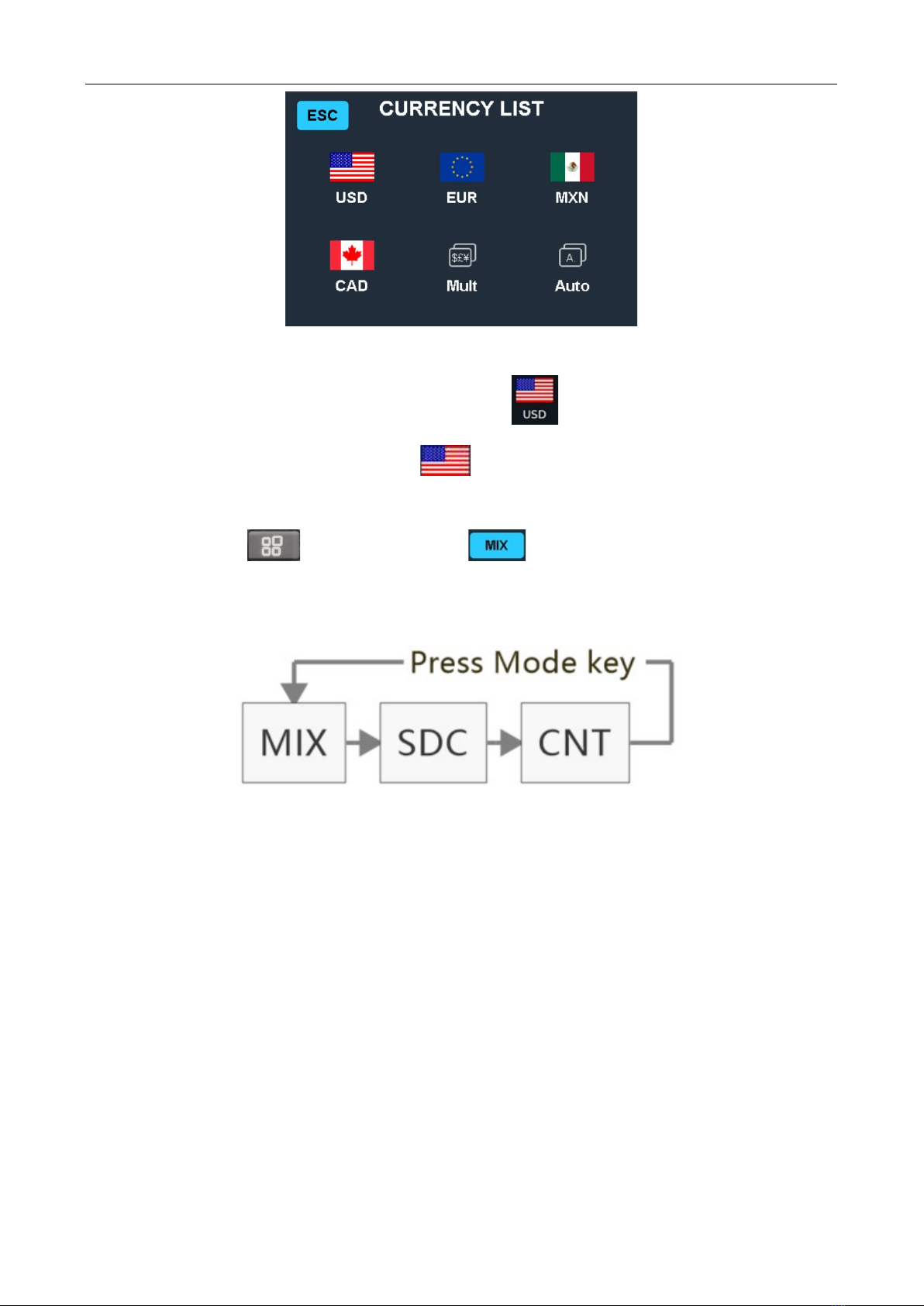

The currencies of different countries can be selected by pressing the “ ” key on the keyboard
plate or touching the “ ” flag pattern in the upper left corner of the display, as shown in Figure 10
below:

BC-40 User Manual V1.3
13
Figure 10
Take US dollors as an example. After the touch of “ ” key, the display returns to the main
interface, and the top left corner displays the “ ” flag graphic, indicating that the machine is in the
mode of counting US dollors.
By pressing the “ ” key or touching the “ ” key above the display, the three counting
modes can be cyclically switched. In each mode, the machine will work with the default value of the system.
The corresponding order of each mode is shown in Figure 11 below.
Figure 11
2.1.4.1.1 <MIX> Mix Counting Mode
Figure 12 and Figure 13 below show the interface of Mix Counting Mode in the automatic state of the
machine. In this mode, the machine will count all the denominations of the same currency and record the
detailed information of the counted banknotes, including the total amount and the total number of banknotes
in the stacker for the convenience of users to view. When this mode is selected, the machine will count at the
default speed (L: 800/M: 1000/H:1200 PCS/min. 3 levels for option).

BC-40 User Manual V1.3
14
Figure 12 Figure 13
2.1.4.1.2 <SDC> Single Counting Mode
Figure 14 and Figure 15 below show the interface of Single Counting Mode in the automatic state of the
machine. In this mode, the machine will take the first banknote to be counted as a reference to count the
same denomination of the same currency, and at the same time the detailed information of the counted
banknotes, including the total amount and the total number of banknotes in the stacker, will be counted and
saved in detail for the convenience of users to view (note: different denominations rejected in this mode will
be prompted with an error in size). When this mode is selected, the machine will count at the default speed
(L: 800/M: 1000/H:1200 PCS/min. 3 levels for option).
Figure 14 Figure 15
2.1.4.1.3 <CNT> Count Mode
Figure 16 and Figure 17 below show the interface of CNT Count Mode in the automatic state of the
machine. This mode does not limit the currency and only counts the number of PCS. When this mode is

BC-40 User Manual V1.3
15
selected, the machine will count at the default speed (L: 1000/M: 1200/H:1500 PCS/min), and only the
counterfeit function is reserved.
Figure 16 Figure 17
Note: In MIX Counting Mode and SDC Single Counting Mode, the machine has the functions of image
acquisition, magnetic detection, ultraviolet detection and duplicate detection. While in CNT Counting Mode,
there is only a double detection function.
2.1.4.2 Multi-country Mix Counting Mode
Multi-country Mix Counting: A mixture of national currencies placed in a machine to count, displaying
the number and amount of each currency according to its currency name. Note: The machine can only
recognize the supported national currency displayed by the machine. The currency not supported will be
stopped.
Press the “ ” key or the “ ” flag in the upper left corner of the display to enter the currency
selection interface as shown in Figure 10. Then click “ ” Multi-country Mix Counting Mode, and the
display screen will automatically switch to the main interface. At this time, the currencies of the four existing
countries in the software will be displayed (depending on customer requirements, the currencies of different
countries will be displayed) as shown in the following figure 18:

BC-40 User Manual V1.3
16
Figure 10 Figure 18
Example: Put a handful of banknotes (including USD, EUR, MXN, CAD) into the machine to count.
Details of counting after counting are shown in the following Figure 19:
Figure 19
2.1.4.3 Automatic Recognition Mode
Automatic recognition: Refers to the automatic recognition of banknote counting mode. In the process
of counting banknotes, the machine uses the first banknote passing through the sensor as the judgment rule to
recognize banknotes of all denominations of the same country. When banknotes from other countries are
recognized, the machine will alarm and stop. At this time, banknotes from other countries need to be taken
out, and the machine will continue counting. The machine can only recognize the currency of the country
displayed in the program.
Press the “ ” key or the “ ” flag on upper left corner of the display to enter the currency
selection interface, as shown in Figure 10 below. Click the “ ” automatic identification mode, and the

BC-40 User Manual V1.3
17
display screen will be automatically adjusted to the main interface after selection, as shown in Figure 20
below:
Figure 10 Figure 20
In the automatic recognition mode, there are two counting modes: Mix Counting Mode and SDC Single
Counting Mode. Customers can choose operation according to their needs. It is recommended that customers
choose Mix Counting Mode for automatic recognition.
2.1.5 Counting Speed Setting and Function Description
The counting speed is divided into three options: H, M, L (high, medium and low). Under any counting
mode, different counting speed can be changed by pressing the “ ” key. The current speed level will
be displayed in the red box of Figure 21. The letter H means high level. If medium or low level is selected,
SP:M or SP:L will be displayed accordingly.
Figure 21
The corresponding counting speed of each level under each counting mode is shown in the following
table:
Counting mode H M L
MIX 1200PCS/min 1000PCS/min 800PCS/min

BC-40 User Manual V1.3
18
SDC 1200PCS/min 1000PCS/min 800PCS/min
CNT 1500PCS/min 1200PCS/min 1000PCS/min
2.1.6 Check counting details on Machine
Under MIX counting mode or SDC counting mode, after finish counting and press left side button
“ ”, you can check the counting details as Figure 22 shows, Figure 23 is the interface after finish
counting:

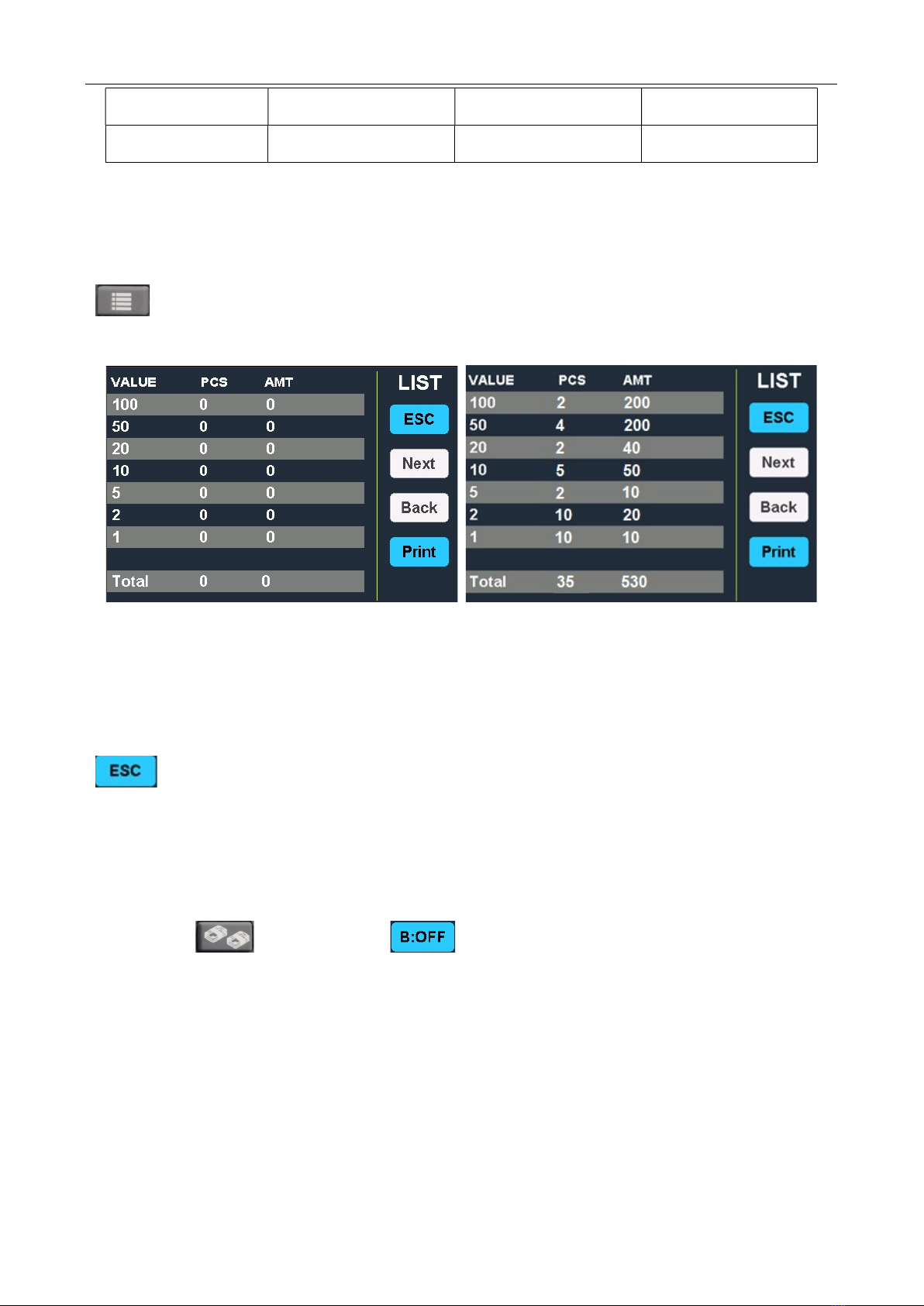

Figure 22 Figure 23
This interface is used to check the number of banknotes of various denominations and the total amount
of this denomination, as well as the total amount of all amounts. At the same time, banknotes can also be
counted by directly placing them under this interface. To exit this interface, please press ESC or touch the
“ ” key in the upper right corner of the display.
2.1.7 Batch Setting
2.1.7.1 Default Preset Number
Press the “ ” key or touch the “ ” key on the main interface to select the preset number.
The default is 10/25/50/100/200/OFF. (For example, Figure 24 is the preset number 25, and Figure 25 is the
preset number 50). The preset number of the previous "10/25/50/100" can also be changed. When the preset
number is off, the default preset number of the machine is 200. When the preset number reaches 200, the
machine will automatically stop running.

BC-40 User Manual V1.3
19

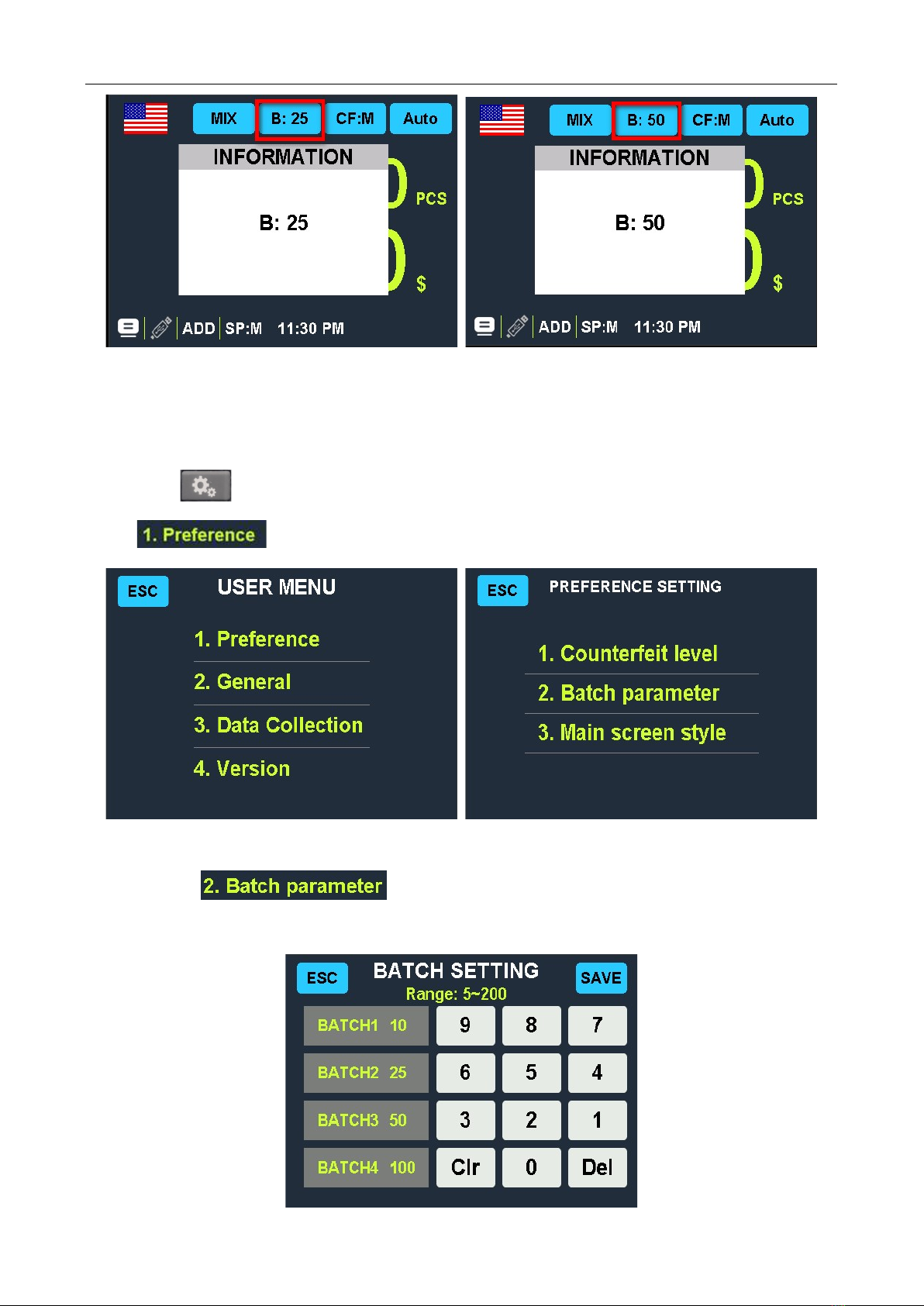

Figure 24 Figure 25
2.1.7.2 Modify Default Batch
1) Press the “ ” key to enter the main interface of USER MENU, as shown in Figure 26 below，Press
NO.1 “ ” to enter into PREFERENCE SETTING interface，as figure 27.
Figure 26 Figure 27
2) Press NO.2 “ ”under Figure 26 to enter into Batch Setting interface, as figure
28.
