mbp WR-320 MIX INOX User manual

SPRAY EQUIPMENT

I.MANUAL

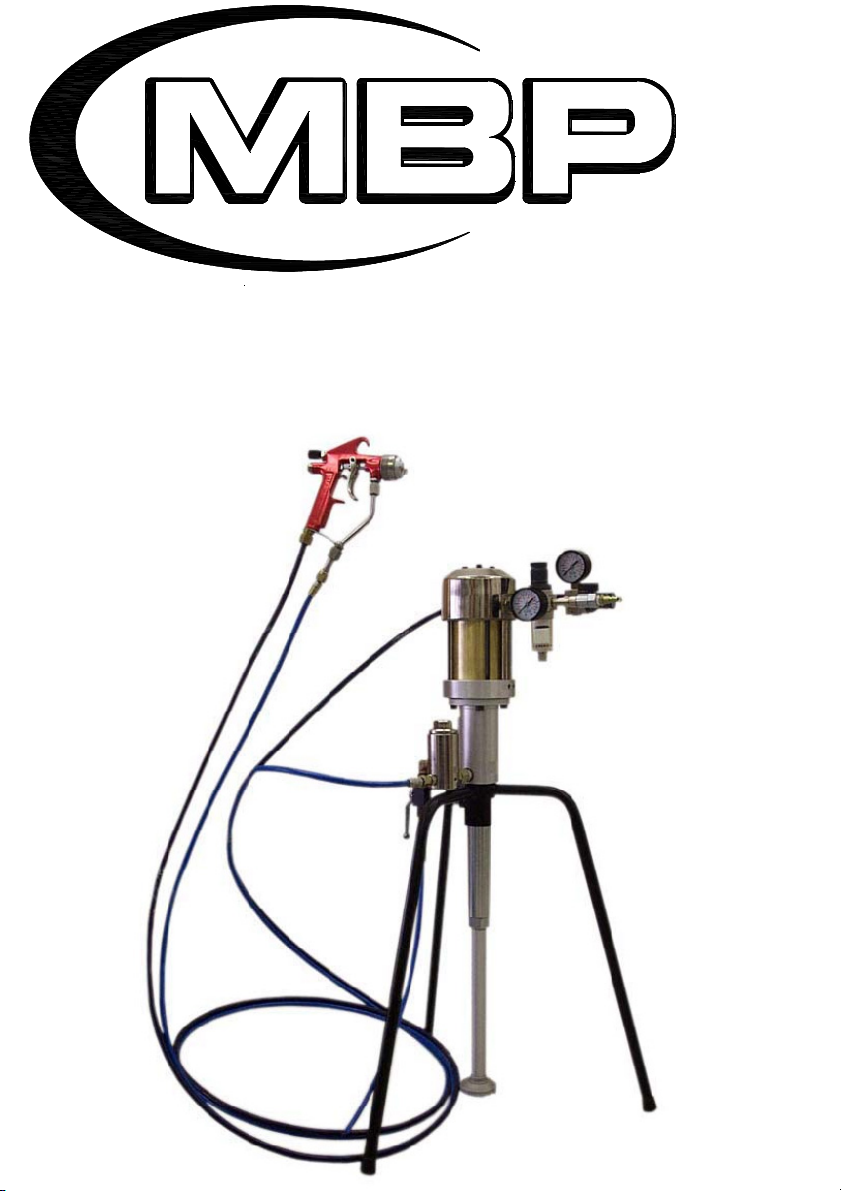

AIR-ASSISTED-AIRLESS PUMP
WR-320 MIX INOX

MODELO / MODEL WR - 320 MIX INOX
Este producto cumple con la siguiente directiva de la Comunidad
Europea.
This Product complies with the following European Comunity Directive.
Directiva 2014/34/EU Atex sobre máquinas. (Ex II 2G c T6 X)
Machinery Directive 2014/34/EU Atex Directive. (Ex II 2G c T6 X)
APROBADO POR /
APPROVED BY AITOR ORTIZ
FECHA / DATE
MBP, S.L. figura inscrita en el Registro Industrial del País Vasco con el
Nº 01/8030 y cumple los requisitos para el desarrollo de su actividad
comercial.
MBP, S.L. is registered in the Industrial Register of the Basque Country
with the Nº 01/8030.
DECLARACION DE CONFORMIDAD ‘’CE’’
‘’EC’’DECLARATION OFCONFORMITY

1
INDEX
Warning .............................................................2
Pressure relief procedure ..................................3
Hose safety ......................................................3
Spray gun & Operating instructions ................3&4
Maintenance (cleaning) ....................................5
Spray tips ........................................................5
Troubleshooting guide .......................................6
Parts ....................................................7, 8&9
TECHNICAL DETAILS
* PUMP RATIO: 32:1
* DELIVERY RATE: 27ccm.
* MAX. DELIVERY: 4 l/min.
* AIR MOTOR DIAMETER: 85mm.
* AIR PRESSURE RANGE: 2-8 bar
* AIR CONSUMPTION: 50-210 l/min.
* MAX. FLUID PRESSURE: 256 bar

2
WARNING
Attention !! Read and understand all instructions carefullybefore operating equipment.
INJECTION HAZARD
This equipment generates very high fluid pressure. Sprayfrom the gun, leaks or ruptured
components can inject fluid through your skin and into your body and cause serious
bodilyinjury.
The spray gun should never be handled carelessly, nor spray directed toward any part of
the body. Keep your hands fingers away from spray gun nozzle.
Be sure equipment safely devices are operating properly before each use.
If anyfluid appears to penetrate your skin, get emergency medical care at once. Do not
treat as a simple cut. Tell the doctor exactly what fluid was injected.
FIRE HAZARD
Static electricityis created bythe high velocity flow af fluid through the pump and hose.
If every part of spray equipment is not propely grounded, sparking immediately. Check
the entire system for positive grounding.
GROUNDING
Before starting to work the pump must be connected to ground:
1.-
2.-
3.-
4.-
5.-
The pump must be connected to ground with a ground wire which is supplied
with the pump ( 4mm2of section and a clamp). See connection on page 9.
SPRAY GUN: obtain grounding through connection to a properly grounded
fluid hose and pump.
OBJECT BEING SPRAYED: use ground wire and clamp.
AIR COMPRESSOR: follow air compressor manufacturer ’s
recommendations.
Use only metal pails, which are conductive. Do not place the pail on a
nonconductive surface, such as paper or carboard, which interrups the grounding
continuity.

3
PRESSURE RELIEF PROCEDURE
1.-
2.-
3.-
4.-
5.-
6.-
7.-
8.-
Engage the gun safety latch.
Shut off the air to the pump.
Close the air inlet valve.
Disengage the gun safetylatch.
Hold a metal part of the gun firmily to the side of a grounded metal pail, and trigger
the gun safety latch.
Engage the gun safety latch.
Open the drain valve, having a grounded metal container ready to catch the drainage.
Leave the drain valve open until you are ready to spray again.
HOSE SAFETY
Tighten all fluid connections securelybefore each use. Never use a damage hose. Before
each use, check entire hose for cuts, leaks, abrasions, building cover, or damage or
movement of the hose couplings. If any of these conditions exist, replace the hose
immediately.
SPRAY GUN
It is recommended strain the fluid you are spraying if the contains particles which could
clog the spray tip.
Cleaning the spray tip
Clean off the front of the tip frequentlyduring the day’s operation and at the end of the
work day. Always follow the Pressure Relief Procedure. Then use a solvent soaked
brush toclean the spraytip and to keep fluid buildup from drying and cloggingthe spray
tip.
If the spray tip clogs while spraying, release the spray gun trigger, engage the trigger
safety, shut off the pump, and follow the Pressure Relief Procedure. Remove the spray
tip and blow out the obstructions with air from the front of the spray tip.
Normal daily flushing of your spray system and gun flushes away most buildup on the
filter. However, you should remove the filter frecuentlyand clean it.

4
AIR-ASSISTED-AIRLESS GUN J.1000
Flushinf the gun.
Relieve pressure, remove the spraytip and then flush thegun and spraywith a compatible
solvent.Always flush the gun before the fluid being sprayed can dry in it.
OPERATING INSTRUCTIONS
Follow all instructions above, be sure that fittings at pump outlet and at gun are tight.
Use two wrench to tighten the maing fitting. Do not install the spray tip at this time.
Put the suction tube into the paint container. Flush the pump with a compatible solvent
before using it.
DESCRIPTION
NOZZLE
AIR CAP
FAN REGULATOR
NUT
O-RING
AIR DIFUSOR
NEEDLE SEAT
JOINT
NEEDLE COMPLETE
BODY
Nº
1
2
3
4
5
6
7
8
9
10
REF.
93.XXXX
J.501.560.00
J.501.520.00
J.501.500.01
CJT.101
J.501.500.16
1000.200.00
1000.000.02
1000.530.00
1000.110.00
DESCRIPTION
JOINT
PACKING NUT
PACKING
VALVE AIR
SPRING
PLUG
BODY FILTER
NUT
FILTER
PRODUCT TUBE
TRIGGER
TRIGGER PIN
WASHER
NUT
HEAD VALVE ROD
ROD VALVE AIR
RACORD
JOINT
SAFETY LATCH
Nº
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
REF.
CJT.103
J.501.500.06
J.501.500.07
J.501.500.08
J.501.500.09
J.501.500.10
J.501.500.12A
J.501.500.12B
J.300.XXX
J.501.550.00
1000.500.14
J.501.500.15
J.200.07
CTU.011
1000.000.01
J.501.500.17
K.100.16
K.100.17
J.501.511.00

5
SPRAYTIPS
When a tip is the wrongsize, or becomes the wrong size through wear, the spray pattern
worsens, coverage decreases, you have less control over the desired rate of coverage,
and it takes longer to finish the job. In the worst case, the pump supplying the tip can be
damaged. Because most architectural coating are abrasive, tip wear can happened quite
quickly. Notice as wear increases the orifice size, it decreases the fan width which greatly
affects coverage rates.
If tip shows excessive wear, replace it to maximize productivityand save paint.
MAINTENANCE (Cleaning)
It is recommended that at the end of each day, paint should be flushed from unit with
compatible solvent then reflused with mineral spirits.
1.-
2.-
3.-
4.-
5.-
Engage the gun safetyand follow the Pressure Relief Procedure.
Remove the spray tip and clean with a compatible solvent and soft brush.
Disengage the gun safety and follow the pressure relief procedure. Lift suction pipe
above paint level until pipe is empty. Introducing the suction pipe in a pail with
compatible solvent. Disengage gun safety and trigger gun into the paint pail until it
runs clear. Close the air inlet valve
Open the fluid drain valve. Remove the fluid filter and the gun filter and clean them
with solvent.
Flush the sprayer at the end of each work day and fill it with solvent to help prevent
pump corrosion.

6
For trouble free operation is absolutely essential that your sprayer be kept
clean and free of residual paint build-up on the internal parts.
It must be cleaned and lubricated after each use.
POSSIBLE CAUSE
• Resticted line or inadequate air supply.
• Insufficient air pressure, closed or
clogged air valves.
• Exhausted fluid supply.
• Obstructed fluid hose, gun or
dispensing valve.
• Clogged spray tip or filters.
• Clogged filters.
• Exhausted fluid supply
• Obstructed fluid hose or gun.
• Worn spray tip.
• Held open or worn intake valve.
• Hed open or worn fluid piston or
packings.
• Exhausted fluid supply.
• Check valves need adjustment.
• Held open or worn intake valve.
• Hed open or worn fluid piston or
packings.
SOLUTION
• Clear, increase air.
• Open clean.
• Refill; purge all air from pump
and fluid lines.
• Clear.
• Clear or replace.
• Clear or replace.
• Refill and prime.
• Clear.
• Replace.
• Clear.
• Clear or replace.
• Refill and prime.
• Adjust.
• Clear.
• Clear or replace.
PROBLEM
Pump fails to
operate.
Pump operates
but output low
on down stroke.
Erratic or
accelerated
operating.
TROUBLESHOOTING GUIDE

7

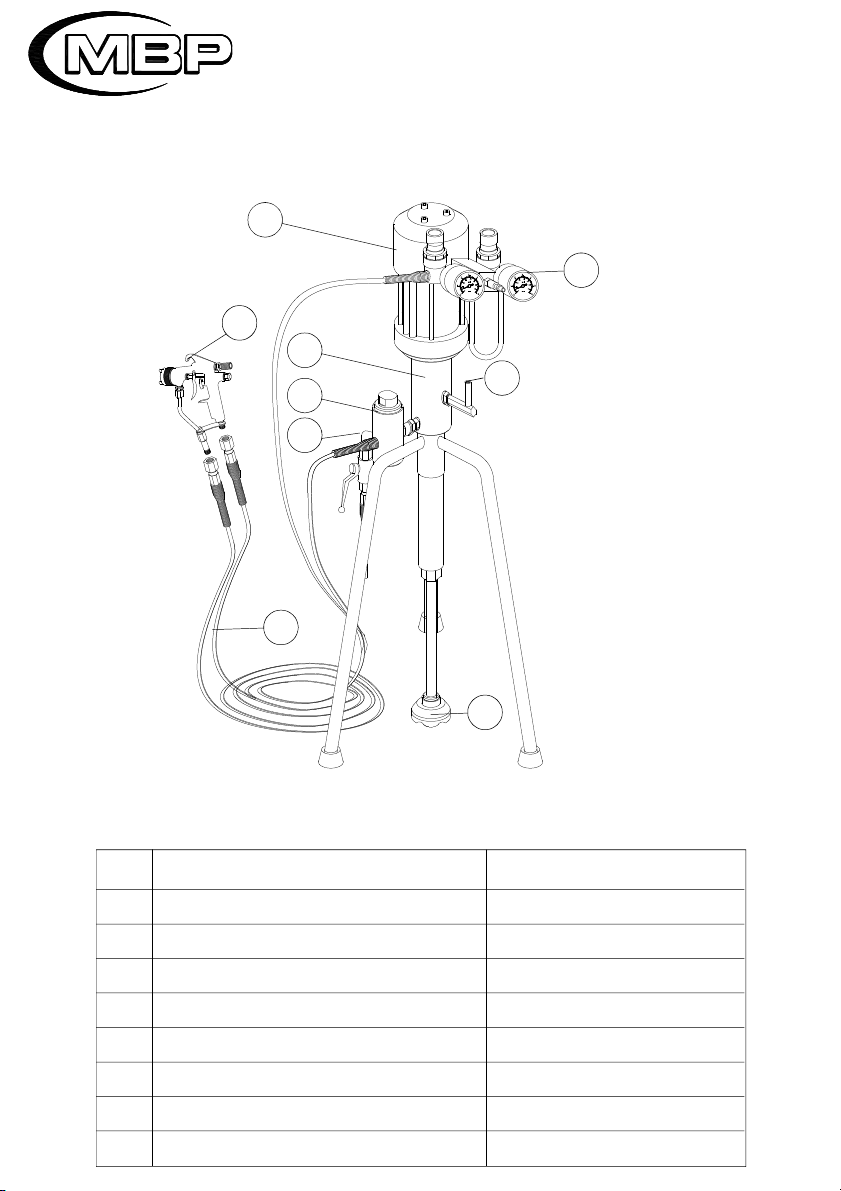

PARTS
1
2
3
4
5
6
7
8
9
AIR MOTOR
DISPLACEMENT PUM
SUCTION FILTER
HP FILTER
DRAIN VALVE
AIR REGULATOR
HOSE
GUN
LUBRICANT INLET
080.100.00
080.200.00X
080.500.00
080.300.00X
G.110.00
F.601.00
20.40.05
J.1.000
080.210.00
1
2
3
4
5
6
7
8
9

8
080.100.00
CTB.002
080.100.01
CNA.116
CTB.012
080.120.00
080.100.05
080.170.05
180.100.08
080.150.00
080.100.07
080.100.04
CTB.030
080.110.00
080.140.00
080.100.09
080.100.11
080.100.10
CTU.002
CTG.009
080.130.00
080.100.02
CAR.112
CAB.005
080.100.03
080.170.01
CJT.022
080.170.02
CJT.023
080.170.03
080.171.00
080.170.04
CJT.024
080.100.13
CAR.118
080.800.00
080.100.12
CJT.025
080.100.14
080.100.06
SCREW
COVER
RACORD
SCREW
COVER
SNUBBER
GUIDE
WASHER
AIR DISPENSER
HOUSING
SNUBBER
SCREW
MOTOR BODY
SPRING SUPPORT
SPRING BUTT END
SPRING
SUPPORT
NUT
SCREW
PLUG
BUSHING
RETAINER
RING
SEAL
PISTON
JOINT
SEAL
JOINT
WASHER
ROD
ROD
JOINT
CYLINDER
RETAINER
KEEPING BACK
MOTOR BASE
JOINT
PIPE
RING
3
1
1
2
1
1
1
1
1
1
1
4
1
2
2
2
2
2
2
1
1
2
1
1
1
1
1
1
1
1
1
2
1
1
1
1
4
2
1
Nº REF. DESCRIPTION Q

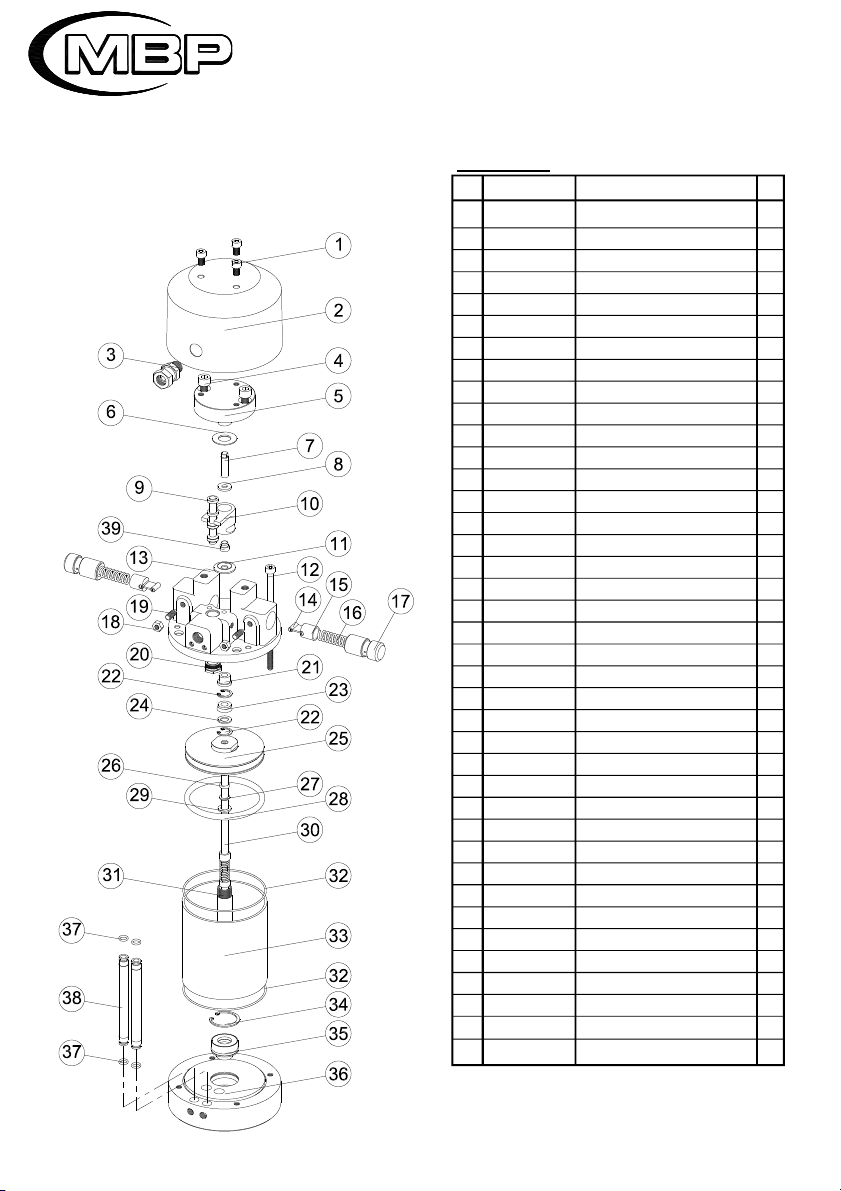

AIR MOTOR
1
2
3
4
5
6
7
8
*9
10
11
12
13
14
15
16
17
18
19
20
21
22
*2 3
24
25
26
27
*2 8
29
30
31
32
33
34
*3 5
36
37
38
39
*Included in KIT.055

9

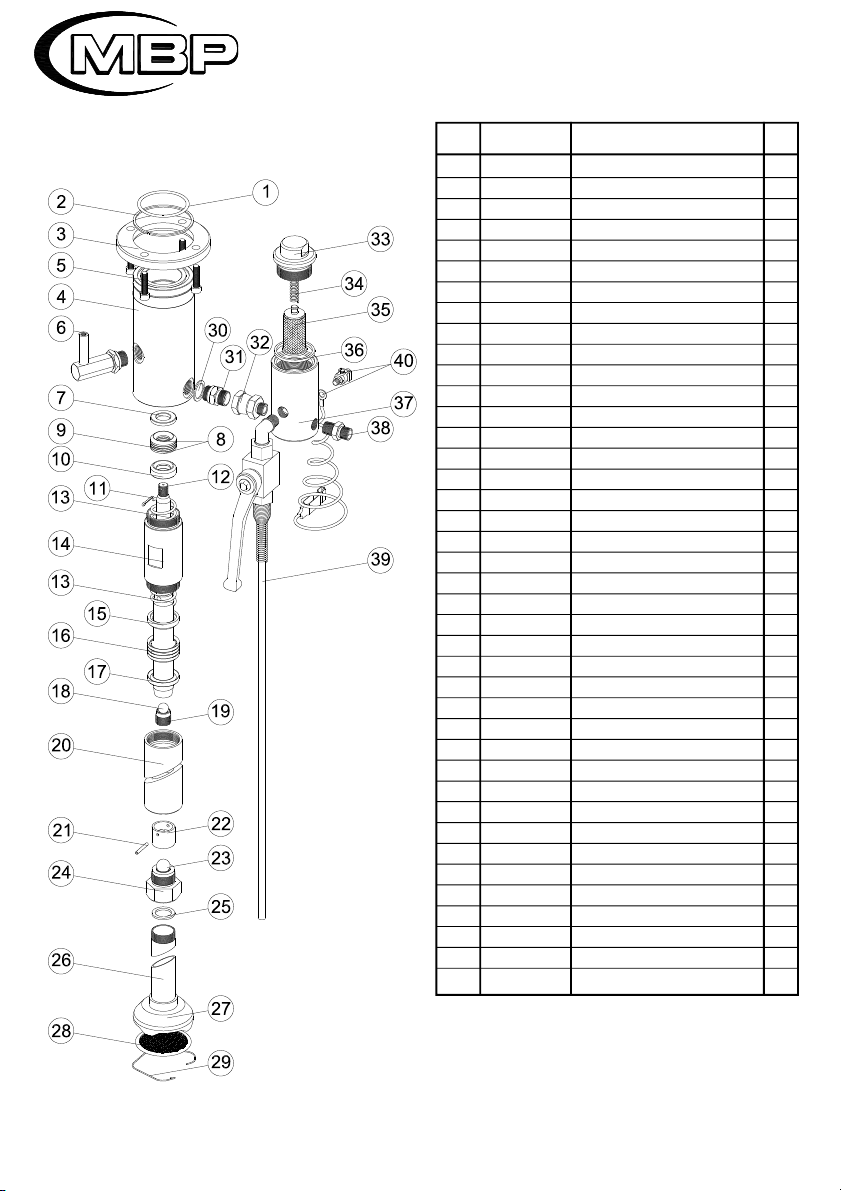

DISPLACEMENT PUMP
1
2
3
4
5
6
*7
*8
*9
*10
11
12
13
14
*15
*16
*17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
1
1
1
4
1
1
4
1
1
1
1
2
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Nº REF. DESCRIPTION Q
JOINT
RETAINER
BRIDLE
BODY
SCREW
OILTUBE
FEMALE GLAND
PACKINGCYLINDER
PACKINGCYLINDER
MALE GLAND
PIN
ROD
SPRING
CYLINDER
MALE GLAND
PACKING PISTON
FEMALE GLAND
BALL
PISTONVALVE
HOUSING
PIN
BALLGUIDE
BALL
INLETVALVE
JOINT
SUCTION PIPE
FILTERBODY
FILER
SPRING
WASHER
RACORD
RACORD
COVER
SPRING
FILTER
JOINT
FILTERBODY
RACORD
DRAINVALVE
GROUND
NOTE: Fix parts 12 and 19 with loctite 542 or
similar (wait 1 hour before start running the unit)
*Included in KIT.024X
CJT.026
CAR.111
080.200.03
080.200.01
CTB.013
080.210.00
080.200.04X
B.131.02
B.930.04
080.200.06X
CPA.109
080.200.16X
080.200.07
080.200.08X
080.200.12X
080.200.13
080.200.15X
CBO.110
080.230.00
080.200.09X
080.200.11
080.200.10
CBO.111
080.220.00X
080.200.19
080.200.18
080.500.01
D.132.00
D.130.02
CAR.015
080.240.00X
080.910.00
080.300.01X
080.300.04
080.310.00
080.300.02
080.300.03X
G.100.06X
G.110.00
TIE.GR

WARRANTY
M.B.P., will any repairs necessary during the first 12 months after purchase of a new unit,
with the exceptions shown under 1 and 2 below, and under the conditions shown in item 3.
Damage caused by external abuse, customer negligence, or failure to operate
the unit in accordance with the instructions supplied with the unit.
Normal maintenance items.
Within the first 12 months after purchase, M.B.P. will pay 100% of the cost of
covered repairs.
In no case will M.B.P.liability extend beyond repair or repalacement of the equipment.
Such liability is limited to the amount of the original purchase price paid for the unit, minus
a reasonable deduction for the time the unit has been in service. It is the responsibility of
the purchaser under this warranty to ship or deliver the failed paint sprayer to the authorized
service center at the purchaser’s expence. Parts or components covered under this
warranty may either be repaired or replaced at M.B.P. option.
Equipent not covered by M.B.P. warranty. Accessories or components of equipment sold
by M.B.P. that are nort manufactured by M.B.P. are subject to the warranty, if any, of
their manufacturer. M.B.P. will provide purchaser with reasonable assistance in making
such claims.
The Industry Department of The Basque Goverment, states that all electric and pneumatic
airless equipment manufacture by M.B.P. S.L., follows the ’’CE’’ standards under the
number 83/392/CEE.
1.-
2.-
3.-
MBP, S.L.
Plgno. Ansoleta,
C. Anboto, 17
01006 VITORIA (SPAIN)
P.O.Box 3144
Phone. [phone]
Fax. [phone]
e-mail: [e-mail]
www.mbpspray.com IMP 002X-SEPTIEMBRE 2019
