INSTRUCTIONS AND PARTS LIST
SERIES TEL 25-2K-I (1:1)
SS-316
Instructions and Parts List
INDEX
Typical installation ..................... 1
Warnings .................................... 1
Pressure relief procedure ............ 2
Operating instructions ................ 2
Cleaning ................................... 3
Parts drawing & list .................... 5
Troubleshooting guide ............. 10

BASE
DISOLVENTE
DE LIMPIEZA
CATALIZADOR
BASE
RESINA
WARNING
ATTENTION!! Read and understand all instructions carefully before operating equipment.
INJECTION HAZARD
This equipment generates very high fluid pressure. Spray from the gun, leaks or ruptured components
can inject fluid through your skin and into your body and cause extremely serious bodily injury.
The spray gun should never be handled carelessly, nor spray directed toward any part of the body.
Never put hand or fingers over the spray tip.
Be sure equipment safety devices are operating properly before each use.
If any fluid appears to penetrate your skin, get emergency medical care at once. Do not treat as a
simple cut. Tell the doctor exactly what fluid was injected.

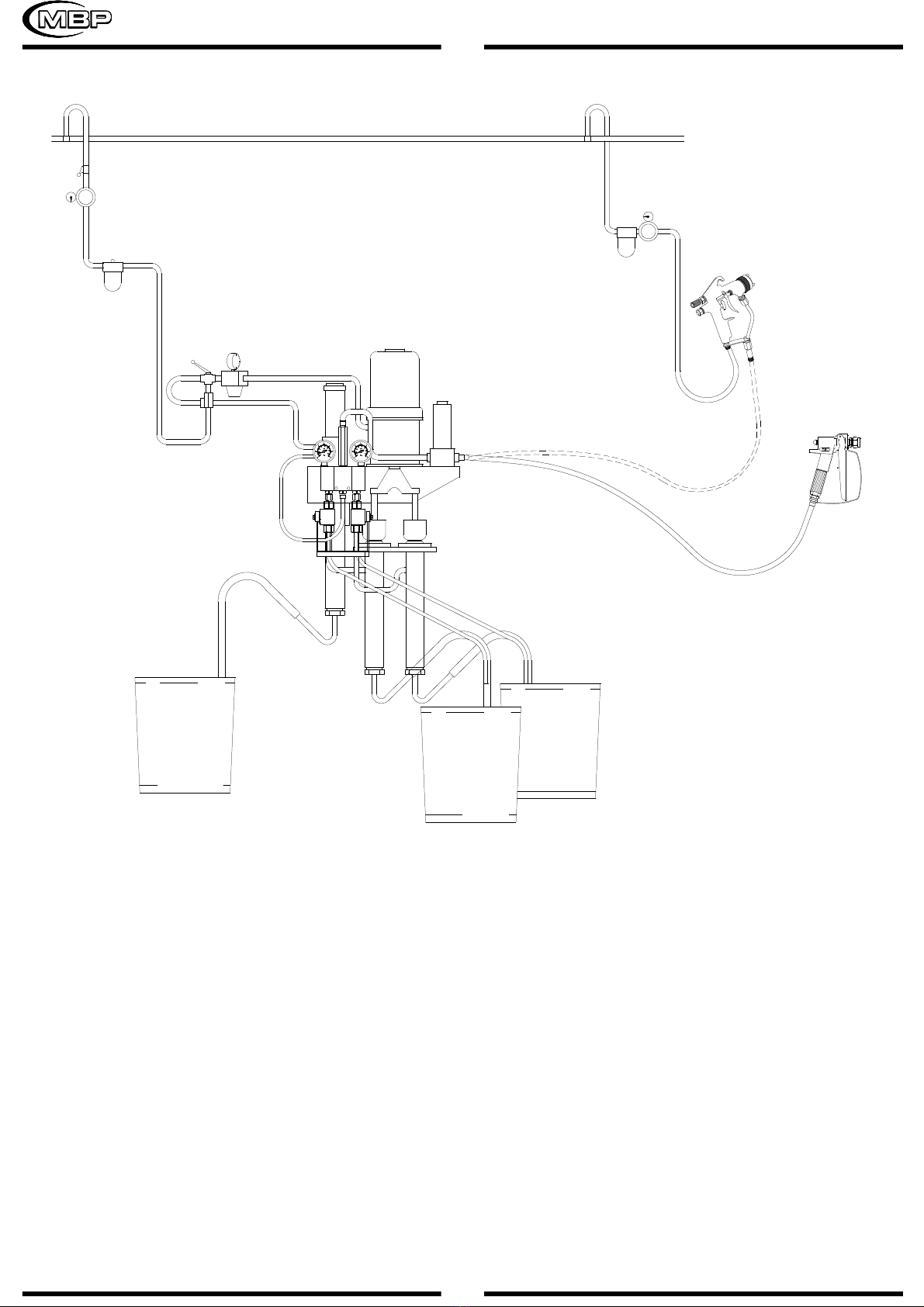

TYPICAL INSTALLATION
1

2
The pump must be connected to ground with a ground wire which is supplied with the
pump (4 mm2of section and a clamp).
SPRAY GUN: Obtain grounding through connection to a properly grounded fluid hose
and pump.
OBJECT BEING SPRAYED: Use ground wire and clamp.
AIR COMPRESOR: Follow air compressor manufacturer’s recommendations.
Use ONLY METAL PAILS, which are conductive. Do not place the pail on a non-
conductive surface, such as paper or cardboard, which interrupts the grounding
continuity.
1.-
2.-
3.-
4.-
5.-
FIRE HAZARD
Static electricity is created by the high velocity flow of fluid through the pump and hose. If every
part of spray equipment is not properly grounded, sparking may occur, and the system may become
hazardous. Check the entire system for positive grounding.
GROUNDING
Before starting to work the pump must be connected to ground:
1.-
2.-
3.-
4.-
5.-
6.-
7.-
8.-
Engage the gun safety latch.
Turn off the air to the pump.
Close the air inlet valve.
Disengage the gun safety latch.
Hold a metal part of the gun firmily to the side of a grounded metal pail, and trigger the
gun safety latch.
Engage the gun safety latch.
Open the drain valves (fig.1), having a grounded metal container ready to catch the
drainage.
Leave the drain valves open until you are ready to spray again.
PRESSURE RELIEF PROCEDURE

3
CLEANING
• Turn off the air inlet valve (fig.1).
• Remove the spray tip and trigger gun to relieve pressure.
• Set the air inlet valve ‘’A’’(fig.2) in position nº2. Now, the cleaning pump will start to pumpìng solvent.
• Trigger the gun until the solvent runs clear.
When the pump stay a long time without working, is necessary to circulate solvent throuugh the three
suction pipes.
OPERATING INSTRUCTIONS
Follow all instructions above, be sure that fittings at pump outlet and at gun are tight. Use two wrench to
tighten the maing fitting.
Fill the packing nut with oil to help prolong the packing life.
• Turn on the air to the pump (fig.1), but the position of this valve must to be ‘’close air’’.
• Check that the A, B and C valves are in position ‘’1’’ before open the air valve.
• Put the suction pipes into the respective containers:
‘’C’’ to base product (varnish)
‘’B’’to catalyst
• Open the air inlet valve (fig.1) and turn on the air regulator until the pump begins to cycle. Allow the
pump to cycle slowly until all air is purged from the fluid lines. The lines are purged when the fluids
emitted from the drain valves ‘’B’’and ‘’C’’is flowing in a steady stream.
•The pump is ready.

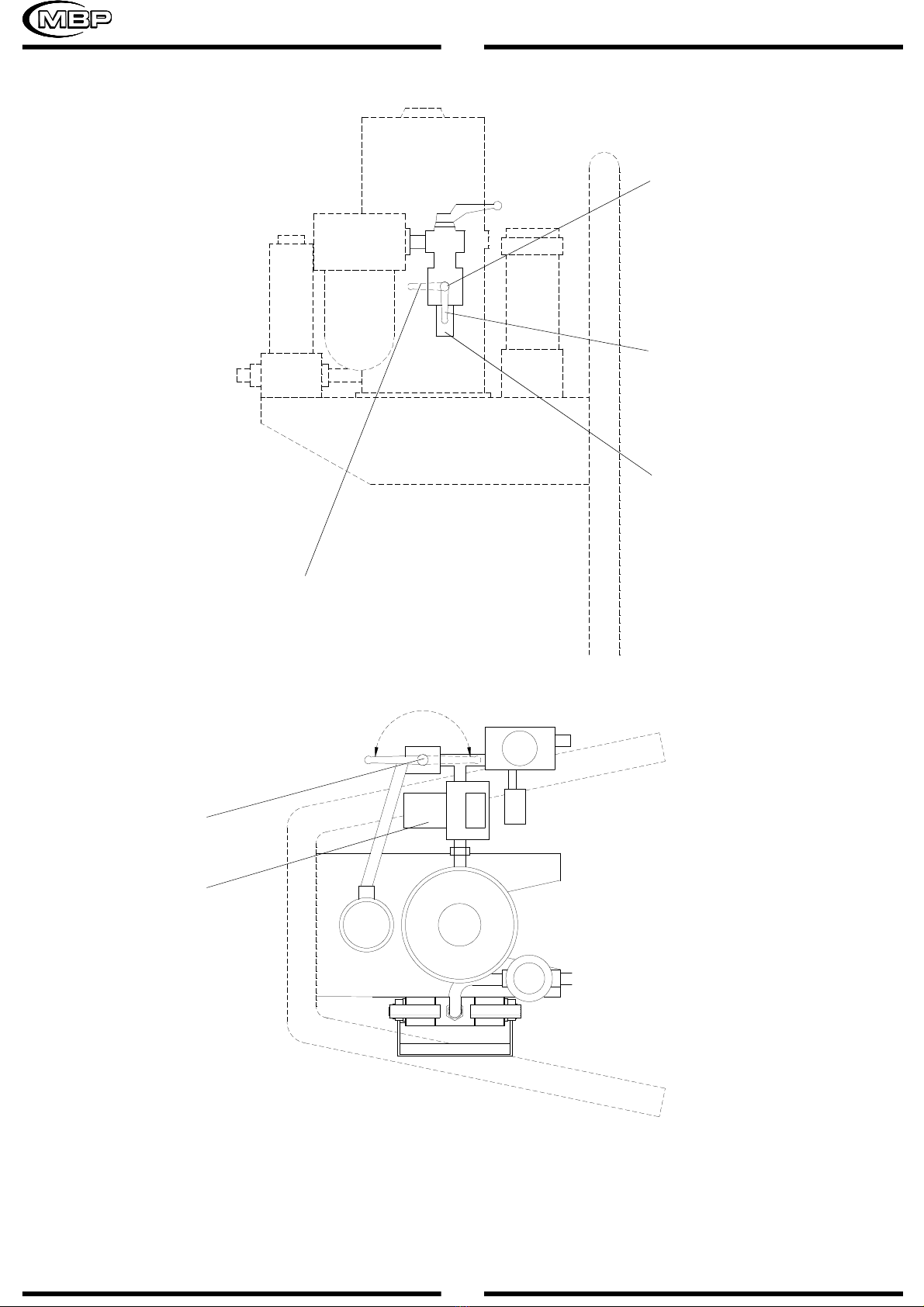

AIR INLET VALVE
‘’OPEN AIR’’
AIR INLET
‘’CLOSE AIR’’
(fig.1)
4
2 1
VALVE ‘’A’’
AIR REGULATOR ‘’X’’
(fig.2)

5
AIR MOTOR
16A.200.00
(fig. 3)
CAP
JOINT
CYLINDER
ROD
SUPPORT
YOKE
ROD
SCREW
CLIP
PISTON
STEM
JOINT
ROD
JOINT
SLEEVE
JOINT
PLATE
BASE
SCREW
SCREW
ROCKER
SPRING
ROD
CLIP
NUT
JOINT
JOINT
JOINT
RETAINER
GROUND
WIRE GROUND
1
1
1
2
1
1
1
2
2
1
2
1
1
1
1
1
2
1
6
16
2
2
2
2
4
1
2
2
1
1
1
Nº REF. DESCRIPCION Q
1
2
3
10
6
21
13
15
22 23
4
25
7
8
9
11
12
14
29
16
26
20
30
24
27
28
5
17
19
18
31
1
2
3
4
5
6
7
8
9
10
*11
*12
13
*14
15
*16
17
18
19
20
21
22
23
*24
25
26
*27
*28
29
30
31
*Included in KIT.054
A.110.02
C.JT0.01
A.210.01
A.120.04
A.220.07
A.120.08
A.221.00
C.TJ0.02
A.240.02
A.240.01
A.122.00
C.JT0.05
A.220.11
C.JT0.07
CB2.015
C.JT0.06
A.130.02
A.250.01
C.TA0.01
C.TC0.01
A.120.01
A.120.02
A.120.03
A.120.05
A.120.06
A.150.02
A.120.10
A.220.09
CAR 125
101.400.00
101.620.00

6
(fig. 4)
1
2
3
6
7
89
4
5
10
12
B B
13
12
11
18.200.02
16.000.04
CPA.101
CTA.005
18.200.01PR
16.000.07PR
16.200.03PR
B.100.00PR
B.100.00PR
CTU.101PR
CNA.176
16.300.00X
16.313.00X
G.100.06PR
CNB.016

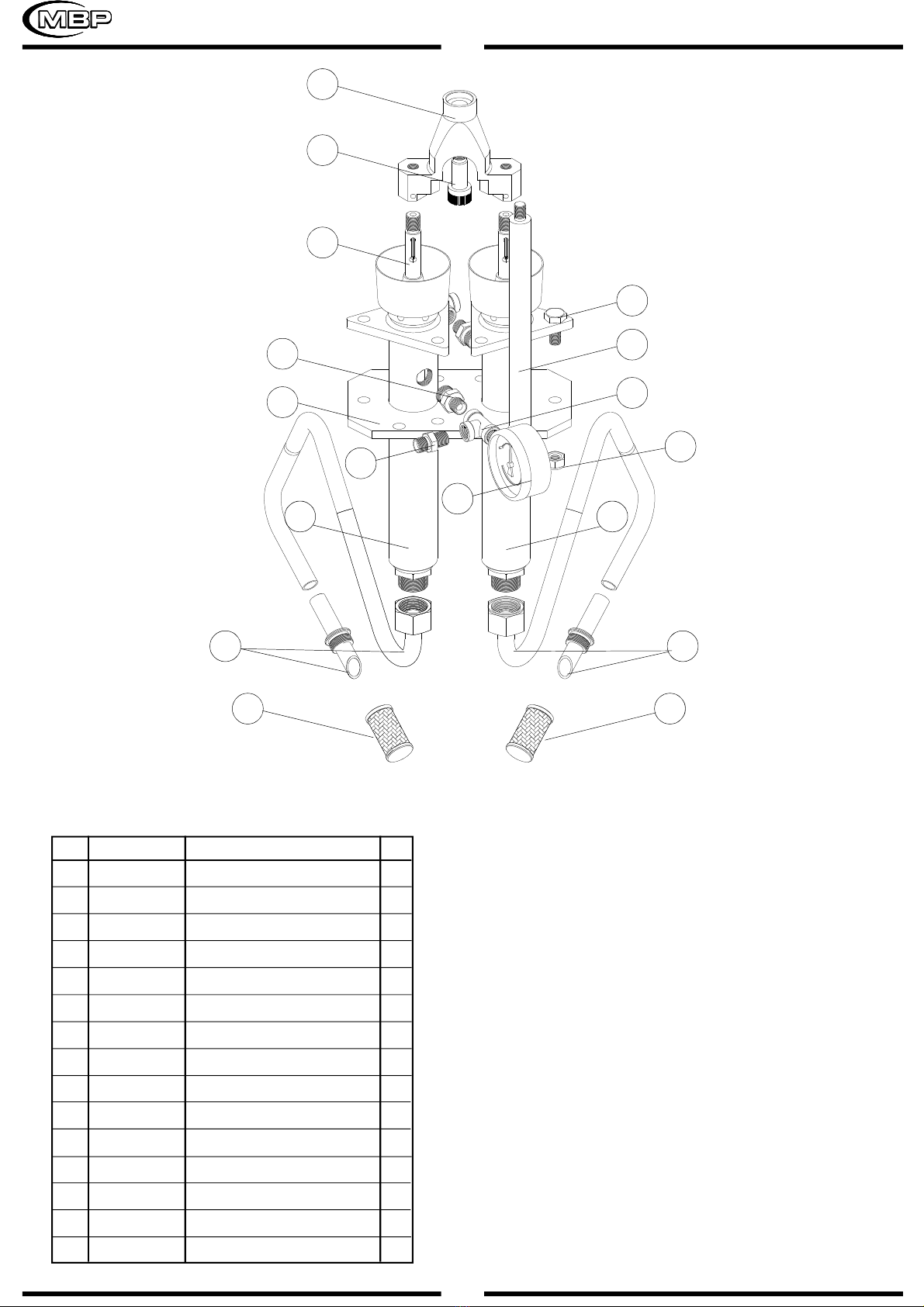

DISPLACEMENT PUMP ASSEMBLAGE FOR TEL 25-2K SS-316
UNION
SCREW
PIN
SCREW
TIE
COUPLING
SUPPORT
PUMPA (BASE)
PUMP B (CATALYST)
NUT
COUPLING
SUCTION
FILTER
COUPLING
GAUGE
1
1
2
6
4
2
1
1
1
10
2
2
2
2
2
1
2
3
4
5
6
7
8
9
10
11
12
B
13
14
Nº REF. DESCRIPTION Q
14

7
PUMP A&B
(fig. 5)
1
2
5
6
7
8
11
14
16
17
21
4
10
12
15
18
19
20
13
9
3
1
1
3
2
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
* Included in KIT.015PR

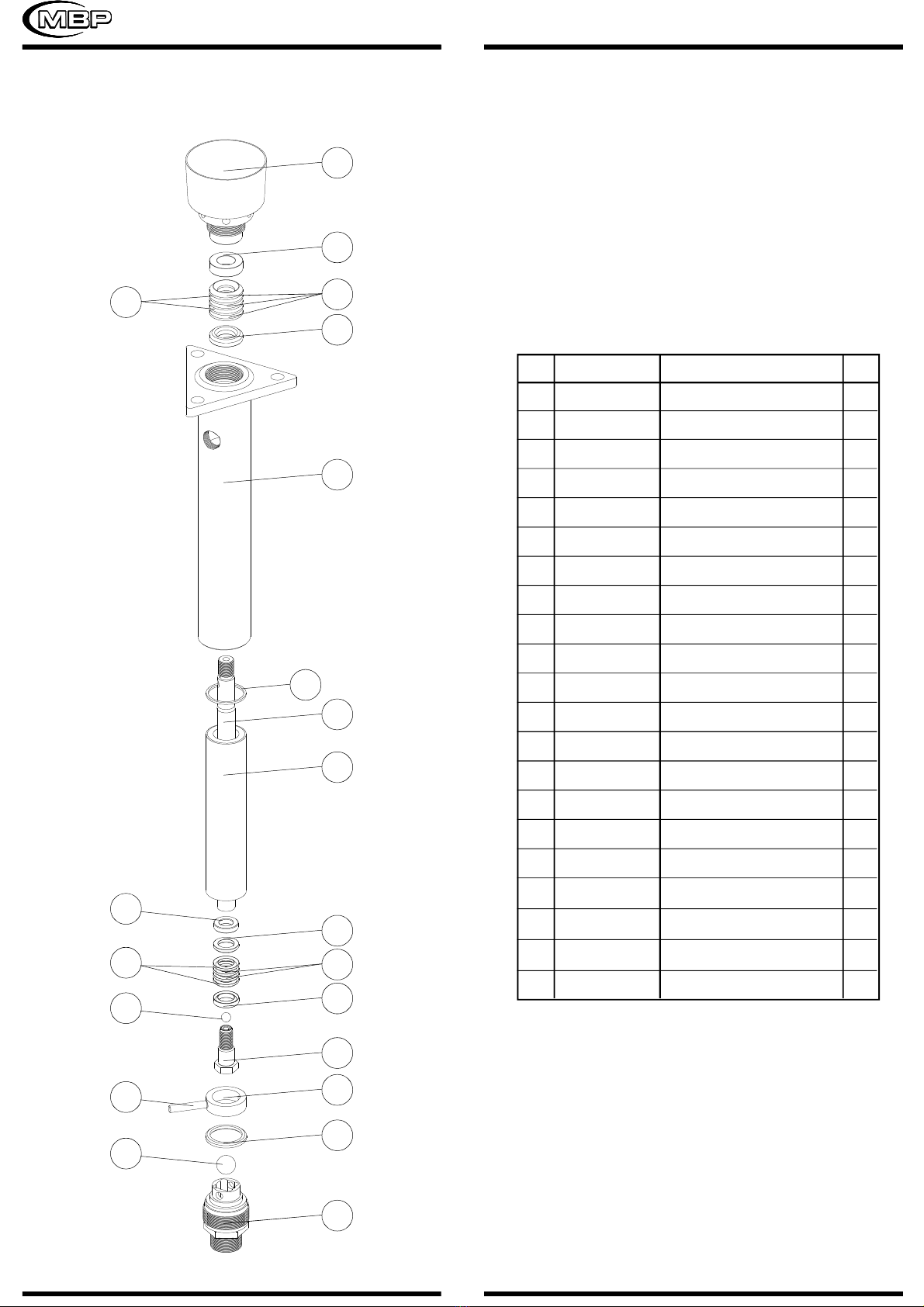

NOTE: Fix parts 9 and 16 with loctite 542 or
similar (wait 1 hour before start running the unit).
PACKING NUT
FEMALE GLAND
PACKING
PACKING
MALE GLAND
HOUSING
JOINT
SLEEVE
ROD
WASHER
MALE GLAND
PACKING
PACKING
FEMALE GLAND
BALL
PISTON
RETAINER
PIN
JOINT
BALL
VALVE
1
*2
*3
*4
*5
6
7
8
9
10
*11
*12
*13
*14
15
16
17
18
19
20
21
B.100.00PR
Nº REF. DESCRIPTION Q
B.120.00PR
B.131.01PR
B.131.02 PA
B.131.02 T
B.131.03PR
B.110.00PR
B.100.01
B.100.12PR
B.100.13PR
B.141.01PR
B.141.02PR
B.141.03 PA
B.141.03 T
B.141.04PR
CBO.101PR
B.151.00PR
B.100.04PR
B.100.05PR
B.100.06
CBO.104PR
B.160.00PR

8
AIR MOTOR ‘‘CLEANING PUMP’’
(fig. 6)
CTB.002
080.100.01
CNA.065
CTB.012
080.120.00
080.100.05
080.170.05
080.100.08
080.150.00
080.100.07
080.100.04
CTB.030
080.110.00
080.140.00
080.100.09
080.100.11
080.100.10
CTU.002
CTG.009
080.130.00
080.100.02
CAR.112
CAB.005
080.100.03
080.170.01
CJT.022
080.170.02
CJT.023
080.170.03
080.171.00
080.170.04
CJT.024
080.100.13
CAR.118
080.800.00
080.100.12
CJT.025
080.100.14
080.100.06
SCREW
COVER
ELBOW
SCREW
COVER
SNUBBER
GUIDE
WASHER
AIR DISPENSER
HOUSING
SNUBBER
SCREW
MOTOR BODY
SPRING SUPPORT
SPRING BUTT END
SPRING
SUPPORT
NUT
SCREW
PLUG
BUSHING
RETAINER
RING
SEAT
PISTON
JOINT
SEAT
JOINT
WASHER
ROD
ROD
JOINT
CYLINDER
RETAINER
KEEPING BACK
MOTOR BASE
JOINT
PIPE
RING
3
1
1
2
1
1
1
1
1
1
1
4
1
2
2
2
2
2
2
1
1
2
1
1
1
1
1
1
1
1
1
2
1
1
1
1
4
2
1
Nº REF. DESCRIPTION Q
1
2
3
4
5
6
7
8
*9
10
11
12
13
14
15
16
17
18
19
20
21
22
*23
24
25
26
27
*28
29
30
31
32
33
34
*35
36
37
38
39
*Included in KIT.055

9

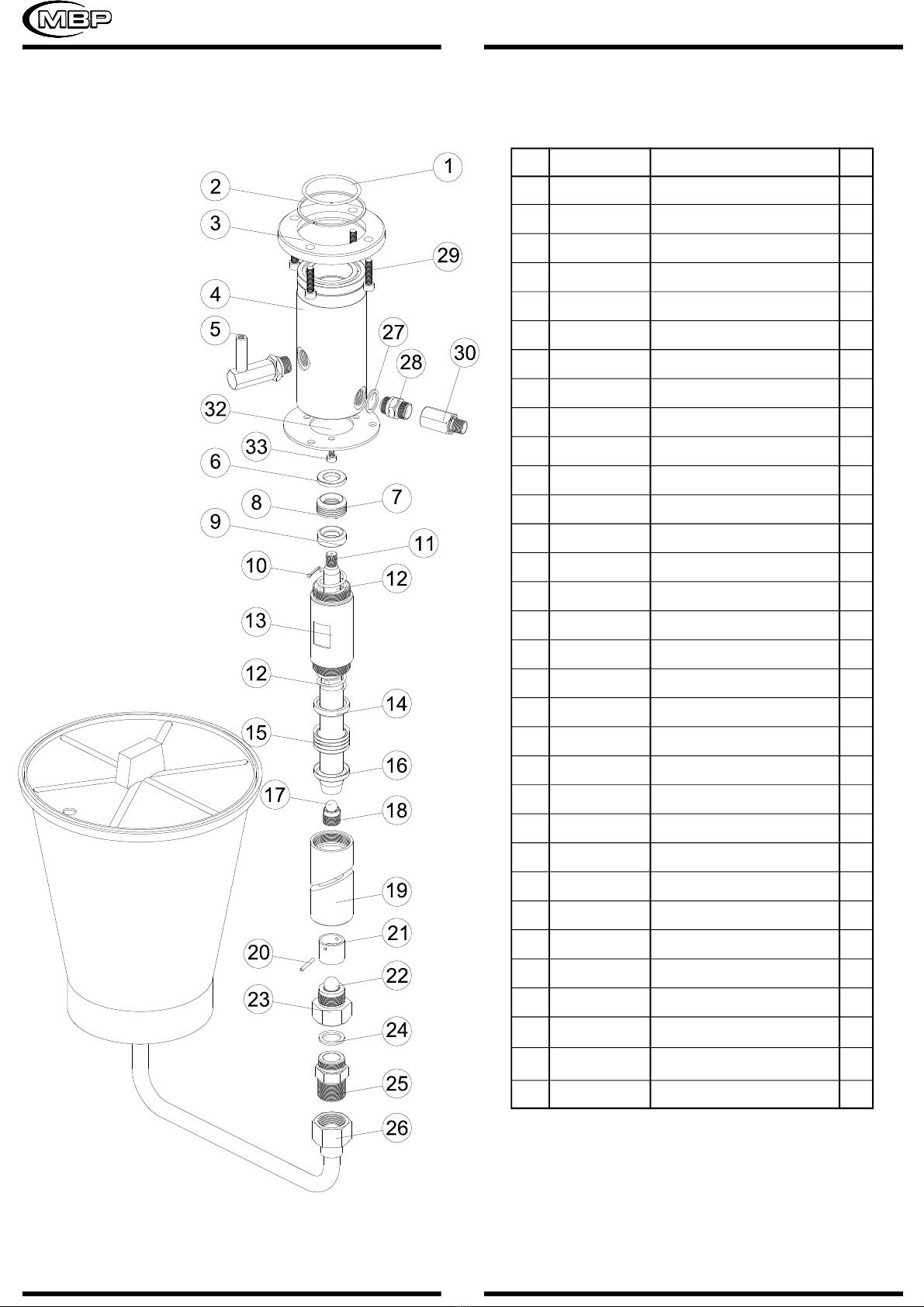

DISPLACEMENT PUMP ‘‘CLEANING PUMP’’
(fig. 7)
1
2
3
4
5
*6
*7
*8
*9
10
11
12
13
*14
*15
*16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
32
33
1
1
1
1
1
1
4
1
1
1
1
2
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
4
1
1
3
CJT.026
CAR.111
080.200.03
080.200.01
080.210.00
080.200.04X
B.131.02
B.930.04
080.200.06X
CPA.109
080.200.16
080.200.07
080.200.08X
080.200.12X
080.200.13
080.200.15X
CB0110
080.230.00
080.200.09
080.200.11
080.200.10
CB0.111
080.220.00X
080.200.19
080.000.01X
D.200.00X
CAR.015
080.240.00X
CTB.013
CNA.046
16.000.01
CTB.019
JOINT
RETAINER
BRIDLE
BODY
OIL TUBE
FEMALE GLAND
PACKING
PACKING
MALE GLAND
PIN
ROD
SPRING
CYLINDER
MALE GLANG
PACKING
FEMALE GLAND
BALL
PISTON VALVE
HOUSING
PIN
BALL GUIDE
BALL
INLET VALVE
JOINT
COUPLING
FLUID SUCCION
WASHER
ANTIRRETORNO
SCREW
COUPLING
SUPPORT
SCREW
Nº REF. DESCRIPTION Q
* Included in KIT 024X
NOTE: Fix parts 11 and 18 with loctite 542 or
similar (wait 4 hour before start running the unit).

TROUBLESHOOTING GUIDE
Restricted line or inadequate air supply.
Insufficient air pressure, closed or clogged air
valves, etc.
Exhausted fluid supply.
Obstructed fluid hose, gun or dispensing valve.
Clogged spray tip or filters.
Clogged filters.
Throat packings nut too tight or to loose.
Exhausted fluid supply.
Obstructed fluid hose or gun.
Worn spray tip.
Held open or worn intake valve.
Held open or worn fluid piston or packings.
Exhausted fluid supply.
Check valves need adjustment.
Held open or worn intake valve.
Held open or worn fluid piston or packings.
Clear, increase air.
Open, clean.
Refill; purge all air from pump and
fluid lines.
Clear.
Clear or replace.
Clear or replace.
Adjust.
Refil and prime.
Clear.
Replace.
Clear.
Clear or replace.
Refill and prime.
Adjust.
Clear.
Clear or replace.
PROBLEM POSSIBLE CAUSE SOLUTION
Pump. fails
to operate.
Pump operates
but output low
on down stroke.
Erratic or
accelerated
operating.
For trouble free operation is absolutely essential that your sprayer be kept clean and free of residual paint buil-up
on the internal parts. It must be cleaned and lubricated after each use.
10

IMP 067PR-DECEMBER 2022
MODELO / MODEL TEL 25 - 2K-I ( 1:1) PR
Este producto cumple con la siguiente directiva de la Comunidad Europea.
This Product complies with the following European Comunity Directive.
Directiva 2014/34/EU Atex sobre máquinas. (Ex II 2G c T6 X)
Machinery Directive 2014/34/EU Atex Directive. (Ex II 2G c T6 X)
APROBADO POR /
APPROVED BY AITOR ORTIZ
FECHA / DATE
MBP, S.L. figura inscrita en el Registro Industrial del País Vasco con el Nº 01/8030 y cumple los
requisitos para el desarrollo de su actividad comercial.
MBP, S.L. is registered in the Industrial Register of the Basque Country with the Nº 01/8030.
DECLARACION DE CONFORMIDAD ‘’CE’’
‘’EC’’ DECLARATION OF CONFORMITY
MBP, S.L.
e-mail: [e-mail] www.mbpspray.com
WARRANTY
1.-
2.-
3.-
M.B.P., will any repairs necessary during the first 12 months after purchase of a new unit, with the exceptions shown
under 1 and 2 below, and under the conditions shown in item 3.
In no case will M.B.P.liability extend beyond repair or repalacement of the equipment. Such liability is limited to the
amount of the original purchase price paid for the unit, minus a reasonable deduction for the time the unit has been in
service. It is the responsibility of the purchaser under this warranty to ship or deliver the failed paint sprayer to the
authorized service center at the purchaser’s expence. Parts or components covered under this warranty may either be
repaired or replaced at M.B.P. option.
Equipent not covered by M.B.P. warranty. Accessories or components of equipment sold by M.B.P. that are nort
manufactured by M.B.P. are subject to the warranty, if any, of their manufacturer. M.B.P. will provide purchaser with
reasonable assistance in making such claims.
The Industry Department of The Basque Goverment, states that all electric and pneumatic airless equipment manufacture
by M.B.P. S.L., follows the ’’CE’’ standards under the number 83/392/CEE.
Damage caused by external abuse, customer negligence, or failure to operate the unit in accordance with the
instructions supplied with the unit.
Normal maintenance items.
Within the first 12 months after purchase, M.B.P. will pay 100% of the cost of covered repairs.
