McCONNEL
PA3430 / PA4030 VERSI
FRONT MOUNT DUAL SIDED
HEDGECUTTER / GRASS MOWER
Operator Manual
Operator Manual
Publication 800
January 2015
Part No. 23671.00
Revision: 08.08.16

IMPORTANT
VERIFICATION OF WARRANTY REGISTRATION
DEALER WARRANTY INFORMATION & REGISTRATION VERIFICATION
It is imperative that the selling dealer registers this machine with McConnel Limited before
delivery to the end user – failure to do so may affect the validity of the machine warranty.
To r egister machines go to the M cConnel Limited web s ite at www.mcconnel.com, l og
onto ‘Dealer Inside’ and select the ‘Machine Registration button’which can be found in
the S ervice S ection o f the s ite. C onfirm t o t he c ustomer that t he m achine h as b een
registered in the section below.
Should you experience any problems registering a machine in this manner please contact
the McConnel Service Department on 01584 875848.
Registration Verification
Dealer Name:
……………………..…………………………………………………………….
Dealer Address:
…….………………………………………………………………………….
Customer Name:
……………………..…………………………………………………………
Date of Warranty Registration:
……/……/...…… Dealer Signature: ………………..……
NOTE TO CUSTOMER / OWNER
Please ensure that the above section above has been completed and signed by the selling
dealer to verify that your machine has been registered with McConnel Limited.
IMPORTANT: During the initial ‘bedding in’ period of a new machine it is the customer’s responsibility
to regularly inspect all nuts, bolts and hose connections for tightness and re-tighten if required. New
hydraulic connections occasionally weep small amounts of oil as the seals and joints settle in – where
this occurs it can be cured by re-tightening the connection – refer to torque settings chart below.The
tasks stated above should be performed on an hourly basis during the first day of work and at least
daily thereafter as part of the machines general maintenance procedure.
CAUTION: DO NOT OVER TORQUE HYDRAULIC FITTINGS AND HOSES
TORQUE SETTINGS FOR HYDRAULIC FITTINGS
HYDRAULIC HOSE ENDS PORT ADAPTORS WITH BONDED SEALS
BSP
Setting
Metric
BSP
Setting
Metric
1/4” 18 Nm 19 mm 1/4” 34 Nm 19 mm
3/8” 31 Nm 22 mm 3/8” 47 Nm 22 mm
1/2” 49 Nm 27 mm 1/2” 102 Nm 27 mm
5/8” 60 Nm 30 mm 5/8” 122 Nm 30 mm
3/4” 80 Nm 32 mm 3/4” 149 Nm 32 mm
1” 125 Nm 41 mm 1” 203 Nm 41 mm
1.1/4”
190 Nm
50 mm
1.1/4”
305 Nm
50 mm
1.1/2” 250 Nm 55 mm 1.1/2” 305 Nm 55 mm
2” 420 Nm 70 mm 2” 400 Nm 70 mm

WARRANTY POLICY
WARRANTY REGISTRATION
All machines must be registered, by the selling dealer with McConnel Ltd, before delivery to the
end user. On receipt of the goods it is the buyer’s responsibility to check that the Verification of
Warranty Registration in the Operator’s Manual has been completed by the selling dealer.
1. LIMITED WARRANTIES
1.01. All machines supplied by McConnel Ltd are warranted to be free from defects in material and
workmanship from the date of sale to the original purchaser for a period of 12 months, unless
a different period is specified.
1.02. All spare parts supplied by McConnel Ltd and purchased by the end user are warranted to be
free from defects in material and workmanship from the date of sale to the original purchaser
for a period of 6 months. All parts warranty claims must be supported by a copy of the failed
part invoice to the end user. We cannot consider claims for which sales invoices are not
available.
1.03. The warranty offered by McConnel Ltd is limited to the making good by repair or replacement
for the purchaser any part or parts found, upon examination at its factory, to be defective
under normal use and service due to defects in material or workmanship. Returned parts
must be complete and unexamined. Pack the component(s) carefully so that any transit
damage is avoided. All ports on hydraulic items should be drained of oil and securely plugged
to prevent seepage and foreign body ingress. Certain other components, electrical items for
example, may require particular care when packing to avoid damage in transit.
1.04. This warranty does not extend to any product from which McConnel Ltd’s serial number plate
has been removed or altered.
1.05. This warranty does not apply to any part of the goods, which has been subjected to improper
or abnormal use, negligence, alteration, modification, fitment of non-genuine parts, accident
damage, or damage resulting from contact with overhead power lines, damage caused by
foreign objects (e.g. stones, iron, material other than vegetation), failure due to lack of
maintenance, use of incorrect oil or lubricants, contamination of the oil, or which has served
its normal life. This warranty does not apply to any expendable items such as blades, belts,
clutch linings, filter elements, flails, flap kits, skids, soil engaging parts, shields, guards, wear
pads, pneumatic tyres or tracks.
1.06. Temporary repairs and consequential loss - i.e. oil, downtime and associated parts are
specifically excluded from the warranty.
1.07. Warranty on hoses is limited to 12 months and does not include hoses which have suffered
external damage. Only complete hoses may be returned under warranty, any which have
been cut or repaired will be rejected.
1.08. Machines must be repaired immediately a problem arises. Continued use of the machine
after a problem has occurred can result in further component failures, for which McConnel Ltd
cannot be held liable, and may have safety implications.
1.09. If in exceptional circumstances a non McConnel Ltd part is used to effect a repair, warranty
reimbursement will be at no more than McConnel Ltd’s standard dealer cost for the genuine
part.
1.10. Except as provided herein, no employee, agent, dealer or other person is authorised to give
any warranties of any nature on behalf of McConnel Ltd.
1.11. For machine warranty periods in excess of 12 months the following additional exclusions
shall apply:
1.11.1. Hoses, exposed pipes and hydraulic tank breathers.
1.11.2. Filters.
1.11.3. Rubber mountings.
1.11.4. External electric wiring.
1.11.5. Bearings and seals.

1.12. All service work, particularly filter changes, must be carried out in accordance with the
manufacturer’s service schedule. Failure to comply will invalidate the warranty. In the event of
a claim, proof of the service work being carried out may be required.
1.13. Repeat or additional repairs resulting from incorrect diagnosis or poor quality previous repair
work are excluded from warranty.
NB Warranty cover will be invalid if any non-genuine parts have been fitted or used. Use of non-
genuine parts may seriously affect the machine’s performance and safety. McConnel Ltd cannot be
held responsible for any failures or safety implications that arise due to the use of non-genuine parts.
2. REMEDIES AND PROCEDURES
2.01. The warranty is not effective unless the Selling Dealer registers the machine, via the
McConnel Ltd web site and confirms the registration to the purchaser by completing the
confirmation form in the operator’s manual.
2.02. Any fault must be reported to an authorised McConnel Ltd dealer as soon as it occurs.
Continued use of a machine, after a fault has occurred, can result in further component
failure for which McConnel Ltd cannot be held liable.
2.03. Repairs should be undertaken within two days of the failure. Claims submitted for repairs
undertaken more than 2 weeks after a failure has occurred, or 2 days after the parts were
supplied will be rejected, unless the delay has been authorised by McConnel Ltd. Please
note that failure by the customer to release the machine for repair will not be accepted as a
reason for delay in repair or submitting warranty claims.
2.04. All claims must be submitted, by an authorised McConnel Ltd Service Dealer, within 30 days
of the date of repair.
2.05. Following examination of the claim and parts, McConnel Ltd will pay, at their discretion, for
any valid claim the invoiced cost of any parts supplied by McConnel Ltd and appropriate
labour and mileage allowances if applicable.
2.06. The submission of a claim is not a guarantee of payment.
2.07. Any decision reached by McConnel Ltd is final.
3. LIMITATION OF LIABILITY
3.01. McConnel Ltd disclaims any express (except as set forth herein) and implied warranties with
respect to the goods including, but not limited to, merchantability and fitness for a particular
purpose.
3.02. McConnel Ltd makes no warranty as to the design, capability, capacity or suitability for use of
the goods.
3.03. Except as provided herein, McConnel Ltd shall have no liability or responsibility to the
purchaser or any other person or entity with respect to any liability, loss, or damage caused
or alleged to be caused directly or indirectly by the goods including, but not limited to, any
indirect, special, consequential, or incidental damages resulting from the use or operation of
the goods or any breach of this warranty. Notwithstanding the above limitations and
warranties, the manufacturer’s liability hereunder for damages incurred by the purchaser or
others shall not exceed the price of the goods.
3.04. No action arising out of any claimed breach of this warranty or transactions under this
warranty may be brought more than one (1) year after the cause of the action has occurred.
4. MISCELLANEOUS
4.01. McConnel Ltd may waive compliance with any of the terms of this limited warranty, but no
waiver of any terms shall be deemed to be a waiver of any other term.
4.02. If any provision of this limited warranty shall violate any applicable law and is held to be
unenforceable, then the invalidity of such provision shall not invalidate any other provisions
herein.
4.03. Applicable law may provide rights and benefits to the purchaser in addition to those provided
herein.

DECLARATION OF CONFORMITY
Conforming to EU Machinery Directive 2006/42/EC
We,
McCONNEL LIMITED, Temeside Works, Ludlow, Shropshire SY8 1JL, UK
Hereby declare that:
The Product; Tractor Mounted Hedgecutter / Grass Mower
Product Code; P343, P433
Serial No. & Date ………………………………… Type …………………………
Manufactured in; United Kingdom
Complies with the required provisions of the Machinery Directive 2006/42/EC
The machinery directive is supported by the following harmonized standards;
 BS EN ISO 12100 (2010) Safety of machinery – General principles for design – Risk
assessment and risk reduction.
 BS EN 349 (1993) + A1 (2008) Safety of machinery - Minimum distances to avoid the
entrapment with human body parts.
 BS EN 953 (1997) + A1 (2009) Safety of machinery - Guards general requirements for
the design and construction of fixed and movable guards.
 BS EN 4413 (2010) Hydraulic fluid power. Safety requirements for systems and their
components.
McCONNEL LIMITED operates an ISO 9001:2008 quality management system,
certificate number: FM25970.
This system is continually assessed by the;
British Standards Institution (BSI), Beech House, Milton Keynes, MK14 6ES, UK
BSI is accredited by UK Accreditation Service, accreditation number: UKAS 003.
The EC declaration only applies if the machine stated above is used in
accordance with the operating instructions.
Signed …………………................ Responsible Person
CHRISTIAN DAVIES on behalf of McCONNEL LIMITED
Status: General Manager Date: September 2015

POWER ARM INSPECTION AND MAINTENANCE
A daily equipment inspection of the trac tor and mower should be conduct ed before the
equipment is used. You may use the ins pection sheets to assist with these daily
inspections. Any damaged or missing guar ds should be repaired or replaced befor e
operating t he mower. Failure t o repair the damaged shield c an result in objects being
thrown from the mower and possibly hitting the operator or bystander.
Inspect the Mower for Safe Operating Condition
 Make sure the driveline guards and shielding are in place and in good repair.
 Inspect the flexible thrown object shieldi ng t o assure that they are in plac e on the
front and rear of the mower head and in good repair. Rep air or replace any
damaged or missing thrown object shields.
 Ensure the mower cutting height is se t high enough to reduce the possibility of the
mower blades contacting the ground. Actual height will be dependent on the ground
conditions. Increase the height when working in rough or undulating conditions.
 Inspect for broken, chipped, bent, missi ng, or severely worn blades. Replace
damaged blades before operating the mower . Ensure the blade retaining bolts and
fasteners are secure and tight.
 Ensure all head bolts and nuts are tight.
 Lubricate the driveline universal joints and telescoping members daily.
 Grease the rotor and roller bearings and inspect their condition.
 Inspect for any oil leaks or damaged hoses
 Inspect for worn or damaged decals and s afety instructions. Replace unreadable,
damaged or missing safety decals.
 Follow the operator’s manual(s) inspec tion and maintenanc e instructions for
lubricating parts, and keeping thrown obj ect shielding, driveline guards, rotating
parts shields, mower blades and decals in good repair.
Inspect the Tractor for Safe Operating Condition:
 Inspect the controls, lights, SMVs (Slo w Moving Vehicle sign), seat bel ts, and
ROPS to assure that they are in place and in good working order.
 Be sure the tires, wheels, lug bolts/nuts are in good condition.
 Make sure the tractor brakes and steering are in proper operating condition.
 Follow the operator’s manual(s) ins pection and m aintenance procedures for
keeping the tractor in good and safe condition before operating.
The inspec tion sheet on the foll owing page should be kept in this book a s a record. A
second sheet is inc luded for you to cut out and photocopy or the inspection sheets can be
downloaded from our website at;
http://www.mcconnel.com/support/aftersales/default.aspx?nav=After Sales

POWER ARM PRE-OPERATION Inspection
Power Arm ID ________________ Date: _______________ Shift: _______________
WARNING Before conducting the inspection, make sure the tractor engine is off, the key removed, all
rotation has stopped and the tractor is in park with the parking brake engaged. Make sure
the mower head is resting on the ground or is securely blocked up and supported and all
hydraulic pressure has been relieved.
Item Condition at
start of shift Specific Comments if not O.K.
The Operator’s Manual is in the Canister on the mower
All Warning Decals are in place, clean and legible
All Lights are clean and working
The Mounting frame bolts are in place and tight
The Arm pivot pins are tight and correctly secured
There are no cracks in the arms
The Hyd. Cylinder pins are tight and correctly secured
The Hyd Cylinder hose connections are tight
The Hyd. Pump hose connections are tight
The Hyd. Valve hose connections are tight
The Hyd. Valve controls function properly
There are no damaged hoses
The Oil level is to the green mark on the tank sight glass
There is no evidence of Hydraulic oil leaks
Flails are not missing, chipped, broken or excessively worn
The Flail bolts are tight
The Front & Rear Flaps are fitted and in good condition
The Front hood is in place and in good condition
The Wire Trap is in good condition
The Skid shoes are in good condition & tight
There are no cracks or holes in flail casing
The Hyd. motor mounting bolts are tight
All Flail Head Nuts and Bolts are tight
The Rotor Bearings are in good condition and greased
The Roller bearings are in good condition and greased
The drive line Shaft guard is in good condition
The drive line shaft guard is correctly secured
Controls are securely mounted in the cab
With engine running check arm operation
Have a spare pack of flails, bushes, bolts and nuts
Operators Signature: ___________________________________________
DO NOT OPERATE an UNSAFE TRACTOR or MOWER

TRACTOR PRE-OPERATION Inspection
Power Arm ID ________________ Date: _______________ Shift: _______________
WARNING Before conducting the inspection, make sure the tractor engine is off, the key is removed
all rotation has stopped and the tractor is in park with the parking brake engaged. Any
implement attached to the tractor is firmly on the ground.
Item Condition at
start of shift Specific Comments if not O.K.
The flashing lights function properly.
All lights are clean and working correctly
All cab windows are clean and wipers working correctly
The SMV sign, where required, is clean and visible.
The tyres are in good condition with correct pressure.
The wheel nuts are tight.
The tractor brakes are in good condition.
The steering linkage is in good condition.
There are no visible oil leaks.
The hydraulic controls function properly.
The ROPS or ROPS cab is in good condition.
The seatbelt is in place and in good condition.
The 3-point hitch is in good condition.
The drawbar/pick up hook is secure & in good condition
The PTO master shield is in place.
The engine oil level is full.
The brake fluid level is full.
The power steering fluid level is full.
The fuel level is adequate.
The engine coolant fluid level is full.
The radiator & oil cooler are free of debris.
The air filter is in good condition
Operators Signature: ___________________________________________
DO NOT OPERATE an UNSAFE TRACTOR or MOWER

POWER ARM PRE-OPERATION Inspection
Power Arm ID ________________ Date: _______________ Shift: _______________
WARNING Before conducting the inspection, make sure the tractor engine is off, the key removed, all
rotation has stopped and the tractor is in park with the parking brake engaged. Make sure
the mower head is resting on the ground or is securely blocked up and supported and all
hydraulic pressure has been relieved.
Item Condition at
start of shift Specific Comments if not O.K.
The Operator’s Manual is in the Canister on the mower
All Warning Decals are in place, clean and legible
All Lights are clean and working
The Mounting frame bolts are in place and tight
The Arm pivot pins are tight and correctly secured
There are no cracks in the arms
The Hyd. Cylinder pins are tight and correctly secured
The Hyd Cylinder hose connections are tight
The Hyd. Pump hose connections are tight
The Hyd. Valve hose connections are tight
The Hyd. Valve controls function properly
There are no damaged hoses
The Oil level is to the green mark on the tank sight glass
There is no evidence of Hydraulic oil leaks
Flails are not missing, chipped, broken or excessively worn
The Flail bolts are tight
The Front & Rear Flaps are fitted and in good condition
The Front hood is in place and in good condition
The Wire Trap is in good condition
The Skid shoes are in good condition & tight
There are no cracks or holes in flail casing
The Hyd. motor mounting bolts are tight
All Flail Head Nuts and Bolts are tight
The Rotor Bearings are in good condition and greased
The Roller bearings are in good condition and greased
The drive line Shaft guard is in good condition
The drive line shaft guard is correctly secured
Controls are securely mounted in the cab
With engine running check arm operation
Have a spare pack of flails, bushes, bolts and nuts
Operators Signature: ___________________________________________
DO NOT OPERATE an UNSAFE TRACTOR or MOWER

TRACTOR PRE-OPERATION Inspection
Power Arm ID ________________ Date: _______________ Shift: _______________
WARNING Before conducting the inspection, make sure the tractor engine is off, the key is removed
all rotation has stopped and the tractor is in park with the parking brake engaged. Any
implement attached to the tractor is firmly on the ground.
Item Condition at
start of shift Specific Comments if not O.K.
The flashing lights function properly.
All lights are clean and working correctly
All cab windows are clean and wipers working correctly
The SMV sign, where required, is clean and visible.
The tyres are in good condition with correct pressure.
The wheel nuts are tight.
The tractor brakes are in good condition.
The steering linkage is in good condition.
There are no visible oil leaks.
The hydraulic controls function properly.
The ROPS or ROPS cab is in good condition.
The seatbelt is in place and in good condition.
The 3-point hitch is in good condition.
The drawbar/pick up hook is secure & in good condition
The PTO master shield is in place.
The engine oil level is full.
The brake fluid level is full.
The power steering fluid level is full.
The fuel level is adequate.
The engine coolant fluid level is full.
The radiator & oil cooler are free of debris.
The air filter is in good condition
Operators Signature: ___________________________________________
DO NOT OPERATE an UNSAFE TRACTOR or MOWER

For Safety and Performance …
ALWAYS READ THIS BOOK FIRST
McCONNEL LIMITED
Temeside Works
Ludlow
Shropshire
England
Telephone: [phone]
www.mcconnel.com
NOISE STATEMENT
The equivalent daily personal noise exposure from this machine measured at the operators’ ear is
within the range 78 – 85 dB, these figures apply to a normal distribution of use where the noise
fluctuates between zero and maximum. The figures assume that the machine is fitted to a tractor with
a ‘quiet’ cab with the windows closed in a generally open environment. We recommend that the
windows are kept closed. With the cab rear window open the equivalent daily personal noise
exposure will increase to a figure within the range 82 – 88 dB. At equivalent daily noise exposure
levels of between 85 – 90 dB ear protection is recommended – it should be used if any window is left
open.

CONTENTS
General Information 1
Specifications & Dimensions 2
Safety Information 6
Tractor / Vehicle Requirements 10
Vehicle / Tractor Preparation 11
Delivery & Pre-attachment 12
Parking Legs & Support Wheels 13
Machine Preparation & Attachment 15
Control Unit Installation 19
Flail Head Attachment 19
Operator Controls 21
Running Up Procedure 32
Emergency Stopping 32
Transportation 33
Manual Slew 34
Breakback Protection 35
Float Kits 36
Pre-work Preparation & Precautions 38
Operating Speed 39
Hedgecutting Procedure 40
Hazards & Dangers 41
Overhead Power Lines 42
Flails Identification 44
General Maintenance 46
Service Schedule 46
Side Shift Carriage 47
Flail Head 47
Hydraulic Hoses 48
Troubleshooting Chart 49

1
Machine Identification Plate
GENERAL INFORMATION
Always read this manual before fitting or operating the machine – whenever any doubt
exists contact your dealer or the McConnel Service Department for advice and assistance.
Use only McConnel Genuine Service Parts on McConnel Equipment and Machines
Definitions; The following definitions apply throughout this manual:
WARNING
An operating procedure, technique etc., which –
can result in personal injury or loss of life if not observed carefully.
CAUTION
An operating procedure, technique etc., which –
can result in damage to either machine or equipment if not observed carefully.
NOTE
An operating procedure, technique etc., which –
is considered essential to emphasis.
LEFT AND RIGHT HAND
This term is applicable to the machine when attached to the tractor and is viewed
from the rear – this also applies to tractor references.
Note: The illustrations in this manual are for instructional purposes only and may on occasion not
show some components in their entirety. In some instances an illustration may appear slightly
different to that of your particular model but the general procedure will be the same. E&OE.
MACHINE & DEALER INFORMATION
Record the Serial Number of your machine on this page and always quote this number when
ordering parts. Whenever information concerning the machine is requested remember also to state
the make and model of tractor to which the machine is fitted.
Machine Serial Number: Installation Date:
Machine Model details:
Dealer Name:
Dealer Address:
Dealer Telephone No:
Dealer Email Address:
Machine Identification
All machines are fitted with an identification plate; when
ordering parts from your local dealer please quote
machine part number and serial number as stated on this
plate so that machine and model can be easily identified.

2
SPECIFICATIONS & DIMENSIONS
Technical Specifications
Machine PA3430 VERSI PA4030 VERSI
Description Dual Direction Front Mount Dual Direction Front Mount
Head Rotation Manual (Pin Locking) Manual (Pin Locking)
Vehicle Requirements
Minimum Power 35HP 35HP
Minimum Vehicle Weight 1750kg 2000kg
Mounting Types 3-Pt Linkage 3-Pt Linkage
DIN Plate DIN Plate
Specialist Frame Specialist Frame
Machine Specifications
Maximum Reach 3.4m (11’ 2”) 4.0m (13’ 1”)
Manual Slew 180° 180°
Breakback 17.5° 17.5°
Power 30HP 30HP
Machine Weight 469kg 489kg

3

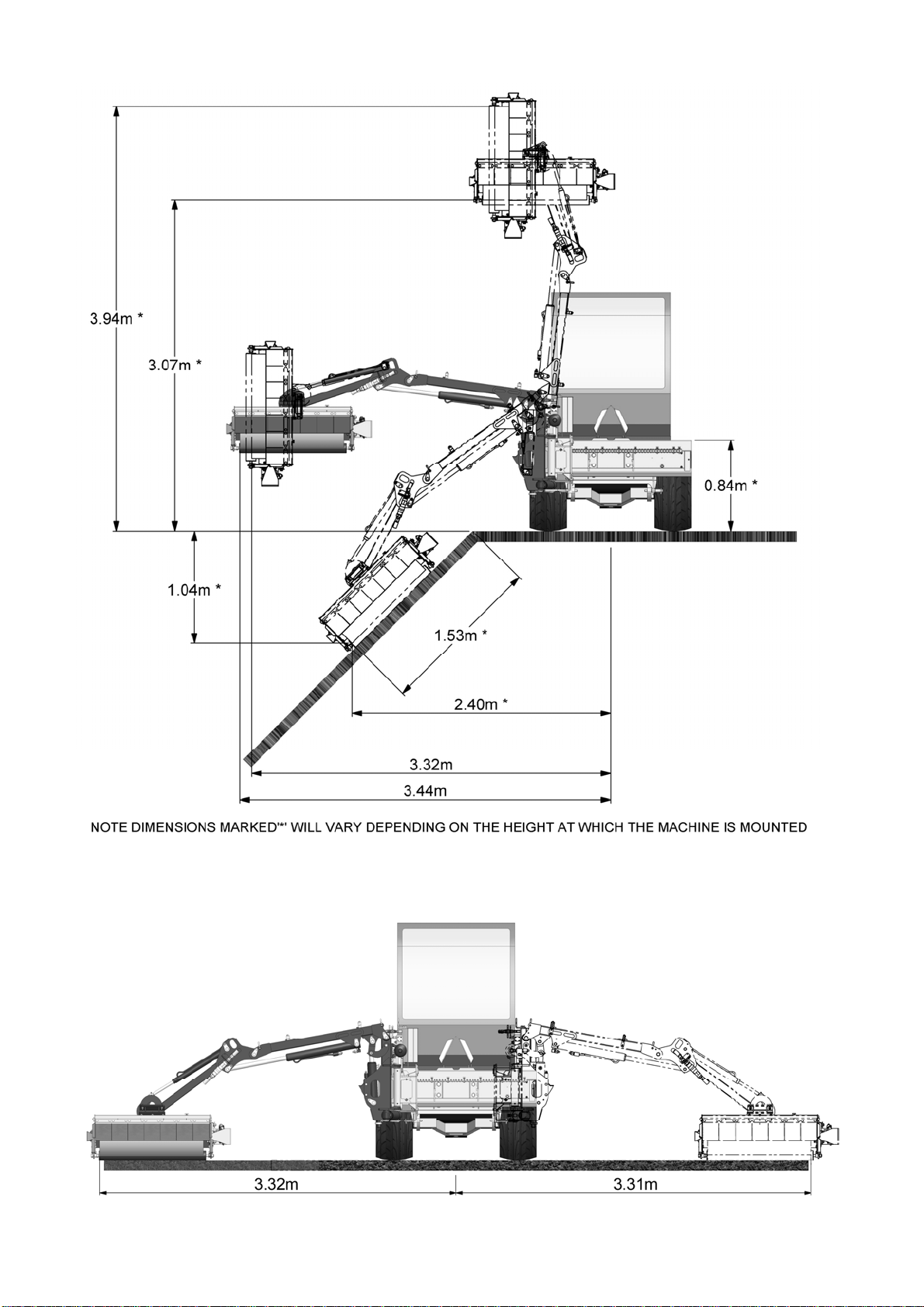

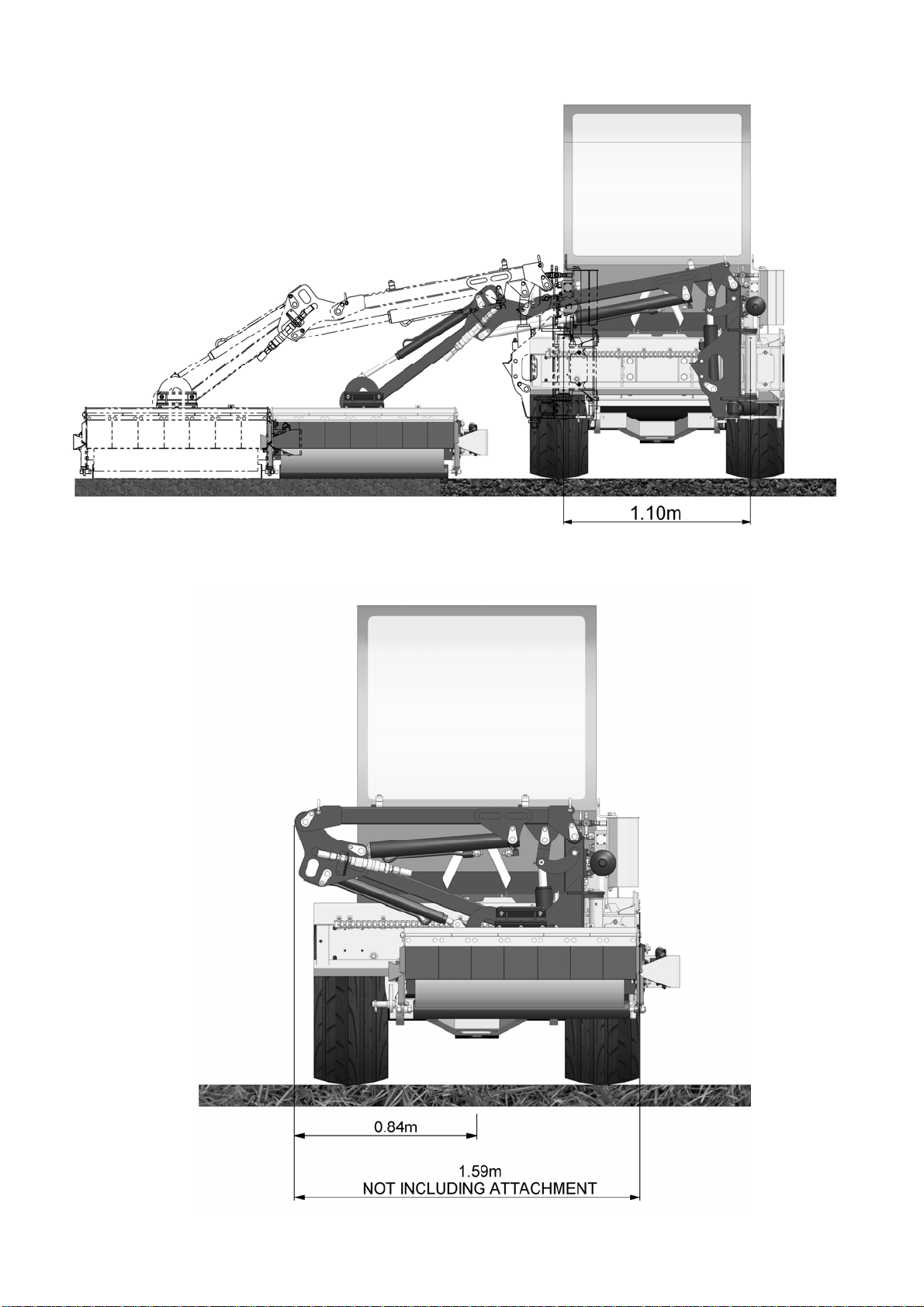

Dimensions – PA3430 VERSI

4

5

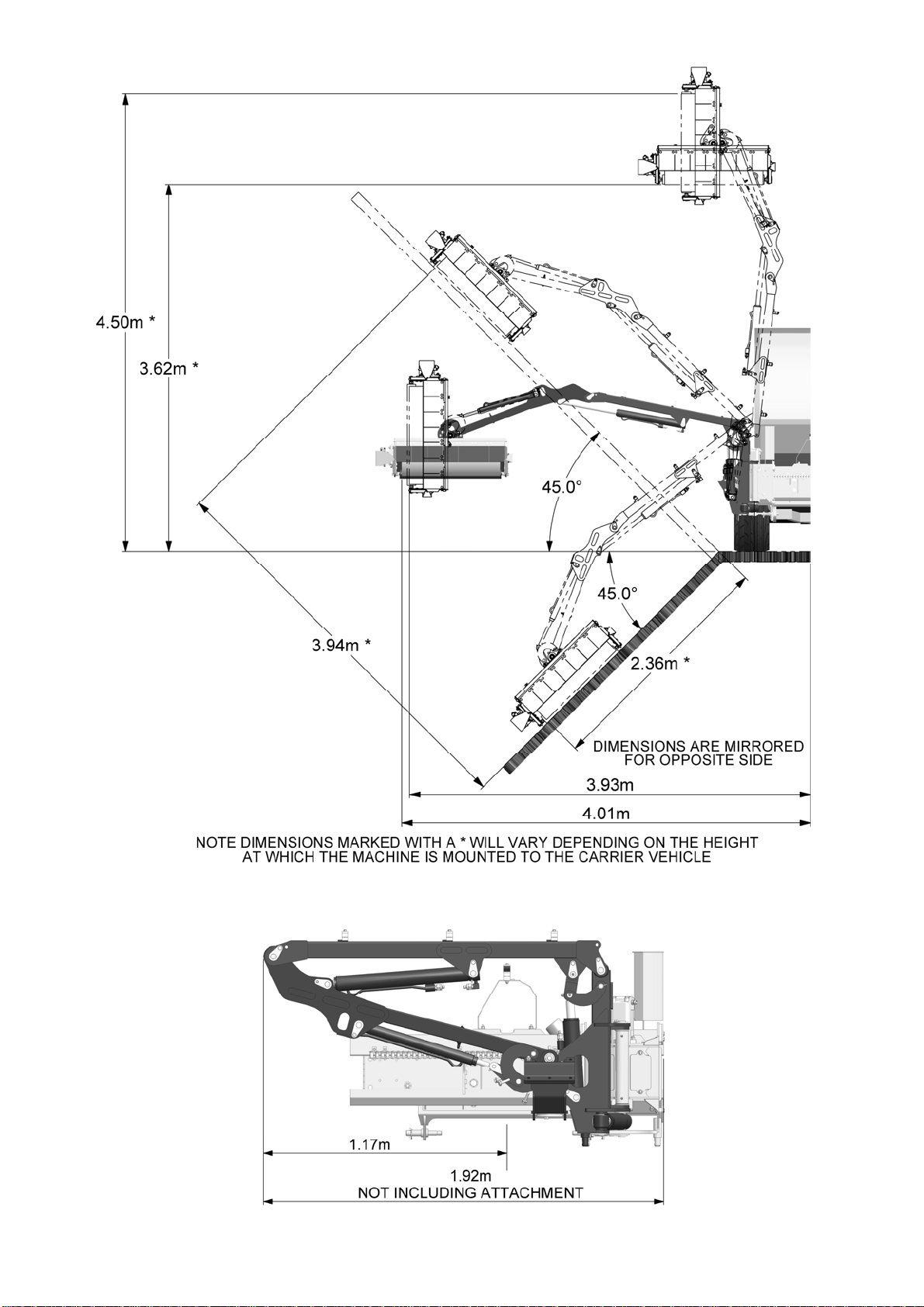

Dimensions – PA4030 VERSI
