McElroy Datalogger 4 User manual

Manual: DL13601 Revision: C 8/14
Fusion Joint DataLogger®
Operator’s
Manual
Original Language: English
4

This product and other products
could be protected by patents or
have patents pending. All the latest
patent information is available at
patent.mcelroy.com

Thank You for purchasing this
McElroy product.
McElroy’s DataLogger® 4 system uses the Trimble®
Nomad® computer with a pressure sender to record
information in the making of pipe fusion joints. The
DataLogger 4 pressure sender reads pressures up to
3000 psi. The DataLogger 4 is compact, it logs a report
for one joint and stores it on the Nomad computer.
The DL4m software is available in 5 languages and
has FusionGuide™ visual assistant that color codes the
produced graphs for better interpretation.
The McElroy DataLogger® 4 system consists of a pressure
sender, the Nomad computer, and optional accessories.
In addition to providing a user interface, the Nomad is
capable of storing hundreds of reports limited only by its
memory capacity. For example, a computer with 20MB
of user accessible memory can store up to 10,000 reports
that are 2Kbytes in length. (Note: although the computer
has the capacity, you are strongly advised to backup
your report data to a Desktop PC or secondary storage
device).
IMPORTANT: Please take every precaution to safeguard
your joint reports. Make backups often. McElroy cannot
guarantee the safety and integrity of joint reports beyond
the specification of component manufacturers and the
handling of equipment in the field.
TX04387-2-29-12
Introduction
McElroy University
For more than 30 years, McElroy has been the only
pipe fusion machine manufacturer to continuously offer
advanced training. Course offerings are meant to
enhance your efficiency, productivity and safety in the
proper use of McElroy machines. McElroy University
classes are structured so that the skills learned and
the machines used in each class closely match the
machines found on pipelining jobsites. We offer training
at our facility or yours. Our uniquely qualified McElroy
University course instructors offer years of industry
experience.
Tuition for each course includes lunches, course materials
and a certificate of completion. Online registration,
as well as up-to-date course offerings and dates, is
available at www.mcelroy.com/university
This manual is intended as a guide only and does not
take the place of proper training by qualified instructors.
The information in this manual is not all inclusive and
can not encompass all possible situations that can be
encountered during various operations.
MU2-03-13-14
TX04659-03-24-14

Warranty
LIMITED WARRANTY
McElroy Manufacturing, Inc. (McElroy) warrants all
products manufactured, sold and repaired by it to be
free from defects in materials and workmanship, its
obligation under this warranty being limited to repairing
or replacing at its factory and new products, within
3 years after shipment, with the exception of purchased
items (such as electronic devices, pumps, switches, etc.),
in which case that manufacturer’s warranty applies.
Warranty applies when returned freight is prepaid and
which, upon examination, shall disclose to have been
defective. This warranty does not apply to any product
or component which has been repaired or altered by
anyone other than McElroy or has become damaged
due to misuse, negligence or casualty, or has not been
operated or maintained according to McElroy’s printed
instructions and warnings. This warranty is expressly
in lieu of all other warranties expressed or implied.
The remedies of the Buyer are the exclusive and sole
remedies available and Buyer shall not be entitled to
receive any incidental or consequential damages. Buyer
waives the benefit of any rule that disclaimer of warranty
shall be construed against McElroy and agrees that such
disclaimers herein shall be construed liberally in favor of
McElroy.
RETURN OF GOODS
Buyer agrees not to return goods for any reason except
upon the written consent of McElroy obtained in advance
of such return, which consent, if given, shall specify the
terms and conditions and charges upon which any such
return may be made. Materials returned to McElroy, for
warranty work, repair, etc., must have a Return Material
Authorization (RMA) number, and be so noted on the
package at time of shipment. For assistance, inquiry shall
be directed to:
McElroy Manufacturing, Inc.
P.O. Box 580550
833 North Fulton Street Tulsa, Oklahoma 74158-0550
PHONE: [phone], FAX: [phone].
EMAIL: [e-mail]
Note: Certain repairs, warranty work, and inquiries may
be directed, at McElroy’s discretion, to an authorized
service center or distributor.
TX02486-01-02-14
DISCLAIMER OF LIABILITY
McElroy accepts no responsibility of liability for fusion
joints. Operation and maintenance of the product is the
responsibility of others. We recommend qualified joining
procedures be followed when using McElroy fusion
equipment.
McElroy makes no other warranty of any kind whatever,
express or implied; and all implied warranties of
merchantability and fitness for a particular purpose
which exceed the aforestated obligation are hereby
disclaimed by McElroy.
PRODUCT IMPROVEMENT
McElroy reserves the right to make any changes in or
improvements on its products without incurring any
liability or obligation to update or change previously sold
machines and/or the accessories thereto.
INFORMATION DISCLOSED
No information of knowledge heretofore or hereafter
disclosed to McElroy in the performance of or in
connection with the terms hereof, shall be deemed
to be confidential or proprietary, unless otherwise
expressly agreed to in writing by McElroy and any such
information or knowledge shall be free from restrictions,
other than a claim for patent infringement, is part of the
consideration hereof.
PROPRIETARY RIGHTS
All proprietary rights pertaining to the equipment or
the components of the equipment to be delivered by
McElroy hereunder, and all patent rights therein, arising
prior to, or in the course of, or as a result of the design
or fabrication of the said product, are exclusively the
property of McElroy.
LAW APPLICABLE
All sales shall be governed by the Uniform Commercial
Code of Oklahoma, U.S.A.
Register your product online to activate your
warranty:www.McElroy.com/fusion
(Copy information listed on the machine nameplate here
for your records).
Model No.
Serial No.
Date Received
Distributor

Table of Contents
Equipment Safety
Safety Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Read and Understand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
General Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Wear Safety Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Equipment is Not Explosion Proof . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Units With Hydraulics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Heater is Hot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Fusion Machine Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Overview
The Datalogger® 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Pressure Sender. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Connecting to a Fusion Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Trimble® Nomad® Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Operation
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Main Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Setting up to Log a Joint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
DL4c Software User’s Guide
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Microsoft® Software (for transferring joint reports) . . . . . . . . . . . . . . . 4-1
McElroy Software (for viewing, printing, and analyzing joint reports) . . 4-2
Transferring Joint Reports with Windows® Mobile Device Center
(Window® 7 and Vista®). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
View Joint Reports with the McElroy DL4c. . . . . . . . . . . . . . . . . . . . . . 4-9
Transferring Joint Reports with Microsoft® Active Sync for
Windows® XP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Maintenance
Usage and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
No User Serviceable Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Specification
McElroy Datalogger® 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
COPYRIGHT©2014, 2013, 2012
McELROY MANUFACTURING, INC.
Tulsa, Oklahoma, USA
All rights reserved
All product names or trademarks are property of their respective owners. All information,
illustrations and specifications in this manual are based on the latest information available at
the time of publication. The right is reserved to make changes at any time without notice.
TX04402-2-29-12

1 - 1
Equipment Safety
Safety Alerts
This hazard alert sign appears in this manual.
When you see this sign, carefully read what it says.
YOUR SAFETY IS AT STAKE.
You will see the hazard alert sign with these words:
DANGER, WARNING, and CAUTION.
Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury.
Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation which,
if not avoided, may result in minor or
moderate injury.
In this manual you should look for two other words:
NOTICE and IMPORTANT.
NOTICE: can keep you from doing something that might
damage the machine or someone's property. It may also
be used to alert against unsafe practices.
IMPORTANT: can help you do a better job or make
your job easier in some way.
¡PELIGRO!
¡PELIGRO!
WR00051-11-30-92
TX00030-12-1-92
Read and Understand
Do not operate this equipment until you have carefully read,
and understand all the sections of this manual, and all other
equipment manuals that will be used with it.
Your safety and the safety of others depends upon care and
judgment in the operation of this equipment.
Follow all applicable federal, state, local, and industry specific
regulations.
McElroy Manufacturing, Inc. cannot anticipate every possible
circumstance that might involve a potential hazard. The warnings
in this manual and on the machine are therefore not all inclusive.
You must satisfy yourself that a procedure, tool, work method, or
operating technique is safe for you and others. You should also
ensure that the machine will not be damaged or made unsafe by
the method of operation or maintenance you choose.
WR00052-12-1-92
TX02946-4-15-09

1 - 2
Equipment Safety
General Safety
Safety is important. Report anything unusual that you notice during
set up or operation.
LISTEN for thumps, bumps, rattles, squeals, air leaks, or unusual
sounds.
SMELL odors like burning insulation, hot metal, burning rubber, hot
oil, or natural gas.
FEEL any changes in the way the equipment operates.
SEE problems with wiring and cables, hydraulic connections, or
other equipment.
REPORT anything you see, feel, smell, or hear that is different from
what you expect, or that you think may be unsafe.
SAFE1ST-12-22-92
Wear Safety Equipment
Wear a hard hat, safety shoes, safety glasses, and other
applicable personal protective equipment.
Remove jewelry and rings, and do not wear loose-fitting clothing or
long hair that could catch on controls or moving machinery.
WR00053-12-2-92
Equipment is Not Explosion Proof
DataLogger® equipment is not explosion
proof. Operation of equipment in an explosive
atmosphere may result in serious injury or death.
Do not operate this equipment in an explosive atmosphere.
WR00034-11-30-92
TX00114-4-22-93
TX00032-4-7-93
TX04388-05-23-14
¡PELIGRO!

1 - 3
Fusion Machine Procedures
Familiarize yourself with the fusion machine you will be working with by
reading the Manufacturer’s manuals for the machine. Read the Safety
Information to avoid potentially dangerous situations.
NOTICE: Follow the pipe manufacturer’s procedures or appropriate
joining standard for fusing the pipe being used.
Failure to adhere to proper machine and fusion procedures can result in
damage to the machine and bad fusion joints.
Heater Is Hot
The heater is hot and will burn clothing and
skin. Keep the heater in its insulated heater
stand or blanket when not in use, and use care
when heating the pipe.
NOTICE: Use only a clean non-synthetic cloth such as a cotton
cloth to clean the heater plates.
Equipment Safety
WR00079-2-7-96 WR00030-2-10-93
TX04403-3-2-12
TX00104-8-12-94
Units With Hydraulics
For hydraulically operated equipment, it is important to remember
that a sudden hydraulic oil leak can cause serious injury, or even
be fatal if the pressure is high enough.
Escaping fluid under pressure can penetrate the
skin causing serious injury. Keep hands and
body away from pinholes which eject fluid under
pressure. Use a piece of cardboard or paper to
search for leaks. If any fluid is injected into the
skin, it must be immediately removed by a doctor
familiar with this type of injury.
NOTICE: Wear safety glasses, and keep face clear of area when
bleeding air from hydraulic system to avoid spraying oil into eyes.
TX03077-2-16-10
WR00078-4-8-93

2 - 1
Overview
The DataLogger® 4
McElroy’s DataLogger® 4 system uses the Trimble®
Nomad® computer with a pressure sender to record
information in the making of pipe fusion joints. The
DataLogger 4 pressure sender reads pressures up to
3000 psi. The DataLogger 4 is compact, it logs a report
for one joint and stores it on the Nomad computer.
The DL4m software is available in 5 languages and
has FusionGuide™ visual assistant that color codes the
produced graphs for better interpretation.
TX04389-2-29-12
Pressure Sender
The pressure sender is connected to the Nomad computer via
a cable. The cable can be replaced easily by unscrewing
from both ends. The pressure sender taps into the hydraulic
system of a fusion machine via a quick-disconnect. Pressure
reading is displayed on the computer screen as long as the
Nomad is turned on and communicating with the pressure
sender. The serial number and pressure rating of the sender is
engraved on the pressure sender.
NOTICE: Do not store pressure probe with adapter fitting(s)
attached. Stored pressure can damage the pressure sender.
TX04390-2-29-12
PH04659-2-8-12
Connecting To A Fusion Machine
NOTICE: The fusion machine must have a hydraulic quick
disconnect for connecting the pressure sender. If the machine
does not have one, contact your distributor for the proper
adapter or retrofit kit.
PH03026-4-13-05
TX04391-2-29-12

2 - 2
Overview
Trimble®Nomad®Computer
The Nomad is a compact and rugged handheld computer with
a high resolution screen and runs the Windows® operating
system.
The software program McElroy DL4m runs on the Nomad to
provide user interface and joint report storage. The DL4m is pre-
installed with English, Spanish, Portuguese (Brazilian), Russian,
and Chinese (Simplified) languages.
The Nomad computer has the Windows®operating system
available in several different languages. Each Nomad is setup
at the factory and ready to log data.
Left Soft Button Makes the left selection at the bottom of the screen.
Right Soft Button Makes the right selection at the bottom of the screen.
Windows® Button This button is not used with the DL4m software.
OK Button This button is not used with the DL4m software.
Arrow Pad Four directional buttons for navigating and changing values.
Enter Button Confirms selections in the software.
Quick Launch Button This button is not used with the DL4m software.
Power Button Quick press turns off the Nomad.
Hold for 1 second to turn off the backlight.
Hold for 5 seconds for the utility/reset menu.
(The Power Button will not function during the logging process.)
TX04392-2-29-12
PH04658-2-8-12PH04663-2-8-12
Left Soft Button
Windows®Button
Power Button
Right Soft Button
OK Button
Arrow Pad
Quick Launch Button
Enter Button
Power Port
RS - 232 Connection
USB Port

3 - 1
Introduction
The 4th generation McElroy DataLogger software DL4m features multi-language user interface for Trimble®Nomad®
mobile computers running Microsoft® Windows Mobile operating system in multiple languages. Currently the DL4m
software supports English, Spanish, Portuguese (Brazilian), Russian, and Chinese (Simplified). The Trimble Nomad
computer comes in other languages including French, German, Italian, Japanese, and Korean.
DL4m introduced push button access for most frequently used functions to reduce wear on the touch screen.
The McElroy DataLogger Trimble Nomad comes with McElroy default settings and the DL4m software preloaded.
Menu items can be accessed by the tapping corresponding text label on the screen or by pushing the buttons on the
keypad. For instance to access the Settings... menu item, push the Left Soft Key below the word Menu to reveal the
DL4 menu then use the Up/Down Keys to navigate to Settings... then push Enter:
Access to program settings and logging starts from the main screen:
TX04393-2-29-12
Operation
PH04608-12-13-11
PH04609-12-13-11

3 - 2
Operation
Main Menu
1) English - When a language other than English is used and
the “Toggle to English” feature is enabled, this menu item toggles the
display language to English.
2) Open... - Open a previously saved joint report for viewing.
3) Settings... - Change program settings:
a) Display language: English, Spanish, Portuguese, Russian,
Chinese (Simplified)
b) Pressure units: psi, bar, kg/cm², MPa
c) Temperature units: °F, °C
4) About... - Display the software and firmware version,
copyright information, computer serial number and pressure
calibration date and time.
5) Exit - Exit the DL4m software.
TX04394-2-29-12
Setup to Log a Joint
From the main screen, tap Setup... or push the Right Soft Key to begin.
Always make sure the time and date are correct before making a joint. If
time and date need adjustment, tap Change Date and Time.
Use the stylus to activate the onscreen keyboard by tapping the keyboard
symbol.
Operator ID and Job # can be letters or numbers up to 30 characters
each.
Joint # is digits-only, and it auto-increments after each completed joint.
Tap Next > > or push the Right Soft Key to setup machine, fusion type,
and specification.
PH04609-2-13-12PH04976-11-14-13

3 - 3
Operation
Setup to Log a Joint (cont'd)
Enter machine ID using the stylus and onscreen keyboard.
Select a machine model or choose Unlisted to enter a machine
number and piston area.
Select a fusion type: Butt Fusion, Sidewall, or Dual Containment.
Select a fusion standard or specification.
Common specifications come preloaded: ASTM, ISO, UK, or
DVS.
An Other selection allows for generic fusion calculation not
based on an industry standard.
Tap Next >> to enter interfacial pressure.
When the ASTM fusion standard is selected, the interfacial
pressure (IFP) can be varied between 60psi and 90psi using the
up/down arrow keys on the keypad.
Tap Next >> to enter pipe material and size information.
Select a pipe material from the list or enter an Unlisted material.
Enter pipe size and select the corresponding units. These
numbers affect the fusion parameter calculations.
Tap Next >> to enter optional Notes about the joint.
PH04977-11-14-13PH04978-11-14-13PH04979-11-14-13

3 - 4
Operation

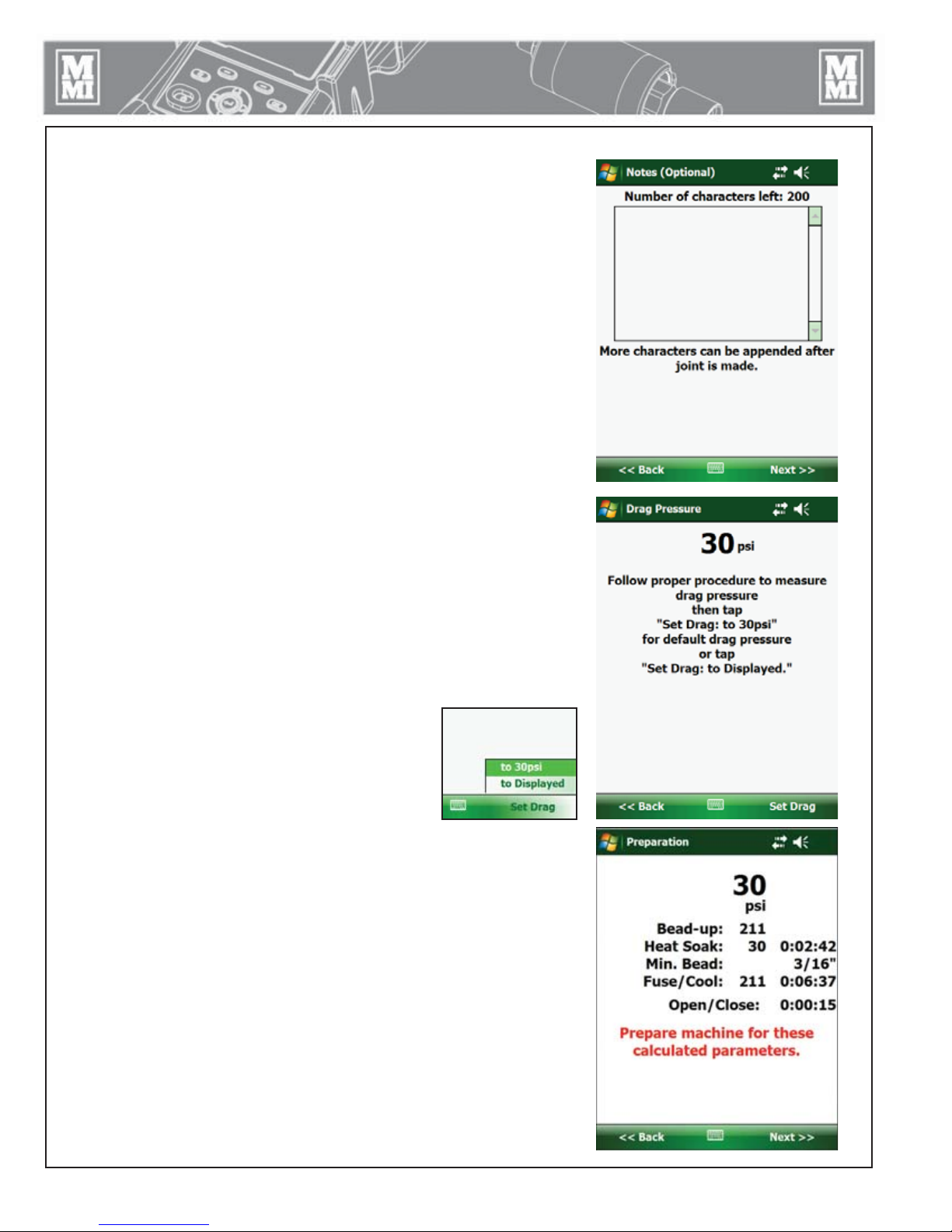

Setup to Log a Joint (cont’d)
Enter notes about the joint (optional)
More characters can be appended after the joint is made.
(The use of the stylus is not required after this screen)
Tap Next >> to measure drag pressure.
Follow drag pressure measurement procedures from the fusion
machine operator’s manual.
Press the Right Soft Key to select Set Drag.
Use the Up/Down arrow keys to select the default 30 psi drag
pressure or the measured and displayed pressure at the top of
the screen.
Press the Enter key to register the intended drag pressure.
Tap Next >> to review the recommended fusion pressures and
times and prepare machine to fuse pipe.
Review the recommended fusion pressures and times and
prepare machine to fuse pipe.
This example shows ASTM specified nominal pressures,
minimum cycle times, bead size after heat soaking the pipe,
and maximum carriage open/close time for heater removal.
Tap Next >> to record heater temperature.
PH04615-2-13-12PH04981-11-14-13 PH04614-2-13-12

3 - 5
Operation
Setup to Log a Joint (cont’d)
Measure the heater temperature using a user provided
pyrometer.
Press the Up/Down keys to change heater temperature reading
based on the temperature measured.
When the reading is below the specification lower limit,
the background turns blue indicating temperature too low.
When the reading is above the specification upper limit, the
background turns red indicating temperature too high.
Tap Next >> to get ready to log a joint.
Make sure pipe ends are properly faced and
heater is securely placed in the fusion machine
between two pipe ends.
Press the Right Soft Key then Enter or tap Log...
and then Start to begin logging then close the
carriage to heat pipe.
If necessary, press << Back to review or change settings on previous screens
or tap Cancel to go back to the main DataLogger screen.
While logging a joint, the number of data points logged is
displayed, along with the elapsed time, the current pressure
reading, the various pressures, times, bead size, and open/
close time.
A stop watch at the lower left corner can be used to time the
various fusion cycles. Pressing the Left Soft Key or tapping Reset
SW resets the stopwatch count.
At the end of the fusion, press the Right Soft Key then Enter or tap Stop then
Yes to stop logging.
PH04619-2-13-11PH04984-11-14-13 PH04982-11-14-13

3 - 6
Operation
Setup to Log a Joint (cont’d)
Joint Report
Joint Report page 1 is displayed when logging is completed.
This page shows:
1. Date and Time
2. Joint Number
3. Job Number
4. Operator
5. Machine ID
6. Model of Machine
7. Piston Area of Machine
8. Pipe: Type with size
Tap Next >> or press the Right Soft Key to go to page 2.
Tap << End or press the Left Soft Key to go back to the main
DataLogger screen.
Joint Report page 2 is displayed.
This page shows:
9. Fusion Type with Standard used
10. Heater Temperature Range
11. External Probe Measurement
12. Specification Pressures and Times
13. Recorded Drag Pressure
14. Interfacial Pressure
Tap Next >> or press the Right Soft Key to go to page 3.
Tap << Back or press the Left Soft Key to go back to the previous
page.
Joint Report page 3 is displayed.
This page shows:
15. Computer Serial Number
16. Software and Version Number
17. DataLogger Serial Number
18. Pressure Sender Firmware Version
19. Calibration Date
Tap Next >> or press the Right Soft Key to go to page 4.
Tap << Back or press the Left Soft Key to go back to the previous
page.
PH04985-11-14-13PH04986-11-14-13PH04987-11-14-13

3 - 7
Operation
Setup to Log a Joint (cont’d)
Joint Report Notes page allows viewing of the notes entered
prior to the joint being made, and the ability to append more
notes to the joint report.
To append more notes, tap the Append Notes... button on the
screen.
Tap Next >> to view the Front-end Plot
Tap << Back or press the Left Soft Key to go back to the previous
page.
The top box is read-only and it shows notes entered previously.
The bottom box is where characters for the new notes can be
entered. A total of 1000 characters are allowed per joint report.
New notes entered in this box will be appended to notes in the
read-only box above.
Use the scroll bar on the right side of the text boxes to scroll
through long messages.
After notes are entered, tap Save or press the Left Soft Key to
save the new notes.
Otherwise tap Cancel to discard the new notes and exit the
Append Notes screen without saving.
PH04626-2-13-12PH04627-2-13-12

3 - 8
Operation
Setup to Log a Joint (cont’d)
NOTE: This is only a demonstration. Data used is fictitious and for demon-
stration purposes only. Do not use this graph as a benchmark for inspecting
other fusion joints. There are several factors that determine what a graph
should look like and all graphs will not look exactly the same. Training and
resources are available to assist in how to interpret a graph.
The appearance of joint reports varies due to several factors, but their basic
profile resembles the following samples:
The DataLogger 4 features FusionGuide™ which applies shaded areas
to the plots in order to quickly determine whether a logged fusion joint
is within the selected fusion specification. The shaded areas highlight the
heat soak time (green), open/close time (red), and fuse/cool time (blue).
The front-end plot of the report highlights the soak cycle during which the
pipe ends are heat-soaked.
Tap Next >> or press the Right Soft Key to view the Heater Removal Plot.
Tap << Back or press the Left Soft Key to go back to the previous page.
The Heater Removal Plot estimates the carriage open/close time period.
Tap Next >> or press the Right Soft Key to view the Summary Plot.
Tap << Back or press the Left Soft Key to go back to the previous page.
The Summary Plot shows the entire fusion process.
Tap End >> or press the Right Soft Key to end viewing the current joint
report and back to the main screen.
Tap << Back or press the Left Soft Key to go back to the previous page.
PH04988-11-14-13PH04989-11-14-13PH04990-11-14-13

3 - 9
Operation
Setup to Log a Joint (cont’d)
Once back at the main screen, you may prepare to make
another fusion joint by pressing the Right Soft Key or tapping
Setup...
Data from the previous joint may be carried over to reduce data
entry for the next joint saving time at the jobsite.
Time and date are automatically updated for the next joint. Joint
number is also automatically incremented after each joint.
Use the scroll bar on the side to review more data about the
next joint.
Press the Right Soft Key to select Yes and start a new joint.
Press the Left Soft Key to select Cancel to go back to main
screen.
Tap No to enter new data for the next joint.
TX04395-11-19-13
PH04608-12-13-11PH04991-11-14-13

4 - 1
Software
DL4c Software User’s Guide
Introduction
McElroy DataLogger 4 joint reports can be viewed, printed, and
analyzed on a Windows®PC using the DL4c software. Joint re-
ports are transferred from the DataLogger 4 to your PC using the
Microsoft®Windows®Mobile Device Center (for Windows® 7
or Vista®) or Microsoft®ActiveSync®(for Windows®XP).
Microsoft Software (for transferring joint reports)
There are different versions of Microsoft®Windows®operating
systems in circulation: Windows®XP, 32-bit and 64-bit versions
of Windows®Vista®and Windows®7. First, find out which
operating system your computer runs and then visit
http://www.mcelroy.com/fusion/support/index.htm
to download the corresponding Microsoft®software.
Save and then run your downloaded Microsoft®software and
follow the installation instructions. Installations may take a few
minutes, so it is best to wait and make sure installation is com-
plete before moving on. “Device Not Found” error near the end
of the installation can be ignored because the operating system
is looking for a device that is not yet connected to the PC.
PH04639-1-24-12
