HP iPAQ Pocket PC h4350 Series Installation guide

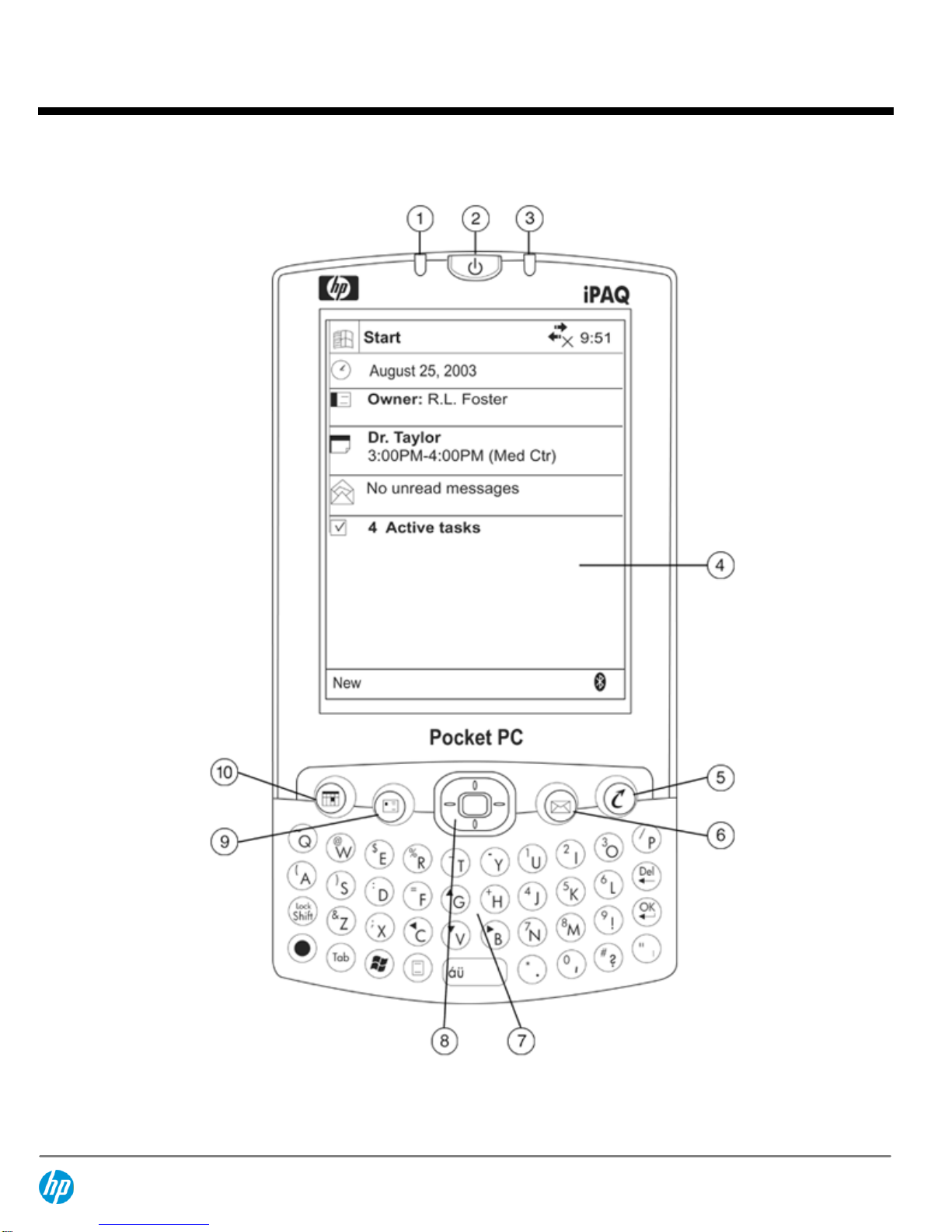

1. Active Bluetooth/WLAN Indicator 6. Inbox Button
2. Power Button 7. Integrated Keyboard
3. LED Power/Notification Indicator 8. 5-Way Navigation Button
QuickSpecs
HP iPAQ Pocket PC h4350 Series
Overview
DA - 11750 Canada — Version 6 — August 19, 2005 Page 1

4. Colour Display 9. Contacts Button
5. iTask Button 10. Calendar Button
At A Glance
Integrated WLAN 802.11b
1
Integrated Bluetooth™
1
Integrated Keyboard
Integrated SD expansion slot
Microsoft® Windows® Mobile™ 2003 software for Pocket PC
Dazzling Transflective TFT colour with LED backlight display
Removable/rechargeable battery
Stay productive with Pocket versions of familiar applications like Microsoft Outlook , Word and Excel
NOTE
1
: A standard WLAN infrastructure, other devices enabled with Bluetooth, and a service contract with a wireless airtime
provider may be required for applicable wireless communication. Wireless Internet use requires a separately purchased service
contract. Check with a service provider for availability and coverage in your area. Not all web content available.
QuickSpecs
HP iPAQ Pocket PC h4350 Series
Overview
DA - 11750 Canada — Version 6 — August 19, 2005 Page 2

Models
iPAQ Pocket PC h4350 – 64-MB SDRAM
FA172A#ABA – US Commercial, English
NOTE: These models will not be available in Canada until late November.
Processor 400 MHz Intel® Xscale™ technology-based processor
Memory SDRAM 64-MB (55-MB user accessible)
Up to 2.8-MB iPAQ File Store (varies by SKU)
ROM 32-MB
Display Type Transflective type TFT colour with LED backlight
Number of colours 64K colour (65,536 colours) 16-bit
Touch Screen Yes
Resolution (W x H) 240 x 320
Viewable Image Size 3.5 in (89 mm)
Hardware Buttons/
Reset Buttons
One power button, one recording button, one soft reset switch, four software programmable application
buttons, one 5-way navigation button.
Stylus One (extra stylus included in the box)
Audio Integrated microphone, speaker and one 3.5 mm headphone jack, MP3 stereo (through audio jack)
Notification Systems Alarms Solid amber LED (right) - battery in unit fully charged
Flashing amber LED (right)- battery in unit is charging
Flashing green LED (right) - event alarm/notification
Flashing green LED (left) - WLAN active
Flashing blue LED (left) - Bluetooth active
Notification Sound and message on the display
QuickSpecs
HP iPAQ Pocket PC h4350 Series
Standard Features
DA - 11750 Canada — Version 6 — August 19, 2005 Page 3

Cradle Interfaces Connector 1
Cable 1 USB cable connects to PC
DC Jack connector for AC
Adapter
1
Additional batter charger Charge additional slim or extended battery
SD Slot Support SDIO and SD/Multimedia card type standard
Power Supply Battery Removable/Rechargeable 1560 mAh Lithium-lon user swappable battery.
Estimated usage time of fully charged battery up to17 hours (no wireless, no
backlight).
Optional extended 3600 mAh Lithium-lon battery available for purchase.
AC Power AC Input: 100~240 Vac, 50/60 Hz, AC Input current: 0.2 Aac max
Output Voltage: 5Vdc (typical), Output Current: 2A (typical)
NOTE: Battery run time varies based on the usage pattern of an individual user and the configuration of
the handheld. Use of internal wireless capabilities and backlight will significantly decrease battery run
time.
Ergonomic Design
Features
Integrated, lighted keyboard
Instant-on/off and Backlight
5-Way Navigation button
Touch-sensitive display for stylus
4 programmable application launch buttons - defaults configured for Calendar, Contacts, Inbox, and iTask
buttons
Record button
2 alarm settings
Built-in speaker
HP Exclusive Applications Bluetooth Manager
iPAQ File Store: non-volatile storage in flash ROM (not available in Japanese, Simplified Chinese,
Traditional Chinese and Korean versions)
iPAQ Backup: utility for Backup/Restore to Main Memory, Memory Card or iPAQ File Store
iPAQ iTask Manager: access and launch programs easily
iPAQ Image Zone: view images and create slide shows
Utilities: Self Test, iPAQ Audio, Power Status
QuickSpecs
HP iPAQ Pocket PC h4350 Series
Standard Features
DA - 11750 Canada — Version 6 — August 19, 2005 Page 4

Companion CD from HP APPLICATIONS
Full Versions Trial Versions
HP Web registration
HP Mobile Print centre
Westtek ClearVue Suite
F-Secure FileCrypto Data
Encryption
Colligo Personal Edition
Adobe PDF Viewer
RealOne Player for Pocket
PC
iPresenter PowerPoint
converter
MobiMate WorldMate
Resco File Explorer 2003 -
U.S. Retail only
Xcellenet Afaria Device Management Agent
Margi Presenter-to-Go (requires purchase of additional hardware)
Illium ListPro
CommonTime Cadenza mNotes
Resco Picture Viewer - U.S. Retail only
CD LINKS
NetMotion
Avaya IP Softphone
IP Blue VTGO!
Cisco CallManager
Pocket Presence Running
Voice IP
Vindigo
Audible Manager and
Audible Player (Service
plan
required to download and
play Audible content - link)
SingleTap
Handango
Pocket Backup Plus
Additional Documentation
Safety and Comfort Guide on PDF, and User Guide on PDF
NOTE: Programs may vary based on SKU. Some programs are accessed through CD links to download web
sites.
Operating System Microsoft Windows Mobile 2003 software for Pocket PC – Premium edition
Pocket versions of Microsoft software are included (Outlook, Word, Excel and Internet Explorer for Pocket
PC)
QuickSpecs
HP iPAQ Pocket PC h4350 Series
Standard Features
DA - 11750 Canada — Version 6 — August 19, 2005 Page 5

Operating System
Applications
Powered by Microsoft Windows Mobile 2003 for Pocket PC
Calendar, Contacts, Tasks, Voice Recorder, Notes, Pocket Word (with Spellchecker), Pocket Excel, Pocket
Internet Explorer, Windows Media Player 9 (MP3, audio and video streaming), Calculator, Solitaire,
Jawbreaker, Inbox (with Spell Checker for email), Microsoft Reader (eBooks), File Explorer, Pictures,
Terminal Services Client, VPN Client, Infrared Beaming, Clock, Align Screen, Memory, Volume control,
ClearType Tuner (except for Asian languages)
Additional Software and
links
Outlook 2002, Microsoft ActiveSync 3.7 (Desktop device synchronization), Microsoft Reader eBooks, Links
to Microsoft websites for additional downloadable applications (some programs may require purchase of
additional desktop software to utilize Pocket PC versions).
Service and Support One-year parts and labour in most regions; 90 days technical support for software in all regions. Optional
HP Care Pack available in North America for Next Business Day replacement (at additional charge). Certain
restrictions and exclusions apply. For details, consult the Product Information Centre at 1-888-882-6672.
WLAN Specifications
1
Radio Specifications
RF Network Standard IEEE 802 Part 11b (802.11b)
Frequency Band 2.4000 to 2.4835 GHz
2.4465 to 2.4835 GHz (France)
2.4000 to 2.497 GHz (Japan)
Antenna type Embedded Inverted F Antenna
WEP Security 64/128-bit compliant to IEEE 802.11
Compliant to 802.1X
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Points Required)
Modulation Technique Direct Sequence Spread Spectrum
Modulation Schemes DBPSK, DQPSK, CCK
Receiver Sensitivity -
Packet Error Rate
(8E-2)
11 Mbps: <-80 dBm
5.5 Mbps: <-82 dBm
2 Mbps: <-86 dBm
1 Mbps: <-89 dBm
Maximum Receive Level -10dBm (1/2/5.5/11 Mbps)
Output Power
(approximately)
15 dBm
Power Management Radio On/Off control through Microsoft Connection icon, Power Save mode
available in Power Settings
Power Consumption Transfer mode: < 380 mA, average
Receive mode: < 280 mA, average
Power Saving Option 802.11 Compliant Power Saving, idle mode 25 mA
Media Access Protocol CSMA/CA (Collision Avoidance) with ACK
Protocols Supported TCP/IP
IPX/SPX
UDP
SAR 1.0 mW/g
QuickSpecs
HP iPAQ Pocket PC h4350 Series
Standard Features
DA - 11750 Canada — Version 6 — August 19, 2005 Page 6

Throughput >4.5 Mbps
Operating Distance Up to 1000 feet - Open sight
Certifications All necessary regulatory approvals for countries we support including:
WECA Wi-Fi approval
FCC (47 CFR) Part 15C, Section 15.247&15.249
ETS 300 328, ETS 301 489-6
Low Voltage Directive IEC950
UL, CSA, and CE Mark
NOTE:
1
A standard WLAN infrastructure, other devices enabled with Bluetooth, and a service contract with
a wireless airtime provider may be required for applicable wireless communication. Wireless Internet use
requires a separately purchased service contract. Check with a service provider for availability and
coverage in your area. Not all web content available.
Bluetooth Specifications
1
Technology High-speed, low-power, short-range
Bluetooth specification 1.1 compliant (2.4-GHz Industrial Scientific Medical Band)
System interface High-speed UART processor interface
User Interface Bluetooth Manager
Device type Class II device; up to 4 dBm transmit, typical 10 metre range
Power 3.3V 5% Peak current - typical TX current at approximately 30 mA
- typical RX current at approximately 50 mA
Receiver sensitivity -78 dBm
Regulatory standards R&TT#-EN 300 328 and EN 300 826, UL 1950, CB Safety Scheme inclusive of
EN 60950 and IEC 950, FCC Part 15 subpart C, Canadian, CE
Profile Support General Access Profile
Service Discovery Application Profile
Serial Port Profile
Generic Object Exchange Profile
File Transfer Profile
Dial-Up Networking Profile
LAN Access Profile
Object Push Profile
Personal Area Networking Profile
Basic Printing Profile
Hard Copy Replacement Profile (printing)
Usage Models Service Discovery
Determine what Bluetooth devices are within range and support authorization
File Transfer
File and directory browsing and navigation on another Bluetooth device.
File copying
Object manipulation - including add, delete, create new folders etc.
Serial Port
Synchronization between PDAs and PCs
QuickSpecs
HP iPAQ Pocket PC h4350 Series
Standard Features
DA - 11750 Canada — Version 6 — August 19, 2005 Page 7

Dial Up Networking
Wireless link to WAN thru Bluetooth enabled cell phone
1
Agnostic to WAN technology
Send/receive SMS messages
LAN Access
Wireless link to Corporate LAN using Bluetooth and appropriate Bluetooth
access point
1
Corporate email, network neighborhood, access to LAN applications, file
transfer, ftp, Internet browsing, etc, using TCP/IP
1
Access the Internet by connecting to your desktop or notebook over Bluetooth
and using its network connection
1
Generic Object Exchange and Object Push
Exchange business cards, tasks, documents, appointments and more
1
Personal Area Networking
Collaborate, chat, play games, exchange data
1
Adhoc peer to peer networking
1
Basic Printing and Hard Copy Replacement Profiles
Print to any HP Bluetooth enabled printer without the need for cables or
specific print drivers
Certifications All necessary regulatory approvals for countries we support including:
Bluetooth logo (FCC (47 CFR) Part 15C, Section 15.247&15.249 ETS 300 328,
ETS 301 489-1/17 Low Voltage Directive IEC950 UL and CE Mark
NOTE:
1
A standard WLAN infrastructure, other devices enabled with Bluetooth, and a service contract with
a wireless airtime provider may be required for applicable wireless communication. Wireless Internet use
requires a separately purchased service contract. Check with a service provider for availability and
coverage in your area. Not all web content available.
QuickSpecs
HP iPAQ Pocket PC h4350 Series
Standard Features
DA - 11750 Canada — Version 6 — August 19, 2005 Page 8

System Unit Dimensions (H x W x D) 5.4 in x 2.9 in x 0.6 in (138.7 mm x 74.6 mm x 14.5 mm)
Weight 5.8 oz (165 g)
Operating Temperature 32° to 104° F (0° to 40° C)
Storage Temperature -4° to 140° F (-20° to 60° C)
Operating Humidity 90% RH
Regulatory Marks Electrical FCC Class B, UL or CSA NRTL
Safety C-UL, NOM
TFT Colour Display Number of colours 65,536 (64K 16-bit
Resolution (W x H) 240 x 320
Dot Pitch 0.24 mm
Viewable Image (W x H) 3.5 in (89 mm)
Display Type 64K colour (16-bit) transflective type TFT colour with LED
AC Adapter Dimensions (H x W x D) 3 x 1.9 x 1.8 in (76 x 48 x 44 mm) (including prongs)
Cord Length (approximate) 6 ft (1.83 m)
Power Supply Ratings Voltage Range 100 to 240 V Switching
Input Current 0.3 A
Input Frequency 50 to 60 Hz
Output Voltage 5 VDC
Output Current 2 Amp
QuickSpecs
HP iPAQ Pocket PC h4350 Series
Technical Specifications
DA - 11750 Canada — Version 6 — August 19, 2005 Page 9

NOTE: Optional accessories are available at additional cost.
Memory/Storage 128-MB SD Memory Card 253479-B21 FA135A#AC3
256-MB SD Memory Card 287464-B21 FA136A#AC3
512-MB SD Memory Card 344310-B21 FA184A#AC3
1-GB SD Memory Card FA283A#AC3
Power 3600 mAH Lithium Ion Extended Battery 343118-001 FA190A#AC3
1560 mAh Lithium Ion Standard Battery 343117-001 FA189A#AC3
Auto Adapter 253508-B21 FA125A#AC3
Charger Adapter 274707-B21 FA133A#AC3
AC Adapter 253629-001 FA130A#ABA
Synchronization Desktop Cradle 343116-001 FA188A#AC3
USB Charger/Sync Cable FA122A#AC3
Input Devices Stylus Three-pack 331311-B21 FA113#AC3
SDIO Camera (Photosmart Mobile Camera) FA185A#ABA(US)
FA185a#AC3(WW)
Bluetooth Stereo Headphones FA303A#AC3
Navigation iPAQ Bluetooth Navigation System FA196A#AC3
HP Care Pack Services Post Warranty Service, Pick up & Return, HW Support, CPU Only U6572PE
Next day Exchange, 1 year U7844E
Next day Exchange, 3 years U7845E
Pick up and Return, 2 years U7849E
Pick up and Return, 3 years U7846E
Accidental Damage, Pick up and Return, HW Support, 3 years U7847E
Accidental Damage, Pick up and Return, HW Support, 1 year U7848E
Pick up and Return, CPU Only, 5 years U7852E
Pick up and Return, CPU Only, 4 years U9592E
NOTE: For additional information on HP Care Pack Services, please see
http://www.hp.ca/hps/carepack/ .
QuickSpecs
HP iPAQ Pocket PC h4350 Series
Options
DA - 11750 Canada — Version 6 — August 19, 2005 Page 10

HP iPAQ Pocket PC h4350 is a Microsoft® Windows® Powered Pocket PC
For more information on HP iPAQ Pocket PC, visit our website at http://www.hp.ca/ipaq
©2005 Hewlett-Packard Development Company, L.P.
The information in this document is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein. Microsoft, Windows and the Windows Logo are registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries. Intel is a registered trademark of Intel Corporation in the U.S. and/or other
countries.
QuickSpecs
HP iPAQ Pocket PC h4350 Series
Options
DA - 11750 Canada — Version 6 — August 19, 2005 Page 11
