MCi Multi Festa User manual

AUTOMATIC DOSING OF PRODUCTS
Instruction Manual
review_115 V 00_20
*ilustrative image
National Equipment Distributors LLC.
624 Matthews-Mint Hill Rd. Suite 122
Matthews, NC 28105 USA
[phone]
nationalequipmentdistributors.com
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

SUMMARY
cole a etiqueta nº série
manual code: 51826
equipment code: 51843
panel code: 51707
Model:
cód.51482
Batch:
| |
Serial Number:
Power Input:
Frequency:
Rated Current:
Rated Voltage:
Year:
Capacity:
2020
N.A. 45 W
0,30 A
115 V
60 Hz
Multi Festa
PAGE 04 DATA SHEET
PAGE 05 SAFETY COMPONENTES
PAGE 08 AVAILABLE ACCESSORIES ( purchase separately)
PAGE 10 SPARE PARTS
PAGE 15 FUNCTIONS IN THE ELECTRONIC PANEL

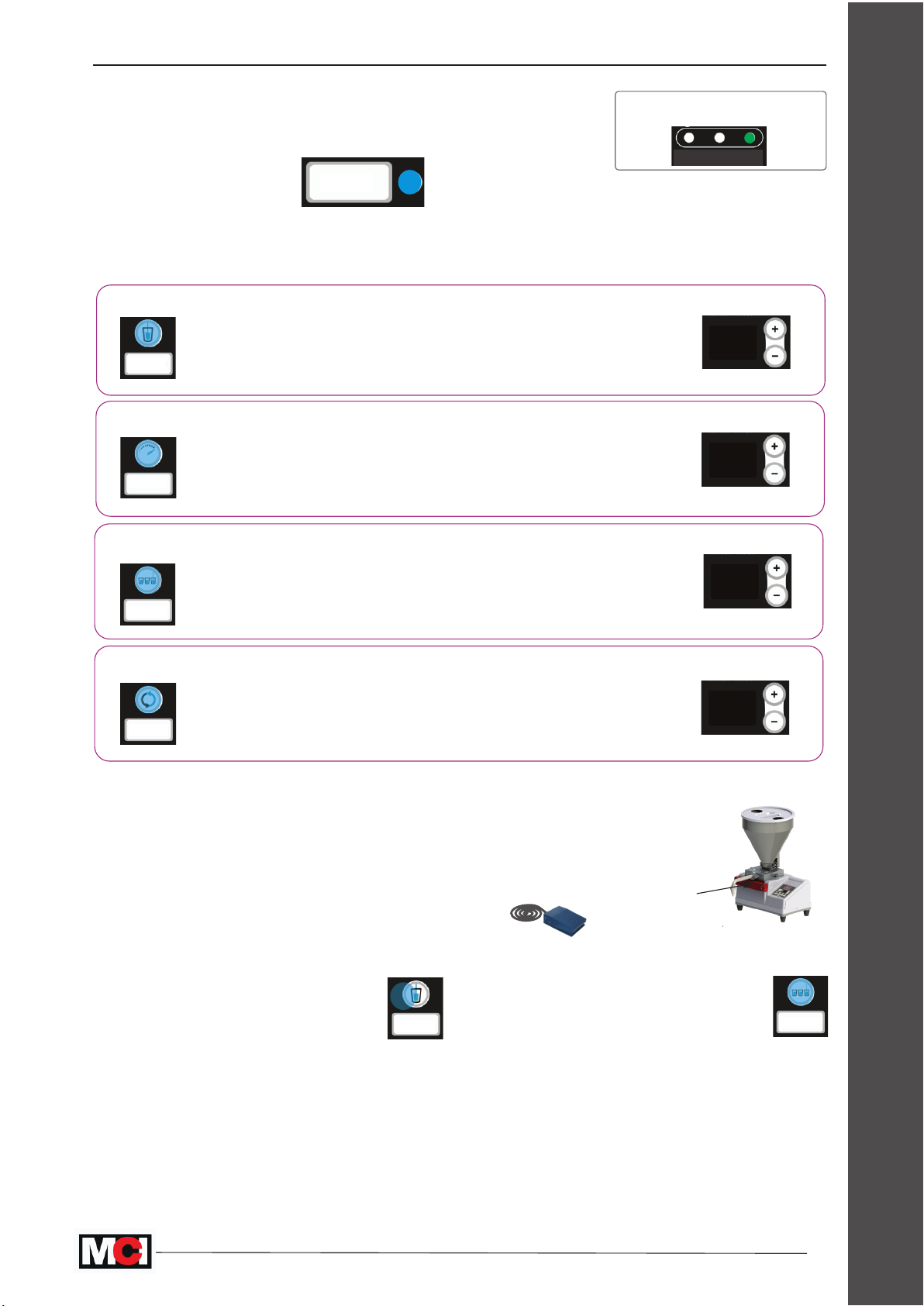

PAGE 16 DOSING MODE
PAGE 17 CONTINUOUS MODE
PAGE 07 STANDER ACESSORIES
PAGE 18 CLEANING
PAGE 19 ELECTRIC COMPONENTS
PAGE 20 ELECTRIC DIAGRAM
PAGE 03 IMPORTANT NOTES
PAGE 06 ASSEMBLY OF THE PARTS
SUMMARY

3
IMPORTANTS NOTES
Recomendações importantes
Name: METALÚRGICA CONVENÇÃO DE ITU LTDA.
Address:
Zip code:
1028, Sete Quedas Avenue 13.313-006
Bairro: City/ State:
Vila Padre Bento Itu – SP
CNPJ: State Enrollment:
49.563.117/0001-72 387.024.638.117
Phone: [phone]
SAFETY INSTRUCTIONS
Carefully read the Maintenance and Operation Manual, as for all the indicated warnings on the
equipment before operating it. Failure to follow these instructions and notices may result in serious
injuries to the operator.
1. The equipment must be installed in locations where use and maintenance are restricted to trained
and/or qualified people;
2. Do not install the equipment in locations exposed to water jet. Do not immerse its bottom in water
or other liquid, nor rinse it with running water, unless advised by a specific instruction.
3. The MCI equipment shall be installed with suitable electrical grounding. Failure to this electrical
grounding may cause electrical damages to the equipment, such as the electronic board burning.
For your safety, ask for a qualified electrician to check the conditions of the power grid of the
equipment installation site.
4. This equipment shall not be operated by people with physical or mental limitation nor children,
unless they are instructed for the use of the equipment and supervised by a responsible person for
their safety;
5. Take off rings, jewelry, watches and loose clothes. Keep your hair away from the moving parts of
the machine;
6. Never use accessories or parts from other manufacturers. Before switching on the device, be sure
that all the parts are correctly assembled;
7. Only operate the equipment if the safety protections are perfectly fitted. The protections shall only
be removed from the device when it is switched off;
8. Before connecting the device, be sure that the indicated voltage of the equipment is the same as
the socket. The voltage of this equipment is 115 V;
9. Do not use the device if the plug or the power cable are damaged;
10. Connect your equipment into a close and exclusive socket. Do not use extension cables or plug
adapters (T type). Arrange the equipment in a way that it does not interfere with its disconnection
from the power supply. Do not connect the equipment into damaged sockets;
11. The total shutdown occurs when the power plug is removed from the socket. In case of
abnormalities, remove the power plug from the socket;
12. Equipment for internal use. The equipment must be installed in a horizontal plane and has at least
0.25 m (10 in) widht and 0.40 m (16 in) lenght. It is ideal to have a complementary support area for
tools;
13. The operating temperature range is from 10 °C (50ºF)to 40 °C(104ºF);
14. Carefully follow the equipment cleaning and disassembly procedures shown in this manual;
15. A thorough reading of this manual and/or video visualization of the Pratic Desk allows the
operator to be capable of operating this equipment. Access the website: www.minidesk.ind.br
MCI recommends the mandatory use of all safety devices.
Any modification in the equipment, changes or adjustments of the safety systems installed by MCI
may cause serious injuries to the physical integrity of the machine operator.
MCI is not responsible for any modification in the equipment. The machine's owner is considered
responsible for any changes.

44
DATA SHEET
45 W
Description:
Multi Festa, semi-automatic dosing, dose and lling products with creamy or pasty consistency. It
has a dosing pump that imparts uniformity in dosage and lling, productivity, economy and
operational safety for your business.
The equipment is not allowed to use solid and dry products such as dough, cubed fruits and
vegetables, bars of chocolate, grated coconut, and liquid products in general such as juices,
carbonated drinks and alcoholic beverages.
Visit our channel https://www.youtube.com/user/videosmci for further clarication.
Electrical data:
115 V
The MCI dosing, Multi Festa, must be installed with a suitable
electrical grounding.
Failure to electrical grounding may cause electric damages.
For your safety, ask for an electrician you trust to check the
condition of the power grid of the equipment installation site.
illustrative image
*ilustrative image
0,37 m (14.57 in) 0,20 m (7.87 in)
0,60 m (23.62 in)
Weight net: 14,7 kg
(32.41 lb)
Anti-drip system
Dosage
Dosing/ lling pump: 45W
Variable by product
Volumetric capacity: 5 liters (1,32 gal)
Mousse, mini cake, pasty sweets
Filling «Churros», cake “bebezinhos”, donuts, «bomba», «carolinas»
Motor potency
Productive capacity
At the end each dosing, reversing the rotation of the dosing
lobes avoids or minimizes dripping. Used for more uid products.

5
www.MCI.com.br
DOSING
CONTINOUS
AMOUNT QUANTITYSPEED RECOIL
EMERGENCY
ENABLED
SAFETY
ENABLED
COMAND
ENABLED

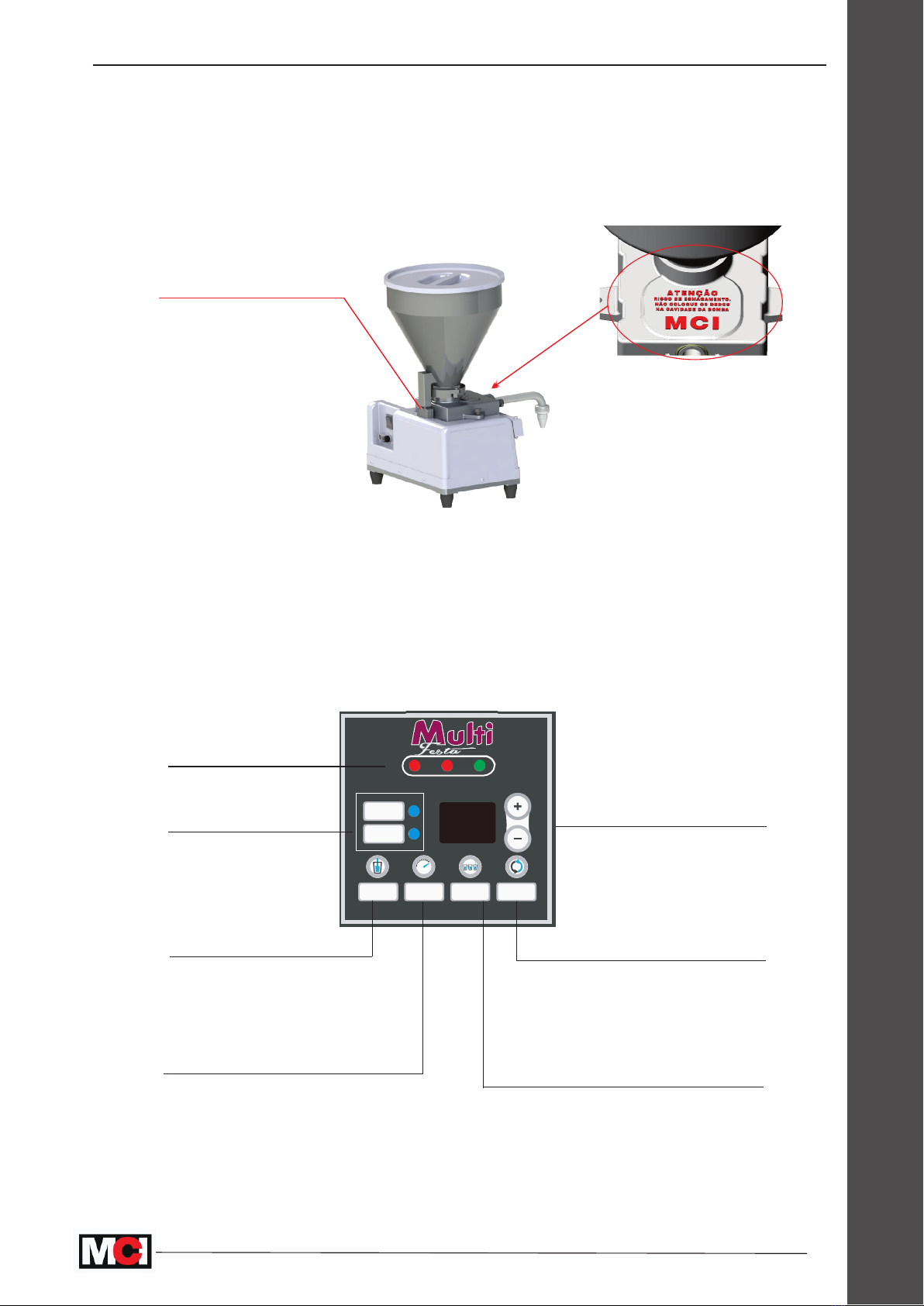

SAFETY COMPONENTES
SAFETY COMPONENTS
Multi Festa provides safety components that fully meet the regulatory standard of safety,
containing xed protection, mobile protection and interconnected devices to ensure
operator safety in accident prevention.
SAFETY SENSOR FOR THE
FUNNEL POSITIONING
It terminates the
general operation of
equipment when the
funnel is removed or is
misaligned.
ilustrative image

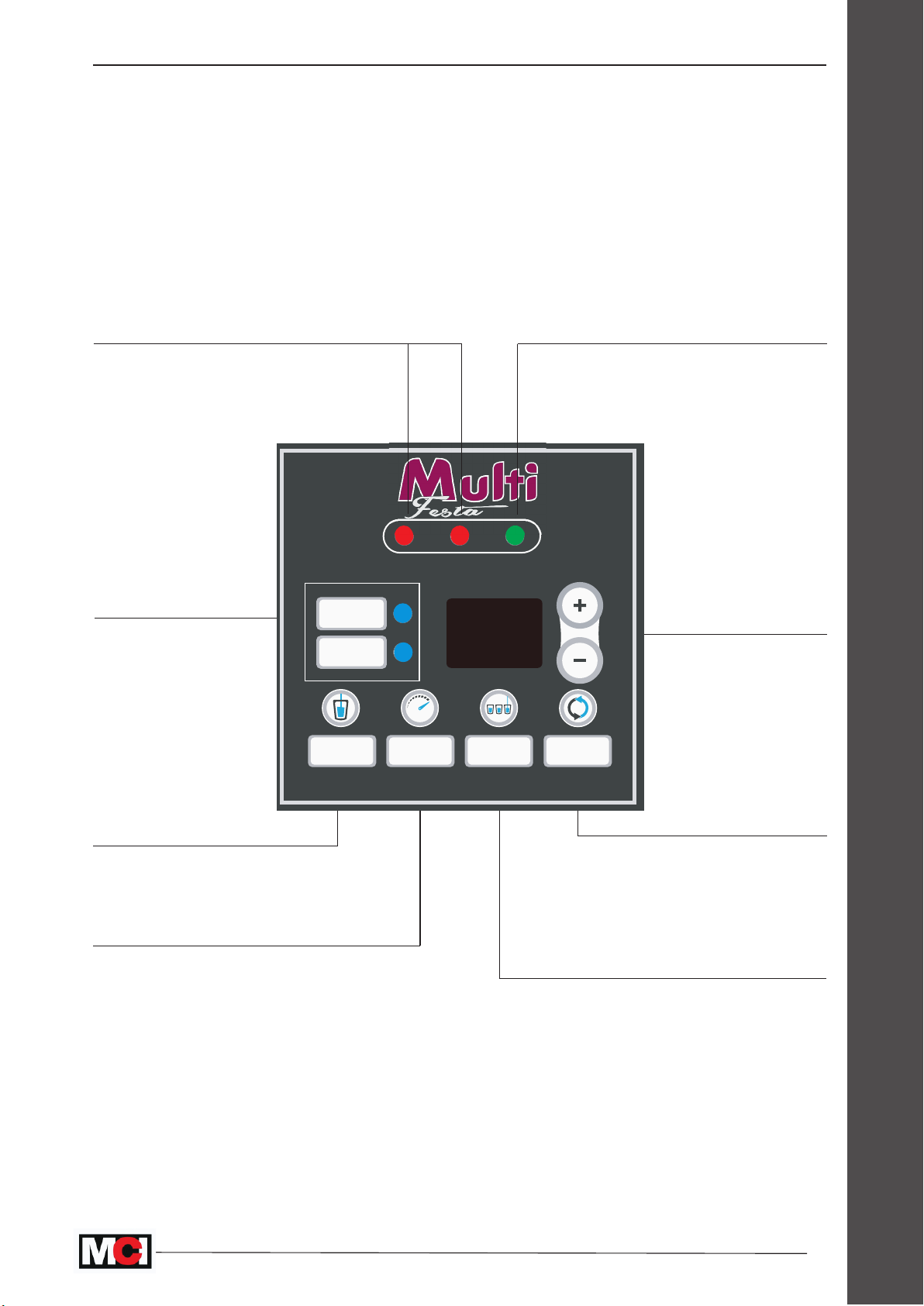

FUNCTIONS IN THE ELECTRONIC PANEL
Select dosing (interval)
or continuous mode
Signaling lamps
Increases or decreases
each parameter of
the selected function
Amount
It refers to the time in which
the dosing lobes move ,
determining the amount/
volume of the dosed product.
Speed Number of doses
Repeated doses in the
same tray
Recoil
It refers to the speed of rotation of the
dosing lobes. The higher this value, the
faster will be the dosage.
It refers to the reversal of the direction
of rotation of the dosing lobes that are
intended to contain some product
leakage between one dosage and
other.

6
ASSEMBLY OF THE PARTS
Then, the sequence of ASSEMBLY of the parts of MULTI FESTA:
1. With the clean
machine, follow the
sequence;
When using the MULTI FESTA, keep the uniform product volume in funnel to no weight
Keep the air-conditioned production environment to not interfere in the product weight
change.
IMPORTANT INFORMATION FOR THE USAGE OF THE MULTI FESTA:
change in dosage.
2. Fit the dosing pump
of lobe ever assembled;
4. Fit the funnel. Make sure
that the sealing ring is
well positioned to avoid
leaks;
3. Fix the pump by the
maniples;
5. Attach the clamp to secure
the funnel. Cap the funnel
and screw the cover to x it;
6. Fit the accessory to
dosing or lling. Use the ring
o'ring to prevent leaks;
7. Fix the acessory by the two
maniples;
9. Plug into the socket 10A
10. Fill the funnel with the
product to be dosed or
stuffed.
8. The motor can be driven
by the trigger pedal. In this
case connect it to rear of
the machine

7
STANDARD ACESSORIES
MULTI FESTA comes with the following accessories:
cabinet pump dosing set
and cover
two maniples
set dosing with
injected nozzle
code 46193 code 46199
set nozzles to
stuff Ø8mm
for filling
for dosing
Assembly of the
Assembly of the
simple dosing nozzle
actuator pedal
code 15898
Allen wrench
3 mm (0.11 in)
code 2541
Pump wrench
code 46026
simple lling nozzle

8
AVAILABLE ACCESSORIES (purchased separately)
code 46194
Universal way
assembly (straight)
code 46198
Curve one way
assembly
code 46217
One way
assembly
Two ways
assembly
code 46200
Nut
M20 x 2
code 48264
code 46047
needle nozzle
8 mm (0.31 in)
code 46935
needle nozzle 5mm
«chuveirinho»
code 48229
needle nozzle
stopper 8 mm (0.31 in)
code 47616
Ribbed straight
nozzle n#4 - MCI
code 47617
Mago nozzle
socket
code 48268
Plain straight
nozzle n#4 - MCI
Mago nozzle
n#22
code 35724
Mago nozzle
n#30
code 35726
Mago nozzle
n#10
code 16342

9
AVAILABLE ACCESSORIES (purchased separately)
code 46202 code 46203
Two ways assembly
with dosing nozzles
Assembly of the double
lling nozzle
Assembly of the
«cuveirinho» lling
Assembly of the double
dosing nozzle
Two ways assembly
with lling nozzles
code 48261
«chuveirinho»
nozzle wrench
code 48217 code 48218 code 49436
«chuveirinho» assembly
3 curves ways
«chuveirinho» assembly
3 straight ways
«chuveirinho»
assembly 5 ways

10

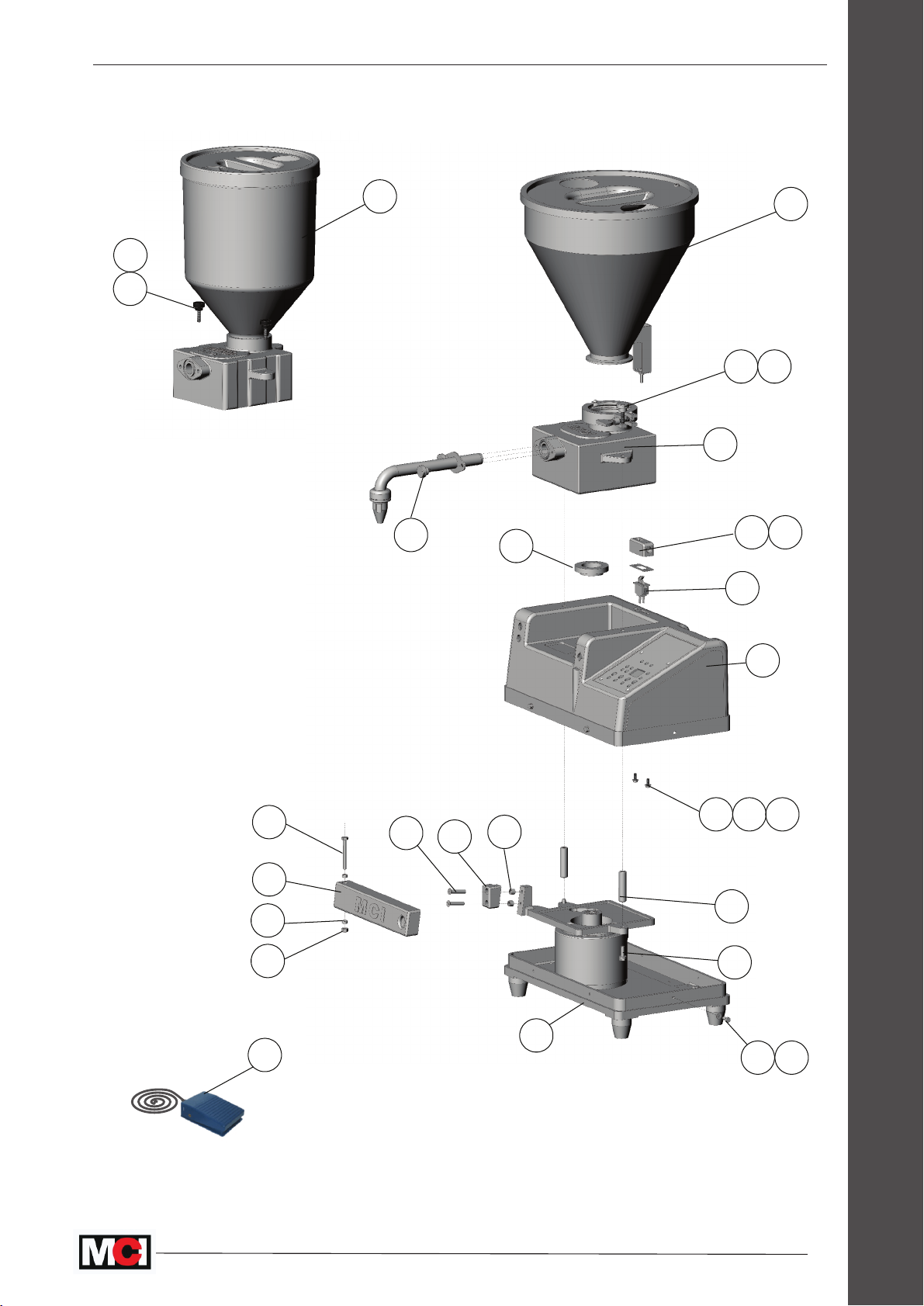

SPARE PARTS
21
1
16
2
22
8
7
14
5
9
4
18
19
16 3
17
12 13
10 11
15
6
20
23
24
25
26
17
16
or

11
SPARE PARTS
ITEM
CODE
QTY.
DRAWING
DESCRIPTION
1
48595
1
01-0347-041
Funnel set
2
48188
1
01-0347-028
Pump set
3
46173
1
02-0347-012
Retainer - Ø56X36 mm
4
51453
1
01-0347-046
Base assembly UL
5
46142
1
12-0347-007
Dosing drive
6
46174
1
02-0347-013
Sensor drive bearing
7
48605
2
02-0347-009
Zinc plated spacer
8
51842
1
12-0347-022
Cabinet - UL
9
04231
1
04231
Self locking hexagonal nut - M06
10
03099
2
03099
Slotted cap screw - M4x12 m
11
00129
2
00129
Plain washer - M04
12
49030
1
03-0347-010
Push button adapter
13
50487
1
12-0347-019
Push button protection
14
00140
5
00140
Hex cap screw - M5x12mm
15
22448
2
22448
Nutless hexagonal screw set - M6x20 mm
16
14313
4
14313
Maniple - MAM-I 00842
17
14149
2
14149
Headless Allen screw - M6x30 mm
18
00953
2
00953
Slotted at head screw - M06x30 mm
19
00415
1
00415
Hex cap crew - M06x50 mm
20
00119
2
00119
Lock washer - M04
21
15898
1
15898
Mini foot switch - FSP-1 cabo 2m
22
50083
1
50083
Interruptor push button
23
51407
1
02-0347-074
Chock - 6,5x9,5x#4,8
24
51409
2
02-0347-073
Chock - 6,5x9,5x#6,8
25
00977
1
00977
Plain washer - M5
26
46171
1
01-0347-011
Dosing pump of lobes assembly with funnel

12
9
10
11
12
13
14
15
7
16
19
20
6
21
8
15
13
14
12
9
10
17 18
43
23
22 24

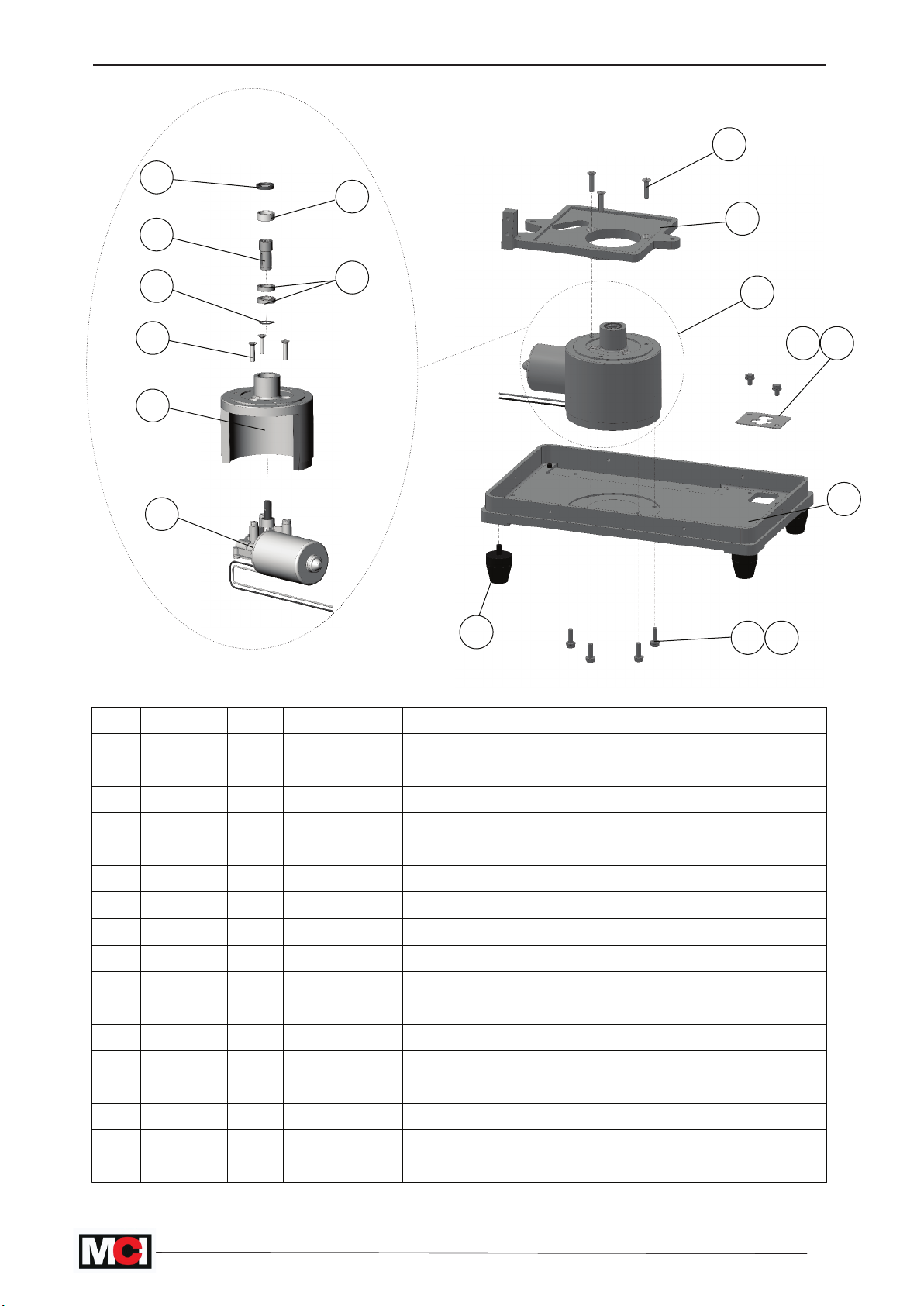

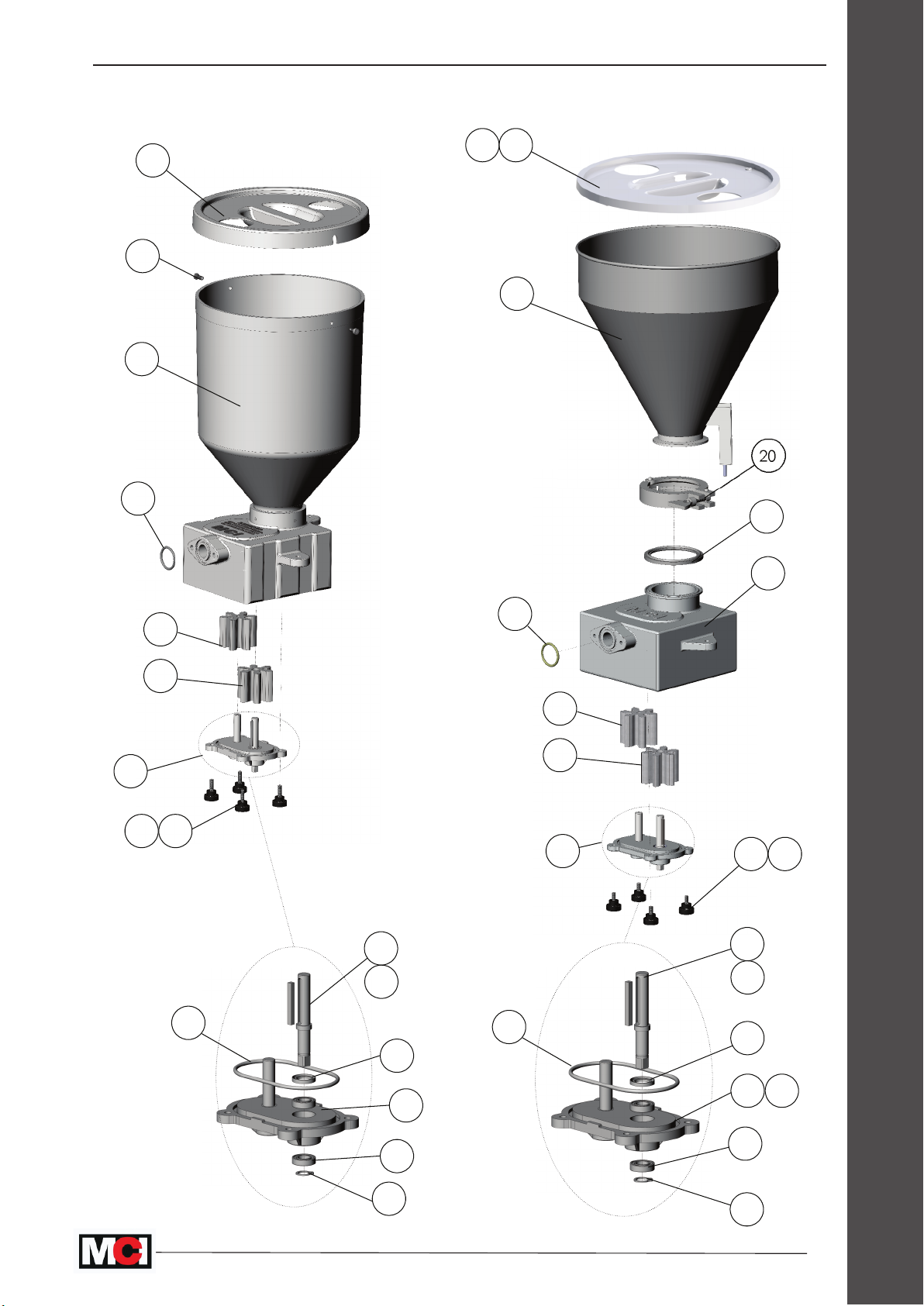

SPARE PARTS
or
1
2
43
7
6
8
5
24

13
SPARE PARTS
ITEM CODE QTY. DRAWING DESCRIPTION
1 46145 1 12-0347-006 Funnel cover
2 51887 1 02-0347-078 Dosing pump of lobes assembly (with funnel)
323676 4 23676 Headless Allen screw - M5 x 25mm
416533 4
16533
Maniple - Mam-I 00841
5 46168 1 01-0347-013 Dosing pump cover assembly
6 46162 1 02-0347-004 Z6 motor gear - dosing pump
7 46170 1 02-0347-003 Z6 - dosing pumpmoved gear
8
10160
110160 O-ring silicone ring ø27x3mm
9 26490 1 26490 Elastic ring E10
10 46166 2 46166 Stainless steel bearing SKF 6800ZZ(d10xD19x5)
11 45999 1 12-0347-003 Injected lower pump cover
12 51889 1 51889
Retainer ø12,7
13 46160 1 02-0347-002 Motor axis - dosing pump
14 24486 1 24486 Shaft key - 4x4x35 mm
15 46169 1 46169
O-ring silicone ring ø77x3mm silicone translúcido
16
48586
1
02-0347-054
Aluminum pump
17
48178
1
02-0347-038
Aluminum pump cover
18
48180
1
02-0347-039
Aluminum pump shaft
19
48184
1
48184
Sealing ring - TC-Ø2.1/2"
20
48183
1
48183
Clamp - TC 2 1/2" - stainless
21
48186
1
01-0347-029
Pump cover set
22
49765
1
07-0347-002
Funnel cover
23
48596
1
04-0347-013
Funnel set
24
21429
2
21429
Slotted head screw - M5x12mm

14
ITEM CODE QTY. DRAWING DESCRIPTION
1 00142 4 00142 Hex cap screw - M06x20 mm
2 13622 4 13622 Rubber foot
3 51454 1 02-0347-068 Lower base - UL
4 51452 1 01-0347-049 Drive assembly - UL
5 46106 1 02-0347-008 Pump support - Multi Festa dosing
6 04397 3 04397 Slotted at head screw - M6x25 mm
7 50669 1 07-0000-053 Motor Bosch 310
8 46103 1 02-0347-006 Drive support
9 04397 3 04397 Slotted at head screw - M6x25 mm
10 01880 1 01880 Elastic ring E-15
11 08283 2 08283 ZZ (d15xD24x5) bearing
12
13 46187 1 04-0347-001 Traction axis
14 48568 1 48568 Retainer Ø18,0 x Ø24,0 x 4 Perl GA1
15 49338 1
02-0347-059
Retainer bushing
16 00125 6
00125
Plain washer - M6
17 51840 1
03-0347-026
Self locking wire connector base - UL
06744 2
06744
Hex cap screw - M6x10 mm
1
17 12
16
3
4
5
6
2
7
8
9
10 11
13
14
15

15
FUNCTIONS IN THE ELECTRONIC PANEL
FUNCTIONS IN THE ELECTRONIC PANEL
Select dosing (interval)
or continuous mode
Signaling lamps
For the operation of Multi Party, the
COMMAND ON must be lit
Increases or decreases
each parameter of
the selected function
Amount
It refers to the time in which the dosing
lobes move , determining the amount/
volume of the dosed product.
(scale from 1 to 99)
Speed
(scale from 1 to 99)
Number of doses
Repeated doses in the
same tray
(scale from 2 to 99)
Recoil
(scale from 1 to 10)
EMERGENCY ON or SECURITY ON is lit,
check that the security system is
perfectly seated.
It refers to the speed of rotation of the dosing lobes.
The higher this value, the faster will be the dosage.
It refers to the reversal of the direction of
rotation of the dosing lobes that are
intended to contain some product
leakage between one dosage and other.
www.MCI.com.br
DOSING
CONTINOUS
AMOUNT QUANTITYSPEED RECOIL
EMERGENCY
ENABLED
SAFETY
ENABLED
COMAND
ENABLED

16
1. Connet the Multi Party in outlet, to trigger the rotary switch;
2. Place the product to be used in the funnel after complete
assembly of the Multi Party
SELECT THE DOSING MODE,
3. Program "AMOUNT", "SPEED", "QUANTITY" and "RECOIL" according to the product characteristics.
The settings of "AMOUNT", "SPEED" and "RECOIL" shall determine the weight of the dosing or stuff:
DOSING MODE
scale from 1 to 99
Press the button,
the blue light will
Press the button to
the desired value
* To operate the machine, the
COMAND ENABLE must be lit
AMOUNT: corresponds to the time the dosing lobes move,
determining the quantity /volume of product dosed. The more
value, the more product is dosed
SPEED: corresponds to the speed of rotation of the lobes
dores. Therefore the higher the value, the more product is
dosed.
QUANTITY: corresponds to the number of dosages, for example,
on the same tray, without the need for the pedal.
RECOIL: corresponds to the inversion of the movement of the
gears to contain the drip. It also determines between each
dosage
DOSING
AMOUNT
SPEED
QUANTITY
RECOIL
EMERGENCY
ENABLED
SAFETY
ENABLED
COMAND
ENABLED
Press the button to
the desired value
Press the button to
the desired value
Press the button to
the desired value
Press the button,
the blue light will
Press the button,
the blue light will
Press the button,
the blue light will
scale from 1 to 99
scale from 2 to 99
scale from 1 to 10
Press the button,
the blue light will
During each dosing the display will show:
ŸRegression of AMOUNT (blue light
turns on) the display. For example, if
the set value is 50, the display will
show the countdown (50, 49, 48
....1)
AMOUNT
ŸThen the display will show the
QUANTITY (blue light goes on)
missing value programmed QUANTITY
The amount of product in the hopper directly affects the accuracy of weighing. Keep the
stable level of product in the hopper, feeding it often as production.
Keep the air-conditioned production environment to not interfere in the product weight
change.
IMPORTANT INFORMATION FOR THE USAGE OF THE MULTI FESTA:
4. To start, press the front 'dosing drive' or the pedal connected to the back of
the machine. Just one touch required for each dosage.
or dosing drive

17
CONTINUOUS MODE
1. Connet the Multi Festa in outlet;
2. Place the product to be used in the funnel after complete
assembly of the Multi Festa
SELECT THE CONTINUOUS MODE,
3. Program "SPEED" and "RECOIL" according to the product characteristics.
Press the button,
the blue light will
CONTINOUS
Press the button,
the blue light will
Press the button,
the blue light will
SPEED
RECOIL
SPEED: corresponds to the speed of rotation of the lobes
dores. Therefore the higher the value, the more product is
dosed.
RECOIL: corresponds to the inversion of the movement of the
gears to contain the drip. It also determines between each
dosage
scale from 1 to 99
Press the button to
the desired value
Press the button to
the desired value
scale from 1 to 10
* To operate the machine, the
COMAND ENABLE must be lit
EMERGENCY
ENABLED
SAFETY
ENABLED
COMAND
ENABLED
Note: The FILLING NOZZLE assembly contains a LIMITER so that the product to be lled is not fully
drilled.
Adjust your position according to the size of the product.
FILLING
NOZZLE
LIMITER
In CONTINUOUS mode, there will be not adjustments to the AMOUNT and QUANTITY parameters.
DOSING
DRIVE
4. For dosing, press the front 'dosing drive' or the pedal connected to the back
of the machine.
or

18

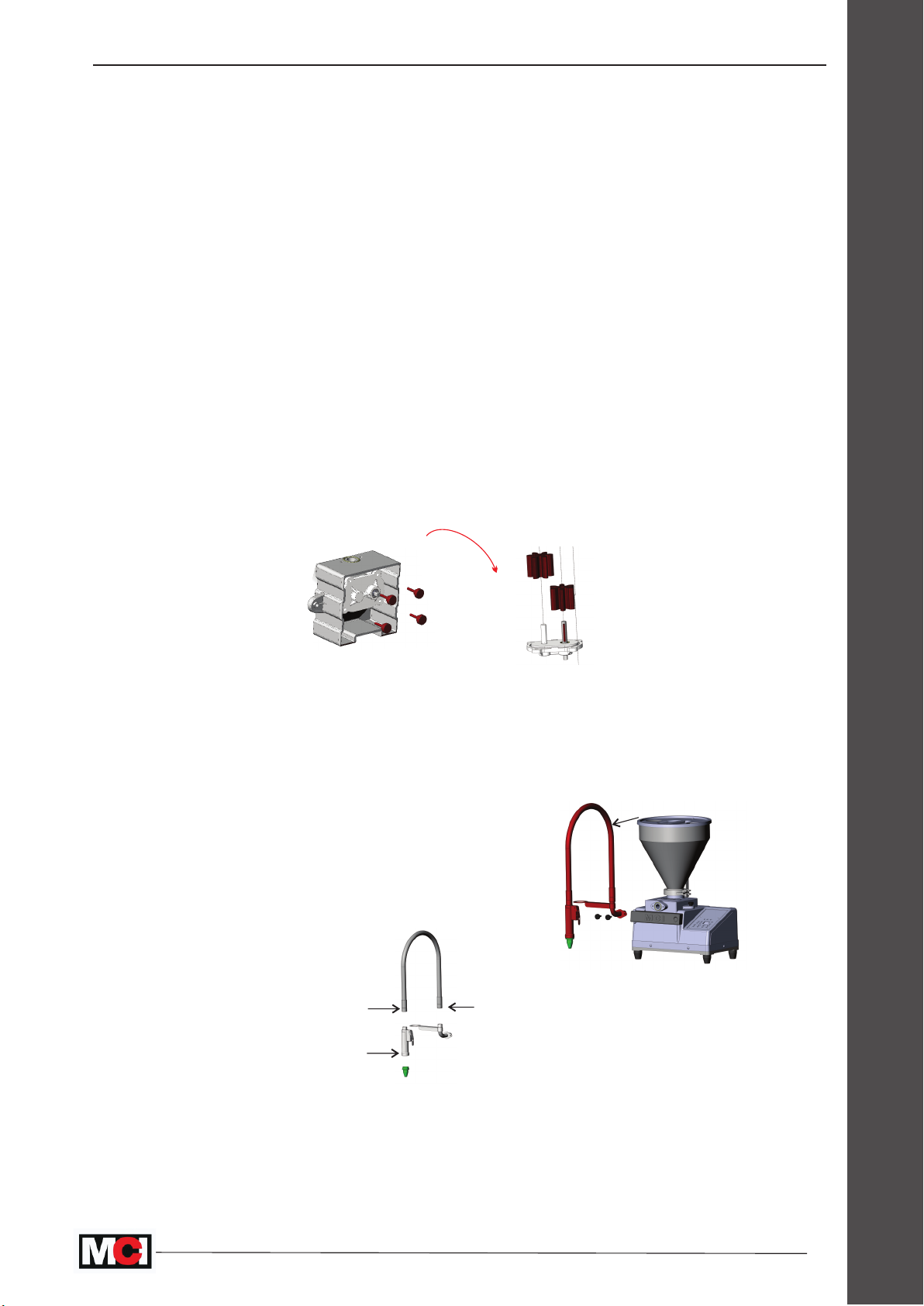

CLEANING
For CLEANING of the MULTI FESTA, the product should be removed completely from the hopper;
1. Press the button until the "continuous" selection. Press continuously the pedal to
remove the product from the hopper. If necessary, make the manual removal of excess of waste
in the hopper;
2. Remove the driver set (nozzle) and other accessories used;
3. Disassemble all parts, removing the hopper and pump cabinet;
4. After removing the hopper of the pump, remove it by removing the Allens bolts for proper
cleaning of dosing lobes;
5. Wash with water all the dismantled parts;
6. Wipe with a damp cloth the cabinet.
IMPORTANT
DO NOT THROW WATER IN CABINET FOR NOT WATERING THE ELECTRONIC BOARD
For the CLEANING OF THE PUMP OF LOBES, disassemble the assembly by removing the 4 maniples
that x the cover. Undo the lobes. Wash all parts with mild soap and soft sponge.
Rinse all parts separately with running water and neutral soap, soak in mild soap solution, if
necessary. Rinse thoroughly before reusing it.
Shaft key
Lobes
Unscrew the plastic
hose from the trigger
Unscrew the
dosing nozzle
Unscrew the plastic hose
from the sanitary curve
Rinse the hose with running water and soak in mild soap solution, if necessary. Rinse
thoroughly before reusing it. The cleaning of the hose should bedone immediately after
the production to not hamper their cleaning.
For CLEANING OF THE DOSING HOSE, completely
disassemble the dosing pump, releasing the handles.

19
ELECTRIC COMPONENTS
115 V AC
ITEM CODE QTY. DESCRIPTION
150391 1Eletronic board
251798 1
450162 1Fuse holder Schurter modelo FPG1 (5X20 mm Ip40)
550163 1Glass fuse 5 A Ø5x20 mm Schurter 250V
6
51551 1
7
50085 1
8
51797 1
50083 1
9Push Botton security
DIN 4 male
DIN 4 female
Power supply Schmersal mod. PSS-B24-240S
Bipolar switch Mar Girius MOD. 30223 M2FT2FE3V/197
1
2
4
5
8
7
51516 1
10 Electric whip
10
51814 1
11 Push Botton manual
11
9
Connector for pedal cable
351818 1Push button pedalboard
54586
54587
12
54536
13
Fuse holder UKK5 HESI (5X20)
40999
14
Base for relay - mod. PRTS Metaltex
15
2
41246 Relay - Metaltex model TNA4R3C - 24 VCC
16

20
ELECTRIC DIAGRAM
15
Metalúrgica Convenção Itu Ltda
DES. PROJ.
APROV.
DATA ESCALA
FORMATO
A4
COMPONENTES UTILIZADOS (FABRICANTES)
DENOMINAÇÃO
POTÊNCIA
VOLTAGEM
FASE / HZ Nº. DES.
DATA DA REVISÃOCÓD. PAINEL ELÉTRICO
FOLHA
/
REV.
Danilo
dmartins
10/25/2018
45 W
115V AC Single-Phase 60Hz
09/17/2019
Code: 51707
Dosadora Multi Festa UL
1
1
A
B
C
D E F
G
H
I
J
K
A
B
C
D
E
F
G
H
I
J
K
1 2
3 4 5
6
7
8 9 10 11 12 13
1 2
3 4 5
6
7
8 9 10 11 12 13
01
-
+
~
~
AC
DC
24V
CH0
F1
5A
S1
1
2
Code: 50083
Security
Push Button
Code: 50085
Code: 50162
Code: 50163
FT1
Power Supply
Input: 115V/60Hz
Output: 24V / 8,8A
Code: 51551
115V AC
POWER SUPPLY
+
A2
A1
RL1
-
Code. 40999
Code. 41246
F2
1A
4A
F3
5
9
10
2
33
4
4
Code: 51516
ELECTRIC WHIP
Code: 53422 CABLE PRESS
CN10
1
2
5
CN8
1
2 3
4
T3 T4 T2 T5
CN1 12
CN4
12
CN5
1 2 3
MCI MULTI_FESTA 1.0 02/16
BZ1
+
-
U4
MC9S08 QE4CLC
CTYHBD1350
R52
C5 C4
Q1
Electronic Board
PL1
Code: 50391
Zettalab
S3
Push Button
Pedalboard
3
4
Code: 51818
Pin 2 - Signal Pin 3 - GND
Dosing Motor
24V DC
Bosch
M1
Motor
Male Female
Connector Faston
1
23
4
Connector
Receptacle
Pedalboard
and Trigger
Pin 1 - Sensor
Pin 4 - Sensor
1
3 2
4
Connector
Plug
Pedalboard
and Trigger
DIN 4 Pins Female Code: 51798 DIN 4 Pins Male Code: 51797
F3 - Code. 54587 F2 - Code: 54586
Fuse Holder - Code. 54536
S2
Push Button
Manual
3
4
Code: 51814
GND
