SERVICE MANUAL

COMPACT DISC TRANSPORT

Performance Specifications ........................................ 2

Notes ......................................................................... 2

Safety Information..................................................... 2

Rear Panel.................................................................. 3

Section Location ........................................................ 3

Block Diagram ........................................................... 4

Interconnection Diagram ...................................... 5 - 6

Main ..................................................................... 7 - 8

A/V Power Supply Schematic and PCB ............... 9 - 12

Display Schematic and PCB .............................. 13 - 16

Parts List............................................................ 15 - 16

ExplodedView and Parts List ............................. 17 - 18

Repacking Instructions ............................................. 19

CONTENTS

General SpecificationsVideo Specifications Digital Output

Optical: -15dbm to -21dbm

Coaxial: 0.5V p-p/75 ohm

Digital Signal Format

Sampling Frequency: 44.1kHz & 48kHz

Transport

Laser Beam Wavelength: 655nm

Laser Power CLASS II

Power Requirements

100 Volts, 50/60Hz at 28 watts

110 Volts, 50/60Hz at 28 watts

120 Volts, 50/60Hz at 28 watts

220 Volts, 50/60Hz at 28 watts

230 Volts, 50/60Hz at 28 watts

240 Volts, 50/60Hz at 28 watts

Note: Refer to the rear panel of the MVP831 for the correct

voltage.

Dimensions

Front Panel:17-1/2 inches (44.5cm) wide, 5-3/8

inches (13.7cm) high, depth behind front mounting

panel is 15 inches (38.1cm) including clearance for

connectors. Panel clearance required in front of

mounting panel is 3/4 inch (1.9cm).

Note: When the DVD/CD tray is opened, the panel clearance

required in front of mounting panel is 6-3/4 inches (17.2cm).

Weight

20 pounds (9.0Kg) net, 34 pounds (15.4Kg) in

shipping carton

Signal System

NTSC

S-Video Y Output Level

1Vp-p (75 OHM)

S-Video C Output Level

0.286Vp-p (75 OHM) (NTSC)

Video Output Level

1Vp-p (75 OHM)

AudioSpecifications

Number of Channels

Output level

2.2Vrms

DVD Frequency Response

4-22KHz (48KHz Sampling, Linear Audio)

4-44KHz (96KHz Sampling, Linear Audio)

CD Frequency Response

4-20KHz

CD Signal to Noise Ratio

Better than 110dB (A-weighted)

DVD Dynamic Range

Better than 100dB (Linear Audio)

CD Dynamic Range

Better than 98dB

Harmonic Distortion

0.003% (1KHz)

Channel Separation

Better than 110dB (1KHz)

PERFORMANCE SPECIFICATIONS

VIDEO SPECIFICATIONS

Signal System: NTSC

S-Video Y Output Level: 1Vp-p (75 ohm)

S-Video C Output Level: 0.286Vp-p (75 ohm) (NTSC)

Video Output Level: 1Vp-p (75 ohm)

AUDIO SPECIFICATIONS

Number Of Channels: 2

Output Level: 2.2Vrms

DVD Frequency Response 4-22kHz (48kHz Sampling, Linear

Audio)

4-44kHz (96kHz Sampling, Linear

Audio)

CD Frequency Response: 4-20kHz

CD Signal To Noise Ratio: Better than 110dB (A-weighted)

DVD Dynamic Range: Better than 100dB (Linear Audio)

CD Dynamic Range: Better than 98dB

Harmonic Distortion: 0.003% (1kHz)

Channel Separation: Better than 110dB (1kHz)

GENERAL SPECIFICATIONS

Digital Output

Optical: -15dbm to -21dbm

Coaxial: 0.5V p-p/75 ohm

Transport

Laser Power: CLASS II

Laser Beam Wavelength: 655nm

Digital Signal Format

Sampling Frequency: 44.1kHz and 48kHz

PowerRequirements

100 Volts, 50/60Hz at 30 watts

110 Volts, 50/60Hz at 30 watts

120 Volts, 50/60Hz at 30 watts

220 Volts, 50/60Hz at 30 watts

230 Volts, 50/60Hz at 30 watts

240 Volts, 50/60Hz at 30 watts

Note: Refer to the rear panel of the MVP831 for the correct voltage.

Dimensions

Front Panel:17-1/2 inches (44.5cm) wide, 5-3/8 inches

(13.7cm) high, depth behind front mounting panel is 15 inches

(38.1cm) including clearance for connectors. Panel clearance

required in front of mounting panel is 3/4 inch (1.9cm).

Note: When the DVD/CD tray is opened, the panel clearance required

in front of mounting panel is 6-3/4 inches (17.2cm).

1. The heavy notes on the schematic denote the primary

signal path.

2. Unless otherwise noted, all voltages indicated on the

schematics are measured under the following conditions:

a. AC input at 120 volts, 50/60Hz.

b. All voltages are +/-10% with respect to ground. A

high impedance (10 megaohm) voltmeter must be used.

3. Unless otherwise specified:

a. Resistor values are in ohms.

b. Capacitor values are microfarads (uF).

c. Inductor values are in microhenries (uH).

4. On PC board drawings, Square pad indicates:

a. Polarized Capacitors - Positive

b. Diodes - Cathode

c. Others - Pin 1

5. WARNING

Parts marked with the symbol have critical

characteristics. Use only replacement parts recom-

mended by the manufacturer.

SAFETY INFORMATION

NOTES

CAUTION: The use of optical instruments with this

product will increase eye hazard.

This product utilizes a class 1 laser. Invisible laser

radiation is emitted from the optical pickup lens when the

unit is turned on.

1. Do not look directly into the pickup lens.

2. Do not use optical instruments to look at the pickup

lens.

3. Do not adjust the preset variable resistor on the

optical pickup.

4. Do not disassemble the optical pickup unit.

5. Use of controls or adjustment or performance of

procedures other than those specified herein may

result in hazardous radiation exposure.

6. Replace optical pickup only with manufacturers

specified type.

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT

VAROITUS! Laitteen kayttaminen muulla kuin tassa

kayttoohjeessa mainitulla tavalla saattaa altistaa

kayttajan turvallisuusluokan 1 ylittavalle

nakymattomalle lasersateiiylle.

VARNING! Om apparaten anvands pa annat satt an i

denna bruksanvisning specificerats, kan anvandaren

utsattas for osynbg laserstraining, som overskrider

gransen for laserklass 1.

Laser output: 0.65mW

Wavelength: 665nm

This product utilizes an embedded class 2 laser (IEC825).

MVP831

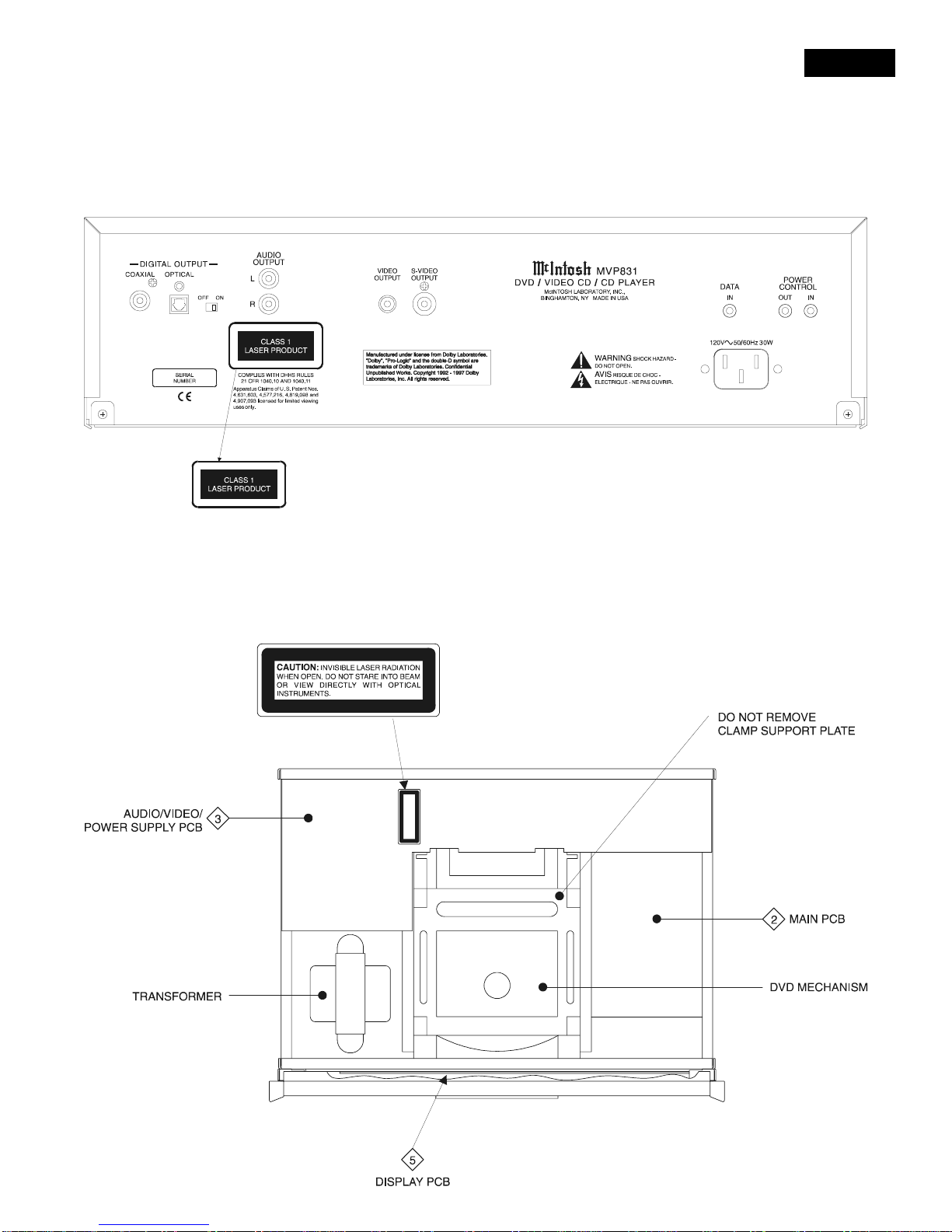

REAR PANEL

SECTION LOCATIONS

TOPVIEW WITH COVER REMOVED

BLOCK DIAGRAM

MVP831

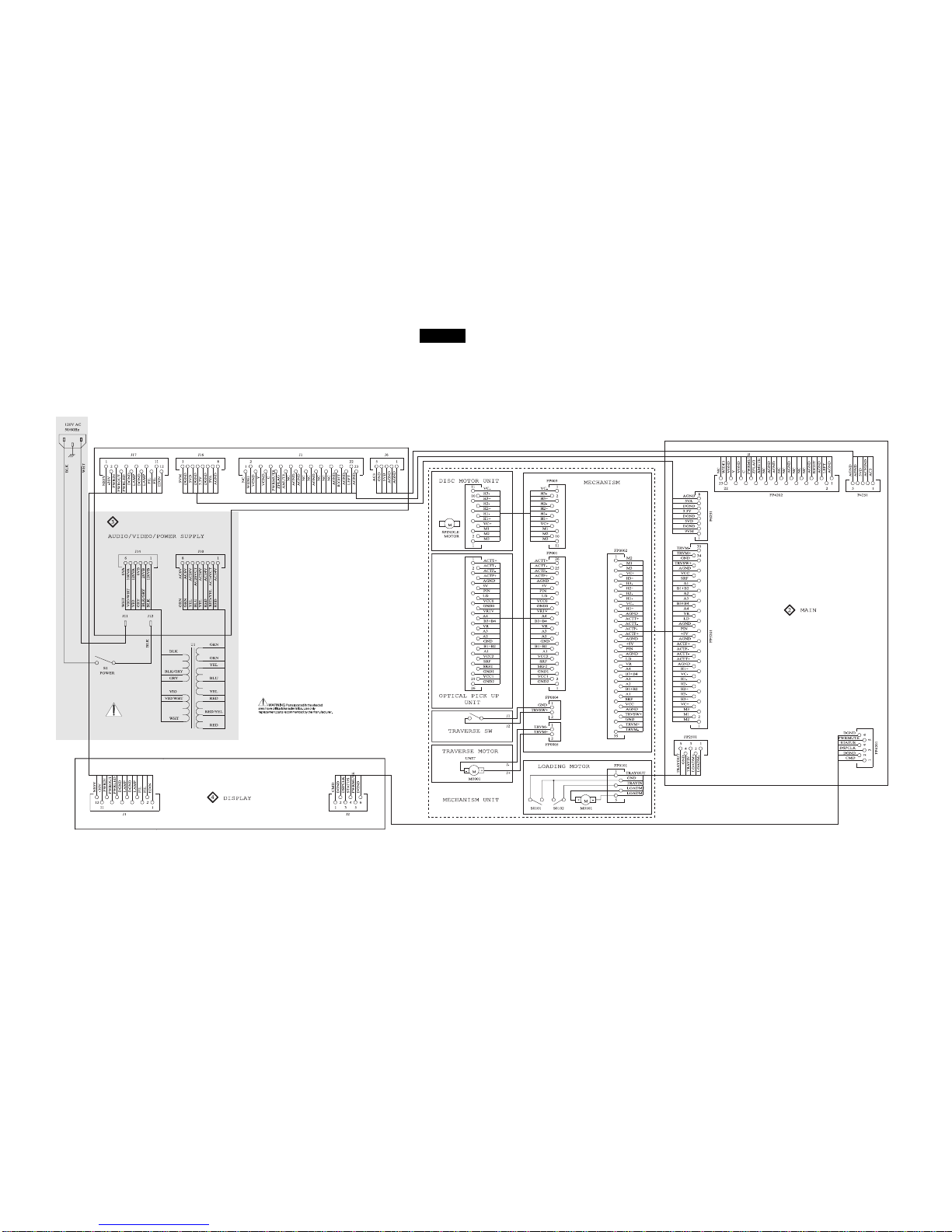

INTERCONNECT

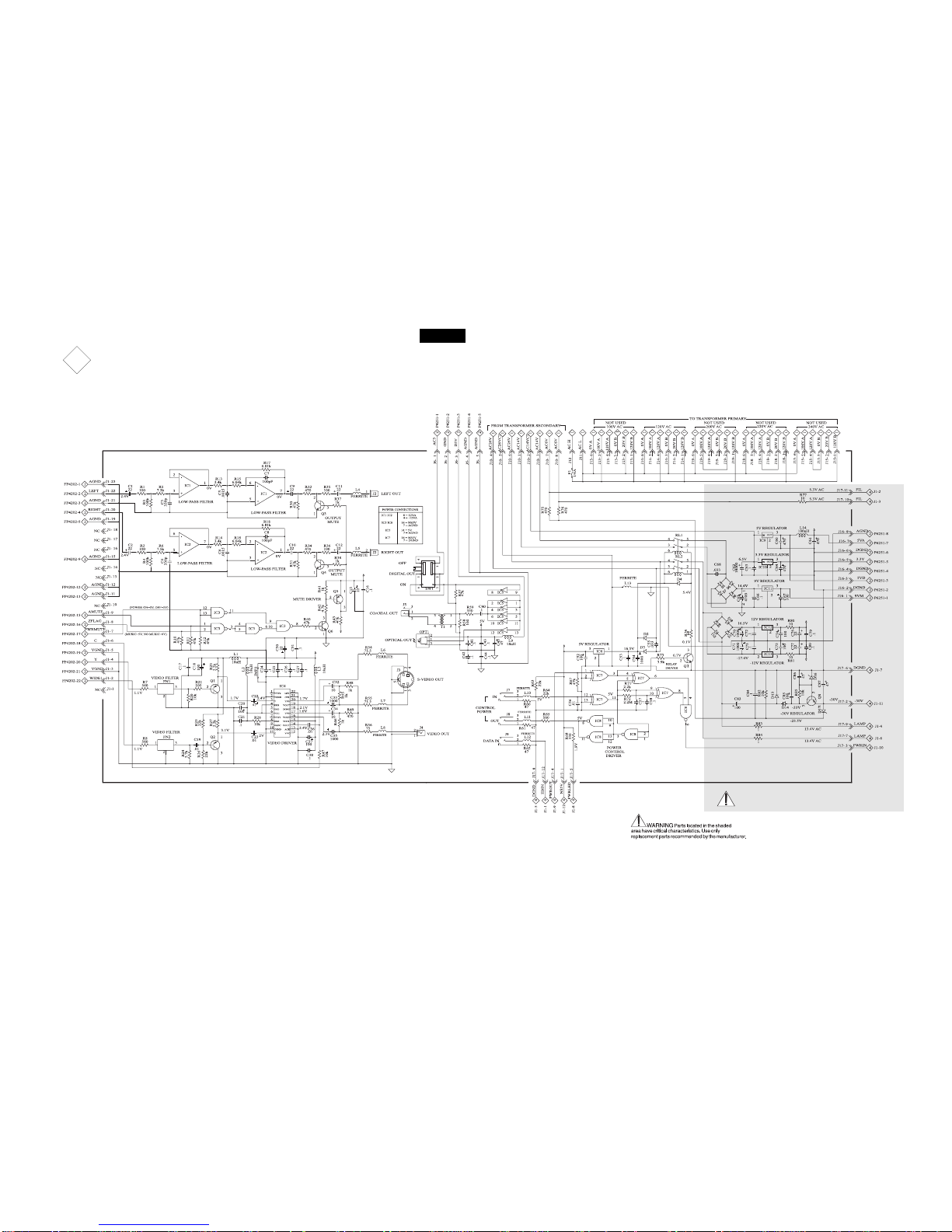

MAIN

320092

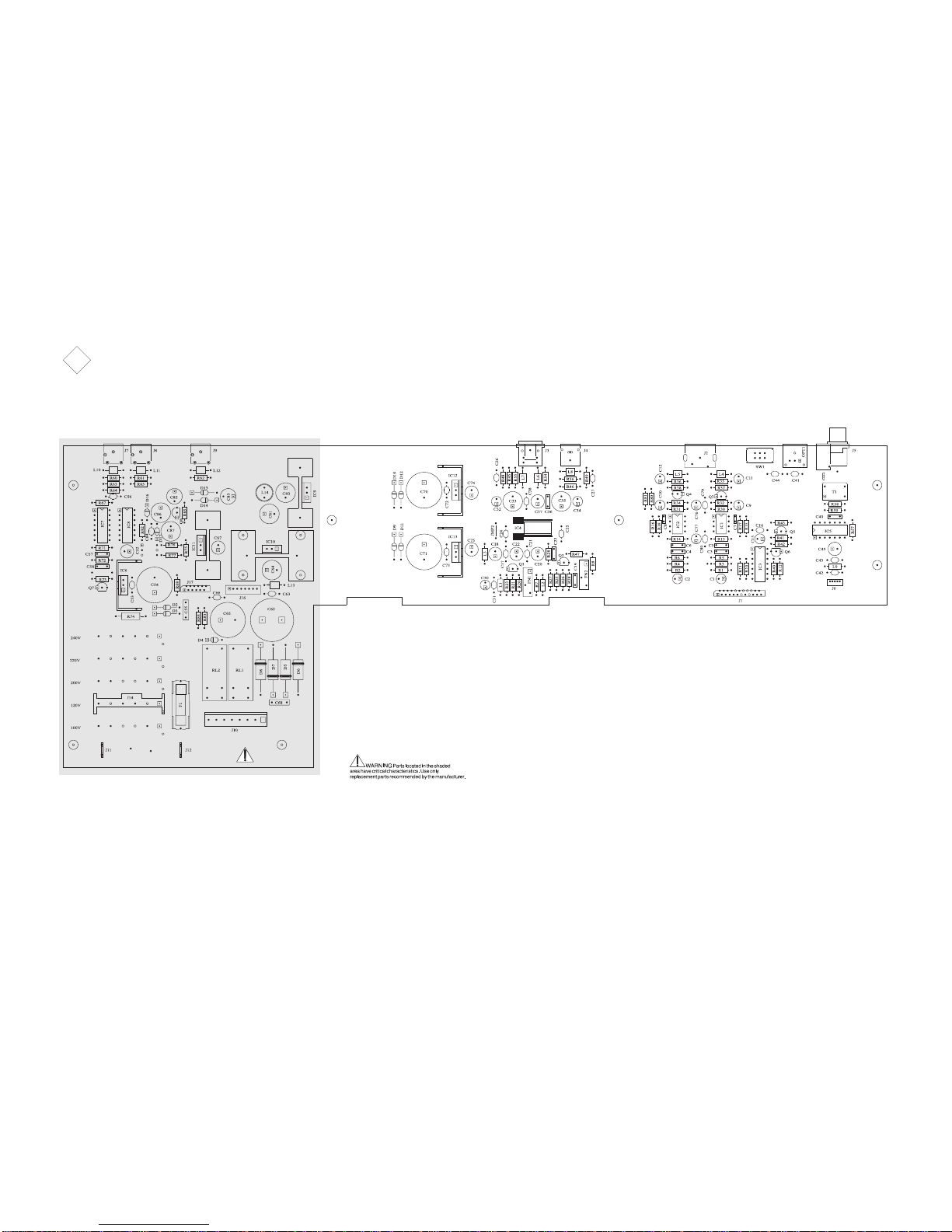

AUDIO/VIDEO POWER SUPPLY

049277

910

MVP831

AUDIO/VIDEO POWER SUPPLY

049277

11 12

DISPLAY

049278

MVP831

13 14

PARTS LIST

DISPLAY

049278

PART NO DESCRIPTION REFERENCE NO

049278 AUDIO VIDEO POWER SUPPLY

058145 FIBER OPTIC TRANSMITTER OPT 1

061268 MONO CAP .1UF,50V,Z5U C16 C17 C21 C24 C25 C26 C27 C31 C38

C41 C42 C43 C44 C53 C63 C66 C72 C73

C79 C80 C84

061271 .01MF 50V Z5U +80-20% C56

061275 MONO CAP 100PF,5%,100V,NPO C7 C8

064294 POLY CAP 330PF 5% 160V C3 C4

064302 CAP MPOLY .0015UF 5% 63/400VDC C5 C6

064312 CAP M POLY .01UF 5% 63VDC C19 C23 C36

064325 CAP M POLY .1UF 5% 63VDC C40 C57 C58

064427 MP CAPACITOR 0.033UF 100V 10% C55 C68

066215 CAP ELECT 47UF 16V C22 C45

066221 CAP ELECT 10UF 50V SINGLE END C32 C34

066240 CAP ELECT 22UF 25V ALUM C1 C2 C9 C10 C11 C12 C15 C30 C76 C77

066278 CAP ELECT 47MF 50V RADIAL C86 C87

066334 CAP ELECT 470UF 25V C60 C61 C64

066344 CAP ELECT 100UF 16V C18 C20 C37 C52 C67 C74 C75

066361 CAP ELECT 1000UF 20% 35V C54 C70 C71

066392 CAP ELECT 1000UF 6.3V 10X12.5 C33 C35

066443 ELECT CAP 4700MF 35V C65

066457 ELECT 100UF 50V C83 C85

066460 ELECT 18000UF 16V C62

070047 SILICON DIODE 1N4148 T&R D4

070085 ZENER DIODE 6.2V 5% 500MW D17

070126 DIODE 200V,3A D5 D6 D7 D8

070131 DIODE RECTIFIER D2 D3 D9 D10 D11 D12 D13 D14

070161 ZENER DIODE 30V 1/2W 5% D16

076019 LEADED FERRITE BEADS L4 L5 L6 L7 L8 L10 L11 L12 L13

087059 RELAY RL1 RL2

089093 FUSE SLO-BLO 250MA 250V F1

117417 MINI DIN CONNECTOR J3

117436 PJ261G PHON JACK, GOLD J2

117451 PH/JACK GL PL BLK M7008 J5

117494 MINI JACK J7 J8 J9

117572 PHONO JACK YEL GOLD FLASH J4

117704 CONNECTOR 2MM PITCH 8 PIN J16

117708 FASTON BLADE W/FEET J11 J12

117715 23PIN FFC CONNECTOR J1

117716 5PIN HEADER 1.25MM PITCH J6

117717 MTA-156 HEADER 8PIN J10

117719 PCB MOUNT PWR CONN RD J14

117720 12PIN FFC CONNECTOR J17

122224 CHOKE 18UH 5%-10% L1 L2 L3 L9

122312 POWER INDUCTOR 100UH L14

132171 TRANSISTOR NPN MPSA05 Q7

132172 TRANSISTOR SI PNP MPSA55 Q8

132223 TRANS NPN MPS4124 2K/REEL Q6

132224 TRANS PNP SI MPS4126 2K/R Q1 Q2 Q5

132257 TRANSISTOR SI NPN Q3 Q4

133094 IC DUAL OPERATIONAL AMP IC1 IC2

133155 IC REGULATOR -12V IC13

133156 IC REGULATOR 12V IC12

133161 74HC00N NAND 2 INPUT X 4 IC3 IC8

133173 MC74HCU04N HEX UNBUF INVRTR IC5

133250 IC REGULATOR 5V IC6

133340 VOLTAGE REGULATR 9V 1.5A IC11

133365 IC 5V 1.5A REGULATR LOW DROP IC9

133387 QUAD 2 INPUT EXCLUS OR GATE IC7

133393 IC 3.3V LOW DROPOUT REGULATR IC10

137001 FLAMEPROOF RES 1OHM 1/4W 5% R83 R84

141025 RES CF 100 5% 1/4W R1 R2 R21 R35 R36 R58

141037 RES CF 330 5% 1/4W R59 R68

141041 RES CF 470 5% 1/4W R32 R34 R49 R75 R76

141043 RES CF 560 5% 1/4W R7 R8 R65

141049 RES CF 1.0K 5% 1/4W R37 R38 R41 R45 R46 R48

141057 RES CF 2.2K 5% 1/4W R23 R27 R71

141059 RES CF 2.7K 5% 1/4W R24

141062 RES CF 3.9K 5% 1/4W R73

141064 RES CF 4.7K 5% 1/4W R42

141072 RES CF 10K 5% 1/4W R20 R28 R47 R82 R85

141080 RES CF 22K 5% 1/4W R25 R26 R63 R64

141088 RES CF 47K 5% 1/4W R10 R11 R12 R30 R31 R40 R43 R57 R67

141096 RES CF 100K 5% 1/4W R3 R4

141124 RES CF 2.2M 5% 1/4W R72

141136 RES CF 10 5% 1/4W R77 R80 R81

141152 RES CF 47 5% 1/4W R60 R61 R62

141157 RES CF 75 5% 1/4W R56

141208 68 OHM 5% 1/2W CF R R74

144210 RES MF 7.5K 1% 1/4W CRB1/4FX R5 R6

144297 MF 6.81K 1% 1/4W R17 R18

144392 METAL FILM RES. 3.4K 1/4W 1% R13 R14

144393 METAL FILM RES 6.04K 1/4W 1% R15 R16

144407 METAL FILM RES. 71.5 1/4W 1% R54 R55

148059 SLIDE SWITCH SW1

159285 DIGITAL INTERFACE TRANS T1

310297 VIDEO DRIVER IC4

310299 Y-LOWPASS FILTER FN1

310300 C-BANDPASS FILTER FN2

049277 DISPLAY

058133 AMBER LED DS7

061268 MONO CAP .1UF,50V,Z5U C1 C3 C7 C9

064312 CAP M POLY .01UF 5% 63VDC C11

066380 CAP ELECT 47UF 16V (6.3X5CASE) C2 C8

066382 CAP ELECT 10UF 16V (4X5 CASE) C4 C6

066437 SELECT CAP 10MF 50V LOW ESR C10

070047 SILICON DIODE 1N4148 T&R D1 D2 D3 D4 D5 D6 D7 D8

070093 LED LAMP RED DS5

117714 6PIN FFC CONNECTOR J2

117720 12PIN FFC CONNECTOR J1

121031 IR SENSOR 38KHZ SEN1

122224 CHOKE 18UH 5%-10% L1

131022 600V TRIAC DRIVER OPTOCOUP Q6

132223 TRANS NPN MPS4124 2K/REEL Q1

132224 TRANS PNP SI MPS4126 2K/R Q2 Q3

133176 MC74HCO2AN NOR 2 INPUT X 4 IC5

133240 PST572E MCRPRCSSR RESET NEG IC3

133241 IC MICROPRCSSR RESET POS IC1

133395 PROG VERSION OF 133292 IC2

141033 RES CF 220 5% 1/4W R13 R14 R15 R16

141035 RES CF 270 5% 1/4W R31

141049 RES CF 1.0K 5% 1/4W R5

141051 RES CF 1.2K 5% 1/4W R17

141057 RES CF 2.2K 5% 1/4W R9

141072 RES CF 10K 5% 1/4W R20 R30

141080 RES CF 22K 5% 1/4W R11

141088 RES CF 47K 5% 1/4W R6 R7 R28 R29

141096 RES CF 100K 5% 1/4W R22 R23 R24 R25 R26 R27 R32 R33

141136 RES CF 10 5% 1/4W R8 R12

141144 RES CF 22 5% 1/4W R1 R2 R3 R4

144250 RES NETWORK 8 X 47K BUS R21

150058 TACT SWITCH S1 S2 S3 S4 S5 S6 S7 S8 S9

180039 CERAM RESON 6.0MHZ W/CAP Y1

180049 CERAMICK RESONATOR 8MHZ Y2

310298 CONTROL MCU IC4

310301 FL DISPLAY MVP831 DS6

15 16

17 18

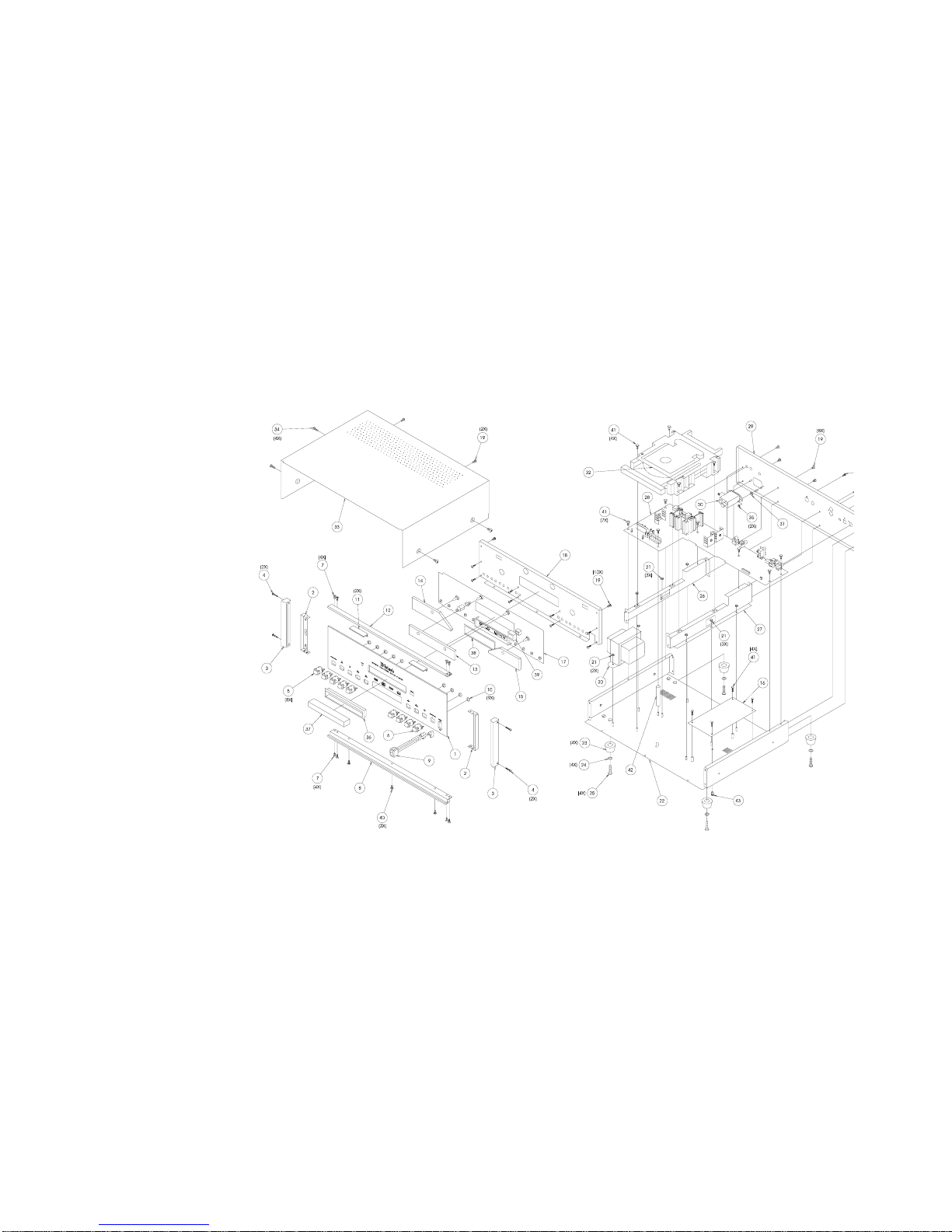

EXPLODEDVIEW

AND PARTS LIST

Ref. Part Description

No. No.

1 016408 GLASS

2 004983 EXTRUSION BRACKETS

3 018611 END CAP

4 101042 TS 4-40x1/2 SLOT FILL

5 017517 PUSHBUTTON ASSY

6 017531 PUSHBUTTON ASSY RED

7 101172 TS 6-32x1/4 PHIL FLAT U/C

8 018588 BOTTOM EXTRUSION

9 171264 C/A POWER SWITCH

10 078033 O-RING

11 017779 PRINTED CIRCUIT GUIDES

12 018585 TOP EXTRUSION

13 017755 LOGO PLEXIGLAS

14 017782 PLEXIGLAS LEFT

15 017783 PLEXIGLAS RIGHT

16 320092 MVP831 DVD PLAYER PCB

17 049278 DISPLAY PCB

18 004989 SUBPANEL

19 101196 SEMS TS 6-32x1/4 PHIL PAN BLK

20 159286 TRANSFORMER

21 102003 NUT 6-32 W/LOCK

22 004990 CHASSIS

23 017218 PLASTIC FEET

24 104083 #10 WASHER

25 100159 MS 10-32x3/4

26 004987 LEFT ZEE BRACKET

27 004988 RIGHT ZEE BRACKET

28 049277 A/V PCB

29 004986 REAR PANEL

30 117711 AC RECEPTACLE

31 102020 NUT 6-32 SELF-LOCK

32 320091 DVD MECHANISM

33 004984 TOP COVER

34 101078 TS 8-32x5/16 PHIL PAN BLK

35 102001 KEP NUT 4-40 CADMIUM PLATE

36 017781 FRONT BEZEL

37 017784 DOOR MOLDING

38 092419 DISPLAY FILTER

39 094350 SENSOR GASKET

40 101197 HI/LO 4-24x3/8 PHIL ROUND

41 101213 SEMS MS 4-40x3/8 PHIL PAN

42 112095 HEX SPACER 6-32x2-1/4

43 112097 CIRCUIT BOARD SUPPORT

DVD/VIDEO CD/CD PLAYER

SERVICE MANUAL

The continuous improvement of it’s products is the policy of McIntosh Laboratory Incorporated, who reserve the right to improve design without notice.

Because of the constant upgrading of McIntosh products’ circuitry and components, the Company cannot insure, and does not warrant, the accuracy of the

within schematic material, which is intended for information only.
