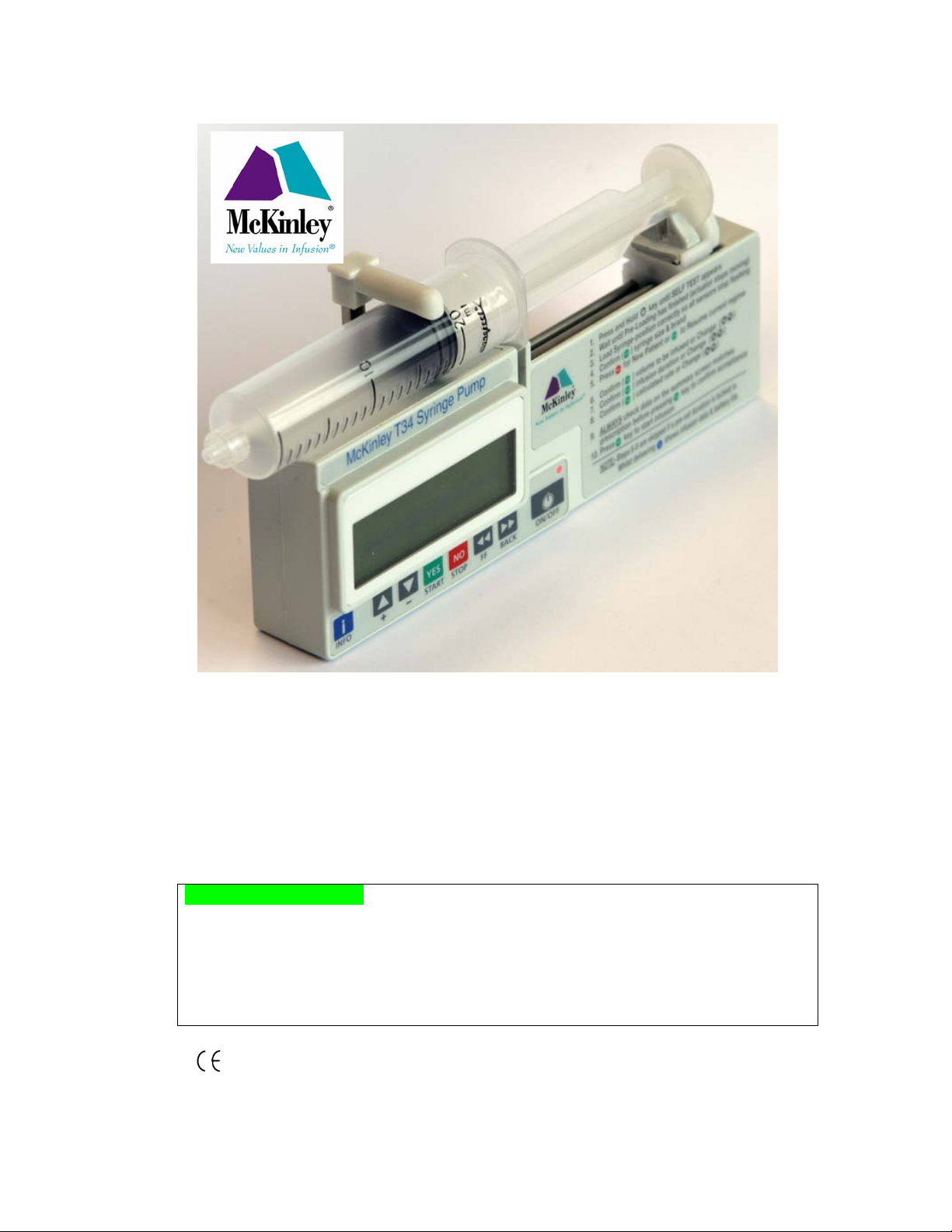

McKINLEY T34 User manual

McKinleyT34
Ambulatory Syringe Pump
Operation Manual
IMPORTANT NOTICE: McKinley strongly recommends that this manual is read by
every user of the T34 syringe Pump and that they comprehensively understand its
contents before operating the device. It is also recommended that before being allowed
to use the device all personnel should receive training from either McKinley Medical or
those trained by McKinley to deliver training on this device. Competency of all
attendees should be assessed with both the trainee and assessor signing to confirm their
readiness to operate the device in the clinical setting
0473 March 2006
Ref.: 100-090ST

McKinley T34 Syringe Pump - Operation Manual
M c K i n l e y M e d i c a l U K L i m i t e d
2
Table of Contents
A. Introduction ....................................................................................3
B. Modes of Operation........................................................................4
C. Feature Recognition (diagram of the pump) ..............................5
D. Identifying Symbols on the pump.................................................6
E. Installation and Inspection ............................................................6
F. Warnings & Cautions ....................................................................7

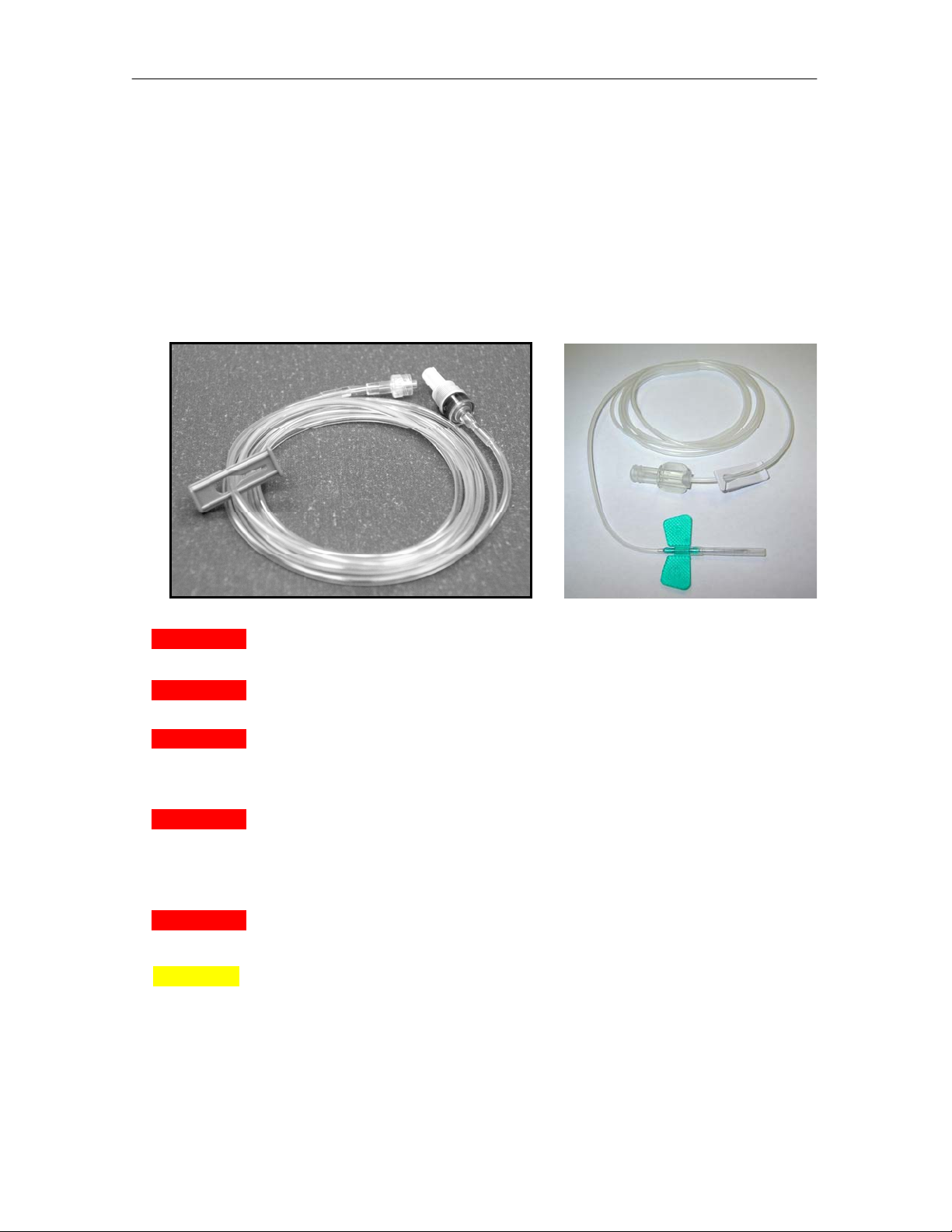

G. Administration Sets .......................................................................8
H. Recommended batteries, fitting & testing ...................................9
I. Access Codes & Keypad lock.......................................................10
J. Infusion Set up & Programming.................................................11
a. Power Up ................................................................11
b. Syringe Selection ...................................................... 11
c. Priming ................................................................... 11
d. Pre-Loading & Syringe Placement ..................................11
e. Syringe Detection & Confirmation ..................................12
f. Setting Infusion Parameters............................................. 13
g. Setting Infusion rate...........................................................14
K. Accessories for T34.......................................................................15
L. Recommended Checks During Infusion ....................................16
M.Advanced Functions of T34.........................................................17
a. KVO (keep vein open) option............................................17
b. Infusion Rate Titration option..........................................17
N. Alarm Conditions .........................................................................18
O. Troubleshooting............................................................................19
P. Change Set Up (authorised users only) ......................................20
Q. McKinley T34 Specification.........................................................21
R. Service and Maintenance.............................................................22
S. Warranty.......................................................................................23
T. Default Syringes............................................................................24
U. Detailed Index of Contents ..........................................................25

McKinley T34 Syringe Pump - Operation Manual
M c K i n l e y M e d i c a l U K L i m i t e d
3
A - Introduction
WARNING: Do not operate the T34 until you have read and understood the contents of
this user manual paying attention to Warnings, Cautions & Notes as described below.
If you have any questions about the contents call 01253 894646 for assistance.
This manual will ensure the user will: -
1. Be able to identify the key features of the T34 and understand their function
2. Be able to correctly load a syringe into the T34
3. Be able to program the T34 to deliver the contents of the syringe
4. Be able to access and interpret patient history and event log data
5. Be able to troubleshoot and resolve alarm conditions
In the user manual you will find important information marked as followed: -
WARNING: Indicates the information is a warning. Warnings advise you of
circumstances that could result in INJURY OR DEATH to the patient/operator.
CAUTION: Indicates that the information is a caution. Cautions advise you of
circumstances that could result in DAMAGE to the device.
NOTE: Indicates that the information is additional important information or a tip
that will help you recover from an error or point you to related information.
What is the McKinley T34?
T34 is a small, lightweight, robust, battery powered, ambulatory syringe pump designed to
deliver the contents of most commonly used 2 to 50ml syringes over a specified duration or
at a given rate in milliliters per hour (ml/hr). A screw drives the pump actuator and syringe
plunger forward at a controlled rate. This rate is adjustable from 0.1 to 1000 ml/h in
increments of 0.1 ml/h up to 100 ml and 1 ml from 100 to 1000 ml/h.
The size and weight of the T34 makes it ideal for ambulatory use in either a hospital or
homecare/out-patient setting. It is equally suitable for adults or for paediatric use.

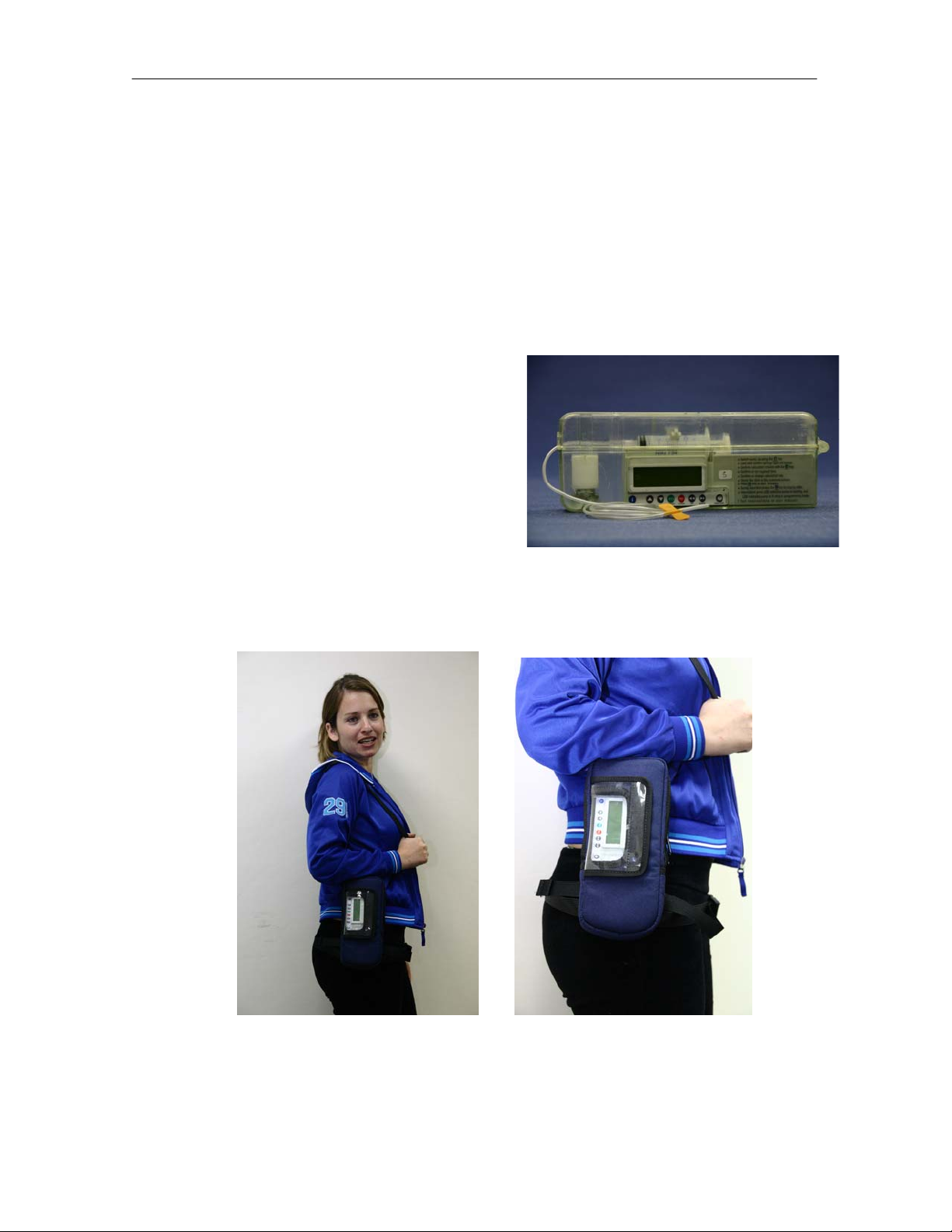

The syringe pump can be easily concealed beneath clothing in a shoulder holster and
combination belt. A compact lockbox is available to protect the Pump from damage and/or
tampering with the pump or displacement of the syringe.
T34 offers 3 point syringe detection enabling the pump to identify all commonly used (or
programmed) syringe brands. This feature ensures the pump can make volume & rate
calculations thereby minimising the risk of user programming errors. The sensors also
activate an alarm if the syringe is removed or partially displaced during infusion.
The pump may be used to deliver via any common infusion routes including central,
peripheral venous, epidural, intra-arterial or subcutaneous providing the medicines being
administered are licensed for such use.
WARNING: T34 is a medical device designed for the safe, accurate delivery of
appropriate infusion regimes and should only be operated by, or under the supervision of, a
medical professional. Incorrect or inappropriate use could lead to serious injury or death.

McKinley T34 Syringe Pump - Operation Manual
M c K i n l e y M e d i c a l U K L i m i t e d
4
B – Modes of Operation
The McKinley T34 Syringe Pump has three modes of operation. In summary these are: -
1) VOLUME OVER TIME (Program Lock OFF) – Pump will deliver the volume
confirmed over the default duration or a new duration confirmed by the user.
THIS MODE IS IDEAL WHERE - it is common to use the same delivery regime
(duration) but some flexibility may occasionally be required.
oAlthough the pump calculates volume in the syringe the user can set a lower
VTBI (e.g. if KVO is required) during set up.
oPump is configured with a Default Duration (e.g. 24 hours) to guide the user
to make the appropriate selection during set up but the user can change this
during set up.
oOPTIONS - Titration can be enabled allowing the user to set upper and
lower infusion rate limits during set up to allow titration of the infusion rate
without stopping the Pump.
2) VOLUME OVER TIME (Program Lock ON - DEFAULT) – Pump will deliver the full
contents of the syringe fitted over the Default Duration set on the pump.
THIS MODE IS IDEAL WHERE – the entire contents of a syringe are always required
to be delivered over the same duration (e.g. 24 hours). The duration is locked so the
user CANNOT change it. This prevents programming errors and makes setting up an
infusion very simple.
oUser CANNOT change either the VTBI or the Default Duration time
oPump calculates the volume, applies the pre-set duration and calculates the
appropriate rate for the infusion.
oUser only checks and confirms infusion summary screen (showing duration,
rate and volume) matches the prescription before Starting the infusion
oUser access code required to change any of the pumps settings
oTitration is NOT possible in Program Lock ON mode
3) RATE PER HOUR MODE – Default Duration is set to Zero under the Change Set Up
menu (access code required).
THIS MODE IS IDEAL WHERE – different infusion rates are used each time and the
users are familiar and comfortable with making the calculation of infusion rate
themselves.
oPump calculates the volume in the syringe and then the user sets the rate in
ml/hr (default is zero so user has to scroll to select the infusion rate or
infusion cannot be started)
oTitration can be enabled in Rate per Hour mode
WARNING: make sure you fully understand all of the possible modes and the
one your pump is configured to before operating the T34.
NOTE: your T34 can be configured to one of the above modes (as appropriate
to your clinic/setting) during installation by either McKinley Medical or your
service centre. Take time to consider which mode is best for your practice.

McKinley T34 Syringe Pump - Operation Manual
M c K i n l e y M e d i c a l U K L i m i t e d
5
C– Feature Recognition
Physical features & function of T34
1Barrel Clamp arm (secures syringe and detects brand & size)
2Syringe flange/collar sensor (detects correct loading of syringe collar)
3Plunger Sensor (detects correct loading of syringe plunger)
44 line LCD display (backlit when any key pressed)
5Operation LED (Green indicates infusing, Red when pump Stopped or alarming)
6Actuator (drives the syringe plunger to deliver syringe contents)
7Info key (accesses Event Log, Volume Infused/To Be Infused and Battery status,
prolonged press activates/deactivates Keypad Lock)
8Up arrow key (increases infusion parameters during programming/titration and
scrolls between options in menus)
9Down arrow key (decreases infusion parameters during programming/titration and
scrolls between options in menus)
10 YES/START key (confirms selection during programming and starts infusion)
11 NO/STOP key (takes user back a step during programming and stops infusion)
12 FF (Forward) key (moves actuator forward when no syringe present)
13 Back (Reverse) key (moves actuator backward when no syringe present)
14 ON/OFF key
15 Instructions for infusion set up
21 63
7 8 10 11 1312
4
514 159

McKinley T34 Syringe Pump - Operation Manual
M c K i n l e y M e d i c a l U K L i m i t e d
6

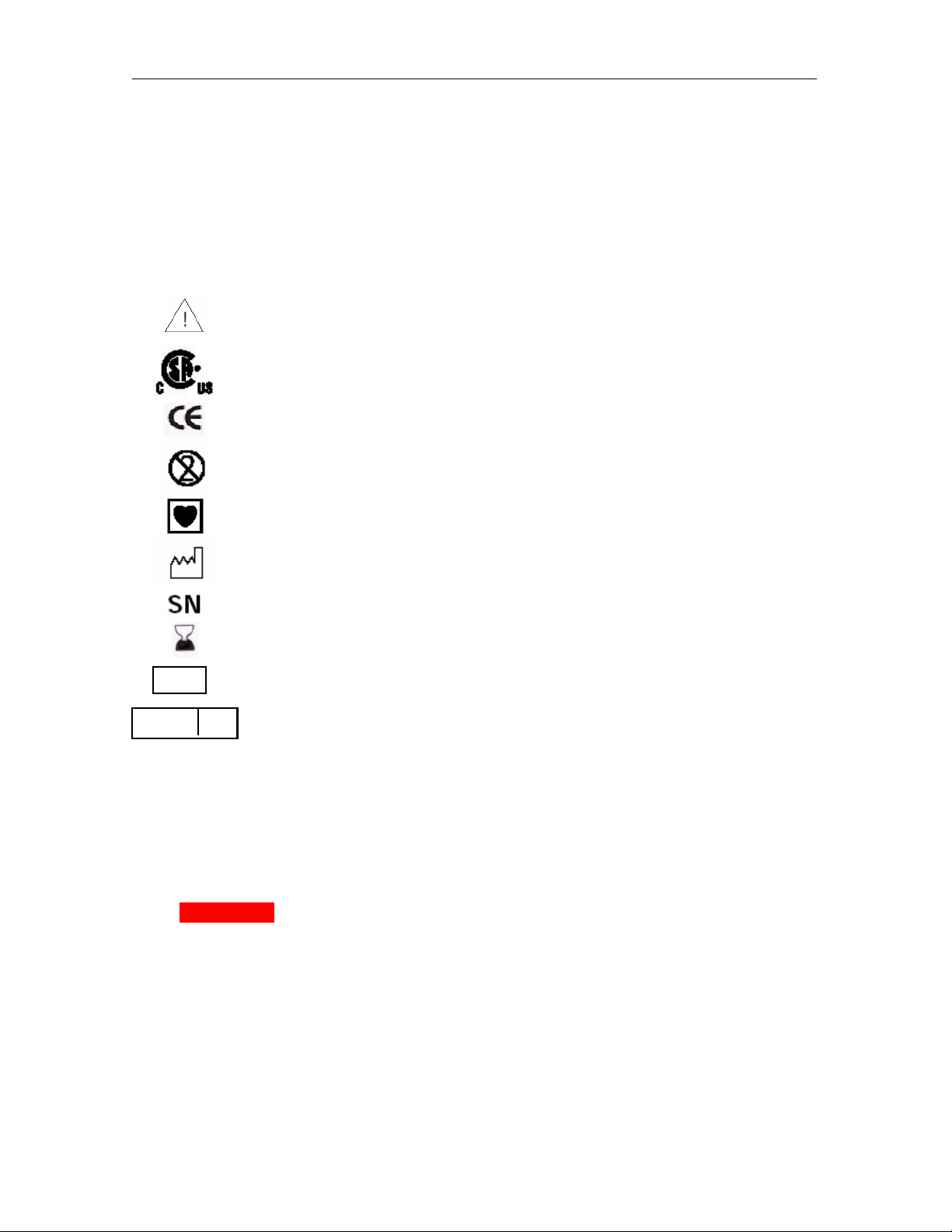

D – Symbols on pump, consumables & accessories
System Symbols
The following symbols are used on the McKinley T34 Syringe Pump and components.
Labels on the pump or statements in this manual preceded by any of the following words
and/or symbols are of special significance and/or are intended to help you to operate the
pump in a safe and successful manner.
Attention, consult accompanying Instructions.
CSA mark
CE mark indicates conformance to Medical Device Directive 93/42/EEC.
The use of single-use disposable components on more than one patient is a
biological hazard. Do not reuse single-use disposable components.
Type CF applied part.
Date of Manufacture
Serial Number
Expiry Date (consumables)
Lot Number (consumables)
Sterilized with Ethylene Oxide
IPX1 Level of protection against fluid ingress
E – Installation and Inspection
Unpacking
1. Remove the McKinley T34 Syringe Pump & accessories from the packaging and inspect
for damage during shipment or storage.
WARNING: Do not use T34 if there are any obvious signs of damage. Return for
inspection by authorised service personnel.
2. Make sure you have the following items:
•McKinley T34 Syringe Pump
•Operation Manual
•9V alkaline battery
•Carry Pouch
•Lockbox (optional)
If any items are missing or damaged, contact your supplies department to order replacement.
LOT
STERILE EO

McKinley T34 Syringe Pump - Operation Manual
M c K i n l e y M e d i c a l U K L i m i t e d
7
F – Warnings & Cautions
To avoid the possibility of injury or death, please note the following
advice before using the McKinley T34 Syringe Pump: -
WARNING: Pump is not suitable for use in the presence of flammable anesthetic-
air/oxygen/nitrous oxide mixture. Do not use in these environments.
WARNING: A kinked/occluded infusion line may impair the operation and accuracy
of the pump. Before operation, verify that the infusion line is not kinked or occluded.
WARNING: Never take a syringe that is not empty off the Pump if it is still connected
to the patient. The infusion line must be disconnected or clamped before removing the
syringe to prevent free flow and the risk of serious injury or death to the patient.
WARNING: Ensure there is no air present in the syringe and also completely prime
the administration set before loading the syringe into the pump to prevent the risk of
infusing air into the patient (air embolism).
WARNING: Adjustments, maintenance, or repair made by un-certified service
personnel may impair the operation of the pump and/or the accuracy of the infusion.
Make sure any adjustments, maintenance, or repair of the device is carried out by
authorised skilled technicians certified by McKinley Medical.
WARNING: The McKinley T34 Syringe Pump system should be operated within a
temperature range of 15°C (59°F) to 45°C(113°F) and in no more than 85% humidity.
Operation at temperatures and/or humidity outside this range may affect accuracy.
WARNING: Unsafe operation may result from using improper accessories. Use only
accessories and options designed for this system and supplied by McKinley Medical.
WARNING: Disposables must be compatible with the medicine delivered. Please
check with the manufacturer of the giving set before use.
WARNING: Dropping the Syringe Pump could cause damage to components. If the
pump is dropped, return the pump for inspection by qualified service personnel.
WARNING: Use good aseptic technique when filling the syringe and priming the
giving set. Patient infection may result from the use of non-sterile components.
Maintain sterility of all disposable components and do not re-use single use sets.
WARNING: Do not operate the pump near high-energy radio-frequency emitting
equipment, such as electro-surgical cauterizing equipment as this may result in false
alarm signals or error messages being displayed.
WARNING: The maximum volume that may be infused under SINGLE FAULT
CONDITION is 0.03-0.05 ml (depending on syringe size in use).
To avoid possible damage to the equipment, observe the following: -
CAUTION: Do not store the pump for extended periods with the battery in the pump.
CAUTION: Xylene, Acetone or similar solvents could damage components. Do not
clean the pump with these chemicals. Clean solution spills immediately using a damp
cloth or sponge. A mild detergent or 10% bleach solution may be used. Wipe dry.
CAUTION: Immersing the McKinley T34 Syringe pump in liquid could cause damage
to components. Do not immerse the pump into any type of liquid.
CAUTION: Battery damage could occur at ambient temperatures >500C (122°F).

McKinley T34 Syringe Pump User Manual
M c K i n l e y M e d i c a l U K L i m i t e d
8
G - Administration Sets
The McKinley T34 Syringe Pump System can be operated with any extension set with a
luer connection however, it is recommended, to optimize system accuracy & performance,
that the proprietary sets listed below are used.
Proprietary sets available from McKinley Medical are as follows: -
150cm IV infusion set with check valve & clamp 100cm Sub-cut set with needle & clamp
WARNING: Replace the administration set at least every 24 hours (or according to local
guidelines) to reduce the possibility of bacteria formation.
WARNING: Visually inspect packaging and contents before each use. Do not use consumables
if the packaging is in any way damaged as sterility may have been compromised.
WARNING: Air embolism during an IV infusion can cause death or serious injury to the
patient. Do not connect a patient to the McKinley T34 Syringe Pump until all air
has been cleared from the fluid path & syringe. Carefully read the instruction for
loading. Puncturing set components may also cause air embolism.
WARNING: Drugs must not be administered to the epidural space unless the drugs are
indicated for this purpose and are administered in accordance with the indications
included in the drug manufacturers package insert. Epidural administration of
drugs other than those indicated for epidural use could result in serious injury or
death to the patient.
WARNING: Disposables must be compatible with the medicine delivered. Please check
with the manufacturer of the giving set before use.
CAUTION: Component damage may occur if the set is not correctly attached to the syringe.
Assure all connections are secure; do not over tighten. This will help minimize
leaks, disconnection and component damage.

McKinley T34 Syringe Pump User Manual
M c K i n l e y M e d i c a l U K L i m i t e d
9
H – Recommended batteries, fitting & testing
Always use a 9 volt alkaline battery (or a 9v Lithium battery which may extend the pump
operating time). These batteries can easily be identified by the international marking code
6LR61 (a recommended battery of this type is the Duracell MN1604). Suitable Lithium
batteries are available from McKinley Medical.
CAUTION: There is some variation in size between different brands of batteries. Never
try to force a battery into the battery compartment as this may damage the battery contacts.
NOTE: Zinc-carbon batteries (marked 6F22 or 6R61) are not recommended for use with
the T34. These batteries perform poorly and may need to be replaced more often.
To fit or change the battery slide the compartment cover at the back of the pump. Push the
battery into the compartment taking care to ensure that the + / - contacts are aligned as
shown on the label inside the compartment. Slide the cover back on.
NOTE: Incorrectly aligning the battery contacts will not cause any harm to the battery or
the T34 pump. Simply remove the battery and re-align the contacts.
Battery Test
When setting up the pump on a patient always check that there is enough charge in the
battery to cover the infusion being set up. To do so follow one of the procedures below: -
•Check the Summary Screen displayed on power up
•Press INFO key when the pump is stopped and select
Battery Level, press YES
•During infusion press the INFO key twice to check
Battery Level, in all cases verify sufficient battery charge is available to
complete the current program. If not, change the battery.
•Sufficient battery charge may vary depending on your setting, infusion
rate, number of times the information options are used.
Battery Level
98 %
Em
p
t
y
Full

McKinley T34 Syringe Pump User Manual
M c K i n l e y M e d i c a l U K L i m i t e d
10
I – Access Codes & Keypad Lock
Secure User Access Codes
The T34 employs three levels of user access protection to prevent unauthorised changes to
the set up or configuration. Although no access code is required to turn the pump on and
run an infusion certain settings and features may have been configured and locked as
appropriate to the clinical application the Pump is being used for in your practice.
NOTE: No access codes are contained in this manual. Please refer to senior clinical or
technical staff for these codes if you have been trained and certified in their use.
WARNING: Do not attempt to access these areas if you are not trained or authorised to do
so. If you are authorised do not share the access codes with non-authorised personnel.
Placing these settings in a secure area of the pumps menus also simplifies use as everyday
users are not required to repeatedly confirm or change common set up parameters whilst
setting up an infusion.
‘Change Set Up’ mode (see later section) contains configurable settings and features and is
protected by a user code from un-authorised access.
‘Technicians Menu’, used for service and/or repair of the Pump, is also protected by a
special access procedure and different user code from ‘Change Set Up’.
In normal use the nurse will not see these fields or be prompted for the user access codes.
Keypad Lock
As well as the ability to lock or limit certain infusion parameters or pump set up, the T34
allows all users to lock the operation of the keypad during infusion if there is concern about
patients or relatives tampering with the device. To active the keypad lock: -
•with the pump infusing, press and hold the INFO
key until a chart is displayed showing a bar
moving from left to right.
•Hold the key until the bar has moved completely
across the screen and a beep is heard to confirm
the lock has been activated.
•To turn the lock off repeat this procedure. The bar will now move from right
(ON) to left (OFF) and a beep will be heard to confirm activation.
NOTE: for safety reasons the keypad lock does not affect the operation of the START or
STOP keys as users or patients unaware of how to deactivate the lock may need to STOP
an infusion in an emergency and/or re-start the infusion (e.g. when clearing an alarm).
LOCK MODE
OFF ON

McKinley T34 Syringe Pump User Manual
M c K i n l e y M e d i c a l U K L i m i t e d
11
Pre-Loading
Use NO to Interrupt …..
McKinley T34
Version CAT_071205
ID: HOSPITAL NAME
Occlusion 540mmHg
Max. Rate 5ml/h
Program Lock ON
Battery Status 98%
J – Infusion set up & programming
NOTE: all three operating modes are covered below. Note instructions as to how
programming differs in each mode and how to tell what mode the pump is configured in.
Syringe Selection
The McKinley T34 is programmed to recognize most commonly used syringes from 2 ml
to 50 ml. Luer lock syringes MUST be used to ensure secure connection of the giving set.
NOTE: It is not be possible to administer the full capacity of some larger syringes. Around
24ml can be administered from a 30ml BD syringe and 35ml from a 50ml BD syringe. See
Table in Section T for further information.
Priming the giving set
1. After filling the syringe attach the giving set, prime manually and apply the clamp.
WARNING: Never connect to the patient before loading the syringe into the Pump.
Pre-Loading & Syringe Placement
2. Before placing the syringe into the Pump ensure the barrel clamp arm is down
Power Up
3. Press ON/OFF key to power the pump up. Screen
displayed during pump Self Test shows (1) Pump
model name, (2) Software version & (3) Pump ID
(default ‘Syringe Pump’ but can be configured to
local ID requirements e.g. asset no. or user site)
4. The display will indicate PRE-LOADING and the
actuator will start to move. Wait until it stops moving
and the LOAD SYRINGE screen appears
5. During pre-loading a set up summary screen is
displayed showing key locked parameters that may be
appropriate to/ restrict programming of the pump.
NOTE: During Pre-Loading the actuator returns to the start position of the last infusion
programmed. If the user regularly uses the same syringe brand, size and fills to the same
volume the actuator should return to the correct position and not require adjustment.
6. if the actuator is not in the correct position to accommodate the syringe leave the
barrel clamp arm down and use the FF or BACK keys to move the actuator to the
required position (hold the syringe above the device to gauge the correct location).
Forward movement of the actuator is limited so repeated presses of the FF key may
be required. Backwards movement is not restricted.
CAUTION: the actuator can only be moved as described above. Do not use force to try to
move the actuator manually as this could damage the device and/or affect calibration.

McKinley T34 Syringe Pump User Manual
M c K i n l e y M e d i c a l U K L i m i t e d
12
10ml BD Plastipak
Select ↑↓ Press YES
Press YES to Resume
NO for New Program

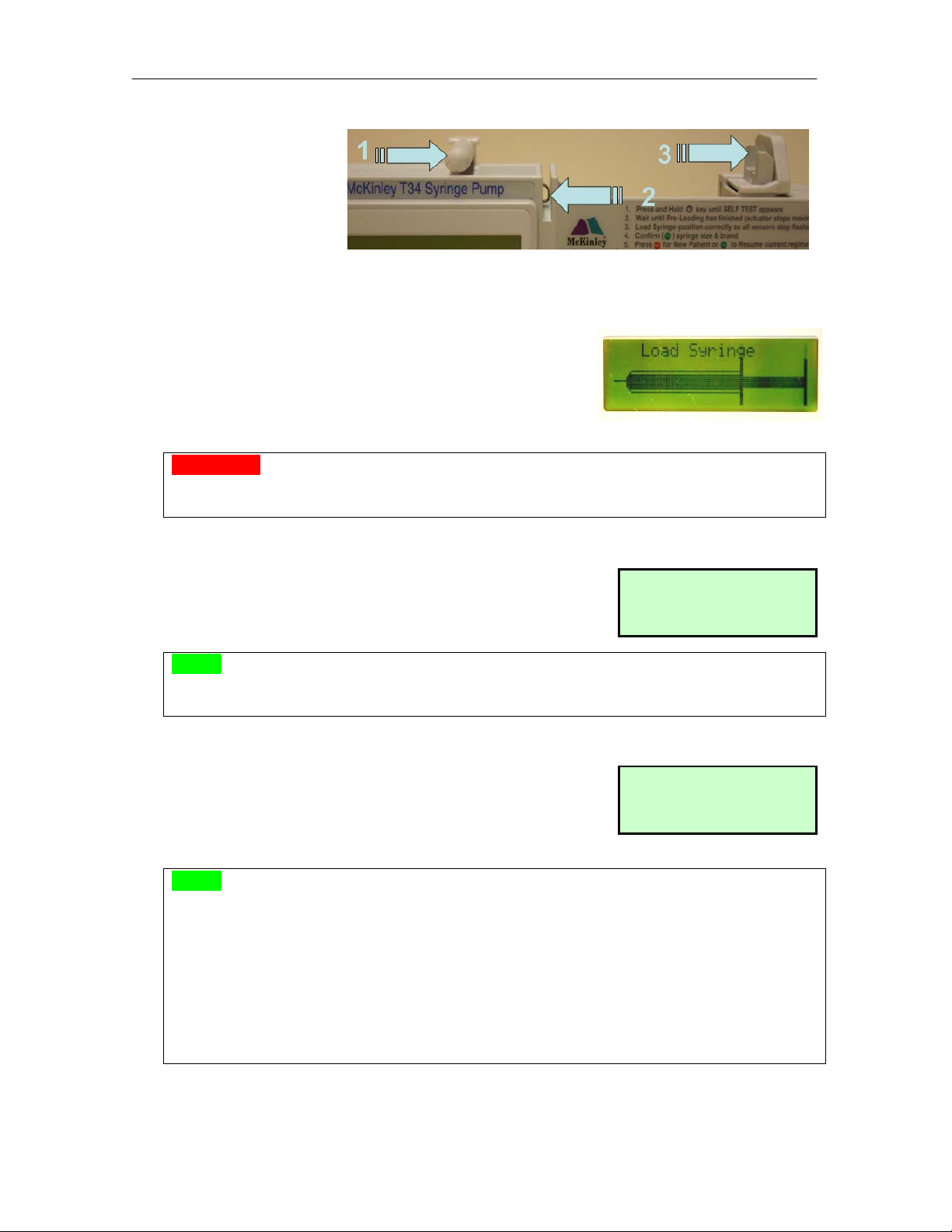

7. Note that the syringe graphic on the screen flashes in three places, lift the barrel
clamp arm (1)
and load the
syringe into the
Pump, position
flange/collar
(2) and plunger
(3) first. As
you correctly seat each point of the syringe note that the flashing indicator for that
sensor becomes solid on the display.
8. Finally lower the barrel clamp arm to sit on top of
the syringe barrel. If the syringe is correctly loaded
the graphic (right) will become solid (no flashing
components) and within a second the pump will
display the Size and Brand of the syringe detected.
WARNING: Do not label the syringe or apply anything that changes its external diameter
at the point where the barrel clamp is applied as incorrect syringe detection may result
leading to the pump running at the incorrect speed for the syringe loaded use.
Syringe Detection & Confirmation
9. Check the LCD display to ensure that the Pump has
correctly identified the syringe size and brand.
NOTE: If the syringe brand displayed is not correct use the UP or DOWN arrow keys to
scroll between brands of similar dimensions. This will only happen if the syringe selected
has dimensions within +/-5% of another commonly used brand that has not been disabled.
10. Press YES/START key to confirm the displayed syringe brand is correct
11. If the pump was stopped and turned off before the last
program reached “End Program” the Resume prompt
screen will appear (e.g. if, during an infusion, the
pump was turned off to change the battery). Press NO
to continue programming the new regime.
NOTE: PURGE OPTION – In order to eliminate/reduce slack (visible spaces at the
syringe loading points) and ensure a faster start up time (time to reach the programmed
infusion rate), the user can purge the system (once only) up to a volume limit configured
under Change Set Up (max 0.5 ml). To use this option after syringe loading:
a. Press FF key
b. Ensure the patient is NOT connected to the set
c. Press OK to confirm.
d. Press and Hold the FF key until the slack is removed and/or purge is completed
e. Press STOP to return to programming screens when purge is completed.

McKinley T34 Syringe Pump User Manual
M c K i n l e y M e d i c a l U K L i m i t e d
13
10ml BD Plastipak
Volume 12 ml
Change ↑↓ Press YES
10ml BD Plastipak
Duration 24:00
Change ↑↓ Press YES
10ml BD Plastipak
Volume 12 ml
Change ↑↓ Press YES
Volume 12ml
Duration 24:00
Rate 0.5 ml/h
Press YES to confir
m
10ml BD Plastipak
Rate 0ml/h
Chan
g
e
↑↓
Press YES
PROGRAMMING MAY NOW TAKE TWO DIFFERENT PATHS DEPENDING ON
WHETHER THE PUMP HAS BEEN CONFIGURED WITH PROGRAM LOCK ON OR
OFF. PROCEED AS FOLLOWS DEPENDING ON THE SCREEN DISPLAYED
PROCEED TO STEP 12 PROCEED TO STEP 18
PROGRAM LOCK IS OFF PROGRAM LOCK IS ON
Setting Infusion Parameters
12. Once the syringe brand & size are confirmed the
pump calculates and displays the deliverable volume
in the syringe.
13. The user can use the arrow keys to adjust the Volume To Be Infused (VTBI) e.g. to
allow a residual volume for KVO (Keep Vein Open) if required.
NOTE: The Pump cannot deliver the full contents of some smaller syringes. In these cases
there may be a slight residual volume left in the pump when the actuator has traveled to the
zero position. If this is the case the deliverable volume displayed will reflect this. E.g. if the
visually confirmed contents of the syringe are 2ml the Pump may display 1.9ml (of 2ml) as
the deliverable volume. In this example 0.1ml will be left in the syringe at End Program.
WARNING: If the volume displayed after loading the syringe is significantly different
than the volume visually confirmed on the syringe scale, remove the syringe, turn off the
pump, remove the pump from use and return to an authorized service centre for inspection,
testing and calibration.
14. Press YES/START key to confirm VTBI
15. (VOLUME OVER TIME MODE ONLY) The LCD
display prompts the user to set the infusion Duration.
Press YES to confirm the Default Duration or use the
↑↓ arrow keys to change the duration then press YES.
NOTE: every pump has a Default Duration set in the access code protected Change Set Up
menu. For example, senior clinical personnel may have set a 24:00 hour default. If so the
Duration screen will always default to this duration.
NOTE: if the Duration screen does not appear and, instead the pump skips straight to the
RATE screen (left), showing a rate of 0ml/h and asking the
user to set the rate using the ↑↓ arrow keys, the pump is in
RATE PER HOUR MODE (user sets rate required instead
of the pump calculating the rate based on pre-set or selected
duration). Use the ↑↓ keys to set the rate & press YES

McKinley T34 Syringe Pump User Manual
M c K i n l e y M e d i c a l U K L i m i t e d
14
Duration Changed
Please Check rate
Volume 12 ml
Duration 24:00
Rate 0.5 ml/h
Confir
m
,
Press YES
Start Infusion?
Time Remaining 23:57
Rate 0.5ml/hr
<<<<< Pump Delivering
10ml BD Plastipak
Rate 0.5 ml/h
Confir
m
, Press YES
Time Remaining 23:58
Rate 0.5ml/hr
10ml BD Plastipak
Setting the Infusion Rate
16. The Pump calculates and displays the rate (in
milliliters per hour) required to deliver the VTBI over
the infusion duration confirmed.
17. Press YES to confirm the calculated rate.
NOTE: In VOLUME OVER TIME configuration (UNLOCKED) the user can only set
the rate by selecting the required duration. If a change of rate
is required, press NO to back up to the duration screen and
amend duration as required. Upon confirmation of duration
change, the pump alerts the user (right) to check the new rate
which is then displayed.
NOTE: Senior clinical personnel or technicians may have set a MAXIMUM RATE LIMIT
to prevent T34 from being used for rates above a certain limit according to the application
the pump is regularly used for. Pump will not allow the user to scroll to a duration that
requires a rate above this limit to deliver the contents of the syringe over that time.
18. The Summary Screen displays the Volume (To Be
Infused), Duration and Infusion rate.
WARNING: ALWAYS TAKE TIME TO CHECK THE CONTENTS OF THE
SUMMARY SCREEN MATCH THE PRESCRIPTION BEFORE STARTING INFUSION
19. Press YES/START to confirm acceptance of the pre-set (if Program Lock ON) or
programmed (if LOCK OFF) infusion parameters.
20. Pump prompts START INFUSION? Check giving set
is attached to patient access device and the clamp is
released. Press YES/START to commence infusion
21. Whilst infusing the display shows Infusion Time Remaining (top line), Infusion
Rate (main/central line) and the bottom line will alternate between Syringe Size &
Brand and a delivery indicator to confirm the pump is running (in case the LED
indicator on the keypad
has been disabled to
conserve battery life
(see Change Set Up).

McKinley T34 Syringe Pump User Manual
M c K i n l e y M e d i c a l U K L i m i t e d
15
K – Using Accessories with T34 Syringe Pump
McKinley Medical can supply the following optional accessories/extras for the T34: -
Rigid lockbox (with key) suitable for all syringes up to 30ml
Rigid lockbox (with key) suitable for all syringes up to 50ml
Carry pouch for pump & lockbox
After the syringe has been loaded (Step 8) the T34 can be placed into the lockbox
(optional) and carry pouch to protect the syringe Pump, syringe & contents from damage,
accidental displacement or tampering: -
1. Open the lockbox using the standard
key that operates all T34 lockboxes.
2. Place the Pump into the lockbox so
that the LCD display and keypad line
up with the cut out opening.
3. Close the lockbox, guiding the
administration set out of the slot at
the side of the top section of the box.
4. Place the lockbox (or syringe pump if the security of the lockbox is not required
for your practice) into the carry pouch and secure to the patient.

McKinley T34 Syringe Pump User Manual
M c K i n l e y M e d i c a l U K L i m i t e d
16
VI 0.1ml
VTBI 14.2ml
Rate 0.6ml/h
20 ml BD Plastipak
Length 3.61 mm/ml
Battery Level
50%
L – Recommended Checks during infusion
It is recommended that procedures are established for regular checks on the progress of the
infusion. Patients, relatives or other carers, as well as medical staff, should be made aware
of a few simple checks that can be made. These are to confirm the following: -
•CHECK THE LCD DISPLAY to confirm the pump is still running at the same
infusion rate as originally set (unless the Titration option has been enabled and the
user/patient has been authorized to adjust the rate within the programmed limits)
•CHECK THE GREEN LED IS FLASHING AND/OR “<<<<<Pump Delivering”
animation appears intermittently on the bottom line of the LCD display (green
delivery LED can be disabled or the interval lengthened to preserve battery life)
•CHECK FOR SIGNS OF DAMAGE to the Pump or accessories.
•PRESS THE INFO KEY to check: -
SINGLE PRESS - Volume to be Infused
(VTBI) & Volume Infused (VI). Syringe
graphic shows VTBI & VI in graphical form
DOUBLE PRESS for Battery life remaining
shown as a percentage and in graph form.
NOTE: After pressing the INFO key either press a third time or wait a few seconds and the
display will return to the main infusion display screen. Excessive usage of the INFO feature
will reduce battery life. Use only as required to optimize battery performance.
Event Log
The event log shows a complete time and date stamped record of the last 1024 user events
along with a record of pump status (volume infused, rate, etc) at the time of the event.
Event log data cannot be deleted or altered. To view the events log: -
1. Press STOP to temporarily interrupt the infusion
2. Press the INFO key and scroll to ‘Event Log’.
Press YES to select.
3. The screen will now show the most current
event, alarm, date, time, etc. Use the Up & Down arrow keys to scroll through
events to find an event of interest.
4. Pressing INFO on any chosen event displays
further data regarding this event. The user can
scroll through the information using the UP and
DOWN arrow keys to check how the pump was
set up, whether keypad lock was ON and the
pressure settings and other technical data was at the time of the event.
NOTE: Each event is assigned a number and the pump stores the last 1024 in memory. The
pump replaces the oldest event in the log with each new event.
Event No. : 2635
04.03.2005 17:08
Switched ON
Press INFO - Details

McKinley T34 Syringe Pump User Manual
M c K i n l e y M e d i c a l U K L i m i t e d
17
M – Advanced Functions of T34
KVO (Keep Vein Open) Operation
T34 can be configured to deliver a KVO infusion to be delivered at END PROGRAM to keep the
patients access device patent until the clinician can attend. With KVO enabled T34 applies the
KVO rate set under Change Set Up until the Syringe is empty.
•After four beeps the End Program alarm stops and the
pump goes to KVO operation
•Every four minutes four beeps will be heard to confirm the
pump is still running.
•Press NO to reset the pump and set a new program, if there is
still remained volume in the syringe, if not change syringe
Infusion Rate Titration
It is possible to activate infusion rate titration so that either the patient or carer can adjust
the rate during infusion within pre-set upper and lower limits. This option can be Enabled
by users with access code rights under Change Set Up. If
enabled, the pump will request the user, immediately after
confirming the infusion rate calculated during
programming, to set a maximum & lower titration rate. To
titrate the rate up or down during infusion follow these steps: -
•Use the UP or DOWN arrows on the keypad to adjust the rate to the desired new
setting as displayed on the main LCD screen
•Press YES (within 4 seconds of making the change) to confirm the new rate
•Pump sounds a beep to confirm the change and the screen will display the new rate
NOTE: Titration requires Two separate actions (rate selection with arrow keys followed by
YES key press to confirm and apply the new rate) to protect against accidental rate titration
if the keys are nudged or tampered with during infusion.
NOTE: in order to limit the maximum titration limit configurable by users without access
code rights it is possible to set a Maximum Rate limit from the Change Set Up menu. For
example senior clinicians could decide to limit the maximum possible rate programmable
on the pump to 3ml/hr in both rate and titration limit to prevent accidental over infusions.
KVO
0.5ml/h
Max. Titration Limit
3.5ml/h
Select ↑↓ Press YES

McKinley T34 Syringe Pump User Manual
M c K i n l e y M e d i c a l U K L i m i t e d
18
N – Alarm Conditions
When the Pump detects a problem, four things occur:
•The infusion stops.
•An audible alarm is activated.
•A message appears on the display (example right)
screen indicating the cause of the alarm, and:
•The LED indicator turns red.
Alarm Possible cause Action
Occlusion or Syringe Empty Patient access device
blocked
Clamp on the infusion line
Tubing occluded (kinked or
trapped)
Pump has reached the
minimum travel position
Flush or replace access
device
Release the clamp
Clear the occlusion
Turn pump off
Syringe Displaced One or more of the syringe
detection sensors is not
detecting up the syringe
Check the syringe and re-
seat as necessary
Pump Paused Too Long Pump has been left in STOP
mode with no keypad
presses detected for 2
minutes
Start the infusion, continue
programming or turn the
pump off if not needed.
Near End 15 minutes from End of
Infusion
Prepare to change syringe or
turn pump off
End Program Infusion is complete Pump will either default to
KVO program if set (wait
for nurse to attend) or, if not,
turn the pump off.
Low Battery Battery is almost depleted Prepare to change battery
End Battery Battery is depleted Change battery
End Program
Press YES to Confirm

McKinley T34 Syringe Pump User Manual
M c K i n l e y M e d i c a l U K L i m i t e d
19
O - Troubleshooting
WARNING: If the Pump does not perform as expected, if it is dropped, gets wet or is
damaged in any way, then remove it from use immediately. Mark it clearly as quarantined
and preferably take it out of the working area altogether, so that it cannot be accidentally
used again, until it has been returned for inspection by qualified service personnel.
Fault Possible cause Action
The Pump will not start No battery present
Battery is in the wrong way.
Battery is depleted/very low
Pump is faulty
Fit a battery
Re-align battery terminals
Fit a new battery
Service required
The infusion is going too
quickly/has ended early or
too slowly/ volume
remaining in syringe at end
of infusion.
Incorrect rate set
Wrong syringe brand
confirmed during set up
Pump faulty or incorrectly
calibrated.
Check displayed rate against
prescription, change if
necessary.
Re-train user to prevent
repeat of this event
Service/calibration required
The Pump has stopped
before empting the syringe
Exhausted battery
Blocked/trapped infusion set
Fit a new battery, turn pump
on, confirm syringe size and
brand, select resume to
continue infusion.
Clear the occlusion

McKinley T34 Syringe Pump User Manual
M c K i n l e y M e d i c a l U K L i m i t e d
20
P - Change Set Up
WARNING: the following instructions will affect the operation/functionality of the T34
for all infusions. Set up parameters should only be changed by clinical or technical staff
with user code access rights only. If you are unsure about your authority to change these
settings please consult your clinical lead personnel or the local biomedical engineering staff
•When the pump is in program mode, or stopped during infusion, pressing the INFO
button will take you to the menu.
•Select Change Set Up from the menu using the UP / DOWN arrows and press YES
•Pump will prompt for User Code (not given in this manual, please consult senior
clinical personnel or biomedical engineers), use the UP arrow to scroll code. When the
UP arrow is held down the pump will count up in single digits to ten, then in tens to
one hundred and then in hundreds thereafter. Scroll to the nearest point in tens and then
release the key. Press the key again, UP or DOWN arrow depending on digit displayed
on the screen, to select the final, correct code. Press YES to submit code.
WARNING: DO NOT CHANGE ANY PARAMETERS UNLESS YOU CLEARLY
UNDERSTAND THE SIGNIFICANCE OF THAT PARAMETER AND THE EFFECT
OUR CHANGE WILL HAVE ON THE OPERATION AND/OR FUNCTIONALITY
OF THE PUMP.
•If correct code has been inputted and confirmed, the Set Up menu will be displayed.
Parameter Application Range
Set Time & Date
Ensures all events in log are correctly date and
time stamped (ensure local update for DST)
FF Key Operation
Limits the forward movement of actuator caused
by pressing the FF key during syringe loading
0.1 – 100mm
Backlight Duration
Limits backlight duration to preserve battery life 0 – 60 secs.
Info Duration
Sets time info screens are displayed 1 – 20 secs.
Operation LED
Turns off the green operation LED to preserve
battery life. Red warning LED still operates
0 (Disabled) –
64 seconds
Titration Option
enables setting a titration limit (<max.rate)
Enable/Disable
Default Duration
When entering a new program pump resets to this
default (setting to zero skips duration step during
programming). When Program Lock is ON (see
below) default duration cannot be set to zero.
00:00 (OFF) to
99:59 hours
Occlusion Pressure
Sets pressure level at which occlusion alarm will
activate
100–1500mmHg,
10mm increment
KVO Operation
Activates Keep Vein Open infusion at End
Program
0 (KVO OFF) –
2.0ml/h
Program Lock Prevents alteration of default duration and infusion
rate during set up (with Program Lock ON Default
Duration cannot be set to zero)
ON/OFF
