GORMAN-RUPP PUMPS PRIME-AIRE Series User manual

PUBLICATION NUMBER PL−05744−01
December 21, 2004
Use With: OM−04402
MR−05740
THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
www.gormanrupp.com
Copyright by the Gorman-Rupp Company
PRIME-AIRErSERIES
PUMP MODEL
PA6C60−4045T−ESP

The engine exhaust from this
product contains chemicals
known to the State of California to
cause cancer, birth defects or
other reproductive harm.

PA SERIES PUMP PL−05744
PAGE A − 1PART LIST MANUAL
PERFORMANCE CURVE − SECTION A
RECORDING MODEL AND
SERIAL NUMBERS
Please record the pump model and serial number
in the spaces provided below and in the separate
Installation/Operation Manual accompanying your
pump. Your Gorman-Rupp distributor needs this
information when you require parts or service.
Pump Model:
Serial Number:
WARRANTY INFORMATION
The pump warranty is provided as part of
Gorman-Rupp’s support program for customers
who operate and maintain their equipment as
described in this manual and other accompanying
literature. Please note that should the equipment
be abused or modified to change its performance
beyond the original factory specifications, the war-
ranty will become void and any claim will be de-
nied.
PERFORMANCE CURVE
The performance curve on the following page is
based on 70 F (21 C) clear water at sea level,
with minimum suction lift. Since pump installations
are seldom identical, your performance may be dif-
ferent due to such factors as viscosity, specific
gravity, elevation, temperature, and impeller trim.
If your pump serial number is followed by an N",
your pump is NOT a standard production model.
Contact the Gorman-Rupp Company to verify per-
formance or part numbers.
Pump speed and operating condition
points must be within the continuous per-
formance range shown on the curve.

PL−05744 PA SERIES PUMP
PAGE A − 2 PARTS LIST MANUAL
Performance Curve − Model PA6C60−4045T−ESP

PA SERIES PUMP PL−05744
PAGE A − 3PART LIST MANUAL
This Page Intentionally Blank

THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
Copyright by the Gorman-Rupp Company 1 of 12
Page 64.6 C18
December 21, 2004
ACDEU
PARTSPAGE
PA6C60−4045T−ESP
S/N 1302082N Up
PUMP ISSUE 1

ITEM
NO.
PART NAME PART
NUMBER
MAT’L
CODE
QTY ITEM
NO.
PART NAME PART
NUMBER
MAT’L
CODE
QTY
THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
Copyright by the Gorman-Rupp Company
2 of 12
Page 64.6 C18
December 21, 2004
PA6C60−4045T−ESP
S/N 1302082N Up
PUMP ISSUE 1
ACDEU

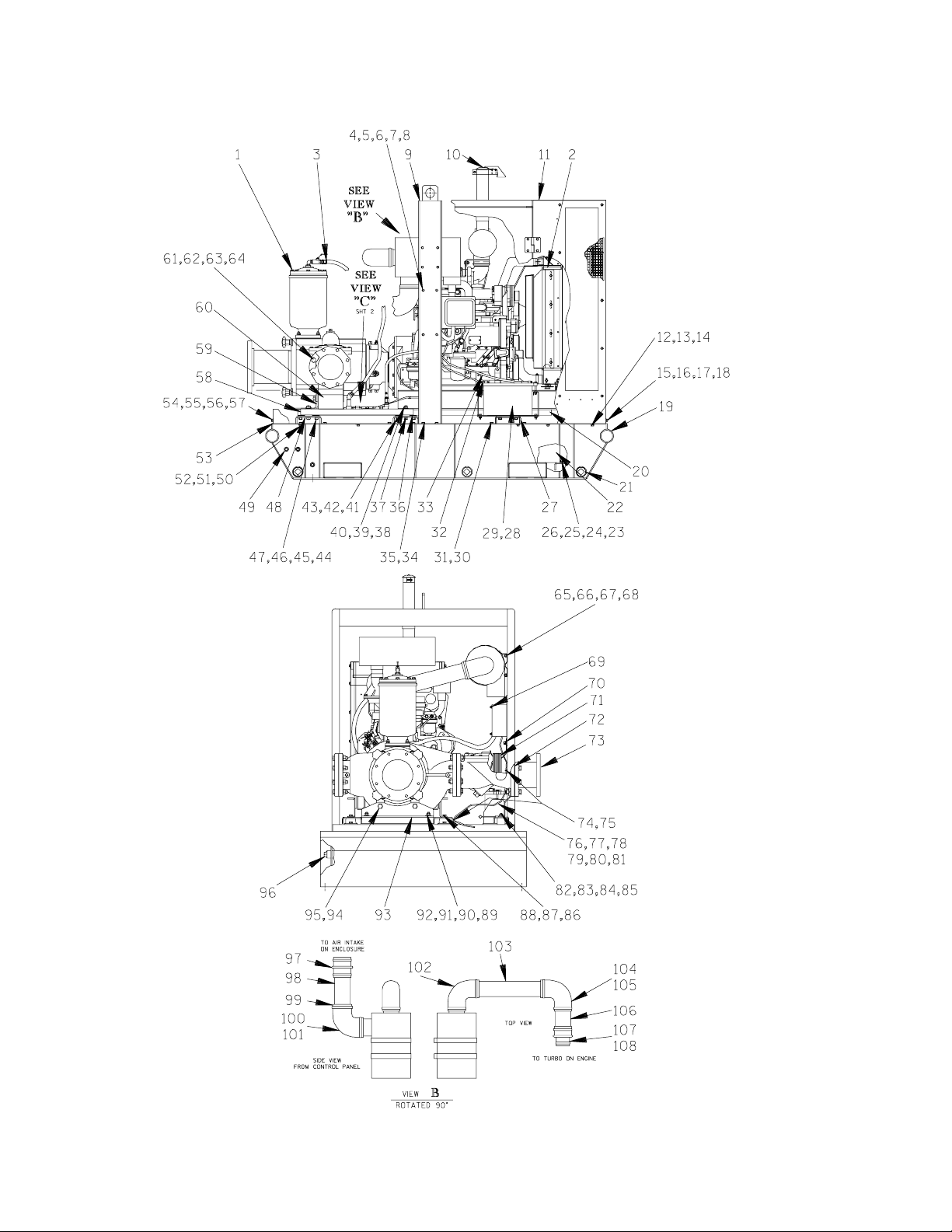

PARTS LIST
Pump Model PA6C60−4045T−ESP
If your pump serial number is followed by an N", your pump is NOT a standard production model. Contact the
Gorman-Rupp Company to verify part numbers.
1 PUMP END ASSY PA6C60−(4045T) 1
2 ENGINE MODIFICATION 44311−019 −−− 1
3 HOSE BARB FITTING 26523−047 −−− 1
4 HEX HD CAPSCREW B0605 15991 4
5 LOCK WASHER J06 15991 4
6 FLAT WASHER K06 15991 4
7 HEX NUT D06 15991 4
8 MOUNTING BRACKET 34515−012 −−− 1
9 HOISTING BAIL ASSY 44713−036 24150 1
10 WEATHER CAP W/ENGINE −−− REF
11 ENCLOSURE ASSY 42164−014 −−− 1
−DOOR W/WINDOW 42142−134 −−− 1
−DOOR W/O WINDOW 42142−135 −−− 1
12 HEX HD CAPSCREW B0505 15991 20
13 FLAT WASHER K05 15991 20
14 LOCK WASHER J05 15991 29
15 HEX HD CAPSCREW B0504 15991 5
16 FLAT WASHER K05 15991 5
17 LOCK WASHER J05 15991 5
18 ENCLOSURE MTG ASSY 41881−789 −−− 1
19 BASE ASSEMBLY 41565−587 24150 1
20 BASE FRAME 41437−064 24150 1
21 PIPE PLUG P32 10009 3
22 FUEL TANK ASSY 46711−092 24150 1
23 FLAT WASHER K07 15991 6
24 LOCK WASHER J06 15991 6
25 HEX NUT D06 15991 6
26 14’ FOAM TAPE 18668−003 −−− 1
27 CROSS RAIL ASSY 41581−026 24150 1
28 12V BATTERY SEE OPTIONS 1
29 BATTERY BOX ASSY 42432−004 −−− 1
30 HEX HD CAPSCREW B0805 15991 4
31 LOCK WASHER J08 15991 4
32 POS BATTERY CABLE 47311−111 −−− 1
33 NEG BATTERY CABLE 47311−189 −−− 1
34 HEX HD CAPSCREW B0805 15991 4
35 LOCK WASHER J08 15991 4
36 COMPRESSION MOUNT 24631−104 −−− 6
37 CROSS RAIL ASSY 41581−027 24150 1
38 HEX NUT K08 15991 4
39 LOCK WASHER J08 15991 4
40 FLAT WASHER K08 15991 4
41 HEX HD CAPSCREW B0805 15991 4
42 LOCK WASHER J08 15991 4
43 FLAT WASHER K08 15991 4
44 STUD MOUNT 24631−011 −−− 2
45 LOCK WASHER J08 15991 4
46 FLAT WASHER K08 15991 4
47 HEX NUT D08 15991 4
48 CROSS RAIL ASSY 41581−028 24150 1
49 PIPE PLUG P08 15079 3
50 HEX HD CAPSCREW B0805 15991 4
51 LOCK WASHER J08 15991 4
52 FLAT WASHER K08 15991 4
53 23’ FOAM TAPE 18668−003 −−− 1
54 HEX HD CAPSCREW B0504 15991 3
55 FLAT WASHER K05 15991 3
56 LOCK WASHER J05 15991 3
57 ENCLOSURE MTG ASSY 41881−788 −−− 1
58 CROSS RAIL 34414−098 15080 1
59 PUMP SUPPORT 34265−040 15080 1
60 CHK VALVE SUPPORT 34561−009 15080 1
61 HEX HD CAPSCREW B1214 15991 8
62 FLAT WASHER K12 15991 2
63 LOCK WASHER J12 15991 8
64 HEX NUT K12 15991 8
65 HEX HD CAPSCREW B0604 15991 4
66 LOCK WASHER J06 15991 4
67 HEX NUT D06 15991 4
68 AIR CLEANER W/ENGINE −−− REF
69 FLAT WASHER K04 15991 4
70 BRACKET 34184−007 15120 1
71 FLOAT SWITCH KIT 48312−980 −−− 1
72 FLANGE GASKET 25113−036 −−− 1
73 DISCH PIPE ASSY 46353−203 24150 1
74 CABLE TIE MTG BLOCK 27111−352 −−− 2
75 CABLE TIE 27111−205 −−− 2
76 PLUG CONNECTOR 27261−301 −−− 1
77 80" EXTENSION CABLE 18141−147 −−− 1
78 SOCKET CONNECTOR 27263−001 −−− 1
79 HEX HD CAPSCREW B0404 15991 2
80 LOCK WASHER J04 15991 2
81 FLAT WASHER K04 15991 2
82 HEX HD CAPSCREW B0606 15991 2
83 LOCK WASHER J06 15991 2
84 FLAT WASHER K06 15991 2
85 HEX NUT K06 15991 2
86 HEX HD CAPSCREW B0804 15991 6
87 LOCK WASHER J08 15991 6
88 FLAT WASHER K08 15991 6
89 HEX HD CAPSCREW B0806 15991 2
90 LOCK WASHER J08 15991 2
91 FLAT WASHER K08 15991 2
92 HEX NUT K08 15991 2
93 PUMP SHIM SET 48261−045 −−− 4
94 HEX HD CAPSCREW B1206 15991 2
95 LOCK WASHER J12 15991 2
96 PIPE PLUG P20 10009 1
97 STRAIGH HUMP W/ENGINE −−− REF
98 PIPE W/ENGINE −−− REF
99 REDUCING INSERT W/ENGINE −−− REF
100 ELBOW W/ENGINE −−− REF
101 CLAMP W/ENGINE −−− REF
102 ELBOW W/ENGINE −−− REF
103 PIPE W/ENGINE −−− REF
104 ELBOW W/ENGINE −−− REF
105 CLAMP W/ENGINE −−− REF
106 PIPE E/ENGINE −−− REF
107 HUMP REDUCER W/ENGINE −−− REF
108 CLAMP W/ENGINE −−− REF

THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
Copyright by the Gorman-Rupp Company 3 of 12
Page 64.6 C18
December 21, 2004
ACDEU PA6C60−4045T−ESP
S/N 1302082N Up
PUMP ISSUE 1

ITEM
NO.
PART NAME PART
NUMBER
MAT’L
CODE
QTY ITEM
NO.
PART NAME PART
NUMBER
MAT’L
CODE
QTY
THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
Copyright by the Gorman-Rupp Company
4 of 12
Page 64.6 C18
December 21, 2004
PA6C60−4045T−ESP
S/N 1302082N Up
PUMP ISSUE 1
ACDEU

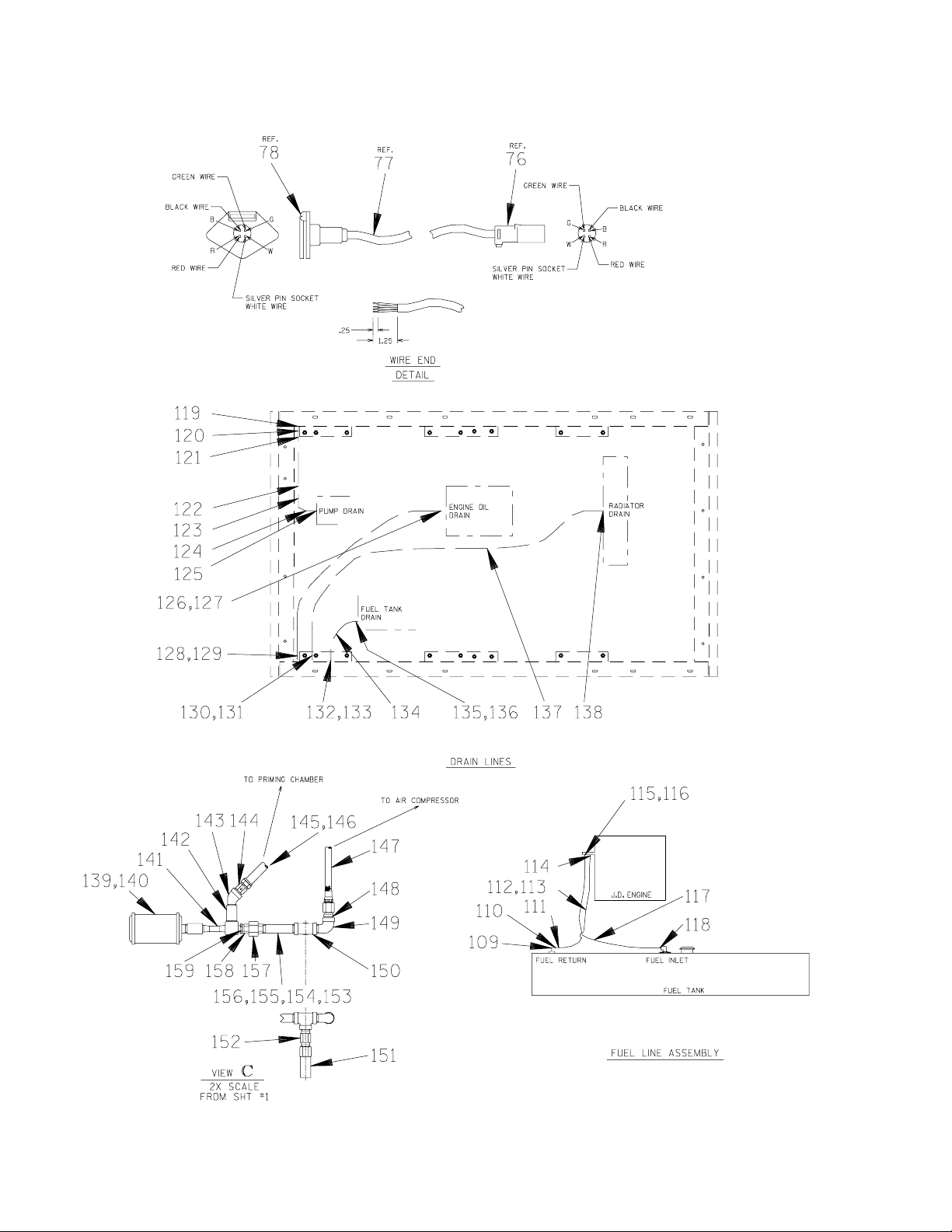

PARTS LIST
Pump Model PA6C60−4045T−ESP
If your pump serial number is followed by an N", your pump is NOT a standard production model. Contact the
Gorman-Rupp Company to verify part numbers.
109 STREET ELBOW RS06 11999 1
110 RED PIPE BUSHINIG AP0604 15079 1
111 HOSE BARB FITTING 26523−386 −−− 1
112 45" HOSE 18513−301 −−− 1
113 HOSE CLAMP 26518−641 −−− 2
114 HOSE BARB FITTING 26523−386 −−− 1
115 CONNECTOR S1447 −−− 1
116 HOSE END 26523−015 −−− 1
117 43" HOSE 18513−054 −−− 1
118 MALE HOSE BARB 26523−333 −−− 1
119 BUSHING AP2008 11999 1
120 MALE HOSE END 26525−020 −−− 2
121 HOSE CLAMP 26518−642 −−− 2
122 24" LG. HOSE 18513−056 −−− 2
123 BALL VALVE 26631−023 −−− 1
124 PIPE NIPPLE T08 15079 1
125 STREET ELBOW RS08 11999 1
126 HOSE CLAMP 26518−642 −−− 1
127 75" LG. HOSE 18513−056 −−− 1
128 HOSE CLAMP 26518−642 −−− 1
129 MALE HOSE END 26525−020 −−− 1
130 HOSE CLAMP 26518−642 −−− 1
131 HOSE FITTING 26523−335 −−− 1
132 PIPE NIPPLE T08 15079 1
133 BALL VALVE 26631−023 −−− 1
134 10" LG. HOSE 18513−056 −−− 1
135 HOSE CLAMP 26518−642 −−− 2
136 MALE HOSE END 26525−020 −−− 2
137 88" LG. HOSE 18513−054 −−− 1
138 HOSE CLAMP 26518−642 −−− 1
139 AIR SILENCER/MUFFLER W/ENGINE −−− 1
140 PIPE COUPLING AE08 15079 1
141 VENTURI 26817−002 −−− 1
142 PIPE COUPLING AE08 15079 1
143 STREET ELBOW AGS08 11999 1
144 BALL CHECK VALVE 26641−091 −−− 1
145 HOSE BARB FITTING 26523−446 −−− 1
146 56" LG. HOSE 18513−113 −−− 1
147 HOSE ASSY 46341−426 −−− 1
148 MALE ADAPTOR 26351−065 −−− 2
149 STREET ELBOW RS08 11999 1
150 1/2" TEE U08 11999 1
151 AIR SILENCER/MUFFLER 26662−901 −−− 1
152 PRESS RELIEF VALVE 26662−028 −−− 1
153 41881−706 −−− 24150 1
154 HEX HD CAPSCREW B0805 15991 1
155 LOCK WASHER J08 15991 1
156 FLAT WASHER K08 15991 1
157 HEX NUT D08 15991 1
158 PIPE UNION AH08 11999 1
159 RED PIPE BUSHING AP0806 15079 1
NOT SHOWN:
WARNING DECAL 38816−319 −−− 2
PUMP DRAIN LABEL 38816−320 −−− 1
FUEL TANK DRAIN LABEL 38816−321 −−− 1
RADIATOR DRAIN LABEL 38816−322 −−− 1
OIL DRAIN LABEL 38816−323 −−− 1
LEVEL CONTROL LABEL 38816−332 −−− 2
WARNING DECAL 38816−330 −−− 2
WARNING DECAL 38816−218 −−− 1
ENGINE STARTUP TAG 38816−269 −−− 1
INSTRUCTION TAG 38817−085 −−− 1
CAUTION DECAL 2613FJ −−− 1
SUCTION STICKER 6588AG −−− 1
DISCHARGE STICKER 6588BJ −−− 1
DECAL KIT 48154−807 −−− 1
WARNING DECAL 38816−023 −−− 2
INSTRUCTION DECAL 38818−144 −−− 1
PRIME AIRE" DECAL 38812−078 −−− 2
HEX HD CAPSCREW B0602 15991 4
OPTIONS:
12V BATTERY (DRY) 29331−517 −−− 1
12V BATTERY (WET) 29331−527 −−− 1
EPS/TRANSDUCER CTRL PANEL KIT
48122−522 −−− 1
GAUGE KIT 48213−112 −−− 1
2−5/16" BALL TANDEM HIGHWAY
TRAILER W/SURGE BRAKES
−JACK W/FOOT PAD 29313−011 −−− 1
−JACK W/DOLLY WHEEL 29313−012 −−− 1
3" I.D. LUNETTE EYE TANDEM
HIGHWAY TRAILER W/SURGE BRAKES
−JACK W/FOOT PAD 29313−013 −−− 1
−JACK W/DOLLY WHEEL 29313−014 −−− 1
2−5/16" BALL TANDEM HIGHWAY
TRAILER W/ELECTRIC BRAKES
−JACK W/FOOT PAD 29313−015 −−− 1
−JACK W/DOLLY WHEEL 29313−016 −−− 1
3" I.D. LUNETTE EYE TANDEM
HIGHWAY TRAILER W/ELECTRIC BRAKES
−JACK W/FOOT PAD 29313−017 −−− 1
−JACK W/DOLLY WHEEL 29313−018 −−− 1
TWO FLOAT SWITCH KIT 48312−981 −−− 1
FUEL FILTER KIT 48122−914 −−− 1

THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
Copyright by the Gorman-Rupp Company 5 of 12
Page 64.6 C18
December 21, 2004
ACDEU PA6C60−4045T−ESP
S/N 1302082N Up
PUMP ISSUE 1
PARTS LIST

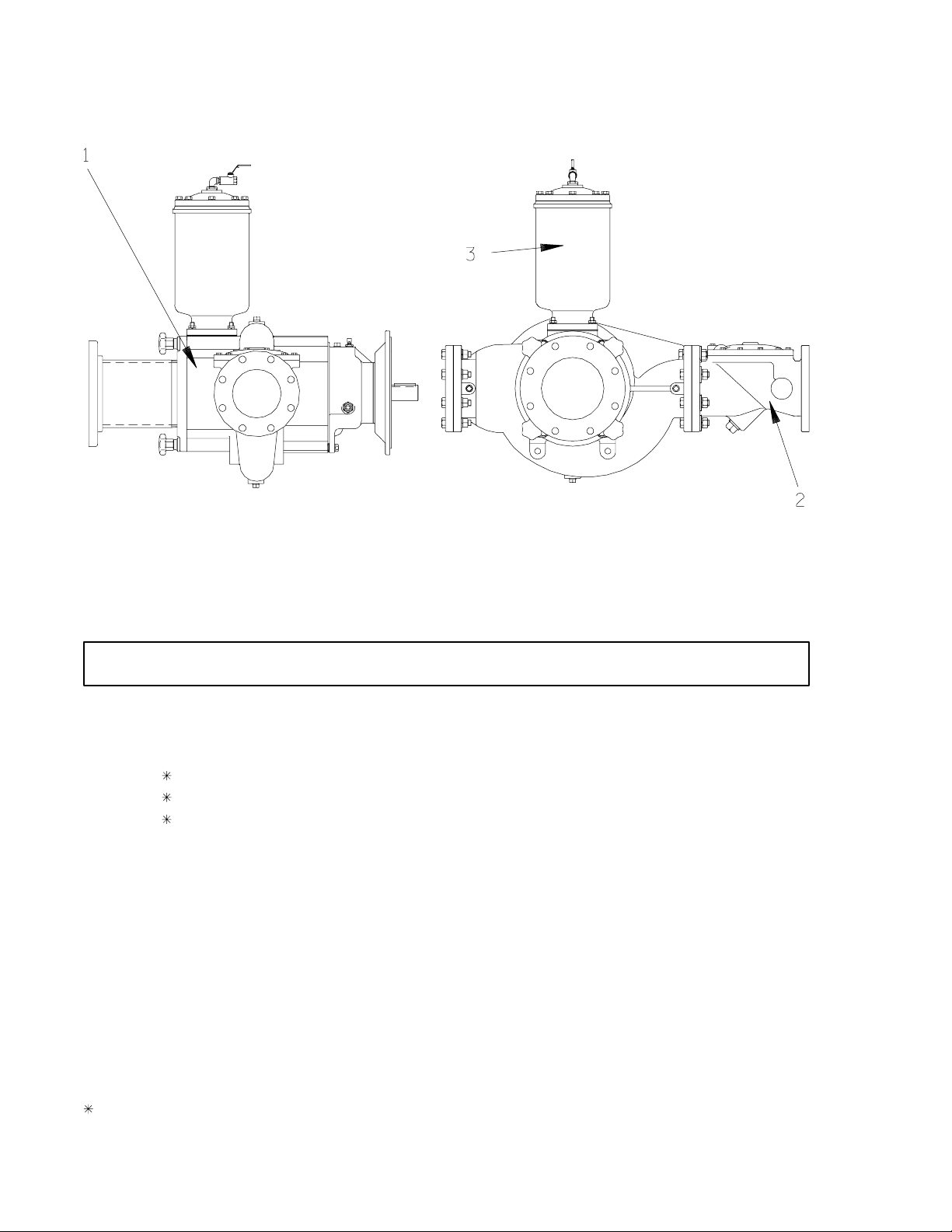

PA6C60−(4045T) Pump End Assembly
ITEM
NO. PART NAME PART NUMBER
MAT’L
CODE QTY
1 PUMP END ASSY 66F60−(4045T) −−− 1
2 CHECK VALVE KIT 48274−015 −−− 1
−CHECK VALVE 26642−126 −−− 1
−FLAPPER 26688−001 −−− 1
−COVER O-RING 25152−377 −−− 1
−FLANGE GASKET 25113−036 −−− 1
3 PRIMING CHAMBER KIT 48275−005 −−− 1
NOT SHOWN
STRAINER 46641−010 24150 1
SUCTION STICKER 6588AG −−− 1
DISCHARGE STICKER 6588BJ −−− 1
WARNING DECAL 2613FE −−− 1
G-R DECAL GR−06 −−− 1
LUBE DECAL 11421A −−− 1
OIL LEVEL DECAL 38816−123 −−− 1
ROTATION DECAL 2613M −−− 1
INDICATES PARTS RECOMMENDED FOR STOCK

THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
Copyright by the Gorman-Rupp Company
6 of 12
Page 64.6 C18
December 21, 2004
PA6C60−4045T−ESP
S/N 1302082N Up
PUMP ISSUE 1
ACDEU

THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
Copyright by the Gorman-Rupp Company 7 of 12
Page 64.6 C18
December 21, 2004
ACDEU PA6C 60−4045T−ESP
S/N 1302082N Up
PUMP ISSUE 1
PARTS LIST
66F60−(4045T) Pump End Assembly
ITEM
NO. PART NAME PART NUMBER
MAT’L
CODE QTY
1 VOLUTE 38218−303 11010 1
2 REPAIR ROTATING ASSY 44163−431 −−− 1
3 HEX HD CAP SCREW B0604−1/2 17000 4
4 LOCK WASHER J06 17090 4
5 WEAR PLATE 38691−864 11010 1
6O-RING 25152−453 −−− 1
7 PIPE PLUG P08 15079 1
8 VENTED PLUG 4823A 15079 1
9 HEX HD CAP SCREW B0806 15991 4
10 LOCK WASHER J08 15991 4
11 ADJUSTING SHIM 13131−3 17040 12
12 PIPE PLUG P08 15079 1
13 PIPE PLUG P08 15079 1
14 O-RING S1676 −−− 1
15 BACK COVER PLATE ASSY 42111−812 11010 1
16 LOCKING COLLAR 38115−551 15001 4
17 ADJUSTING SCREWS 31871−070 1500X 4
18 STUD C1213 15991 4
19 HAND KNOB 38115−901 10000 4
20 PIPE PLUG P08 15079 1
21 PIPE PLUG P08 15079 1
22 HEX HD CAP SCREW B1213 15991 8
23 LOCK WASHER J12 15991 8
24 HEX NUT D12 15991 8
25 BLIND FLANGE ASSY 42111−349 −−− 1
26 GASKET 25113−036 −−− 1
27 SIGHT GAUGE S1471 −−− 1
28 COVERPLATE 33541−045 15080 1
29 GASKET 38687−053 19060 1
30 HEX HEAD CAP SCREW B0805 15991 4
31 LOCK WASHER J08 15991 4
32 SHIP PLUG 11495B 15079 1
33 O-RING 25152−381 −−− 1
34 O-RING S1676 −−− 1
35 HEX HD CAP SCREW B0804−1/2 15991 4
36 LOCK WASHER J08 15991 4
NOT SHOWN:
DRIVE ASSY 44162−159 −−− 1
PIPE PLUG P12 15079 1
OIL LEVEL DECAL 38816−123 −−− 1
NAME PLATE 38818−127 13000 1
DRIVE SCREW BM#04−03 17000 4
INDICATES PARTS RECOMMENDED FOR STOCK

THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
Copyright by the Gorman-Rupp Company
8 of 12
Page 64.6 C18
December 21, 2004
PA6C60−4045T−ESP
S/N 1302082N Up
PUMP ISSUE 1
ACDEU

THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
Copyright by the Gorman-Rupp Company 9 of 12
Page 64.6 C18
December 21, 2004
ACDEU PA6C60−4045T−ESP
S/N 1302082N Up
PUMP ISSUE 1

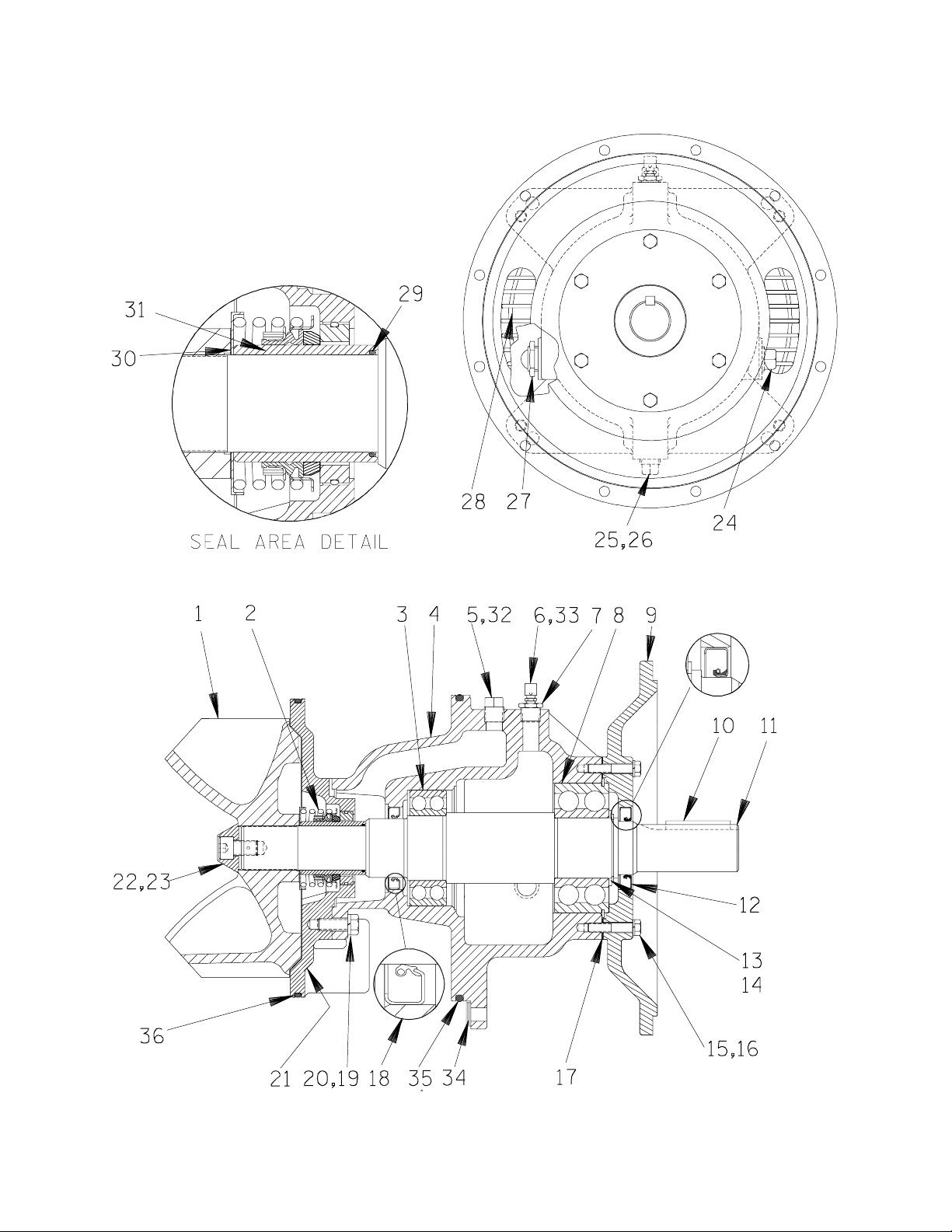

PARTS LIST
44163−431 Repair Rotating Assembly
ITEM
NO. PART NAME PART NUMBER
MAT’L
CODE QTY
1 IMPELLER 38615−095 11010 1
2SEAL ASSY 46512−149 −−− 1
3INBOARD BALL BEARING 23422−019 −−− 1
4 BEARING HOUSING 38251−513 10000 1
5 VENTED PLUG 4823A 15079 1
6 AIR VENT S1530 −−− 1
7 RED PIPE BUSHING AP0802 15079 1
8OUTBOARD BALL BRG 23422−414 −−− 1
9 DRIVE FLANGE 38545−004 10000 1
10 IMP SHAFT KEY 24133−603 −−− REF
11 IMPELLER SHAFT 38515−592 1706H 1
12 OIL SEAL S1907 −−− 1
13 SNAP RING S720 −−− 1
14 THRUST WASHER 31134−115 15000 1
15 HEX HD CAPSCREW B0608 15991 6
16 LOCKWASHER J06 15991 6
17 BRG HOUSING GSKT 38683−474 18000 1
18 OIL SEAL 25227−771 −−− 1
19 HEX HD CAPSCREW B0805−1/2 15991 4
20 LOCKWASHER J08 15991 4
21 SEAL PLATE 38272−256 10000 1
22 SOCKET HD CAPSCREW DM1004S 17090 1
23 IMPELLER WASHER 31514−015 17000 1
24 PIPE PLUG P12 15079 1
25 PIPE PLUG P08 15079 1
26 BRG CVTY DRAIN PLUG P08 15079 1
27 SIGHT GAUGE S1471 −−− 1
28 INTERMEDIATE GUARD 42381−509 24152 2
29 SHAFT SLEEVE O-RING 25154−131 −−− REF
30 IMPELLER ADJ SHIM SET 48261−057 −−− REF
31 SHAFT SLEEVE 31163−019 1706H 1
32 SHIP PLUG 11495B 15079 1
33 SHIP PLUG 11495B 15079 1
34 BEARING ADJ SHIM SET 13131−3 17040 12
35 BRG HOUSING O-RING S1676 −−− 1
36 SEAL PLATE O-RING 25152−381 −−− 1
NOT SHOWN:
INSTRUCTION TAG 6588U −−− 1
INDICATES PARTS RECOMMENDED FOR STOCK

THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
Copyright by the Gorman-Rupp Company
10 of 12
Page 64.6 C18
December 21, 2004
PA6C60−4045T−ESP
S/N 1302082N Up
PUMP ISSUE 1
ACDEU
PARTS LIST
48275−005 Priming Chamber Kit
ITEM
NO. PART NAME PART NUMBER
MAT’L
CODE QTY
1 PRIMING CHAMBER ASSY 46112−709 −−− 1
2 PIPE BUSHING AP1608 11999 1
3 STREET ELBOW RS08 11999 1
4 BALL VALVE 26631−052 −−− 1
5 STUD C0809 15991 4
6 HEX NUT D08 15991 4
7 LOCK WASHER J08 15991 4
8 GASKET 38687−053 19060 1
9 BAFFLE 31113−011 17000 1
INDICATES PARTS RECOMMENDED FOR STOCK

THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
Copyright by the Gorman-Rupp Company 11 of 12
Page 64.6 C18
December 21, 2004
ACDEU PA6C60−4045T−ESP
S/N 1302082N Up
PUMP ISSUE 1
PARTS LIST
46112−709 Priming Chamber Assembly
ITEM
NO. PART NAME PART NUMBER
MAT’L
CODE QTY
1 PRIMING VALVE 26664−007 −−− 1
2 −ORIFICE BUTTON 26688−021 −−− 1
3 HEX HD CAPSCREW B0806 15991 8
4 LOCKWASHER J08 15991 8
5 STRAINER ASSY 46641−222 17000 1
6 PRIMING CHAMBER 38343−020 10000 1
7PRIMING VALVE GASKET 38683−657 19060 1
INDICATES PARTS RECOMMENDED FOR STOCK

THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
Copyright by the Gorman-Rupp Company
12 of 12
Page 64.6 C18
December 21, 2004
PA6C60−4045T−ESP
S/N 1302082N Up
PUMP ISSUE 1
ACDEU

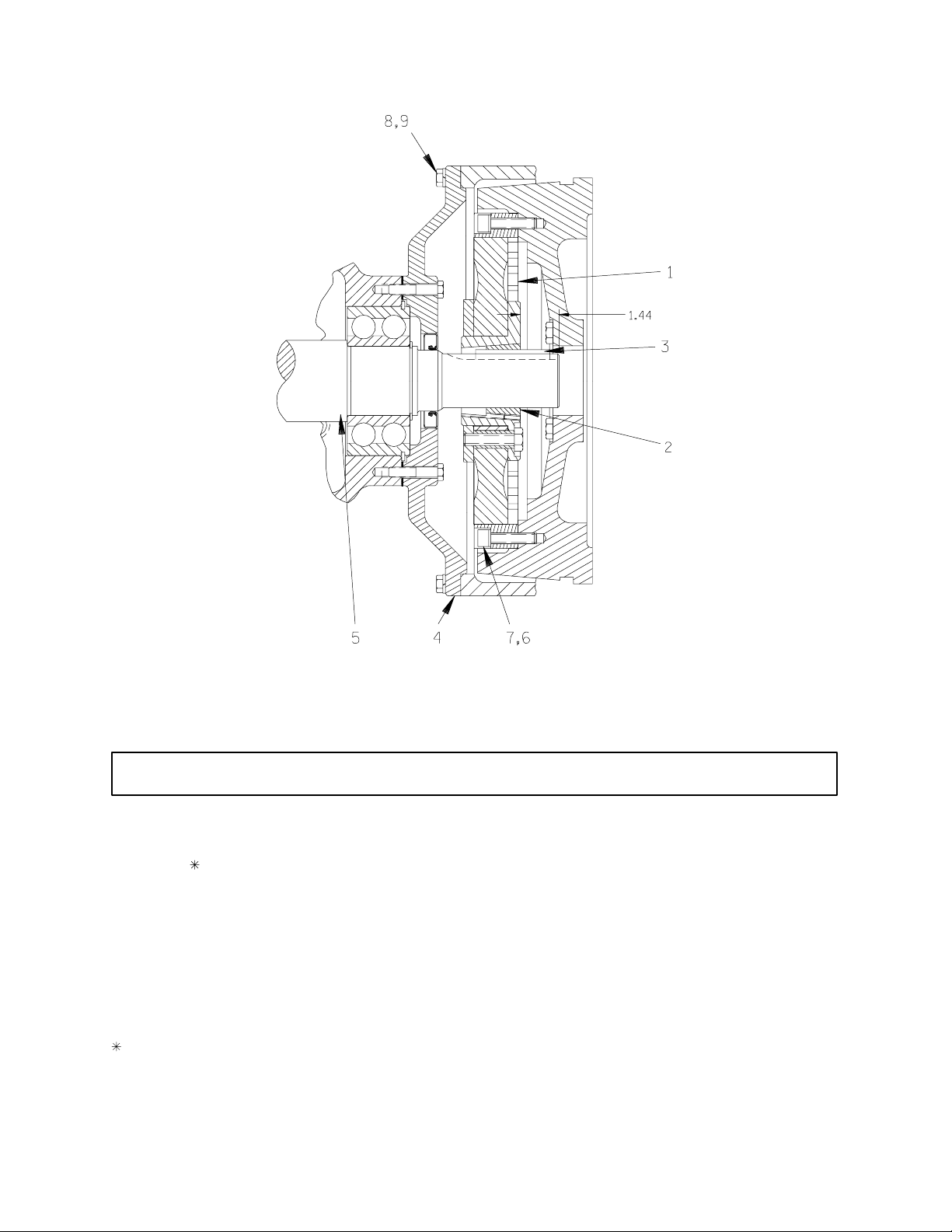

PARTS LIST
44162−159 Drive Assembly
ITEM
NO. PART NAME PART NUMBER
MAT’L
CODE QTY
1 COUPLING ASSY 44165−016 −−− 1
2 BUSHING 24131−498 −−− 1
3 −KEY 24133−603 −−− 1
4 DRIVE FLANGE 38545−004 10000 1
5 IMPELLER SHAFT 38515−586 1706H REF
6 LOCKWASHER 21171−536 −−− 8
7 SOCKET HD CAPSCREW BD0606 1/2 15991 8
8 HEX HD CAPSCREW B0605 15991 12
9 LOCKWASHER J06 15991 12
INDICATES PARTS RECOMMENDED FOR STOCK

For U.S. and International Warranty Information,
Please Visit www.grpumps.com/warranty
or call:
U.S.: 419−755−1280
International: +1−419−755−1352
For Canadian Warranty Information,
Please Visit www.grcanada.com/warranty
or call:
519−631−2870
THE GORMAN-RUPP COMPANY DMANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED DST. THOMAS, ONTARIO, CANADA
