Note:
Due to the installation of Westin Brush Guard, the
front park assist must be disabled upon initial
startup of vehicle. Audible alarm will sound once
placed in drive “D”. To disable, press reset button
located above radio. Alarm will cease until vehicle
is shut off. This process must be repeated each time
vehicle is started.
FRONT PARK Assist

M C SWEENEY
D E X I G N X
McSweeney Dexignx Armorcraft
Owner’s Manual
2012 Ford Expedition
INDEX:
Section 1: Wall Partitions
Section 2: Seating and Controls
Section 3: Wall Panel Tops
Section 4: Climate Control
Section 5: Center Console
Section 6: Mechanical Lift
Section 7: Armored Roof
Section 8: Sun Roof
Thank you for your purchase of McSweeney
Dexignx Armorcraft 2012 Ford Expedition.
This manual is intended for learning the basic func-
tions and features specifically designed for this
vehicle. Two special maintenance manuals have
been constructed for both the mechanical lift and
sliding armored roof present. Should an issue
arise, please refer to those specific manuals. We
hope you enjoy your vehicle and wish you the safest
of travels.

M C SWEENEY
D E X I G N X
McSweeney Dexignx Armorcraft
Owner’s Manual
2012 Ford Expedition

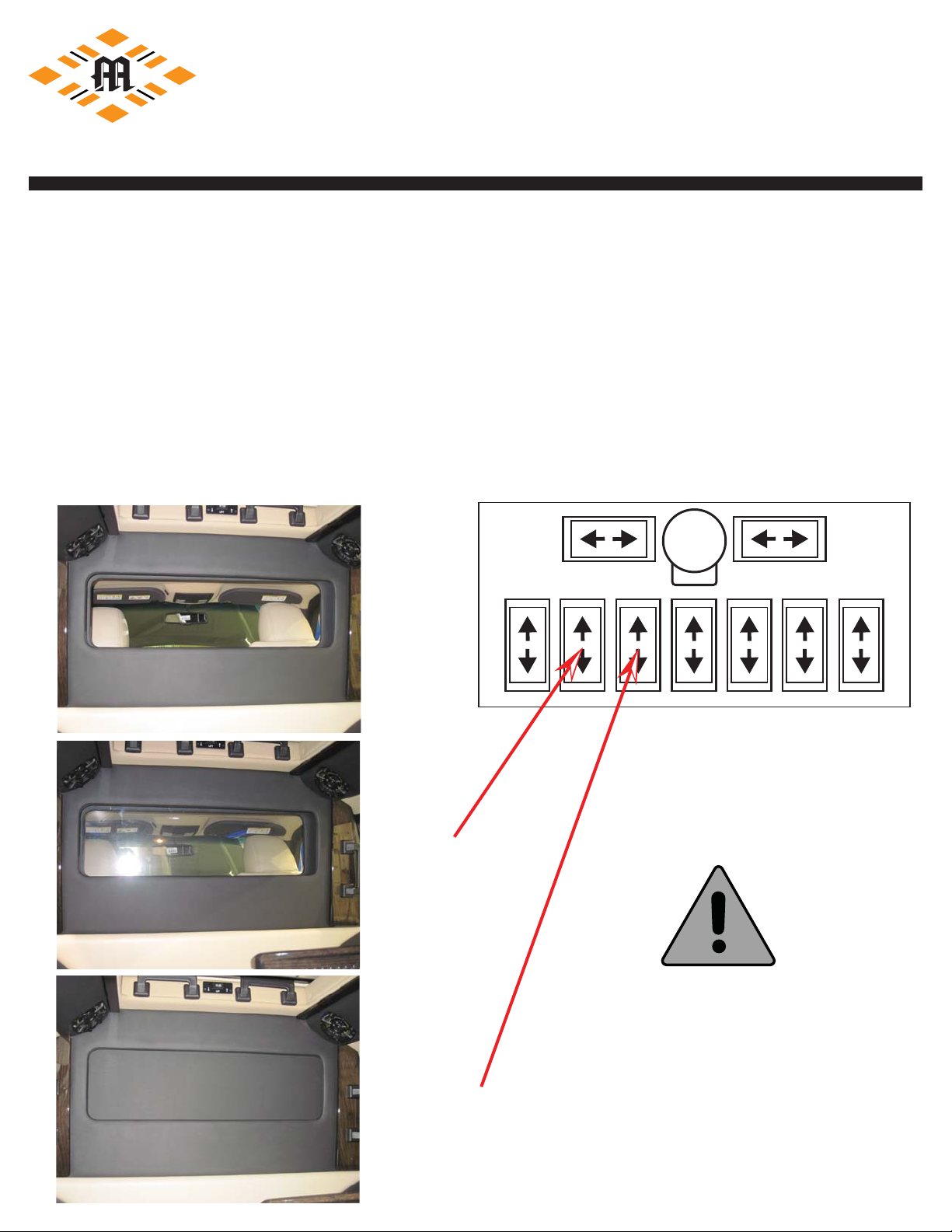

SECTION 1 : WALL PARTITIONS
Your vehicle is equipped with 2 wall partitions that divide the
drivers compartment for privacy.
There are two switches located on the main center console to
operate partitions up or down.
Partition 1 : Clear
Partition 2: Opaque
To open press down on switch labeled for appropriate partition.
Open
Clear
Opaque
Please make sure all
objects are free of
pass through so as
not to damage parti-
tion or internal me-
chanicals.

M C SWEENEY
D E X I G N X
McSweeney Dexignx Armorcraft
Owner’s Manual
2012 Ford Expedition

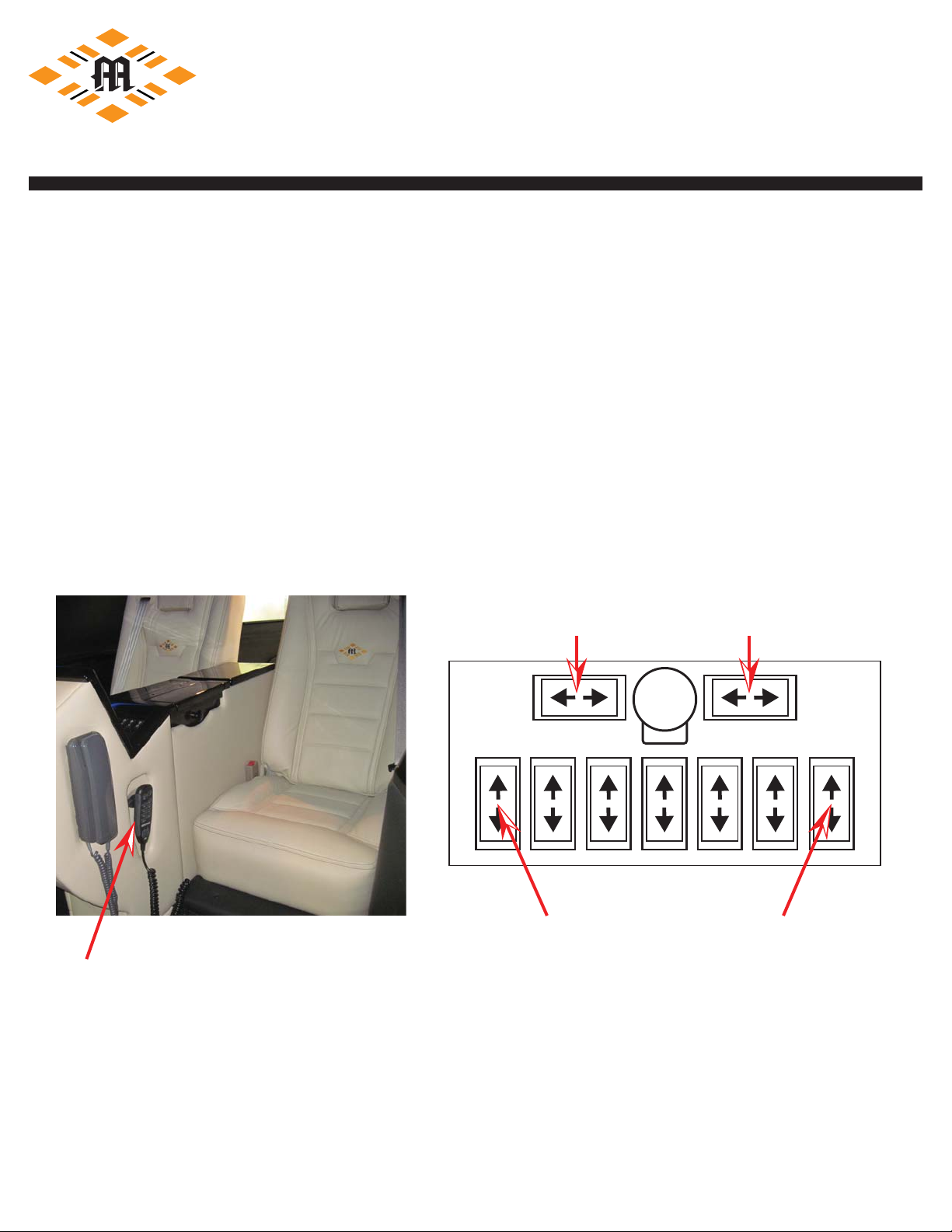

SECTION 2 : Seating and Controls
Your vehicles rear cabin seats are two way adjustable seats
which includes recline and lumbar support. The switches for
these features are located on the main center console switch
panel.
To move seat back forward, press the up arrow. To move back
press the down arrow.
For lumbar support, press left arrow to move support out, press
right arrow to move support in.
Your seats also include built in massage controls. Controllers
for massage functions of seat are located to either side of the
main center console in holsters. To remove controller, simply
lift controller up and out of carriage. Replace controller
when not in use to prevent damage to control unit.
Massage Controller
Driver Side
Recline
Driver Side
Lumbar
Passenger Side
Lumbar
Passenger Side
Recline

M C SWEENEY
D E X I G N X
McSweeney Dexignx Armorcraft
Owner’s Manual
2012 Ford Expedition
SECTION 3 : WALL PANEL TOPS

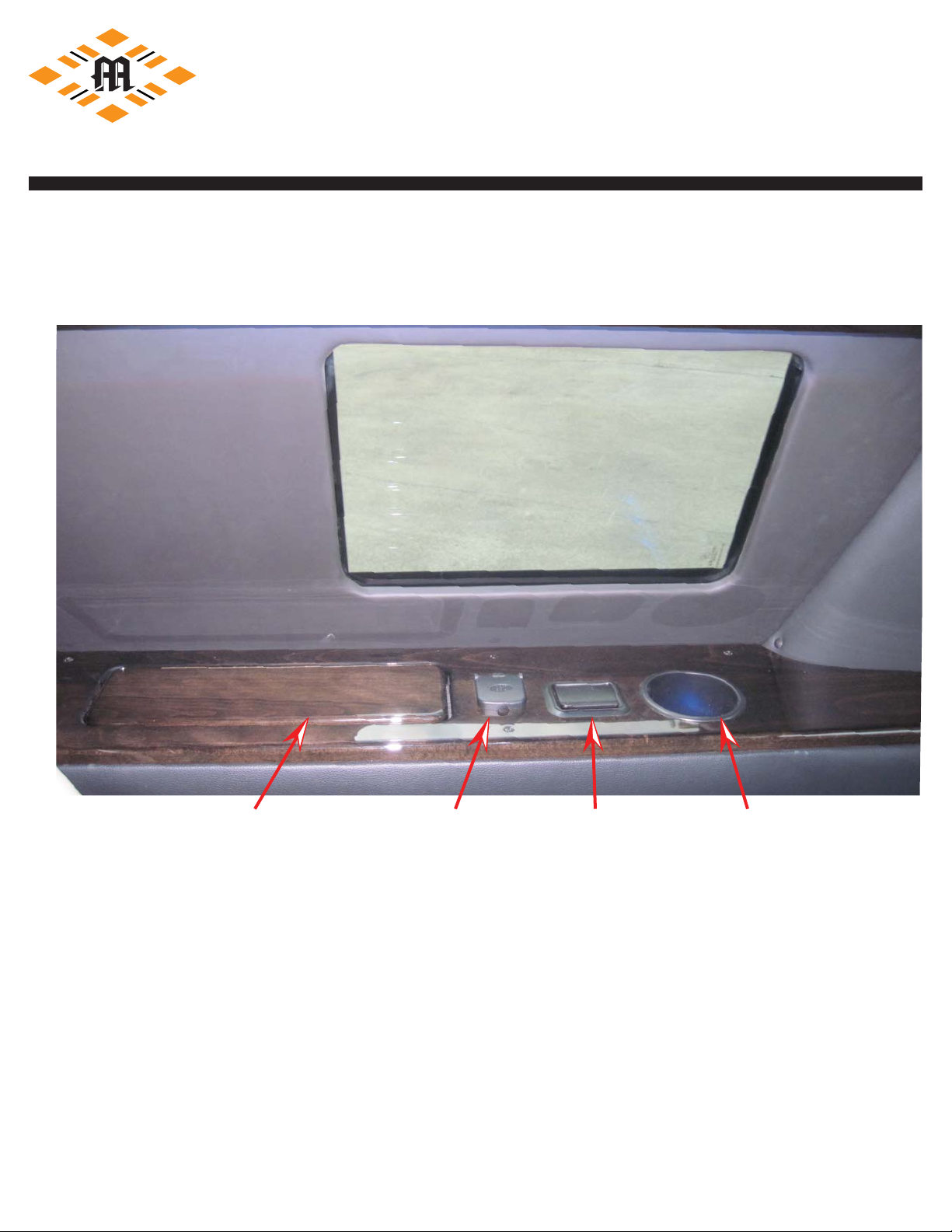

The sides of the rear cabin wall panel tops are populated with
several comfort and storage features.
Lighted Cup
Holder
Ash Tray12v
Cigarette
Lighter
Personal
Storage
Compartment
To open personal storage compartment, push door down until
click is heard or felt and allow door to push up to reveal grab
pocket. Lift door to gain access. Do not force door past natu-
ral stop as damage may occur. To close, let lid rest in closed
position. Lightly press door top until click is heard or felt and
grab pocket is no longer available.

M C SWEENEY
D E X I G N X
McSweeney Dexignx Armorcraft
Owner’s Manual
2012 Ford Expedition
SECTION 4 : Climate Control

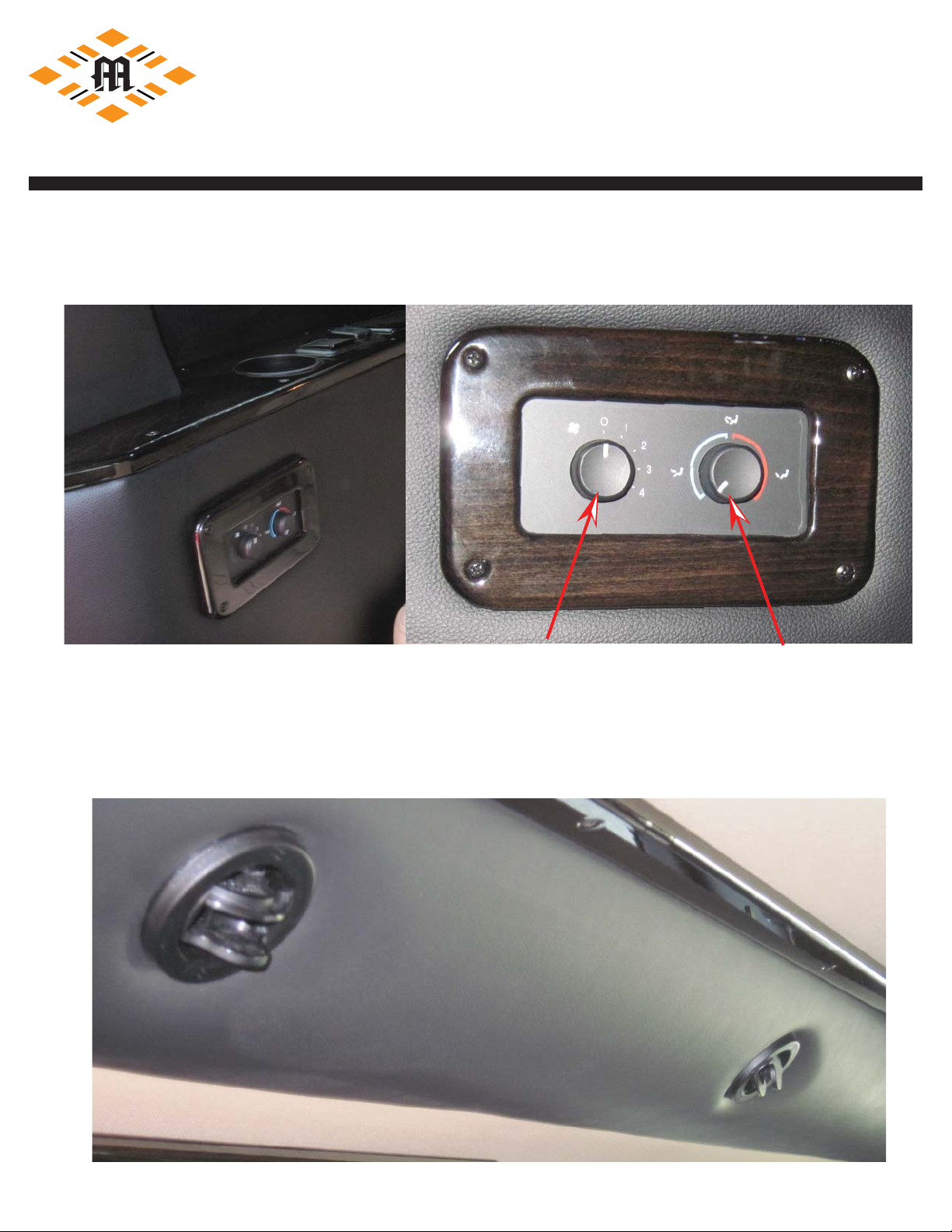

Climate control for the rear cabin is located on the passenger
side of the vehicle on the wall board.
Directional vents are located over head on both driver and pas-
senger sides and can be positioned and adjusted to your specific
comfort needs.
Fan Speed Temperature

M C SWEENEY
D E X I G N X
McSweeney Dexignx Armorcraft
Owner’s Manual
2012 Ford Expedition
SECTION 5 : CENTER CONSOLE
The center console is located in between both seats in the rear
cabin. The center console houses
Alpine Head Unit
2 Gull-wing doors and fold out desks

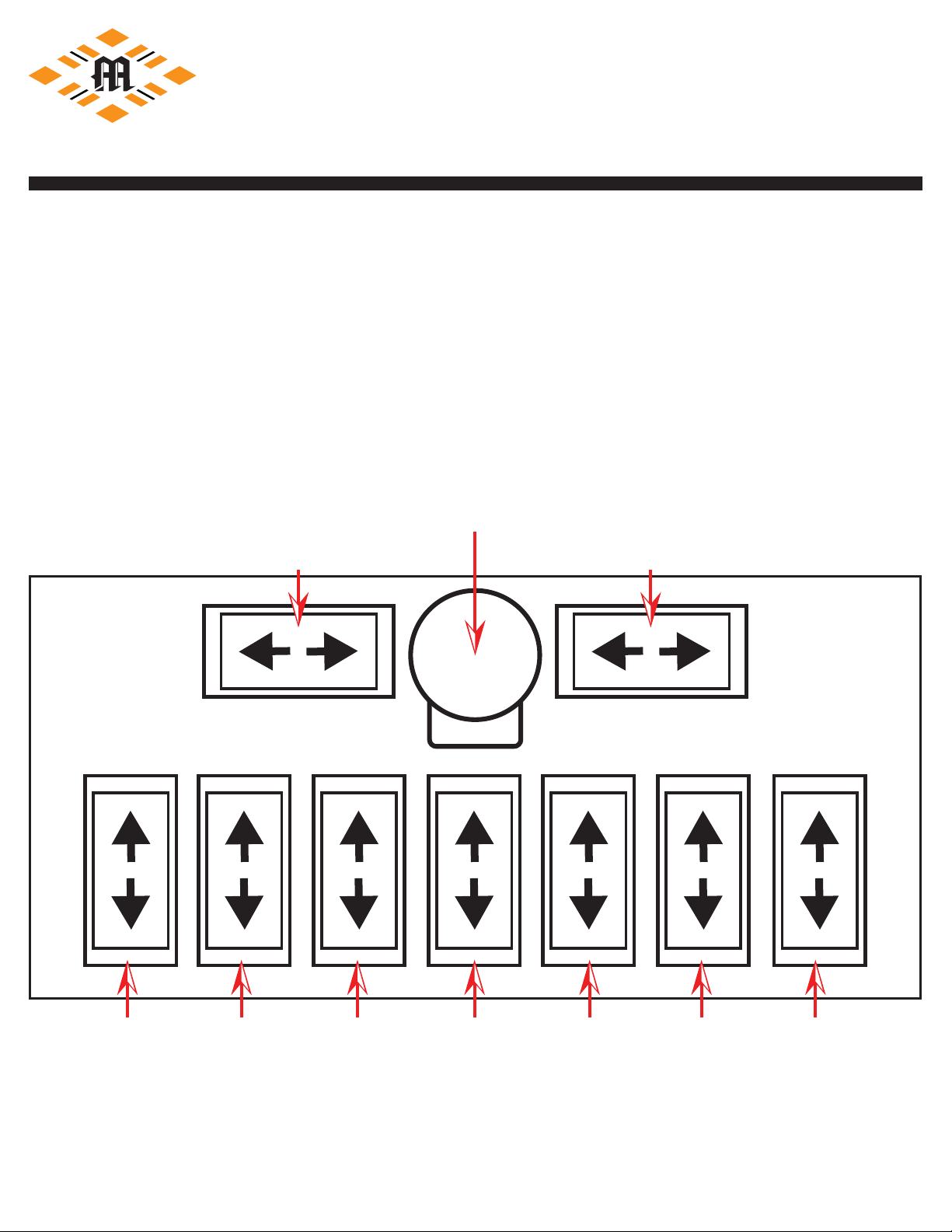

Legend for Switches
Main Control switch panel
USB connection to Head Unit
Blu Tooth Connection for phone and Mic
Control for front and rear camera
Chiller cooler for drinks
Intercom phone
Massage controls for seats
Massage Controller
Main Switch Panel
Intercom Head Unit
Legend
USB
Camera Controller
Gull Wing Door
Folding Table
Chiller Cooler
Fuse Panel

M C SWEENEY
D E X I G N X
McSweeney Dexignx Armorcraft
Owner’s Manual
2012 Ford Expedition
SECTION 5 : CENTER CONSOLE
The main switch panel controls the majority of functions of the
rear cabin area. These switches are accompanied by an illuminat-
ed legend plate that also contains the USB connection for
phone charging or to play MP3 music through. Note that non
armored versions of vehicle will have one less switch.
Driver
Lumbar
Passenger
Lumbar
Camera
Control
Driver
Recline
Passenger
Recline
Clear
Partition
Opaque
Partition
Sun
Roof
Armor
Roof*
* Not present in UN-Armored Vehicles
Lift

M C SWEENEY
D E X I G N X
McSweeney Dexignx Armorcraft
Owner’s Manual
2012 Ford Expedition
SECTION 5 : CENTER CONSOLE

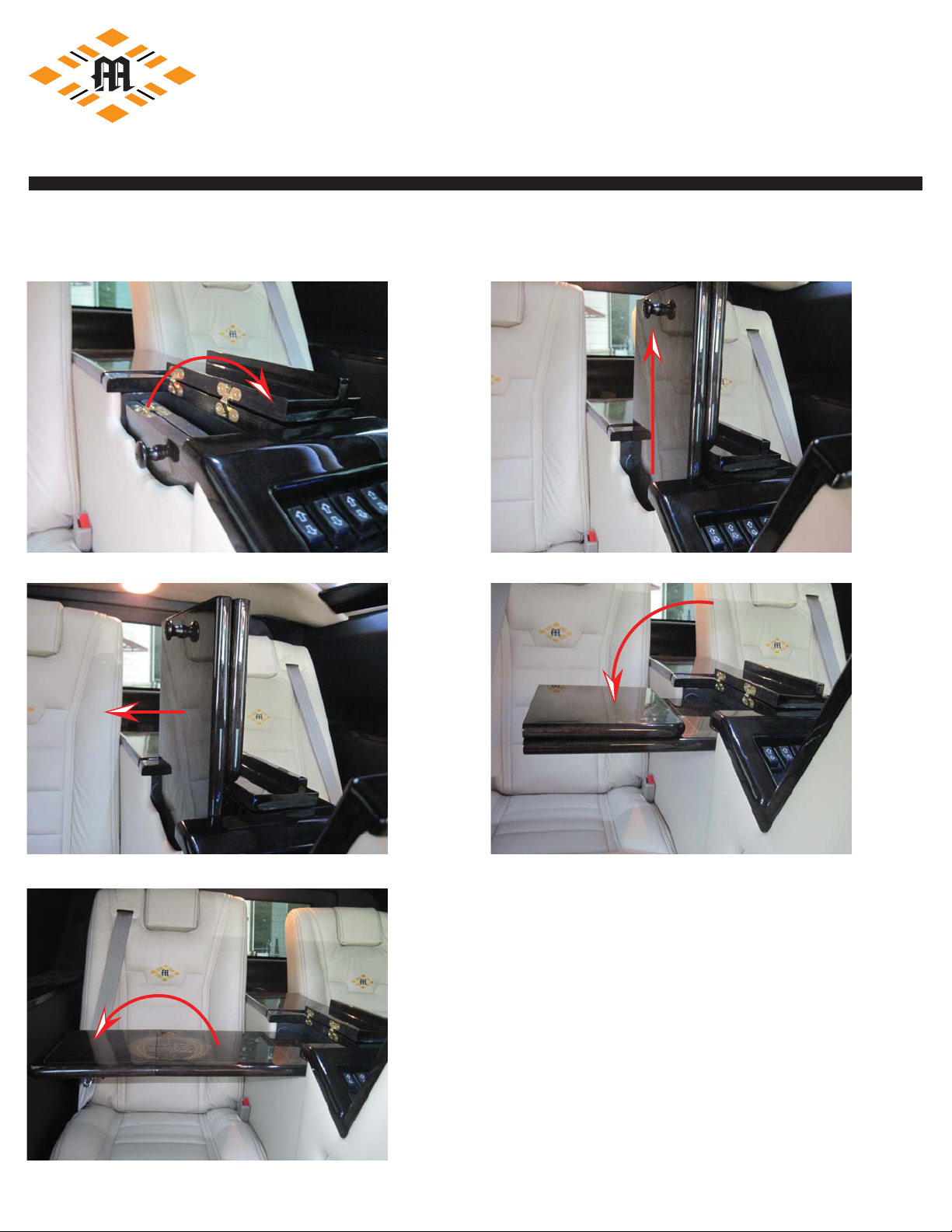

To use folding doors, follow steps below. Please remember to
never force components in any direction as damage may result.
Open gull wing door
Move desk to outside
Flip Remaining section over
rotate desk over
To close, repeat process
in reverse.
Use handle to slide assembly up

M C SWEENEY
D E X I G N X
McSweeney Dexignx Armorcraft
Owner’s Manual
2012 Ford Expedition
SECTION 5 : CENTER CONSOLE

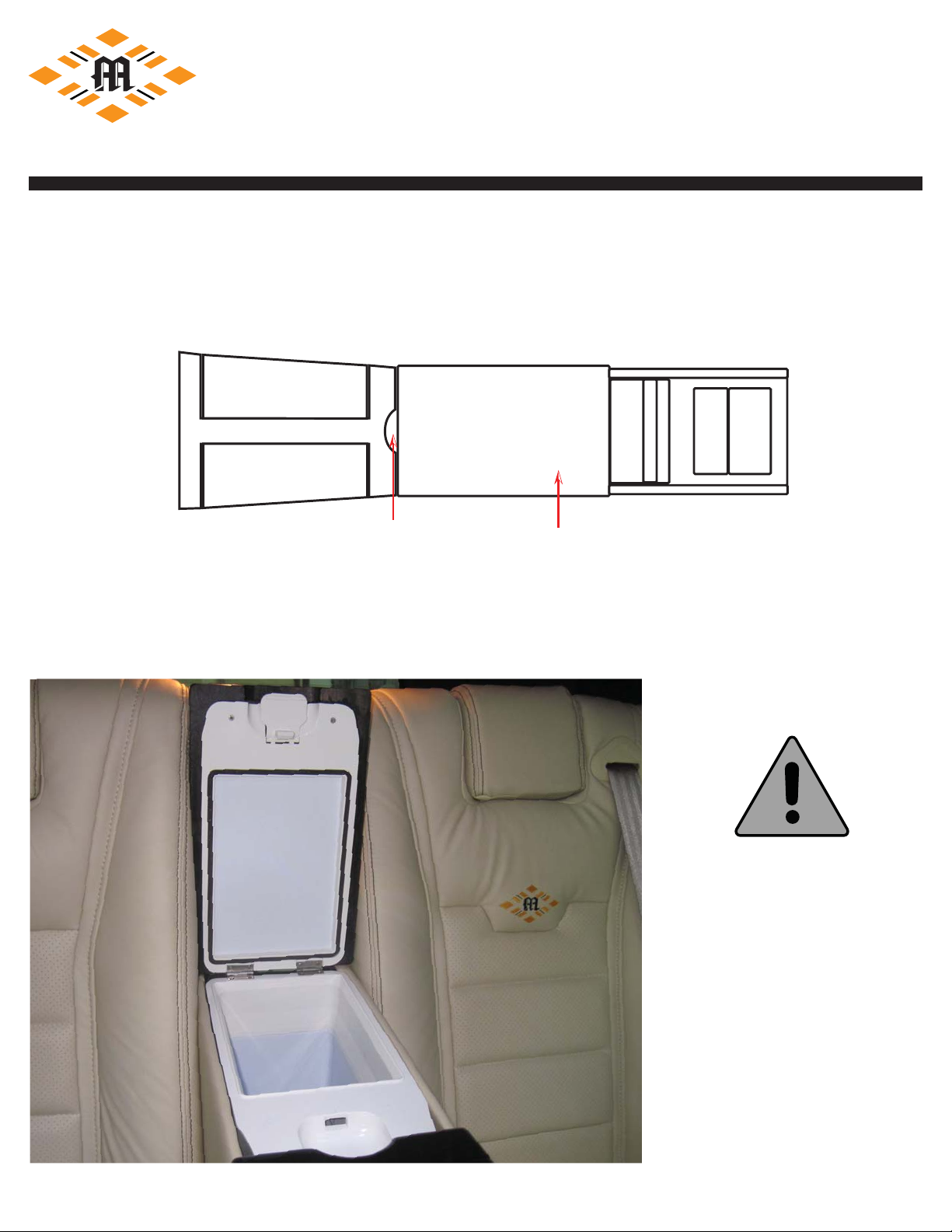

The chiller cooler located in the console is located directly
behind the gull wing doors. There is an internal latch located
towards the front of the chiller cooler door which must be de-
pressed in order to open.
Latch
Location
Chiller Cooler
Door
Please make sure
not to force open
chiller cooler
door past its natu-
ral open position
as damage will
occur to the rear
of the console.

M C SWEENEY
D E X I G N X
McSweeney Dexignx Armorcraft
Owner’s Manual
2012 Ford Expedition
SECTION 6 : MECHANICAL LIFT
Located directly in front of the main center console is the me-
chanical lift platform. The mechanical lift should remain in the
closed position at all times unless roof access is desired.
Please make sure any and all objects are clear of the lift while
raising or lowering. Please return lift to closed position when
not in use.
IF ROOF ACCESS IS DESIRED, OPEN ROOF
SYSTEM FIRST
There are two switches for the mechanical lift. One located on
the main center console. The other in the pass through to the
roof. To operate, stand on lift and press the switch in desired
direction. Press and hold switch until lift comes to a complete
stop.
PLEASE USE GRAB HANDLES ENTERING THROUGH PASS THROUGH.
LIFT
Exercise Extreme
caution while using
mechanical lift.
While lift has pro-
tective curtains,
serious injury
from pinch points
can occur. Keep
children away.

M C SWEENEY
D E X I G N X
McSweeney Dexignx Armorcraft
Owner’s Manual
2012 Ford Expedition

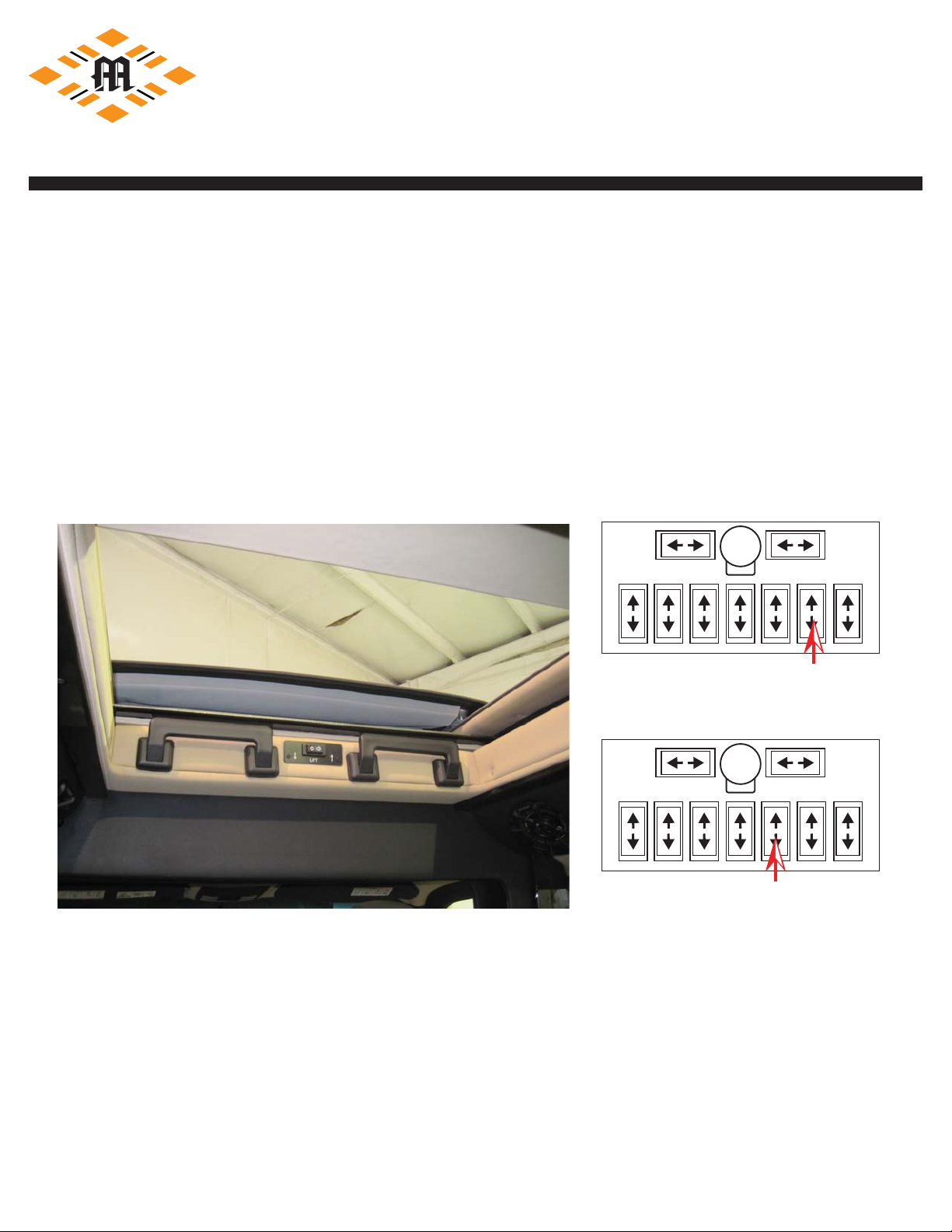

SECTION 7 : Armored Roof System
Your vehicle is equipped with two roof systems for roof access.
To operate open armored roof first by activating the switch lo-
cated on the main center console switch panel labeled ARMOR.
Please allow 20 or more seconds for full retraction. You will
here the electric motor noise (Hum) change pitch. Please make
sure any objects or occupants are free and clear of pass
through.
Should the switch be held longer for 20 seconds or something
block closing of armored door, the system will engage an emer-
gency shut off. Once the emergency shut off is engaged, the sys-
tems will reset itself after some time.
After armored roof is retracted, activate switch labeled sun
roof. Roof will automatically stop once fully opened or closed.
It is recommended to follow the opening procedure order for
both opening and closing the roof system.
Opening Procedure order:
To Open : Retract Armor Roof, Open sunroof
To Close: Close Sun Roof, Close Armor Roof.
This ensures that either weather or armor protection is not com-
promised during use.
Armor
Sun Roof

M C SWEENEY
D E X I G N X
McSweeney Dexignx Armorcraft
Owner’s Manual
2012 Ford Expedition
SECTION 8 : REAR DOOR

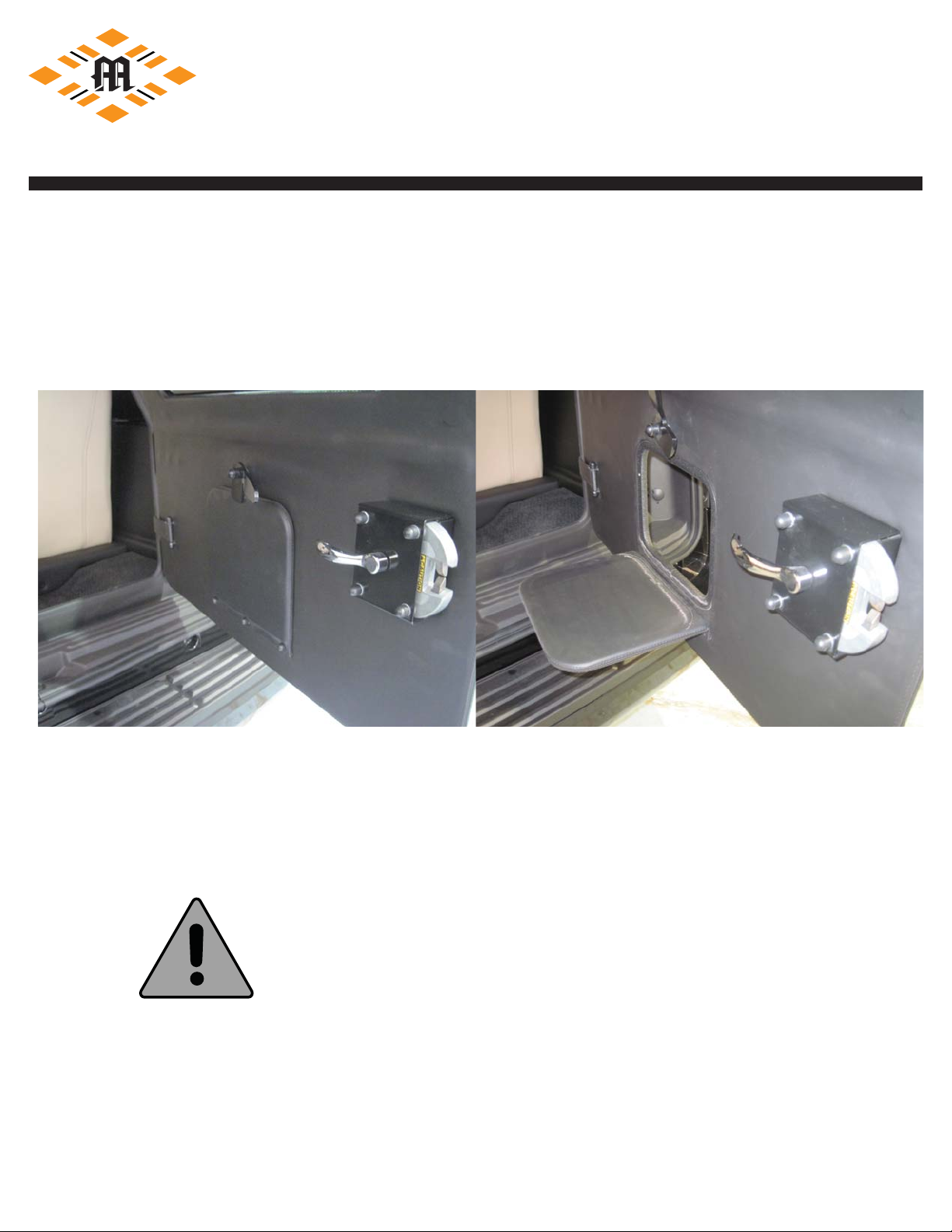

For armor protection, your rear door is comprised of two rear
doors. The factory rear hatch functions as intended and covers
the rear armor door. The rear armor door latches via a door
handle located on the left hand side with locking option. The
armor door also contains a small pass through door for docu-
ments or other items when needed.
Rear armor door does not contain
strut dampener. Please keep hands
free of latch mechanism. Door is ex-
tremely heavy. Please be sure to keep
objects free of door path way.
