Rear view safety RVS-ML700 User manual

Reverse With Condence ™ 1
Backup Camera System With Mirrorlink
RVS-ML700
Instruction Manual
Before operating the monitor, please read this manual carefully and keep it for future reference

Rear View Safety
2
Introduction.............................. 03
SafetyInformation.............................. 04-06
BeforeYouBegin ........................ . ......07
Precautions.......................... . . . . 08-09
Sepecification...............................10-11
Settings.................................12-15
Mirroring.................................16-25
DLNA..................................26
Upgrade........................... . . . . 27
Camera........................... . . . 28-29
FactorySettings............................ . . . 30
Troubleshooting.......................... . . 31
Warranty&Disclaimer......................... . . 32-33
TABLE OF CONTENTS

Reverse With Condence ™ 3
NOTE! Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a RearView Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The monitor is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle.The monitor should not be used as a substitute for the
standard rear view mirror or for any other mirror that exists in your
vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with aTV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION

Rear View Safety
4
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
• The Rear View Camera System is
designed to help the driver safe-
ly detect people and/or objects
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
• Never back up while looking at the
monitor alone. You should always
check behind and around the vehi-
cle when backing up, in the same
way as you would if the vehicle did
not have the Rear View Camera
System.Ifyoubackupwhilelooking
only at the monitor, you may cause
damage or injury. Always back up
slowly.
•The Rear View Camera System is
not intended for use during exten-
sive back-up maneuvers or backing
into cross trac or pedestrian walk-
ways.
•Please, always remember, the area
displayed by the Rear View Camera
Systemislimited.Itdoesnot display
the entire panorama that is behind
you.
USAGE:
SAFETY INFORMATION

Reverse With Condence ™ 5
•Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
• Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
• Take special care when
cleaning the monitor.
•Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may touch
a metal case, cover the cable with
friction tape. A short circuit
or disconnected wire may cause a
re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
• The Rear View System should only
be used when the vehicle is in
reverse.
• Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
• Do not install the monitor
where it may obstruct driver's
view or obstruct an air bag
device.
• Dropping the unit may cause me-
chanical failure.
INSTALLATION:
SAFETY INFORMATION

Rear View Safety
6
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
SAFETY INFORMATION

Reverse With Condence ™ 7
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot or moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor location.
Step 2: Install all cables in vehicle.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system.
BEFORE YOU BEGIN

Rear View Safety
8
1. Do not expose the monitor to excessive heat/cold. The storage tem-
perature of this device is -30°C~+80°C, and the operating tempera-
ture is -20°C~+70°C. The battery operating temperature is 0°C-70°C.
Humidity is Rh 90%.
2. Never use this monitor near water or in damp locations.
3. Never use this monitor in environments with excessive moisture,
dust or smoke.
4. Avoid dropping or hitting monitor.
5. Avoid using this monitor in enclosed spaces, areas with excessive
vibration or areas subject to severe impacts.
6. Never puncture, scratch or use abrasive cleaning materials on this
monitor.
7. Do not place cables where they may be pinched or stepped on.
8. Leave at least a 2”space between the monitor and walls, cabinets or
other objects to allow adequate air circulation.
9. The monitor is not designed to be waterproof.
PRECAUTIONS

Reverse With Condence ™ 9
Operating Precautions
1. The monitor can be powered by a 12/24 volt battery, or the vehicle's
electrical system.
2. Make sure all cables are connected properly. Improper cable con-
nections may damage the monitor. Remove the power cable connections
when not using the device.
3. The back-up battery can be recharged when the power is on.
4. When battery is fully charged, recharging will stop automatically.
5. If batteries are not used for a while, they may take longer to charge.
1. This monitor is high voltage. Only professionals should open the mon-
itor's case.
2. Do not watch the video while driving unless you are monitoring the
rear view camera display.
Special Note
Occasionally, a few highlights or dark spots may appear on the LCD screen. This
doesn’t necessarily indicate any monitor defects. Never try to repair this device
yourself. If any problems occur, immediately turn the display o and notify our
company or an authorized dealer. Any disassembly/modication may lead to
damage and will also void the warranty.
PRECAUTIONS
Warning!

Rear View Safety
10
1. Size: 7" Digital Color Monitor
2. Screen Ratio: 16:9
3. Resolution: 1024 X RGB X 600
4. Two AV inputs
5. Built-in Miracast
6.Built-in Speaker (Can Be Muted)
7. Auto Reverse Trigger WireW/Adjustable Delay (0-10 Sec)
8. USB 2.0 Input
9.System: NTSC/PAL Auto Switch
10.OSD Menu/Remote Control
11. Automatic Shut O After 15 Minutes Of Inactivity
12. Power Supply: DC12V
13. U-Bracket
14. Removable Sunshade
SPECIFICATIONS
Accessories

Reverse With Condence ™ 11
1. Volume Decrease/Setting Quantity Decrease/LEFT
2. Menu 3. Volume Increase/Setting Quantity Increase/RIGHT
4. Power 5. CH 1/UP 6. CH 2/DOWN
7. LINK/Conrm Menu 8. Remote Control Sensor 9. Bracket Knob
10. Reset Button 11. Speaker
SPECIFICATIONS
Monitor
Remote

Rear View Safety
12
Connection
Menu
SETTINGS
Display options for each mode (AV1/AV2/LINK) can be individually set.
After turning the system on, press "MENU" to enter menu and use "UP/
DOWN" to toggle menu options. Press “LEFT/RIGHT” on the remote con-
trol/monitor or“LINK”on the monitor to enter into current submenu.Then
press “LEFT” and “RIGHT” to adjust setting. Press “MENU” to exit current
menu.
Volume: Press“LEFT”or "RIGHT" on the monitor/remote control to enter
volume menu and also to adjust volume. Press“MENU”to exit the volume
setting.
Auto Picture: Select option in the image menu, use “LEFT/RIGHT" to
toggle between ve options (Standard/Movie/Eco/Personal/Vivid). Press
“UP/DOWN”to select next menu option.

Reverse With Condence ™ 13
SETTINGS
Brightness: Select option in the image menu, use “LEFT/RIGHT" to ad-
just brightness, and press “MENU” to conrm desired choice. Press “UP/
DOWN”to select next menu option.
Contrast: Select option in the image menu, use“LEFT/RIGHT" to adjust
contrast, and press “MENU”to conrm desired choice. Press“UP/DOWN”
to select next menu option.
Color: Select option in the image menu, use“LEFT/RIGHT" to adjust col-
or, and press“MENU”to conrm desired choice. Press “UP/DOWN”to se-
lect next menu option.
Sharpness: Select option in the image menu, use “LEFT/RIGHT" to ad-
just sharpness, and press “MENU” to conrm desired choice. Press “UP/
DOWN”to select next menu option.
Color Temperature: Select option in the image menu, use “LEFT/
RIGHT" to toggle between four options (Normal/Warm/User/Cool). Press
“UP/DOWN”to select next menu option.
Panel Rotate: Select option in the image menu, use "LEFT/RIGHT" to
toggle between four options: Normal, RLUD (Rotate 180°), LR, UD. Press
“UP/DOWN”to select next menu option.
Sound Mode: Select option in the sound menu, use “LEFT/RIGHT" to
toggle between four options (Standard/Music/Speech/Personal). Press
“UP/DOWN”to select next menu option.
Balance: Select option in sound menu, use “LEFT/RIGHT" to adjust
channel balance and press "MENU" to conrm desired choice. Press“UP/
DOWN”to select next menu option.

Rear View Safety
14
SETTINGS
Virtual Surround: Select option in the sound menu, and use "LEFT/
RIGHT" to toggle virtual surround on/o. Press“UP/DOWN”to select next
menu option.
Auto Volume: Select option in the sound menu, and use "LEFT/RIGHT"
to toggle auto volume on/o. Press “UP/DOWN”to select next menu op-
tion.
Speaker Mute: Select option in the sound menu, and use "LEFT/RIGHT"
to toggle speaker mute on/o. Press“UP/DOWN”to select next menu op-
tion. (Note: this function will only mute the speaker, and cannot control
the audio output).
Menu Language: Select option in the settings menu, and use “LEFT/
RIGHT" to toggle between three languages (Simplied Chinese/English/
Japanese). Press“UP/DOWN”to select next menu option.
Picture Format: Select option in the settings menu, and use “LEFT/
RIGHT" to toggle between ve options (16:9/4:3/Zoom 1/Zoom 2/Just
Scan). Press“UP/DOWN”to select next menu option.
Menu Timeout: Select option in the settings menu, and use “LEFT/
RIGHT"totogglemenutimeoutlength.Therearesevenoptions:10Sec/20
Sec/30 Sec/40 Sec/50 Sec/60 Sec/close. Press “UP/DOWN” to select next
menu option.
Menu Transparency: Select option in the settings
menu, and use“LEFT/RIGHT" to toggle between four options (Close/Low/
Middle/High). Press“UP/DOWN”to select next menu option.

Reverse With Condence ™ 15
SETTINGS
Power On Status: Select option in settings menu, and use "LEFT/
RIGHT" to toggle between three options (Last Memory/Standby/Power
On). Press“UP/DOWN”to select next menu option.
Blue Screen: Select option in settings menu, and use "LEFT/RIGHT" to
turn blue screen on/o when there is no signal. Press“UP/DOWN”to se-
lect next menu option.
ACC Line: Select option in settings menu, and use "LEFT/RIGHT" to open
or close the ACC Line. Press“UP/DOWN”to select next menu option.
ACC Delay (Sec): Select option in settings menu, and use "LEFT/RIGHT"
to toggle between two options (Close/1-10 sec). Press“UP/DOWN”to se-
lect next menu option.
Reset Default: Select option in settings menu, and use "LEFT/RIGHT"
to reset current channel image setting to default. Press “UP/DOWN” to
enter select next menu option.
Input Source: Press "VIDEO SELECT" on the remote control to enter in-
put source menu, and use "LEFT/RIGHT" to choose desired display chan-
nel and press“MENU”to conrm.

Rear View Safety
16
MIRRORING
Miracast
1. Compatible with Airplay mirroring/latest iOS system. Compatible with
iPad/iPhone/Mac notebook.
2. Supports Miracast Screen Mirroring, supports Android 4.2 (and above)
Windows 8.1 system (computer should support HDCP).
3. Supports DLNA pushing.
4. Supports Tablet PC or notebook with WiDi function.
5. All windows devices can use Screen Share by installing AirParrot soft-
ware.
6. Supports online movies, online TV channels, online radio and online
webpage browsing.
7. Automatically detects variety of operating systems.

Reverse With Condence ™ 17
Miracast Basic Operating Introduction
MIRRORING
1. Airplay Mirroring (for iPhone, iPad, Mac notebook)
Find monitor’s hot spot (ex: DONGLE-ACA213068A04)
from“Settings’’of Apple devices and connect. Default
password: 12345678
(Tips: the hot spot name has been displayed on the top of the screen and the password
is behind the PIN)
1-2. Open the Airplay interface of Apple device, choose the monitor’s

Rear View Safety
18
MIRRORING
hot spot name, then start Airplay. The Apple device will share
screen with the monitor.

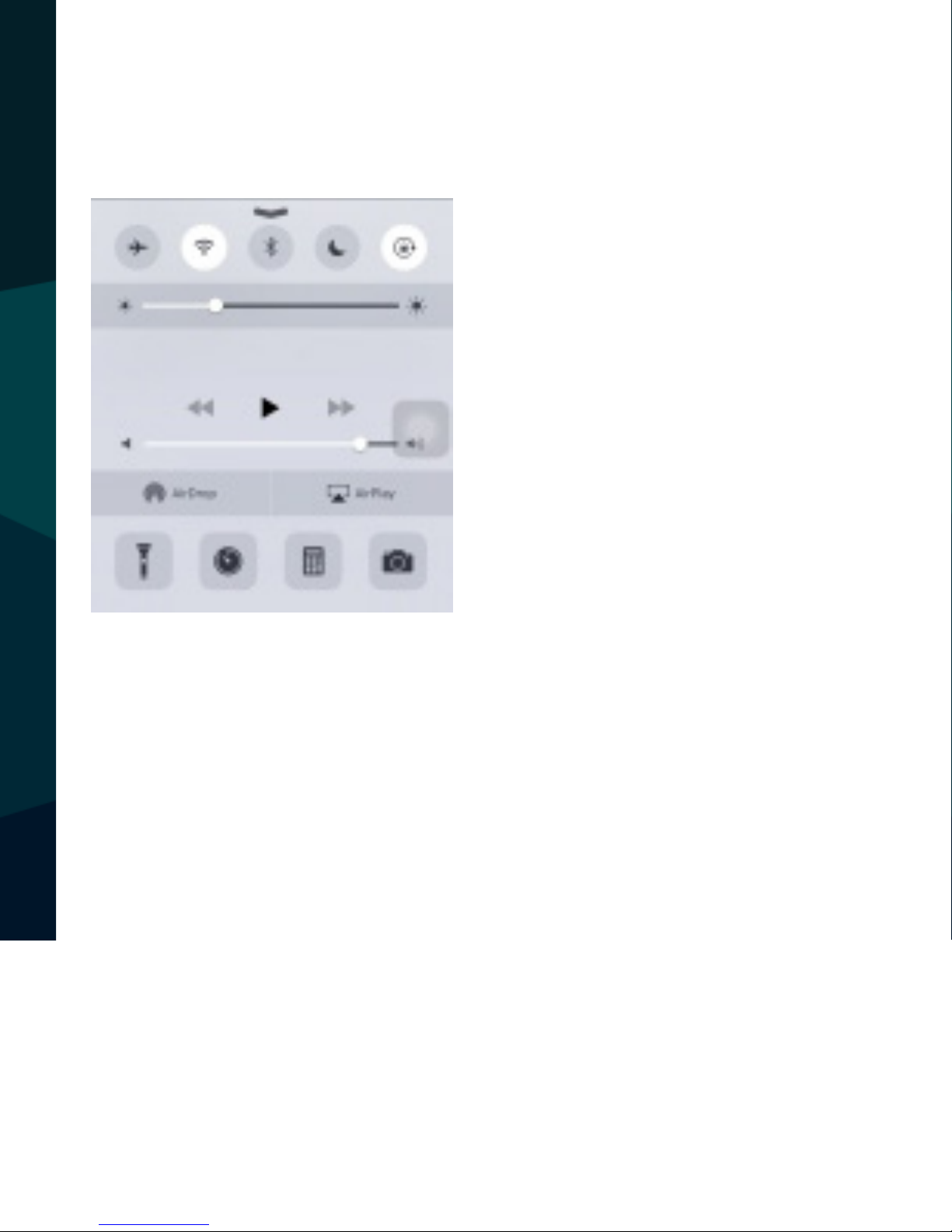

Open Apple device control center
(Note: At this time, the Apple device is connected with the monitor,
without WiFi connection, so it can only mirror local data, or mirror on-
line data by using 2G/3G/4G from mobile network)

Reverse With Condence ™ 19
MIRRORING
Enter into Airplay interface, choose
the device name and then start airply
iOS 6: Double-click the HOME key or at the bottom of the main screen,
you will see“Airplay”.
iOS 7 (or above): From main screen slide screen up, Click“Airplay”and se-
lect the monitor's hot spot name. Exit mirror by swiping the“Mirroring”
icon to the left.

Rear View Safety
20
MIRRORING
Open internet browser and input web site IP“192.168.49.1”
to enter into the setting page. Click theWiFi symbol, click“Scan”
and nd out available WiFi network (include hot spot from mobile
device, such as smartphone, tablet PC and PC). For example: Click "QC"
and enter password, then click“connect”.
Open browser, input website IP: 192.168.49.1 to enter setting interface
