MCZ SUITE-CLUB-MUSA Hydromatic 16/24 User manual

INSTALLATION GUIDE EN
PELLET STOVE
SUITE-CLUB-MUSA
Hydromatic 16/24
PART 2 - OPERATION AND CLEANING
Instructions in English

II
TABLE OF CONTENTS
TABLE OF CONTENTS .................................................................................................. II
11PRECAUTIONS BEFORE STARTUP............................................................................3
12CONTROL PANEL ....................................................................................................4
13FIRST STARTUP.....................................................................................................5
14MENU STRUCTURE .................................................................................................8
15INFORMATION MENU ...........................................................................................12
16SETTINGS MENU ..................................................................................................15
17TECHNICAL MENU ................................................................................................33
18SAFETY DEVICES AND ALARMS..............................................................................34
19RECOMMENDATIONS FOR A SAFE USE ....................................................................40
20CLEANING AND MAINTENANCE..............................................................................41
21FAULTS/CAUSES/SOLUTIONS .................................................................................47
22CIRCUIT BOARD ...................................................................................................50

3
11-PRECAUTIONS BEFORE START-UP
Technical Dept. - All rights reserved - Reproduction is prohibited
GENERAL PRECAUTIONS
Remove any objects that may burn from the brazier (manual, various adhesive labels or any polystyrene).
Check that the brazier is positioned correctly and rests properly on the base.
The rst start-up may not be successful as the feed screw is empty and does not always manage to load the required
amount of pellets in time to light the ame.
CANCEL THE FAILED IGNITION ALARM. REMOVE THE PELLETS LEFT IN THE BRAZIER AND REPEAT THE START-UP.
If after repeated attempts, the ame fails to ignite, despite a regular ow of pellets in the brazier, which must rest snugly against the
slots and be clean without any ash incrustations. If no anomaly is found during this inspection, there may be a problem with the
product components or installation may not be correct.
REMOVE THE PELLETS FROM THE BRAZIER AND CONTACT AN AUTHORISED TECHNICIAN.
Do not touch the boiler during the rst lighting, as it is during this phase that the paint sets. If you touch the paint,
you may expose the steel surface.
If necessary, touch up the paint with the spray can of the specic colour. (See“Pellet stove accessories”).
It is good practice to ensure eective ventilation in the room during the initial start-up, as the boiler will emit some
smoke and smell of paint.
ATTENTION!
Please ensure the brazier is clear of ALL pellets and ash build up following any failed ignitions. Failure to clear out
the brazier prior to resetting may result in further failed ignitions or in certain conditions an explosive ignition.
Do not stand close to the stove and, as mentioned, air the room. The smoke and smell of paint will disappear after about an hour of
operation, however, they are not harmful in any case.
The boiler will be subject to expansion and contraction during the lighting and cooling down stages, and may therefore make slight
creaking noises.
This is absolutely normal as the structure is made of laminated steel and must not be considered a defect.
It is extremely important to make sure the boiler does not reach high temperatures straight away, but to increase the temperature
gradually using low power at rst.
This will prevent damaging the ceramic or serpentine stone tiles, the welds and the steel structure.
DO NOT EXPECT HEATING EFFICIENCY IMMEDIATELY!!!
ATTENTION!
If during operation or initial ignition you encounter smoke spillage in to the room from the appliance
or the ue then please switch o the appliance, ventilate the room and contact the installation / service
engineer immediately.

MENU
A
B C DE
4
12-CONTROL PANEL
CONTROL PANEL DISPLAY
KEY
A - DISPLAY; indicates a series of information on the stove, as well as the identication code of any malfunction.
B - Function selection key indicated by the upper display (i.e. start-up/shutdown)
C - Function selection key indicated by the upper display (i.e. increase/scrolling)
D - Function selection key indicated by the upper display (i.e. decrease/scrolling)
E - Function selection key indicated by the upper display (i.e. menu)

REV.SOFTWARE NUM BANCA DATI
ITALIANO
ENGLISH
ESPANOL
CDE
OK
LANGUAGE
5
13-FIRST START-UP
Technical Dept. - All rights reserved - Reproduction is prohibited

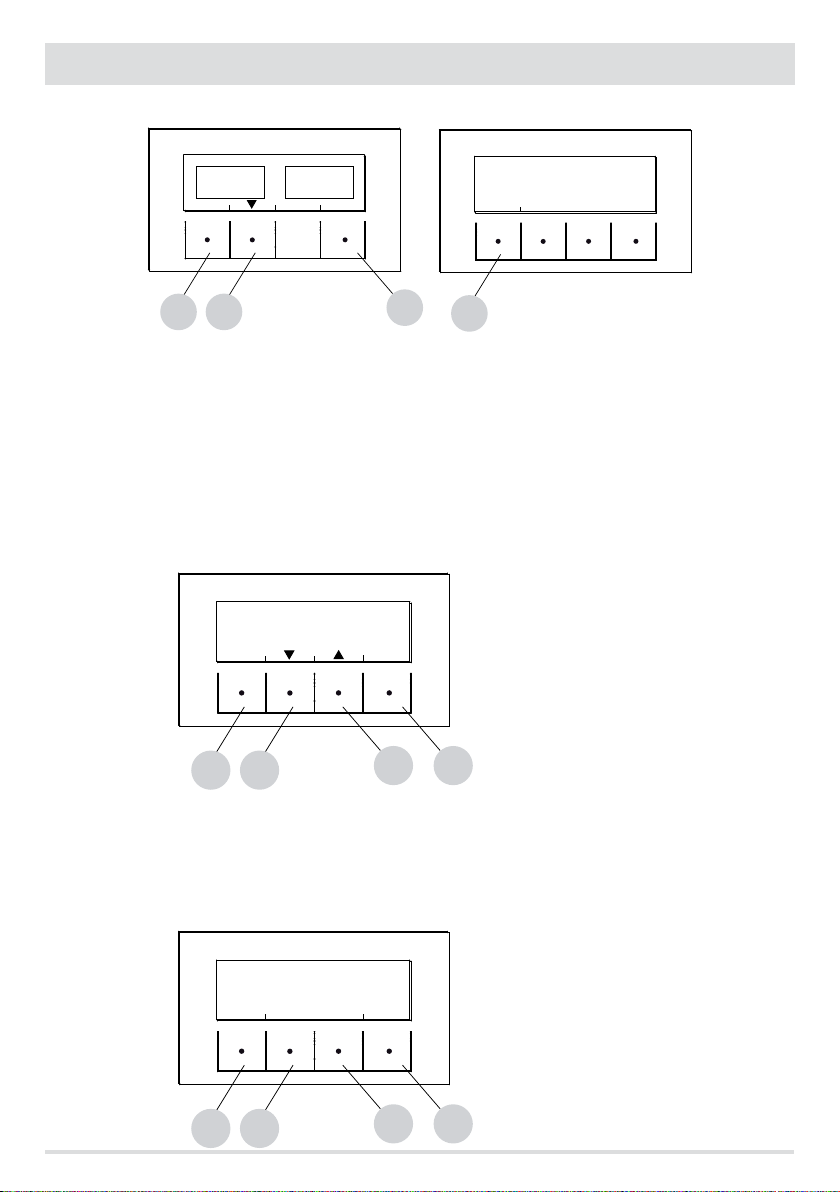

INITIAL START-UP
At initial start-up, after connecting the power cable and pressing the I/O button, the stove display will show wording for the software
version and database number (after a few seconds it will move on to the next screen).
If the language has already been set, the next screen will be OFF, otherwise one enters the following parameter.

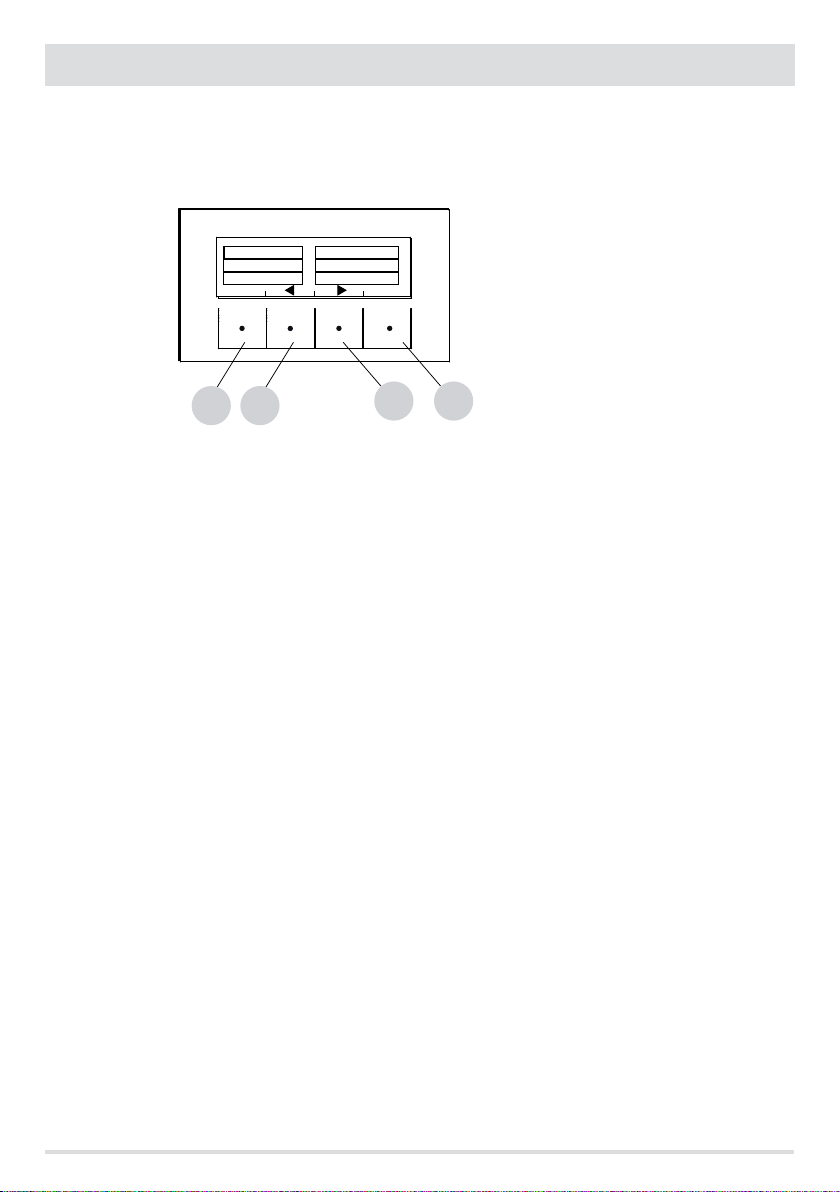

SELECT LANGUAGE
At initial start-up, if it has never been set, the LANGUAGE choice screen appears.
The system displays all possible languages.
Using the arrow keys (C, D) scroll the languages and conrm the desired language using the“E”(OK) key.
SETTING TIME AND DAY
The keys that are active for this function:“C”,“D”, “E”. The C-D keys are used to choose time or day while the E key is used to conrm.
21.25
CDE
OK
TODAY IS MONDAY AND IT IS
CHANGE
DAY
CHANGE
TIME
21.25
CDE
OK
TODAY IS MONDAY AND IT IS
21.25
CDE
OK
TODAY IS MONDAY AND IT IS

MENU
BE
OFF
ON
ECO
6
13-FIRST START-UP
SCREEN OFF
If a LANGUAGE has already been set, the display will go to OFF.
Pressing any one of the keys (B, C, D, E) will result in the rst screen showing OFF to be displayed. From this screen, pressing keys “B”and
“E”(respectively corresponding to ON and MENU) it is possible to access the panel or the menu. If no key is pressed, the display will once
again show OFF after 5 seconds.
PRELIMINARY OPTIONS
Hydro Air stoves are characterised by the presence of a heating hydraulic circuit and a room air fan for distributing hot air.
Room fan
The speed can be set manually or automatically.
In manual mode the speed, from 0 to 5, is selected by the user from the control panel.The fan is only activated if the temperature read by
the smoke probe exceeds 100°C and is deactivated when it goes below 80°C; while at speed 0 the fan is o, if the ame power is below
40% otherwise it will run at speed 1.
The stove adjusts the fan speed automatically according to the power of the ame.
Even in this case the fan is only activated if air temperature of the smoke probe exceeds 100°C.
AUTO
BE
EXIT OK
SET VENTILATION
BE
CD
EXIT OK
SET VENTILATION
OFF-DISPLAY OFF OFF-DISPLAY ACTIVE

MENU
B
OFF
ON
ECO
7
13-FIRST START-UP
Technical Dept. - All rights reserved - Reproduction is prohibited

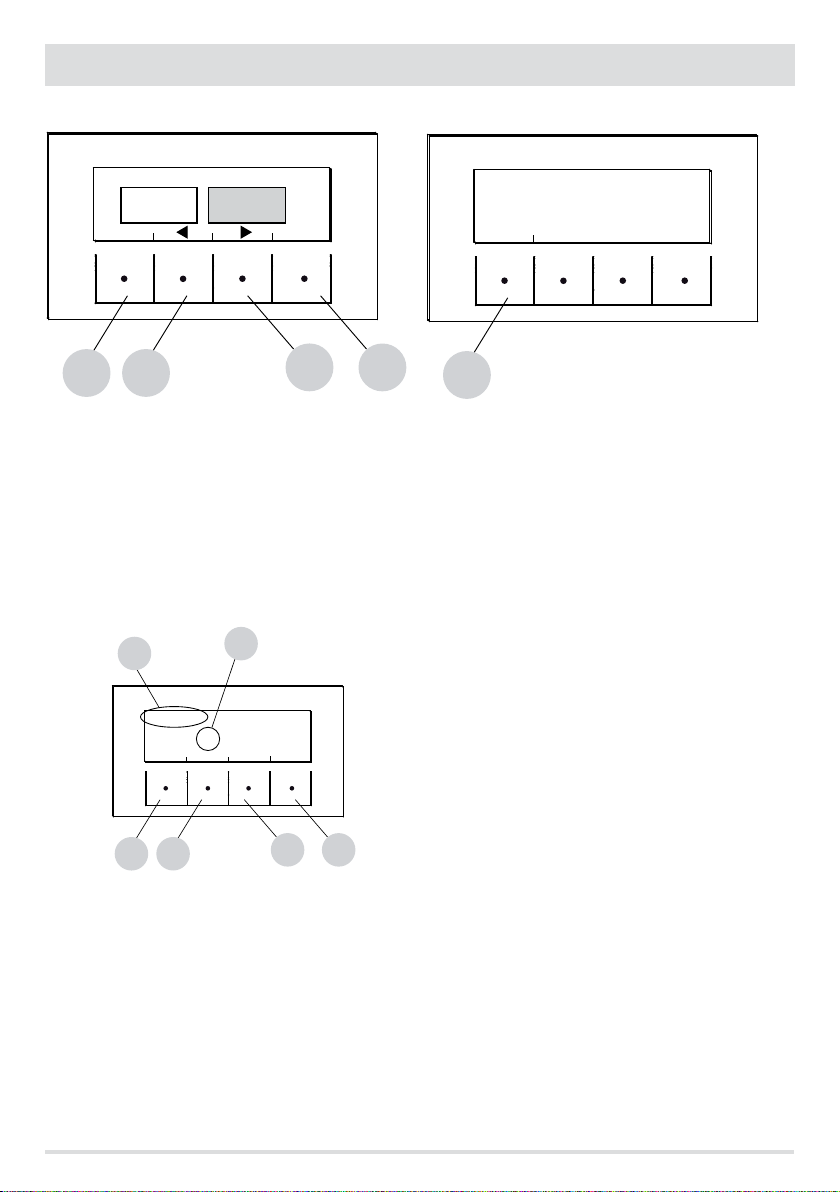

Lighting the stove
To switch on the stove, keep the“B”(ON) key on the panel pressed.The stove starts an ignition procedure that brings the ame to a suitable
level to Supply Power.
Supplying power
The stove’s power supply is signalled by“power level bars”: one bar corresponds to minimum power, 5 bars to maximum power, this level
is determined by the heating system heat requirements, the stove adjusts pellet loading parameters, fumes extraction and combustion
air ow to comply with this requirement.
TOP BAR: active requirements, active programs, power bar, functions
CENTRAL BAR: room temperature, room set, room fan bar
BOTTOM BAR/KEYS: shut-o“B”, room temperature set modify“C”and fan set“D”, menu
“E”
1 = power level bars
BE
CD
OFF MENU
10:13 TIMER1 ECO
25° 23° AUTO
TEMP AIR
1

MENU
OFF
ON
ECO
E
8
14-MENU STRUCTURE
MENU STRUCTURE
To enter MENU press the“E”key (MENU).
Next, this screen with the following functions is displayed:
Sub-menu
TEMPERATURE
PROGRAMMES
INFORMATION
SETTINGS
TEMPERATURE (hydro air)
When accessing this function, the main screen makes it possible to set heating and sanitary water temperature (if boiler with probe
congured - see menu settings input aux).
Select what is to be set and then using the C and D keys increase/decrease the temperature, use the E key to conrm while the B key is
used to exit and return to the main MENU.
PROGRAMMES
In this case it is possible to choose the programme to be set.
Programme selection makes it possible to choose between one of the following options (one choice excludes the other):
TIMER 1
TIMER 2
MANUAL
TEMP. LEVELS
SLEEP FUNCT.
BE
TEMPERATURES
INFORMATION
PROGRAMS
SETTINGS
EXIT OK
CD
EXIT OK
D
TEMPERATURES
EXIT OK
71°
TEMPERATURE BUFFER
EXIT OK
E
C
B
TEMPERATURES
50°

MENU
16° OFF
OFF
03:33 TIMER 1
9
14-MENU STRUCTURE
Technical Dept. - All rights reserved - Reproduction is prohibited
In the MENU screen, move the cursor with arrows“C”-”D”and select PROGRAMS, press ok“E”to conrm. Next select the programme you
wish to set.
Once completed, always press “ACTIVATE” to conrm the choice of programme.
TheTIMER 1 and 2 programmes are freely programmable for each 1/2 hour of the day on three dierent temperature indicators (T1-T2-T3)
and in dierent ways for each day of the week.The OFF level requires that the stove is switched o in that interval.
Example of temperature programming for Monday.
Select the TIMER 1 item from the PROGRAM menu and press the ENTRA (ENTER) “E”key, using arrow“D”highlight Monday and press OK
(“E”) to enter programming.
Using the centre arrow keys “C” and “D” select the half hour interval to be selected and use the “E” key to set temperature T1-T2-T3
(depending on whether the key is pressed 1-2-3 times the corresponding temperature can be read in the bottom right of the display).
Once temperature programming for Monday is complete press the “B” SALVA (SAVE) key. If the same temperature scale of Monday is
desired for other week days, after saving (“E”key) press the“C”key (COPIA-COPY), select the day where the program is to be copied using
the “D” key and press the “C” key (INCOLLA-PASTE). Repeat the same procedure until the programmes for all the days of the week are
complete. At this point the stove is programmed according to your temperature needs, which can be modied at any time.
CAUTION:
In order to make stove use easier, MCZ supplies Timer 1 with preset weekly temperatures and times (according to the table below), while
Timer 2 is available. In any case, it is possible to change times and temperatures of Timer 1 at any time.
PANEL OFF DISPLAY FROM TIMER
When timer 1 (for example) has no set temperature, the panel highlights that the stove is in OFF position.
If the stove is o by MANUAL command, the timer will
have no eect.
For the stove to come on with the timer, the panel
must display the image shown on the side; if this
should not be the case, it may be necessary to press
the ON (“B”) key.
PROGRAM SELECTION
EXIT ENTER
B
E
TEMPERATURES
INFORMATION
PROGRAMS
SETTINGS
EXIT OK
C
D
TIMER 1 TIMER 2 MANUAL
TEMP.LEVELS FUNCT. SLEEP
ACTIVATE
COPY OK
MONDAY TUESDAY WEDNESDAY
0 246 12 18
SAVE
MONDAY
0 246 12 18
TIMER 1
EXIT
10:00 20°C
TIMER 1
DE
C
B
6 12
10:00
T3
T1
T2

10
14-MENU STRUCTURE

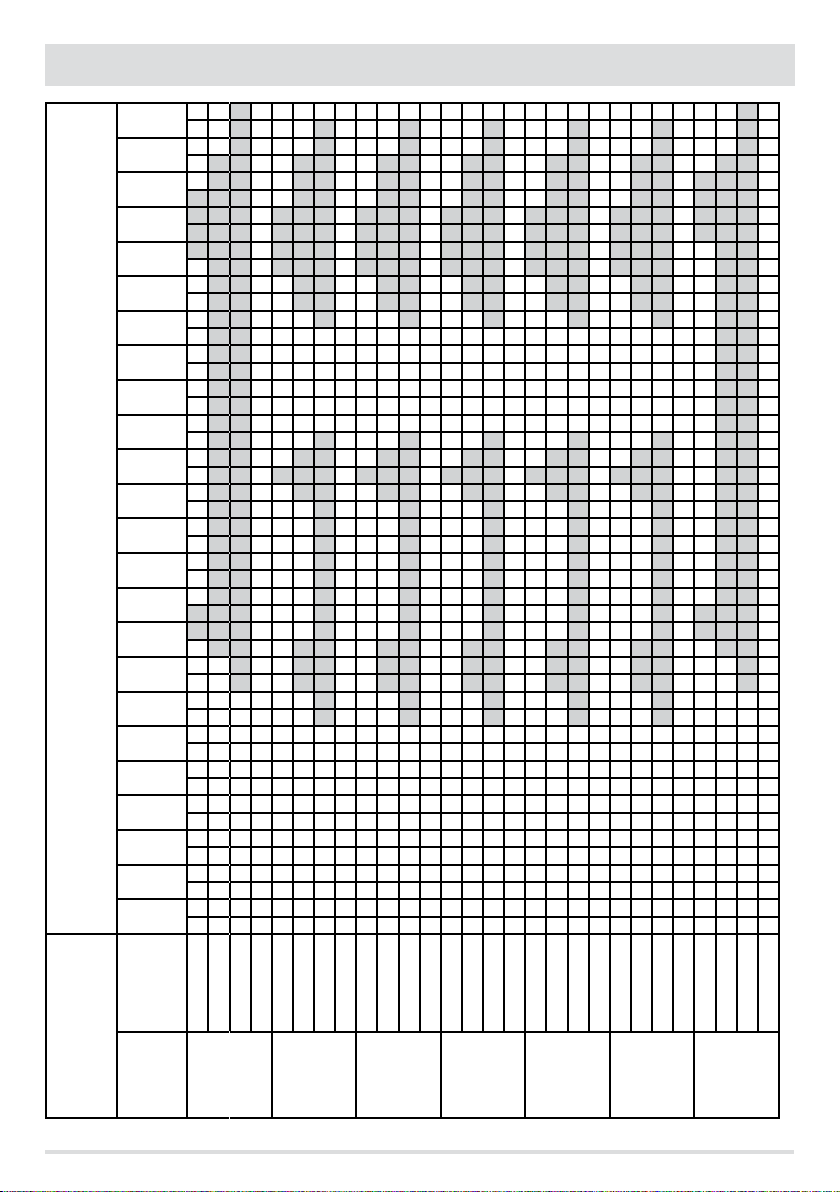

Time table
23:00
22:00
21:00
20:00
19:00
18:00
17:00
16:00
15:00
14:00
13:00
12:00
11:00
10:00
09:00
08:00
07:00
06:00
05:00
04:00
03:00
02:00
01:00
00:00
Weekly programmes
Temperatures *
T3 T2 T1
OFF
T3 T2 T1
OFF
T3 T2 T1
OFF
T3 T2 T1
OFF
T3 T2 T1
OFF
T3 T2 T1
OFF
T3 T2 T1
OFF
Days Sunday Monday Tuesday Wednesday Thursday Friday Saturday
* T1=16°C T2=20°C T3=22°C OFF=switched o

11
14-MENU STRUCTURE
Technical Dept. - All rights reserved - Reproduction is prohibited
MANUAL
This function can be activated from the menu PROGRAMME by pressing the key “C”ACTIVE. When this function is activated the stove no
longer follows time programming of TIMER 1 or 2 programmes, but it keeps the temperature set in the main screen throughout the 24
hour time period. It is possible to switch to programmes at any time.
TEMPERATURE LEVELS
It is possible to change the 3 temperature levels referenced by timers in this menu.
From the PROGRAMS menu use arrow key“D”to move and select TEMP LEVELS, press the “E” keys and enter the temperature settings
screen. With the centre arrow keys “C” and “D” increases/decreases the temperature value, while the “B” is used to move to the next
temperature. With the“E”key (OK) the set values are conrmed.
SLEEP FUNCTION
The sleep is only activated when the stove supplies power and makes it possible to programme a stove shut o time. The shut o can be
delayed for a maximum of 8 hours from current time and with a 10 minute resolution.
To activate, enter the PROGRAM menu, scroll using arrow key “D” up to the Function. SLEEP press the ATTIVA (ACTIVATE) “C”key. In the
next screen, using keys“C” and “D”, increase or decrease the minutes (10 minutes each time the key is pressed) and press OK (“E”key) to
conrm the stove shut o time.
NOTE: If the stove is not supplying power the display shows the wording“NOT AVAILABLE”.
When the Sleep function is active, the time remaining until shutdown is displayed in place of the current time.
TEMP. LEVELS
OK
T1
T2
T3
16°
20°
22°

12
15-INFORMATION MENU
INFORMATION
To enter the menu INFORMATION proceed as follows:
from the main/initial screen, press the “E” Menu button, scroll using the “D” arrow key, up to the Information item, press the“E”ok key,
scroll again using the“D”arrow key up to software/data memory/all.memory/stove state and select the desired item, press OK using the
“E”key to enter the chosen information menu.
The available information is:
• Software
• Data memory
• All. memory
• Stove state
SOFTWARE INFORMATION
The available data in this function are:
CODE
FIRMWARE
DATABASE
INTERFACE
It is information that can be used to identify the electronic part of the stove.
MENU
E
OFF
ON
E
TEMPERATURES
INFORMATIONS
PROGRAMS
SETTINGS
EXIT OK
DE
EXIT OK
D
SOFTWARE
ALARM HYSTORY
DATA HYSTORY
STOVE STATE
INFORMATIONS
BE
CD
OFF MENU
10:13 TIMER1 ECO
25° 23° AUTO
TEMP AIR
BE
EXIT OK
CD
SOFTWARE
ALARM HYSTORY
DATA HYSTORY
STOVE STATE
INFORMATIONS
EXIT
INFORMATIONS-SOFTWARE
CODICE = MDUO
FIRMWARE = 140.7.08.08 [07]
DATABASE = 000.022
CONTROL PANEL = 14040613A/1000313B
MAIN SCREEN
EXAMPLE

13
15-INFORMATION MENU
Technical Dept. - All rights reserved - Reproduction is prohibited
DATA MEMORY-INFORMATION
The available data in this function are:
WORKING HOURS
TOTAL IGNITIONS
TEST DATE
ALARM MEMORY-INFORMATION
It gives information about the last alarms detected.
EXIT
INFORMATIONS-DATA HYSTORY
WORKING HOURS = 100
TOTAL IGNITIONS = 20
TEST DATE = 15/01/2013
EXIT
INFORMATIONS-ALARM HYSTORY
ALARM 02 - 28/06/13 13:44 1
ALARM 02 - 21/06/13 08:03 2
ALARM 02 - 21/06/13 08.02 3
ALARM 02 - 21/06/13 09.46 4

14
15-INFORMATION MENU
STOVE STATE-INFORMATION
This menu is particularly useful if one wants to verify the stove work condition (State).
From the OFF screen, press the“E”Menu button, scroll with the“D”arrow key, up to the Information item, press the ok“E”key, scroll again
with the“D”arrow key up to stove state, press OK with the“E”key and one enters the stove State-information menu.
The items available within STOVE-STATE INFORMATION can be viewed using the“C”and“D”arrow keys and are:
state
water temp. set
aux sensor set
active+ set
fumes fan set
auger set
fumes temp. req
air fan pump
relay aux spark plug
modbus com add.
Auto Stop
• The main stove states that can be read on the display are:
STATE 1-9 various ignition phases
STATE 20-40 work state (power supply)
STATE 60-79 alarm state
STATUS 80-92 stopped status/cooling/Auto Eco
STATUS 93-98 auxiliary functions
• WATER TEMP.: Water temperature detected by the probe inside the stove and related SET
• AUX SENSOR: detects the value measured by the aux sensor (external/boiler/puer)
• ACTIVE+.:Value read by the Active Plus system and related SET
• FAN FUMES: Number of fumes fan revolutions and related SET
• AUGER: Number of auger revolutions and related SET
• FUMES TEMP: fumes temperature value read by the probe inside the stove
• REQ: (Heating/Sanitary) signals if system requires heat
• AIR FAN: Room fan operation level
• PUMP: signals if the stove’s internal pump is turned on (ON) or turned o (OFF)
• RELAY AUX: signals activation (ON) or the OFF state of Auxa relay
• SPARK PLUG: Signals if spark plug is turned on or o
• MODBUS COM: External interface communication state
• ADD.: Address for communicating with modbus
• AUTO STOP: minutes remaining before automatic shutdown for the mechanical brazier cleaning
EXIT
INFORMATIONS-STOVE STATE
STATE = 0-OFF
WATER TEMP = -43°C SET = 70°C
ACTIVE+ = 471 SET = 400
SMOKE FAN = 0 SET = 0
D
C
EXIT
INFORMATIONS-STOVE STATE
FEED SCREW = 0 SET = 0
SMOKE TEMP = 30°C REQ = BOLL
AIR FAN = 0% POMP. = OFF
3 WAY VALVE = NO HY. CAND. =OFF
C
D
EXIT
INFORMATIONS-STOVE STATE
MODBUS COM. = OFF IND.=4

15
16-SETTINGS MENU
Technical Dept. - All rights reserved - Reproduction is prohibited
SETTINGS
To enter the menu SETTINGS proceed as follows:
from the OFF screen , press the “E”Menu key, scroll with the “D” arrow key, up to the Settings item, press the ok“E”key, scroll again with
the“D”and/or“C”arrow key up to the chosen setting, press OK with the“E”key to enter the chosen menu.
It is possible to set the listed parameters from this screen. Each parameter has an info key to obtain brief information about the chosen
function.
• SETTINGS
• Auto Eco (default activated)
• Max power (see boiler)
• Auger loading
• Pellet recipe
• Active +
• Cleaning cycle
• Language
• date - time
• Aux Input
• aux output
• Room Input
• T. on Pump
• Pump Pwm
• Antifreeze function
• Plt sensor (not available)
• Modbus com.
• Display
• Technical menu (accessible by a specialized MCZ technician - password required)
• Active +
• Fume Analysis F
• Calib.Active
• Calib.S.fumes
• Diagnostics
• Parameters
• Hour reset
• Auto Stop
MENU
E
OFF
ON
E
TEMPERATURES
INFORMATIONS
PROGRAMS
SETTINGS
EXIT OK
DBE
AUTOECO
EXIT OK
CD
FEED SCR LOAD
ACTIVE PLUS
HYDRO-AIR
LOAD-RECIPE
CLEANING
SETTINGS

16
16-SETTINGS MENU
AUTOECO (Factory activated)
The Auto eco mode turns the stove o when the heating system does not require heat depending on the menu-settings-input aux
conguration.
AUTO ECO ACTIVE
The AutoEco active parameter (factory settings) is shown on the top right on the control panel display in the main screen. If heat is not
required, the stove turns o after the set time, switching to Auto Eco (State 84 - it is possible to see Auto eco in the Information Menu,
stove state).
NOTE:With the stove o, if set T is less than T room, or other heat request settings are satised the stove does not turn on.
1 = no heat request (T room >T set)
2 = T set
if set temperature is increased > T room (therefore in this
case > 22°C) the stove with start-up after a few seconds due
to the heat request.
AUTO ECO DEACTIVATED
With the stove on, if Auto eco is deactivated and there are no heat requests (dierent based on menu-settings-aux input settings) the
stove operates at minimum power.
The required condition for restarting is for there to be a heat request for at least 10”consecutively; it is possible to restart if:
• at least 5’have elapsed from when shutdown began
• the TH2O in the stove is < T set H2O
To modify the function:
from the settings menu - using the arrow keys, select the AUTOECO function, press ok (E key) and press D or C key (arrow key) and select:
Activate = to modify the set time from 0 to 30 minutes (factory default 5 minutes)
Deactivate = to deactivate Auto Eco
BE
INFO OK
CD
ACTIVATE
AUTOECO
DEACTIVATE
AUTOECO
B
EXIT
IF YOU ACTIVATE THE AUTOECO, THE
STOVE GOES OFF WHEN THERE ARE
NO MORE HEAT REQUESTS
SETTINGS-AUTOECO
BE
CD
OFF MENU
15:28 ECO
22° 18° AUTO
TEMP AIR
12

17
16-SETTINGS MENU
Technical Dept. - All rights reserved - Reproduction is prohibited
AUGER LOADING (only with the stove o)
This function is for lling the pellet loading system. Can only be activated with the stove o.
To enter the function:
from the settings menu - press ok (E key), press the D key (arrow key) and scroll up to load auger, press OK (E key) and activate/deactivate
the function, press ok (“E”key) to conrm.
BE
INFO OK
CD
DEACTIVATE
LOAD
B
EXIT
USE THE 'FEED SCREW LOADER' WHEN
THE FEED SCREW IS EMPTY AND
YOU MUST LOAD IT QUICKLY
SETTINGS-FEED SCR LOAD
ACTIVATE
LOAD

18
16-SETTINGS MENU
PELLET RECIPE
This function is for adapting the stove to the type of pellet in use. As there are many types of pellet available on the market, stove
operation can vary considerably according to the quality of the fuel. When the pellets clog up the brazier due to excess loading of fuel,
vice-versa if the ame has a tendency to shut-o, it is possible to decrease/increase the amount of pellets in the brazier:
The available values compared to factory settings are:
+15% +10% + 5%; 0%; -10% -20% -30%
To modify the pellet recipe, in sequence, press:
from the Settings menu- press ok (E key), press the D KEY (arrow) scroll up to pellet recipe and press OK (E key) and enter the function,
using the“C”and“D”keys to modify the parameter and press Ok (“E”key).
ACTIVE +
The pellet type is not a problem because the stoves are equipped with the Active system and automatically adapt to pellet of any length
with a diameter of 6-8 mm. Eective and ecient combustion is independent from any type of connection to the ue which, with
traditional systems, may constitute a problem during the installation phase.
Thanks to an internal sensor, the stove is extremely reliable and precise. Combustion air is constantly adjusted based on the quantity of
pellets present in the brazier, guaranteeing an eective and ecient combustion this way that translates into decreased consumption,
emissions and less frequent cleaning.
Thanks to Active plus, it is possible to control and communicate with the stove, even by way of Smartphone and tablet. Since it is possible
to manage more evolved gear motors (with continuous operation), and the new pellet stoves equipped with active plus are more silent.
This function is used to adjust combustion air if the ame is too high or too low.
It can be activated from the SETTINGS menu, scroll using the“D”arrow key up to the“Ricetta Aria”(Air recipe) function, press OK using the
“E”key, and, using the“D”arrow key modify the parameter and press“ok”“E”key.
The xed parameters that can be set are: +10; +5; -5; -10
BE
INFO OK
CDB
EXIT
CHANGE BY PERCENT THE FEED SCREW
SPEED TO ADAPT THE STOVE TO THE TYPE
OF PELLET
SETTINGS-LOAD-RECIPE
+15%
BE
INFO OK
DB
EXIT
CORRECT THE LEVEL OF
COMBURENT AIR
SETTINGS-SMOKE FAN
0%

19
16-SETTINGS MENU
Technical Dept. - All rights reserved - Reproduction is prohibited
CLEANING
This function can be activated as follows:
from the Settings menu- press ok (E key), press the D key (arrow), scroll up to the“ciclo pulizia”(cleaning cycle) press OK (E key)- Activates/
deactivates cleaning.
This procedure activates the fume extraction fan at the maximum level in order to clean the brazier and expel soot. If the stove is switched
o, mechanical brazier cleaning is also activated.
LANGUAGE
This function is used to choose the desired language among those set in the control panel.
To enter the function, from the Settings menu - press ok (E key), press the D key (arrow key) and scroll up to language item, press OK (E
key) and choose the language among the various ones set and nally press Ok (“E”key) to conrm.
The available languages are: Italian/English/French/German/Spanish/Dutch/Danish
DATE-TIME
This function is used to set date and time.
To enter the function, from the Settings menu - press ok (E key), press the D key (arrow key) and scroll up to the date-time item, press OK
(E key) to enter the function. Next, press the“E” (ok) key again to modify day/month/year/hour and minutes. To modify the parameters,
use the“C”and“D”(arrow) keys and press the“E”key to conrm.
BE
INFO OK
CB
EXIT
IMMEDIATELY ACTIVATE A CLEANING
CYCLE OF THE BRAZIER
SETTINGS-CLEANING
DEACTIVATE
CLEANING
ACTIVATE
CLEANING
BE
OK
CD
SETTINGS-LANGUAGE
ITALIANO
ENGLISH
FRANCAIS
BE
OK
CD
SETTINGS-TIME-DATE
TODAY IS MONDAY
AND IT IS
24/06/13
14:14
EXIT

20
16-SETTINGS MENU
AUX INPUT (using one of the following parameters excludes the other)
The auxiliary input allows choosing the system conguration type based on which the stove is connected.
To enter the function press:
from the Settings menu- press ok (E key), press the D (arrow) key and scroll up to the Aux Input item and press OK (E key). Using the“C”
and“D”keys select the desired heating system type and press ok with the “E”key.
It is possible to connect the following to the auxiliary input:
Room thermostat 2
External probe
Boiler probe
Boiler thermostat
Puer probe
Puer Thermostat
• Room Therm.2
The stove heat request may take place from any part of the room probe or from the“Termostato Amb 2”(Room thermostat 2) installed in a
room that is dierent from the one where the stove is positioned and is connected to terminals 1 and 2 of the back terminal board. Contact
closing the terminal kicks o the heat request.
Notes: Installation of this thermostat is optional, the stove can also operate without it. Since the contact is N.O., the room probe is the only
heat request command.
Possible active weekly programming does not act on Room Thermostat 2 but rather on the probe on board the stove.
BE
INFO OK
CD
THERM.AMB.2
SETTINGS-INPUT AUX
EXT.SENSOR
W.CYLIN.PROB.
BUFFER PROBE BUFFER THERM.
W.CYLIN.THERM.
