13-FIRST START-UP
Technical Dept. - All rights reserved - Reproduction prohibited
PRECAUTIONS BEFORE START-UP
GENERAL PRECAUTIONS
Remove any objects that may burn from the brazier (manual, various adhesive labels or any polystyrene).
Check that the brazier is positioned correctly and rests properly on the base.
The rst start-up may not be successful as the feed screw is empty and does not always manage to load the required
amount of pellets in time to light the ame.
CANCEL THE FAILED IGNITION ALARM BY PRESSING AND HOLDING THE ON/OFF KEY FOR A FEW SECONDS. REMOVE THE
PELLET LEFT IN THE BRAZIER AND REPEAT THE START-UP.
SETTINGS TO BE CARRIED OUT BEFORE THE INITIAL START-UP
After connecting the power cable to the back of the product, turn the switch at the back to position(I). To turn the stove on or o, press
button 1on the control panel.
The display on the panel will be ON with a ashing ame. When the ame stops blinking, the stove has reached the operating condition
to“supply power”.
The default target room temperature is set at 20°C. To change this setting, follow the instructions in the adjustments menu; do the same
to set the heating water temperature and the speed of the ventilation fan (if provided).To activate an external thermostat, if present, see
the dedicated paragraph.
SWITCHING THE EQUIPMENT OFF
To switch the equipment o, press and hold the ON-OFF button on the remote control or on the APP. The acoustic beep conrms this phase
has started.
Alternatively, switch it o from the emergency panel by following the instructions provided in the dedicated chapter
The equipment will start the shutdown process which involves consuming the residual pellets in the brazier, the latter being cleaned and
the residual heat in the structure being disposed of.

4
13-FIRST START-UP
During the disposal phase of the residual heat, the fans operate at about 80% of their output and the speed cannot be varied. This is
determined by the need for all the accumulated heat to be evacuated safely and quickly. The switch-o phase can last 15 - 30 minutes
depending on the heat stored in the structure, determined by the duration and the operating regime of the product throughout the day.
When the internal temperature drops below the set thresholds, the fans for hot air and exhaust fume extraction will automatically switch
o.
POWER SUPPLY
When start-up is complete, the panel will display ON with a constant ame at level 3 . The modulation of the ame for higher or
lower power is then controlled autonomously on the basis of reaching the set temperature.
(see also“OPERATING MODE”-“Set Flame”)
If the ame fails to ignite, despite a regular ow of pellets, check that the brazier is seated correctly: it must rest snugly against the
interlocking slot and be clean of any ash incrustations. If no anomaly is found during this inspection, there may be a problem with
the product components or installation may not be correct.
REMOVE THE PELLETS FROM THE BRAZIER AND CONTACT AN AUTHORISED TECHNICIAN.
Please ensure the brazier is free from ALL pellets and ash build up following any failed ignitions. Failure to clear
out the brazier prior to resetting may result in further failed ignitions or in certain conditions an explosive ignition.
It is good practice to ensure eective ventilation in the room during the initial start-up, as the product will emit
some smoke and smell of paint.
Do not stand close to the boiler and ventilate the room as described. The smell of paint will disappear after about an hour of operation,
however, it is not harmful in any case.
The product will be subject to expansion and contraction during the start-up and cooling phases, therefore slight creaking noises may
be heard.
This is absolutely normal as the structure is made of laminated steel and must not be considered a defect.
DO NOT EXPECT HEATING EFFICIENCY IMMEDIATELY!!! THE PRODUCT NEEDS SOME RUNNING-IN TIME.
It is extremely important to make sure the product does not reach high temperatures straight away, but to increase the temperature
gradually using low power at rst.
This will prevent damage to the welds and the steel structure.
Do not touch the product during the rst lighting, as it is during this phase that the paint sets. If you touch the paint,
you may expose the steel surface.
If necessary, touch up the paint with the spray can of the specic colour.

72 3 4
61 5
5
14-CONTROL PANEL
Technical Dept. - All rights reserved - Reproduction prohibited

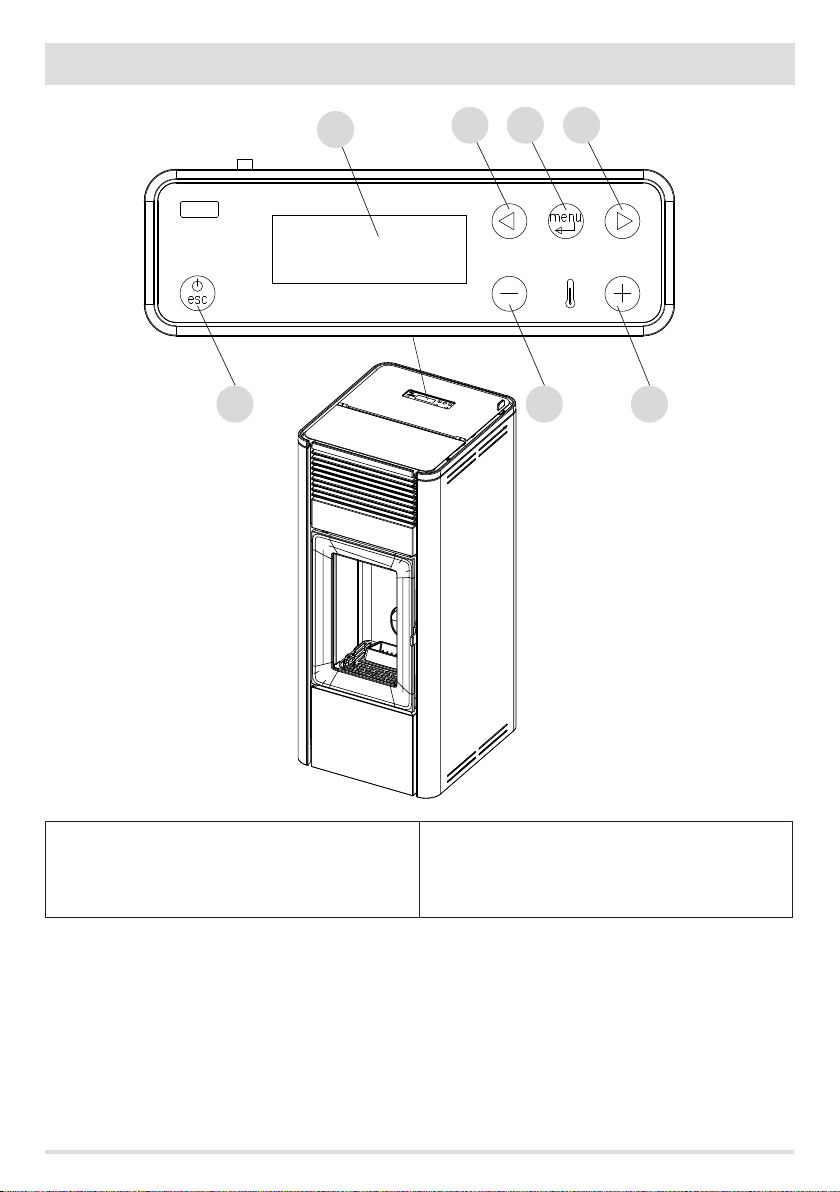

KEY
1. Stove switch-on/switch-o
2. Scrolling down through the programming menu
3. Menu
4. Scrolling up the programming menu
5. Decrease set temperature / programming functions.
6. Increase set temperature / programming functions.
7. Display.

6
15-MENU ITEMS AND OPERATION
MAIN MENU
Press key 3 (menu) to access.The options accessed are:
• Date and Time
• Timer
• Sleep (only when stove is on)
• Settings
• Info
Date and time conguration
Congure the time and date as follows:
• Press the“menu”key.
• Select “Date and Time”.
• Press“menu”to conrm.
• Scroll through with the arrow keys and select the variables to be edited one at a time: Day, Hour, Min, Num. day, Month, Year.
• Press“menu”to conrm
• Use the + and - keys to edit.
• Finally, press“menu”to conrm and“esc”to exit.
CONFIGURATION OF PROGRAMMED MODE (TIMER) - Main menu
The current time and date must be congured to ensure correct operation of the timer.
There are six congurable TIMERS; for each one, the user can select a start and stop time and the days of the week when it is in use.
When one or more programs are active, the status of the stove and the TIMER “n” alternate on the display. “n” is the number of timer
programs in use, separated by dashes.
Example:
TIMER 1 Timer 1 program active.
TIMER 1-4 Timer 1 and 4 programs active.
TIMER 1-2-3-4-5-6 All timer programs active.
EXAMPLE OF PROGRAMMING
With the stove on or o:
• access the MENU,
• scroll to the TIMER item using the <> arrows,
• press the“Menu”key
• the system shows“P1”(Press the <> keys to move through the timers P2, P3, P4, P5, P6)
• Press the“Menu”key to activate “P1”.
• press + - and select“ON”
• press the“Menu”key to conrm
At this point the start time is 00:00. Press the + - key to set the start time and press the“menu”key to conrm.
Next, the proposed stop time is 10 minutes later than the congured start time: press the + key and edit the stop time, and press the
“menu”key to conrm.
Next, you are asked to set the days of the week when the congured timer is to be enabled or disabled. Press the - or + keys to select the
day you want to activate the time. It will light up white, then conrm with the“menu”key. If no day is selected for enabling the timer, the
timer program is no longer enabled on the status window.
Next, program the other days or press“ESC”to exit. Repeat this procedure to program the other timers.

7
15-MENU ITEMS AND OPERATION
Technical Dept. - All rights reserved - Reproduction prohibited
EXAMPLES OF PROGRAMMING
P1 P2
on o day on o day
08:00 12:00 mon 11:00 14:00 mon
Stove on between 08:00 and 14:00
P1 P2
on o day on o day
08:00 11:00 mon 11:00 14:00 mon
Stove on between 08:00 and 14:00
P1 P2
on o day on o day
17:00 24:00 mon 00:00 06:00 tue
Stove on between 17:00 on Monday to 06:00 on Tuesday
NOTES ON USE OF THE TIMER
• The timer always starts the boiler with the last temperature and ventilation settings (or with the default settings at 20°C and V3 if
they have never been altered).
• The start time can be between 00:00 and 23:50
• If the stop time has not yet been saved, the program proposes a start time at +10 minutes.
• If a timer program turns o the stove at 24:00 on one day and another program starts it up at 00:00 on the next day: the stove
remains on.
• A program has a start-up and/or shut-down time that overlap the times of another program: if the stove is already on, the start has
no eect while OFF turns o the stove.
• When the stove is on and the timer is active, pressing the OFF key turns o the stove; the stove then restarts automatically at the
next time of the timer.
• When the stove is o and the timer is active, pressing the ON key turns on the stove; the stove then stops automatically at the next
time of the timer.
SLEEP FUNCTION (main menu)
Sleep may be activated only when the stove is on and allows you to quickly set a time for the product to turn o.
To set the Sleep function, proceed as follows:
• Enter the MENU
• Scroll to the SLEEP item with the <> arrows
• Press Menu
• Set the turn-o time you want using the + and - keys.
The panel shows a default time of 10 minutes after the current time, which can be adjusted with key 6 up to the following day (i.e. the
turn-o can be delayed for a maximum of 23 hours and 50 minutes).
If the SLEEP function is active with theTIMER active, the former has priority, therefore the stove will not turn o at the time set in the timer
program but at the time set by the sleep function, even if it comes after the time set by the timer.

P5 P1
8
15-MENU ITEMS AND OPERATION
OPERATING MODE
ADJUSTMENTS MENU
“Adjustments”menu settings determine the operation mode of the stove.
To access the menu, proceed as follows:
• Press the - + keys
• Scroll with the <> arrows and select“Set Amb.T”or“Set VentilationT”or“Set Flame”
• Press“menu”to enter the option selected.
• Change with the + - keys.
• Press“menu”to conrm and“esc”to exit.
Set Amb T - this function is used to set the temperature to be reached in the room in which the stove is installed, from a minimum of 5°C
to a maximum of 35°C.When this condition is met, the stove setting is equivalent to the minimum consumption values (the ame and hot
air fan speed at minimum), and then returns to the set values when the room temperature drops below the set threshold.
PLEASE NOTE: The point to the right of the room temperature on the control panel display indicates the half degrees (e.g. 23.°C is
equivalent to 23.5°C).
Set Vent - this function allows you to select the desired speed of the room fan from 1 to 5.
Set Flame - this function allows you to set the power of the ame from a minimum of 1 to a maximum of 5. The power levels correspond
to a dierent value of fuel consumption, setting 5 heats the room in less time and setting 1 can keep the room temperature stable for a
longer period of time.The set ame is automatically set to a minimum when the set temperature value is reached.
VIEW WITH STOVE ON
if the bars are all full, the stove is on ame power 5
if only one bar is full, the stove is on ame power 1
if the bars are ashing, automatic cleaning is in progress

9
15-MENU ITEMS AND OPERATION
Technical Dept. - All rights reserved - Reproduction prohibited
SETTINGS MENU
The SETTINGS menu is to congure use of the stove:
a. Language.
b. Cleaning (shown only when stove is o).
c. Auger loading (shown only when stove is o).
d. Tones.
e. External thermostat (activation).
f. Auto Eco (activation).
g. EcoTurn-o T (default 10 minutes).
h. Pellet recipe.
i. % of smoke rpm.
j. Component test (shown only when stove is o).
k. “Chimney sweeper”function (can be enabled only when stove is on to check emissions in eld).
l. Technical menu.
a - Language
Select the language as follows:
• Press the“menu”key.
• Use the arrow keys to scroll through and select“Settings”
• Press“menu”to conrm.
• Use the arrow keys to scroll through and select“language”.
• Press“menu”to conrm.
• Use the + - keys to select the required language (IT/EN/DE/FR/ES/NL/PL/DK/SLO)
• Press“menu”to conrm and“esc”to exit.
b - Cleaning
Select “Cleaning”(only with stove o) as follows:
• Press the“menu”key.
• Use the arrow keys to scroll through and select“Settings”
• Press“menu”to conrm.
• Use the arrow keys to scroll through and select‘’Cleaning’’
• Press“menu”to conrm.
• Use the + - keys to select“On”.
• Press“esc”to exit.
c - Load auger
To select‘’Load auger’’(only with stove o), proceed as follows:
• Press the“menu”key.
• Use the arrow keys to scroll through and select“Settings”
• Press“menu”to conrm.
• Scroll with the arrows and select“Load auger”.
• Press“menu”to conrm.
• With the + key“Enable”the load auger.
• Press“esc”to exit.

10
15-MENU ITEMS AND OPERATION
d - Tones
This function is disabled by default.To enable it proceed as follows:
• Press the“menu”key.
• Use the arrow keys to scroll through and select“Settings”
• Press“menu”to conrm.
• Use the arrow keys to scroll through and select‘’Tones’’
• Press“menu”to conrm.
• With the + - keys, select“On/O”.
• Press“menu”to conrm and“esc”to exit.
e - External thermostat (see dedicated chapter)
f - Auto-Eco activation (see dedicated chapter)
To select the Auto-Eco function, proceed as follows:
• Press the“menu”key.
• Use the arrow keys to scroll through and select“Settings”
• Press“menu”to conrm.
• Scroll with the arrows and select“Auto-Eco”.
• Press“menu”to conrm.
• Use the + - keys to select“On”.
• Press“menu”to conrm and“esc”to exit.
g - Eco stop T (see dedicated chapter)
To select the Eco StopT function, proceed as follows:
• Press the“menu”key.
• Use the arrow keys to scroll through and select“Settings”
• Press“menu”to conrm.
• Scroll with the arrows and select‘’T Eco o’’.
• Press“menu”to conrm.
• With the + - keys, insert the minutes (from 1 to 30’).
• Press“menu”to conrm and“esc”to exit.
AUTO ECO MODE (see above paragraph activation and switching o)
For activation of the“Auto Eco”mode and time settings, see paragraphs f and g respectively.
‘’ECO stop T’’ can be adjusted to ensure correct operation in the various environments in which the stove can be installed and to avoid
constant stopping and starting when the room temperature is subject to sudden change (drafts, poorly insulated rooms, etc.).
The ECO stop procedure is activated automatically when the power recall device is satised (room probe +1°C or external thermostat
with an open contact), the“ECO stop T”starts to decrease the time (factory default 5 minutes, which can be changed from the “Settings”
menu). During this phase, the panel alternates between displaying ON with a small ame and Crono (if active) - Eco active. The minutes
counting down to the Eco Stop are shown at the top of the display. The ame moves to P1 and remains there until the set“T Eco Stop”time
reaches zero, and if the conditions are still satised, turns o the boiler. The ECO stop count is cancelled if one of the devices recalls power.
When the boiler begins to turn o, the panel shows: O - Eco Active - ashing small ame.
When the stove turns o, OFF-ECO appears on the display with the ame symbol o.
The following conditions have to be met simultaneously for the ECO to restart:
• room probe -1°C or external thermostat with a closed contact (for at least 20”in order to prevent false recalls)
• 5 minutes have passed since shut-down.

11
15-MENU ITEMS AND OPERATION
Technical Dept. - All rights reserved - Reproduction prohibited
h - Pellet Recipe
This function is for adapting the stove to the type of pellet in use. As there are many types of pellet available on the market, operation of
the stove can vary considerably according to the quality of the fuel. When the pellets clog up the brazier due to excess loading of fuel or
when the ames are high even at low power, or when the ames are low, it is possible to decrease/increase the amount of pellets in the
brazier:
Available values:
-3 = A decrease of 20% on the factory setting.
-2 = A decrease of 13% on the factory setting.
-1 = A decrease of 6% on the factory setting.
0% No changes.
3 = An increase of 10% on the factory setting.
2 = An increase of 6% on the factory setting.
1 = An increase of 3% on the factory setting.
Edit the recipe as follows:
• Press the“menu”key.
• Use the arrow keys to scroll through and select“Settings”
• Press“menu”to conrm.
• Scroll with the arrows and select“Pellet recipe’’
• Press“menu”to conrm.
• Alter the % with the + - keys.
• Press‘’menu’’to conrm and‘’esc’’to exit.
i - Variation % rpm smoke
In the event the installation presents problems in extracting smoke (lack of draft or even pressure in the duct), it is possible to increase
the smoke and ash extraction speed.This change resolves all the potential problems related to pellets clogging in the brazier and deposits
forming at the bottom of the brazier itself caused by poor quality fuel or fuel that produces a lot of ash. The extraction speed may be
altered between -30% to +50%, with increments of 10 percent at a time. Negative variation can be necessary if the ame is too low.
To alter this parameter, proceed as follows:
• Press the“menu”key.
• Use the arrow keys to scroll through and select“Settings”
• Press“menu”to conrm.
• Scroll with the arrows and select“Fumes rpmVar.”
• Press“menu”to conrm.
• Alter the % with the + - keys.
• Press‘’menu’’to conrm and‘’esc’’to exit.

12
15-MENU ITEMS AND OPERATION
j - Components test
This can be done only when the stove is o and allows you to select the components to be tested:
• Spark plug: it is turned on for a xed period of 1 minute during which the panel displays the countdown in seconds.
• Feed screw: it is powered for a xed period of 1 minute during which the panel displays the countdown in seconds.
• Extractor: it is activated at 2500 rpm for a xed period of 1 minute during which the panel displays the countdown in seconds.
• Exchanger: enables you to conduct the test in V5 for a xed period of 1 minute during which the panel displays the countdown in
seconds.
Enable the“Component test”function (only with stove o) as follows:
• Press the“menu”key.
• Use the arrow keys to scroll through and select“Settings”
• Press“menu”to conrm.
• Use the arrow keys to scroll through and select‘’Component test’’
• Press“menu”to conrm.
• Use the + - keys to select the test to be carried out.
• Press‘’menu’’to conrm and‘’esc’’to exit.
k - Chimney sweeper function (for maintenance operators only) -
This function can only be activated when the stove is on and power is supplied, and it forces operation of the boiler at the parameters
P5, with the ventilator (if present) in V5. Any corrections to the loading/smoke ventilation percentage must be read. This state lasts 20
minutes, the countdown is displayed on the panel.
The technician can stop this phase at any moment by quickly pressing the on/o key.
Enable the“Chimney sweeper”function as follows:
• Press the“menu”key.
• Use the arrow keys to scroll through and select“Settings”
• Press“menu”to conrm.
• Use the arrow keys to scroll through and select‘’Chimney sweeper function’’
• Press“menu”to conrm.
• Use the + - keys to select“On”(O by default)
• Press‘’menu’’to conrm and‘’esc’’to exit.
l - Technical menu
To access the technical menu you must contact the service centre as it requires a password.
Access the“technical menu”as follows:
• Press the“menu”key.
• Use the arrow keys to scroll through and select“Settings”
• Press“menu”to conrm.
• Use the arrow keys to scroll through and select‘’Technical menu’’
• Press“menu”to conrm.
• With the + - keys, select“Product Type”,“Service”,“Counter memories”,“Parameters”.
• Press‘’menu’’to conrm and‘’esc’’to exit.
INFO MENU
• Product type
• Firmware version
• Software info
• Total hours
• No. of start-ups
• Rpm evacuator
• T. smoke
• Heat exchanger voltage
• Feed screw loading
• Flame

13
15-MENU ITEMS AND OPERATION
Technical Dept. - All rights reserved - Reproduction prohibited
EXTERNAL THERMOSTAT CONNECTION (optional)
The room thermostat is not included with the stove and must be installed by a qualied technician.
ATTENTION!
The electrical wires must not come into contact with the hot parts of the stove.
The temperature of the stove can also be controlled by an external room thermostat. It should be positioned centrally in the room where
the stove is installed. It provides a closer match between the heating temperature requested of the stove and the actual room temperature
it provides.
Connect the cables coming from the external thermostat to terminal 14 on the board on the stove.
Enable the external thermostat (factory settings OFF) as follows:
• Press the“menu”key.
• Scroll with the arrows to“Settings”.
• Press“menu”to select.
• Now use the arrows to scroll to“External thermostat”.
• Press“menu”to select.
• Press the - + keys.
• Select “On”to activate the external thermostat.
• Press the“menu”key to conrm.
• Press the“esc”key to exit.
Once the external thermostat has been enabled, instead of displaying the detected temperature from the probe on the stove, ON or OFF
will appear, depending on whether you have requested heat from the external thermostat or not.
ON if the external thermostat contact is closed, OFF if the contact is open.

6
5
4
1
2
3
14
15-MENU ITEMS AND OPERATION
Remote control (accessory - NOT SUPPLIED)
LEGEND OF BUTTONS
1. Increase temperature set-point 4. Temperature/power switch and vice versa.
2.Decrease temperature set-point 5/6. Set power and ventilation
3. ON/OFF
PLEASE NOTE Adjusting the temperature with the remote control has no eect if the external thermostat has been selected.
Attention! Before using, remove the protection from the battery. The batteries are not included.
Keys 1 and 2: set the room temperature (automatic mode). See paragraph “Automatic mode”.
Keys 6 and 5: set power and ventilation (manual mode). The values that can be set are from 1 to 5.
Power does not scale immediately but reaches it at the set time (1 power per minute)
Button 3: On/O
Button 4: moves on from temperature to ame power; when passing from one status to another, the following values will be set:
- Temperature 23°C.
- Power 3 ventilation 3
Batteries - type and replacement
The batteries are in the bottom of the remote control.To replace them, pull out the battery holder and remove or insert the battery in the
orientation marked on the remote control and on the battery itself.
The remote control takes 1 CR2025 lithium battery.
Used batteries contain metals which are harmful to the environment, so they must be disposed of separately in
appropriate containers.
If the remote control is o because it has no battery, the stove can be controlled with its top-mounted control panel.
While replacing the battery, observe the orientation marked inside the battery compartment.

15
16-SAFETY DEVICES
Technical Dept. - All rights reserved - Reproduction prohibited
SAFETY DEVICES
The product is tted with the following safety devices
PRESSURE SWITCH
Monitors pressure in the smoke duct. It is designed to shut down the pellet feed screw in the event of an obstructed ue or signicant
back-pressure (from the wind).
SMOKE TEMPERATURE PROBE
Detects the temperature of the smoke, thereby enabling start-up or stopping the product when the temperature drops below the preset
value.
CONTACT THERMOSTAT IN THE FUEL TANK
If the temperature exceeds the preset safety level, it immediately shuts down the running of the stove.
ELECTRICAL SAFETY
The stove is protected against violent changes in current by a general fuse located in the control panel at the back of the stove. Other fuses
that protect the circuit boards are located on the latter.
SMOKE FAN
If the fan stops, the electronic board shuts o the supply of pellets in good time, and an alarm message is displayed.
GEAR MOTOR
If the reduction motor stops, the stove will continue to run until the ame goes out due to lack of fuel and until a minimum level of cooling
is reached.
TEMPORARY POWER CUT
When a power cut is less than 10’’the stove returns to its previous operating state; if it is more, it executes a cooling/re-ignition cycle.
FAILED START-UP
If during ignition no ame develops, the stove will go into alarm condition.
TAMPERING WITH THE SAFETY DEVICES IS PROHIBITED
If the product is NOT used as described in this instruction manual, the manufacturer declines all liability for any
damage caused to persons and property. The manufacturer furthermore refuses to accept responsibility for damage
to persons and property arising from the failure to observe all the rules contained in the manual and in particular:
• All the necessary measures and/or precautions must be adopted when performing maintenance, cleaning and
repairs.
• Do not tamper with the safety devices.
• Do not remove the safety devices.
• Connect the product to an ecient smoke expulsion system.
• First, check that the environment where it is to be installed is properly ventilated.
Only after having eliminated the cause of the intervention of the safety system is it possible to relight the product
and therefore restore the automatic operation of the probe. This manual will help you understand which anomaly
has occurred, and explain how to intervene according to the alarm message displayed on the appliance.

16
17-ALARMS
ALARM SIGNALLING
When a condition occurs other than the one expected for regular operation of the stove, an alarm is triggered.
The reason for the alarm is given on the control panel. The sound signal is not enabled for alarms A01-A02 in order not to disturb the user
when there is an absence of pellets in the night tank.
Panel signalling type of problem Solution
A01
The ame does not light Check the level of pellets in the hopper.
Check that the brazier is correctly positioned in its seat
and has no build-up or unburned material.
Make sure the spark plug warms up.
Thoroughly empty and clean the brazier before
restarting.
A02 The re goes out abnormally. Check the level of pellets in the tank.
A03
Thermostat alarm
The temperature of the pellet hopper exceeds
the required safety threshold.
Wait until the end of the cooling phase, stop the
alarm and re-ignite the stove setting the supply of
fuel to minimum (SETTINGS menu - pellet recipe). If
the alarm persists, contact the service centre.
Check whether the room fan is working correctly.
A04 Smoke overtemperature. Reduce the load of pellets (SETTINGS menu - Pellet
recipe); check cleaning of the brazier.
A05
Safety devices alarm
Smoke pressure switch intervention Check for chimney obstructions / door open
Fuel loading hatch Close the hatch.
Lower the fuel level in the hopper.
Open stove door Close the door
A08 Anomalous operation of smoke fan. Delete the alarm and switch the stove on again. If the
alarm persists, contact the service centre.
A09 Fault with the smoke sensor. Delete the alarm and switch the stove on again. If the
alarm persists, contact the service centre.
Service Routine maintenance warning (does not seize) When this blinking message appears upon start-up, it
means it is time to carry out scheduled maintenance.
Call the assistance centre.
ALARM RESET
To reset the alarm, press and hold key 1 (ESC) for a few seconds. The stove checks whether the cause of the alarm is ongoing.
In the rst case, the alarm continues to be displayed, in the second case it turns OFF.
If the alarm persists, contact a service centre.

17
17-ALARMS
Technical Dept. - All rights reserved - Reproduction prohibited
NORMAL SHUTDOWN (on the panel: OFF with ashing ame symbol)
When the shutdown key is pressed, or when there is an alarm signal, the stove enters the thermal extinguishing phase which involves
automatic execution of the following phases.
• Stop pellet loading
• The room fan maintains the set speed until reaching the switch-o temperature
• The smoke extractor fan is activated at maximum speed and remains on for a xed period of 10 minutes, at the end of which if the
smoke T has dropped below the stop threshold, the fan stops, otherwise it will continue to operate at minimum speed until the
temperature drops below the threshold.
• If the stove has been shutdown regularly but, due to thermal inertia, the smoke temperature exceeds the threshold again, the
shutdown phase will be repeated at minimum speed until the temperature drops.
BLACKOUT WITH STOVE ON
In the event of a blackout, the stove does the following:
• Power failure of less than 10”: continues the work in progress;
• After a loss of power of more than 10’’ which occurred when the stove was on, or during ignition, you can restore the stove to its
previous operating condition when power returns as follows:
1. Cool the boiler by activating the smoke extractor at minimum speed for 10’then proceed to the next step;
2. Restore the stove to the operating condition prior to the blackout.
During phase 1, the panel shows ON BLACK OUT.
During phase 2, the panel shows Start-up.
If during phase 1 the stove receives manual user commands from the control panel, it stops the blackout restoration sequence and begins
the start-up or shutdown commanded by the user.
BLACKOUT OF MORE THAN 10’’ DURING EXTINCTION OF STOVE
If the stove experiences a loss of power GREATER THAN 10” while it is shutting down, when power is restored to the stove, it will
automatically turn on in shutdown mode, even if the smoke temperature has fallen below 45°C in the meantime. This phase can be
skipped by pressing key 1 (esc) (skips to start-up) and pressing it again (recognises that the stove is o).
BLACKOUT OF MORE THAN 10’’ WITH THE STOVE OFF FROM ECOSTOP
Once power has been restored, a 5-minute timer is set as though the stove were in switch-o mode; should there be a request for heat in
these 5 minutes, the stove will not start.
SAFETY DEVICES ALARM A05
The safety devices alarm includes the intervention of the smoke pressure switch, of the fuel loading hatch and of the open stove door.
The alarm will be triggered after 30 seconds, after which the stove will stop working (e.g. after 30 seconds with the pellet loading
hatch open, alarm A05 will be triggered).

18
17-ALARMS
In the event that alarm A05 is triggered often, please note that:
A05
Safety devices alarm
Smoke pressure switch intervention Check for chimney obstructions / door open
Fuel loading hatch Close the hatch.
Lower the fuel level in the hopper.
Open stove door Close the door
you must check some points to verify the cause of the problem and possibly act on some adjustments and/or safety devices to restore the
correct operation of the product.
However please note that all the adjustments and alterations aecting the operational safety devices, must only be performed if THE
PRODUCT IS INSTALLED IN COMPLIANCE WITH THE STANDARDS AND LAWS IN FORCE AND IF IT IS SERVICED PROPERLY BY AUTHORISED AND
SPECIALISED PERSONNEL. Alterations performed randomly, to ensure operation of the product even in the non-compliant conditions, can
cause serious damage to property and injuries to people.
Attention!
The adjustments must only be carried out by authorised and qualied personnel under their responsibility and
by checking the conformity of the installation beforehand. The manufacturer declines all liability for damage to
property or injuries to people in the event of altering the safety devices.
All liability for improper use of the product is entirely borne by the user and relieves the Manufacturer from any civil
and criminal liability.
Series of stoves equipped with a pressure switch installed on the hopper with the sampling point positioned on the bottom, to the right of
the gear motor. This system protects the whole system ensuring tightness of the stove throughout its duration.
It is important to understand that the pressure switch can intervene with each signicant drop in negative pressure and may be due to:
• The ue clogging.
• The presence of a foreign body in the ue (birds, nests, clogged grates, etc.).
• Wind coming through the ue because it is unprotected or the installation was wall-mounted or required no ue.
• Cold air draught down the ue.
• A damaged pressure switch.
• Blocked membrane inside the pressure switch because soot or pellet dust ltrated.
• The pellet hopper is open or ajar for more than 60 seconds (60 seconds is the estimated time to reload the hopper).
• Pellet trapped between the hopper cover and the hopper, which prevents the gasket to seal.
• Broken/worn hopper cover gasket.
• The gasket between the feed screw and the boiler is damaged or positioned incorrectly.
• Fire door is open or the gasket is worn.
• Clogged lateral smoke exchangers.
• Inspection caps with gaskets installed incorrectly after maintenance.
• Feed screw clogged by a compressed pellet at the top.
• The installation is compliant and the ue/smoke tting does not generate obvious obstructions which can stop the release of smoke,
such as: long horizontal sections (over 3 metres), uninsulated smoke ducts,“wall-mounted”smoke exhaust without proper terminals
(installation regulated and permitted in France only [ZONE 3])
• Internal air extraction or recirculation systems (e.g.VMC systems) that generate internal negative pressure exceeding those required
by law (not exceeding 4 Pa)
• Installed without combustion air ducting, it is crucial to check that there is an ecient air inlet dedicated to the stove, according to
the specications referred to in chapter 2 of this manual.
The electronic board has also been equipped with an automatic device with a timer and contactors which increases the RPM of the smoke
extractor so as to restore the negative pressure inside the hopper and therefore the pressure switch, if the cover is opened for top-up or if
there is an immediate or occasional pressure drop such as gusts of wind outside. If the pressure drop lasts for more than 60 seconds, the
product is set in an alarm statue (A05 or A18)

19
17-ALARMS
Technical Dept. - All rights reserved - Reproduction prohibited
Remembering that the draught recommended for the products to work properly is 10 Pa at maximum capacity and 5 Pa at minimum
(according to the technical data sheet found in the user and maintenance manual), adjustments may be required in worse draught
conditions (also due to the position of the ue in areas that are particularly subject to adverse weather such as prevailing winds, snow,
northern exposure, etc.) so as to always guarantee the required negative pressure inside the hopper.
To compensate for the lack of internal negative pressure simply adjust the speed (RPM) of the smoke extractor so as to guarantee the
minimum tabular values.
If the negative internal pressure values are noted to be lower than those indicated, this can also be due to the internal gaskets not being
sealed properly or by the product being worn over time.
OPERATING INSTRUCTIONS ON NEGATIVE PRESSURE INSPECTIONS AND POSSIBLE VARIATIONS OF THE RPM
Connect a pressure gauge to the pressure outlet on the hopper:
• In the case of products with a specic pressure outlet in the hopper, access the sampling point and connect the pressure gauge
• In the case of products without a dedicated pressure outlet, disconnect the tube of the pressure switch from the pressure outlet on
the hopper, add a“T”on the tube to intercept the circuit, connecting the gauge and reconnect the tube to the pressure outlet on the
hopper.
Possible adjustments of the combustion and consequently of the negative pressure inside the hopper can be implemented in two ways:
A) Change the RPM value of the smoke extractor in the SETTINGS MENU
• The available values are from -3 to +3 which, as a percentage, correspond to:
• RPM: -10% +10% in Active System products
• RPM: -30% +50% in NON Active System products
• The percentage variation aects all the power values (1 to 5) proportionally and as a percentage. The percentage variation does not
aect intermediate operating stages such as SWITCH ON, FIRE ON or SWITCH OFF
• As the RPM increase, suction also increases and consequently the internal negative pressure, thereby compensating the phenomena
that trigger the alarm.
B) Adjusting the RPM of the gear motor manually in theTECHNICAL PARAMETERS MENU
• The pressure switch has a calibration of 10/20 Pa which means that it disarms when the negative pressure inside the hopper drops
below 10 Pa and requires more than 20 Pa negative pressure inside the hopper for it to rearm
• The negative pressure value at the minimum power must always be higher than 10 Pa while also maintaining a reasonable margin
that can be used over time due to the gaskets being worn or something similar (at least 12/13 Pa)
• The negative pressure at maximum power must always be above 20 so that the pressure switch can rearm when the pressure
switch rearming automated device is activated. The pressure switch rearming procedure (such as after opening the cover to top-up
the hopper), requires the electronics to push the RPM of the smoke extraction fan up to POWER 5 (P5) for a few moments. At P5,
therefore, the negative pressure inside the hopper must always be > 20 Pa (recommended 22/23 Pa to preserve the margin).
• N.B. = The TECHNICAL PARAMETERS menus are password-protected to prevent the user from accessing them
inadvertently
Attention! The factory setting on the product is designed to obtain the certied technical data. In the event of data
discrepancy (as for the pellet recipe), the settings may be modied as set out above.
The adjustments must only be carried out by authorised and qualied personnel under their responsibility and by
checking the conformity of the installation beforehand.

20
17-ALARMS
NEGATIVE PRESSURE INSIDE THE HOPPER WITH FACTORY-SET PARAMETERS AND A DRAUGHT OF 5 Pa (MINIMUM
RECOMMENDED)
POWER P1 P2 P3 P4 P5 VALUES
6 kW 13.7/14.2 Pa 15.1/15.6 Pa 17.1/17.5 Pa 19.1/19.5 Pa 22.0/22.2 Pa Draught
95°C 110°C 125°C 141°C 165°C Smoke temperature
8 kW 13.8/14.3 Pa 15.6/16.1 Pa 17.8/18.0 Pa 21.7/22.2 Pa 26.1/26.6 Pa Draught
104°C 119°C 145°C 148°C 184°C Smoke temperature
10 kW 15.9/16.3 Pa 20.4/20.9 Pa 25.8/26.3 Pa 31.8/32.3 Pa 36.5/37.0 Pa Draught
108°C °C 150°C °C 230°C Smoke temperature
12 kW 16.5/17.3 Pa 20.4/20.9 Pa 25.8/26.3 Pa 31.8/32.3 Pa 36.5/37.1 Pa Draught
118°C 127°C 155°C 172°C 195°C Smoke temperature
14 kW 17.6/18.0 Pa 19.8/20.4 Pa 23.1/23.7 Pa 28.9/29.6 Pa 37.8/38.2 Pa Draught
118°C 131°C 161°C 187°C 210°C Smoke temperature
PLEASE NOTEThe indicated negative pressure readings may dier by ±1Pa based on ue gas temperature. Likewise, ue gas temperature
may dier by ±10°C based on fuel quality or appliance cleanliness.
Changing the smoke fan revolutions
In the event the installation presents problems in extracting smoke (lack of draft or even pressure in the duct), it is possible to increase
the smoke and ash extraction speed.This change resolves all the potential problems related to pellets clogging in the brazier and deposits
forming at the bottom of the brazier itself caused by poor quality fuel or fuel that produces a lot of ash. The extraction speed may be
altered between -30% to +50%, with increments of 10 percent at a time. Negative variation can be necessary if the ame is too low.
To alter this parameter, proceed as follows:
• Press the“menu”key.
• Use the arrow keys to scroll through and select“Settings”
• Press“menu”to conrm.
• Scroll with the arrows and select“Fumes rpmVar.”
• Press“menu”to conrm.
• Alter the % with the + - keys.
• Press‘’menu’’to conrm and‘’esc’’to exit.
