INSTALLATION GUIDE GB
PELLET STOVE
AKI Hydromatic 16/24 M1
PART 1 - REGULATIONS AND ASSEMBLY
Instructions in English

II
TABLE OF CONTENTS
TABLE OF CONTENTS .................................................................................................. II
INTRODUCTION ..........................................................................................................1
1WARNINGS AND WARRANTY CONDITIONS .................................................................2
2INSTALLATION.......................................................................................................10
3DRAWINGS AND TECHNICAL SPECIFICATIONS ..........................................................19
4UNPACKING...........................................................................................................23
5  SMOKE OUTLET CONNECTION ................................................................................26
6 CLADDING ASSEMBLY .............................................................................................29
7OPENING THE DOORS .............................................................................................35
8LOADING THE PELLETS ...........................................................................................38
9HYDRAULIC CONNECTION.......................................................................................40
10ELECTRICAL CONNECTION.....................................................................................44

1
INTRODUCTION
Technical Dept. - All rights reserved - Reproduction prohibited
Dear Customer,
Our products are designed and manufactured in accordance with standards in force, with high quality materials and using our extensive
experience in the transformation processes.
To get the best performance, we suggest you read the instructions in this manual carefully.
This installation guide is an integral part of the product: ensure that the manual is always supplied with the appliance, even if it changes
owner. If the manual is lost, you can request another copy from the local Technical Dept. or download it directly from the company’s
website.
All local regulations, including those referring to national and European standards, must be observed when installing the appliance.
In Italy, for the installation of systems with a biomass below 35KW, refer to the Ministerial Decree 37/08 and the qualied installation
technician with the suitable requirements must issue a certicate of compliance for the system installed. (By system we intend
Stove+Flue+Air inlet).
REVISIONS TO THE PUBLICATION
The content of this manual is strictly technical and the property of MCZ Group Spa.
No part of this manual may be translated into other languages, adapted and/or reproduced, even in part, in other mechanical and/or
electronic form or media, for photocopies, recordings or other, without the prior written authorisation of MCZ Group Spa.
The company reserves the right to make changes to the product at any time without prior notice.The owner company reserves its rights
according to law.
CARE OF THE MANUAL AND HOW TO CONSULT IT
•Take care of this manual and store it in an easily and quickly accessible place.
•Should this manual be lost or destroyed, request a copy from your retailer or directly from the authorised Technical assistance
department. It can also be downloaded from the company’s website.
•“Bold text”requires special attention.
•“Text in italics”is used to draw attention to other paragraphs in the manual or for any additional clarications.
•“Note”provides the reader with additional information.
SYMBOLS USED IN THE MANUAL
ATTENTION:
carefully read the relative message as failure to comply with the information provided may result in
serious damage to the product and danger to the persons who use it.
INFORMATION:
failure to comply with these provisions will compromise use of the product.
OPERATING SEQUENCES:
sequence of buttons to be pressed to access the menus or perform adjustments.
MANUAL
carefully read this manual or the relative instructions.

2
1-WARNINGS ANDWARRANTY CONDITIONS
SAFETY WARNINGS
•Installation, electrical connection, function test and maintenance
must only be carried out by authorised and qualied personnel.
•Installthe product inaccordancewithall local andnational legislation
and regulations in force in the region or country.
•Baduseor improper maintenanceof the product canbringto aserious
risk of explosion in the combustion chamber.
•Only use the fuel recommended by the manufacturer. The product must not be
used as an incinerator. It is strictly forbidden to use liquid fuel.
•Do not put any fuel other than wood pellets in the hopper.
•The instructions provided in this manual must always be complied with to
ensure the product and any electronic appliances connected to it are used
correctly and accidents are prevented.
•This appliance can be used by children aged 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children must not play with the
appliance. Cleaning and user maintenance shall not be carried out by
children without supervision.
•The user, or whoever is operating the product, must read and fully understand
the content of this installation guide before performing any operation. Errors or
incorrect settings can cause hazardous conditions and/or poor operation.
•Do not climb on or lean on the product.
•Do not dry laundry on the product. Any drying racks or the like must be kept at
a safe distance from the product. Fire hazard.
•All liability for improper use of the product is entirely borne by the user and relieves
the manufacturer of any civil and criminal liability.
•Any type of tampering or unauthorised replacement with non-original spare
parts may be hazardous for the operator’s safety and relieves the company of
any civil and criminal liability.
•Many surfaces of the product get very hot (door, handle, glass, smoke outlet

3
1-WARNINGS ANDWARRANTY CONDITIONS
Technical Dept. - All rights reserved - Reproduction prohibited
pipes, etc.). Avoid coming into contact with these parts without
adequate protective clothing or suitable equipment, such as gloves
with thermal protection or“cold handle”operating systems.
•It is forbidden to operate the product with the door open or the glass
broken.
•The product must be powered by an electrical system that is equipped with an
eective earthing device.
•Switch the product o in the event of a fault or malfunction.
•Accumulated unburnt pellets in the burner after each“failed ignition” must be
removed before lighting again. Check that the burner is clean and positioned
properly before lighting again.
•Shut the stove down in the event of a breakdown or bad running and
contact the specialised technician immediately.
•Pellets must not be fed manually into the burner – this wrong
behaviour can generate an abnormal amount of unburnt gas, with a
risk of explosion in the chamber.
•Accumulated unburnt pellets in the burner after a failed ignitions
must be removed before lighting.
•Failure to clean and maintain the brazier can result in improper running and
explosions within the stove. Make sure you remove and clear the holes in the
brazier and any loose encrustations every time you empty the ash from the
stove or every time there is afailed ignition. Make sure that the holes in the
brazier are never reduced in size as this will aect the safe performance of the
stove if not maintained.
•Do not washtheproduct with water.Water could get inside theunitanddamage
the electrical insulation and cause electric shocks.
•If there is a re in the ue, extinguish the stove, disconnect it from the power
supply and never open the door. Then contact the competent authorities.
•Do not light the stove with ammable materials if the ignition system breaks
down.
•Do not stand for a long time in front of the product in operation. Do not overheat
the room you are in and where the product is installed. This may harm one’s

4
1-WARNINGS ANDWARRANTY CONDITIONS
physical conditions and cause health problems.
•Install the product in rooms that do not pose a re hazard and are equipped
with power and air supplies and smoke outlets.
•In the event of re in the chimney, turn o the device, disconnect it from the
mains and do not open the door whatsoever. Then contact the competent
authorities.
•The product and the cladding must be stored in a dry place and must not be
exposed to weathering.
•It is recommended not to remove the feet that support the product in order
to ensure adequate insulation, especially if the ooring is made of ammable
materials.
•In the event of a malfunction of the ignition system, do not force it on by using
ammable materials.
•Special maintenance must only be performed by authorised and qualied
personnel.
•Assess the static conditions of the surface on which the weight of the product
will rest and provide suitable insulation if it is made of ammable material (e.g.
wood, tted carpet or plastic).
•Live electrical parts: only power the product once it has been fully assembled.

5
1-WARNINGS ANDWARRANTY CONDITIONS
Technical Dept. - All rights reserved - Reproduction prohibited
•Disconnect the product from the 230V power supply before performing any
maintenance operations.
•IF ANY SMOKE LEAKAGE IS SEEN WITHIN THE ROOM OR THE APPLIANCE
SUFFERS FROM AN EXPLOSIVE IGNITION PLEASE TURN OFF THE
APPLIANCE, VENTILATE THE ROOM AND CONTACT THE INSTALLER/
SERVICE TECHNICIAN IMMEDIATELY.
INFORMATION
•If there are any issues, contact the retailer or a qualied technician authorised by MCZ. In the event of a repair, request the use of
original spare parts.
•Only use types of fuel recommended by MCZ (for Italy, pellets with a 6 mm diameter and pellets with a 6-8 mm diameter for other
European countries), which must only be loaded with an automatic feed system.
•Periodically check and clean the smoke outlet duct (connection to the ue).
•Accumulated unburnt pellets in the burner after a series of failed ignitions must be removed before lighting it again.
•The pellet stove is not a cooking appliance.
•Always keep the cover of the fuel tank closed.
•Keep this instruction manual, which will be an integral part of the stove for the whole of its service life. If the product is sold or
transferred to another user, ensure the manual is also handed over.
•If lost, contact MCZ or the authorised dealer to request a copy.
INTENDED USE
The product only works with wood pellets and must be installed indoors.
PRODUCT PERFORMANCE CHECKS.
All our products undergo ITT TESTS carried out by a notied third party laboratory (system 3) and in accordance with Regulation (EU)
number 305/2011“Construction products”, according to standard EN 14785:2006 for household appliances and“Machinery Directive”EN
303-5 for boilers.
In the case of tests for any market surveillance or inspections by third parties, please consider the following warnings:
•To reach the declared performance levels, the product must perform an operating cycle of at least 15-20 hours beforehand.
•Set the average draught of the combustion fumes as specied in the“technical product features”table
•The type of pellets used must comply with the current EN ISO 17225-2 class A1 regulation. Fir pellets are usually used for certication.
•The amount of thermal energy can vary according to the length and caloric value of the fuel. This may require some adjustments
(accessed from the user menu) to comply with the hourly consumption specied in the“technical product features”table. Using class
A1 pellets guarantees a caloric value that is likely to be close to that used in the product certication; the size of the pellet grains can
signicantly aect hourly fuel loading and consequently performance; it is therefore suggested to use pellets with a 6 mm diameter
and an average length of around 24 mm (avoid pellets that are too long or excessively crushed).
•With wood-burning appliances, the fuel must comply with the current EN ISO 17225-5 class A1 regulation. Check the correct moisture
of the fuel, as it must be within the range of 12 - 20% (it is best if the moisture is close to 12%, as is normally used in certication). As
the fuel moisture increases, dierent combustion air settings are required, which are implemented from the combustion air register,
thereby modifying the mixture of primary and secondary air
•It is important to check the operation of devices that can aect performance (for example air fans or electric safety devices) in case
of damage due to handling.
•Nominal performance has been obtained by setting the maximum ame power and room ventilation in manual mode.
Performance at reduced power was achieved at minimum ame and ventilation power (P1 and V1) in manual mode.
The other conditions (COMFORT SETTING) correspond to intermediate ventilation and power.

6
1-WARNINGS ANDWARRANTY CONDITIONS
•If a “verication” mode is provided in the menu, set this function during the readings to ensure that no temperature modulation
occurs due to an incorrect setting of the operating parameters.
•Lastly, strictly comply with the sampling points specied in the regulations in terms of emissions as well as temperature
WARRANTY CONDITIONS
The rm covers the product,with the exception of the parts prone to normal wear that are listed below, for a period of 2 (two)
years from the date of purchase as proved by:
•a document to serve as proof of purchase (invoice and/or receipt) that shows the name of the vendor and the date on which the
purchase was made;
•forwarding of the completed warranty certicate within 8 days of purchase.
Furthermore, in order for the warranty to be valid, the device must be installed and calibrated by qualied personnel, and where necessary,
the user must be issued with a declaration of conformity and correct product operation.
We recommend performing a functional test of the product before completion with the relative nishes, if applicable (claddings, painting
of walls, etc.).
Installations that do not meet the current standards, improper use and lack of maintenance as required by the manufacturer, void the
product warranty.
The warranty is valid on the condition that the instructions and warnings contained in the user and maintenance manual are observed,
and therefore the product is used correctly.
Replacement of the entire system or repair of one of its components does not extend the warranty period, and the original expiry date
remains unchanged.
The warranty covers the replacement or free repair of parts recognised as being faulty at source due to manufacturing defects.
In the event of a fault, to benet from the warranty, the customer must keep the warranty certicate and provide it along with the
document given at the time of purchase to the Technical Service Centre.
EXCLUSIONS
The warranty does not cover malfunctions and/or damage to the appliance that arise due to the following causes:
•Damage caused during transport and/or handling
•all parts that develop faults due to negligence or improper use, incorrect maintenance, installation that does not comply with the
manufacturer’s instructions (always refer to the installation guide provided with the appliance)
•incorrect sizing with regard to the use or faults in the installation or failure to implement the necessary measures to ensure proper
execution
•improper overheating of the equipment, i.e. the use of fuels not conforming to the types and quantities indicated in the provided
instructions
•further damage caused by incorrect user operations in an attempt to x the initial fault
•worsening of the damage caused by the user continuing to operate the appliance even after the fault has been detected
•in the presence of a boiler, any corrosion, deposits or breakage caused by water ow, condensation, hardness or acidity of the water,
improperly performed descaling treatments, water outage, mud or limescale deposits
•ineciency of chimneys, ues or parts of the system aecting the appliance
•damage due to appliance tampering, weathering, natural disasters, acts of vandalism, electrical discharges, re, defects of the
electrical and/or hydraulic system.
•Failure to have yearly stove maintenance performed by an authorised technician or qualied personnel shall render the warranty
void.
The following are also excluded from this warranty:
•parts subject to normal wear such as gaskets, glass, cladding and cast iron grilles, painted, chrome-plated or gilded parts, handles
and electric cables, bulbs, indicator lights, knobs, all parts which can be removed from the rebox.
•Variations in colour of the painted or ceramic/serpentine parts and crazed ceramics as they are natural characteristics of the material
and product use.
•masonry work
•system parts (if included) not supplied by the manufacturer

7
1-WARNINGS ANDWARRANTY CONDITIONS
Technical Dept. - All rights reserved - Reproduction prohibited
Any technical operations on the product to remove the aforementioned defects and consequent damage must be agreed upon with the
Technical Service Centre, who reserves the right to accept the relative job or not. However, said operations shall not be carried out under
warranty but as technical support to be granted as part of any potentially and specically agreed conditions and in accordance with the
fees in force for the work to be carried out.
The user will also be charged for any costs incurred to remedy the incorrect technical operations, tampering or damage to the appliance,
not attributable to original faults.
Without prejudice to the legal or regulatory limits, the warranty does not cover the containment of atmospheric and acoustic pollution.
The company declines all liability for any damage which may be caused, directly or indirectly, to persons, animals or objects as
a consequence of non compliance with any provision specied in the manual, especially warnings regarding installation, use
and maintenance of the appliance.

8
1-WARNINGS ANDWARRANTY CONDITIONS
SPARE PARTS
In the event of a malfunction, consult the retailer who shall forward the call to the Technical Assistance Department.
Only use original spare parts. The retailer or service centre can provide all necessary information regarding spare parts.
We do not recommend waiting for the parts to get worn out before having them replaced. It is crucial to perform regular maintenance
checks.
The company declines all liability if the product and any other accessory is used improperly or modied without
authorisation.
All parts must be replaced with original spare parts.
Information for management of waste electrical and electronic equipment containing batteries and
accumulators
This symbol appears on the product, on the batteries, on the accumulators or on their packaging or on their documentation; it indicates
that the product and the batteries or the accumulators included must not be collected, recycled or disposed of with household waste at
the end of their service life.
Improper management of waste electrical and electronic equipment, batteries or accumulators can cause the hazardous substances
contained within to leak out. In order to avoid harming the environment or health, the user is required to separate this equipment, and/
or the batteries or accumulators included, from other types of waste and deliver them to the local collection centre. The distributor can
be asked to collect the waste electrical and electronic equipment under the conditions and according to the procedures laid down by
Legislative Decree 49/2014.
Separate collection and correct treatment of waste electrical and electronic equipment, batteries and accumulators contribute to
conserving natural resources, respect for the environment and ensure the protection of health.
For more information on collection centres for waste electrical and electronic equipment, batteries and accumulators, contact the
competent public Authorities for issue of the authorisations.

9
1-WARNINGS ANDWARRANTY CONDITIONS
Technical Dept. - All rights reserved - Reproduction prohibited
Our solid bio-combustible products, (hereinafter called “Products”) are designed and manufactured in compliance with one of the
following European standard harmonised to Regulation (UE) no. 305/2011 for construction products:
EN 14785:“Residential space heating appliances red by wood pellets”
EN 13240:“Roomheaters red by solid fuel.”
EN 13229:“Inset appliances including open res red by solid fuels”
EN 12815:“Residential cookers red by solid fuel”
The products also comply with the essential requirements of Directive 2009/125/EC (Eco Design) and, where applicable, Directives:
2014/35/EU (LVD - Low Voltage directive)
2014/30/EU (EMC - Electromagnetic Compatibility directive)
2014/53/EU (RED – Radio Equipment directive)
2011/65/EU (ROhS)
Having specied the above, we highlight and report that:
•This manual and technical data sheet, also available on our website, bear all of the specic indications and necessary and
essential information to choose the product, to install it correctly and to properly size the smoke expulsion system;
•the Products must be installed, controlled and serviced by qualied personnel, according to the instructions in this manual
and in compliance with local laws and installation and maintenance standards in force in individual countries, so as to provide an
ecient heating system, properly sized according to the needs of the home;
•if the Products are thermally stressed, constantly operating for several hours at high power (e.g. 3, 4 hours a day at outputs P4
or P5), we recommend more frequent cleaning and reducing the interval between routine maintenance operations according to the
operating condition of the product. We furthermore point out that these operating conditions increase the risk of premature wear of
the product, especially those parts exposed to the direct heat of the re (e.g. combustion chamber), the original condition of which
can undergo modications and deterioration which, among other things, could generate noise during operation of the unit due to
mechanical expansion.
The manufacturer will not be held liable if the above information is ignored.
We therefore recommend, in addition to complying with the cleaning, routine and extraordinary maintenance instructions provided, to
make meticulous use of the unit using the intended Timer and modulation programs, to correctly manage the internal temperature of
the structure.

10
2-INSTALLATION
The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. In any case, always
observe the regulations in force in the country of installation.
PELLETS
Wood pellets are manufactured by extruding sawdust which is produced during the processing of natural dried wood (without paint).
The compactness of the material is guaranteed by the lignin contained in the wood itself and allows the pellets to be produced without
glue or binders.
The market oers dierent types of pellets with characteristics that vary according to the wood mixtures used. The diameter varies
between 6 and 8 mm, with a standard length ranging from 3 to 40 mm. A good quality pellet has a density of between 600 and 750 or
more kg/cubic metres and a moisture content that accounts for 5 to 8% of its weight.
Pellets have technical advantages besides being an ecological fuel, as the wood residue is used completely, thereby achieving cleaner
combustion than that of fossil fuels.
While good-quality wood has a caloric value of 4.4 kW/kg (15% moisture, after about 18 months of seasoning), that of pellets is around
4.9 kW/kg. To ensure good combustion, the pellets must be stored in a dry place and protected from dirt. Pellets are usually supplied in 15
kg bags, therefore, storing them is very convenient.
Good quality pellets guarantee good combustion, thereby decreasing harmful emissions into the atmosphere.
The poorer the quality of the fuel, the more often the internal parts of the brazier and combustion chamber need to
be cleaned.
The main quality certications for pellets currently available on the European market guarantee that the fuel complies with class A1/A2
according to ISO 17225-2 (ex EN 14961). These certications include, for example, ENPlus, DINplus, Ö-Norm M7135, and specically
assure that the following characteristics are complied with:
•caloric value: 4.6 - 5.3 kWh/kg.
•Water content: ≤ 10% of the weight.
•Percentage of ash: max 1.2% of the weight (A1 less than 0.7%).
•Diameter: 6±1/8±1 mm.
•Length: 3-40 mm.
•Content: 100% untreated wood without the addition of binding agents (max 5% bark).
•Packaging: in sacks made from ecologically compatible or biologically decomposing material.
The company strongly recommends using certied fuel for its products (ENplus, DINplus, Ö-Norm M7135).
Poor quality pellets or others that do not comply with the characteristics specied previously may compromise the
operation of your product and can therefore make the guarantee and product liability invalid.
15 Kg BAG OF PELLETS

B
A
11
2-INSTALLATION
Technical Dept. - All rights reserved - Reproduction prohibited
FOREWORD
The installation position must be chosen according to the room, smoke extraction system and ue. Check with local authorities whether
there are any restrictive regulations in force regarding the combustion air inlet, the smoke outlet system, the ue or the chimneypot.The
manufacturer declines all responsibility in the event of installations that do not comply with the laws in force, incorrect room air exchange,
electrical connection non-compliant with the standards and inappropriate use of the appliance. The installation must be carried out by
a qualied technician, who must issue a declaration of conformity of the system to the purchaser and shall assume full responsibility for
nal installation and consequent good operation of the product.
In particular one must ensure that:
•there is a suitable combustion air inlet and smoke outlet in compliance with the type of product installed
•other stoves or devices installed do not cause negative pressure in the room where the product is installed (for sealed appliances only,
a maximum of 15 Pa of negative pressure in the room is allowed)
•when the product is switched on there is no reux of smoke in the room
•smoke extraction takes place in full safety (sizing, smoke seal, distances from ammable materials...).
We especially recommend checking the data plates of the ue for the safety distances that must be observed in the
presence of combustible materials and the type of insulating material to be used. These indications must be followed
strictly to prevent serious harm to people and to the integrity of the home. Installation of the appliance must ensure easy access
to clean the appliance itself, the smoke outlet pipes and the ue. It is forbidden to install the stove in rooms with a re hazard.
Installation in studio ats, bedrooms and bathrooms is only permitted with sealed or closed appliances equipped with
suitable combustion air ducting directly outside. Always maintain adequate distance and protection in order to prevent
the product from coming into contact with water.
If there are several appliances installed, the external air inlet must be sized accordingly.
MINIMUM DISTANCES
It is recommended to install the stove detached from any walls and/or furniture, with a minimum clearance to allow eective aeration
of the appliance and a good distribution of heat in the room. Comply with the distances from ammable or heat-sensitive objects (sofas,
furniture, wood panelling, etc.) as specied below. The frontal distance from ammable materials must be at least as specied in the
product’s technical data table.
If there are particularly delicate objects such as furniture, curtains or sofas, increase the stove distance accordingly.
If the oor is made of wood, it is recommended to t a oor protection sheet in compliance with the standards in
force in the country of installation.
AKI
HYDROMATIC 16/24 M1
Non-ammable walls Flammable walls
A = 2 cm
B = 5 cm
A = 2 cm
B = 20 cm
If the oor is made of combustible material, it is recommended to use a protection made of non-combustible material (steel, glass...) that
also protects the front from any falling combusted material during cleaning operations.
The appliance must be installed on a oor with adequate load capacity.
If the existing construction does not meet this requirement, appropriate measures must be taken (for example a load distribution plate).

min.3,5 metri
AT
(A)
AP
(B)
12
2-INSTALLATION
FOREWORD
This Flue chapter has been drawn up with reference to the provisions of European Standards (EN13384 - EN1443 - EN1856 - EN1457).
The chapter provides indications for installing an ecient and correct ue but is under no circumstances to substitute the regulations in
force, which the qualied manufacturer must be in possession of. Check with local authorities whether there are any restrictive regulations
in force regarding the combustion air inlet, the smoke outlet system, the ue or the chimneypot.
The Company declines all liability relating to the poor functioning of the stove if this is due to the use of an insuciently sized ue in
violation of the standards in force.

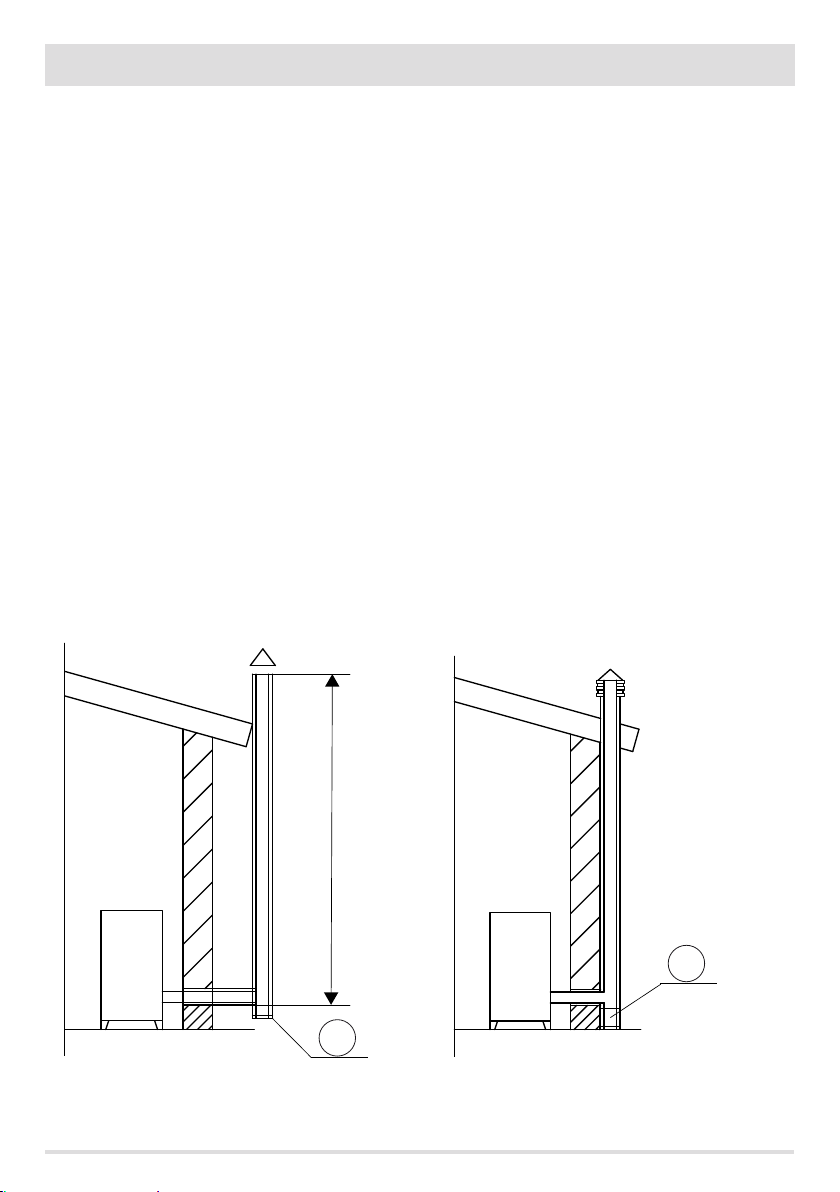

FLUE
The ue or chimney is of great importance for the proper operation of a solid fuel-burning heating appliance with forced draught. As
modern heating appliances have high eciency with cooler ue gases and consequently less draught, it is therefore crucial for the ue
to be built to professional standard and always kept in perfect working order. A ue for a pellet/wood red appliance must be at least
category T400 (or greater if the appliance requires so) and resistant to soot res. Smoke must be extracted through a single ue made of
insulated steel (A) or an existing ue that complies with the intended use (B).
A simple air shaft made of cement must be suitably piped. In both solutions there must be an inspection cap (AT) and/or inspection access
panel (AP) - FIG.1.
It is prohibited to connect more than one wood/pellet appliance (*) or any other type of appliance (cowl vents ...) to the same ue.
(*) unless there are national derogations (for instance in Germany), which under suitable conditions allow for the installation of several
appliances in the same replace. In any case, strictly follow the product/installation requirements of the relative regulations/legislation
in force in that country

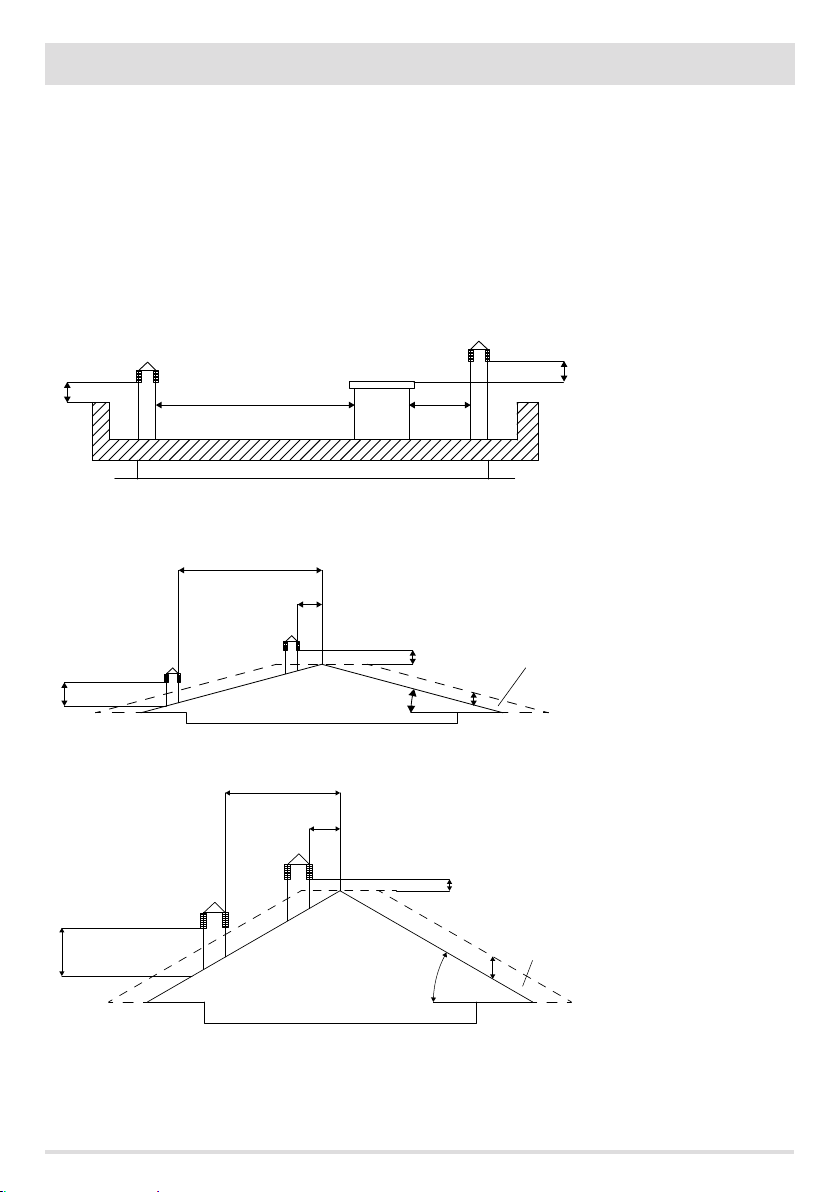

FIGURE 1 - FLUE

ABC
D
E
A
B
C
D
15° E
F
A
B
C
D
E
30°
F
13
2-INSTALLATION
Technical Dept. - All rights reserved - Reproduction prohibited
TECHNICAL SPECIFICATIONS
Have the eciency of the ue checked by an authorised technician.
The ue must be sealed against ue gases, in a vertical direction without narrowing, be made with materials impermeable to smoke,
condensation, thermally insulated and suitable to resist normal mechanical stress over time (we recommend replaces made of A/316
or refractory material with insulated round section double chamber). It must be suitably insulated externally to avoid condensation
and reduce the smoke cooling eect. It must be separated from combustible or easily ammable materials via an air gap or insulating
materials: check the distance specied by the chimney manufacturer according to EN1443. The chimney opening must be in the same
room as the appliance, or at most in the adjoining room, and have a soot and condensation collection chamber beneath the opening, and
be accessible via a sealed metal door.
FLAT ROOF
ROOF AT 15°
ROOF AT 30°
A = 0.50 metres
B = DISTANCE > 2 metres
C = DISTANCE < 2 metres
D = 0.50 metres
E = TECHNICAL VOLUME
A = MIN. 1.00 metre
B = DISTANCE > 1.85 metres
C = DISTANCE < 1.85 metres
D = 0.50 metres ABOVE HIGHEST
POINT
E = 0.50 metres
F = REFLUX AREA
A = MIN. 1.30 metres
B = DISTANCE > 1.50 metres
C = DISTANCE < 1.50 metres
D = 0.50 metres ABOVE HIGHEST
POINT
E = 0.80 metres
F = REFLUX AREA
FIGURE 2
FIGURE 3
FIGURE 4

A
B
D
60°
E
C
FA
B
C
D
E
45°
F
14
2-INSTALLATION
ROOF AT 60° ROOF AT 45°
SIZING
The negative pressure (draught) of a ue also depends on its height. Check the negative pressure with the values indicated in the technical
specications.The minimum height of the chimney is 3.5 metres.
The interior cross-section of the ue can be round (best solution), square or rectangular (the ratio between the internal sides must be
≤1.5) with the sides joined with a minimum radius of 20 mm. The dimension of the cross-section must be minimum Ø100mm.
The cross sections/lengths of chimneys must be correctly sized in accordance with the general method of calculation of UNI EN13384-1 or
other proven eciency methods.
Some examples of ues available on the market are provided below:
AISI 316 steel chimney with
double chamber insulated with
ceramic bre or equivalent
resistant up to 400°C.
Refractory chimney with
double insulated chamber and
external lightweight concrete
cladding with cellular material
such as clay.
Traditional square-section clay
chimney with insulating empty
inserts.
Avoid products with an internal
rectangular section where the
larger side is 1.5 times the
smaller side (e.g. 20x40 or
15x30).
EXCELLENT GOOD POOR VERY POOR
A = MIN. 2.60 metres
B = DISTANCE > 1.20 metres
C = DISTANCE < 1.20 metres
D = 0.50 metres ABOVE HIGHEST POINT
E = 2.10 metres
F = REFLUX AREA
A = MIN. 2.00 metres
B = DISTANCE > 1.30 metres
C = DISTANCE < 1.30 metres
D = 0.50 metres ABOVE HIGHEST POINT
E = 1.50 metres
F = REFLUX AREA
FIGURE 5 FIGURE 6

1
9
9
2
3
4
5
6
7
8
9
15
2-INSTALLATION
Technical Dept. - All rights reserved - Reproduction prohibited
MAINTENANCE
The ue must be kept clean, since the deposit of soot or unburnt oils reduces the cross-section, blocking the draught and thus
compromising the ecient operation of the stove and, if large build-ups accumulate, can catch re. The ue and chimneypot must be
cleaned and checked by a qualied chimney sweep at least once a year. Once the inspection/maintenance has been performed, request a
written report that the system is safe.
Failure to perform cleaning jeopardises the system’s safety.
CHIMNEYPOT
The chimneypot is a crucial element for correct operation of the heating appliance: we recommend a windproof chimneypot (A), see
Figure 7.
The area of the opening for smoke
extraction must be at least double the
cross-section of the ue/piped system,
and arranged so that the smoke outlet is
ensured even in the presence of strong
wind. The chimneypot must prevent
rain, snow or animals from entering the
chimney. The height of outow into the
atmosphere must be beyond the reux
area caused by the shape of the roof or any
nearby obstacles (see Figures 2-3-4-5-6).
CHIMNEY COMPONENTS
FIGURE 7
FIGURE 8
KEY:
(1) CHIMNEYPOT
(2) REFLUX CHANNEL
(3) SMOKE DUCT
(4) THERMAL INSULATION
(5) OUTSIDE WALL
(6) CHIMNEY FITTING
(7) SMOKE DUCT
(8) HEAT GENERATOR
(9) INSPECTION ACCESS PANEL

A
B B
A
C
MIN.1,5 m MIN.1,5 m
MIN.1,5 m
MIN.0,3 m
16
2-INSTALLATION
EXTERNAL AIR INLET
It is mandatory to provide an adequate external air inlet that supplies the combustion air required for the product to work properly. The
ow of air between the outside and the installation room may be direct, through an inlet in an external wall of the room (preferable
solution see Figure 9 a), or indirect, via air intake from adjoining rooms and connecting permanently with the installation room (see Figure
9 b). Adjoining areas may not include sleeping areas, bathrooms, garages or in general areas with a re hazard. During installation it is
required to check the minimum clearances required to draw air from outside. Take into account the presence of doors and windows that
could interfere with the proper ow of air to the stove (see diagram below).
The air inlet must have a minimum net total area of 80 cm2: the surface must be increased accordingly if there are other active generators
(for example: electric fan for stale air extraction, range cooker hood, other stoves, etc.), which could cause a depression in the room. Make
sure that, with all appliances on, the pressure drop between the room and the outside does not exceed the value of 4 Pa (also for Oyster
appliances if the combustion air has not been suitably ducted outside). If required, increase the intake section of the air inlet, which must
be made at oor level and always protected with a bird-proof outer protection grid and in such a way that it cannot be obstructed by any
object.
It is possible to connect the air required for combustion
directly to the outside air inlet, by using a pipe of at
least Ø50mm, with maximum length of 3 linear
metres. Each pipe bend must be considered equivalent
to a linear metre. To attach the pipe see the rear of the
stove.
For stoves installed in studio ats, bedrooms and
bathrooms (where allowed), it is mandatory to
connect the combustion air outside. Specically for
sealed stoves the connection must be sealed in order
not to compromise the overall sealing of the system.
FIGURE 9 A - DIRECTLY FROM OUTSIDE
FIGURE 10
FIGURE 9 B - INDIRECTLY FROM THE ADJACENT ROOM
A=AIR INLET
B=ROOM TO BE VENTILATED
C=INCREASE OF THE GAP UNDER THE DOOR

17
2-INSTALLATION
Technical Dept. - All rights reserved - Reproduction prohibited
DISTANCE (metres) The air inlet must be at a distance of:
1.5 m BELOW Doors, windows, smoke outlets, gaps, ....
1.5 m HORIZONTALLY Doors, windows, smoke outlets, gaps, ....
0.3 m ABOVE Doors, windows, smoke outlets, gaps, ....
1.5 m AT A DISTANCE from smoke outlet
CONNECTION TO THE FLUE
The connection between the ue and the appliance must be via a smoke duct compliant to EN 1856-2. The connecting section must
extend no more than 4 m horizontally, with a minimum slope of 3% and with a maximum of 3 x 90° bends (accessible for inspection - do
not count theTee tting at the appliance outlet).
The diameter of the smoke duct must be equal to or greater than that of the outlet of the appliance (Ø 80 mm).
TYPE OF SYSTEM SMOKE DUCT
Maximum length
(with 1 accessible 90° bend)
6.5 metres
Maximum length
(with 3 accessible 90° bends)
4.5 metres
Maximum number of accessible 90° bends 3
Horizontal sections
(minimum slope 3%)
4 metres
Use a smoke duct according to the regulations in force in the country of installation and verify that it is compatible with the product and
installation characteristics.The temperature class of the smoke duct must exceed operating temperatures of the appliance.
It is prohibited to connect more than one appliance to the same smoke duct, or the discharge from hoods above it. It is forbidden to extract
the combustion products directly through the wall, whether towards indoor spaces or outdoors.
Should there be ammable or heat-sensitive structures, the smoke duct must respect the safety distances specied in the data plate.

T
I
S
I
U
B
A
P
U
I
I
C
4
3
D
2
I
E
V
U
1
F
18
2-INSTALLATION

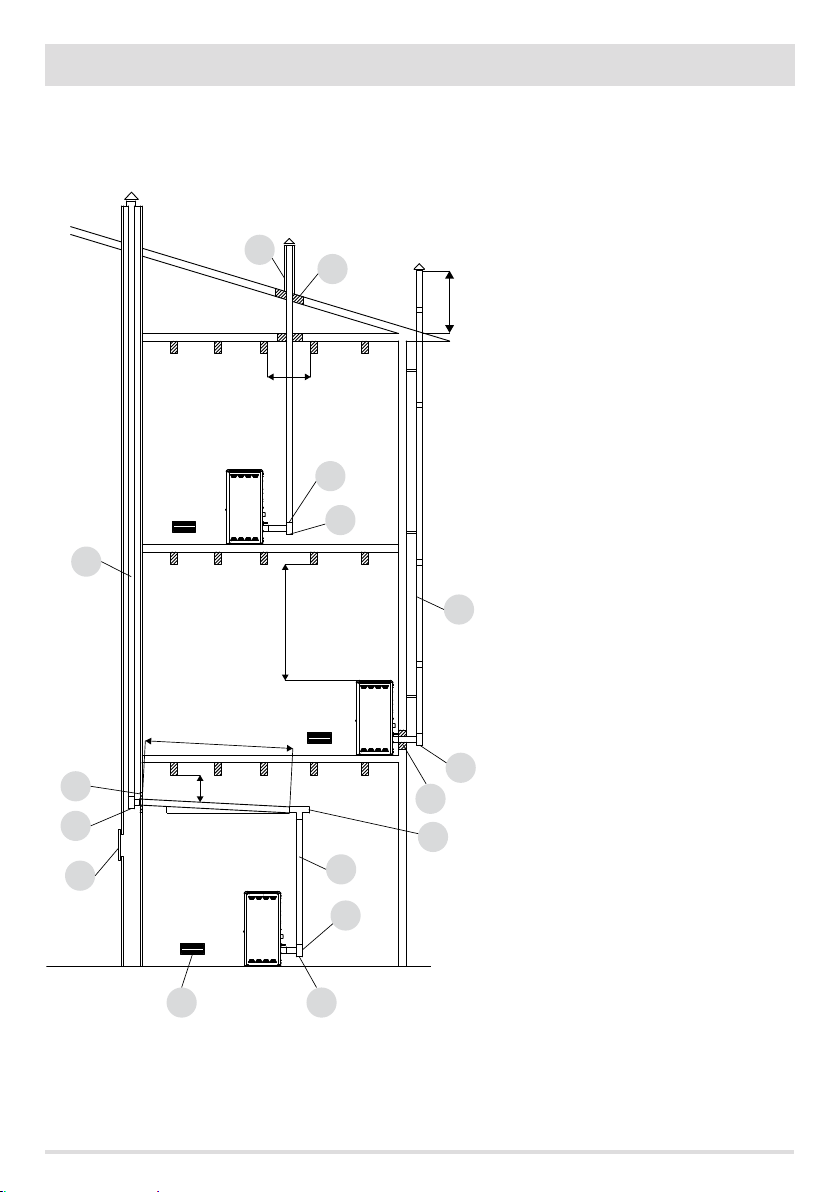

EXAMPLES OF CORRECT INSTALLATION
1. Installation of Ø120mm ue with hole for the passage
of the pipe increased by:
minimum 100mm around the pipe if next to non-
ammable parts such as cement, brick, etc.; or
minimum 300mm around the pipe (or as required by
plate data) if next to ammable parts such as wood etc.
In both cases, install suitable insulation between the ue
and the ceiling.
Always check and comply with the plate data of the
ue, specically the minimum safety distances from
combustible materials.
The previous rules also apply for holes made in walls.
2. Old ue, minimum pipe Ø100mm with the inclusion of
an external access door for chimney cleaning.
3. External ue made of insulated stainless-steel pipes,
i.e. with double walls minimum Ø100mm: all securely
mounted on the wall. With windproof chimneypot. See
g. 7 type A.
4. Ducting system using Tee ttings that allow easy
access for cleaning without having to remove the pipes
FIGURE 11
U = INSULATION
V = ANY REDUCTION FROM 100 TO 80 MM
I = INSPECTION CAP
S = INSPECTION ACCESS PANEL
P = AIR INLET
T = TEE FITTING WITH INSPECTION CAP
A = MINIMUM 40 MM
B = MAXIMUM 4 M
C = MINIMUM 3°
D = MINIMUM 400 MM
E = HOLE DIAMETER
F = SEE FIG.2-3-4-5-6
