MD SPORTS WS700Y22009 User manual

MODEL
WS700Y22009
www.medalsports.com877-472-4296
Assembly Instructions

(Standard Warranty is only 90 days)
Extend your Kayak’s warranty to 1 Year
Register Your Kayak
This product is covered by a limited warranty that is effective for 90 days from the date of purchase. If, during the limited
warranty period, a part is found to be defective or breaks, we will offer replacement parts at no cost to you, the customer.
The only exceptions to the warranty include mainframes, table tops, playing surfaces, batteries or tools.
The above warranty will not apply in cases of damages due to improper usage, alteration, misuse, abuse, accidental
damage or neglect.
This Limited Warranty gives you specific legal rights and you may also have other rights vary from one State (province) to
another.
A PURCHASE RECEIPT (or other proof of purchase) will be required before any warranty service is initiated. For all
requests for warranty service, please feel free to contact our Consumer Service Department.
Please be aware of your product’s Limited Warranty for the return/refund policy from the store, We, at Medal Sports,
cannot handle the product which is out of product’s limited warranty since we only provide available parts. Thank you!
PLEASE CONTACT US BEFORE RETURNING THE PRODUCT TO THE STORE!
WS700Y22009 1(Continued on the next page) www.medalsports.com
English
LIMITED 90 DAYS WARRANTY
MD SPORTS
877-472-4296
www.medalsports.com
Customer Service Toll Free
Please Contact
Mon.-Fri., 9:00 a.m. to 5:00 p.m. EST
For additional resources and Frequently Asked Questions, please visit us at
DO NOT RETURN TO STORE
WE ARE READY TO HELP
KAYAK
EXTENDED WARRANTY

WS700Y22009 2(Continued on the next page) www.medalsports.com
PLEASE READ THIS MANUAL CAREFULLY AND IN ITS ENTIRETY BEFORE INFLATING, ASSEMBLING, OR USING YOUR
AQUA CRUZ KAYAK.
Please, carefully read this manual before using this product. Familiarize yourself with the features of your kayak and get
professional training if you are new to using this type of board. It is critical to observe proper safety measures and
waterway restrictions that apply to all kayaks, to have the most fun. Always check the local weather conditions before
venturing out on your kayak. Take care to avoid getting caught by currents in tidal inlets, open seas, small channels, or
shallow water zones.
1. This is not a children's toy. This product is not meant for use by children 14 years of age or below; it is designed and
intended for use by individuals over the age of 14.
2.
Check your local regulations to familiarize yourself with any rules or regulations that may apply to water sports and watercraft.
3. This is not a life-saving device.
4. Keep it away from fire.
5. DO NOT use around sharp objects. Avoid all contact between the buoyancy tubes and sharp objects or corrosive
liquids (such as acids).
6. DO NOT use the kayak while impaired or under the influence of intoxicants such as alcohol or drugs.
7. DO NOT use the board for anything other than its intended use.
8. DO NOT use a high pressure air pump to inflate this product. Inflate according to the rated pressure.
Over-inflation may cause the product to burst, which may cause injury.
9. Never use the board in the early morning, late evening, or when there is little light.
10. Always exercise safe boarding and do not attempt anything you cannot handle when you are out on the water.
11. Before every use, carefully check for any signs of wear or leakage to ensure your kayak is in good working condition.
DO NOT use if there is any damage.
12. Keep this instruction manual for future reference.
13. We recommend that you always go kayaking with a friend or companion—it's safer and more fun.
14. DO NOT overload.
15. Beware of offshore winds, open waters, currents, or tides as they may lead to navigation problems.
16. Gear and people must be evenly distributed over the kayak's floor.
17. Never wrap ropes around your head or any other body part.
18. Never attempt to attach a motor to a kayak.
19. Maximum capacity 100 kg. Use only under competent supervision.
20. Pay attention to winds and currents.
21. Always wear a personal flotation device(PFD).
22. Be especially careful when docking. Arms and legs may be injured if they are outside the kayak.
23. Keep clear of swimmers and divers. Always avoid areas where divers/swimmers are in the water.
24. Avoid sharp turns at speed—you could get ejected from the kayak.
25. Do not unscrew the quick-deflation cap while kayaking or when the kayak is in the water.
26. Do not point the air valve towards your face when inflating or deflating.
27. All boats have a HIN (Hull Identification Number). Do not alter, cover, or remove the HIN as it may invalidate the
warranty and lead to legal problems, Record the HIN of your kayak for your personal records.
WS700Y22009 2(Continued on the next page) www.medalsports.com
English
IMPORTANT SAFETY INSTRUCTIONS
MANUFACTURER RECOMMENDATION
MAXIMUM CAPACITIES 1PERSON / 220LBS
LOAD CAPACITY
(BASIC FLOTATION) 100kg (220LBS) MAX.
RECOMMENDED WORKING
PRESSURE FOR EACH
AIR CHAMBER 0.069 bar (1 psi)

WS700Y22009 3(Continued on the next page) www.medalsports.com
English
CLEANING
• There is very little that you have to do to keep your kayak in good condition for many years.
Do not store your kayak inflated. If you store it in a closet, basement, or garage, we suggest you pick a cool, dry place,
and make sure the kayak is clean and dry before you store it, or else mold can accumulate.
•
Use as few cleaning agents as possible, do not discharge waste agents into water, and clean your kayak on land if possible.
• Spot-clean the product with a damp cloth if it gets dirty from outdoor use.
•
Do not use wire brushes, metal, or sharp utensils, abrasive scouring pads, or corrosive detergents to clean this product.
• Clean your kayak after each use to prevent damage from sand, salt water, or sun exposure.
STORAGE
• Store it in a cool and dry place.
• Place the parts in the carry bag (9) when not in use.
CLEANING AND STORAGE
1. Deflate the product.
2. Clean the defective area.
3. Cut a round or oval patch.
4. Remove the paper backing.
5. Apply the sticky film to the repair area and squeeze out all air bubbles.
6. Do not inflate the product until the patch has been fixed in place for at least 20 minutes.
HOW TO USE THE REPAIR PATCH
• Look at your kayak closely from a short distance. Inspect the exterior thoroughly by inverting it. It should be easy to spot
any major leakage.
• Dishwashing liquid and water in a spray bottle can be used to find a leak if you have a general notion of where it is. The
bubbles created by the leak will show you exactly where the leak is.
• If you suspect a leak in a valve, you can test it by spraying soapy water around the valve and its base.
•
The internal air pressure of inflatable products can be affected by the outside air temperature and weather. In cold
weather, the product will lose some pressure as the air contracts. If this happens, try pumping in some more air into the
product. On the other hand, the air expands when the temperature increases. The product will fail due to overpressure
if you do not let some air out.
TROUBLESHOOTING

ACCESSORIES
NOTE: Part (1) is not available as a replacement part.
WARNING
WS700Y22009 4(Continued on the next page) www.medalsports.com
English

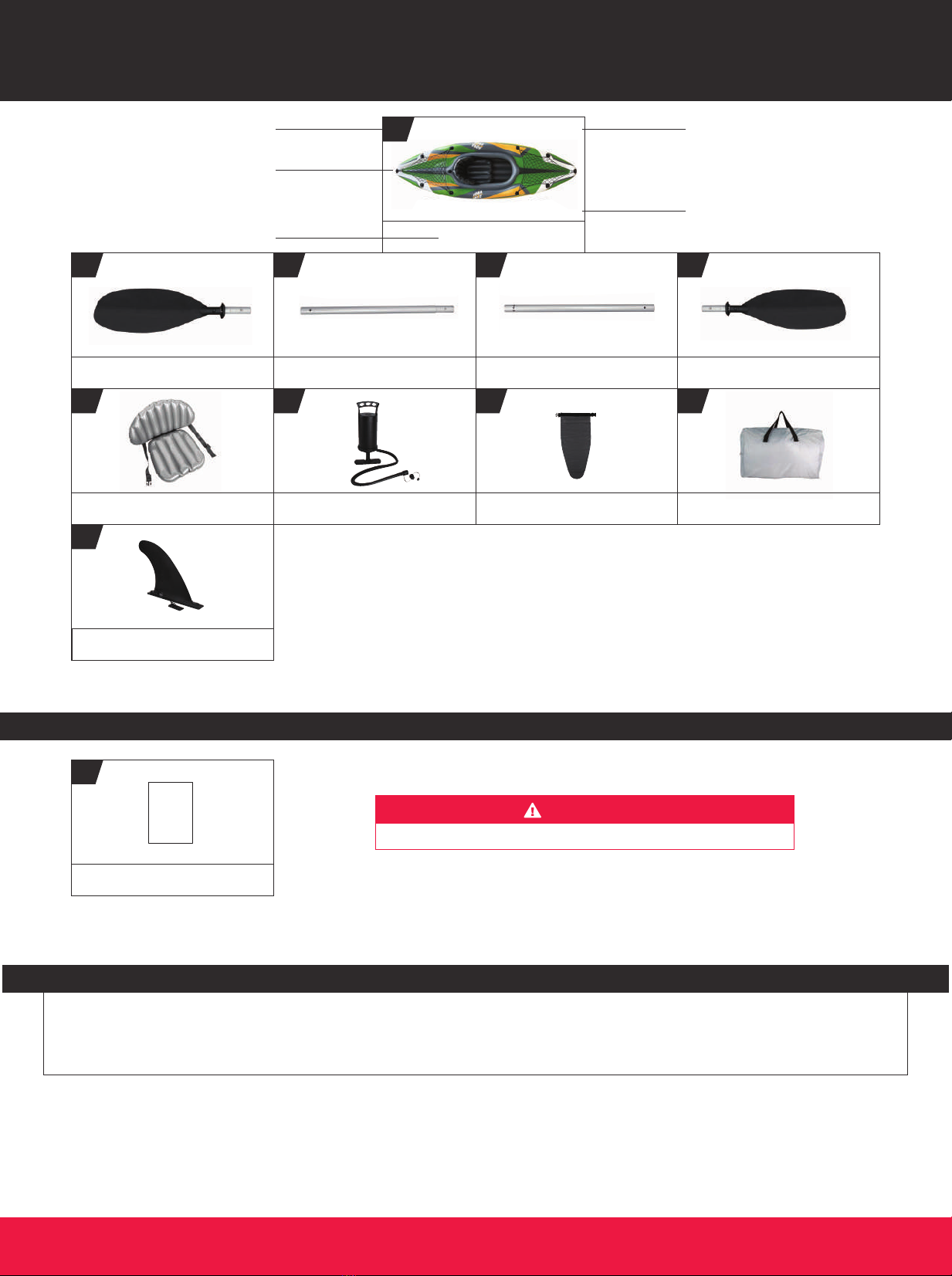

PARTS IDENTIFIER
Find a clean, level place to begin the assembly of your product.
Verify that you have all listed parts as shown on the part list page. If any parts are missing, call our customer service.
1.
2.
BEFORE ASSEMBLY
11
x2
Repair Patch
PART NUMBER FIG. NUMBER
QUANTITY
PART
PART NAME Inflatable Kayak
1
x1
FOR FIG. 1
Paddle - Blade (A)
2
x1
FOR FIG. 5
Paddle - Shaft (A)
3
x1
FOR FIG. 5
Paddle - Shaft (B)
4
x1
FOR FIG. 5
Paddle - Blade (B)
5
x1
FOR FIG. 5
Removable Inflatable Seat
6
x1
FOR FIG. 2
Dual Action Hand Pump
7
x1
FOR FIG. 1
Waterproof Bag
8
x1 x1
99
Carry Bag
Snap-in Fin
10
x2
FOR FIG. 4

WS700Y22009 5(Continued on the next page) www.medalsports.com
English

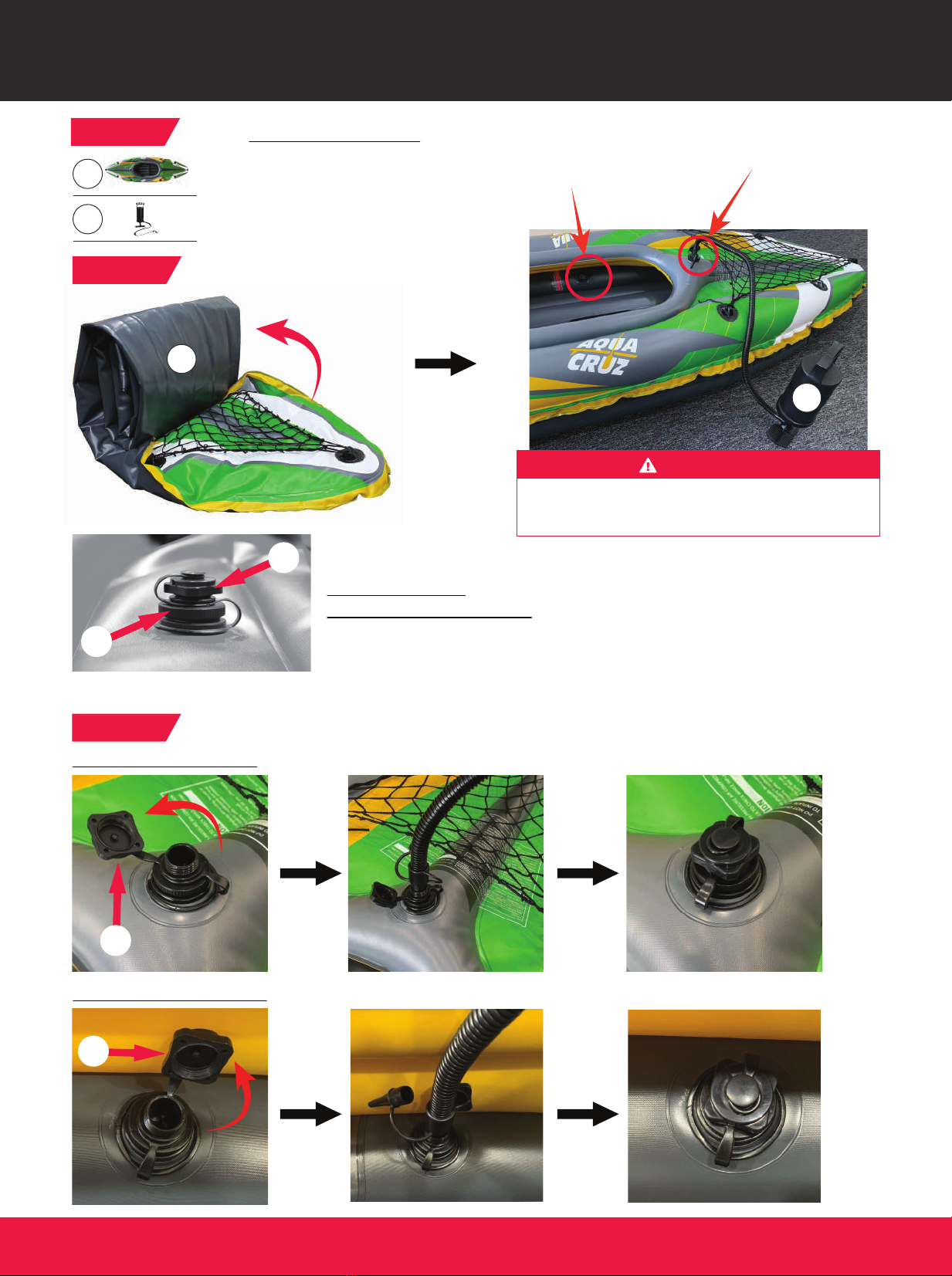

INFLATION
FIG. 1
x1
1
x1
7
STEP 1
STEP 2
DO NOT USE HIGH PRESSURE AIR COMPRESSORS.
DO NOT OVER INFLATE
FILL WITH COLD AIR ONLY
WARNING
Top air chamber
valve
TOP AIR CHAMBER VALVE
Main air chamber
valve
MAIN AIR CHAMBER VALVE
INFLATING KAYAK
1
7
B
A
A. Inflation cap
B. Quick-deflation cap
A
A

WS700Y22009 6(Continued on the next page) www.medalsports.com
English

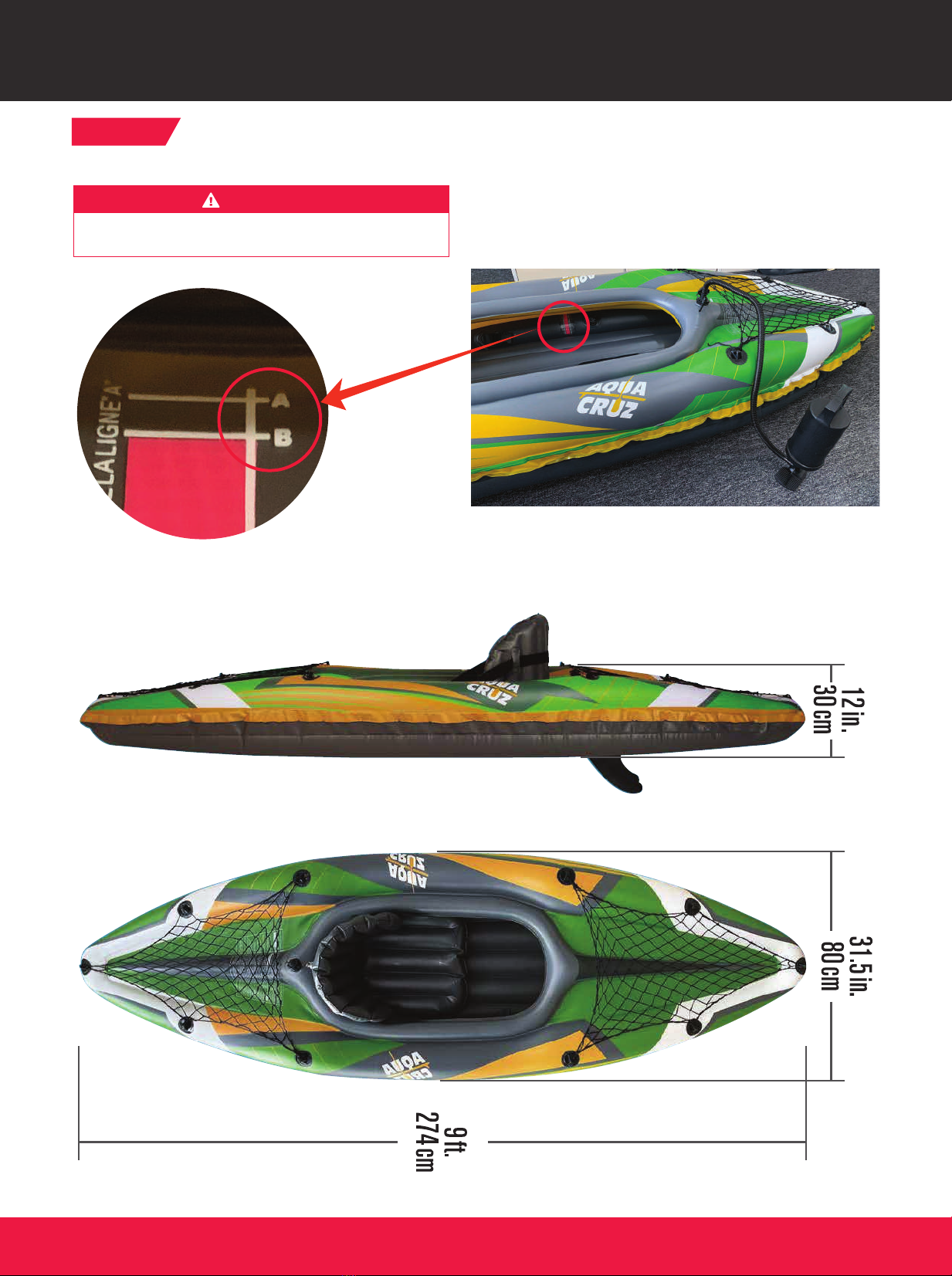

INFLATION
STEP 3
INFLATE TUBE UNTIL INDICATOR REACHES LINE “A”
NEVER INFLATE TUBE BEYOND LINE “B”
WARNING

WS700Y22009 7(Continued on the next page) www.medalsports.com
English

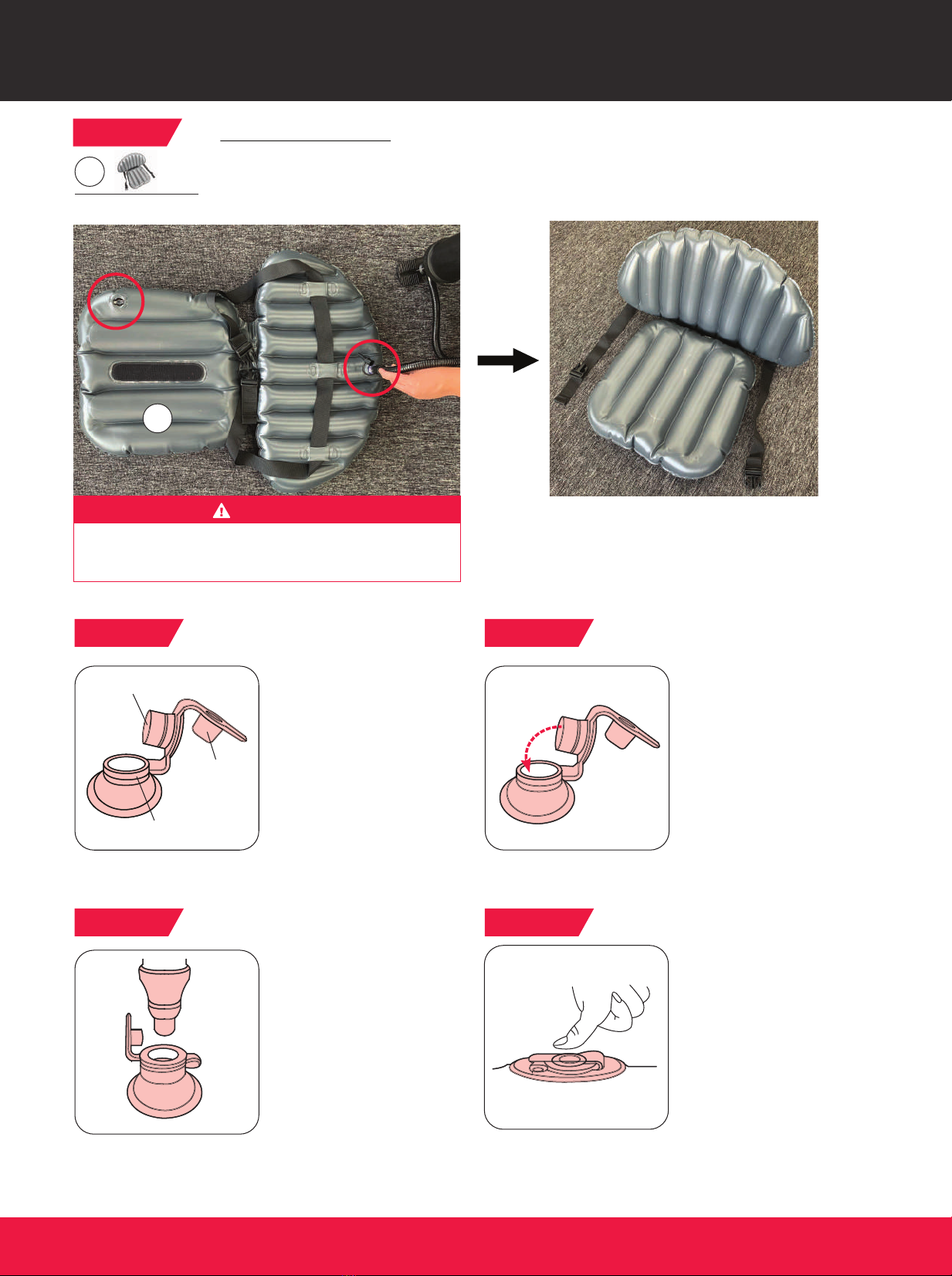

INFLATION
FIG. 2
x1
6
INFLATABLE SEAT
DO NOT USE HIGH PRESSURE AIR COMPRESSORS.
DO NOT OVER INFLATE
FILL WITH COLD AIR ONLY
WARNING
6
STEP 1 STEP 2
STEP 3 STEP 4
Quick inflation inlet
Plug
One-way inlet
Open the plug and inflation valve. Make sure the quick inflation inlet is capped.
Inflate the seat to full volume using the
one-way inlet.
After it is completely inflated, insert the
air valve plug.

WS700Y22009 8(Continued on the next page) www.medalsports.com
English

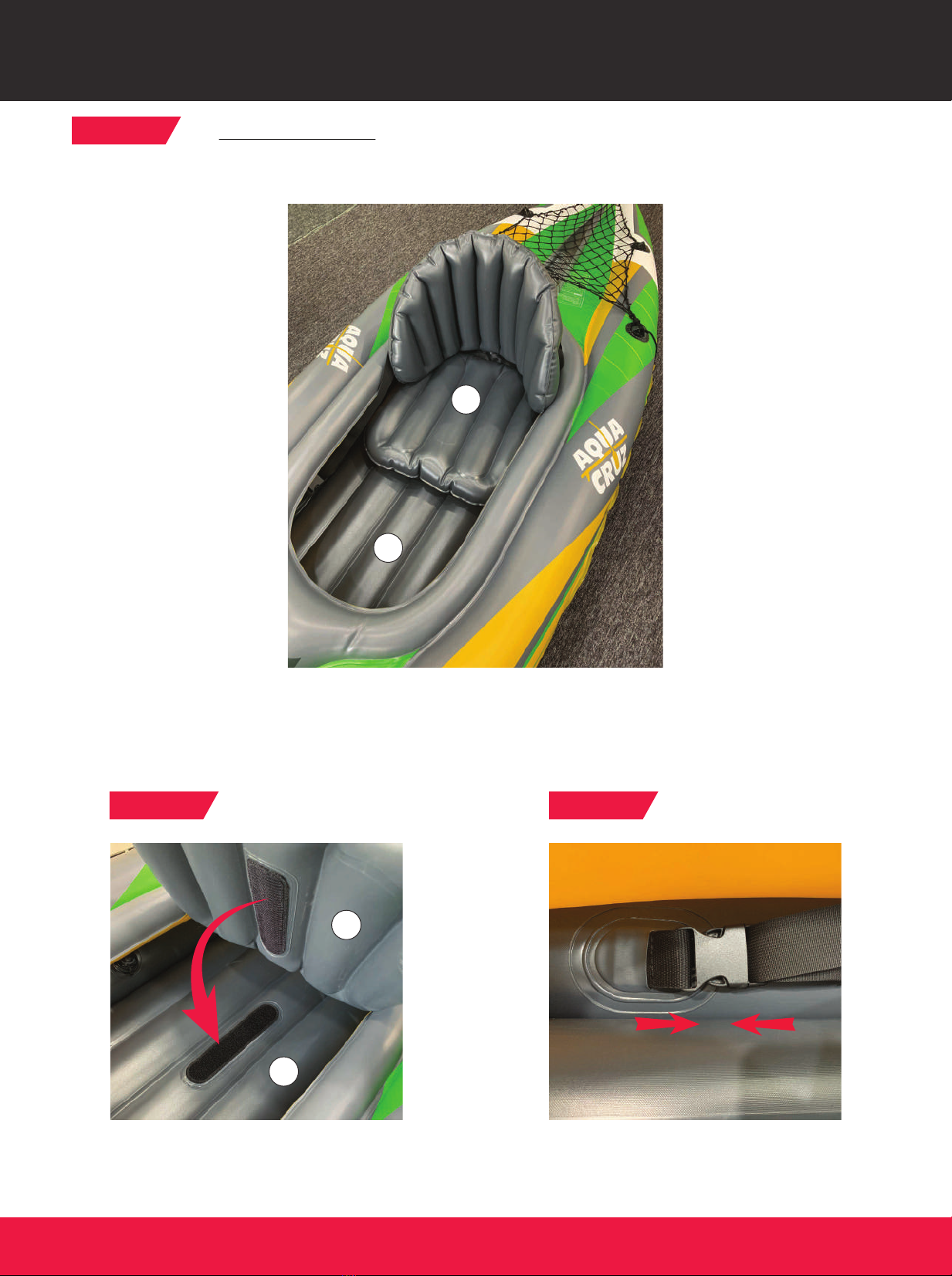

ASSEMBLY
FIG. 3 SEAT ASSEMBLY
STEP 1 STEP 2
6
1
6
1

WS700Y22009 9(Continued on the next page) www.medalsports.com
English

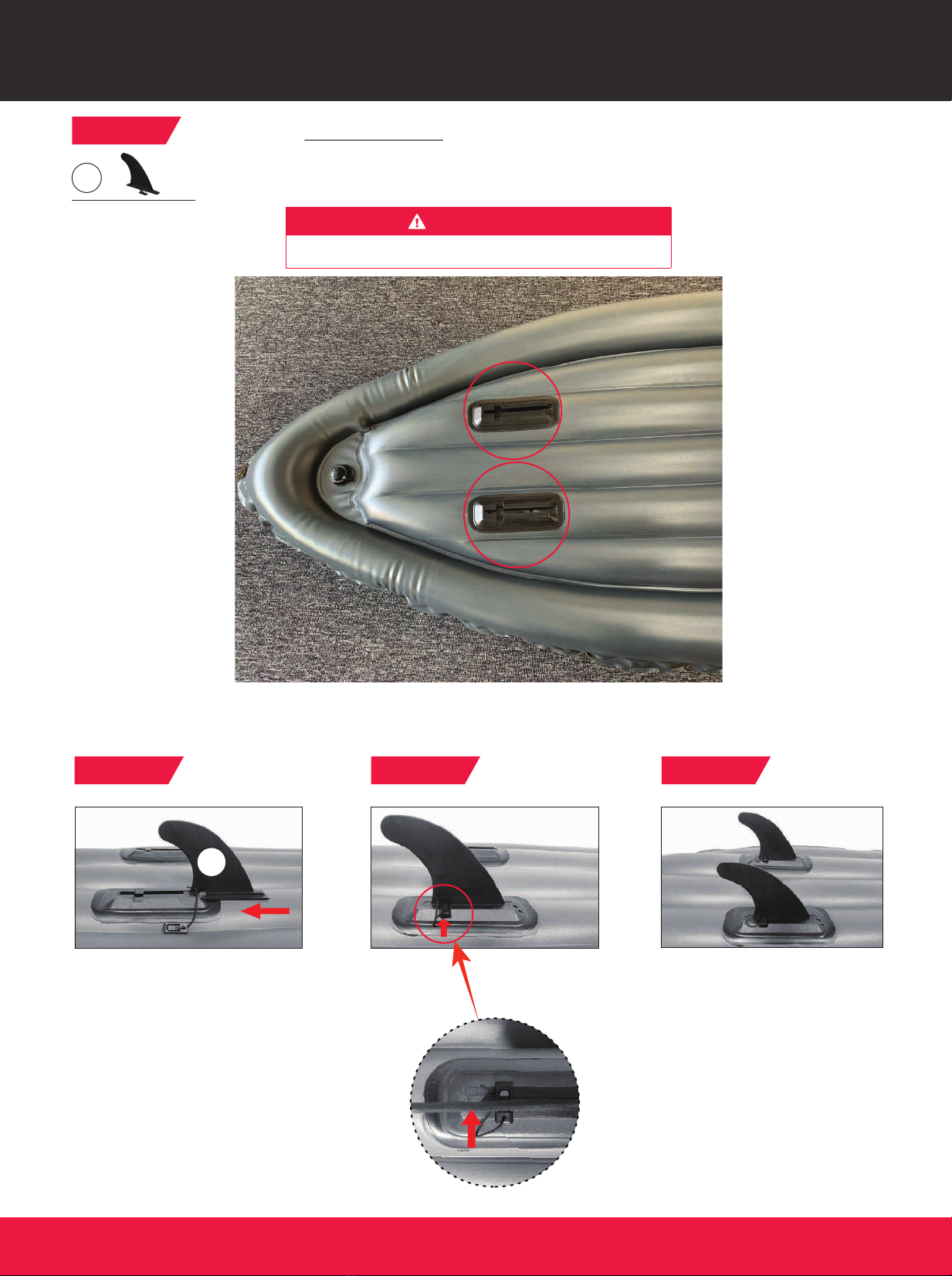

ASSEMBLY
FIG. 4
10 x2
FIN ASSEMBLY
IMPORTANT
Make sure the fin is secured before paddling.
STEP 1 STEP 2 STEP 3
10

WS700Y22009 10(Continued on the next page) www.medalsports.com
English

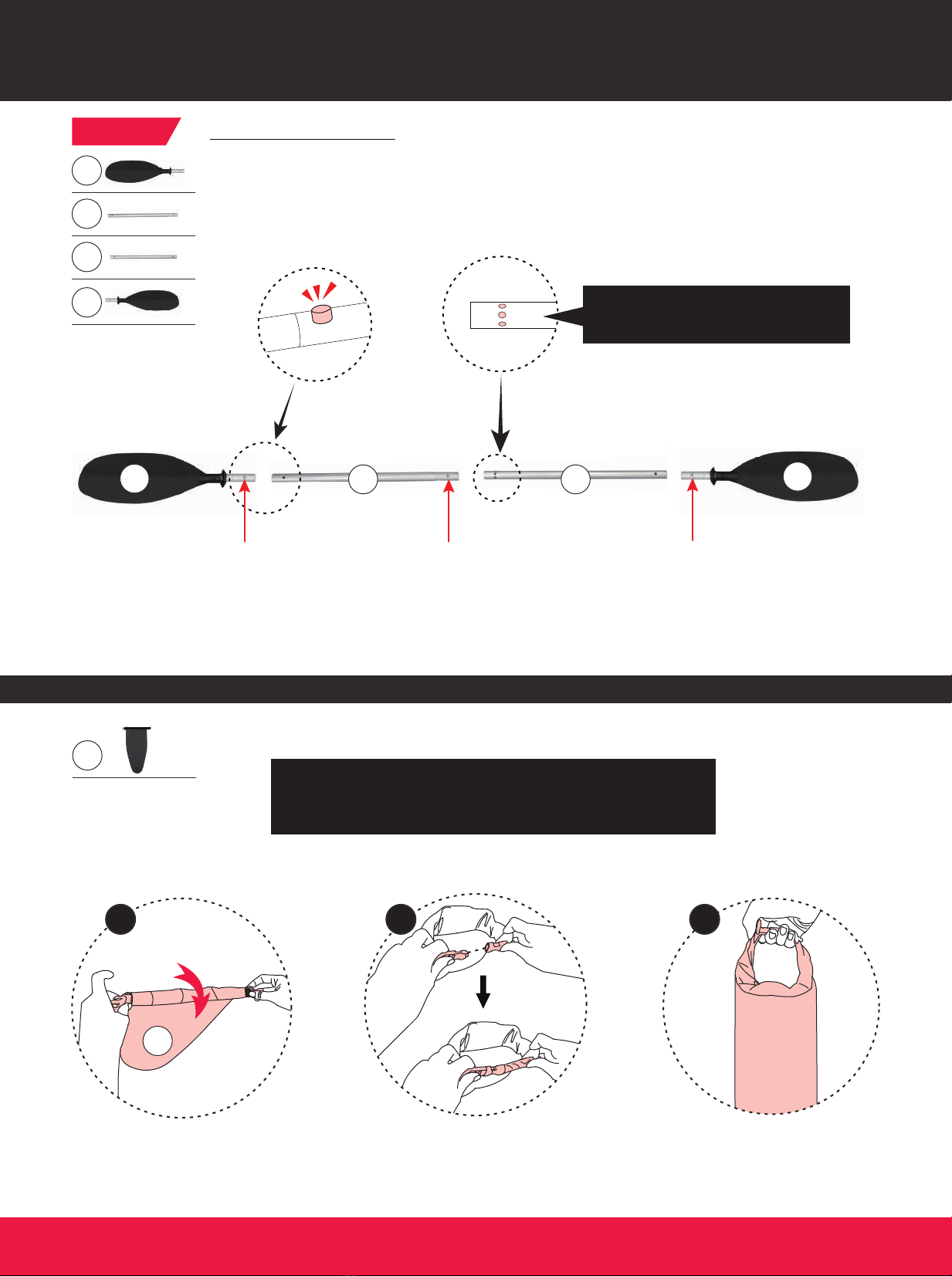

ASSEMBLY
8x1 Note: The waterproof bag can be used to store personal
belongings and other small things. Close the bag in the order
A-B-C to keep the bag waterproof.
Note: These three holes are used to
adjust the angle of the paddles.
A B C
STORAGE - WATERPROOF BAG
FIG. 5
2
x1
x1
3
x1
4
5x1
PADDLE ASSEMBLY
8
25
3 4
Push Button Push Button Push Button

WS700Y22009 11(Continued on the next page) www.medalsports.com
English

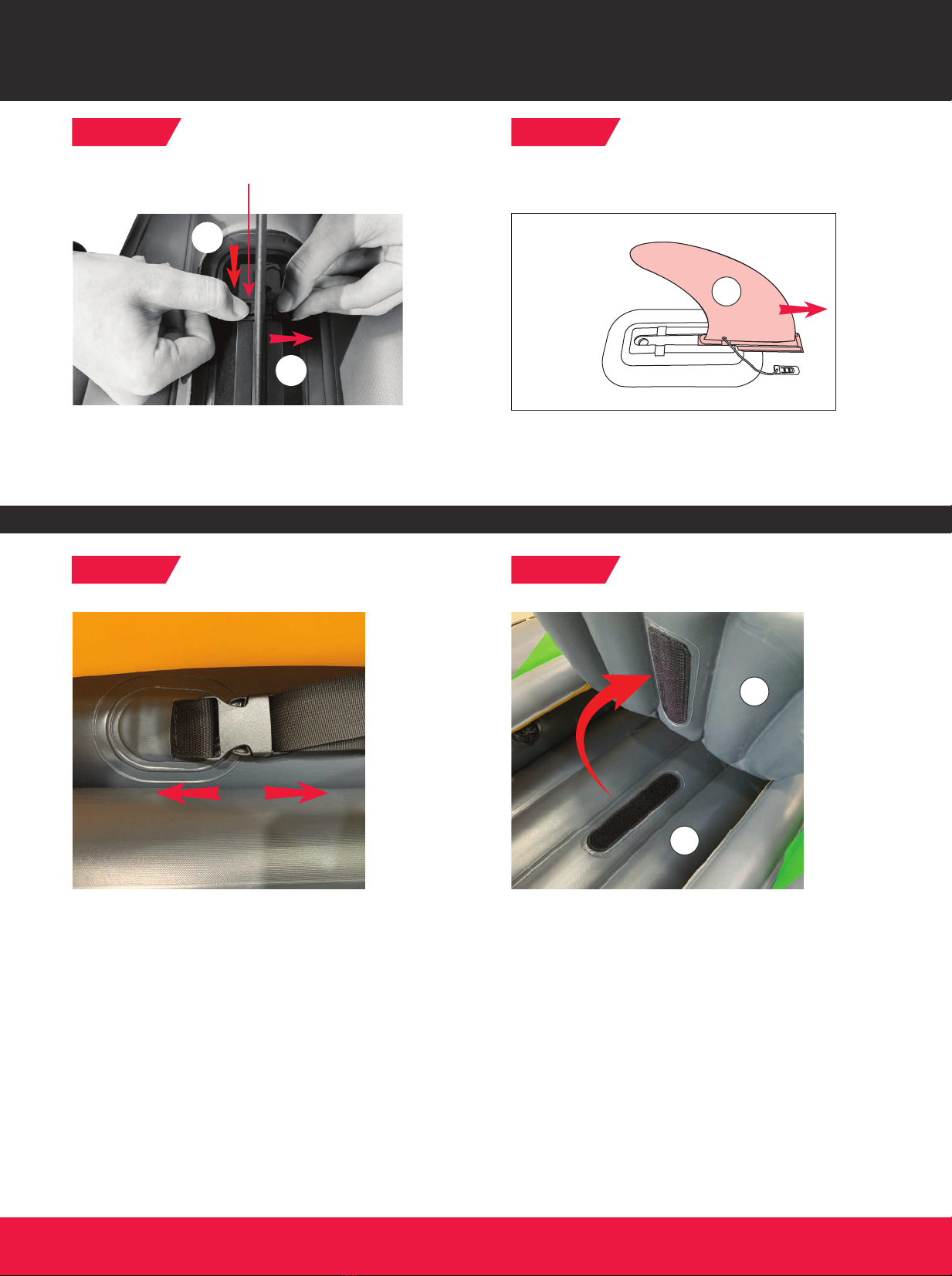

STORAGE - DISASSEMBLING THE FIN
STEP 1 STEP 2
STORAGE - DISASSEMBLING THE SEAT
STEP 1 STEP 2
1
6
10
Push Button
A
B

WS700Y22009 12(Continued on the next page) www.medalsports.com
English

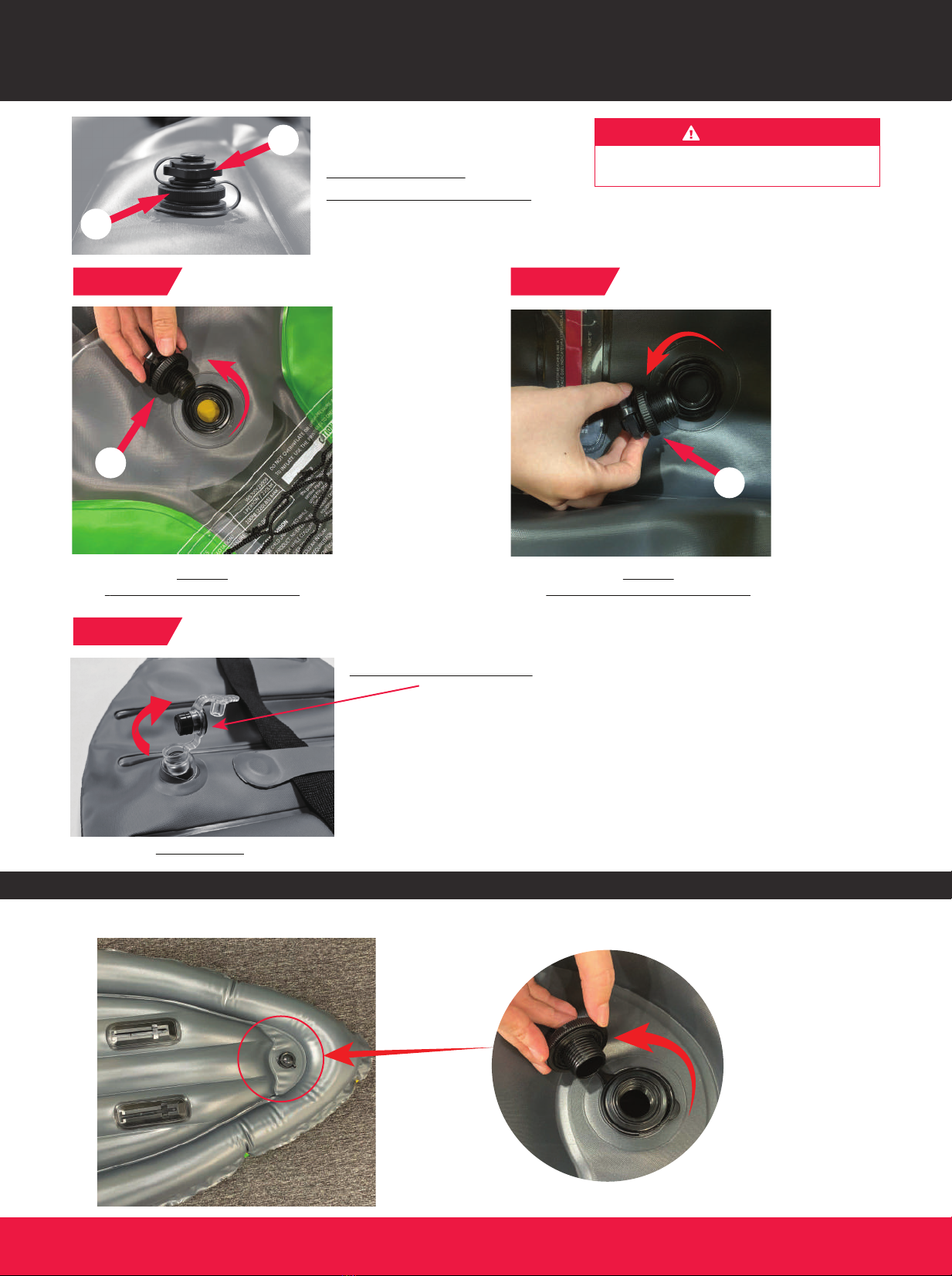

DEFLATING THE KAYAK AND SEAT
DRAIN THE KAYAK
Remove the valve cap to drain water from the kayak.
STEP 1
STEP 3
STEP 2
KAYAK
(TOP AIR CHAMBER VALVE)
SEAT VALVE
KAYAK
(MAIN AIR CHAMBER VALVE)
Double valve does not operate when
the quick-deflation cap is off.
CAUTION
B
A
A. Inflation cap
B. Quick-deflation cap
B
B
Quick-deflation cap
DRAIN THE KAYAK

WS700Y22009 13(The last page) www.medalsports.com
English

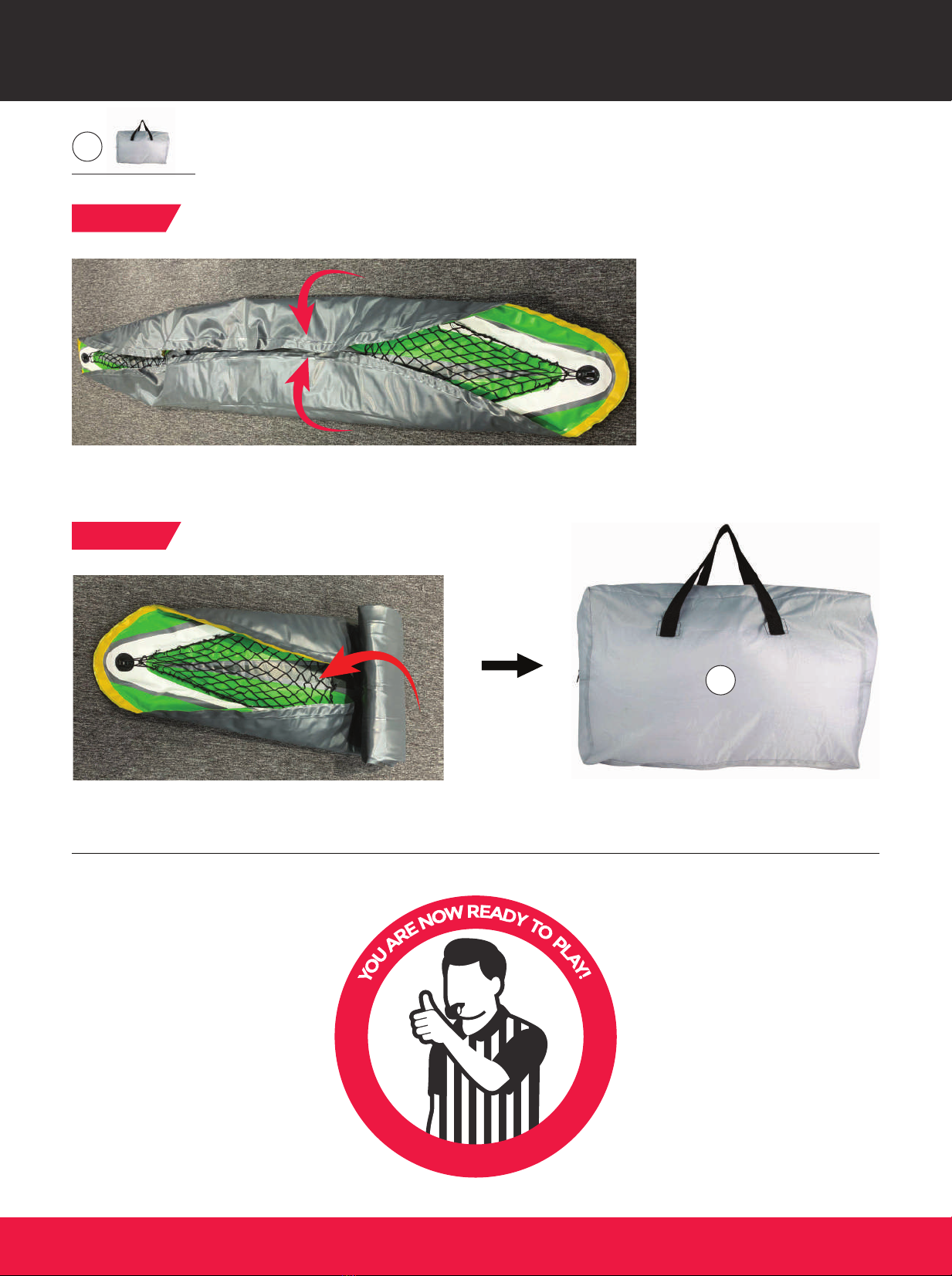

STORAGE - KAYAK
x1
STEP 2
STEP 1
1
9
9

www.medalsports.com
